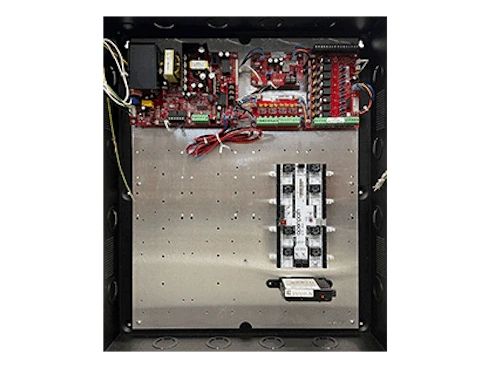

The 8-Door Large Smart Hub combines the Access Control Core, an 8-port board and a power supply in a spacious enclosure for easy wiring and installation. Supporting up to 8 readers and 8 doors, it’s ideal for a single closet or single floor deployment. All entry decisions are made securely by the Access Control Core, and it’s easily configured using the Admin App.
Access control for the modern building Avigilon Alta is a complete access control solution with sleek hardware, cloud management and easy-to-use mobile credentials. Designed to scale with ease, the system provides futureproof protection for any facility.
Get up and running faster The 8-Door Large Smart Hub has a spacious and easy-to-install design that connects readers, REX and contact sensors for up to 8 doors, and provides power for the necessary components.
Hassle-free installation The Large Smart Hub combines an ACU, expansion board and flex power supply, with an aluminum backplate to simplify installation. Pre-assigned input ports and industry standard wiring streamline setup.
Secure, trusted and fail-safe Credentials are decrypted by the ACU, reducing the risk of data being intercepted at the reader. All cloud configurations are stored locally to continue operation in the event of an outage.
Smart monitoring Built-in network and device monitoring with diagnostic insight and troubleshooting tools help resolve issues before they become disruptions.
Case design
Cabinet
Maximum number of doors
8 door(s)
Interface
Ethernet
Display type
Not applicable
Supported network protocols
TLS 1.2+
Exit request
Yes
Relay inputs
12
Exit button supported
Yes
Compliance certificates
CE, Industry Canada (IC), Federal Communications Commission (FCC), Norma Oficial Mexicana (NOM), RoHS, UKCA, UL
Compatible products
Up to 8 Avigilon Smart Readers
Ethernet LAN
Yes
Ethernet LAN data rates
10,100,1000 Mbit/s
Number of built-in relays
12
Wiegand interface
Yes
Alarm input channels
20
Certification
CE (Europe), IC (Canada), FCC (United States), NOM (Mexico), RoHS, UKCA (United Kingdom), UL 294, CAN/ULC 60839-11-1
Operating voltage
24 V
DC voltage range
12/24 V
Switchable current
5 A
Switchable DC voltage
24 V
AC voltage range
120 - 230 V
Operating temperature (T-T)
0 - 50 °C
Operating relative humidity (H-H)
5 - 85%
Country of origin
United States
Width
508 mm
Depth
171 mm
Height
610 mm
Weight
11.3 kg
