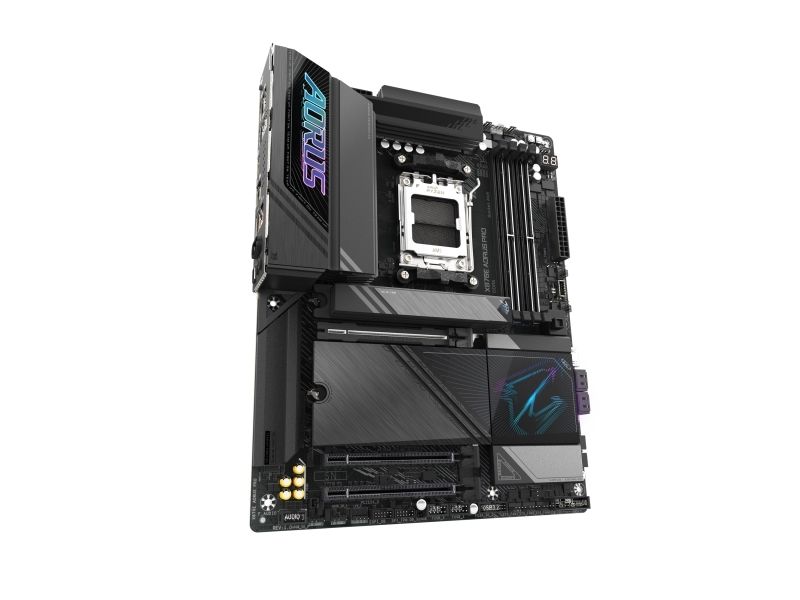

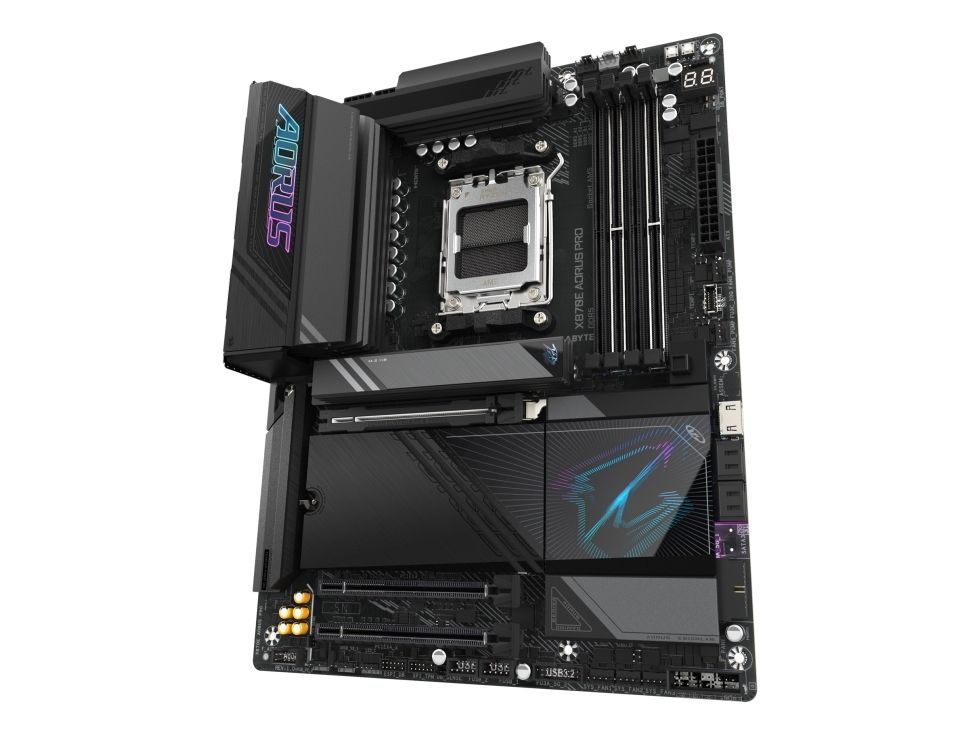

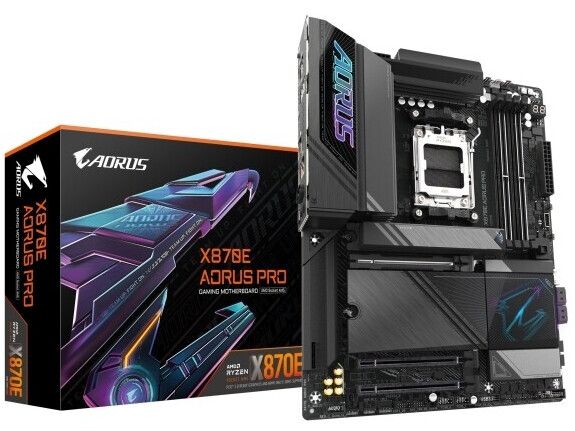

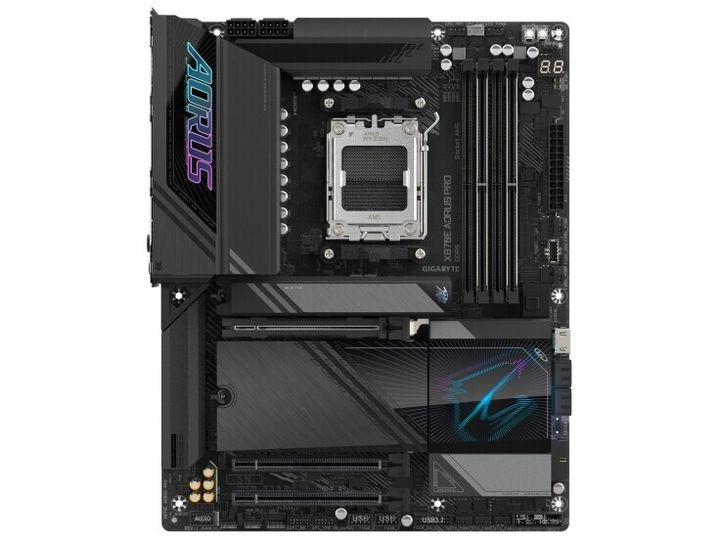

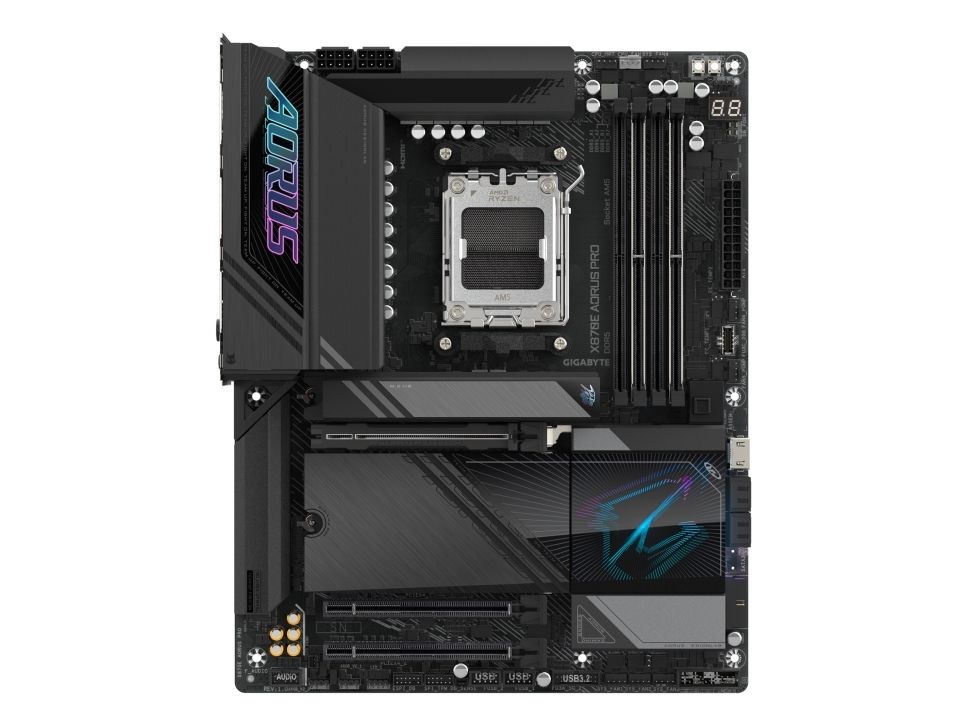

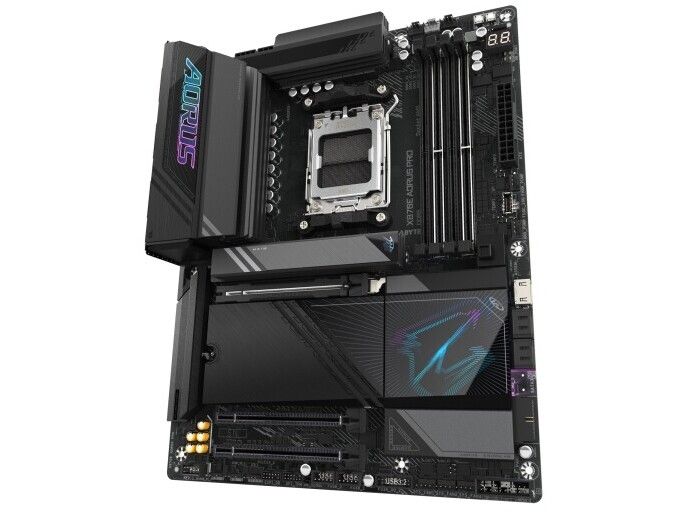

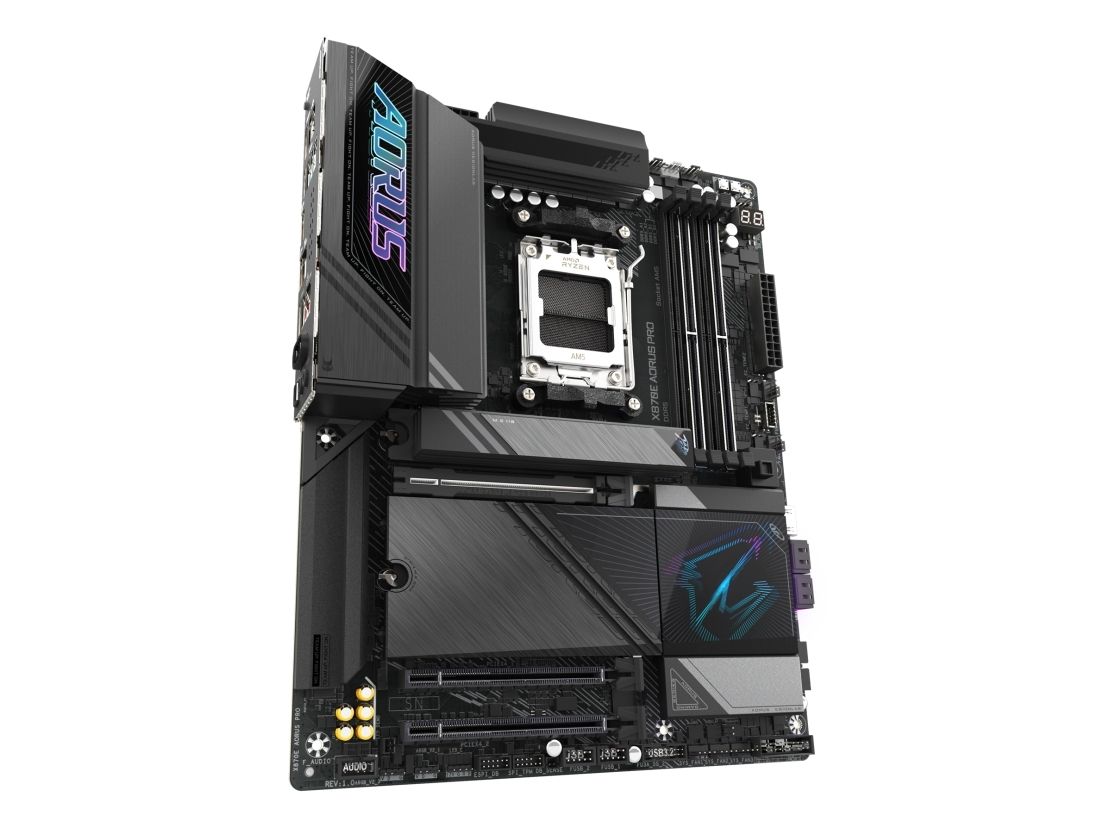

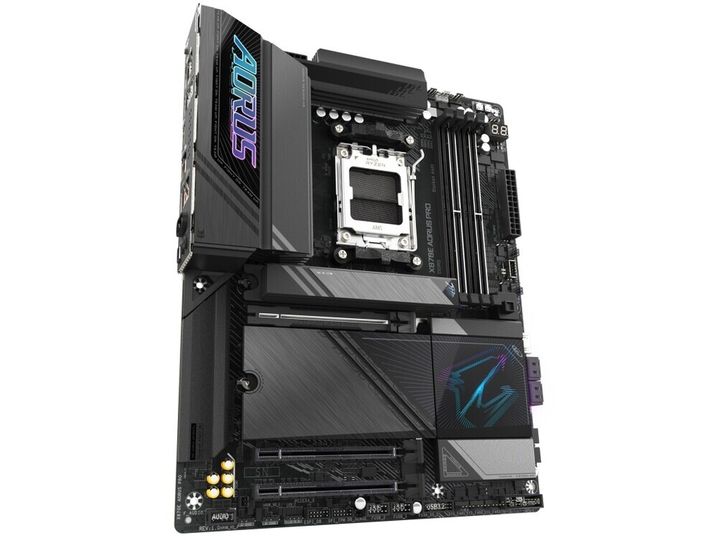

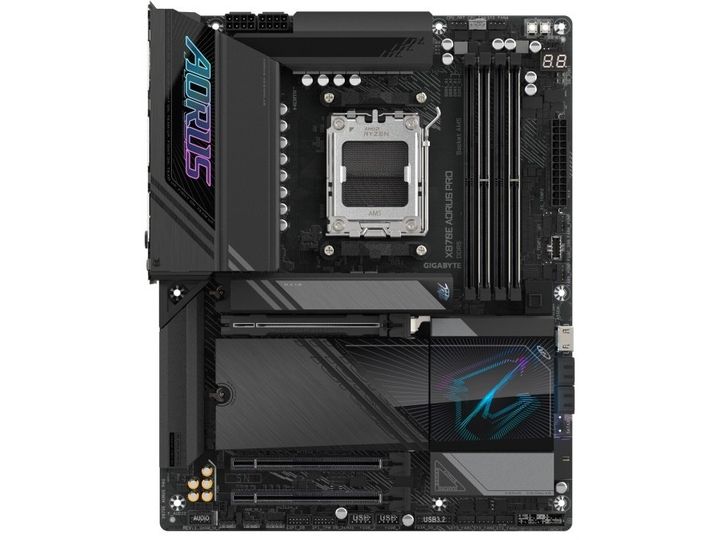

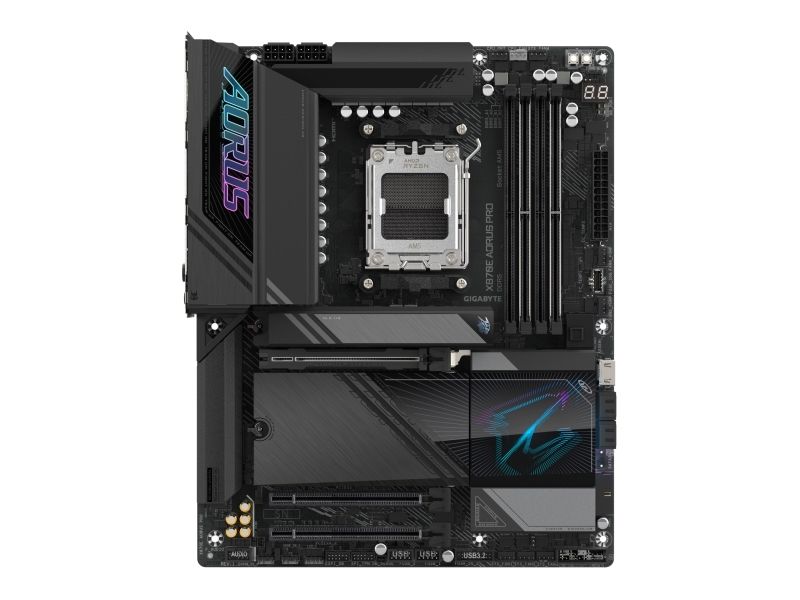

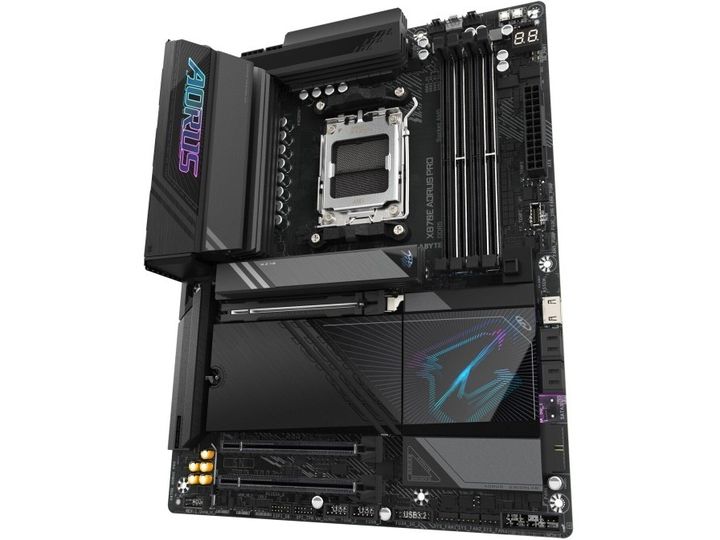

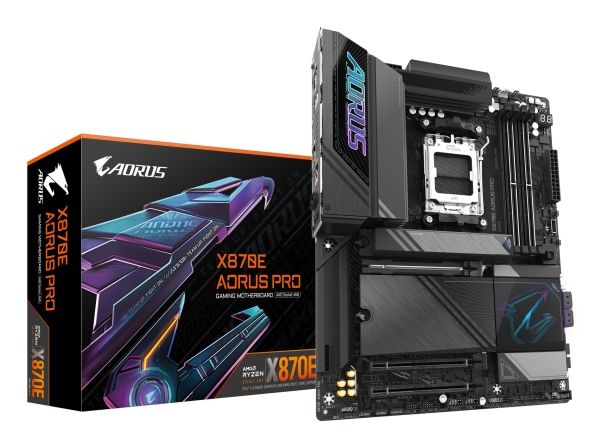

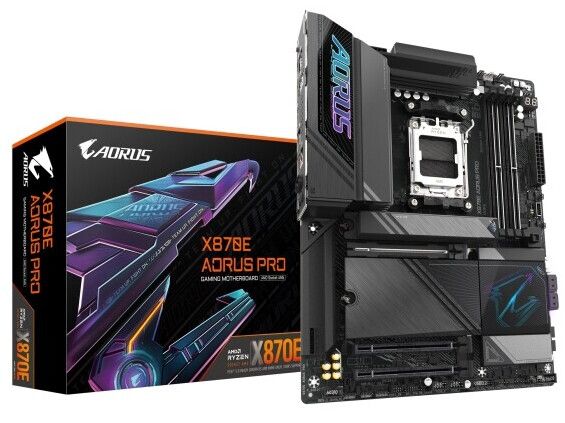

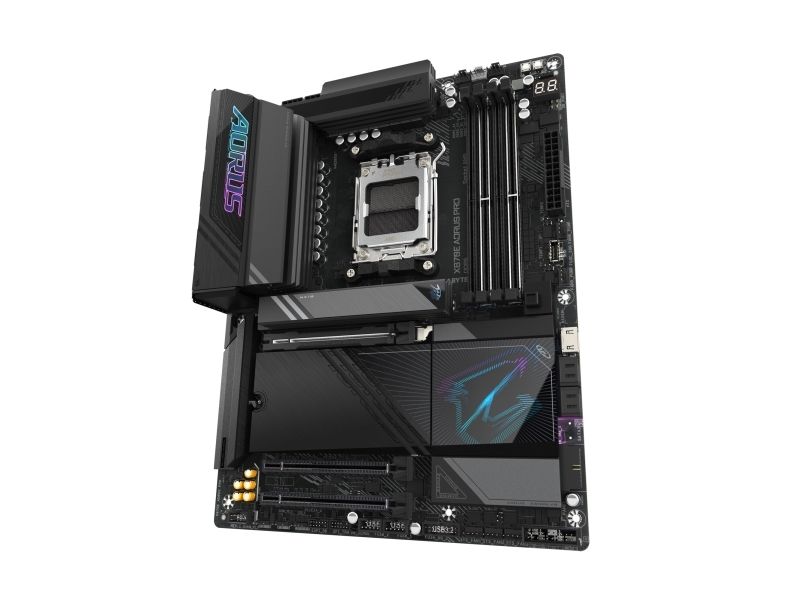

GIGABYTE X870E AORUS PRO motherboard AM5 ATX DDR5

Item no.: [21557255] | Manufacturer: Gigabyte Technology | Model no.: X870E AORUS PRO | EAN: 4719331864866

Remote stock (4-5 days)

The item is in a remote warehouse, delivery time is 3-4 business days. More info

Shipping @price - GLS

12,00

EUR 333,09

Incl. VAT 416,36

Total incl. delivery 431,36

Read further specifications and description

Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge

Produktbeskrivelse	AORUS X870E PRO - bundkort - ATX - Socket AM5 - AMD X870E
Produkttype	Bundkort - ATX
Chipsættype	AMD X870E
Processor-socket	1 x Socket AM5
Kompatible processorer	Ryzen (understøtter Ryzen 7000/8000/9000 Serien)
Max RAM-størrelse	256 GB
RAM understøttet	4 DIMM åbninger - DDR5, ikke-ECC, ikke bufferet
Lagringsporte	4 x SATA-600 (RAID), 4 x M.2
USB / FireWire porte	2 x USB4 + 3 x USB 3.2 Gen 2 + 4 x USB 3.2 Gen 1 + 2 x USB 2.0 + (1 x USB-C 3.2 Gen 2x2 + 4 x USB 3.2 Gen 1 + 4 x USB 2.0 via samlekasser)
Audio	HD Audio (8-kanaler)
LAN	2.5 Gigabit Ethernet, Bluetooth 5.3, 802.11a/b/g/n/ac/ax/be (Wi-Fi 7)

Generelt
Produkttype	Bundkort - ATX
Chipsættype	AMD X870E
Processor-socket	Socket AM5
Max antal processorer	1
Kompatible processorer	Ryzen (understøtter Ryzen 7000/8000/9000 Serien)
Understøttet RAM
Maks. størrelse	256 GB
Teknologi	DDR5
Bus Clock	2200 MHz, 2400 MHz, 2600 MHz, 2800 MHz (O.C.), 3000 MHz (O.C.), 3100 MHz (O.C.), 3200 MHz (O.C.), 3300 MHz (O.C.), 3333 MHz (O.C.), 3400 MHz (O.C.), 3500 MHz (O.C.), 3600 MHz (O.C.), 3800 MHz (O.C.), 3900 MHz (O.C.), 4000 MHz (O.C.)
Understøttet RAM-integritetskon	Ikke-ECC
Registreret eller buffer	Ikke bufferet
Egenskaber	Dobbelt kanal hukommelses arkitektur, Intel Extreme Memory Profiles (XMP), AMD EXPO-teknologi
Audio
Type	HD Audio (8-kanaler)
Audio codec	Realtek ALC1220
Overensstemmelsesstandarder	High Definition Audio
LAN
Netværk controller	Qualcomm QCNCM865
Netværks interfaces	2.5 Gigabit Ethernet, Bluetooth 5.3, 802.11a/b/g/n/ac/ax/be (Wi-Fi 7)
Ekspansion / Konnektivitet
Ekspansionsåbninger	1 x CPU 4 x DIMM 288-pins 1 x PCIe 5.0 x16 1 x PCIe 4.0 x16 (x4-modus) 1 x PCIe 3.0 x16 (x4-modus)
Grænseflade (lagring)	SATA-600 -stikforbindelser: 4 x 7pin Seriel ATA PCIe 5.0 -stikforbindelser: 3 x M.2 - RAID 0 / RAID 1 / RAID 10 PCIe 4.0 -stikforbindelser: 1 x M.2 - RAID 0 / RAID 1 / RAID 10

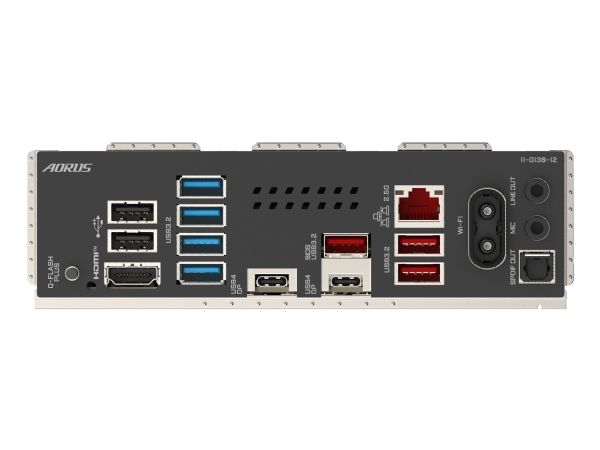

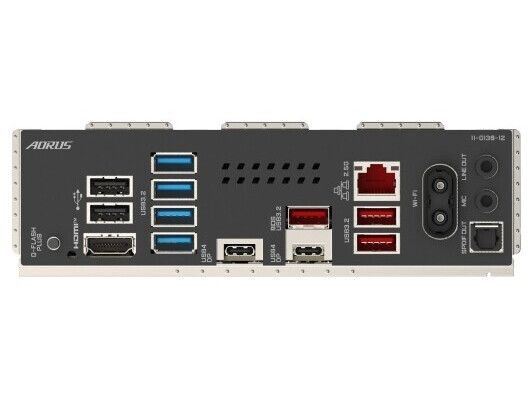

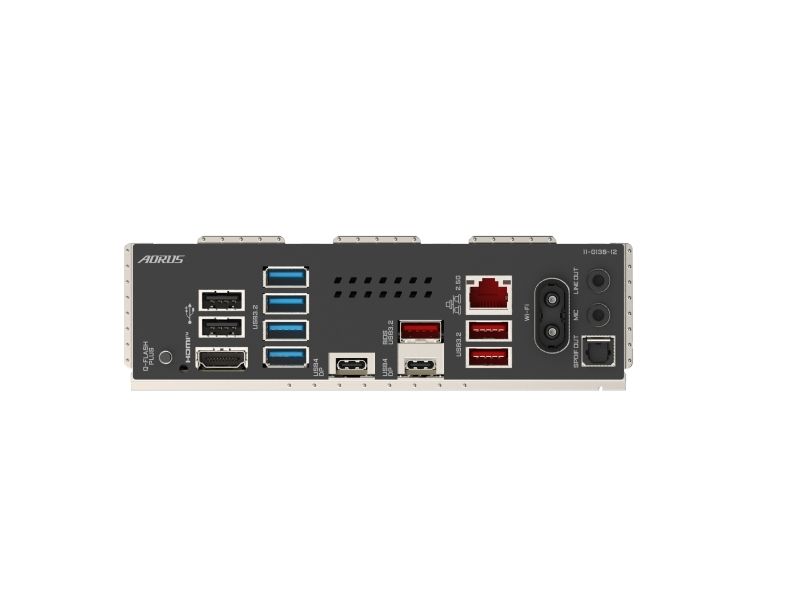

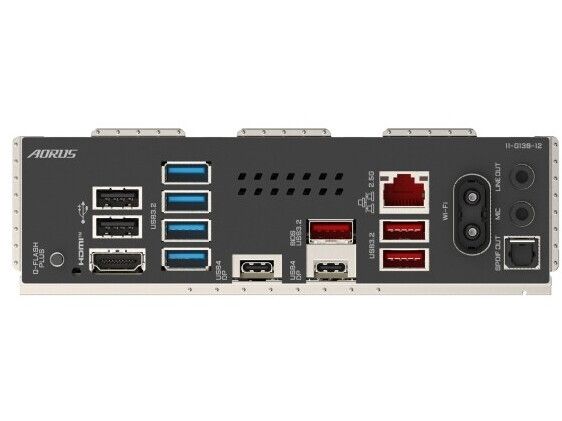

Interface	LAN (2.5Gigabit Ethernet) 1 x audio linje-ind - mini-jack 1 x audio linje-ud - mini-jack 1 x SPDIF-ud 2 x antenne 4 x USB 3.2 Gen 1 3 x USB 3.2 Gen 2 2 x USB4/DisplayPort 1 x HDMI 2 x USB 2.0
Interne interfaces	4 x USB 2.0 - intern stik 4 x USB 3.2 Gen 1 - intern stik 1 x USB-C 3.2 Gen 2x2 - intern stik 1 x audio - intern stik 1 x SPI - intern stik
Strømkontakter	24-pin hovedstrøm-konnektor, 2 x 8-pins ATX12V stikforbindelser
Egenskaber
BIOS-type (Basic Input/Output System)	AMI
BIOS-egenskaber	WfM 2.0 understøttet, UEFI BIOS, SMBIOS 2.7 support, DMI 2.7 support, ACPI 5.0 support, PnP 1.0a support
Hardwareovervågning	Systemspænding, temperaturdetektion, blæserhastighedsdetektion, vandkølings-flowrate, blæserfejlvarsel, blæserkontrol, støjdetektion
Hardware egenskaber	16+2+2 Phase Power Design, 2x Copper PCB, 6 Layer PCB, VRM Thermal Armor Advanced, præmonteret I/O-skjold, M.2 Thermal Guard L, M.2 Thermal Guard Ext., RGB FUSION 2.0, EZ Plug, EZ Debug LED, M.2 EZ Latch plus, M.2 EZ Latch klik, PCIe EZ Latch Plus, Ultra Durable PCIe Armor, 80A Smart Power Stage
Diverse
Med software	GIGABYTE Control Center, Norton Internet Security (OEM Version)
Overensstemmelsesstandarder	HDCP 2.3
Bredde	30.5 cm
Dybde	24.4 cm

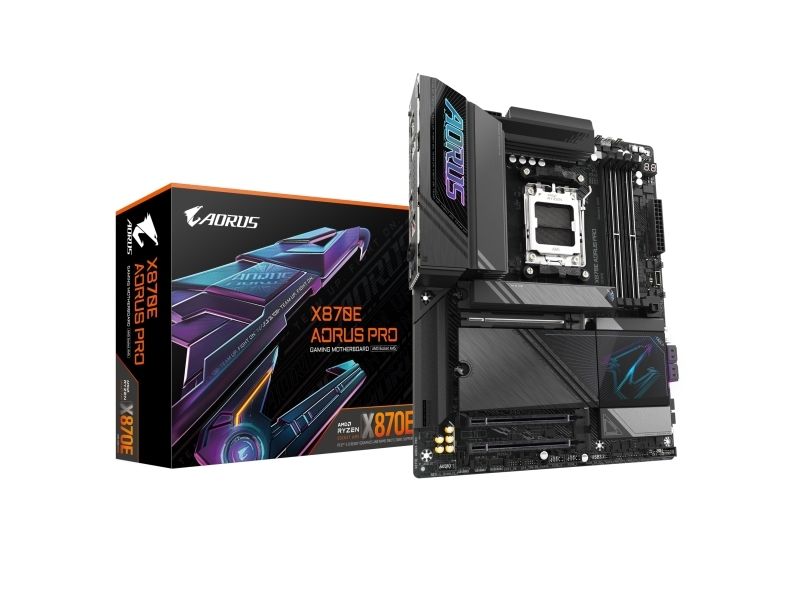

Pakkedetaljer	Boks
