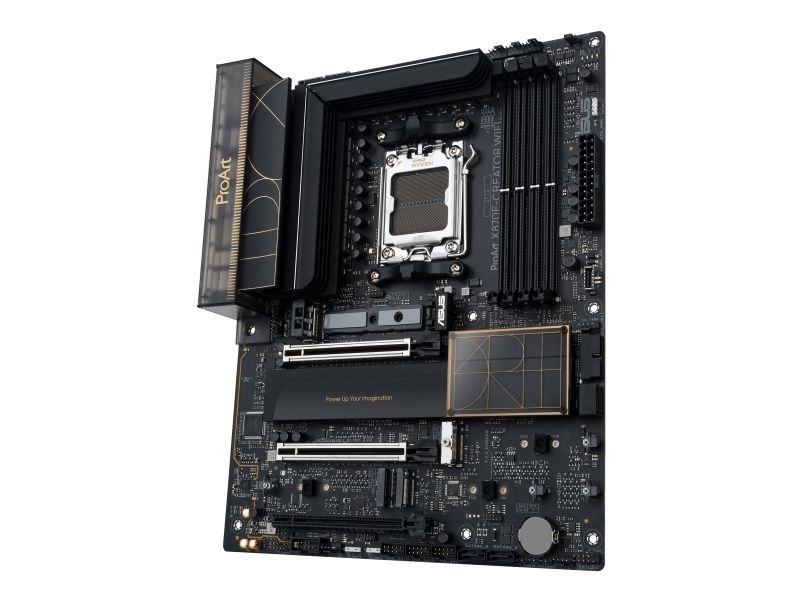

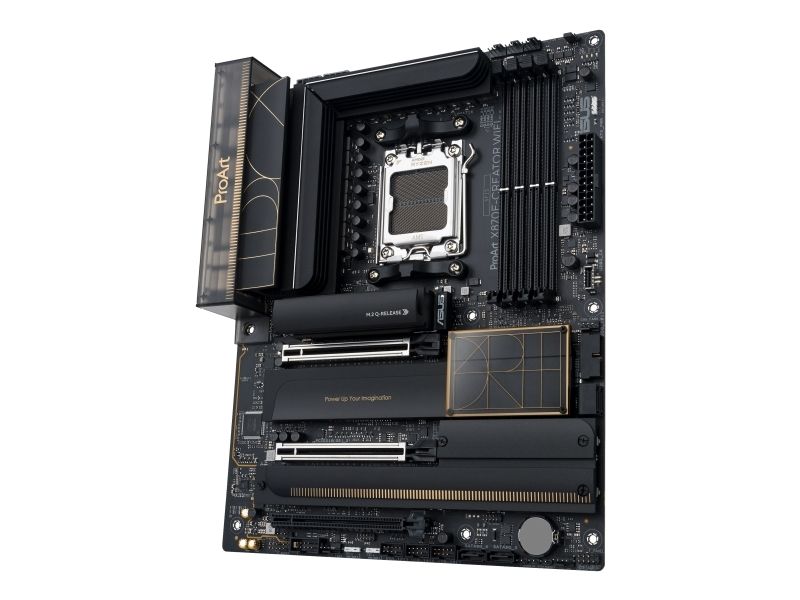

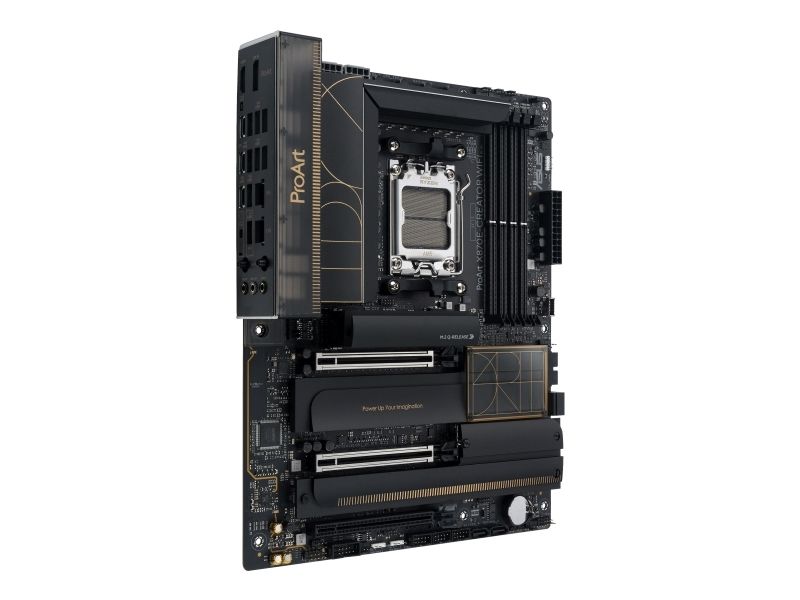

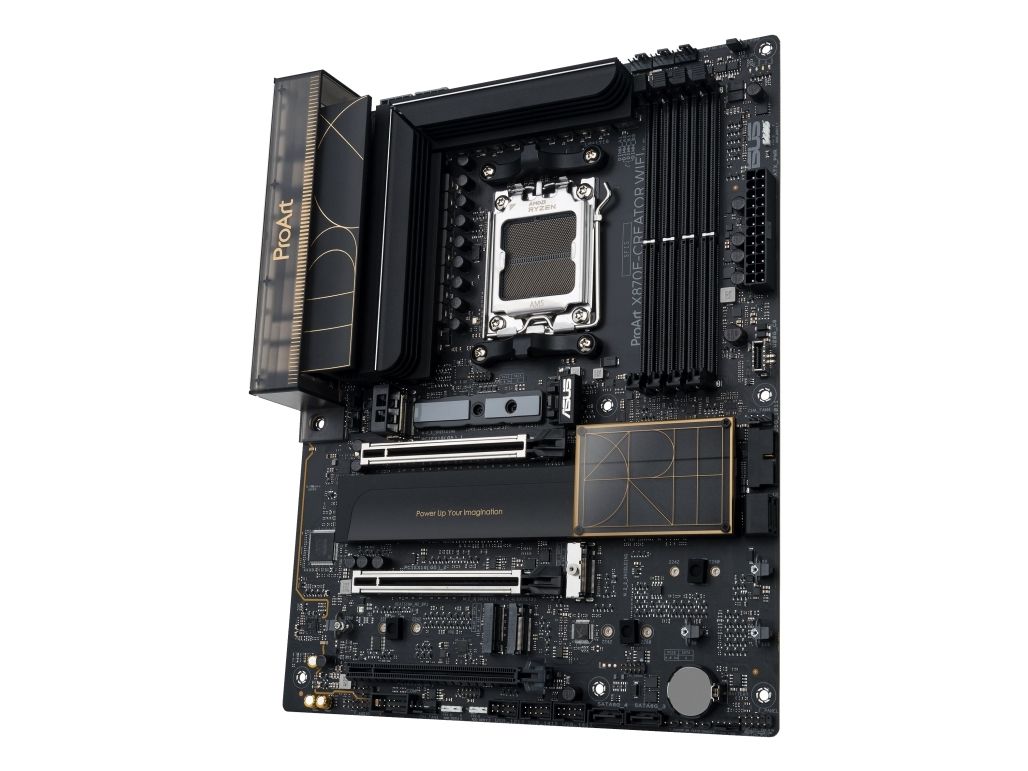

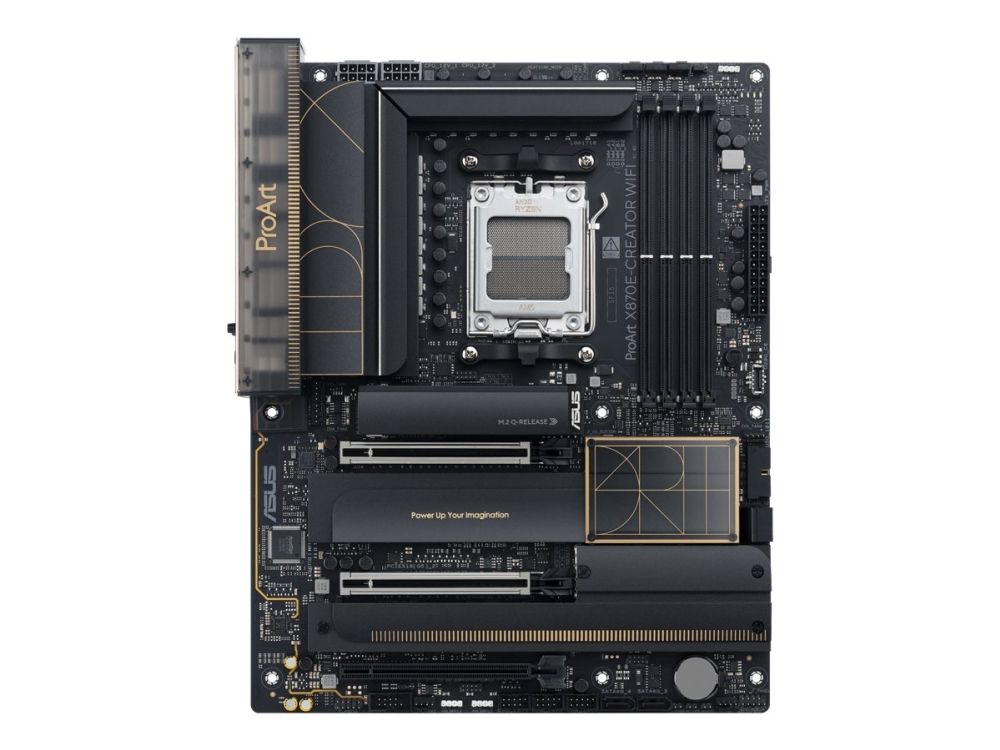

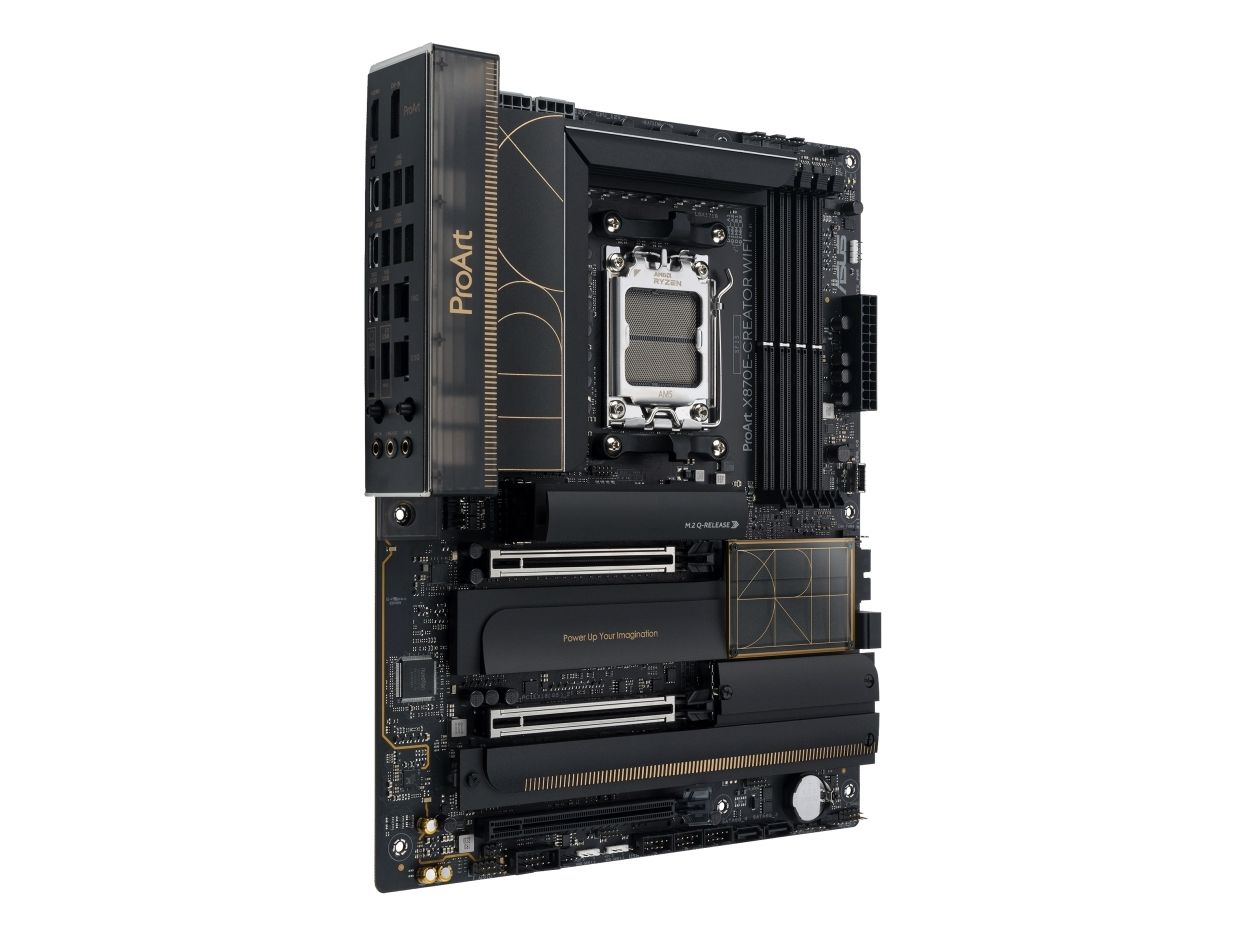

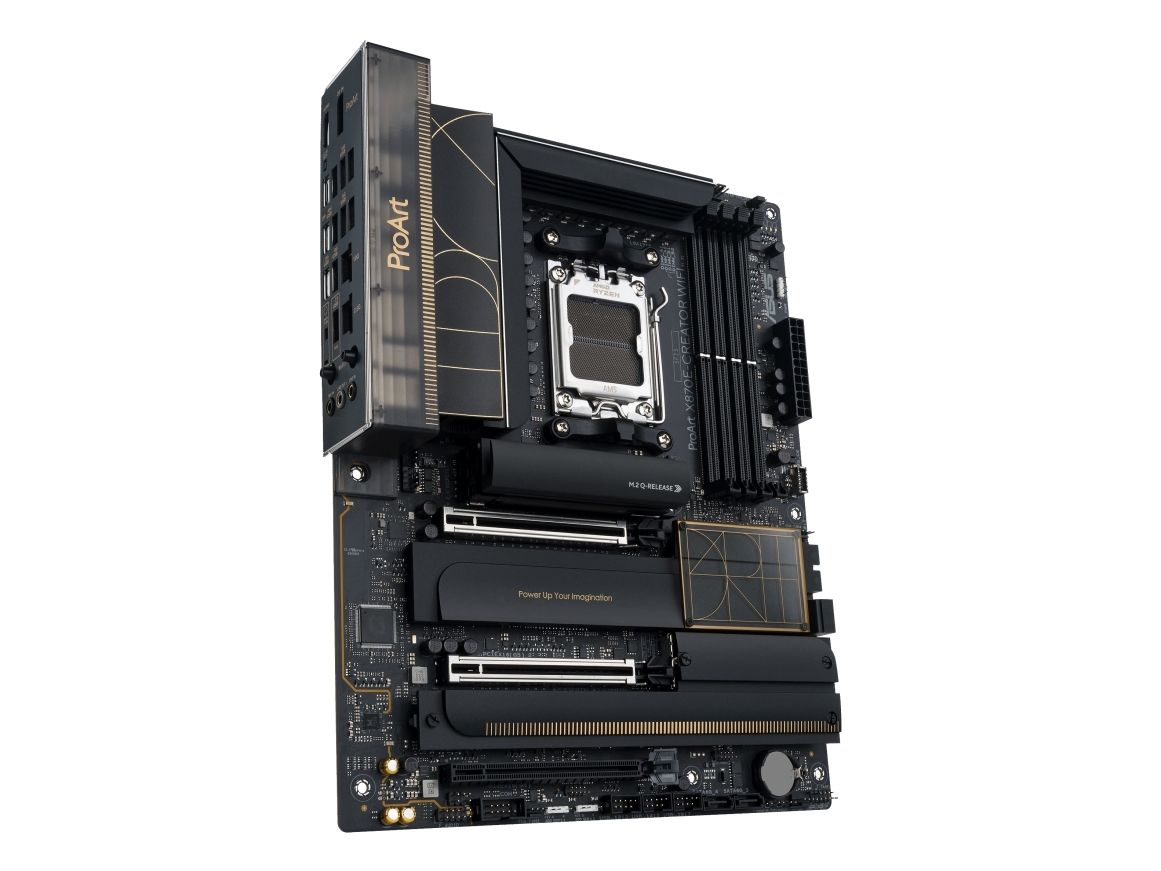

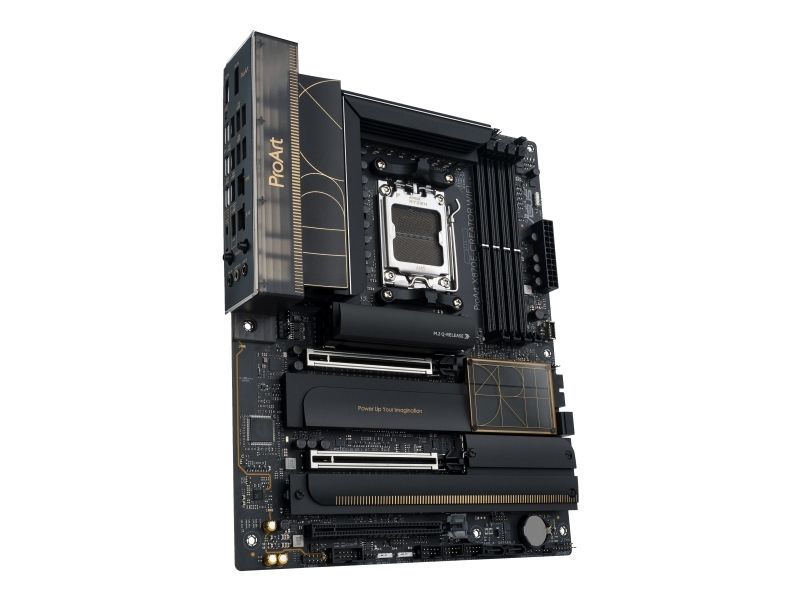

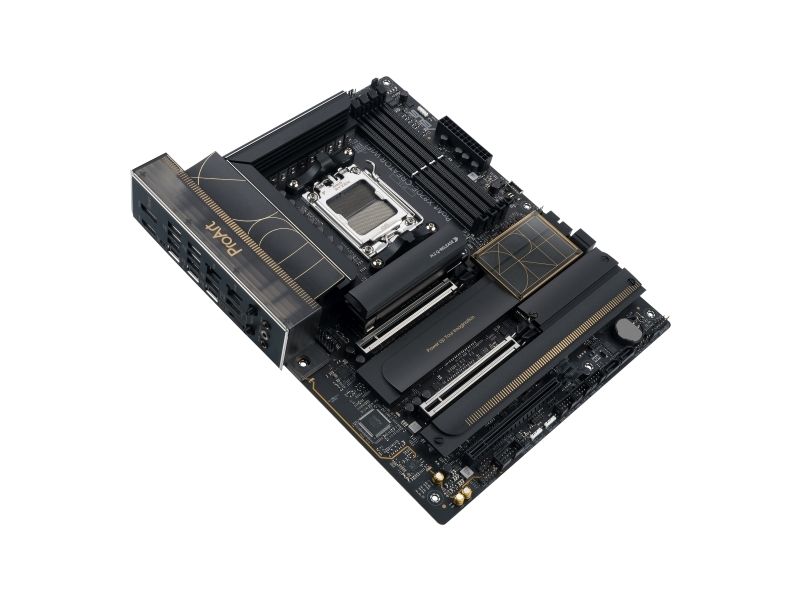

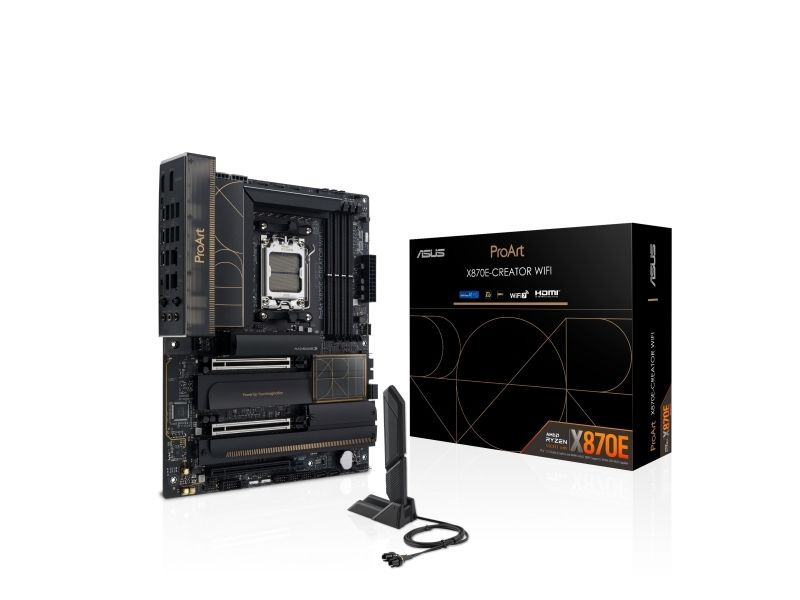

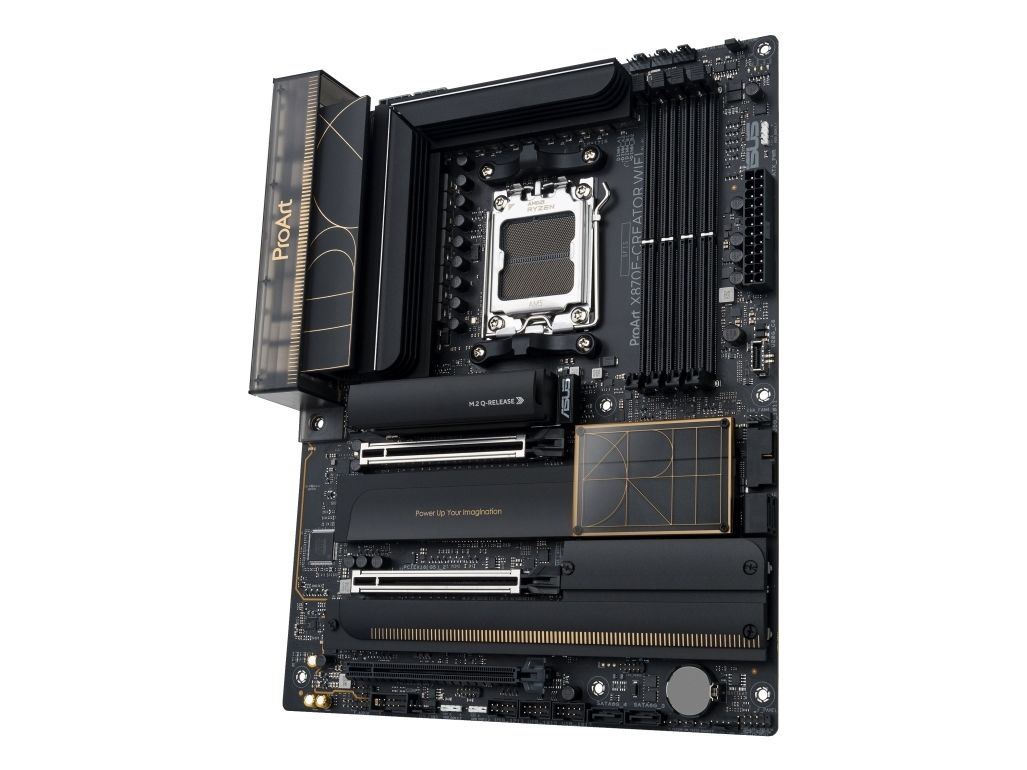

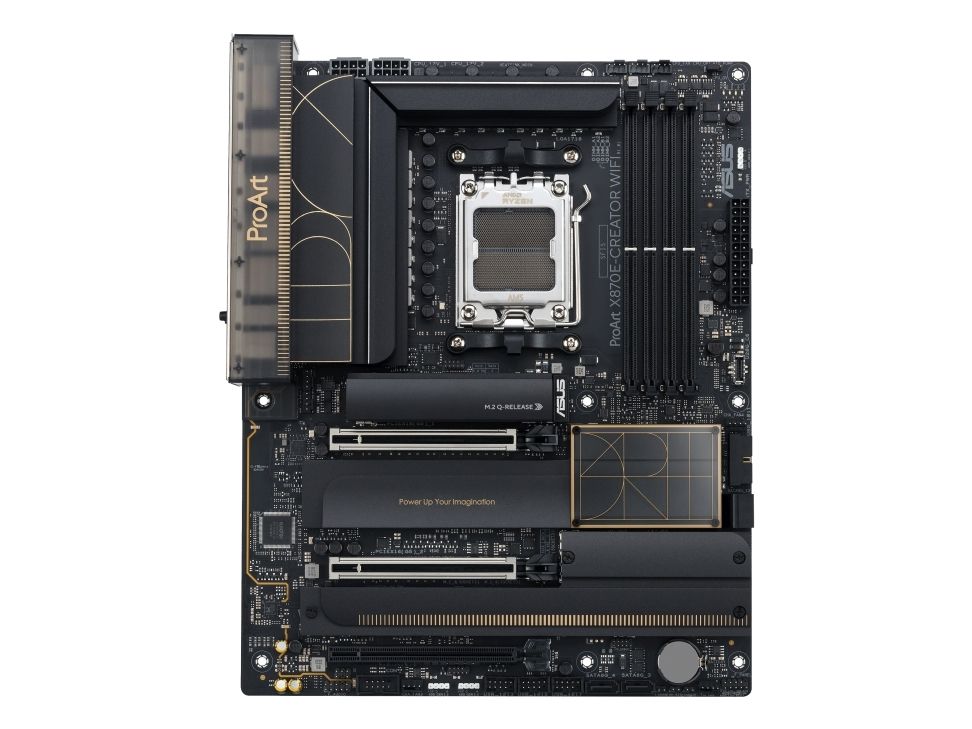

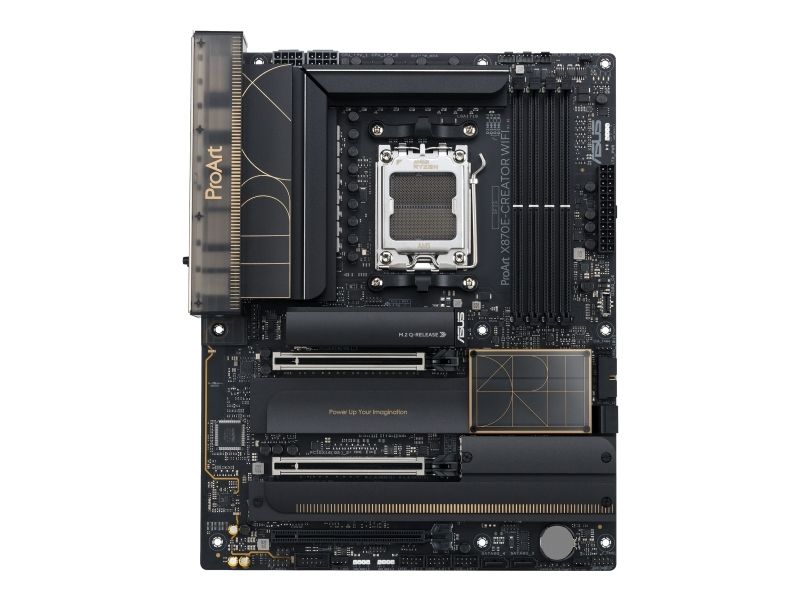

The ProArt X870E-Creator WiFi empowers creators of all levels by maximizing the performance of the latest AMD Ryzen™ 9000, 8000 and 7000 Series processors with 16+2+2 team power stages, DDR5 slots, PCIe® 5.0 and lightning-fast connectivity including dual USB4®, 10G and 2.5G Ethernet, and WiFi 7.

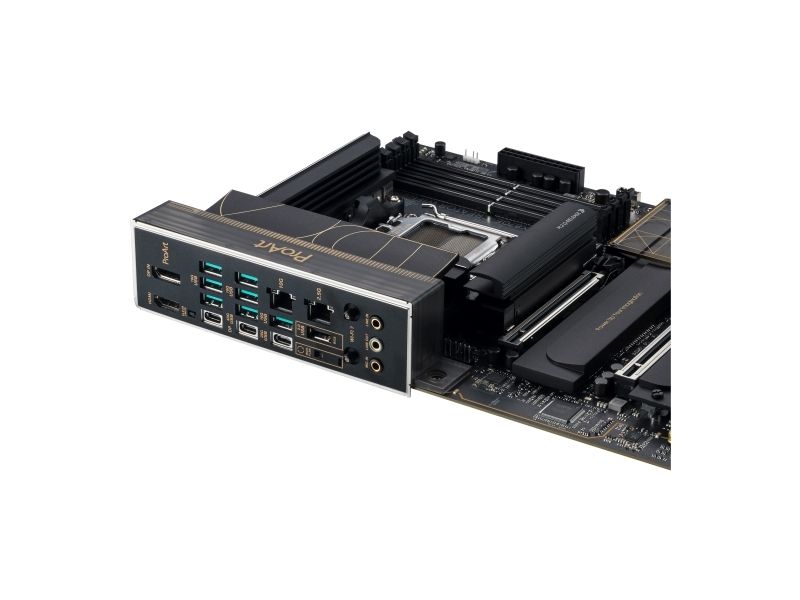

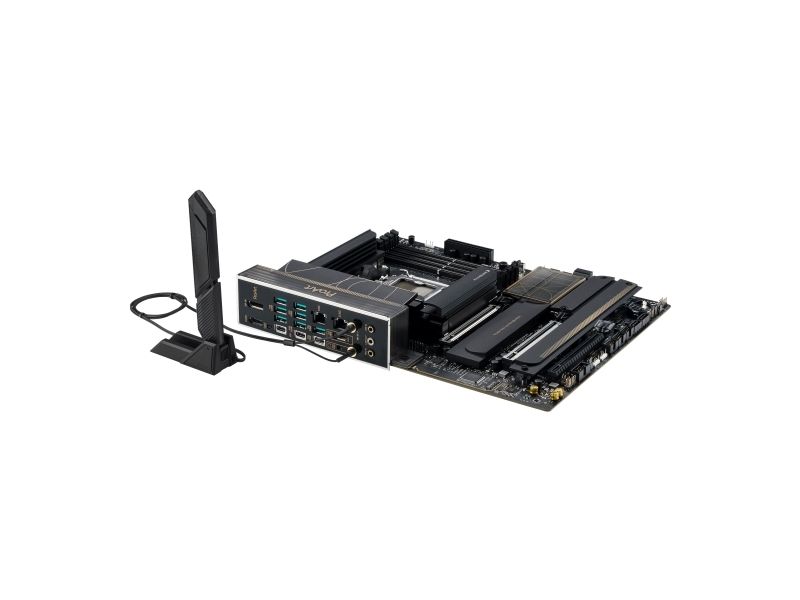

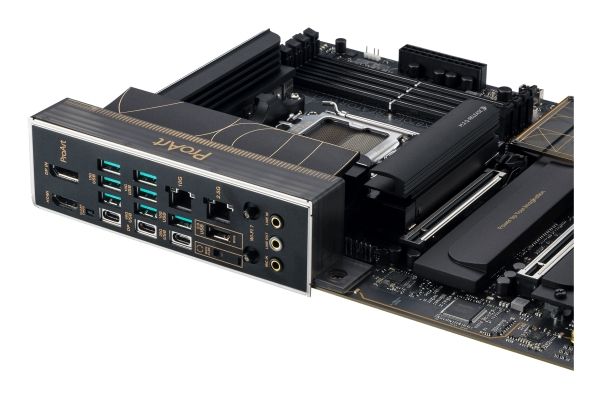

This motherboard manifests a professional, elegant and precise vision for content creators of all kinds, with a style elevated by tone-on-tone layers of black infused with metallic gold touches. A translucent I/O cover also gives users a stylish peek at the premium connectors within.
All You Need for Maximum Productivity Dual USB4® Connectivity Get immersed in your creations with two USB4 ports for connecting to all your content-creation gadgets, enjoying up to 40 Gbps bi-directional data transfers. To further push your creative work with one 8K or two 4K color-accurate monitors, you can connect your discrete graphics card to the onboard DisplayPort™ In port on the rear I/O panel and direct the video output via the USB4 port.
2 x USB4 + 1 x USB-C 3.2 Gen 2 + 7 x USB 3.2 Gen 2 + 1 x USB 2.0 + (1 x USB-C 3.2 Gen 2x2 + 2 x USB 3.2 Gen 1 + 6 x USB 2.0 via samlekasser)
Audio
HD Audio (8-kanaler)
LAN
802.11a/b/g/n/ac/ax/be (Wi-Fi 7), 10 Gigabit Ethernet, Bluetooth 5.4
Generelt
Produkttype
Bundkort - ATX
Chipsættype
AMD X870E
Processor-socket
Socket AM5
Max antal processorer
1
Kompatible processorer
(understøtter Ryzen 7000/8000/9000 Serien)
Understøttet RAM
Maks. størrelse
192 GB
Teknologi
DDR5
Bus Clock
4000 MHz (O.C.)
Understøttet RAM-integritetskon
On-die ECC, ikke-ECC, ECC
Registreret eller buffer
Ikke bufferet
Audio
Type
HD Audio (8-kanaler)
Audio codec
Realtek ALC1220P
Overensstemmelsesstandarder
High Definition Audio
LAN
Netværks interfaces
802.11a/b/g/n/ac/ax/be (Wi-Fi 7), 10 Gigabit Ethernet, Bluetooth 5.4
Ekspansion / Konnektivitet
Ekspansionsåbninger
1 x CPU 4 x DIMM 288-pins 2 x PCIe 5.0 x16 1 x PCIe 4.0 x16 (x4-modus) 3 x M.2 socket (2242/2260/2280 M.2 Key M åbning) 1 x M.2 socket (2242/2260/2280/22110 M.2 Key M åbning)

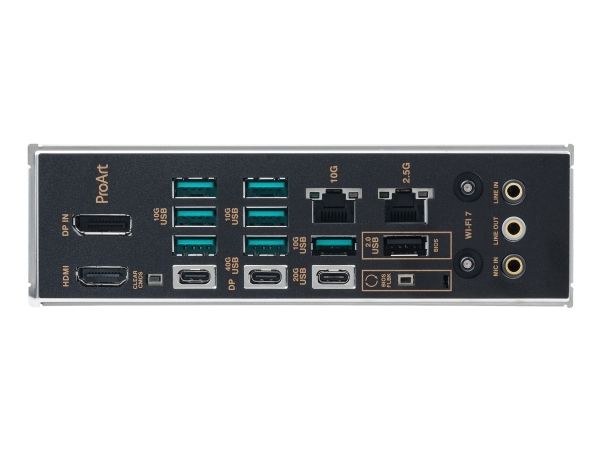

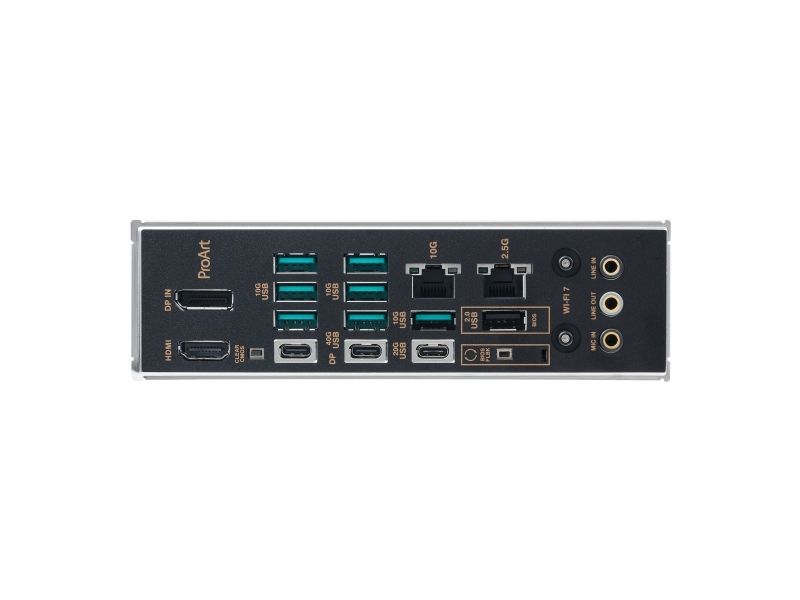

1 x LAN (2.5Gigabit Ethernet) 1 x LAN (10Gigabit Ethernet) 1 x DisplayPort-input 1 x HDMI 2 x antenne 2 x Thunderbolt 4/DisplayPort/USB4 1 x USB-C 3.2 Gen2x2 7 x USB 3.2 Gen 2 1 x mikrofon - mini-jack 1 x audio linje-ud - mini-jack 1 x audio linje-ind - mini-jack
Interne interfaces
1 x USB-C 3.2 Gen 2x2 - intern stik 2 x USB 3.2 Gen 1 - intern stik 6 x USB 2.0 - intern stik 1 x audio - intern stik 1 x seriel - intern stik
Strømkontakter
24-pin hovedstrøm-konnektor, 2 x 8-pins ATX12V stikforbindelser
Egenskaber
BIOS-type (Basic Input/Output System)
AMI
BIOS-egenskaber
UEFI BIOS, ASUS EZ Flash 3, ASUS UEFI BIOS EZ Mode
Sov/ Vågn
Aktivering af LAN (wake on LAN = WOL), vågn på PME
Hardware egenskaber
ASUS Enhanced Memory Profile (AEMP), CrashFree BIOS 3, Preboot eXecution Environment (PXE), LANGuard, BIOS FlashBack-knap, Clear CMOS Button, ASUS 5X Protection III, ASUS DIGI+ VRM, ASUS Enhanced DRAM Overcurrent Protection, ASUS Overvoltage Protection, ASUS Q-Design, ASUS SafeSlot, ASUS Stainless Steel Back I/O, ESD Guards, M.2 Q-Latch, M.2 Q-Release, M.2 Q-Slide, PCIe Slot Q-Release, ASUS Aura Sync, ASUS EZ DIY, ASUS ProCool, ASUS Q-Connector, ASUS SafeDIMM, M.2 kølelegeme, M.2 kølelegemebagplade, præmonteret I/O-skjold, Q-Antenna, Q-DIMM, Q-LED, Q-Release Slim, Q-Slot, Quick Charge 4+, VRM kølelegemedesign, 16+2+2 Phase Power Design, Core Flex teknologi, 8 Layer PCB, AI Cooling II, AI Networking II, AI Overclocking
Diverse
Udstyr inkluderet

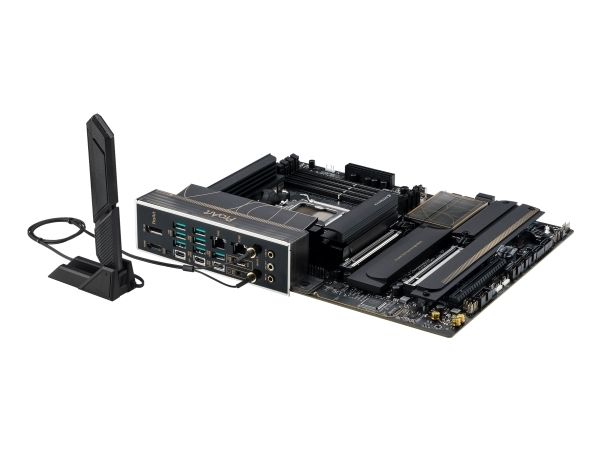

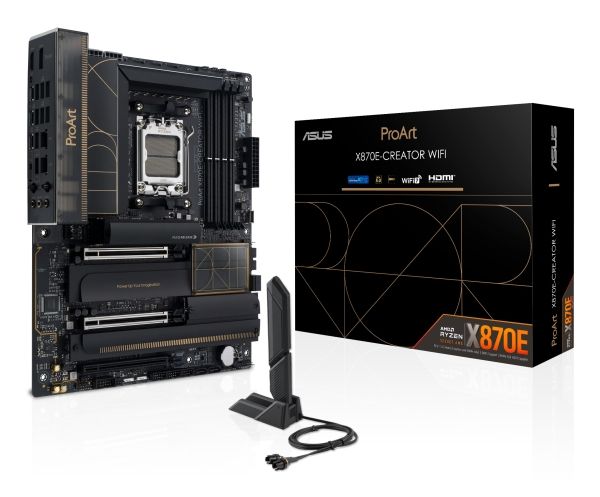

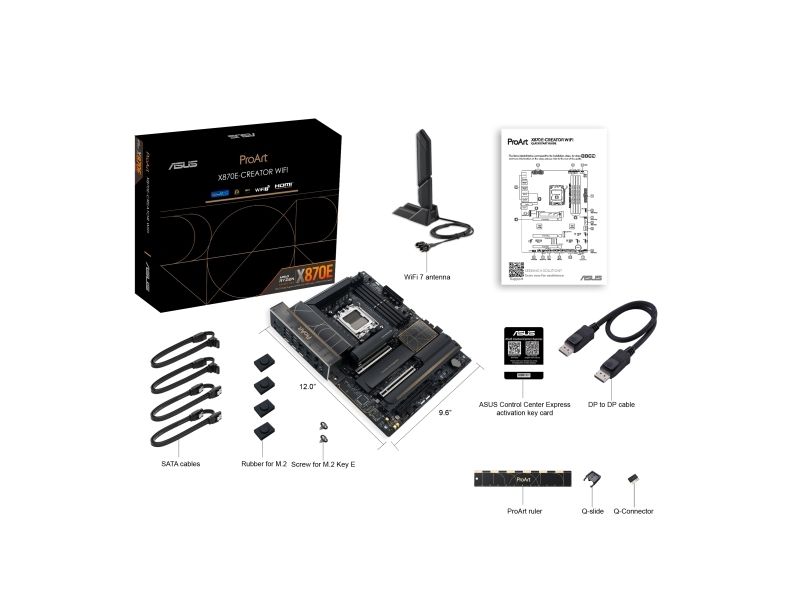

ASUS Wi-Fi Q-antenna, M.2 Q-Latch, M.2 Q-Slide, Q-Connector, termisk pude til M.2 SSD, 2 x M.2 gummipakke, ASUS ProArt ruler, ACC Express Activation Key Card
Medfølgende ledninger
4 x Seriel ATA kabel
Med software
ASUS Control Center Express, Adobe Creative Cloud (gratis prøve), Armoury Crate, ASUS AURA Creator, ASUS CPU-Z, ASUS DriverHub, ASUS Fan Xpert 4, ASUS GlideX, ASUS ProArt Creator Hub, CreationFirst, Norton 360 Deluxe (60 dages prøvetid), TurboV Core, USB Wattage Watcher, WinRAR (40 days trial)
Overensstemmelsesstandarder
DisplayPort 1.4
Bredde
30.5 cm
Dybde
24.4 cm
GPSR
ASUS Computer GmbH Harkortstrasse 21-23 40880 Ratingen DE [email protected]
