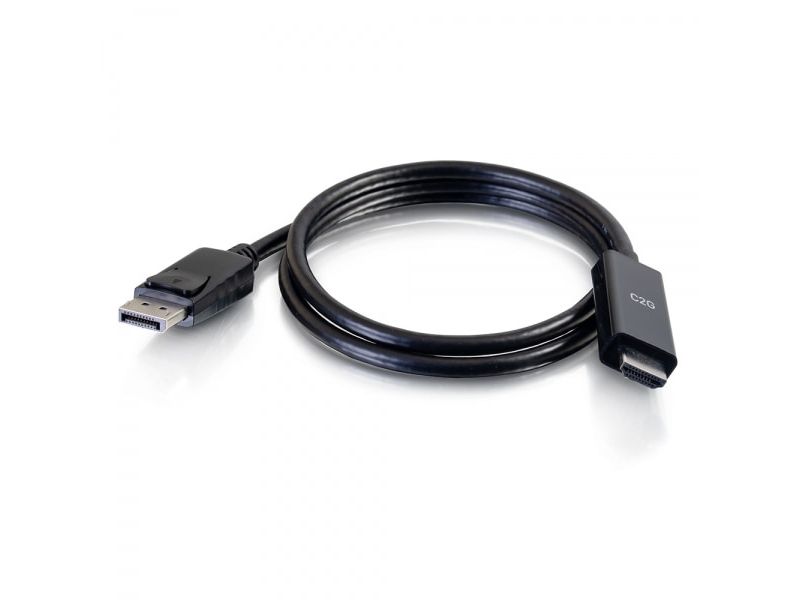

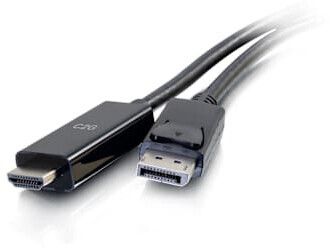

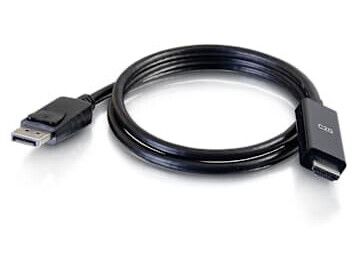

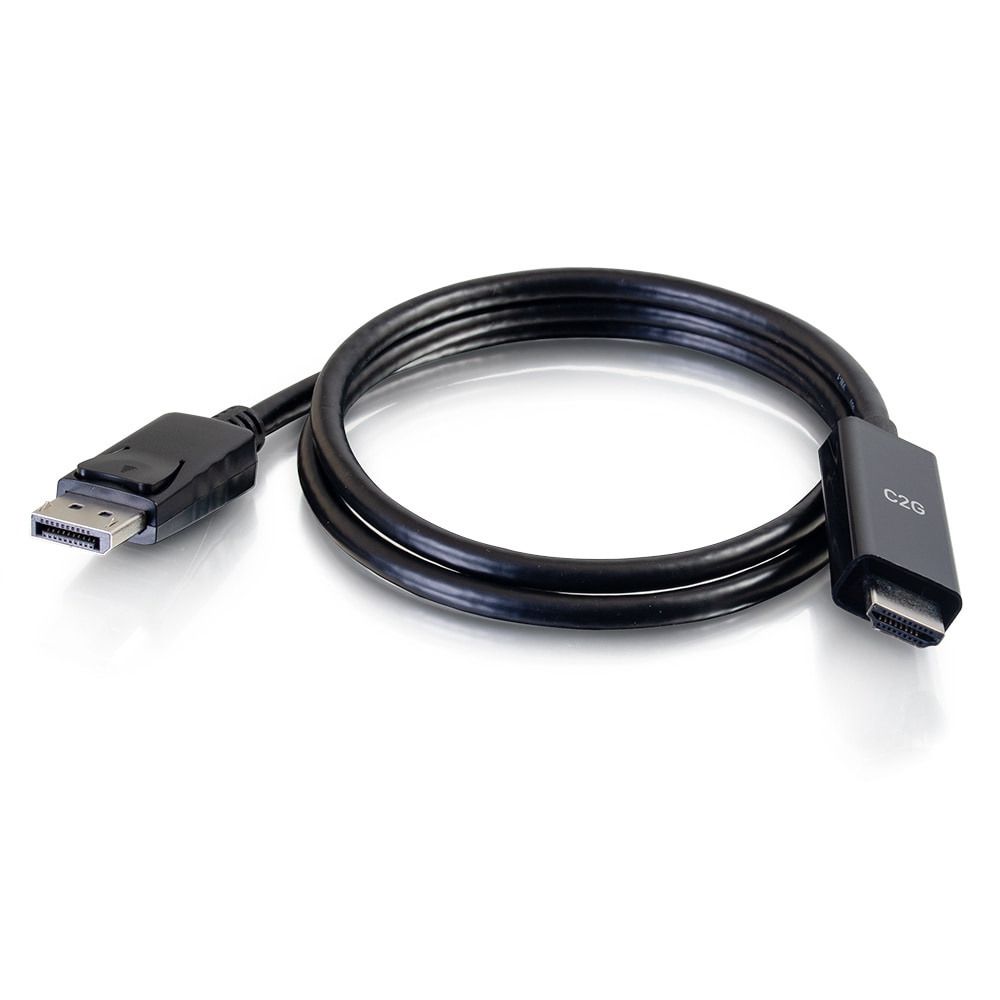

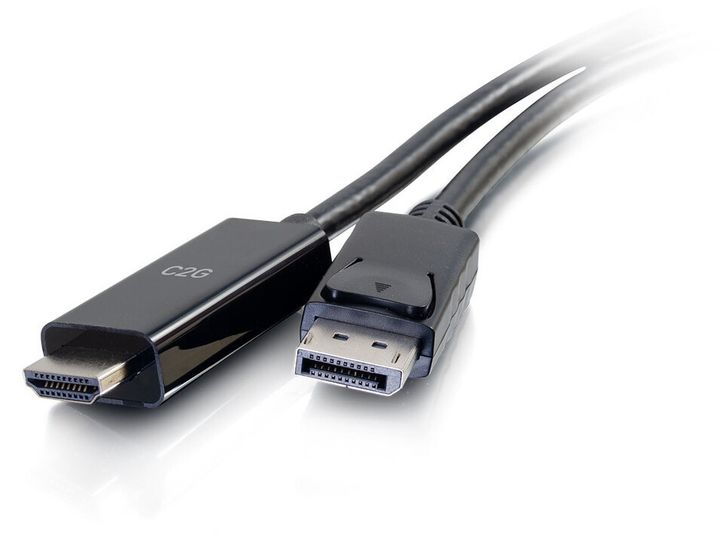

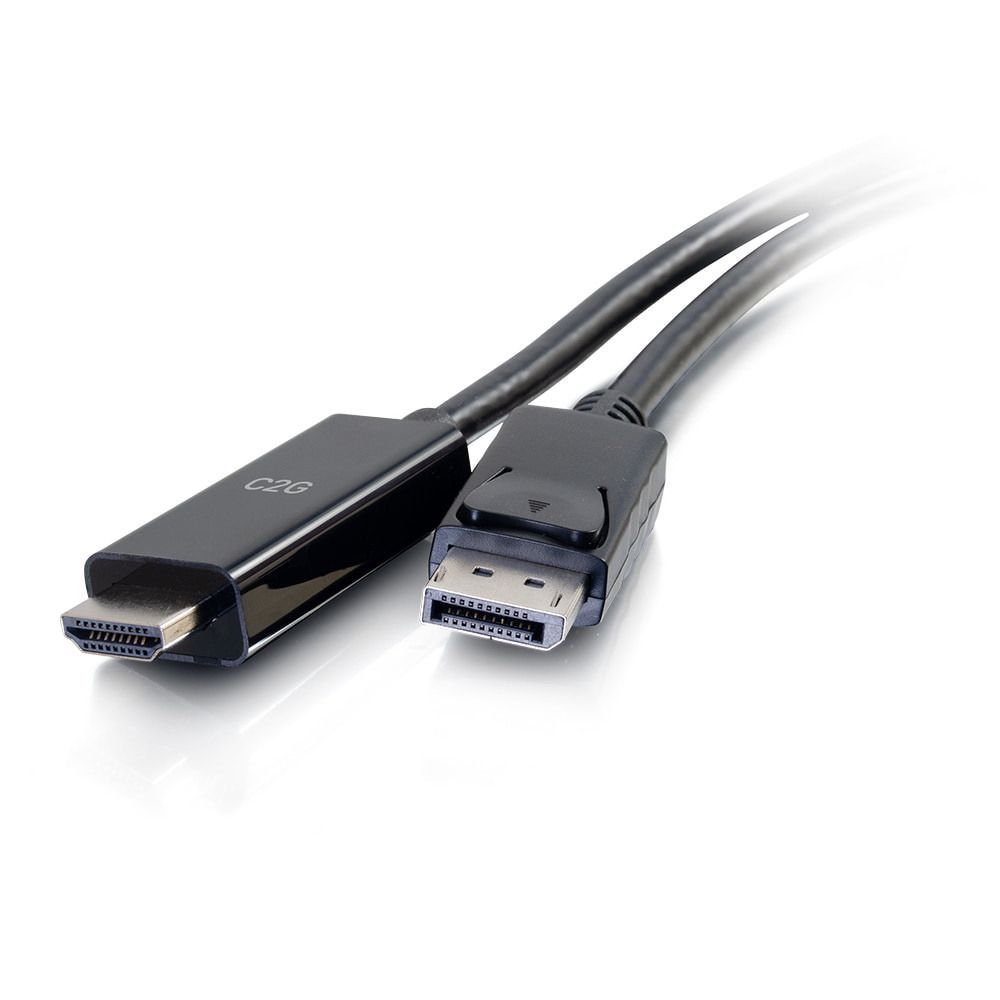

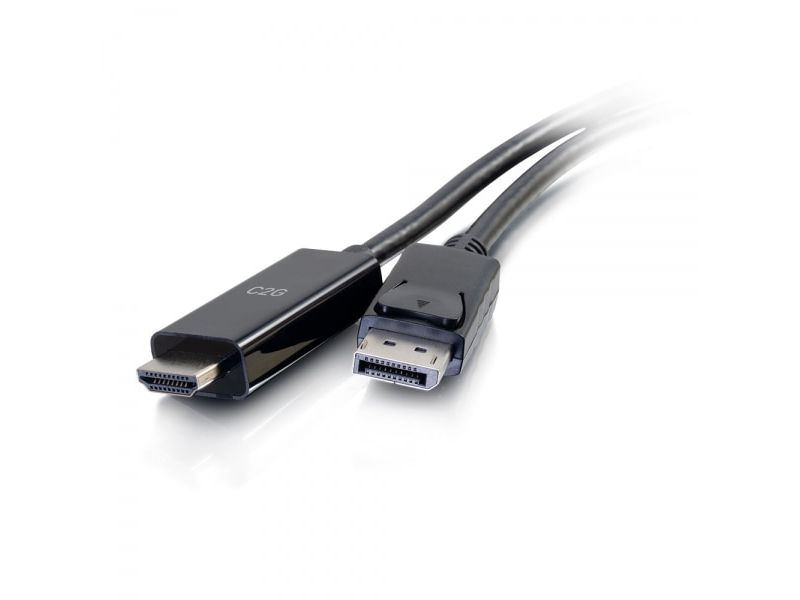

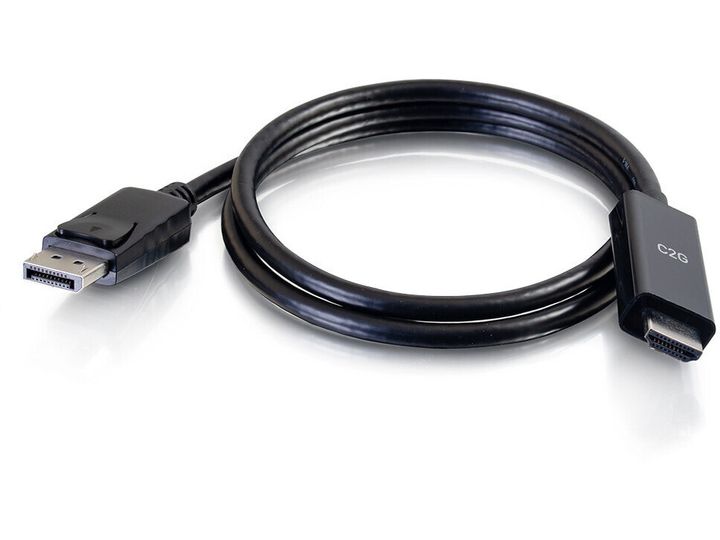

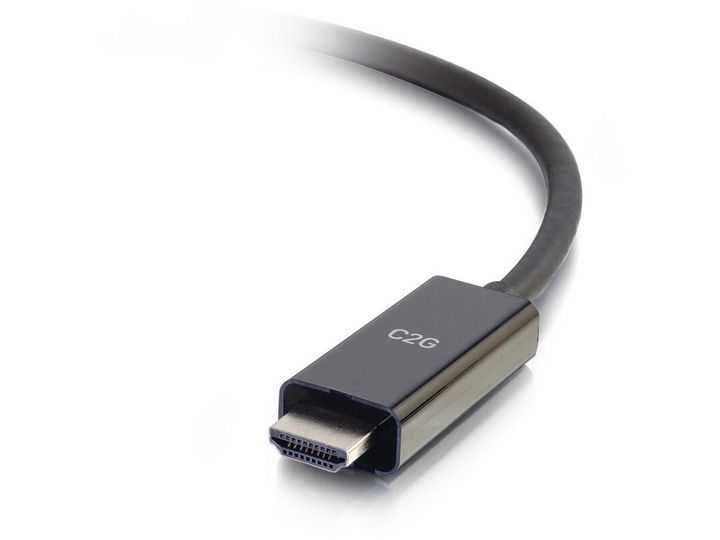

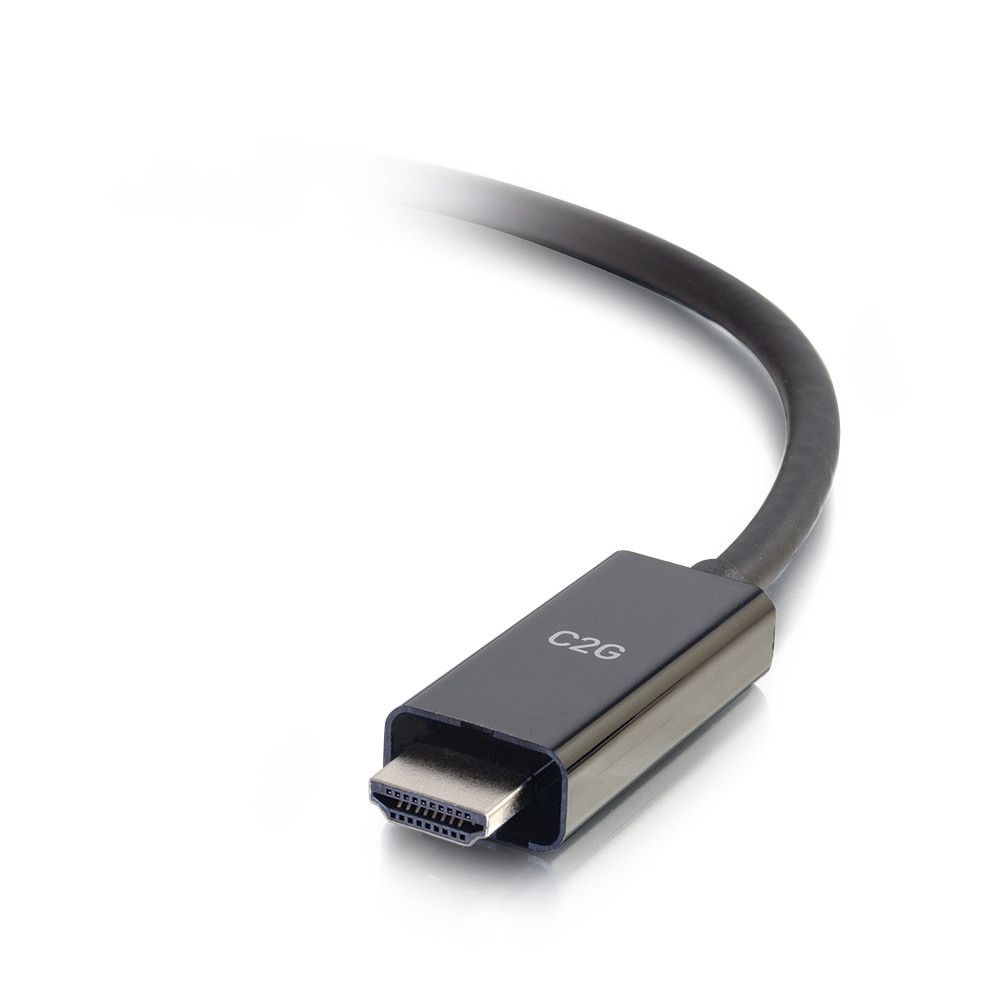

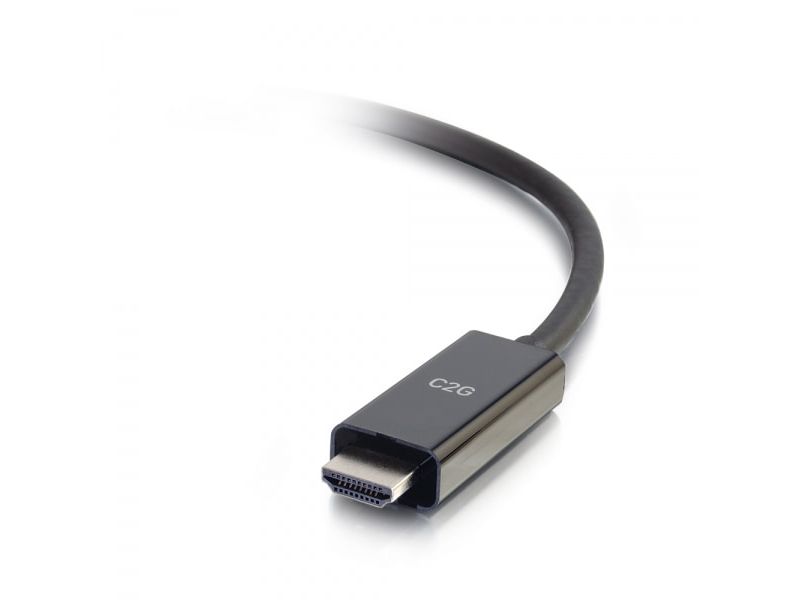

C2G 3ft (0.9m) DisplayPortTM Male to HDMITM Male Active Adapter Cable - 4K 60Hz, 0.91 m, 4096 x 2160 pixels, Black
Item no.: [21655446] | Manufacturer: C2G | Model no.: CG50193 | EAN: 0757120501930
out of stock
The item is not in stock. More info
Udsolgt
Varen er ikke på lager.
Brug funktionen ”Giv mig besked..." herunder for opdateringer.
Delivery options - Select at checkout
Shipping @price - GLS
12,00
EUR
27,58
Incl. VAT 34,48
Total incl. delivery
49,48
Notify me when the item is in stock again
Add to list
The function requires that you are logged in. Create a user and use our smart list system to keep track of future purchases, regular purchases or wish lists.
Send på mail
The DisplayPort Male to HDMI Male Active Adapter Cable allows you to connect the DisplayPort output of a video source to a display which accepts an HDMI input # making it an ideal solution for the office or work space applications.
Convenience
The cable form factor of this adapter provides a simple and convenient solution that eliminates the need for a separate adapter and cable, reducing possible failure points.
Performance
This cable is a simple plug and play solution and carries an active video signal, supporting high-definition resolutions up to 4K (4096 x 2160 at 60hz), allowing it to deliver a high quality video image to the connected display.
Features and Benefits
Support for resolutions up to 4K (4096 x 2160 at 60hz)
Adapter in cable form factor
Active DisplayPort 1.2 to HDMI 2.0 conversion
Support for 3D video and HDCP 2.2
Plug and Play — no driver required
Additional Technical Specifications
Electrical Specifications
Voltage Rating: 30V
Conductor Resistance: 30AWG-381
/km Max. at 20°C
Insulation Resistance: FOAM-PE/PE DC-500V 100M
. km Min. at 20°C
Dielectric Strength: AC 500V/1 Sec. Min.
Impedance: 100±5
Physical Specifications
Operating Temperature: 0°C to 50°C
Storage Temperature: -25°C to 70°C

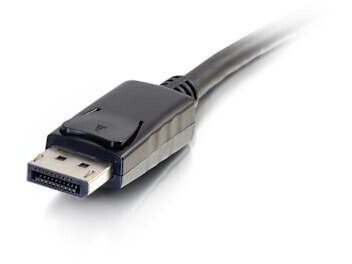

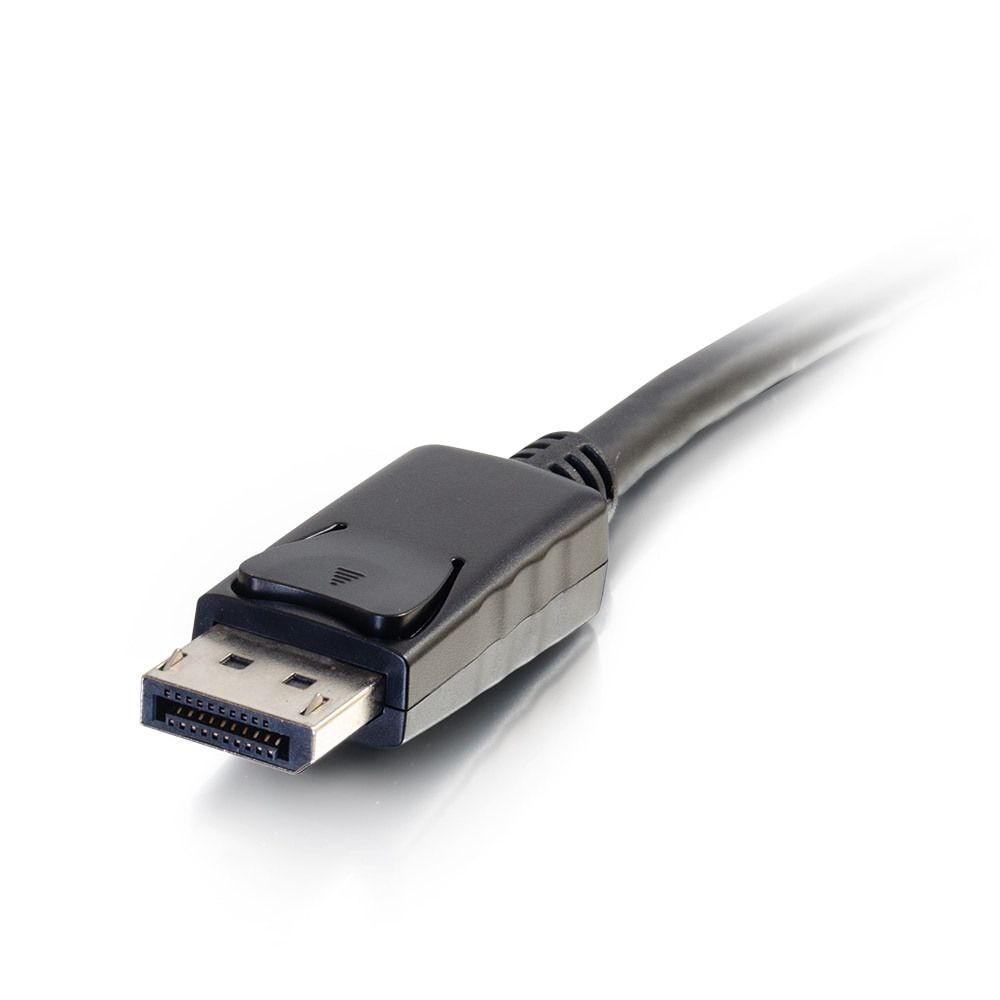

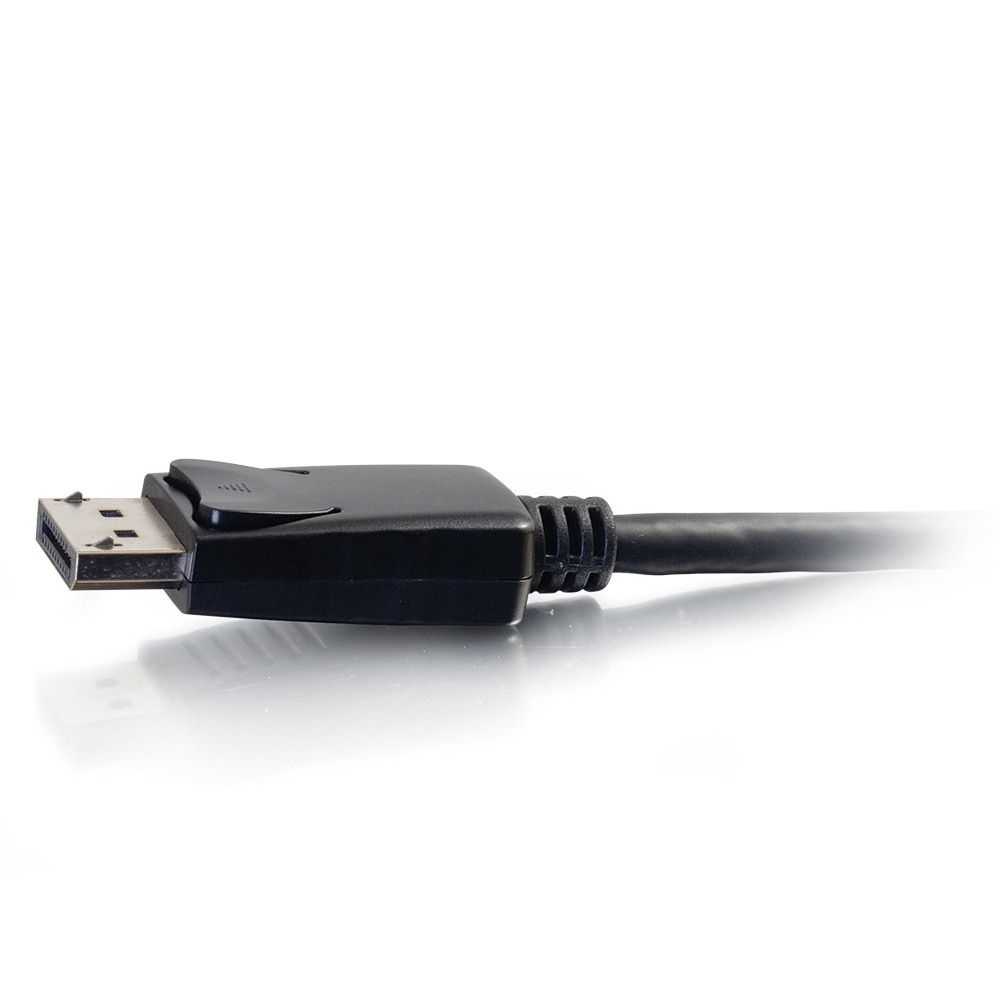

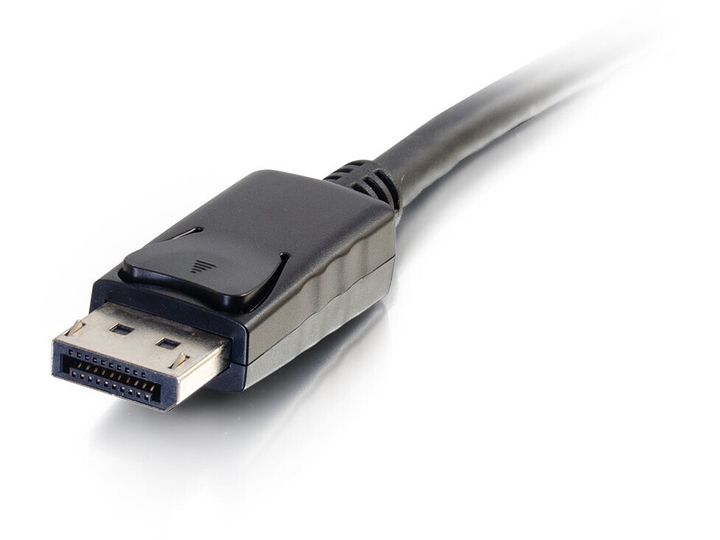

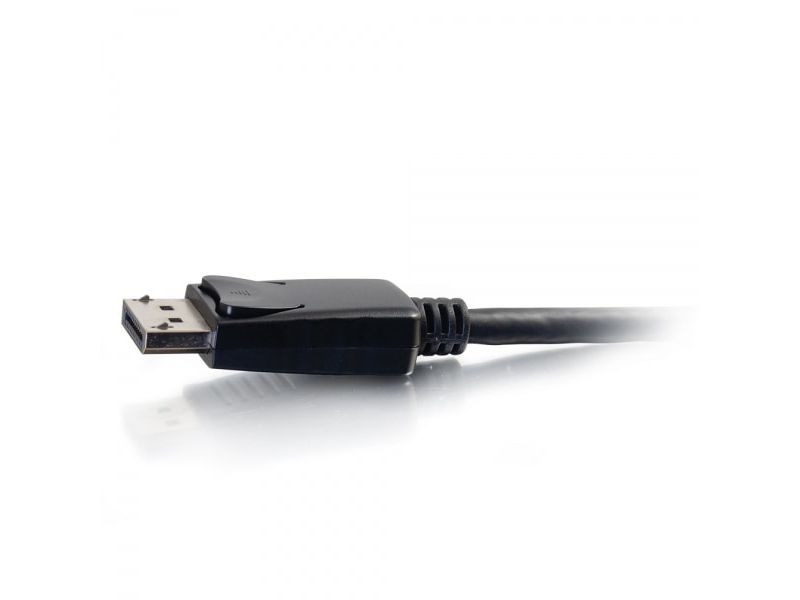

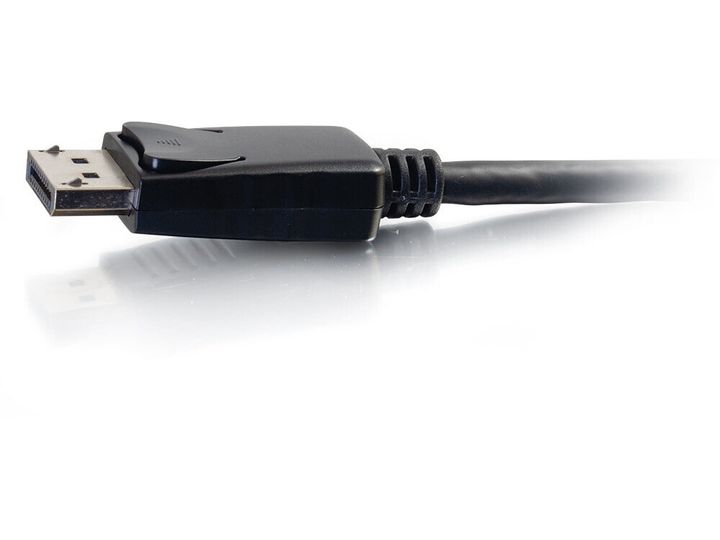

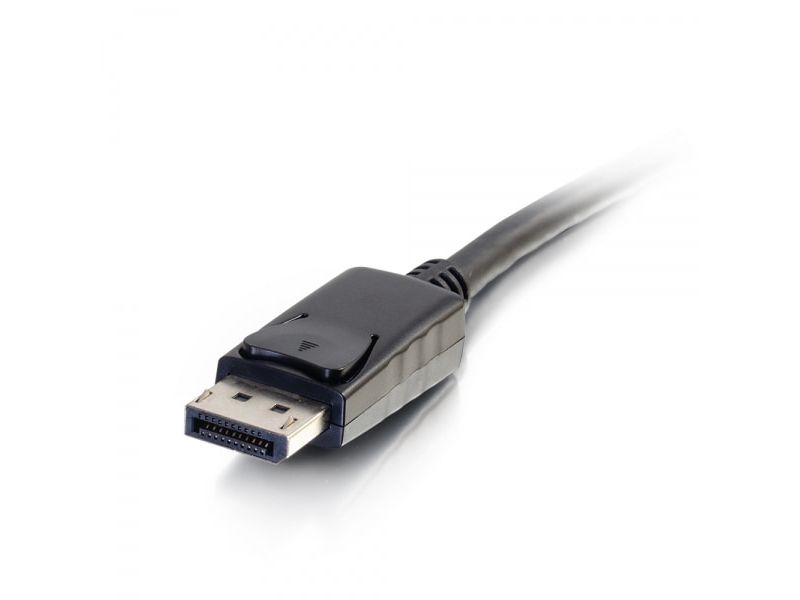

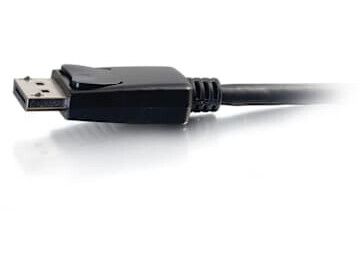

Connector 1: DP Male: Nickel Plated Shell: SPCC; Gold Plated Terminal: C5191; Black Core: LCP

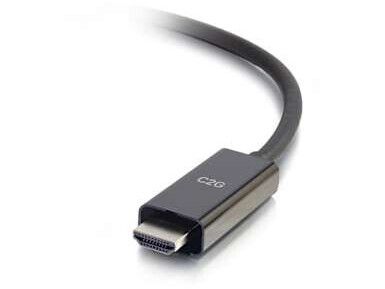

Connector 2: PCBA/Mini DP to HDMI A/M Plywood, Black Rubber Core (IC: PS176) PCB 'A, Nickel Plated Connector (Fog Surface) HDMI M Connector, Nickel Plated Shell: C2680; Gold Plated Terminal: C5191; Black Core: LCP
Shell: Connector 1, Connector 2: Black ABS Finish Shell, SR Molding Black PVC
Cable OD: 6.0, (7/0.10Tx1P+D+AL+Mylar)x5P+7/0.10Tx5C+F+ADB16/5/0.12, Jacket PVC Black
Cable Marking: DisplayPort Cable E301195 UL AWM Style 20276 80°C 30V VW-1
QC Inspection
100% Test for Open/Short
Mechanical Test for Connectors
Mean Time Between Failure is 400,000 Hours
Approvals: CE marked and conforms to 2011/65/EU ROHS 2
Convenience
The cable form factor of this adapter provides a simple and convenient solution that eliminates the need for a separate adapter and cable, reducing possible failure points.
Performance
This cable is a simple plug and play solution and carries an active video signal, supporting high-definition resolutions up to 4K (4096 x 2160 at 60hz), allowing it to deliver a high quality video image to the connected display.
Features and Benefits
Support for resolutions up to 4K (4096 x 2160 at 60hz)
Adapter in cable form factor
Active DisplayPort 1.2 to HDMI 2.0 conversion
Support for 3D video and HDCP 2.2
Plug and Play — no driver required
Additional Technical Specifications
Electrical Specifications
Voltage Rating: 30V
Conductor Resistance: 30AWG-381
/km Max. at 20°C
Insulation Resistance: FOAM-PE/PE DC-500V 100M
. km Min. at 20°C
Dielectric Strength: AC 500V/1 Sec. Min.
Impedance: 100±5
Physical Specifications
Operating Temperature: 0°C to 50°C
Storage Temperature: -25°C to 70°C
Connector 1: DP Male: Nickel Plated Shell: SPCC; Gold Plated Terminal: C5191; Black Core: LCP
Connector 2: PCBA/Mini DP to HDMI A/M Plywood, Black Rubber Core (IC: PS176) PCB 'A, Nickel Plated Connector (Fog Surface) HDMI M Connector, Nickel Plated Shell: C2680; Gold Plated Terminal: C5191; Black Core: LCP
Shell: Connector 1, Connector 2: Black ABS Finish Shell, SR Molding Black PVC
Cable OD: 6.0, (7/0.10Tx1P+D+AL+Mylar)x5P+7/0.10Tx5C+F+ADB16/5/0.12, Jacket PVC Black
Cable Marking: DisplayPort Cable E301195 UL AWM Style 20276 80°C 30V VW-1
QC Inspection
100% Test for Open/Short
Mechanical Test for Connectors
Mean Time Between Failure is 400,000 Hours
Approvals: CE marked and conforms to 2011/65/EU ROHS 2
