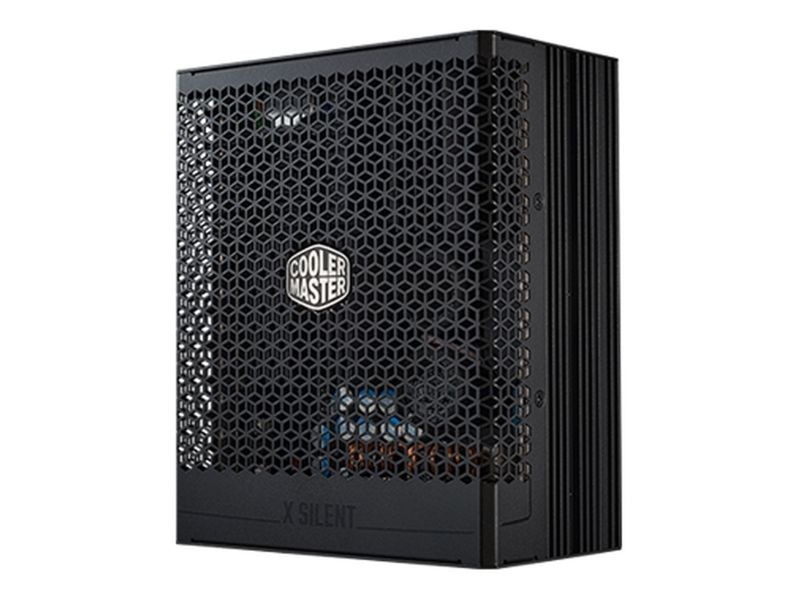

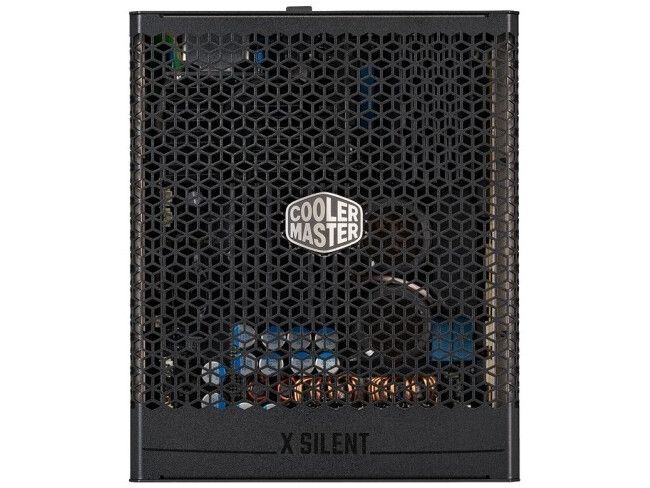

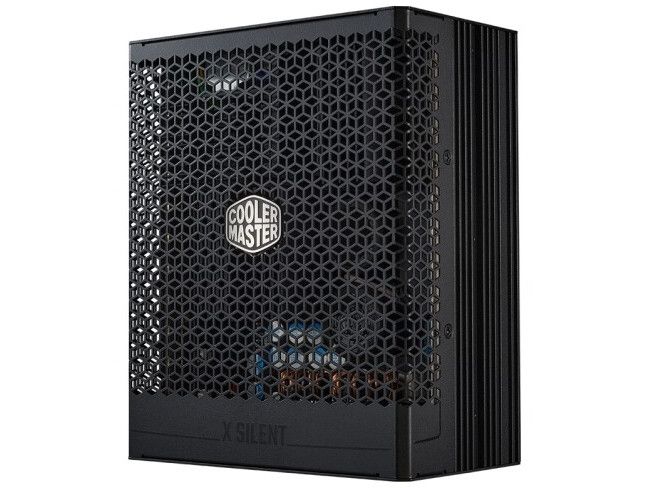

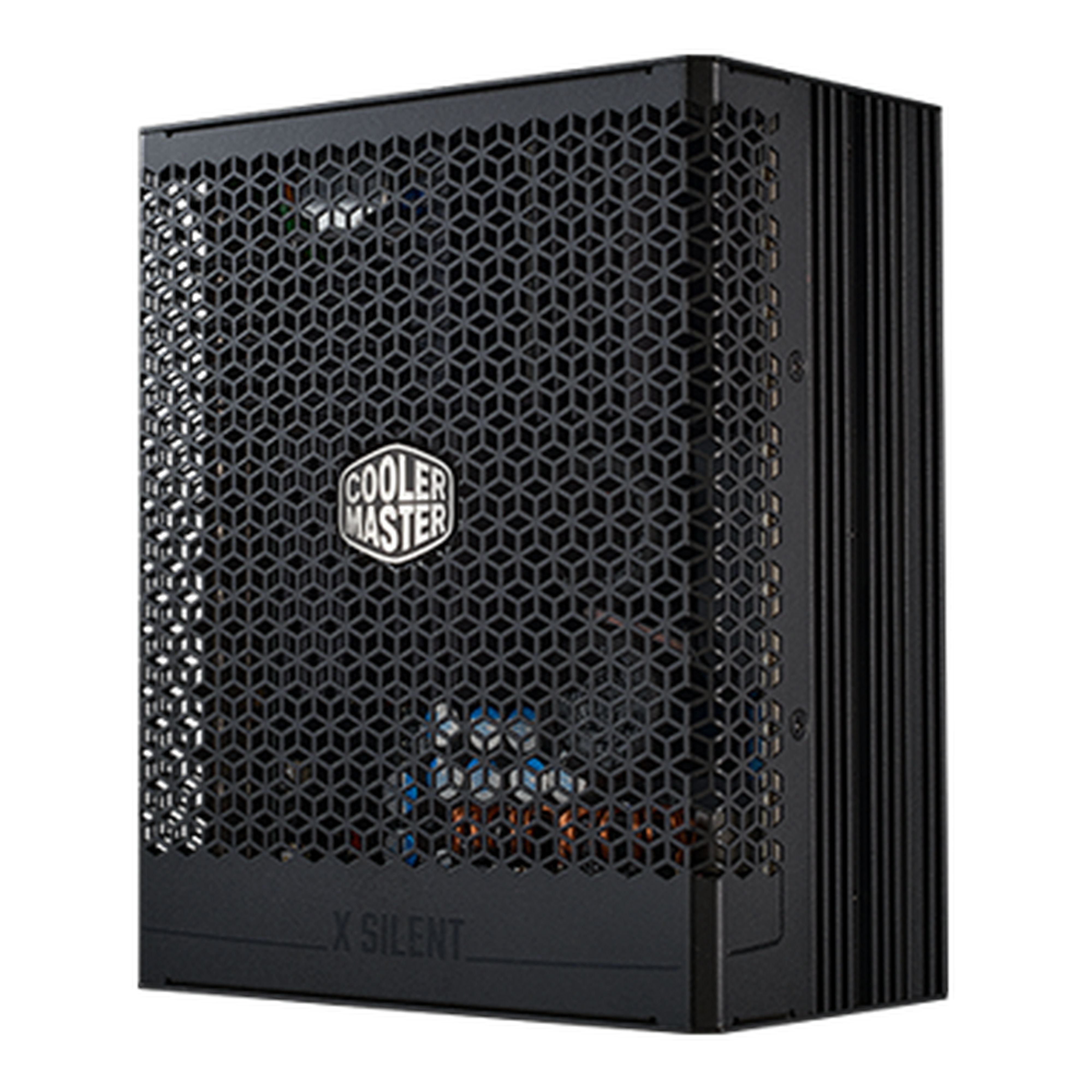

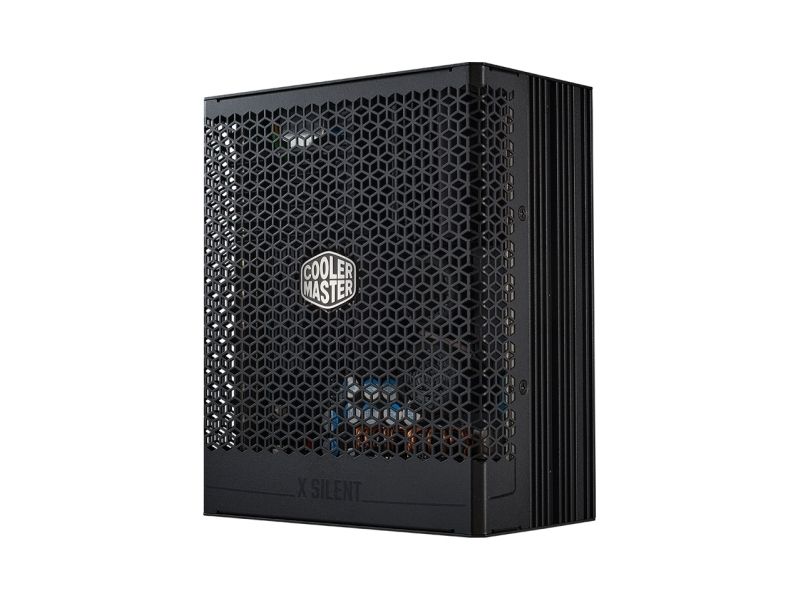

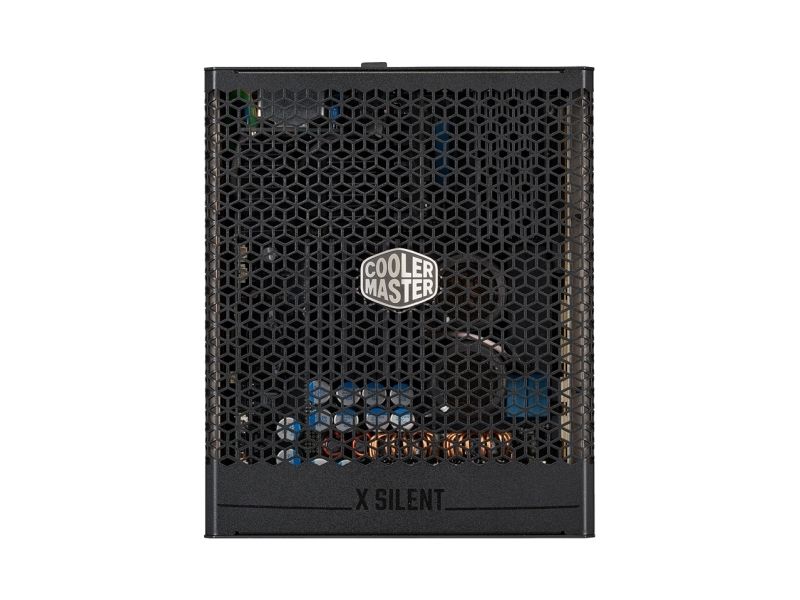

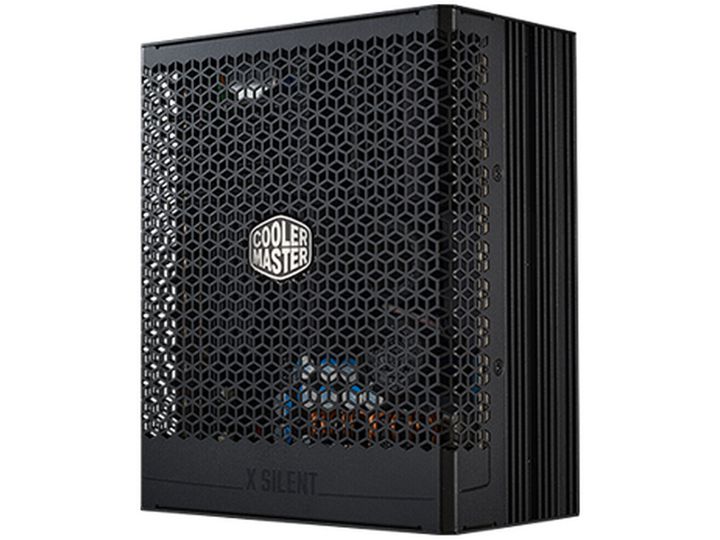

Precise Silent Power Engineered with a fanless design and industrial IC components, X Silent Edge Platinum features out Heat Pipe.
Dissipation Patent, ensuring quietness for even the most noise-sensitive environments.
NO FAN, NO DUST Equipped with a heat pipe and an innovative modular thermal structure, our design enhances thermal efficiency, essential for the low-temperature rise of key components and the ultra-quiet fanless operation.

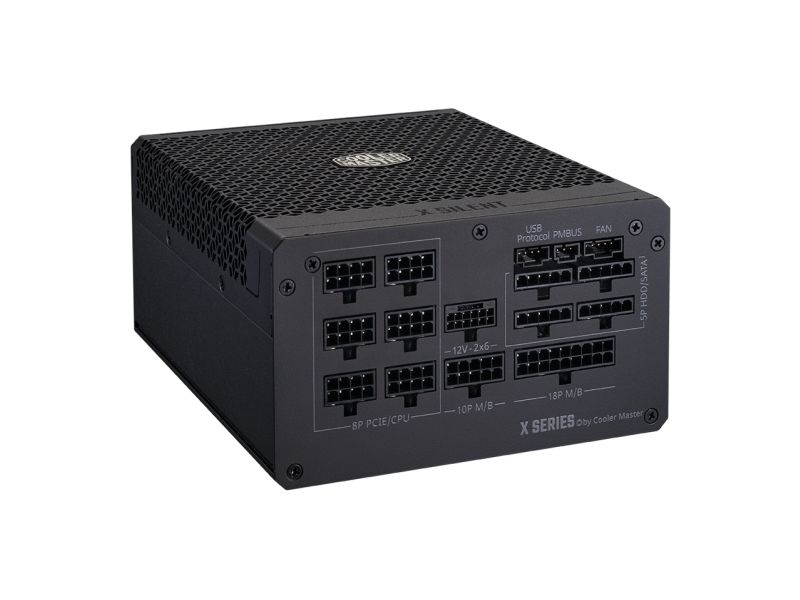

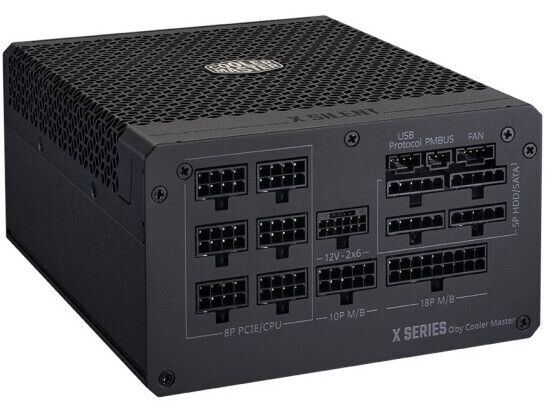

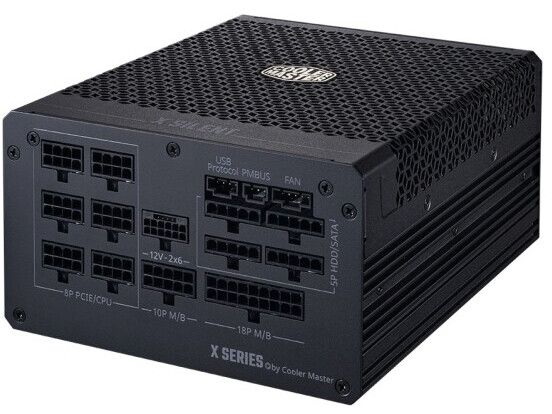

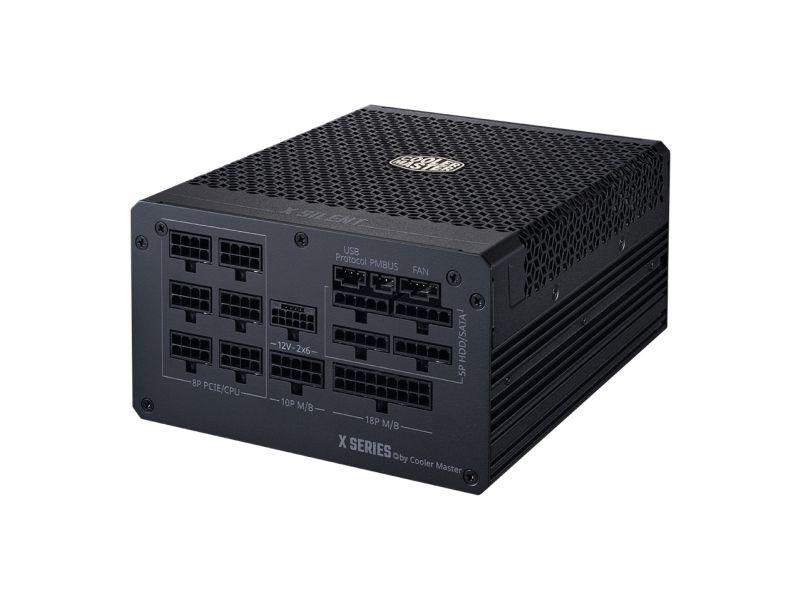

FULLY MODULAR CABLING Modular cabling minimizes clutter, while the additional ports provide extra functionality.
Cooling System
Patented Heat Decentralized Design Our Private Aluminum Thermal Mold effectively dissipates heat, and the Innovative Heat Pipe Thermal Tech uniformly regulates unit temperature. This ensures superior thermal control, enhancing efficiency and longevity in demanding environments.
Digital Power Management System & MasterCTRL Equipped with MCUs and Integrated with MasterCTRL software, our reliable PSU meticulously monitors temperature, current load and efficiency in real-time, offering precise and direct oversight.
Active Bridge Rectifier Boosts Efficiency 2% The Active Bridge Rectifier, equipped with the Infineon CoolMOS, marks a significant advancement in power efficiency. This innovative combination not only conserves electricity, but also significantly reduces power loss, outperforming traditional bridge diodes. It's an ideal solution for users seeking eco-friendly, high-efficiency power supply units.
ATX 3.1 SUPPORT & A Dual-color 12V-2X6 Cable Includes ATX 3.1 support and a dual-color 12V-2x6 connector (with clear purple markings) help users confirm correct installation, preventing poor contact and power issues for enhanced safety and reliability. In-house designed composite heat pipe technology enables effective passive thermal management.
Strømforsyning - aktiv Power Factor Correction (PFC) - intern
Specifikationsoverensstemmelse
ATX12V 3.1/ EPS12V
80 PLUS certificering
80 PLUS Platinum
Vægt
4.5 kg
Lokalisering
Europa
Indgangspænding
AC 200-240 V
Udgangspænding
+3.3, +5, ±12 V
Strømkapacitet
1100 Watt
Output Current
+3.3V - 20 A +5V - 20 A +12V - 91.6 A -12V - 0.3 A +5VSB - 3 A
Output-stikforbindelser
1 x strøm 24 pin ATX 1 x strøm 8 pin EPS12 V med aftagelig 4 pin ATX12V sektion 4 x 8 pin PCI Express-strøm med aftagelig 2 pin sektion 12 x 15 pin Serial ATA strøm 4 x 4-PIN intern strøm 1 x strøm 8 pin EPS12 V 1 x 12VHPWR
Modulær Kabel Administration
Ja
Dimensioner (B x D x H)
15 cm x 18 cm x 8.6 cm
Producentgaranti
15 års garanti
Generelt
Enhedstype
Strømforsyning - aktiv Power Factor Correction (PFC) - intern
Specifikationsoverensstemmelse
ATX12V 3.1/ EPS12V
PSU formfaktor
ATX
Lokalisering
Europa
Strømenhed
Indgangspænding
AC 200-240 V
Nødvendig frekvens
50 - 60 Hz
Detaljer om strømudgangskonnektorer
1 x strøm 24 pin ATX 1 x strøm 8 pin EPS12 V med aftagelig 4 pin ATX12V sektion 4 x 8 pin PCI Express-strøm med aftagelig 2 pin sektion 12 x 15 pin Serial ATA strøm 4 x 4-PIN intern strøm 1 x strøm 8 pin EPS12 V 1 x 12VHPWR
Udgangspænding
+3.3, +5, ±12 V
Strømkapacitet
1100 Watt
Output Current
+3.3V - 20 A +5V - 20 A +12V - 91.6 A -12V - 0.3 A +5VSB - 3 A
Effektivitet
94%
Modulær Kabel Administration
Ja
80 PLUS certificering
80 PLUS Platinum
Diverse
Medfølgende ledninger
AC-strømkabel Strøm 24 pin ATX modulært kabel 65 cm Strøm 8 pin EPS12V med aftagelig 4 pin ATX12V sektion modulært kabel 65 cm Strøm 8 pin EPS12V modulært kabel 65 cm 3 x 15 pin Serial ATA strøm modulært kabel 86 cm 4 pin strøm modulært kabel 86 cm 4 x 8 pin PCI Express strøm med udtrækkelig 2 pin sektion modulærtkabel 55 cm 16-pin 12VHPWR til 2x8 pin PCI Express strøm modulær kabel 65 cm USB-kabel 80 cm
MTBF (forventet tid mellem fejl)
100,000 timer
Egenskaber
Beskyttelse mod overophedning, beskyttelse mod overstrøm, overspændingsbeskyttelse, overbelastningsbeskyttelse, beskyttelse mod underspænding, uden blæser, kortslutnings beskyttelse, varmerørs køler, spændings- og tilstrømningsbeskyttelse, fuld modulær
Overensstemmelsesstandarder
TUV, CCC, KC, EAC, RCM, BIS, ErP 2014, UKCA
Producentgaranti
Service & Support
Begrænset garanti - 15 år
Mål og vægt
Bredde
15 cm
Dybde
18 cm
Højde
8.6 cm
Vægt
4.5 kg
Mål & vægt (forsendelse)
Bredde ved forsendelse
38.2 cm
Dybde ved forsendelse
22.4 cm
Højde ved forsendelse
12.6 cm
Vægt ved forsendelse
5.2 kg
