Item no.: [21704320] | Manufacturer: Level One | Model no.: 551104 | EAN: 4015867180600
out of stock
The item is not in stock. More info
Udsolgt
Varen er ikke på lager.
Brug funktionen ”Giv mig besked..." herunder for opdateringer.
Delivery options - Select at checkout
Shipping @price - GLS
12,00
EUR
65,22
Incl. VAT 81,53
Total incl. delivery
96,53
Notify me when the item is in stock again
Email:
Stock agent created. We will send an email when the item is in stock again.
The function requires that you are logged in. Create a user and use our smart list system to keep track of future purchases, regular purchases or wish lists. Create user Login

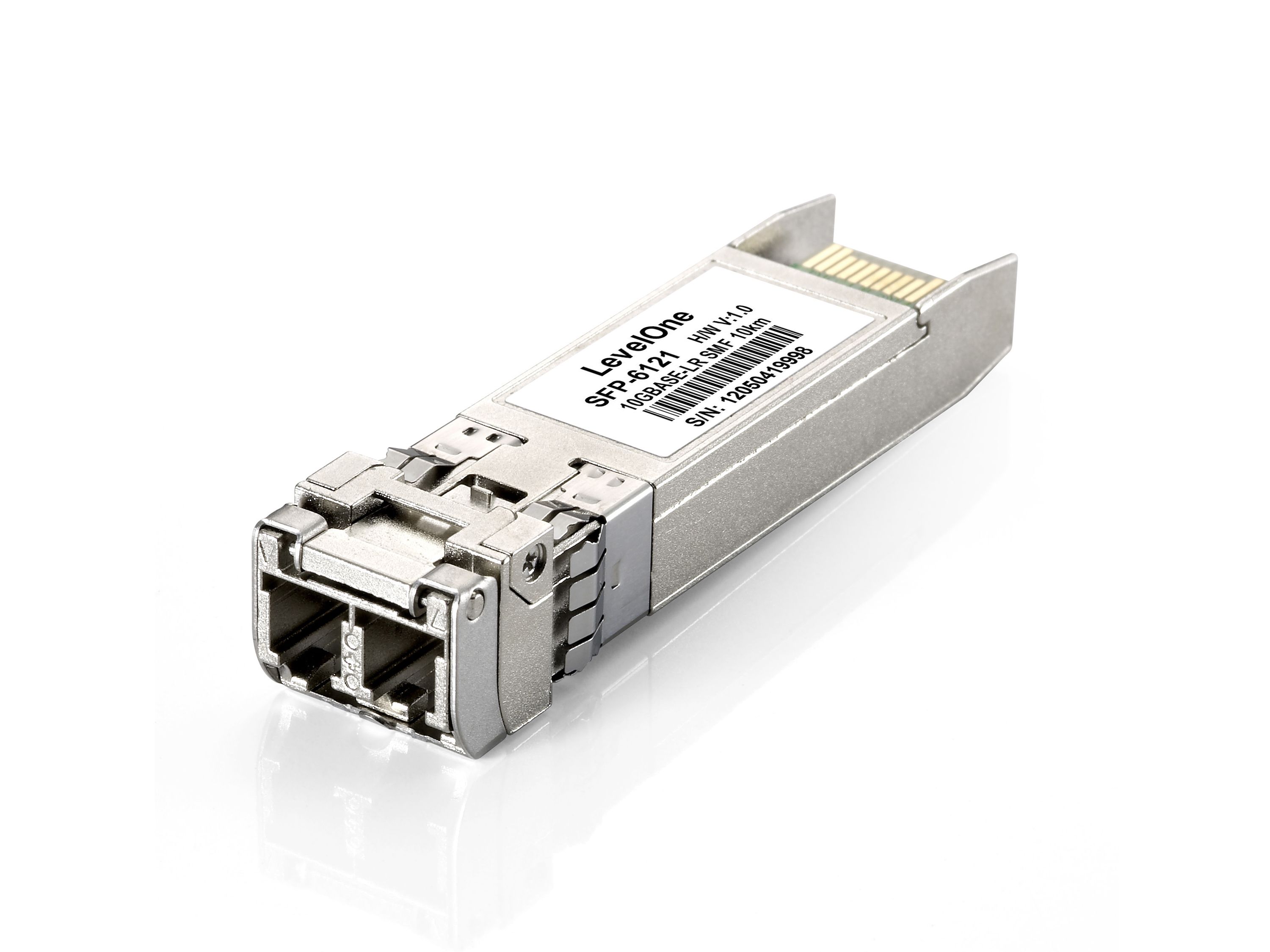

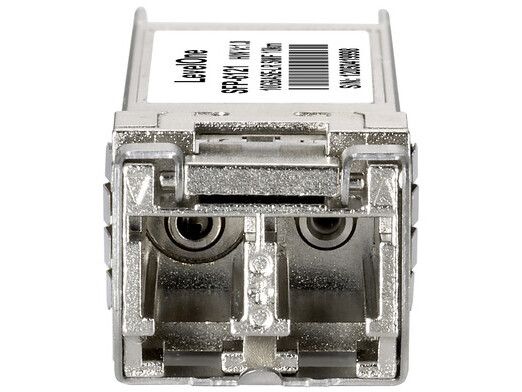

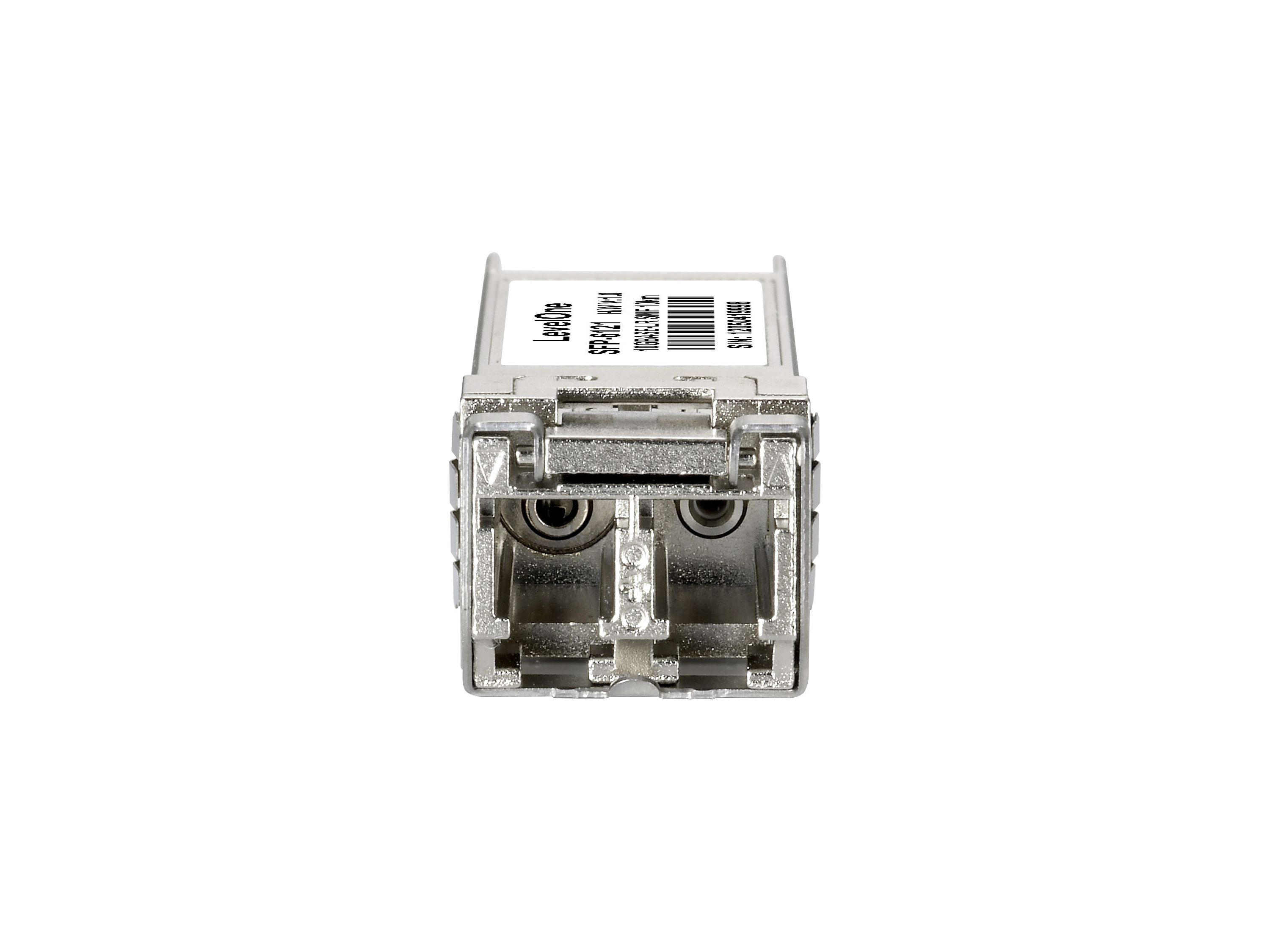

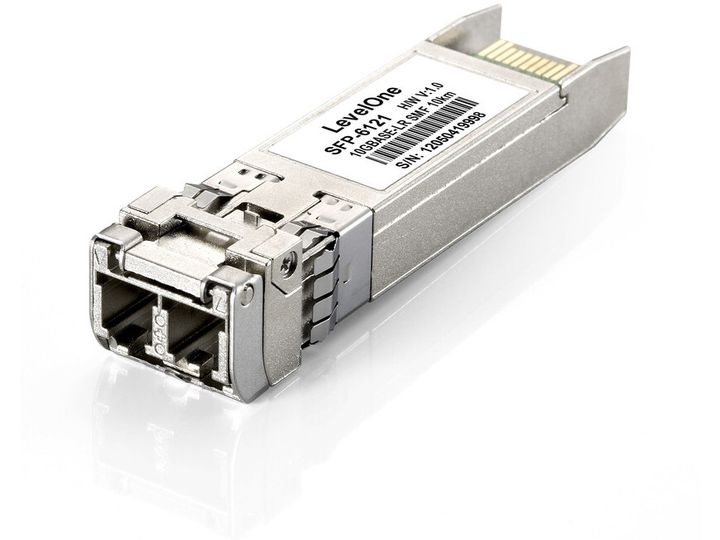

LevelOne's SFP-Plus Transceivers are hot-swappable multi-purpose optical modules support 10Gigabit Ethernet applications across most switching and routing platforms. The transceivers support to operate at 10Gbps serial optical data transfer rates on a single duplex fiber core with a length of up to 40km (SMF) or 300m (MMF), ideally suited for data centers, enterprise and storage area networks. In addition, the LevelOne SFP-Plus transceivers adopt the most advanced technology to minimize the power consumption in ultra-high speed.
- High-quality 10Gbase short range SFP-Plus transceiver - Comply with SFP Multi-Sourcing Agreement (MSA) to work in MSA compliant devices - Supports Digital Optical Monitoring (DOM) and Digital Diagnostics Monitoring Interface (DDMI) for easy status monitoring - Hot-swappable providing non-stop service - Provides duplex LC connector - Operating temperature: 0°C ~ 70°C
SFP transceiver type
Fiber optic
Maximum data transfer rate
10000 Mbit/s
Interface type
SFP+
Single-mode fiber (SMF) supported
Yes
Fiber optic connector
LC
Fiber cable diameters supported (core/cladding)
9/125 µm
Maximum transfer distance
10000 m
Wavelength
1310 nm
Tx power (min)
8.2 dBmW
Tx power (max)
0.5 dBmW
Networking standards
IEEE 802.3ae
Duplex system
Full
Fiber ports quantity
1
Hot-swap
Yes
Input voltage
3.3 V
Maximum voltage
3.6 V
Maximum current
0.33 A
Compliance certificates
RoHS
Safety
EN 60825-1
Certification
CE, FCC
Operating temperature (T-T)
0 - 70 °C
Storage temperature (T-T)
40 - 85 °C
Width
57 mm
Depth
12 mm
Height
13.7 mm
Weight
20 g
Quantity per pack
1 pc(s)
Package width
106 mm
Package depth
20 mm
Package height
65 mm
Package weight
35 g
Harmonized System (HS) code
85369010
