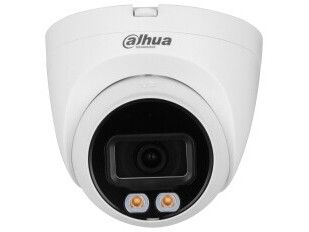

Dahua Technology WizSense HDW2449T-S-LED, IP security camera, Indoor & outdoor, Wired, 120 dB, CE-LVD: EN 62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part..., Ceiling

Item no.: [21725501] | Manufacturer: DAHUA | Model no.: 53284 | EAN: 6939554921803

Remote stock (5-7 days)

The item is in a remote warehouse, delivery time is 5-7 business days. More info

Shipping @price - GLS

12,00

EUR 112,31

Incl. VAT 140,39

Total incl. delivery 155,39

Do you need a spare part for your camera?

Our configurator shows exactly the parts that fit 53284 - batteries, battery doors, grips, lens parts and much more.

Find spare parts for your model

Parts for this model in stock
Delivery 1-2 working days
Original and compatible parts

Read further specifications and description

Launched by Dahua Technology, WizSense is a series of AI products and solutions that adopt independent AI chip and deep learning algorithm. It focuses on human and vehicle with high accuracy, enabling users to fast act on defined targets. Based on Dahua's advanced technologies, WizSense provides intelligent, simple and inclusive products and solutions.

Type	IP security camera
Placement supported	Indoor & outdoor
Connectivity technology	Wired
Wide Dynamic Range (WDR)	Yes
Dynamic range	120 dB
Certification	CE-LVD: EN 62368-1CE-EMC: Electromagnetic Compatibility Directive 2014/30/EUFCC: 47 CFR FCC Part 15, Subpart B
Mounting type	Ceiling
Product colour	White
Form factor	Turret
International Protection (IP) code	IP67
Minimum illumination	0.008 lx
Angle of rotation	360°
Lens viewing angle, horizontal	101°
Lens viewing angle, vertical	53°
Lens viewing angle, diagonal	120°
Tilt angle range	0 - 78°
Pan range	0 - 360°
Camera shutter type	Electronic
Camera shutter speed	1/3 - 1/100000 s
Adjustment shutter speed	Auto/Manual
Sensor type	CMOS
Number of sensors	1
Optical sensor size	25.4 / 2.9 mm (1 / 2.9")
Progressive scan	Yes
Number of Privacy masking areas (panoramic camera)	4
Number of lenses	1
Detect distance	63.6 m
Observe distance	25.4 m
Recognize distance	12.7 m
Maximum aperture number	1.6
Identify distance	6.4 m
Normal focusing range	0.9 - 1.6 m
Fixed focal length	3.6 mm
Observe distance (tele)	34.2 m
Recognize distance (wide)	12.7 m
Recognize distance (tele)	17.1 m
Identify distance (wide)	6.4 m
Identify distance (tele)	8.5 m
Closest focusing distance	0.9 m
Night vision	No
Night vision distance	30 m
LED type	IR
Number of illumination LEDs	2
Maximum resolution	2688 x 1520 pixels
Total megapixels	4 MP
Video formats supported	H.264, H.264+, H.265, H.265+
Video compression formats	H.264, H.264B, H.264H, H.265, M-JPEG
Supported graphics resolutions	640 x 480 (VGA), 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080), 2304 x 1296, 2520 x 1520, 2560 x 1440
Supported video modes	1080p
Frame rate	30 fps
Video streaming	Yes
Noise reduction	Yes
Noise reduction technology	3D noise reduction
Gain control type	Auto/Manual
Privacy masking	Yes
Bit rate control	Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Bit rate	H.264: 32 kbps–6144 kbps; H.265: 12 kbps–6144 kbps
Back Light Compensation (BLC)	Yes
Highlight Compensation (HLC)	Yes
Signal-to-Noise Ratio (SNR)	56 dB
Built-in microphone	Yes
Voice codecs	G.711Mu, G.711a, G.726, PCM
Bit rate range	12 - 6144 Kbit/s
Ethernet LAN	Yes
Ethernet interface type	Fast Ethernet
Supported network protocols	IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP
Number of users	6 user(s)
Streaming method	Multicast
Built-in HDD	No
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash)
Maximum memory card size	256 GB
Internal memory	128 MB
ROM capacity	128 MB
Ethernet LAN (RJ-45) ports	1
DC-in jack	Yes
Video motion detection	Yes
Privacy protection	Yes
Intelligent Video Surveillance (IVS) system features	Human detection, Intrusion, Tripwire, Vehicle detection
Mirror	Yes
Web browser	Yes
Management software	DSS; DMSS
Power source type	DC, PoE
Power consumption	2.1 mA
Power consumption (max)	5.2 W
Power consumption (Power over Ethernet (PoE))	2.5 W
DC output voltage	12
Operating temperature (T-T)	40 - 60 °C
Storage temperature (T-T)	40 - 60 °C
Operating relative humidity (H-H)	0 - 95%
Mobile operating systems supported	Android, iOS
Width	109.9 mm
Depth	109.9 mm
Height	100.9 mm
Diameter	11 cm
Weight	370 g
Package weight	510 g
Number of cameras	1
