ASUS ThunderboltEX 5, PCIe, Mini DisplayPort, USB 2.0, PCIe, USB Type-C, Thunderbolt, VGA, PCIe 4.0, Black, PC, 120 Gbit/s
Item no.: [21803195] | Manufacturer: ASUS | Model no.: 90MC0E50-M0EAY0 | EAN: 4711387776469
Remote stock (2-3 days)
The item is in a remote warehouse, delivery time is 2-3 business days. More info
Delivery options - Select at checkout
Shipping @price - GLS
12,00
EUR
138,25
Incl. VAT 172,81
Total incl. delivery
187,81
The function requires that you are logged in. Create a user and use our smart list system to keep track of future purchases, regular purchases or wish lists. Create user Login

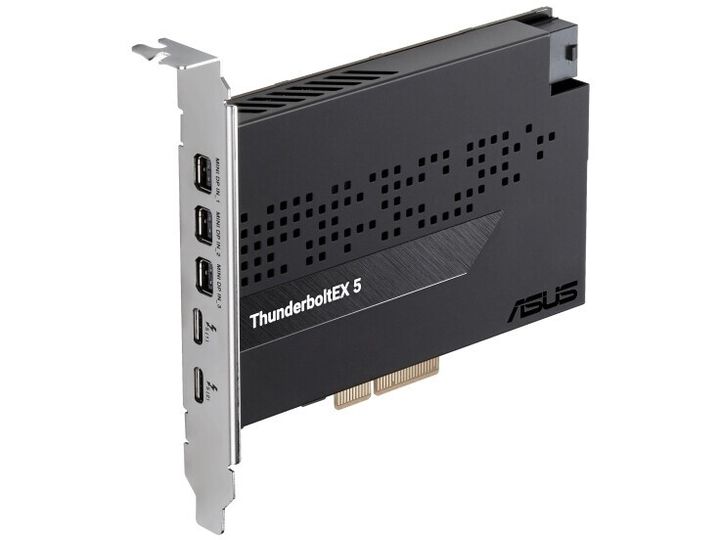

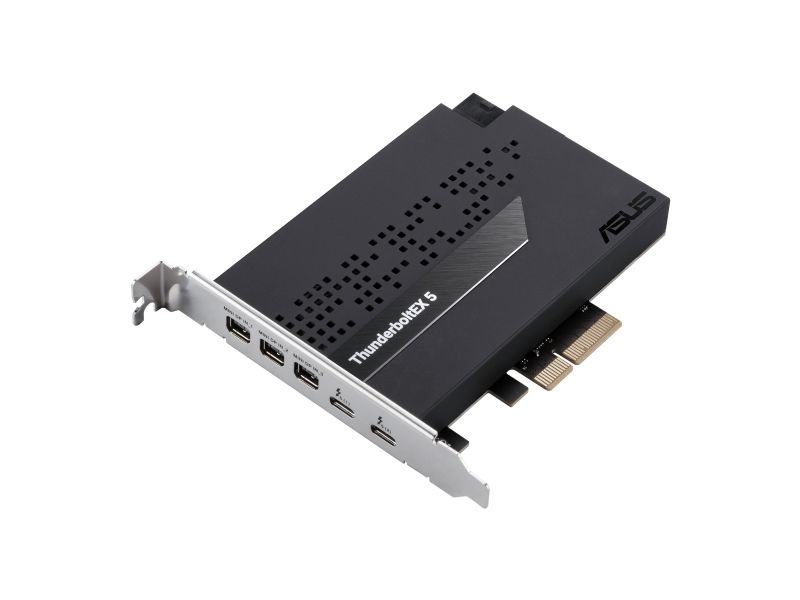

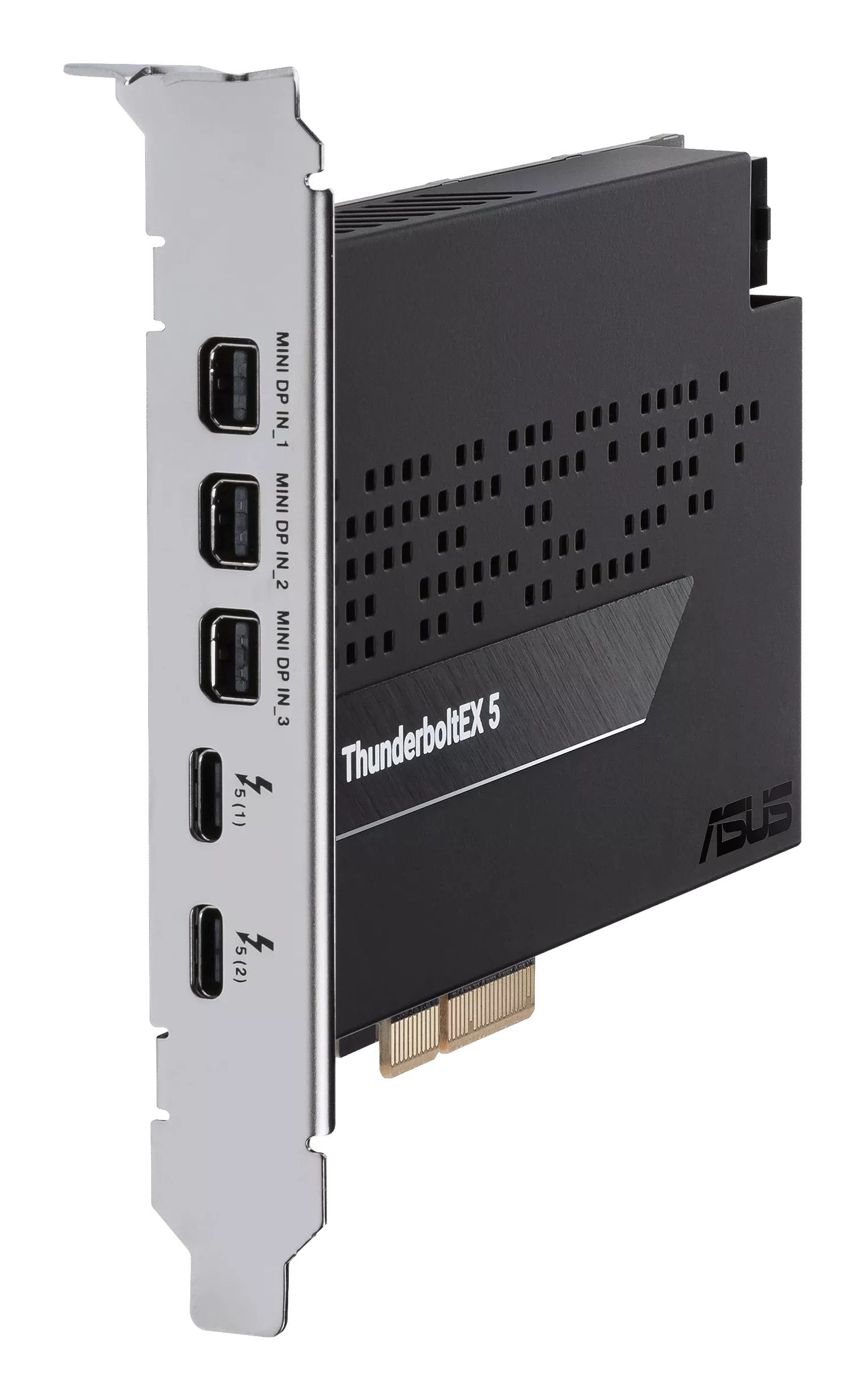

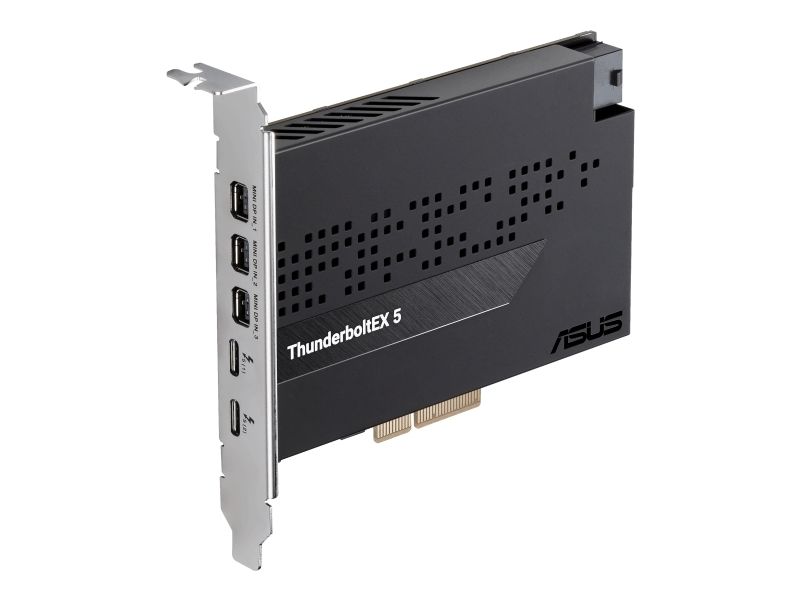

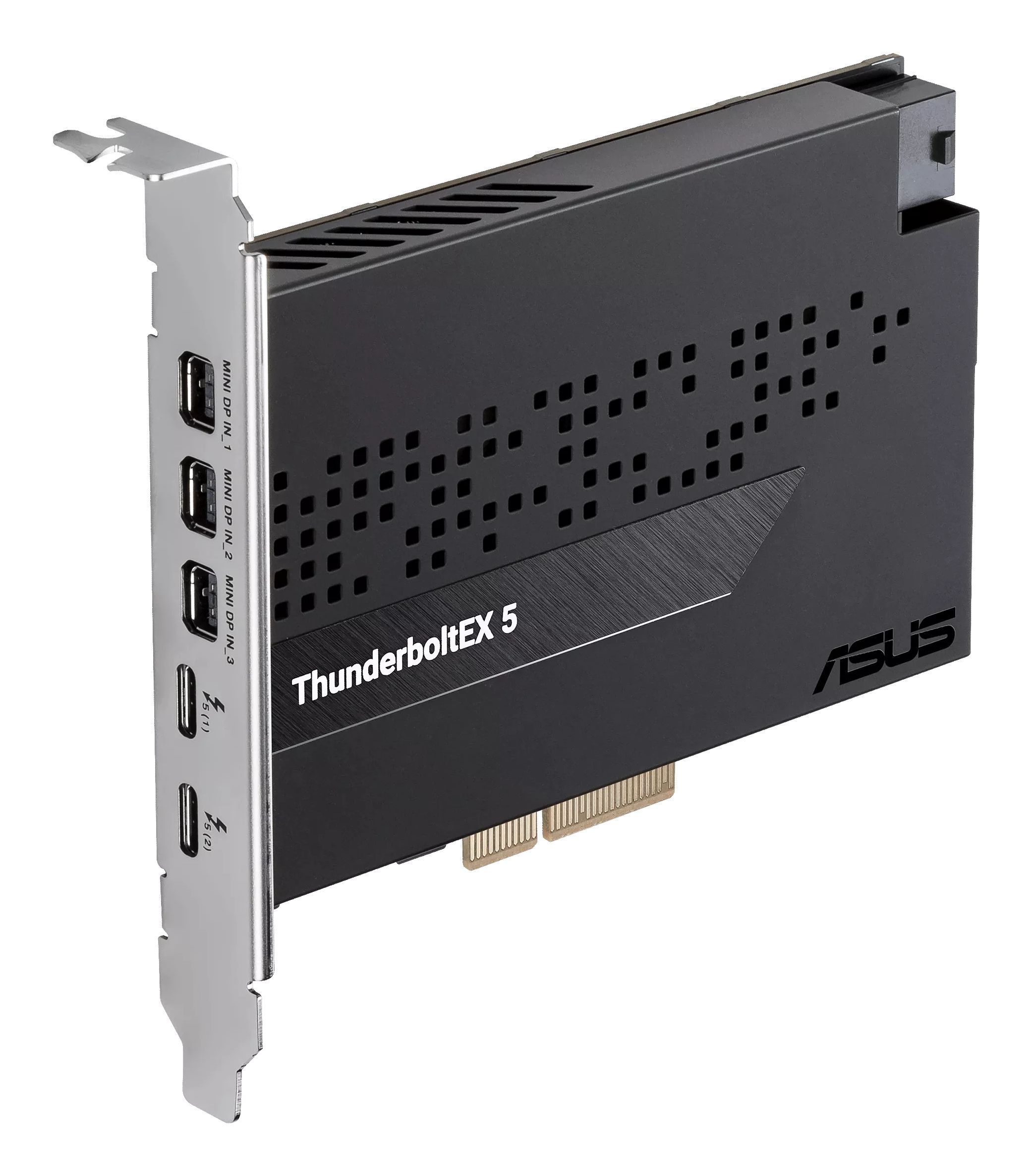

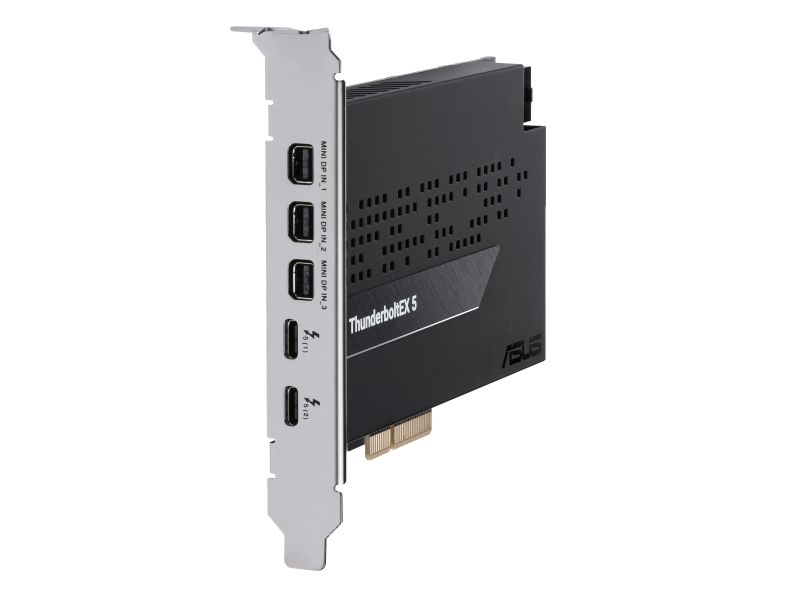

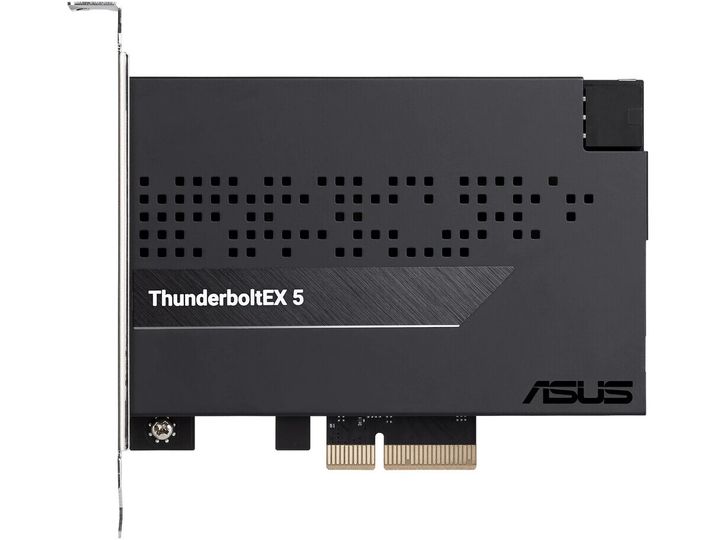

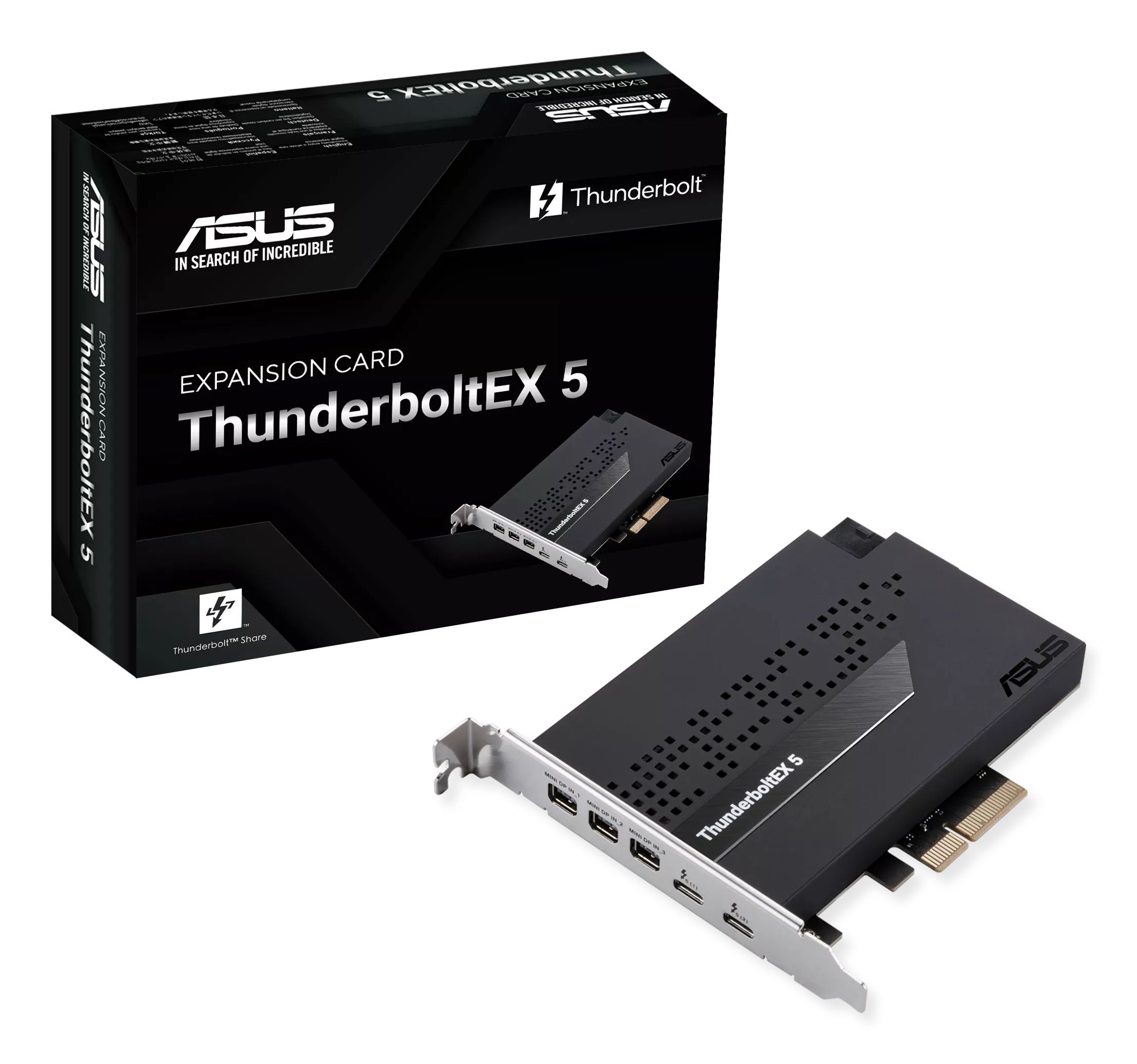

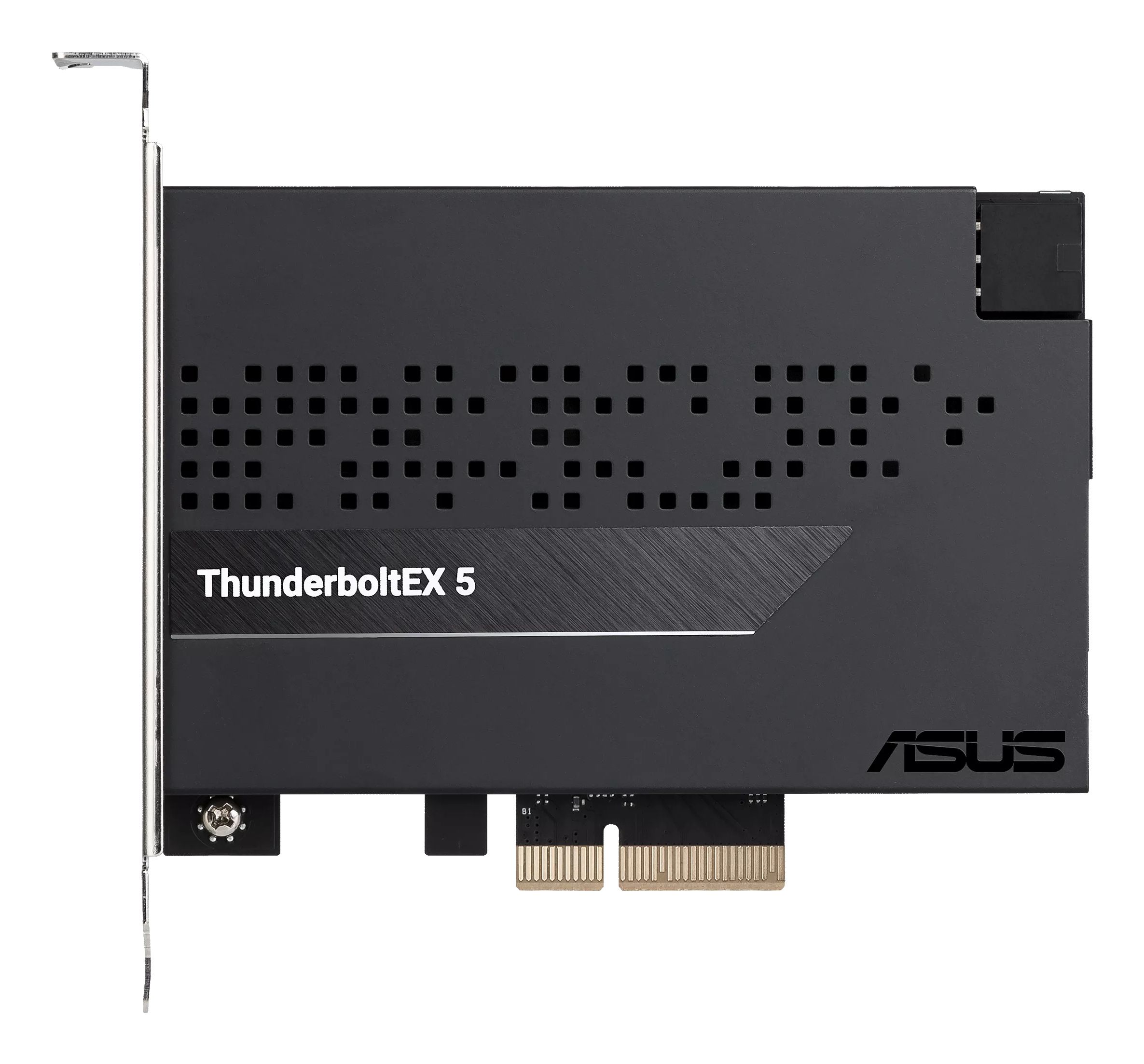

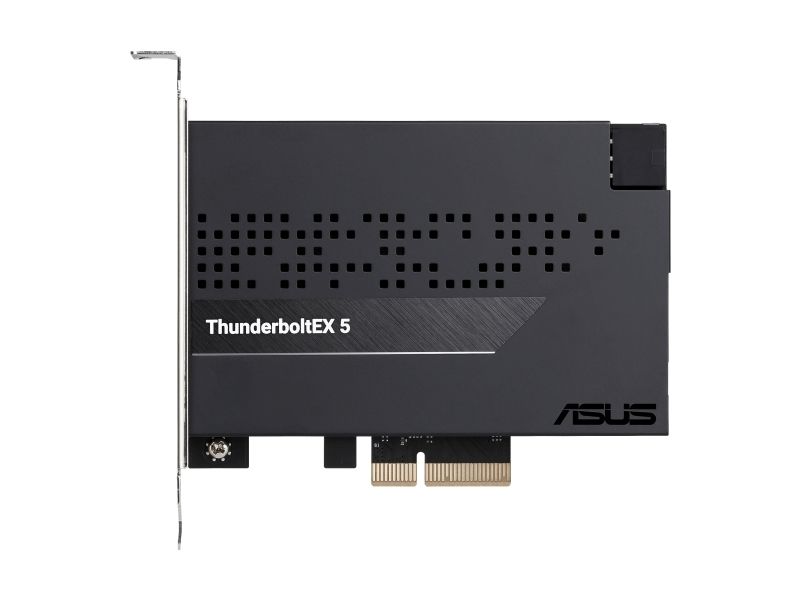

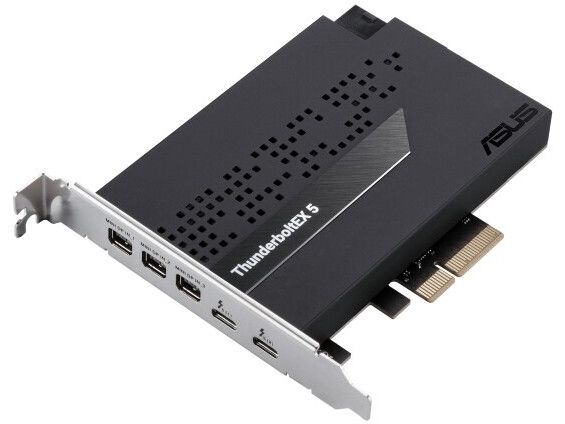

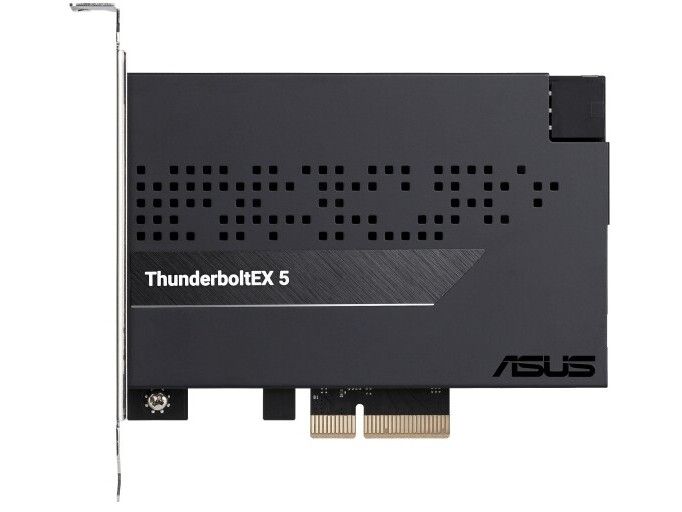

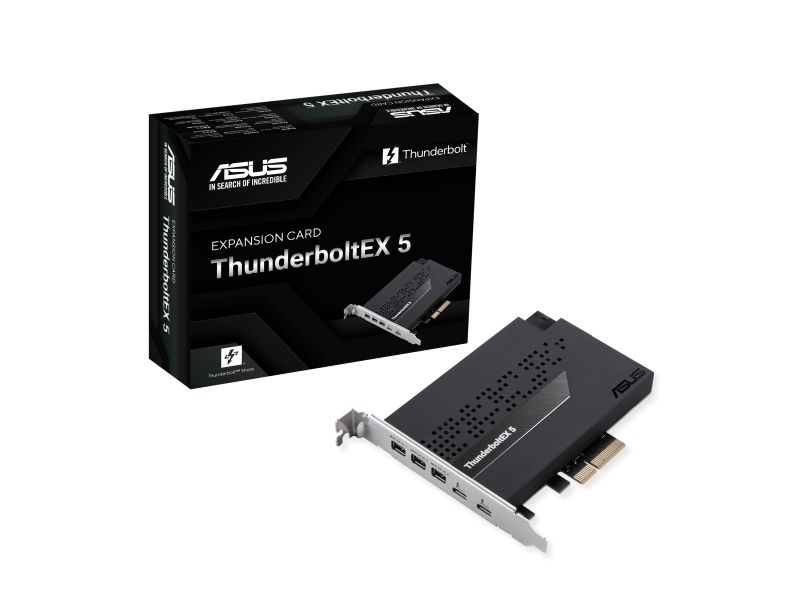

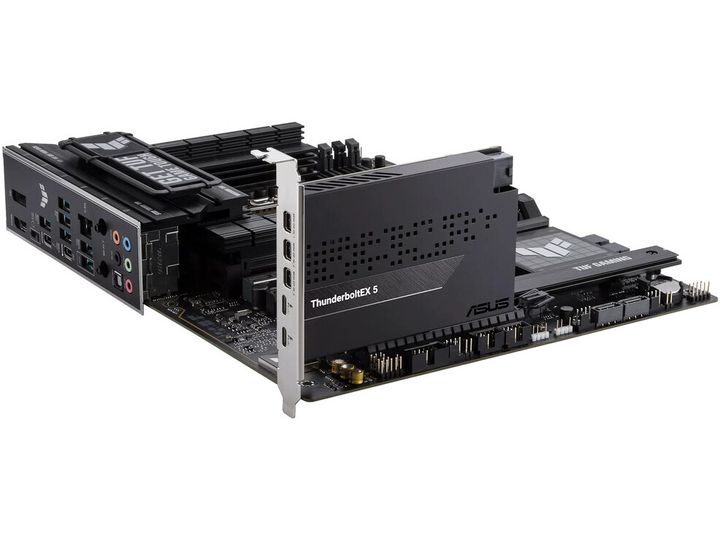

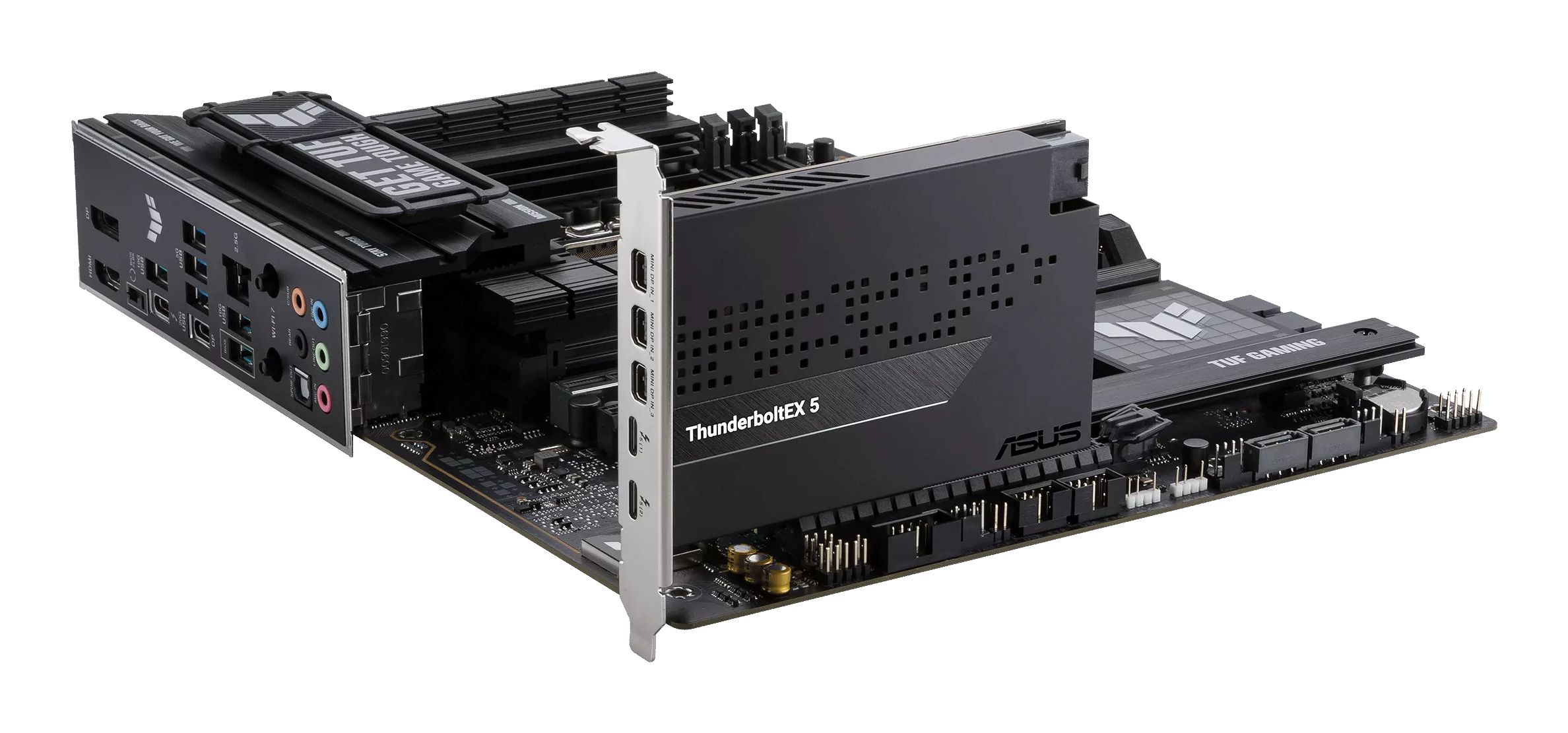

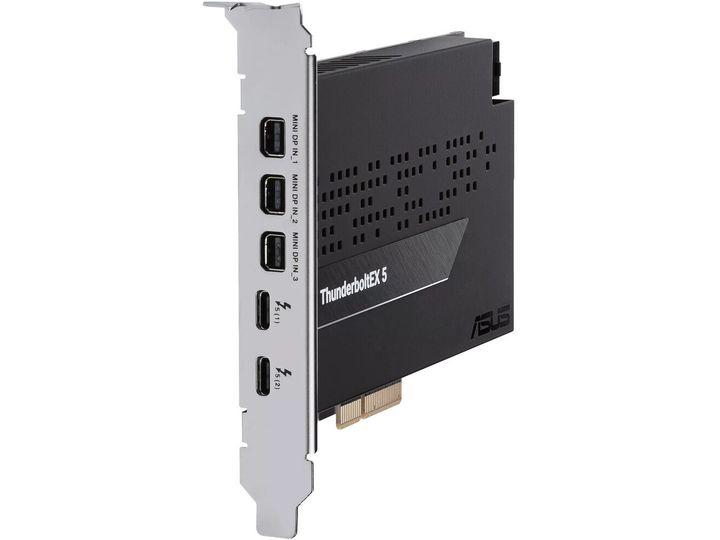

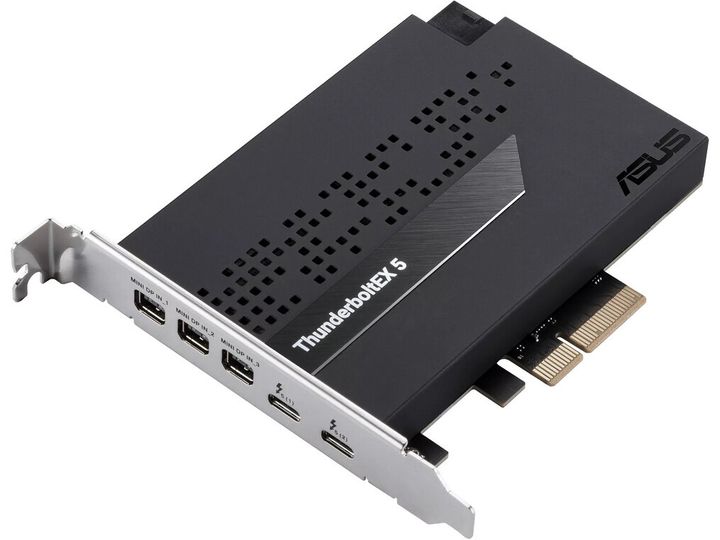

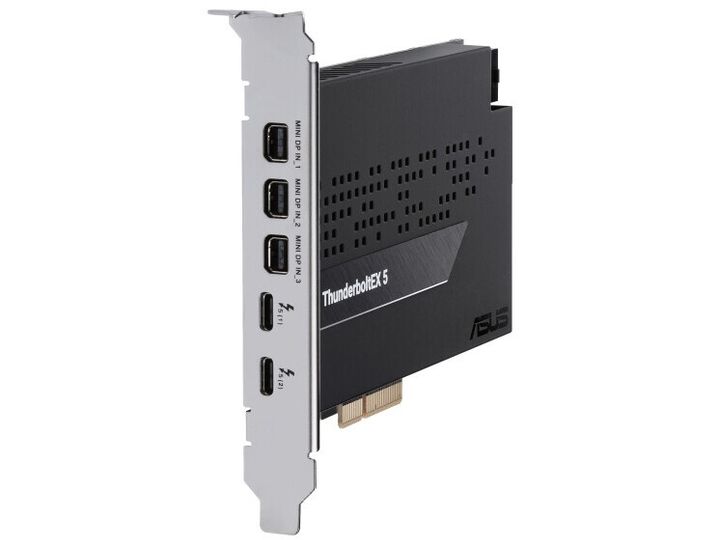

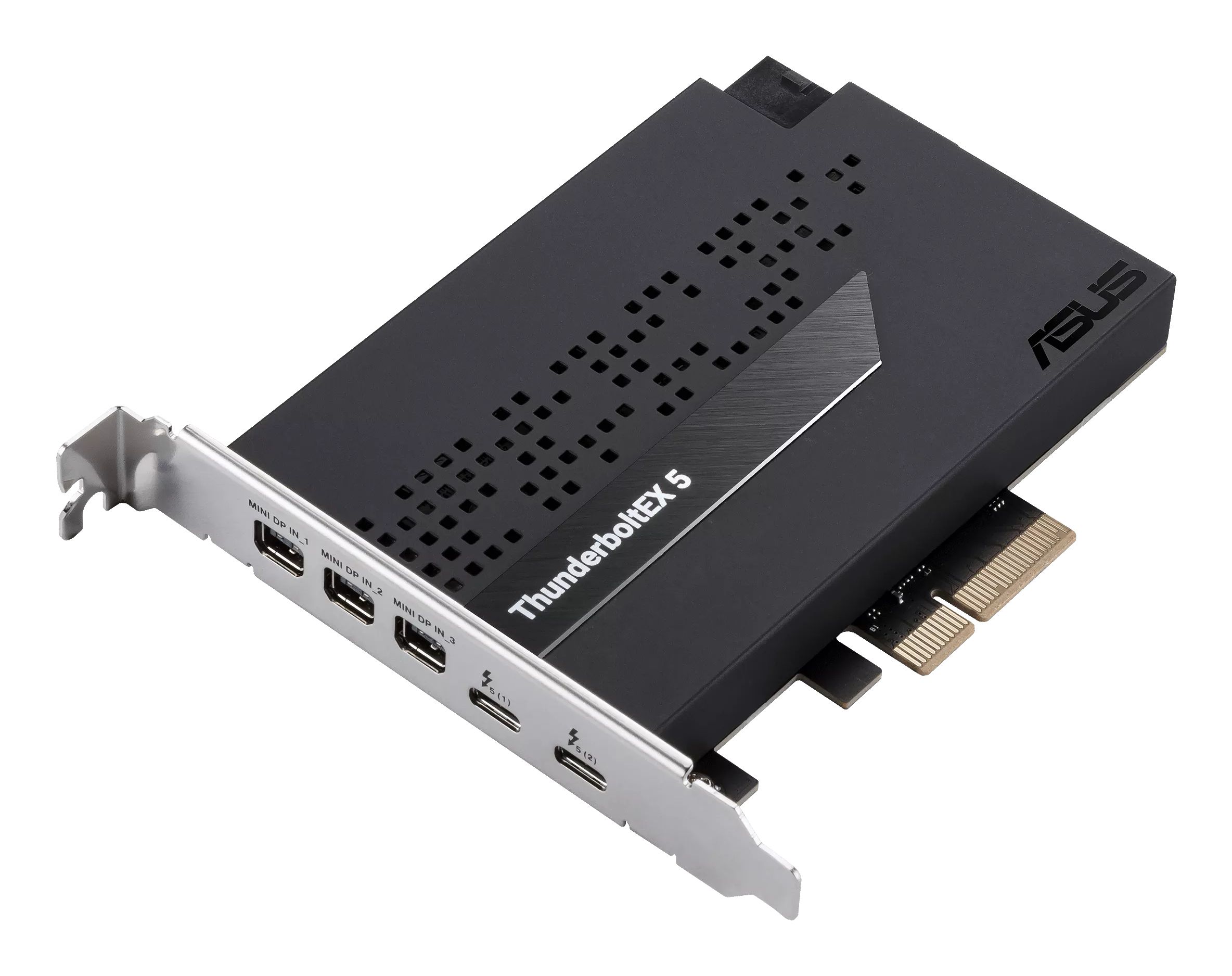

The ASUS ThunderboltEX 5 enhances connectivity capabilities with various interfaces. Equipped with Mini DisplayPort and USB-C ports, this plug-in card offers multiple connection options, ideal for high-resolution displays and fast data transfer requirements. The inclusion of the Intel JHL9580 chipset ensures efficient performance, supporting data rates of up to 120 Gbps for seamless integration of peripherals. This expansion card features two USB-C ports and supports USB Power Delivery of up to 130 watts, enabling rapid charging for connected devices. With the capability of driving 8K resolution, the ASUS ThunderboltEX 5 caters to users who require powerful and efficient connectivity solutions. Its PCI Express 4.0 x4 interface ensures compatibility with a range of systems, providing an upgrade for users looking to optimize their setups.
Produktbeskrivelse
ASUS ThunderboltEX 5 - Thunderbolt adapter - PCIe 4.0 x4 - USB-C x 2
Enhedstype
Thunderbolt adapter
Model
Indstikskort
Grænseflade (bus) type
PCI Express 4.0 x4
PCI-specifikationsrevision
PCIe 4.0
Porte
USB-C x 2
Dimensioner (B x D x H)
11.95 cm x 8.89 cm
Kabeltype
Thunderbolt 5
Dataforbindelsesprotokol
USB4
Dataoverførselshastighed
120 Gbps
Systemkrav
Windows 11
Generelt
Enhedstype
Thunderbolt adapter
Model
Indstikskort
Grænseflade (bus) type
PCI Express 4.0 x4
PCI-specifikationsrevision
PCIe 4.0
Netværk
Porte
USB-C x 2
Forbindelsesteknologi
Kablet
Kabeltype
Thunderbolt 5
Dataforbindelsesprotokol
USB4
Dataoverførselshastighed
120 Gbps
Egenskaber
Fast Charging Port, 8K opløsningssupport, USB Power Delivery (op til 130 watt), Intel JHL9580 chipset
Ekspansion / Konnektivitet
Interface

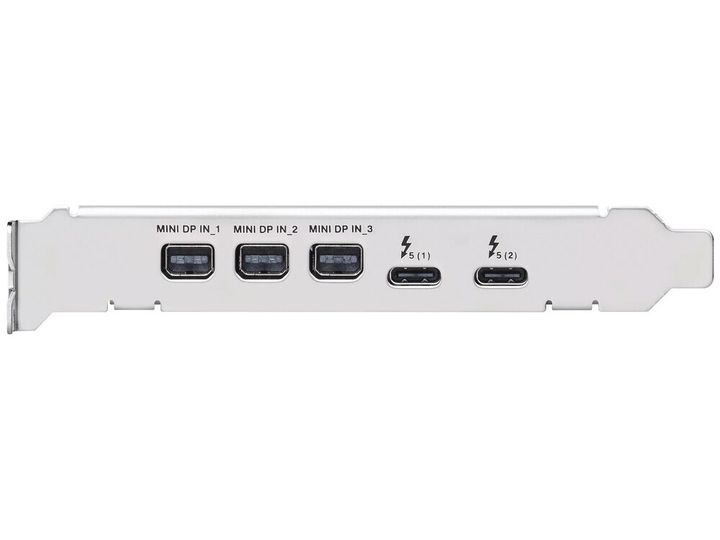

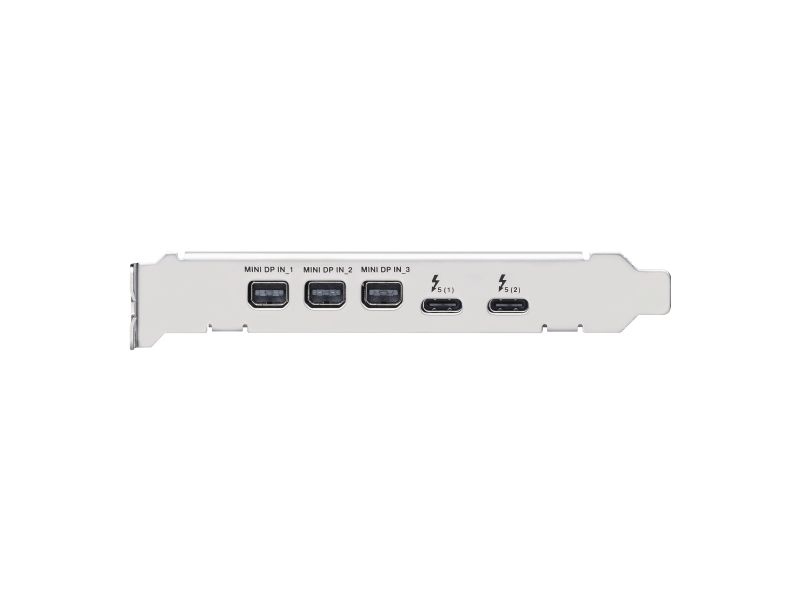

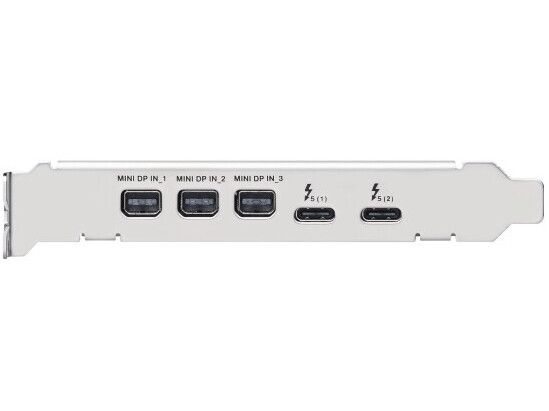

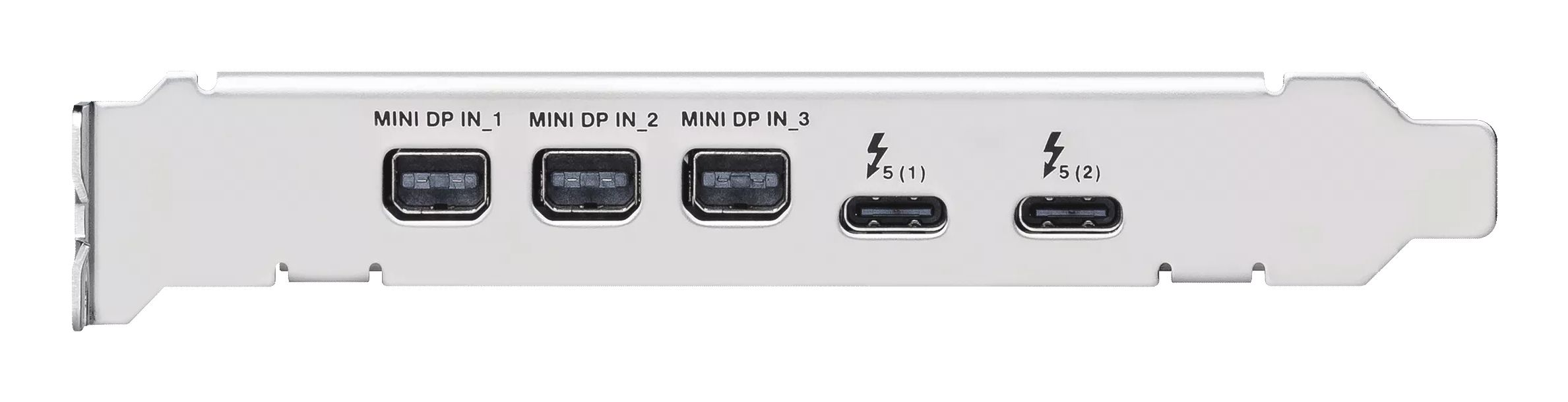

2 x USB-C - 24 pin USB-C 3 x DisplayPort-input - Mini DisplayPort 1 x USB 2.0 - 8-pins USB 2.0 samlekasse 1 x Thunderbolt - 14-1 pin Thunderbolt-samlestykke
Diverse
Medfølgende ledninger

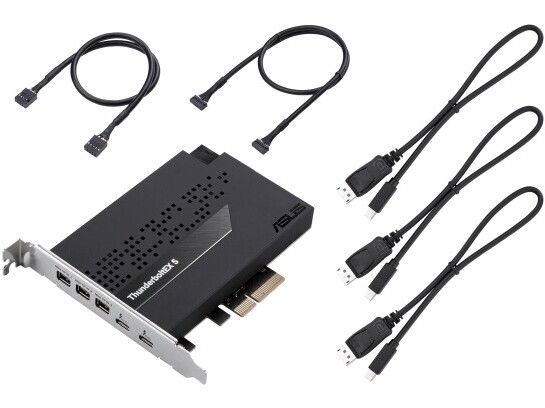

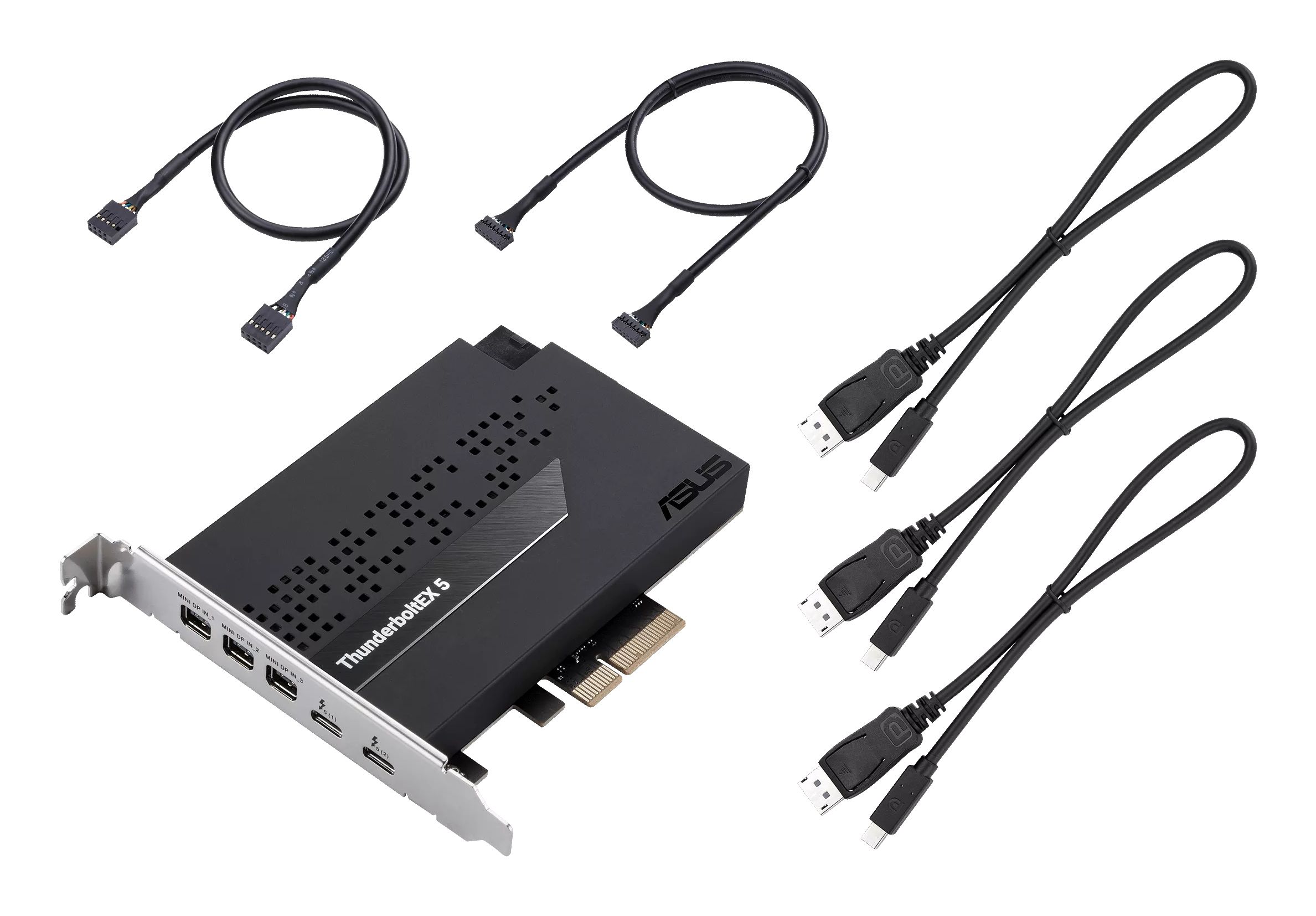

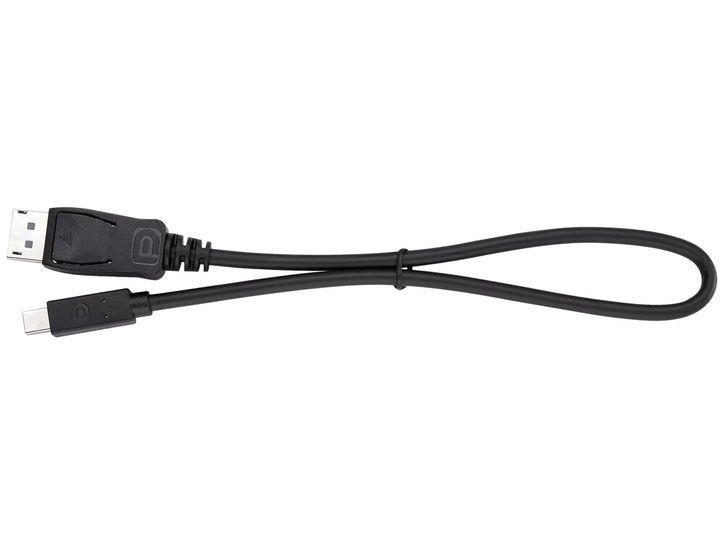

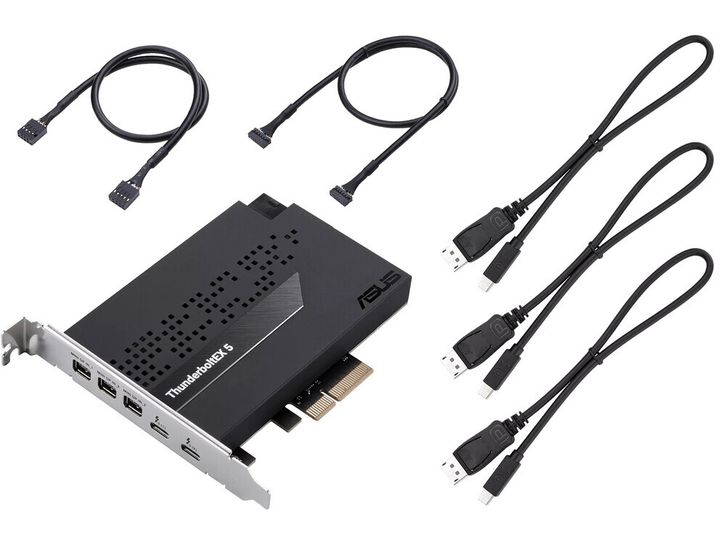

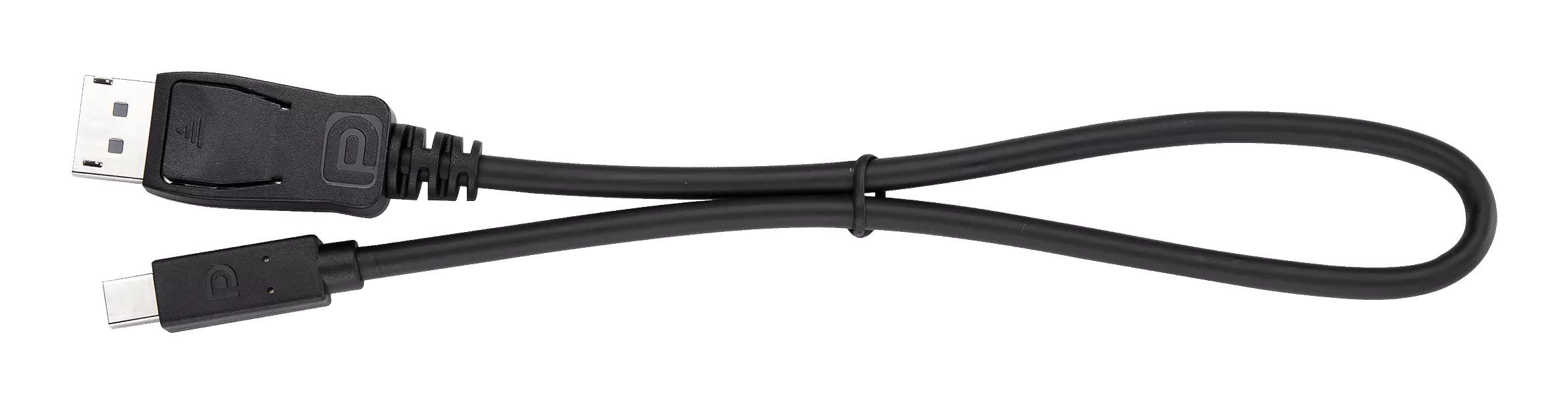

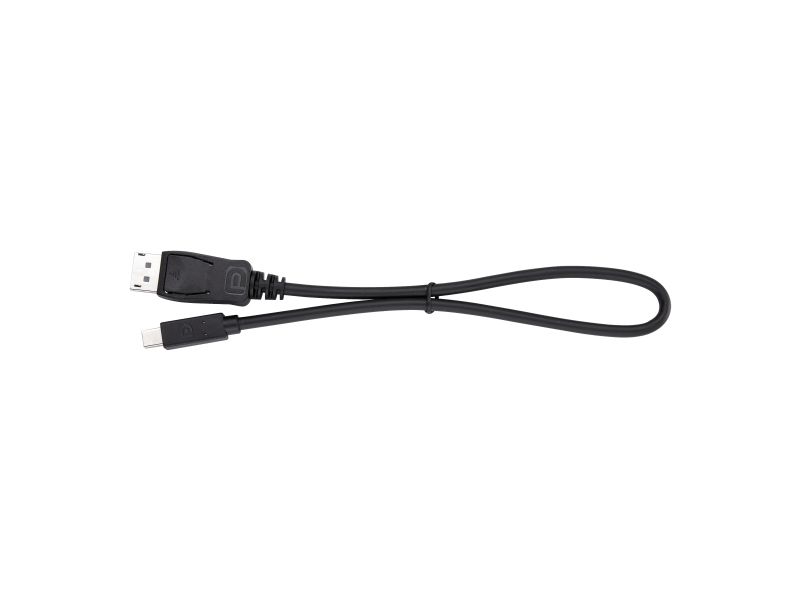

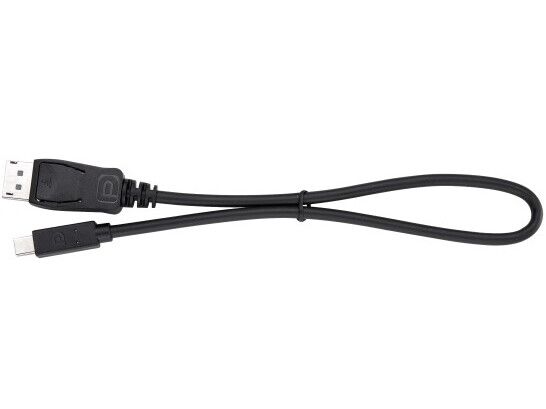

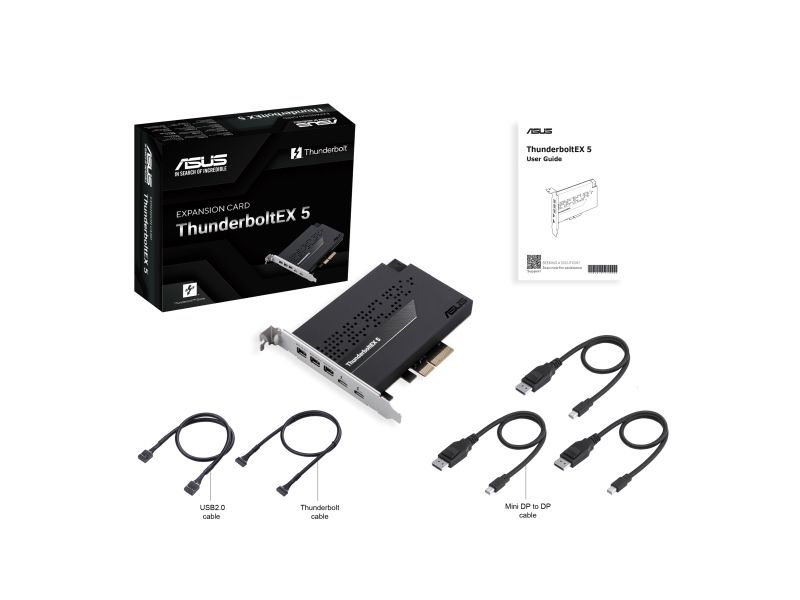

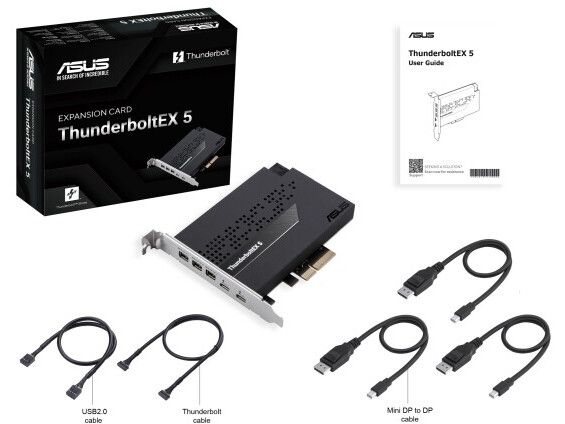

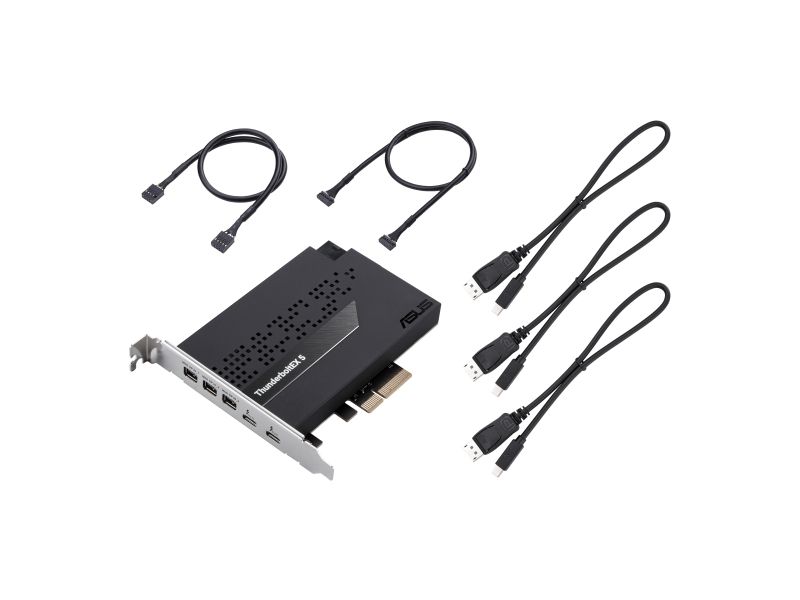

3 x Mini DisplayPort-DisplayPort kabel (ekstern) 1 x Thunderbolt-samlestykkekabel (ekstern) 1 x USB-samlestykkekabel (ekstern)
Programmer / Systemkrav
OS nødvendig
Windows 11
Mål og vægt
Dybde
11.95 cm
Højde
8.89 cm
