Item no.: [21825499] | Manufacturer: LC Power | Model no.: LC6650G-SI V3.1 | EAN: 4262443280708
Remote stock (5-7 days)
The item is in a remote warehouse, delivery time is 5-7 business days. More info
Delivery options - Select at checkout
Shipping @price - GLS
12,00
EUR
105,50
Incl. VAT 131,88
Total incl. delivery
146,88
Add to list
The function requires that you are logged in. Create a user and use our smart list system to keep track of future purchases, regular purchases or wish lists.

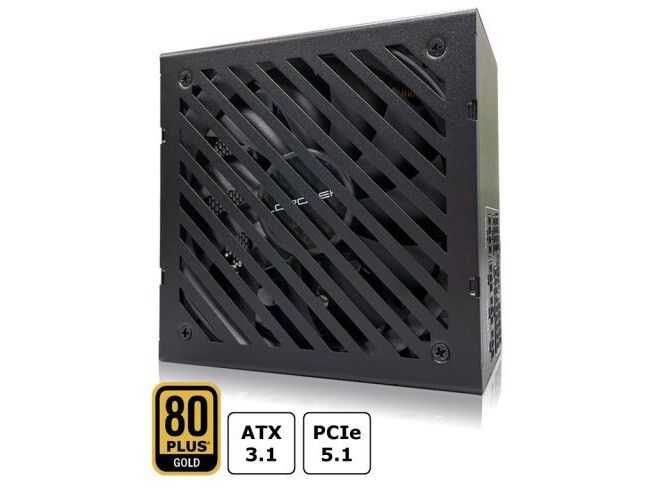

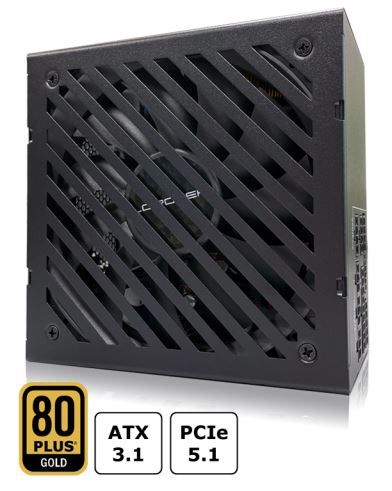

The LC Power Integrator Pro Series LC6650G-SI V3.1 power supply boasts a robust design that combines metal and plastic housing for reliable performance. Engineered to meet the ATX12V 3.1 specification, this internal power supply delivers up to 650 watts of power, suitable for both PC and server applications. With an efficiency rating of 90% and 80 PLUS Gold certification, this unit ensures energy savings while providing stable power across various voltage outputs including +3.3V, +5V, and ±12V. Featuring modular cable management, it allows for efficient use of space and simplifies installation, while a 135 mm fan ensures effective cooling during operation. Additionally, built-in protective features such as overcurrent protection, overpower protection, and short-circuit protection enhance the reliability of the power supply, safeguarding components from potential damage.
Produktbeskrivelse
LC Power Integrator Pro Series LC6650G-SI V3.1 - strømforsyning - 650 watt
Enhedstype
Strømforsyning - aktiv Power Factor Correction (PFC) - intern
Specifikationsoverensstemmelse
ATX12V 3.1
80 PLUS certificering
80 PLUS Gold
Vægt
2.13 kg
Indgangspænding
AC 100-240 V
Udgangspænding
+3.3, +5, ±12 V, +5Vsb V
Strømkapacitet
650 watt
Output Current
+3.3V - 20 A +5V - 20 A +12V - 62.4 A -12V - 0.4 A +5VSB - 2.5 A
Output-stikforbindelser
1 x strøm 24 pin ATX med aftagelig 4 pin sektion 3 x 8 pin PCI Express-strøm med aftagelig 2 pin sektion 1 x 12V 2x6 PCIE 5.1 1 x strøm 8 pin EPS12 V med aftagelig 4 pin ATX12V sektion 6 x 15 pin Serial ATA strøm 2 x 4 pin Parallel ATA-strøm
Modulær Kabel Administration
Ja
Kølesystem
135 mm ventilator
Farve
Sort
Dimensioner (B x D x H)
15 cm x 15 cm x 8.6 cm
Producentgaranti
2 års garanti
Generelt
Enhedstype
Strømforsyning - aktiv Power Factor Correction (PFC) - intern
Specifikationsoverensstemmelse
ATX12V 3.1
PSU formfaktor
ATX
Farve
Sort
Strømenhed
Indgangspænding
AC 100-240 V
Nødvendig frekvens
50/60 Hz
Detaljer om strømudgangskonnektorer
1 x strøm 24 pin ATX med aftagelig 4 pin sektion 3 x 8 pin PCI Express-strøm med aftagelig 2 pin sektion 1 x 12V 2x6 PCIE 5.1 1 x strøm 8 pin EPS12 V med aftagelig 4 pin ATX12V sektion 6 x 15 pin Serial ATA strøm 2 x 4 pin Parallel ATA-strøm
Udgangspænding
+3.3, +5, ±12 V, +5Vsb V
Strømkapacitet
650 watt
Output Current
+3.3V - 20 A +5V - 20 A +12V - 62.4 A -12V - 0.4 A +5VSB - 2.5 A
Effektivitet
90%
Modulær Kabel Administration
Ja
80 PLUS certificering
80 PLUS Gold
Diverse
Kølesystem
135 mm ventilator
Egenskaber
Metal og plastikkabinet, beskyttelse mod overstrøm, overbelastningsbeskyttelse, overspændingsbeskyttelse, kortslutnings beskyttelse, spændings- og tilstrømningsbeskyttelse, beskyttelse mod underspænding, DC-DC teknologi
Overensstemmelsesstandarder
TUV, ErP 2013
Producentgaranti
Service & Support
Begrænset garanti - 2 år
Mål og vægt
Bredde
15 cm
Dybde
15 cm
Højde
8.6 cm
Vægt
2.13 kg
Mål & vægt (forsendelse)
Bredde ved forsendelse
20 cm
Dybde ved forsendelse
24.5 cm
Højde ved forsendelse
11.3 cm
Vægt ved forsendelse
2.38 kg
