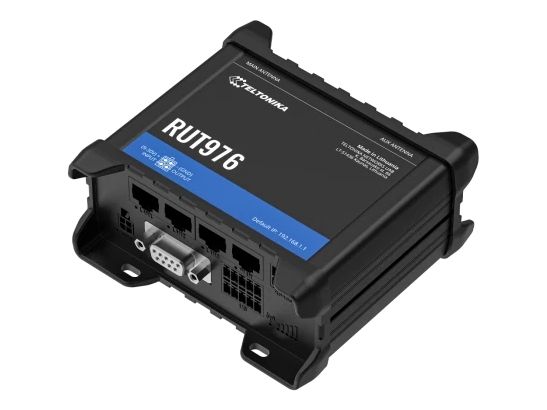

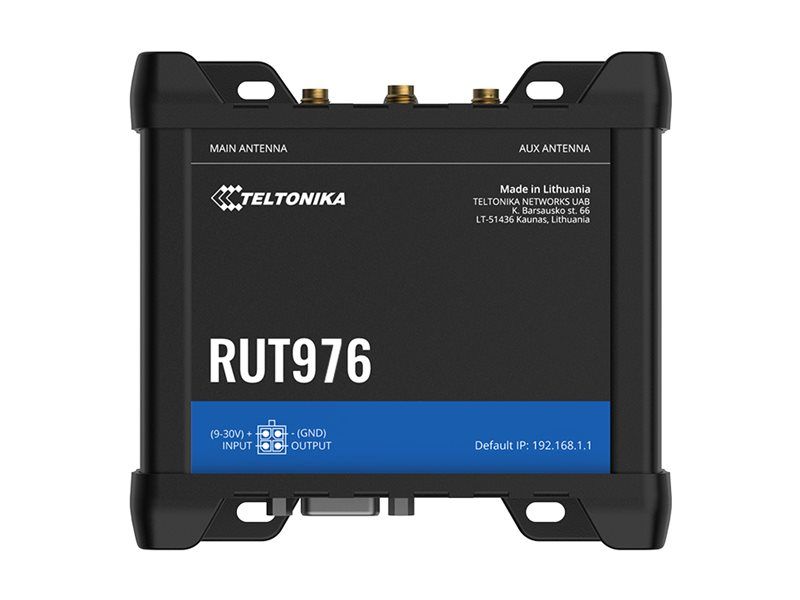

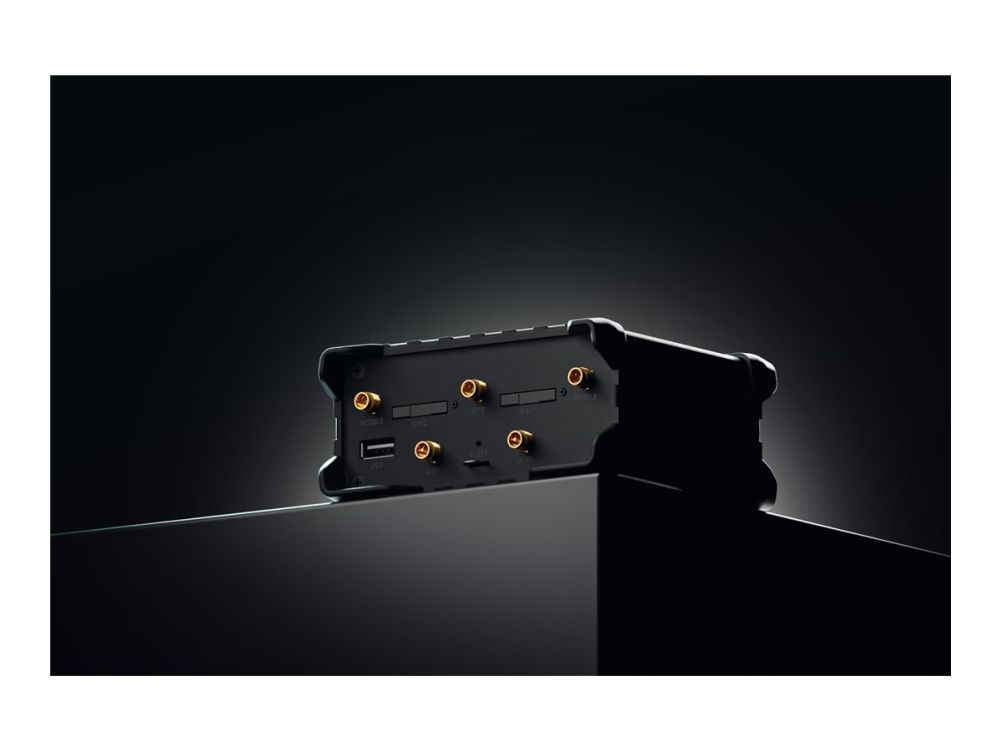

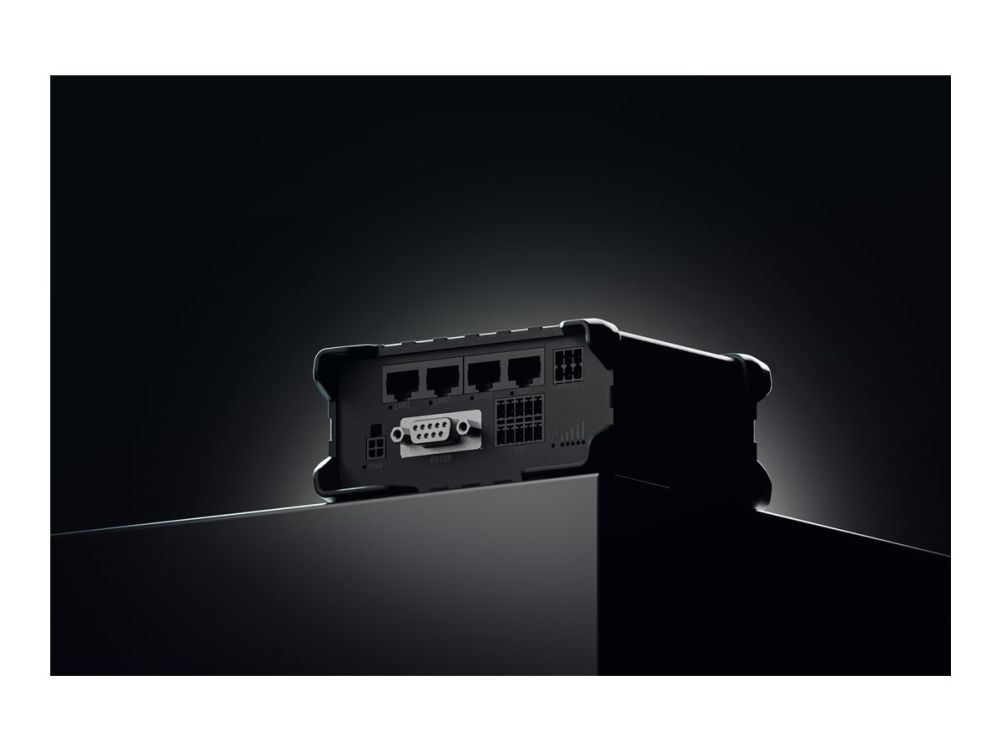

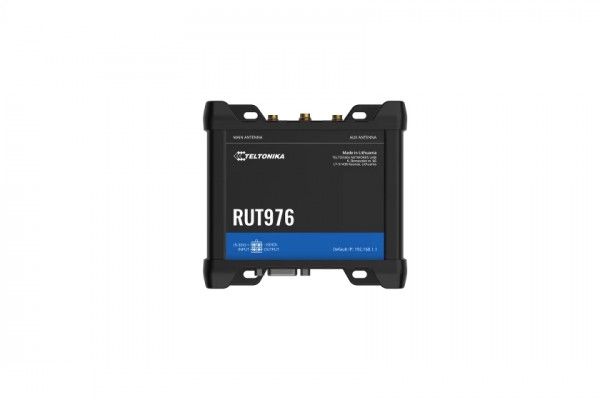

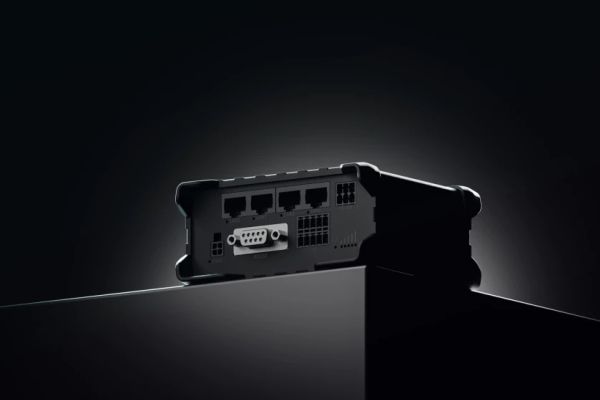

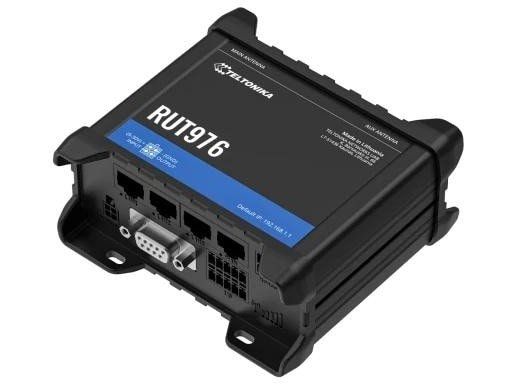

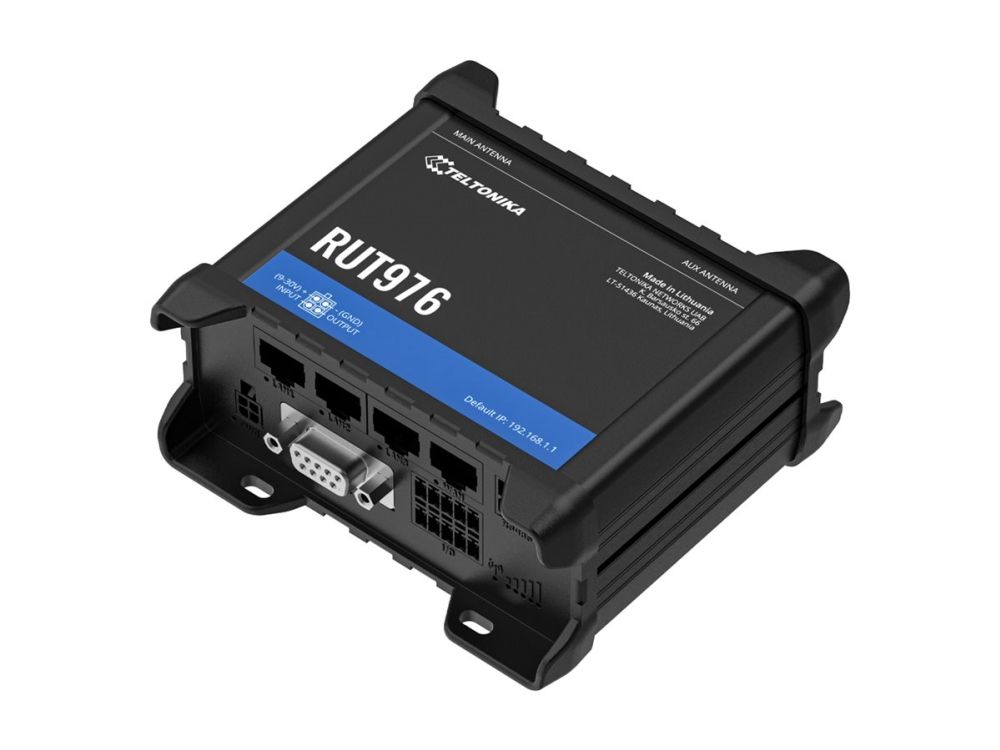

Teltonika RUT976, Cellular network router, Black, DIN-rail/Wall mounting, Industrial, Gigabit Ethernet, TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP,...

Item no.: [21838933] | Manufacturer: Teltonika | Model no.: RUT976000000 | EAN: 4779051842568

In stock

In stock, order before 3 PM and we ship today (weekdays) More info

There are 5 in stock

The current price is valid as long as the local stock lasts

Shipping @price - GLS

12,00

EUR 284,00

Incl. VAT 355,00

Total incl. delivery 370,00

Read further specifications and description

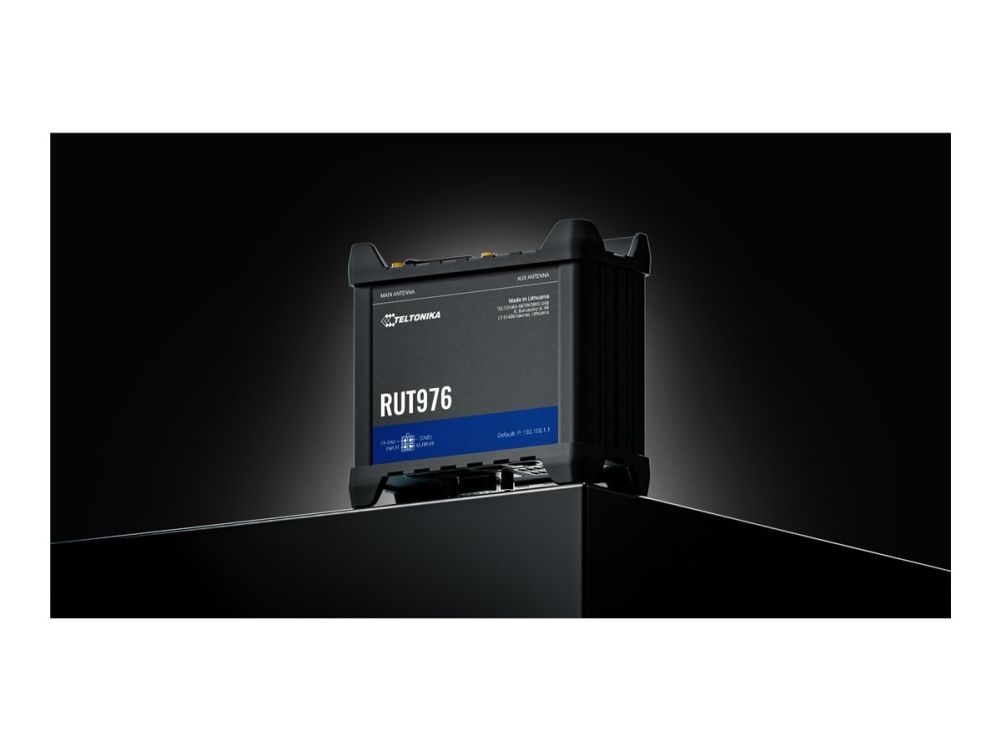

The RUT976 is an industrial Redcap 5G router supporting SA architecture, carving a balanced niche between traditional 4G and full-capacity 5G. This 5G router can wirelessly support up to 100 end devices and features the low latency of 5G—at affordable pricing. In case of limited 5G coverage, the RUT976 is backward compatible with 4G LTE Cat 4. It also boasts dual SIM slots with auto-failover, Wi-Fi, GNSS, a wide range of interfaces, including four 10/100 RJ45 slots, RS232, RS485, and multiple I/Os, and numerous other brilliant features for expert professional deployment

Produktbeskrivelse	Teltonika RUT976 - trådløs router - WWAN - Wi-Fi - 4G, 5G - DIN monterbar på skinne, væg-monterbar, overflademonterbar
Enhedstype	Trådløs router - mesh - trådløs mobilmodem - 4-port switch (integreret)
Pakningstype	DIN monterbar på skinne, væg-monterbar, overflademonterbar
Mobilprotokol	5G Sub-6 Ghz, 4G LTE
Generation	4G, 5G
Mobilbånd	LTE B34, LTE B38, LTE B39, LTE B40, LTE B41, LTE B42, LTE B43, LTE B48, LTE B1, LTE B2, LTE B3, LTE B4, LTE B5, LTE B7, LTE B8, LTE B12, LTE B13, LTE B14, LTE B17, LTE B18, LTE B19, LTE B20, LTE B25, LTE B26, LTE B28, LTE B30, LTE B66, LTE B70, LTE B71, 5G n1, 5G n2, 5G n3, 5G n5, 5G n7, 5G n8, 5G n12, 5G n13, 5G n14, 5G n18, 5G n20, 5G n25, 5G n26, 5G n28, 5G n30, 5G n38, 5G n40, 5G n41, 5G n48, 5G n66, 5g n70, 5G n71, 5G n77, 5G n78, 5G n79
Antal WAN porte	1
Dataforbindelsesprotokol	Ethernet, Fast Ethernet, 5G, LTE, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Kapacitet	Samtidige tilslutninger: 100
Netværks/overføselsprotokol	TCP, UDP, IPv4, IPv6, ICMP/IP, NTP, DNS, HTTP, HTTPs, SFTP, FTP, SMTP, ARP, PPPoE, DHCP, Telnet, DDNS
Routingprotokol	Statisk IP routing, BGP, OSPFv2, RIP-1, RIP-2, EIGRP, NHRP, police-baseret routing (PBR), VRRP, VXLAN
Protokol til fjernadministration	TLS, SSH, SMPP, SNMP, MQTT, JSON-RPC
VoIP-protokoller	H.323, SIP
Egenskaber	WAN failover, 3GPP Release 17, USSD support, fler-PDN, båndadministration, SIM PIN-administration, hvidliste, sort liste, auto APN, LAN-gennemløb, Tilgangspunkt, drift, 802.1x autentificering, ESSID stealth tilstand, Wireless Mesh-support, Fast Roaming, BSS overgangsstyring, RRM, MAC-adresse-filtrering, auto-uplink (auto MDI/MDI-X), statisk routing, dynamisk routing, PPP, UPnP, WOL, planlæg genstart, DHCP-understøttelse, QoS, SQM, DDNS, AP hotspot, SSHFS support, DDoS Protection, SYN Flooding, portbaseret VLAN, OpenVPN kryptering, GRE tunneling, IPSec passthrough, DMVPN, SSTP-klient instanssupport, ZeroTier VPN-klient support, WireGuard, Tinc-kryptering, MQTT-support, DNP3 station, DNP3 outstation, DLMS support, FOTA, Teltonika RMS, TR-069 Remote Management, LED-statusindikatorer, nulstillingsknap, aluminiumskabinet, modsat polarietsbeskyttelse, strømstødsbeskyttelse, papkasse emballage, GPS/GLONASS/Galileo/BeiDou/QZSS support, NAT-understøtning, Samba support
Overensstemmelsesstandarder	IEEE 802.11s, IEEE 802.11r, IEEE 802.11v, IEEE 802.11k, IEEE 802.3, IEEE 802.3u, IEEE 802.3az
Dimensioner (B x D x H)	11 cm x 10 cm x 5 cm
Vægt	295 g

Generelt
Enhedstype	Trådløs router - mesh - 4-port switch (integreret)
Pakningstype	DIN monterbar på skinne, væg-monterbar, overflademonterbar
Forbindelsesteknologi	Kablet, trådløs
Dataforbindelsesprotokol	Ethernet, Fast Ethernet, 5G, LTE, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Kapacitet	Samtidige tilslutninger: 100
Netværks/overføselsprotokol	TCP, UDP, IPv4, IPv6, ICMP/IP, NTP, DNS, HTTP, HTTPs, SFTP, FTP, SMTP, ARP, PPPoE, DHCP, Telnet, DDNS
Routingprotokol	Statisk IP routing, BGP, OSPFv2, RIP-1, RIP-2, EIGRP, NHRP, police-baseret routing (PBR), VRRP, VXLAN
Protokol til fjernadministration	TLS, SSH, SMPP, SNMP, MQTT, JSON-RPC
Krypterings algoritme	WPA2-Enterprise, PEAP, WPA2-PSK, WPA-EAP, WPA-PSK, WPA3-SAE, WPA3-EAP, OWE, AES-CCMP, TKIP, EAP-TLS, PKCS#12, PMF, MODBUS, 128-bit AES-CBC, 192-bit AES-CBC, 256-bit AES-CBC, IKEv1, IKEv2
Autentificeringsmetode	X.509 certifikater, TACACS+, RADIUS
Mesh-netværk	Ja
Egenskaber	WAN failover, 3GPP Release 17, USSD support, fler-PDN, båndadministration, SIM PIN-administration, hvidliste, sort liste, auto APN, LAN-gennemløb, Tilgangspunkt, drift, 802.1x autentificering, ESSID stealth tilstand, Wireless Mesh-support, Fast Roaming, BSS overgangsstyring, RRM, MAC-adresse-filtrering, auto-uplink (auto MDI/MDI-X), statisk routing, dynamisk routing, PPP, UPnP, WOL, planlæg genstart, DHCP-understøttelse, QoS, SQM, DDNS, AP hotspot, SSHFS support, DDoS Protection, SYN Flooding, portbaseret VLAN, OpenVPN kryptering, GRE tunneling, IPSec passthrough, DMVPN, SSTP-klient instanssupport, ZeroTier VPN-klient support, WireGuard, Tinc-kryptering, MQTT-support, DNP3 station, DNP3 outstation, DLMS support, FOTA, Teltonika RMS, TR-069 Remote Management, LED-statusindikatorer, nulstillingsknap, aluminiumskabinet, modsat polarietsbeskyttelse, strømstødsbeskyttelse, papkasse emballage, GPS/GLONASS/Galileo/BeiDou/QZSS support, NAT-understøtning, Samba support
Overensstemmelsesstandarder	IEEE 802.11s, IEEE 802.11r, IEEE 802.11v, IEEE 802.11k, IEEE 802.3, IEEE 802.3u, IEEE 802.3az, SSL v3, IP30, FCC, ISED, CB, WEEE, NMEA
Processor	1 x MediaTek MIPS 24Kec 580 MHz
RAM	128 MB DDR2 SDRAM
Flashhukommelse	32 MB
Indbygget udstyr	GNSS-modtager
Statusindikatorer	Forbindelsesstatus, signalstyrke, LAN, strøm
Kommunikationer
Type	Trådløs mobilmodem
Mobilprotokol	5G Sub-6 Ghz, 4G LTE
Generation	4G, 5G
Mobilbånd	LTE B34, LTE B38, LTE B39, LTE B40, LTE B41, LTE B42, LTE B43, LTE B48, LTE B1, LTE B2, LTE B3, LTE B4, LTE B5, LTE B7, LTE B8, LTE B12, LTE B13, LTE B14, LTE B17, LTE B18, LTE B19, LTE B20, LTE B25, LTE B26, LTE B28, LTE B30, LTE B66, LTE B70, LTE B71, 5G n1, 5G n2, 5G n3, 5G n5, 5G n7, 5G n8, 5G n12, 5G n13, 5G n14, 5G n18, 5G n20, 5G n25, 5G n26, 5G n28, 5G n30, 5G n38, 5G n40, 5G n41, 5G n48, 5G n66, 5g n70, 5G n71, 5G n77, 5G n78, 5G n79
IP-telefoni
VoIP-protokoller	H.323, SIP
Ekspansion / Konnektivitet

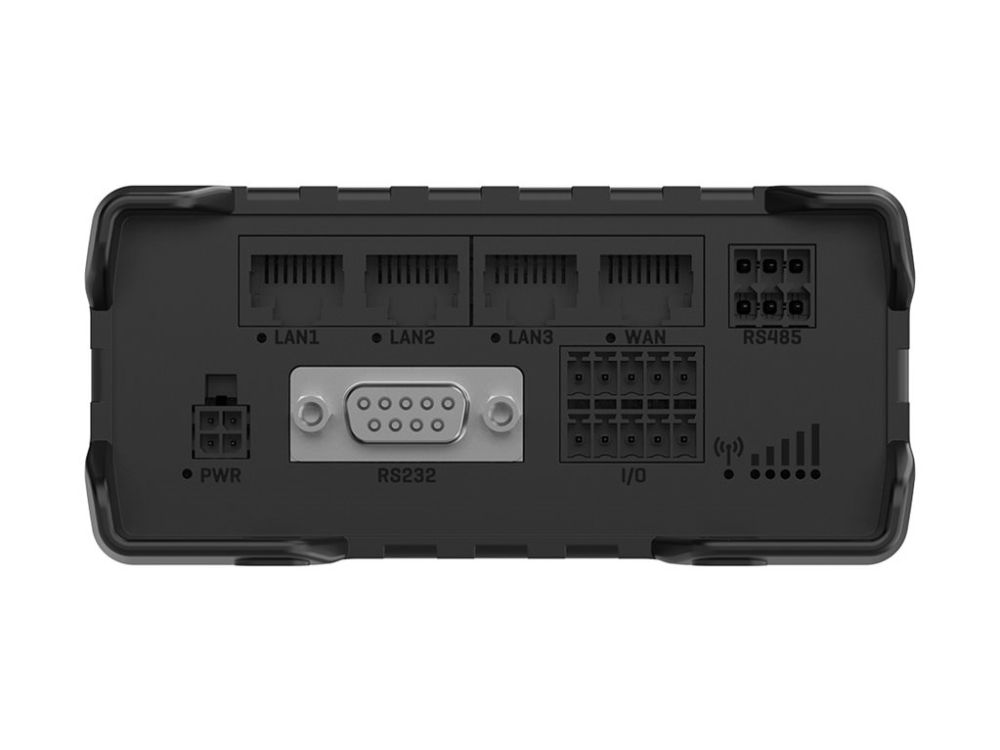

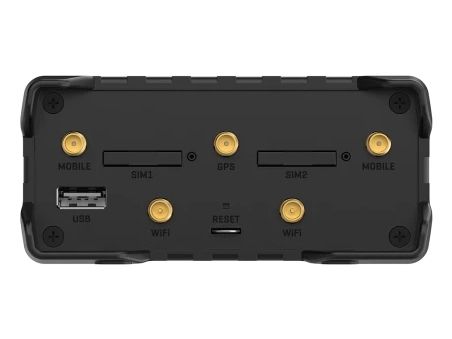

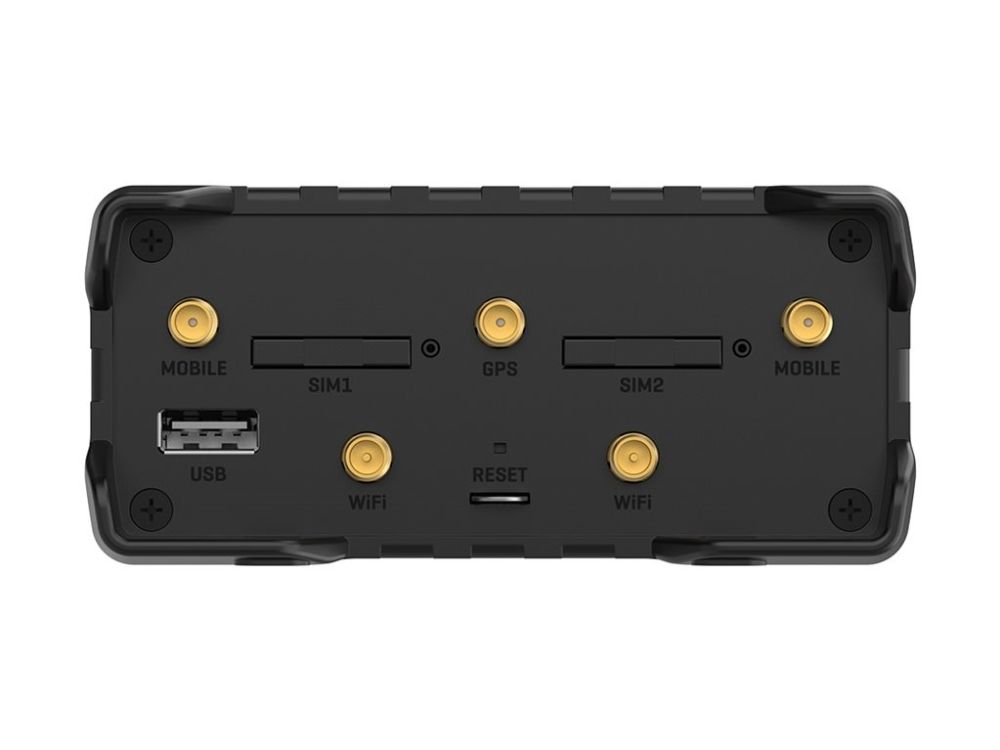

Interface	WAN: 1 x 10Base-T/100Base-TX - RJ-45 LAN: 3 x 10Base-T/100Base-TX - RJ-45 Seriel: 1 x RS-232 - 9-pin D-Sub (DB-9) Seriel: 1 x RS-485 USB 2.0: 1 x 4 pin USB Type A 1 x DO 1 x DI Antenne: 2 x SMA - mobil Antenne: 2 x RP-SMA - Wi-Fi Antenne: 1 x SMA - GNSS-antenne 1 x indgang/udgang
Ekspansionsåbninger	2 (total) / 2 (fri) x Mini-SIM
Antenne
Antenne	Aftagelig eksternt
Antal antenner	5
Effekt
Strømenhed	Ekstern strømforsyning
Strømforbrug ved drift	3 watt
Diverse
Udstyr inkluderet	Strømadapter, 2 x 5G antenner, 2 x Wi-Fi antenner, GNSS-antenne, SIM-kortadaptersæt, sættet af stik
Medfølgende ledninger	1 x netværkskabel - 1.5 m
Programmer / Systemkrav
Med OS	RutOS
Mål og vægt
Bredde	11 cm
Dybde	10 cm
Højde	5 cm
Vægt	295 g
Miljømæssige parametre
Min. driftstemperatur	-40 °C
Maks. driftstemperatur	75 °C
Fugtighedsgrad ved brug	10 - 90 % (ikke-kondenserende)
