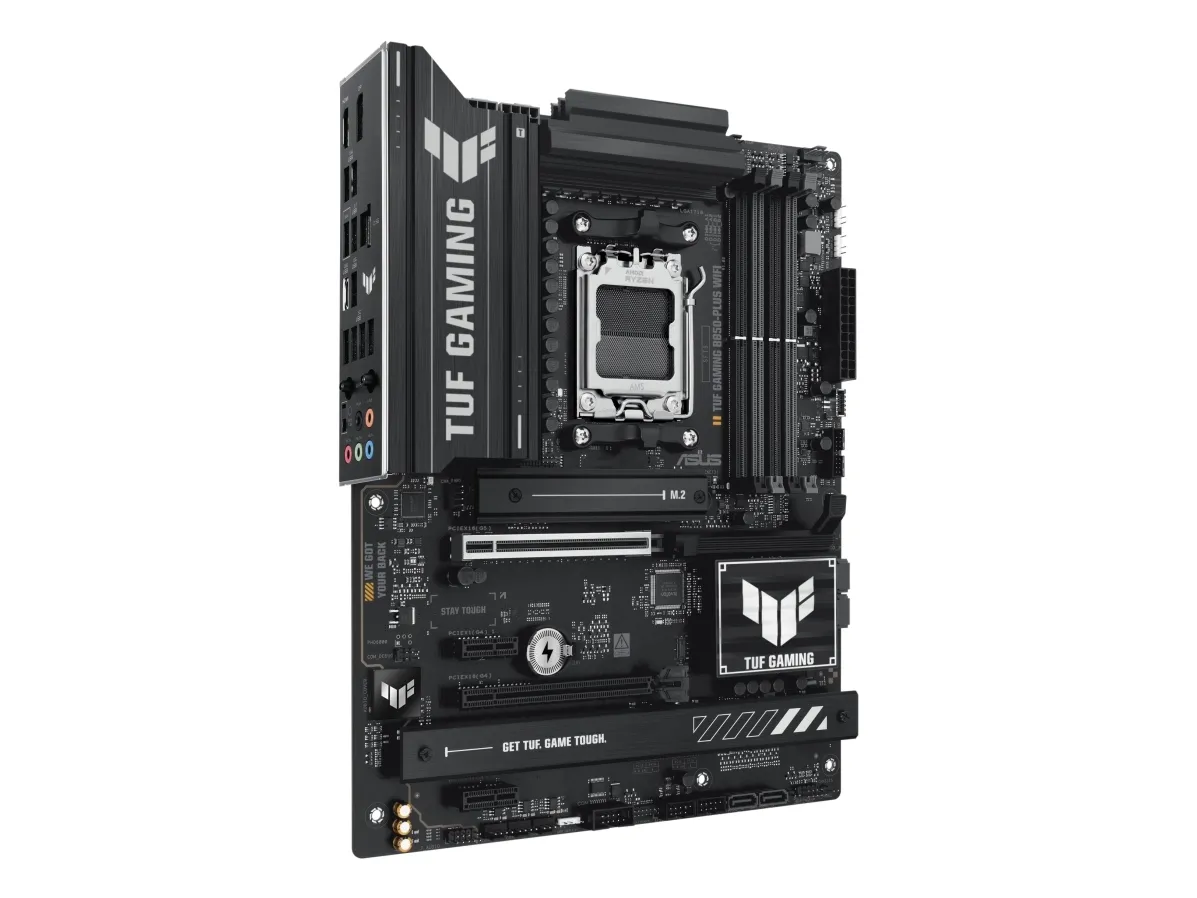

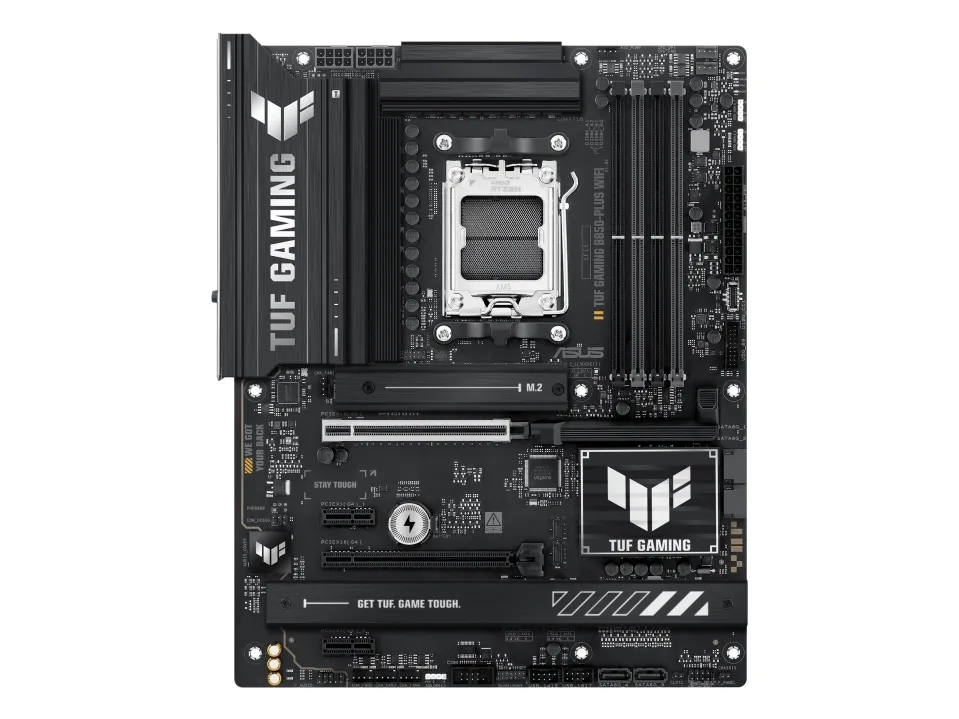

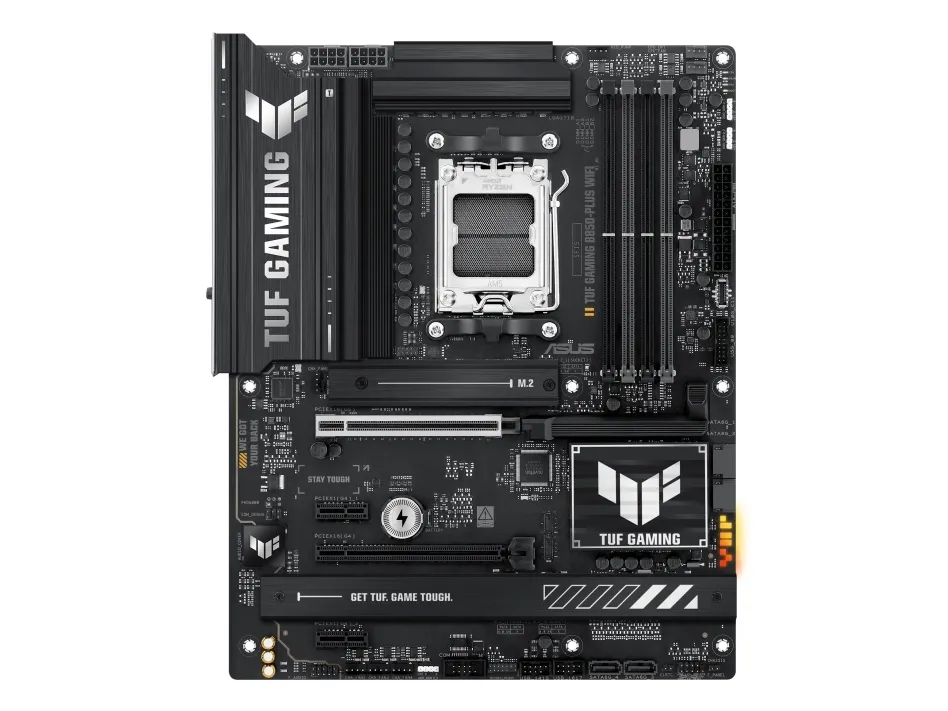

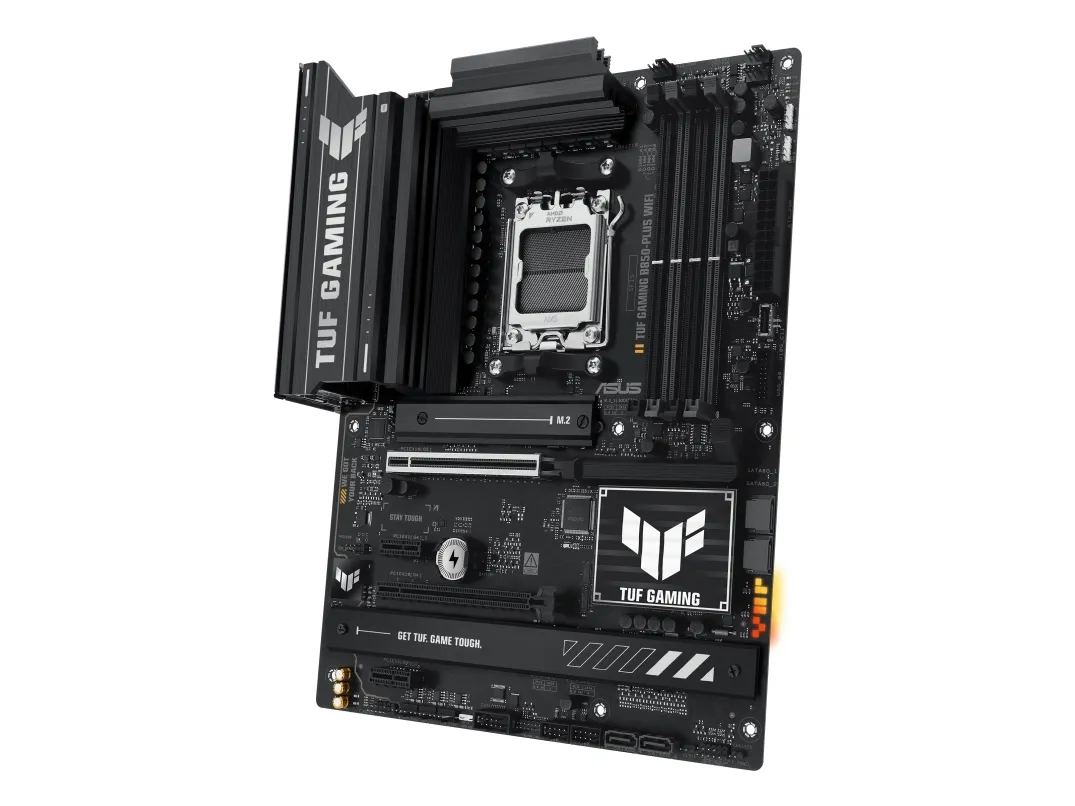

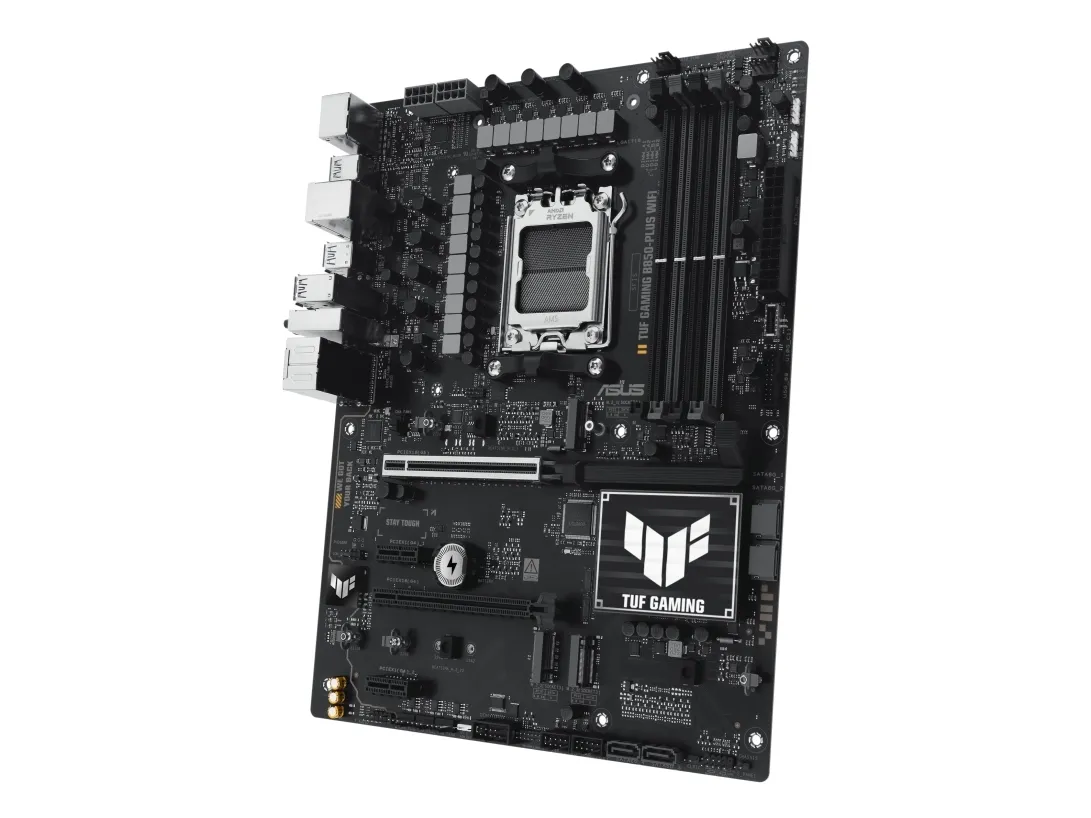

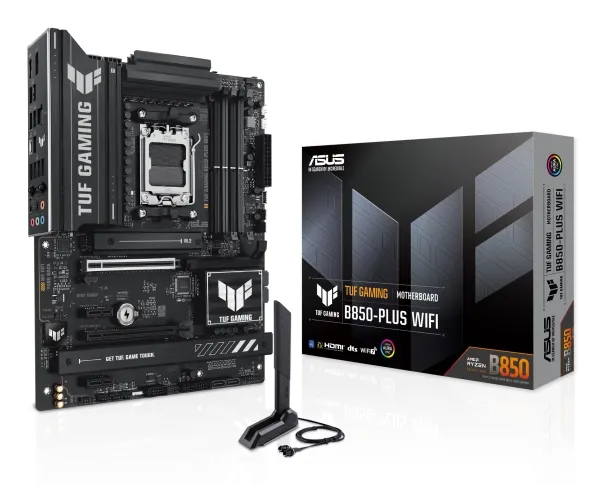

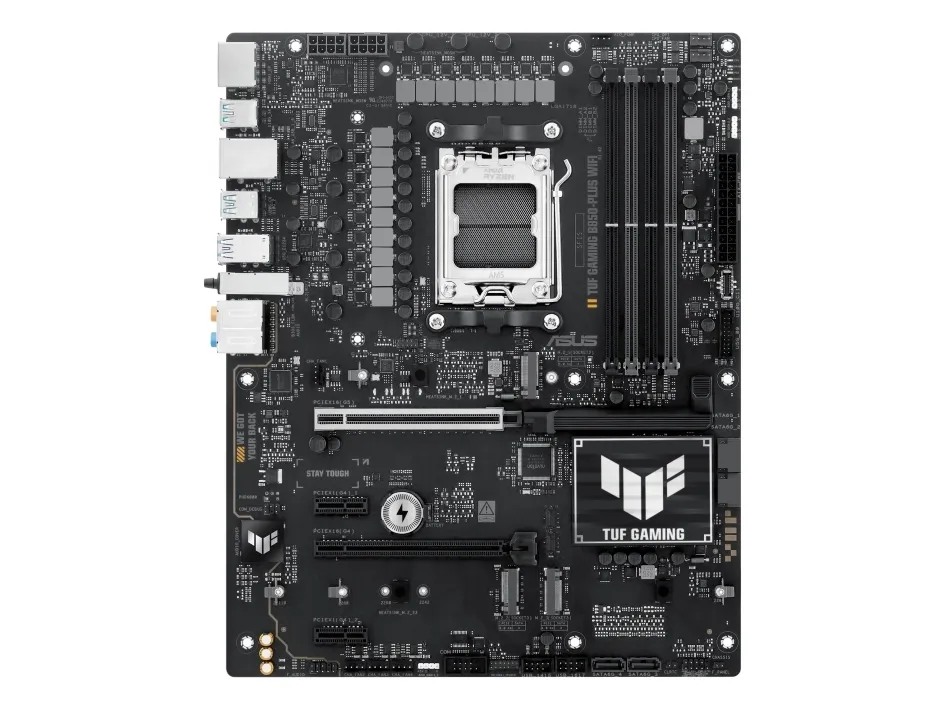

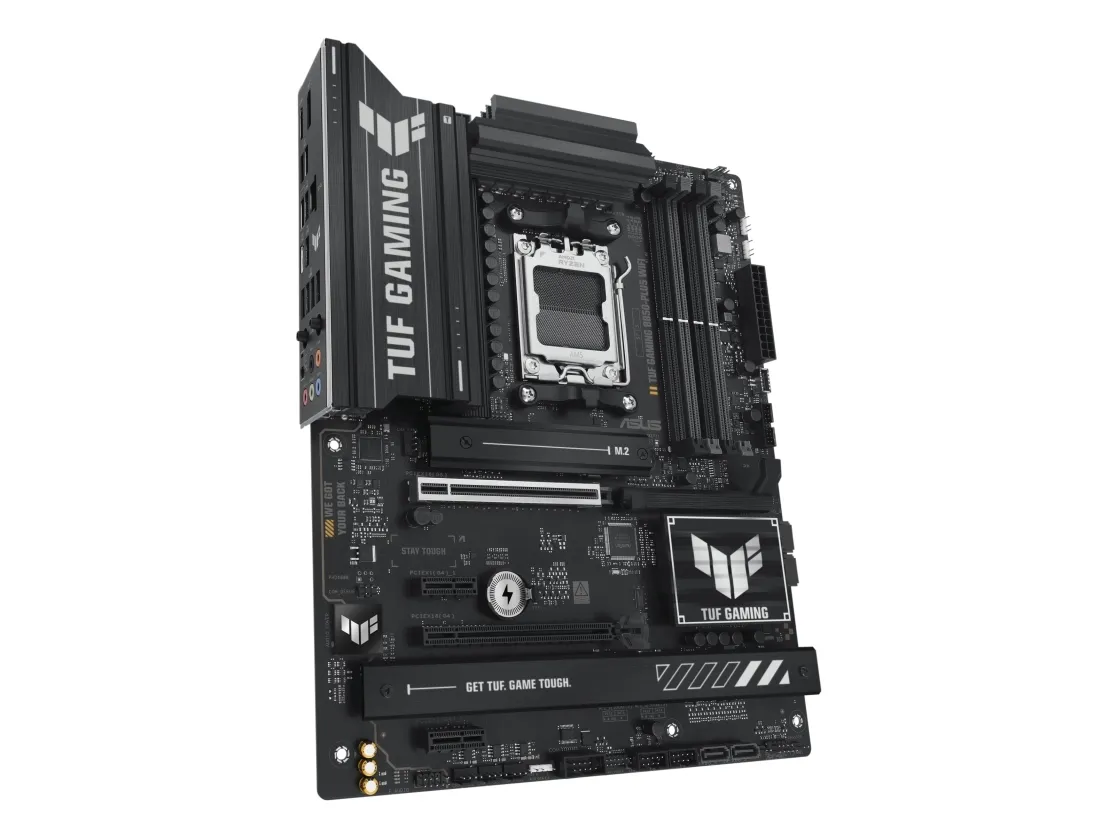

ASUS TUF GAMING B850-PLUS WIFI, AMD, Socket AM5, AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series, Socket AM5, DDR5-SDRAM, 192 GB

Item no.: [21863956] | Manufacturer: ASUS | Model no.: 90MB1J30-M0EAY0 | EAN: 4711387781609

Remote stock (3-5 days)

The item is in a remote warehouse, delivery time is 3-5 business days. More info

EUR 239,38

ex. VAT 191,50

Total incl. delivery 254,38

Read further specifications and description

The ASUS TUF GAMING B850-PLUS WIFI motherboard is designed for gamers and PC enthusiasts seeking reliable performance and advanced features. With support for Ryzen 7000/8000/9000 Series processors, it provides a robust platform for building high-performance systems. The motherboard features a UEFI BIOS with ASUS EZ Flash 3, enabling easy updates and management of system settings. This motherboard supports DDR5 SDRAM with speeds up to 4000 MHz overclocked, allowing for a fast and responsive user experience. Its multiple expansion slots, including PCIe 5.0 and M.2, offer extensive upgrade potential. The integrated 2.5 Gigabit Ethernet and Wi-Fi 7 compatibility ensure smooth and speedy connectivity, making it suitable for online gaming or multimedia experiences.

Produktbeskrivelse	ASUS TUF GAMING B850-PLUS WIFI - bundkort - ATX - Socket AM5 - AMD B850
Produkttype	Bundkort - ATX
Chipsættype	AMD B850
Processor-socket	1 x Socket AM5
Kompatible processorer	Ryzen (understøtter Ryzen 7000/8000/9000 Serien)
Max RAM-størrelse	192 GB
RAM understøttet	4 DIMM åbninger - DDR5, ikke-ECC, on-die ECC, ikke bufferet
Lagringsporte	4 x SATA-600 (RAID), 3 x M.2
USB / FireWire porte	1 x USB-C 3.2 Gen 2x2 + 3 x USB 3.2 Gen 2 + 4 x USB 3.2 Gen 1 + 2 x USB 2.0 + (1 x USB-C 3.2 Gen 2 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0 via samlekasser)
Audio	HD Audio (8-kanaler)
LAN	2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax/be (Wi-Fi 7), Bluetooth 5.4

Generelt
Produkttype	Bundkort - ATX
Chipsættype	AMD B850
Processor-socket	Socket AM5
Max antal processorer	1
Kompatible processorer	Ryzen (understøtter Ryzen 7000/8000/9000 Serien)
Understøttet RAM
Maks. størrelse	192 GB
Teknologi	DDR5
Bus Clock	4000 MHz (O.C.)
Understøttet RAM-integritetskon	Ikke-ECC, on-die ECC
Registreret eller buffer	Ikke bufferet
Egenskaber	AMD EXPO-teknologi, dobbelt kanal hukommelses arkitektur
Audio
Type	HD Audio (8-kanaler)
Audio codec	Realtek ALC1220P
Overensstemmelsesstandarder	High Definition Audio, DTS Sound Unbound
LAN
Netværk controller	Intel I225-V
Netværks interfaces	2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax/be (Wi-Fi 7), Bluetooth 5.4
Ekspansion / Konnektivitet
Ekspansionsåbninger	1 x CPU 4 x DIMM 288-pins 1 x PCIe 5.0 x16 1 x PCIe 4.0 x16 (x8/x4 modus) 2 x PCIe 4.0 x1 1 x PCIe 4.0 x16 2 x M.2 socket (2280 M.2 Key M-åbning) 1 x M.2 socket (2280/22.110 M.2 Key M-åbning)
Grænseflade (lagring)	SATA-600 -stikforbindelser: 4 x 7pin Seriel ATA - RAID 0 / RAID 1 / RAID 10 PCIe 4.0 -stikforbindelser: 3 x M.2 - RAID 0 / RAID 1 / RAID 10

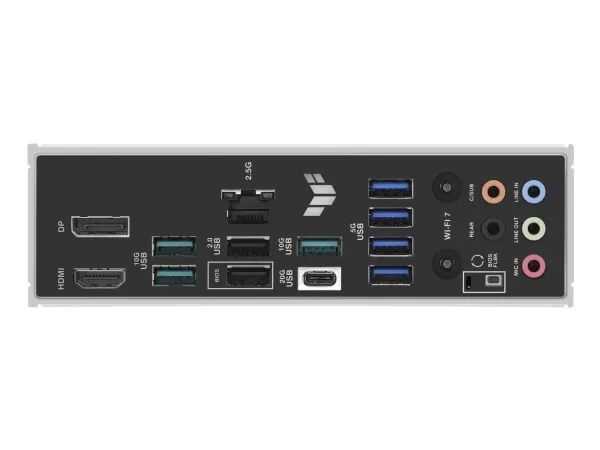

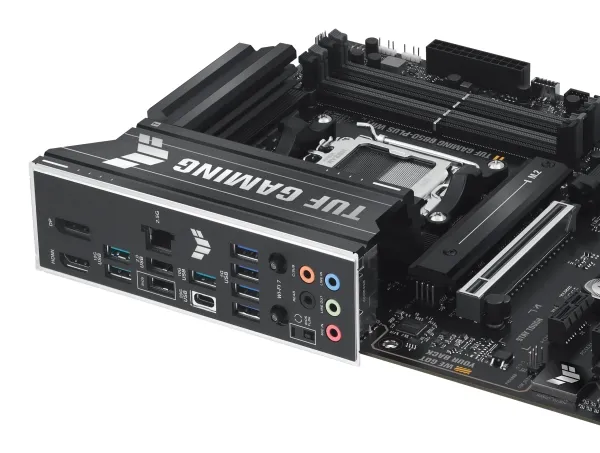

Interface	1 x HDMI 1 x DisplayPort 1 x USB-C 3.2 Gen2x2 3 x USB 3.2 Gen 2 4 x USB 3.2 Gen 1 2 x USB 2.0 1 x LAN (2.5Gigabit Ethernet) 1 x mikrofon - mini-jack 1 x audio linje-ud - mini-jack 2 x antenne
Interne interfaces	4 x USB 2.0 - intern stik 2 x USB 3.2 Gen 1 - intern stik 1 x USB-C 3.2 Gen 2 - intern stik 1 x audio - intern stik 1 x Thunderbolt - intern stik 1 x seriel - intern stik
Strømkontakter	24-pin hovedstrøm-konnektor, 4-pin ATX12V konnektor, 2 x 8-pins ATX12V stikforbindelser
Egenskaber
BIOS-type (Basic Input/Output System)	AMI
BIOS-egenskaber	UEFI BIOS, ASUS EZ Flash 3
Sov/ Vågn	Aktivering af LAN (wake on LAN = WOL), vågn på PME
Hardware egenskaber	ASUS OptiMem II, SupremeFX Shielding teknologi, Savitech SV3H712 forstærker, BIOS FlashBack-knap, Water Pump Header, jack retasking, audio jack detektions teknologi, ASUS Extreme Engine Digi+, 5K Black Metallic Capacitors, ASUS Q-Design, M.2 Q-Latch, PCIe Slot Q-Release, Q-LED, Q-DIMM, Q-Slot, VRM kølelegemedesign, ASUS EZ DIY, BIOS FlashBack LED, ASUS ProCool, præmonteret I/O-skjold, ASUS SafeSlot, ASUS SafeDIMM, ASUS Aura Sync, ASUS TPU (TurboV Processing Unit), ASUS DIGI+ VRM, CrashFree BIOS 3, 14+2+1 Phase Power Design, 80 A Power Stage, DIY Friendly Design, ASUS Enhanced Memory Profile (AEMP), ESD Guards
Diverse

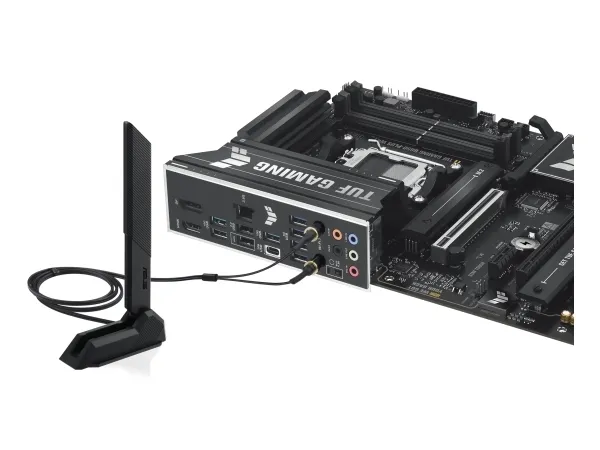

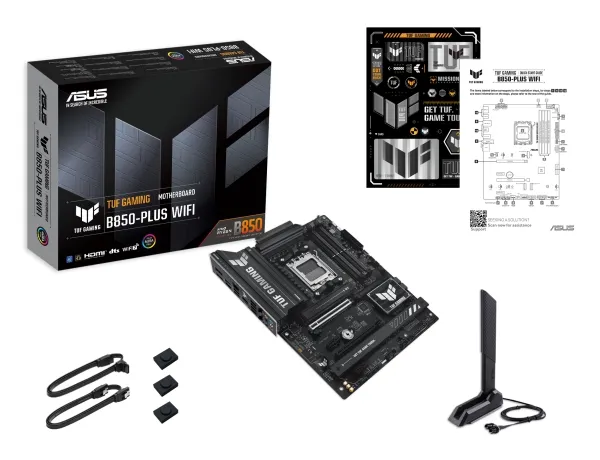

Udstyr inkluderet	ASUS Wi-Fi Q-antenna, 2 x M.2 gummipakke, TUF GAMING-mærkat
Medfølgende ledninger	2 x Seriel ATA kabel
Med software	Sonic Radar III, Sonic Studio III, Armoury Crate, ASUS AURA Creator, ASUS Fan Xpert 4, ASUS AI Suite III, ASUS Turbo App, PC Cleaner, MyAsus, WinRAR
Overensstemmelsesstandarder	FCC Part 15 Class B, VCCI Class B ITE, JATE, EU REACH, EU RoHS, UKCA, DisplayPort 1.4
Bredde	30.5 cm
Dybde	24.4 cm
