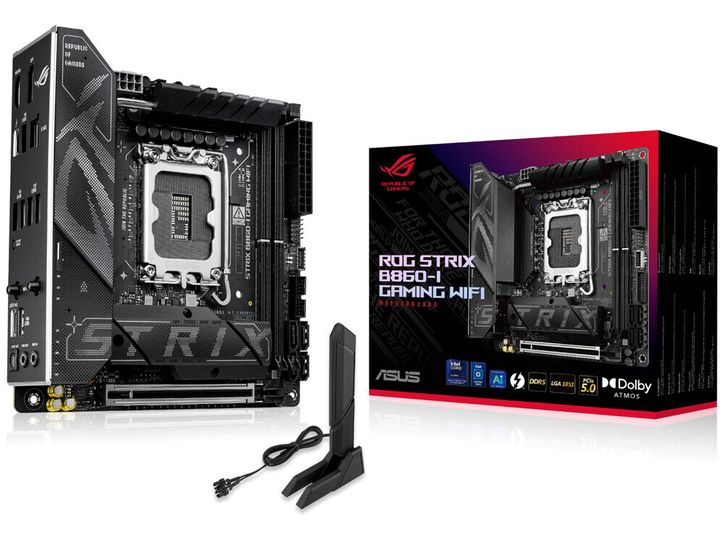

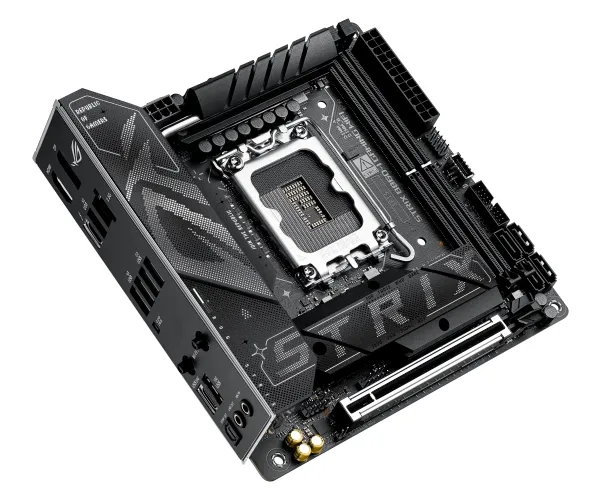

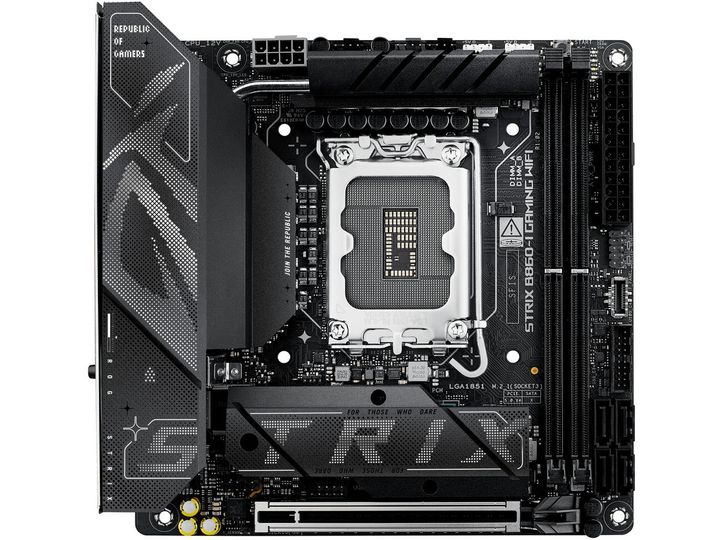

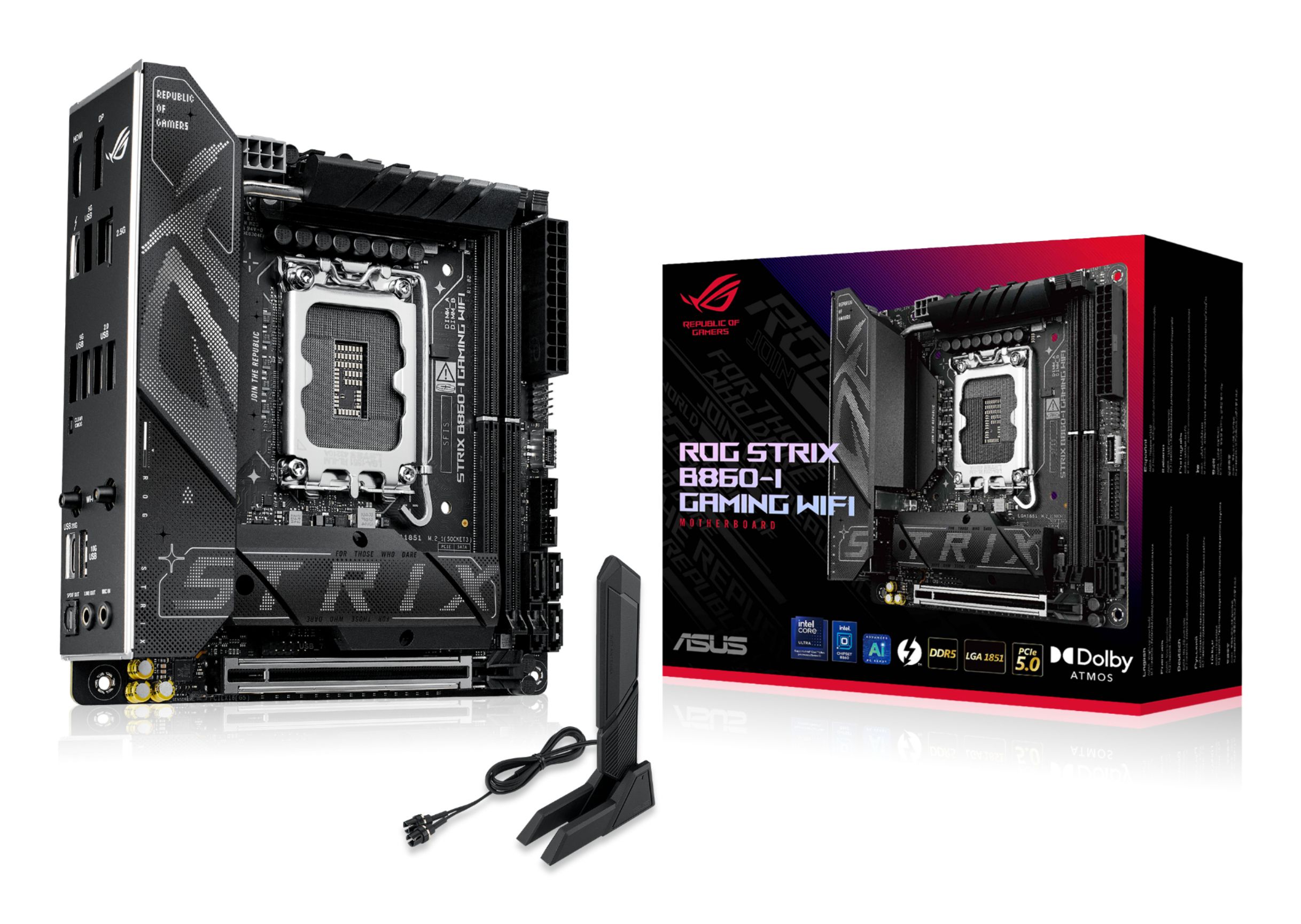

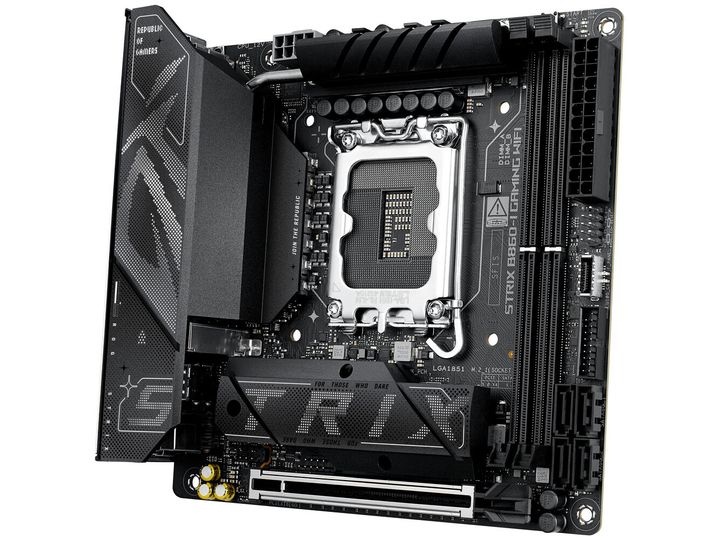

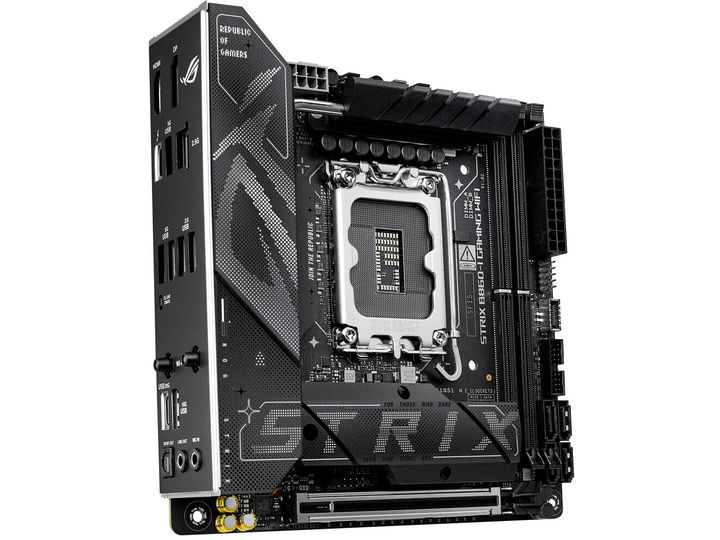

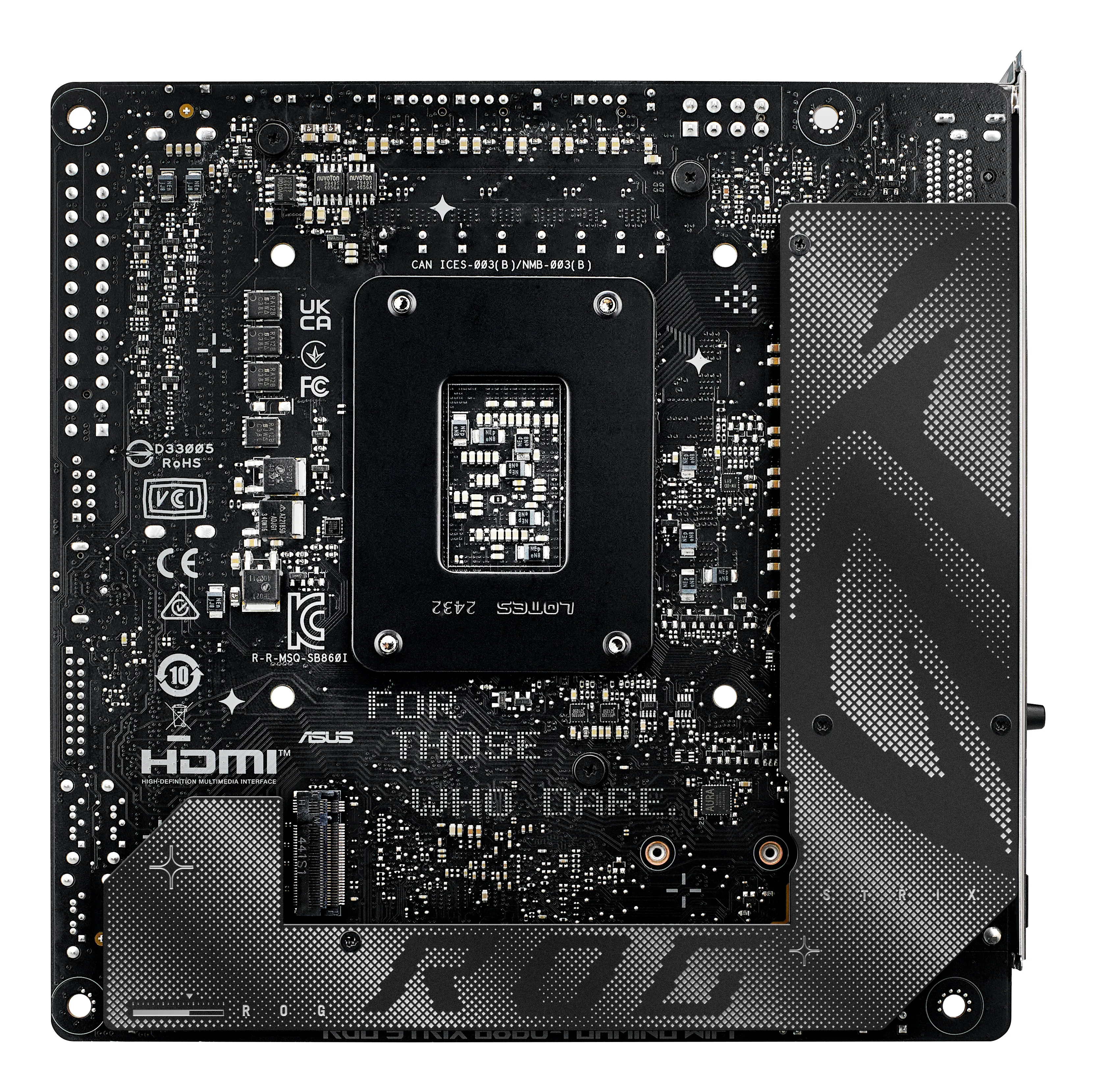

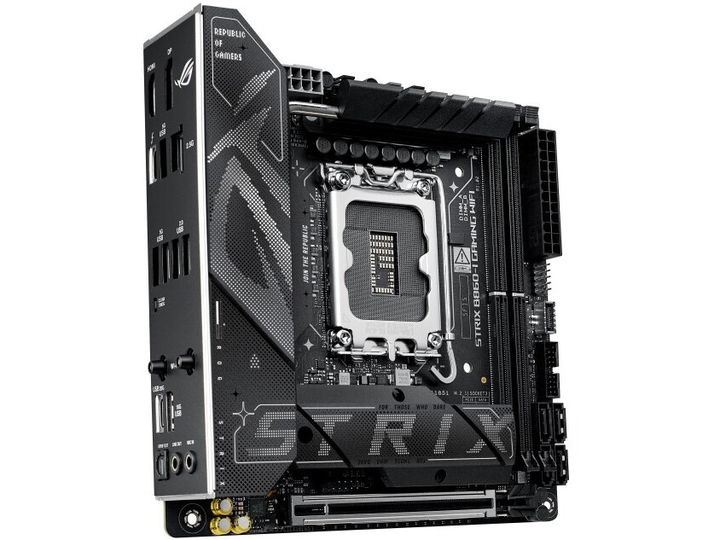

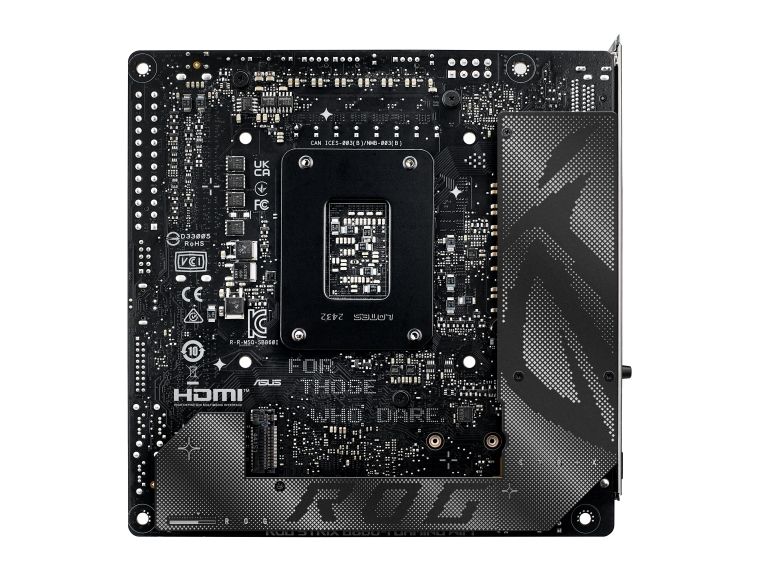

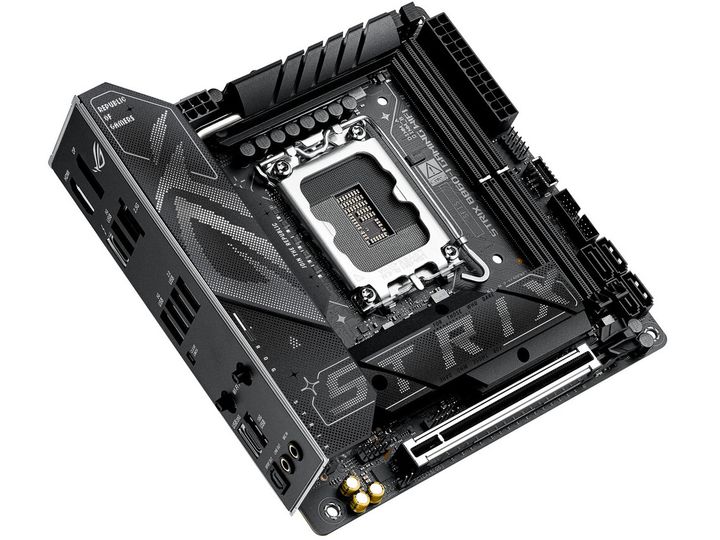

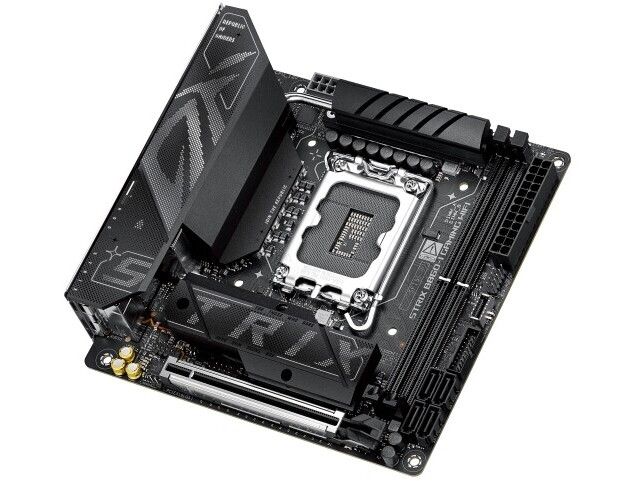

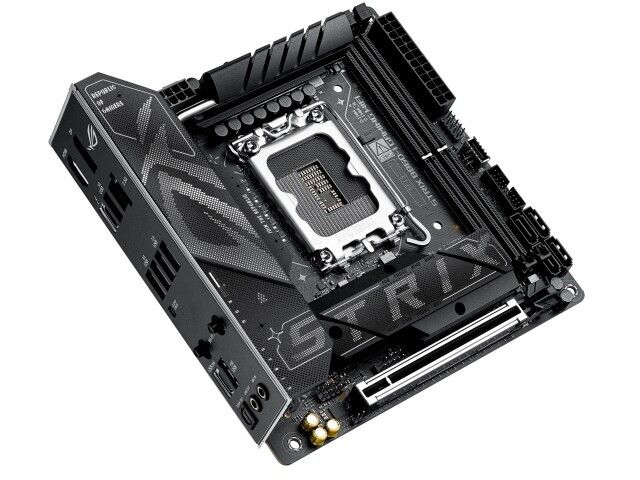

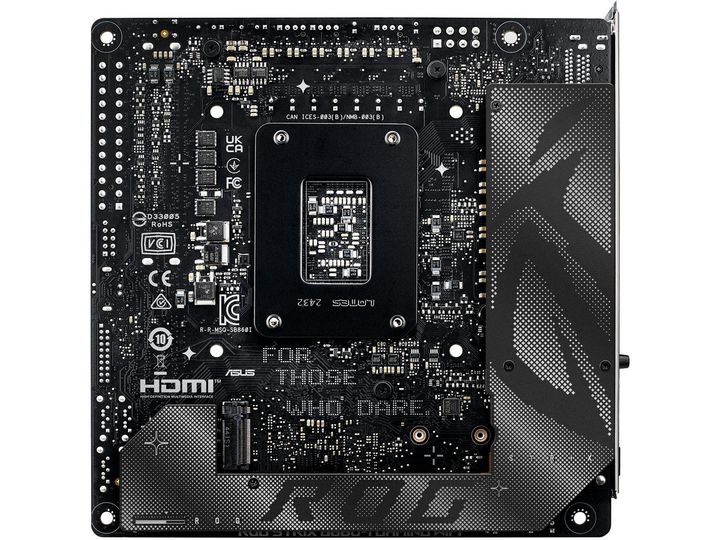

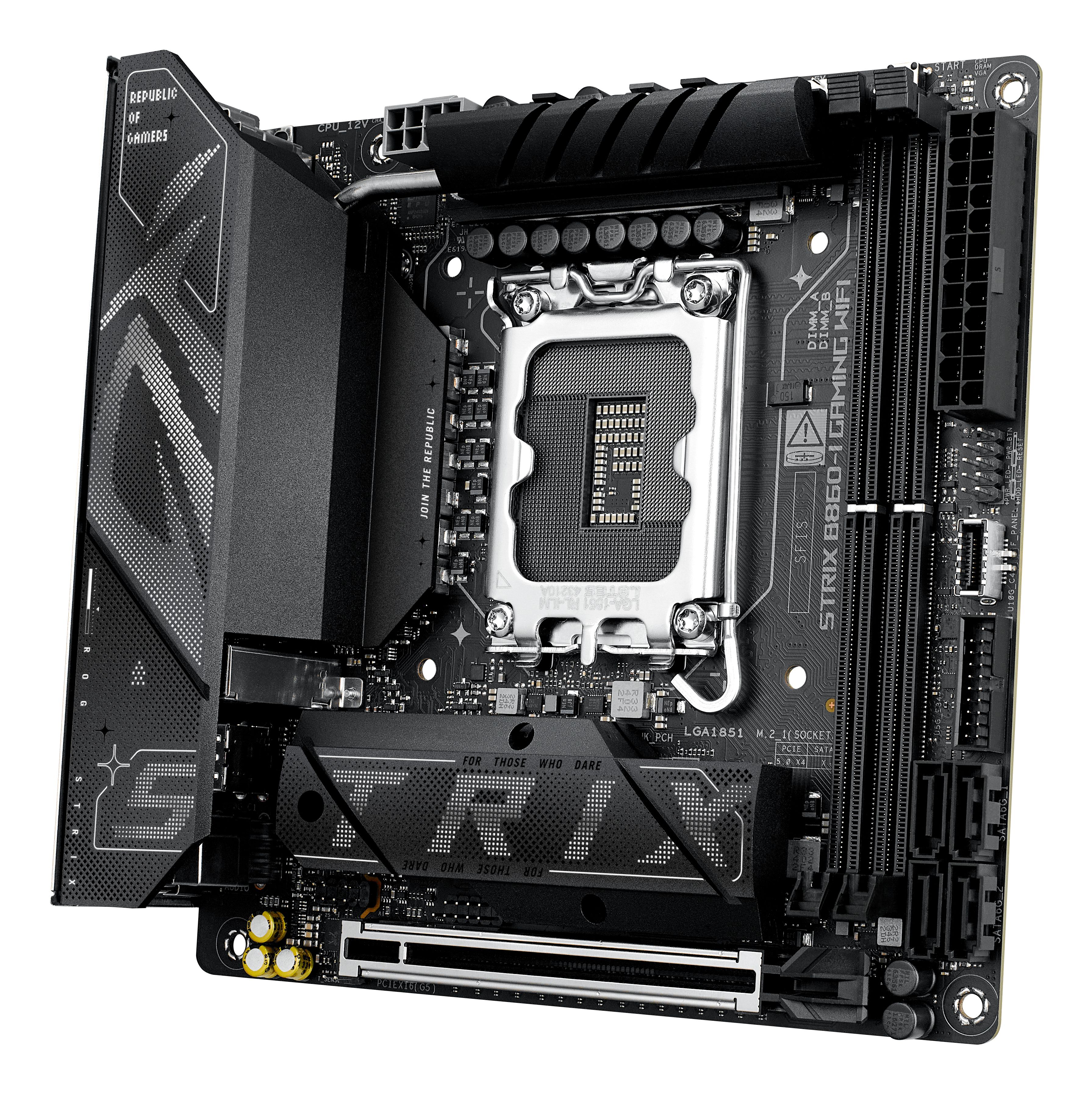

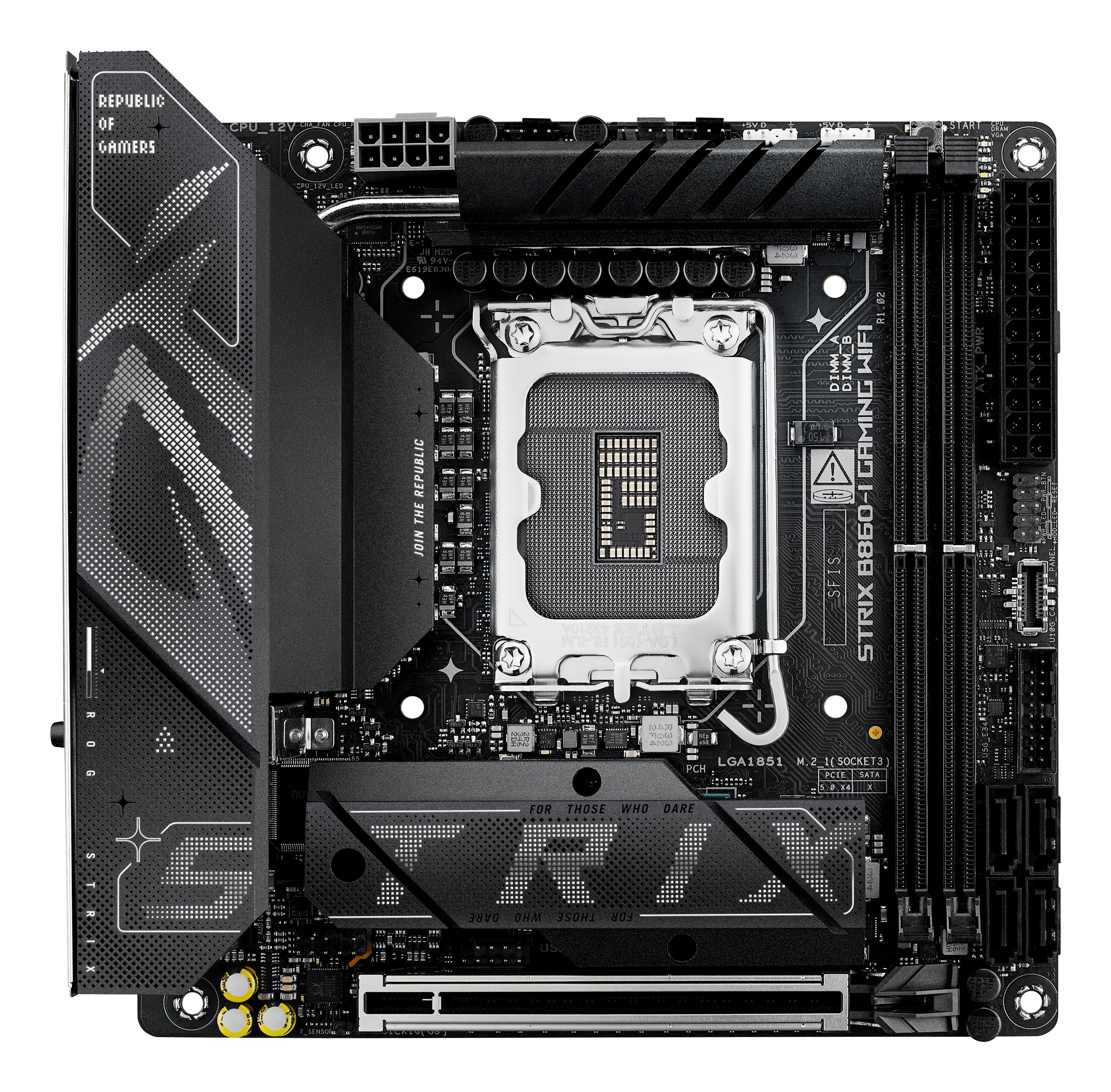

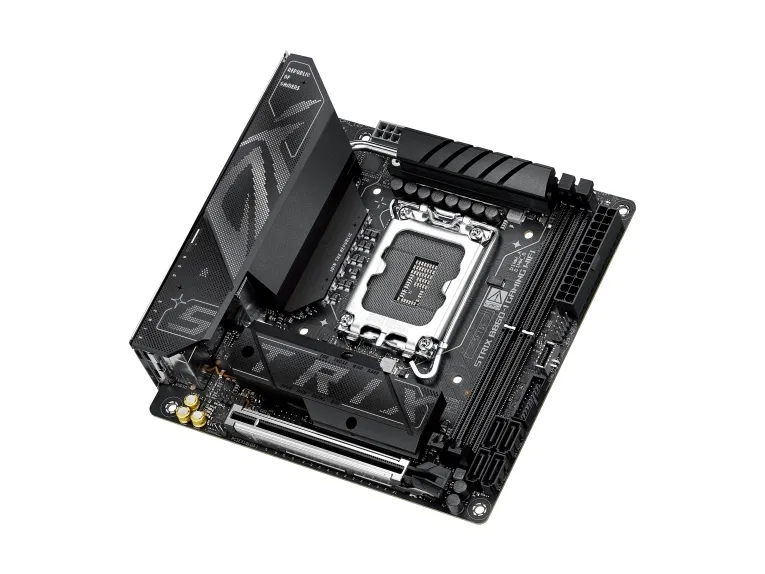

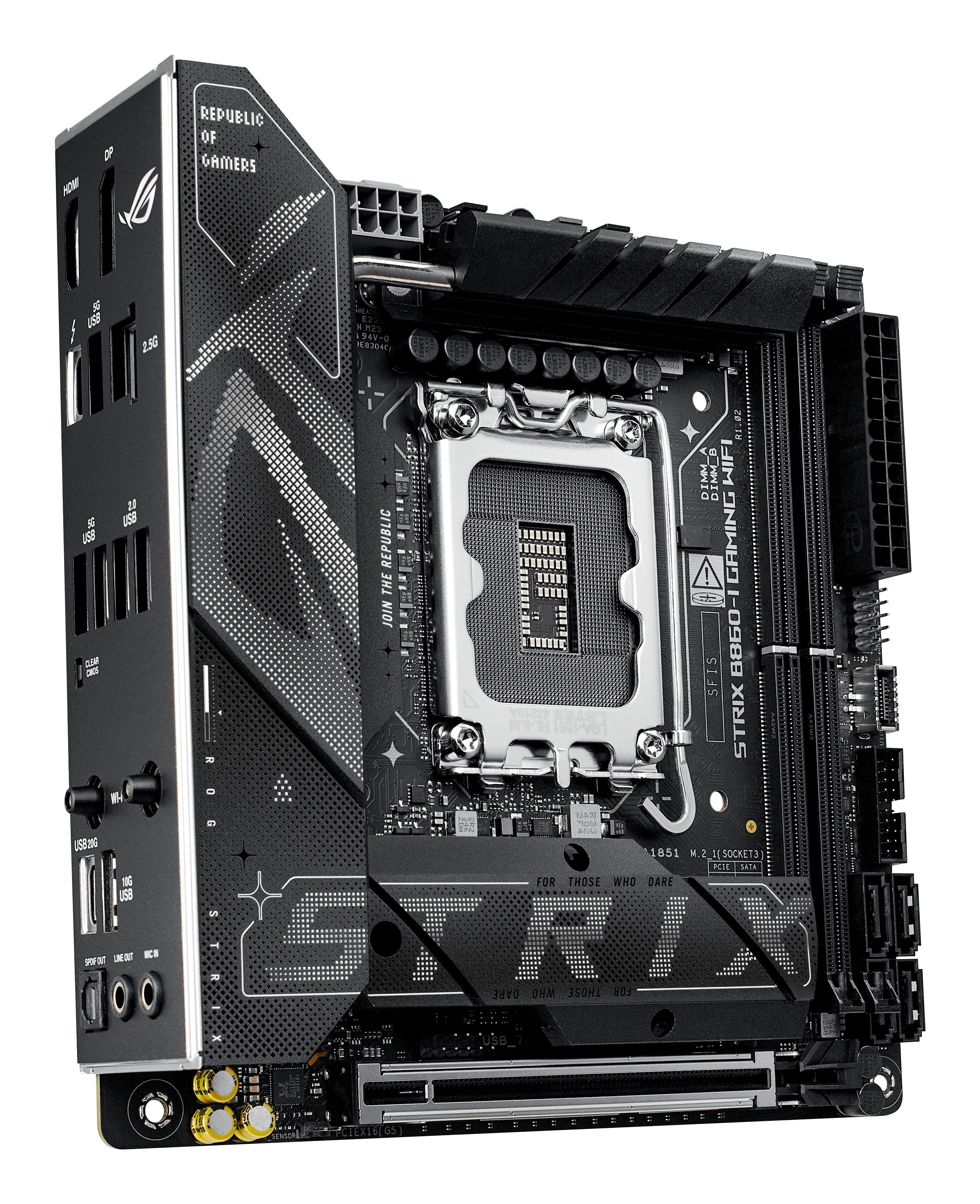

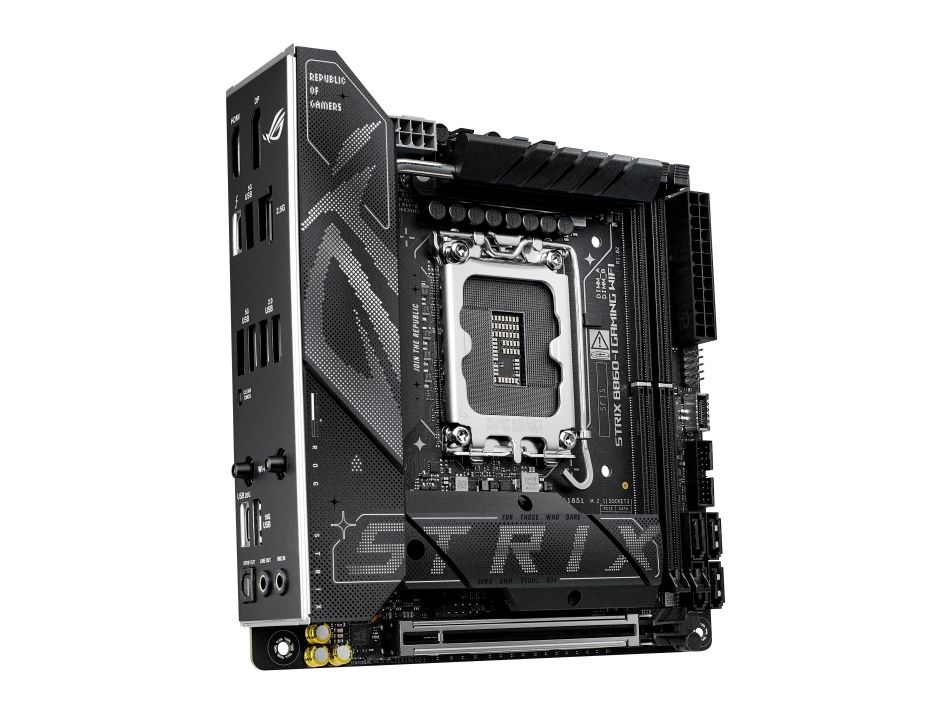

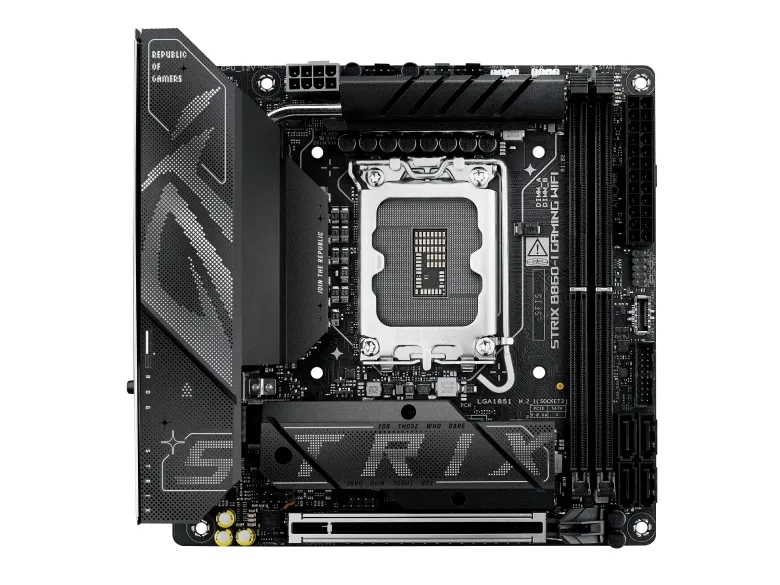

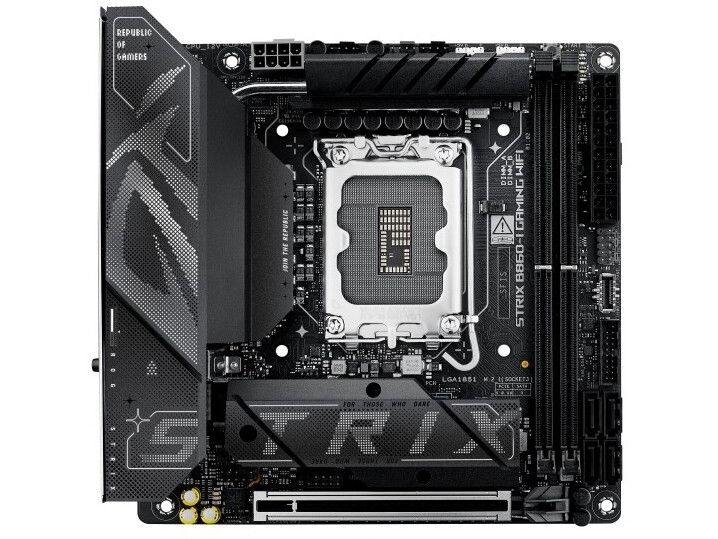

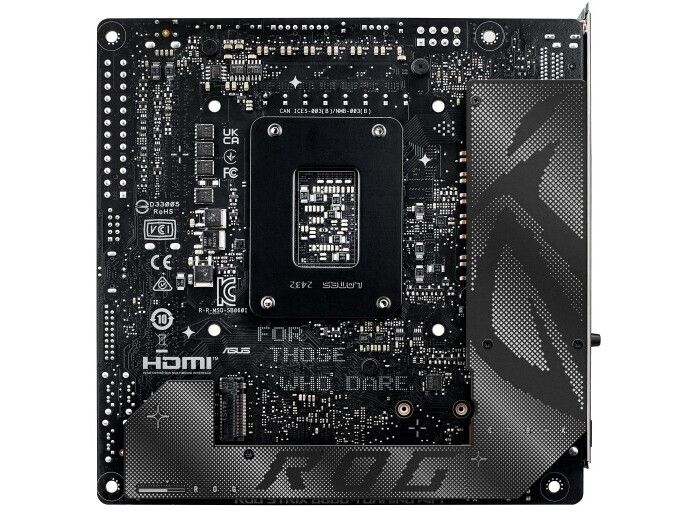

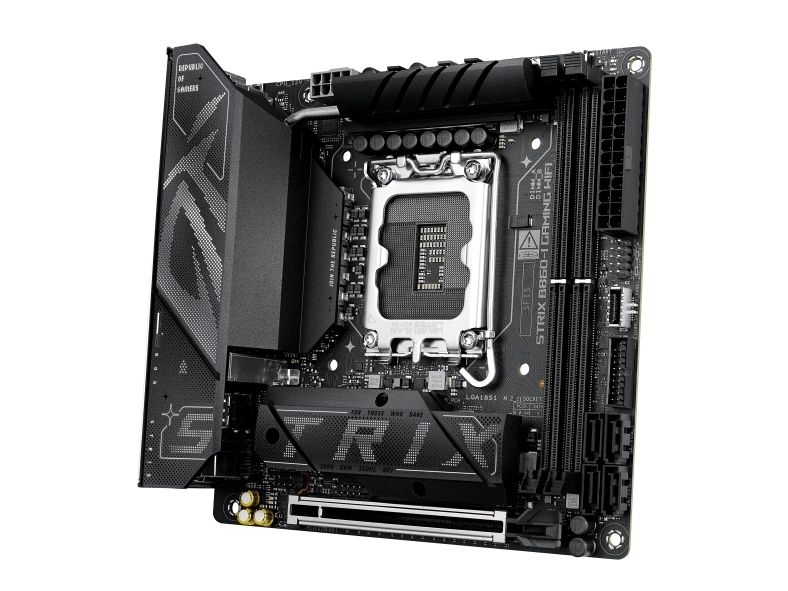

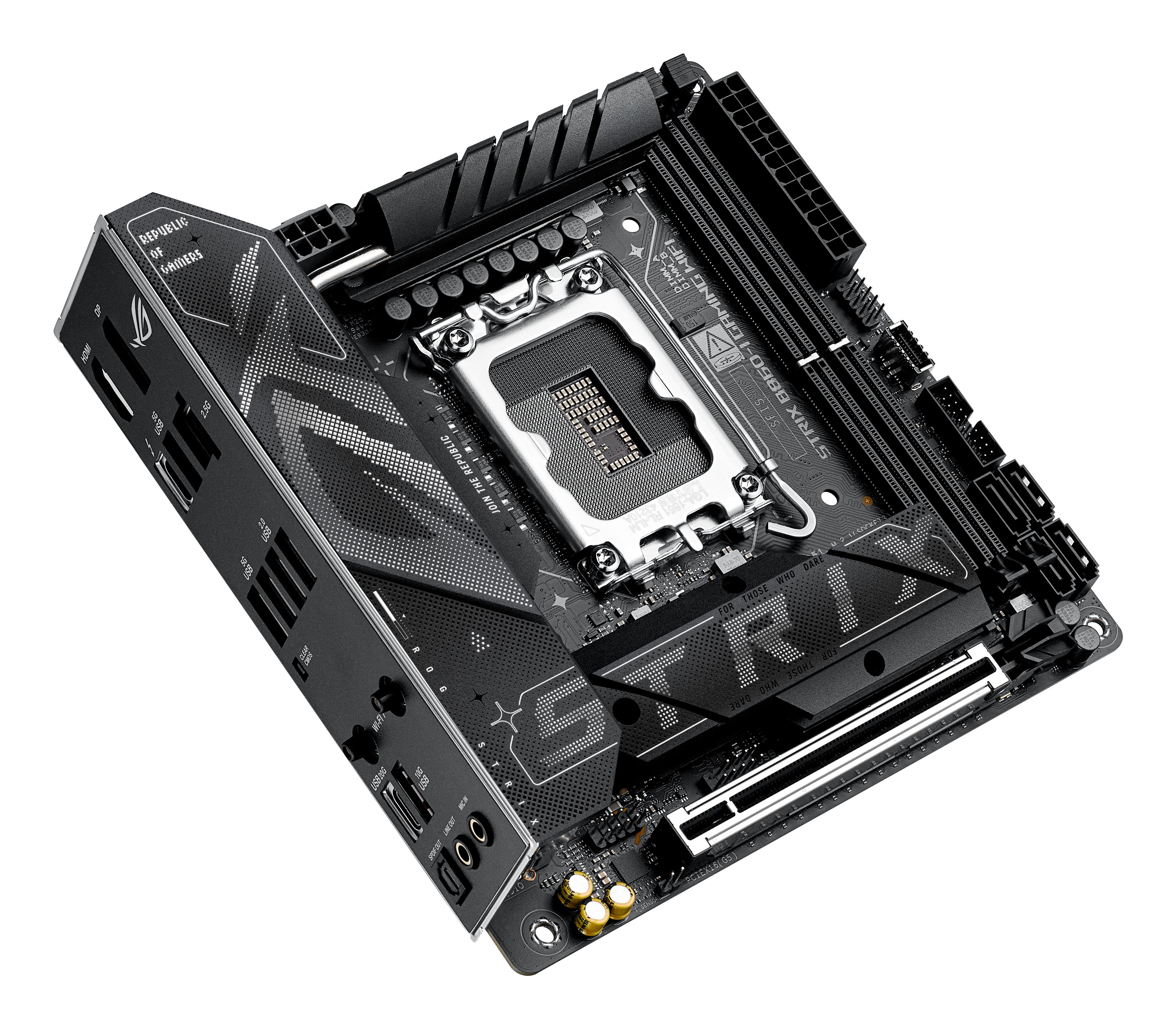

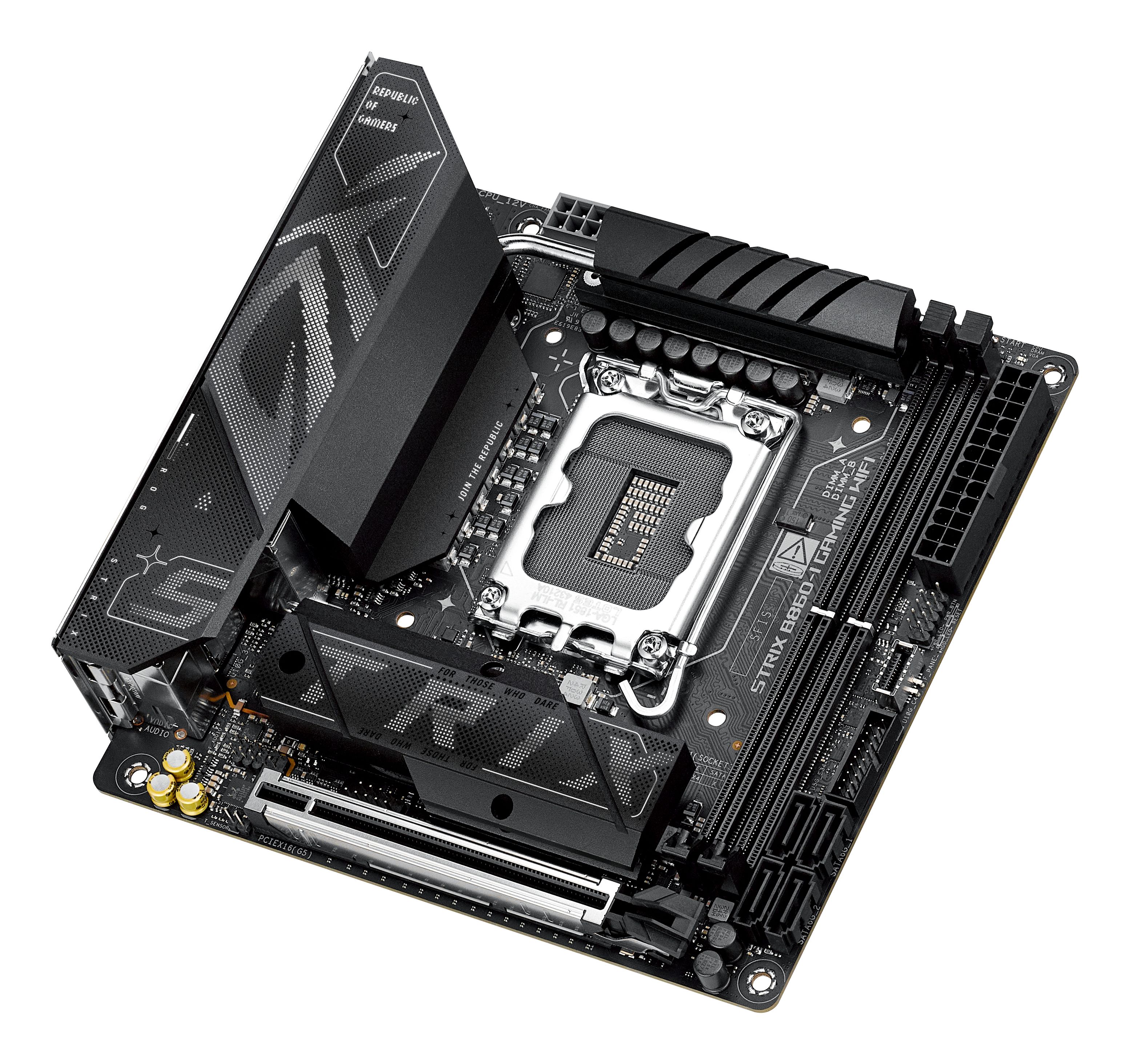

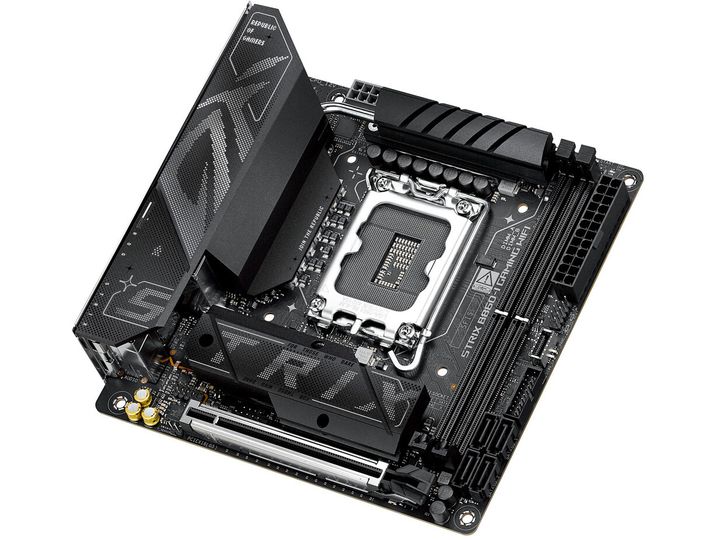

The ASUS ROG STRIX B860-I GAMING WIFI is designed for gaming enthusiasts seeking performance and reliability in a compact mini ITX motherboard. Equipped with dual DIMM slots supporting DDR5 SDRAM, it accommodates RAM speeds of up to 4533 MHz (O.C.), ensuring smooth operation for demanding applications and multitasking. The board features an array of connectivity options, including USB 3.2 Gen 2 and Thunderbolt 4, providing versatile connections for high-speed data transfer and peripheral devices. Enhancing audio experiences, the motherboard integrates a high definition audio sound card with Dolby Atmos support, delivering immersive sound quality during gameplay or media consumption. The advanced networking capabilities include 2.5 Gigabit Ethernet and support for Wi-Fi 6E, ensuring stable and fast Internet connections. With features like ASUS Aura Sync for customizable RGB lighting and a DIY-friendly design, the ASUS ROG STRIX B860-I GAMING WIFI stands out as a powerful foundation for any gaming setup.
Produktbeskrivelse
ASUS ROG STRIX B860-I GAMING WIFI - bundkort - mini ITX - LGA1851 sokkel - B860
2 DIMM slots - DDR5, ikke-ECC, ikke bufferet, clocked unbuffered
Lagringsporte
4 x SATA-600 (RAID), 2 x M.2
USB / FireWire porte
1 x USB4 + 1 x USB-C 3.2 Gen 2x2 + 1 x USB 3.2 Gen 2 + 3 x USB 3.2 Gen 1 + 2 x USB 2.0 + (1 x USB-C 3.2 Gen 2 + 2 x USB 3.2 Gen 1 + 2 x USB 2.0 via samlekasser)
Audio
HD Audio (8-kanaler)
LAN
802.11a/b/g/n/ac/ax/be (Wi-Fi 7), 2.5 Gigabit Ethernet, Bluetooth 5.4
Intel Extreme Memory Profiles (XMP), dobbelt kanal hukommelses arkitektur
Audio
Type
HD Audio (8-kanaler)
Audio codec
Realtek ALC1220P
Overensstemmelsesstandarder
High Definition Audio, Dolby Atmos
LAN
Netværks interfaces
802.11a/b/g/n/ac/ax/be (Wi-Fi 7), 2.5 Gigabit Ethernet, Bluetooth 5.4
Ekspansion / Konnektivitet
Ekspansionsåbninger
1 x CPU 2 x DIMM 288-pins 1 x PCIe 5.0 x16 1 x M.2 socket (2260/2280 M.2 Key M-åbning) 1 x M.2 socket (2242/2260/2280 M.2 Key M åbning)
Grænseflade (lagring)
SATA-600 -stikforbindelser: 4 x 7pin Seriel ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 PCIe 5.0 -stikforbindelser: 1 x M.2 PCIe 4.0 -stikforbindelser: 1 x M.2
RAID-egenskaber
Intel Rapid Storage Technology
Interface

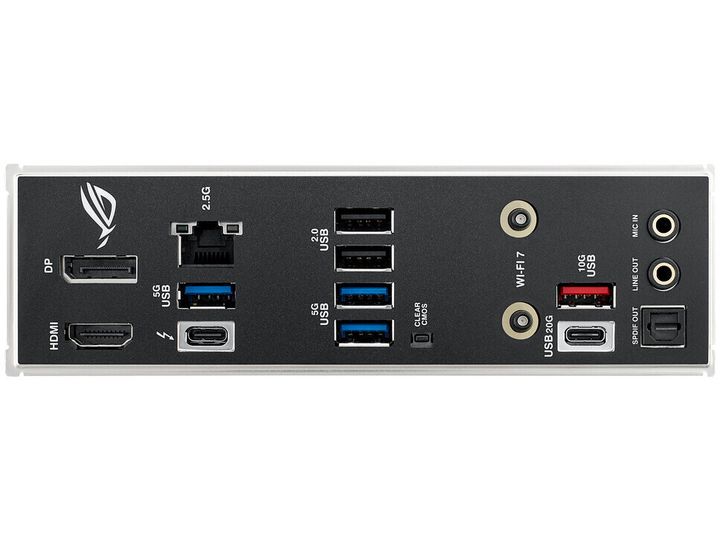

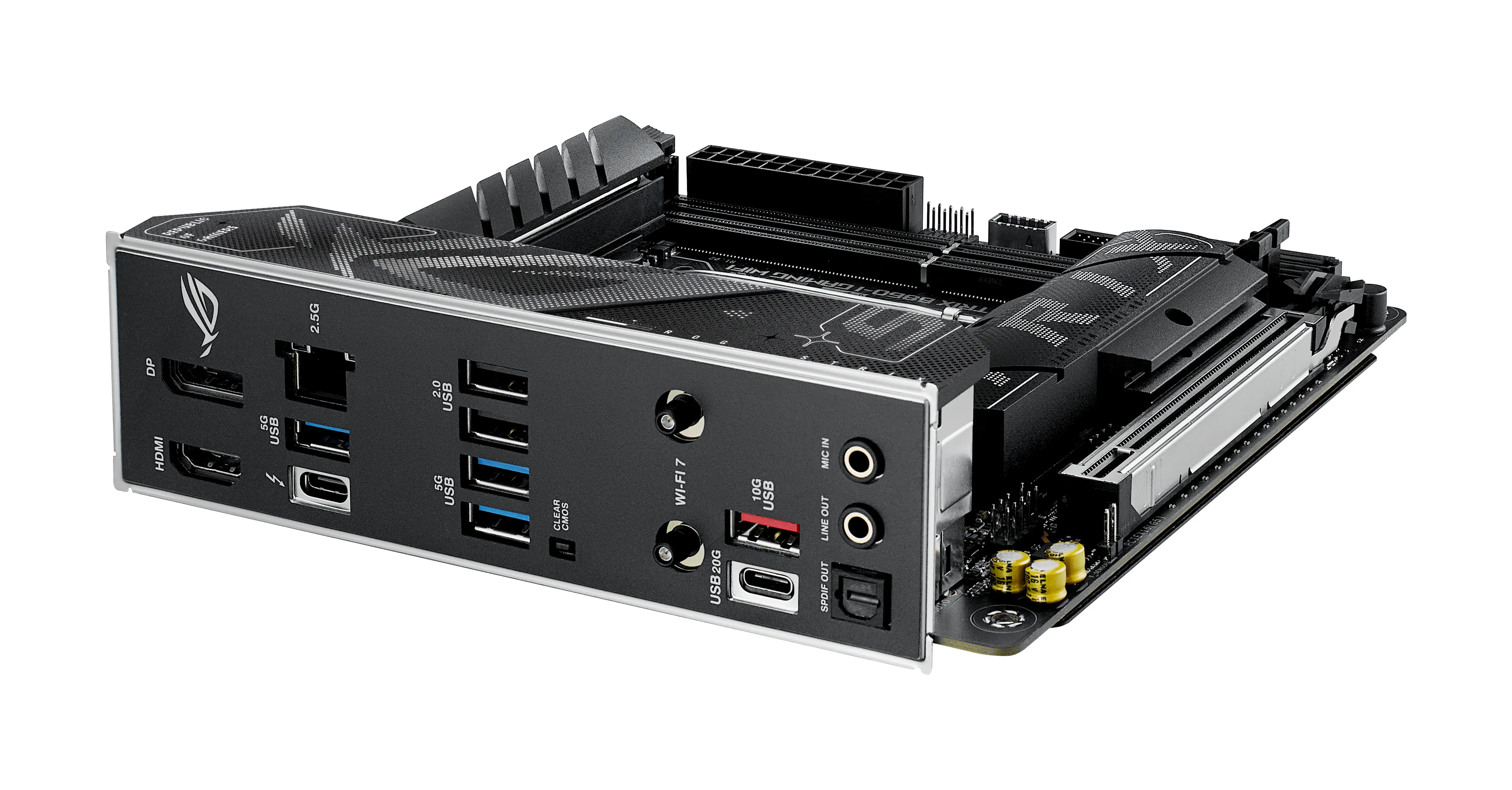

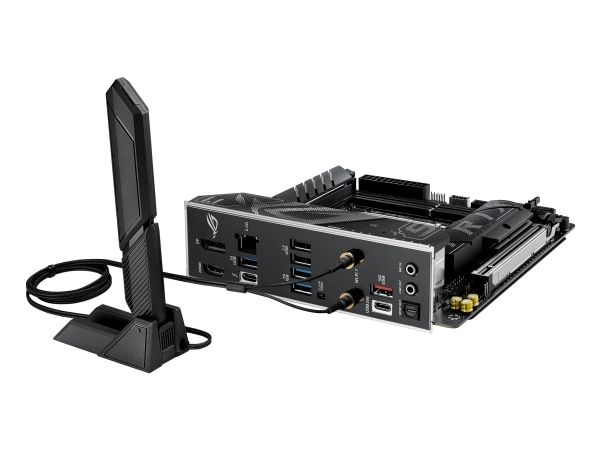

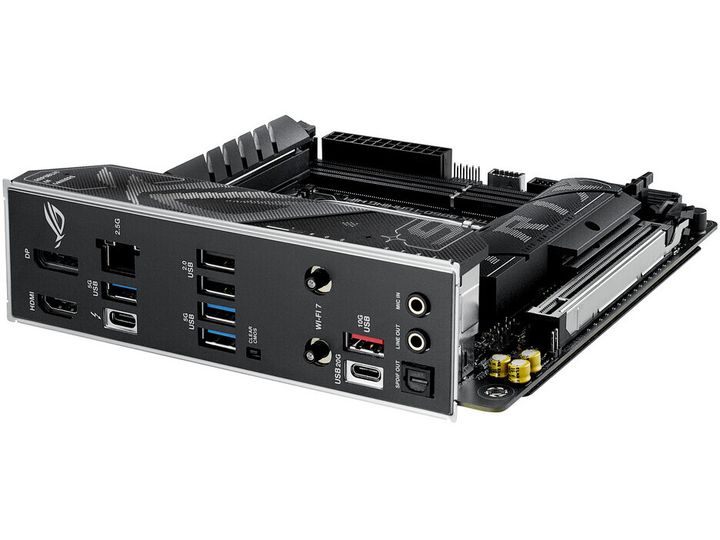

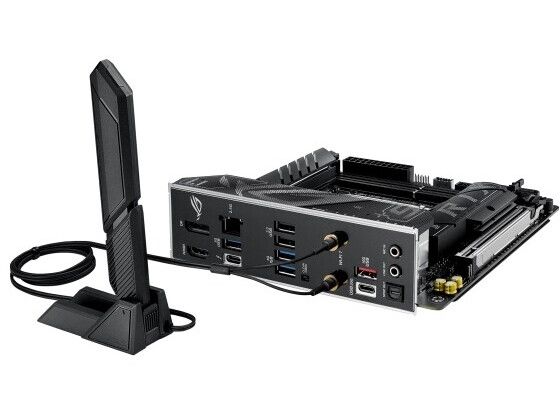

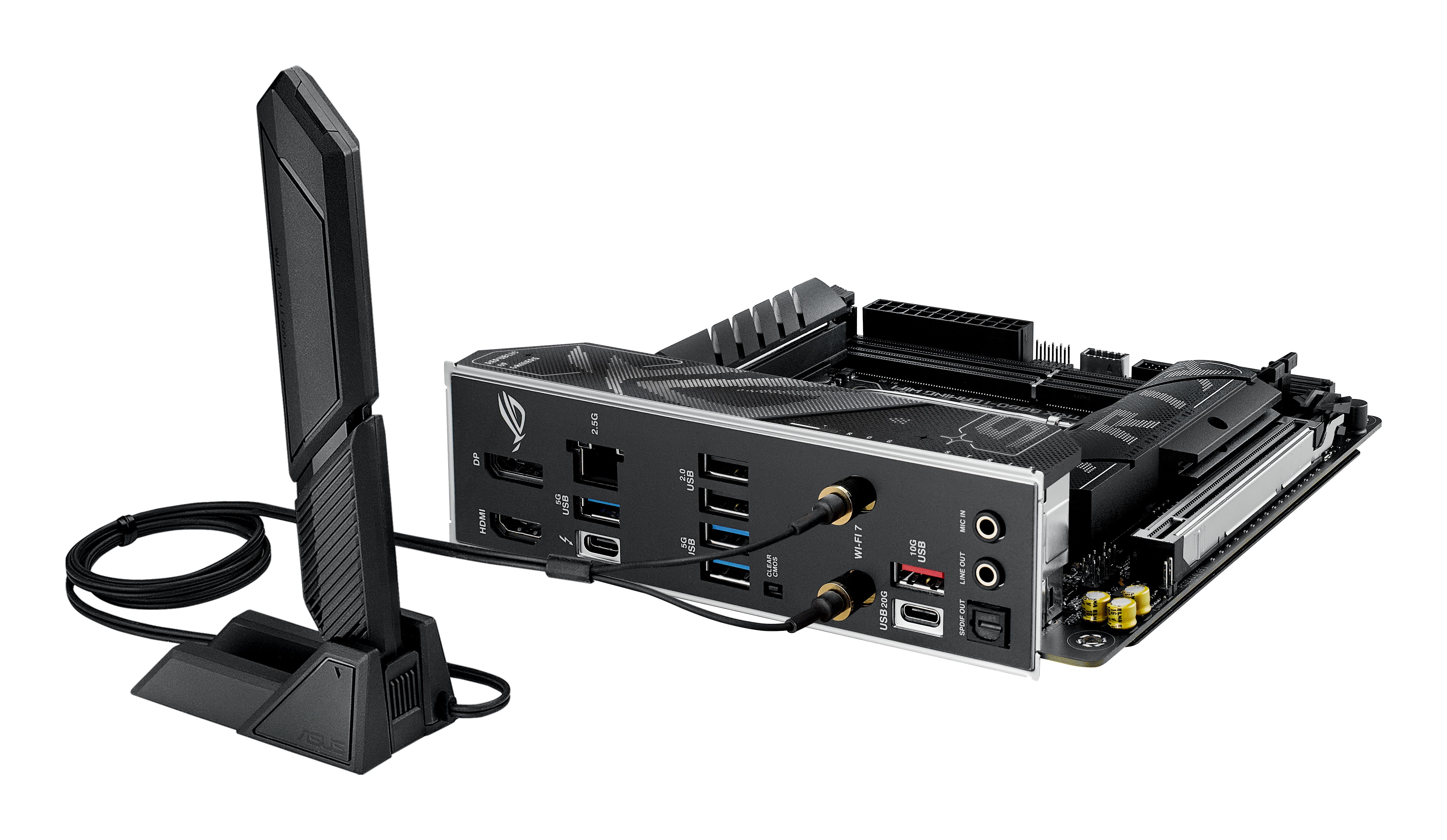

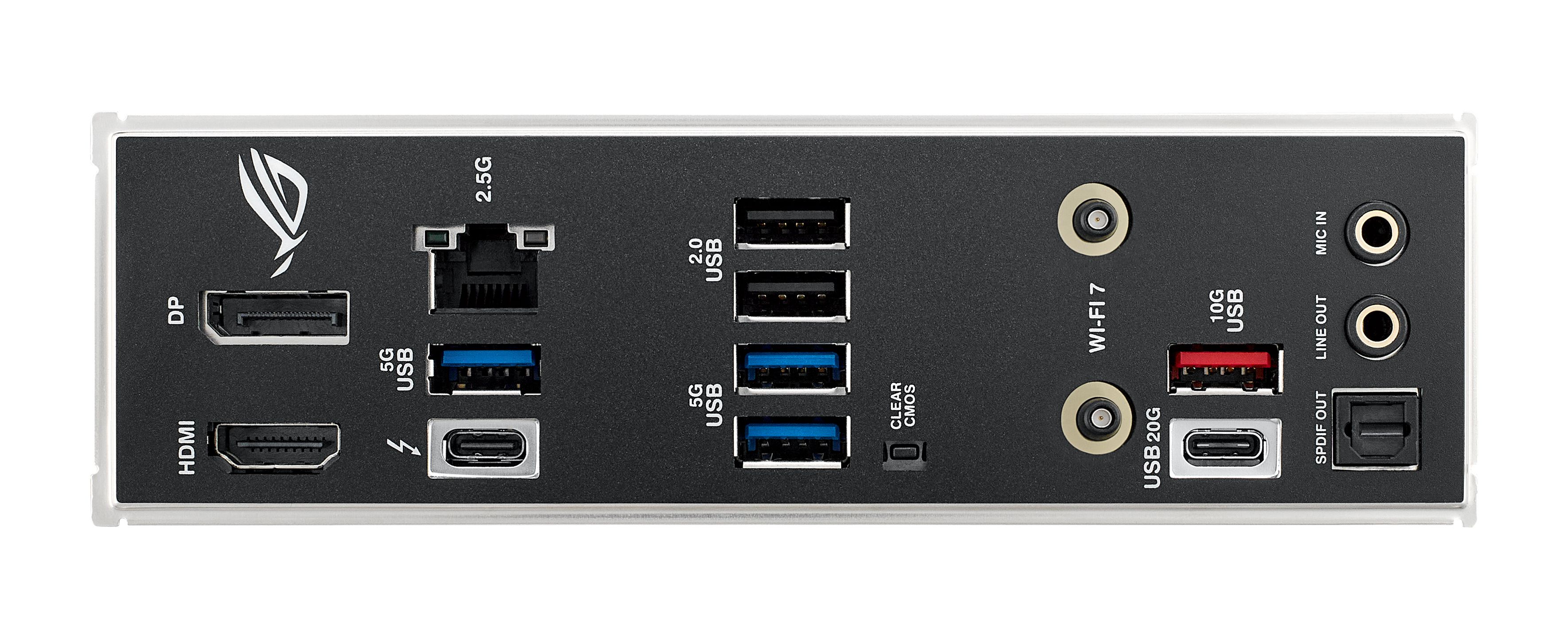

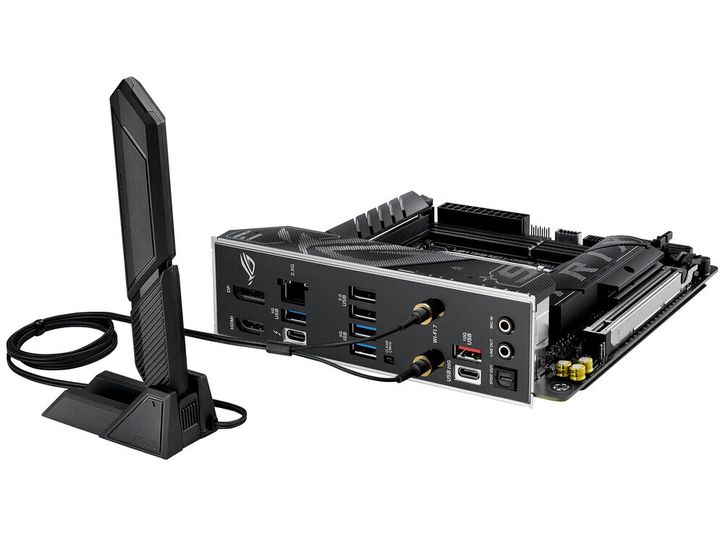

1 x LAN (2.5Gigabit Ethernet) 1 x HDMI 1 x DisplayPort 1 x Thunderbolt 4 1 x USB 3.2 Gen 2 3 x USB 3.2 Gen 1 1 x USB-C 3.2 Gen2x2 2 x USB 2.0 2 x antenne 1 x mikrofon - mini-jack 1 x audio linje-ud - mini-jack 1 x SPDIF-ud
Interne interfaces
1 x USB-C 3.2 Gen 2 - intern stik 2 x USB 3.2 Gen 1 - intern stik 2 x USB 2.0 - intern stik 1 x audio - intern stik
Strømkontakter
24-pin hovedstrøm-konnektor, 8-pin ATX12V-kontakt
Egenskaber
BIOS-type (Basic Input/Output System)
AMI
BIOS-egenskaber
UEFI BIOS, ASUS EZ Flash, ASUS UEFI BIOS EZ Mode
Hardware egenskaber
Intel Turbo Boost Technology 2.0, Intel Turbo Boost Max Technology 3.0, ASUS Enhanced Memory Profile (AEMP) III, CUDIMM støtte, Clear CMOS Button, ROG CPU-Z, 5K Black Metallic Capacitors, ASUS Aura Sync, ASUS Extreme Engine Digi+, ASUS EZ DIY, ASUS ProCool, ASUS Q-Design, ASUS SafeDIMM, ASUS SafeSlot, CPU Socket-håndtagsbeskytter, M.2 kølelegeme, M.2 kølelegemebagplade, M.2 Q-Latch, PCIe Slot Q-Release, præmonteret I/O-skjold, Q-Antenna, Q-Dashboard, Q-DIMM, Q-LED, Q-Slot, VRM kølelegemedesign, 10+1+2+1 fase strømdesign, AI Networking II, DIY Friendly Design, NPU Boost

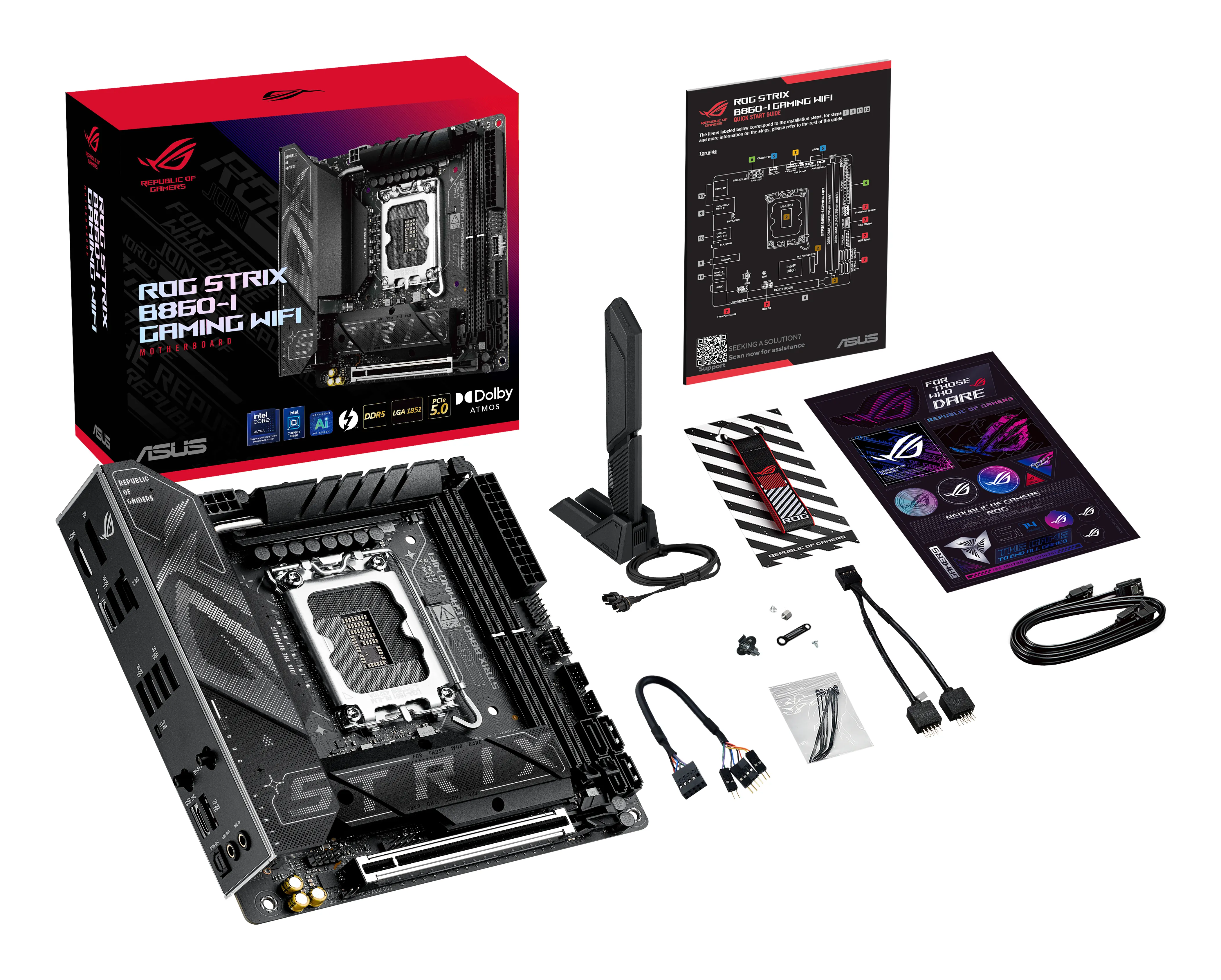

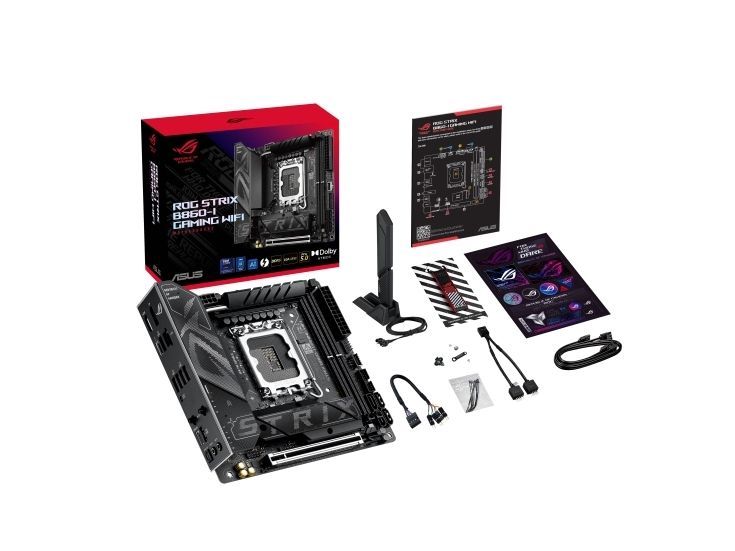

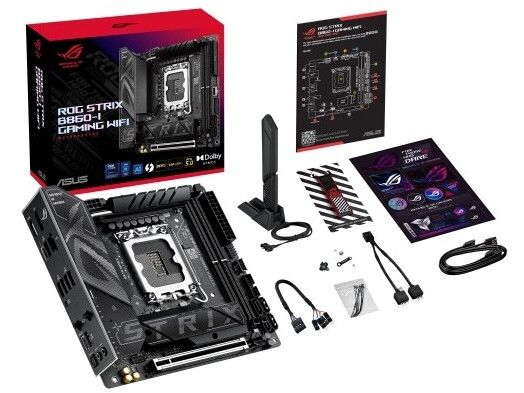

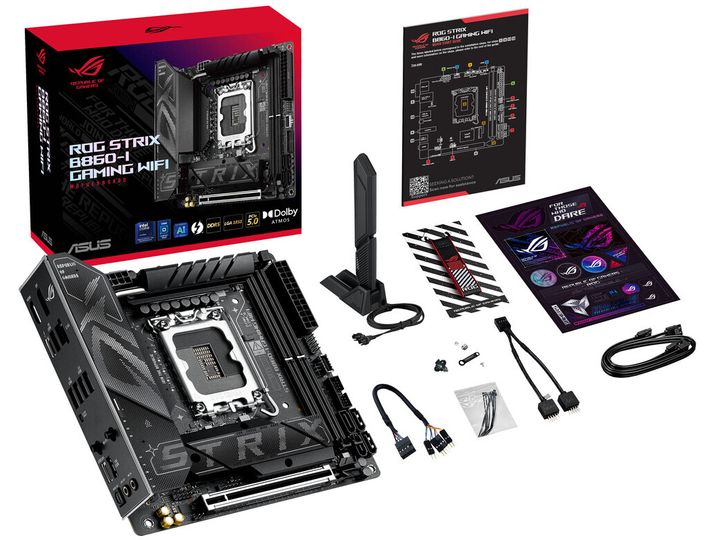

2 x Seriel ATA kabel 1 x USB 2.0 opdelerkabel 1 x panelkabel
Med software
Adobe Creative Cloud (gratis prøve), AIDA64 Extreme (60 dages prøvetid), Armoury Crate, ASUS AI Advisor, ASUS DriverHub, ASUS Fan Xpert 4, ASUS GlideX, HWiNFO, Norton 360 for Gamers (60 dages prøvetid), ROG CPU-Z, TurboV Core, WinRAR (40 days trial)
Bredde
17 cm
Dybde
17 cm

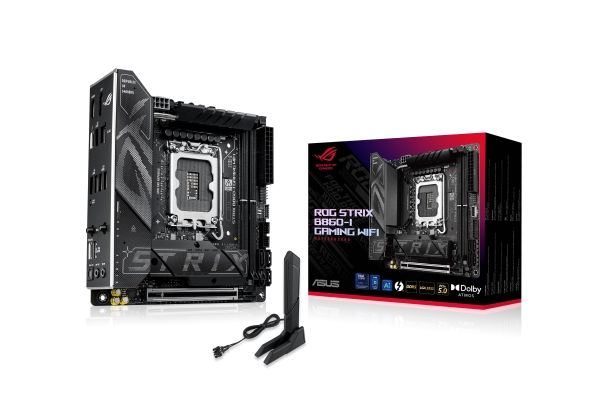

Pakkedetaljer
Boks
GPSR
