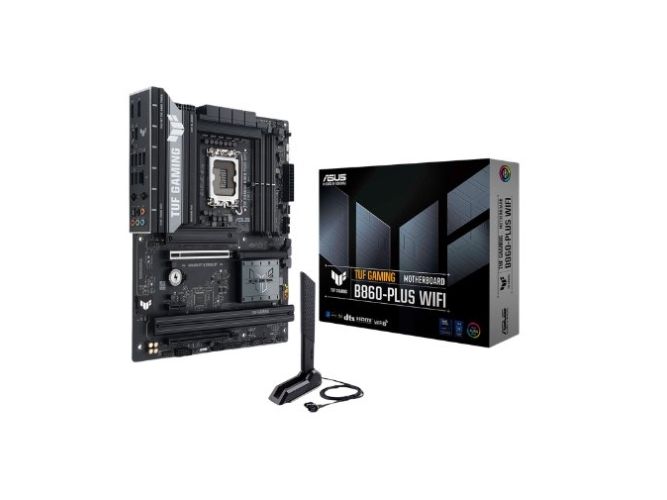

The ASUS TUF GAMING B860-PLUS WIFI motherboard offers a robust foundation for gamers and builders seeking high-performance capabilities. Crafted with an Intel B860 chipset, it supports Intel Core Ultra processors (Series 2) and features a versatile ATX form factor. This motherboard includes four DIMM slots for DDR5 SDRAM, ensuring your build can leverage memory speeds up to 4333 MHz (O.C.). With advanced cooling solutions such as M.2 heatsinks and a VRM heatsink design, it maintains optimal temperatures even during intense gaming sessions.
Equipped with multiple connectivity options, the ASUS TUF GAMING B860-PLUS WIFI supports Wi-Fi 6E and Bluetooth 5.4 for fast wireless connections, while 2.5 Gigabit Ethernet ensures seamless wired performance. The motherboard boasts a comprehensive selection of I/O interfaces, including USB-C and HDMI, allowing for versatile peripheral connectivity. Additionally, impressive hardware features like ASUS TUF Protection and overvoltage protection provide longevity and stability for your custom PC build. This motherboard is designed for optimum performance, giving gamers and creators the tools they need to excel.
Intel Extreme Memory Profiles (XMP), dobbelt kanal hukommelses arkitektur
Audio
Type
HD Audio (8-kanaler)
Overensstemmelsesstandarder
High Definition Audio
LAN
Netværks interfaces
2.5 Gigabit Ethernet, Bluetooth 5.4, 802.11a/b/g/n/ac/ax/be (Wi-Fi 7)
Ekspansion / Konnektivitet
Ekspansionsåbninger
1 x CPU 4 x DIMM 288-pins PCIe 5.0 x16 1 x PCIe 4.0 x16 (x4-modus) 1 x PCIe 4.0 x1 1 x M.2 socket (2242/2260/2280 M.2 Key M åbning) 1 x M.2 socket (2280 M.2 åbning) 1 x M.2 socket (2280/22.110 M.2 Key M-åbning)
Grænseflade (lagring)
SATA-600 -stikforbindelser: 4 x 7pin Seriel ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 PCIe 4.0 -stikforbindelser: 2 x M.2 PCIe 5.0 -stikforbindelser: 1 x M.2
Interface
1 x HDMI 1 x DisplayPort 3 x USB 3.2 Gen 1 2 x USB 2.0 2 x USB 3.2 Gen 2 1 x USB-C 3.2 Gen2x2/DisplayPort 2 x antenne 1 x LAN (2.5Gigabit Ethernet) 1 x mikrofon - mini-jack 1 x audio linje-ind - mini-jack 1 x audio linje-ud - mini-jack 1 x audio linje-ud (centrum/subwoofer) - mini-jack 1 x audio linje-ud (bagtil) - mini-jack 1 x SPDIF-ud
Interne interfaces
1 x USB-C 3.2 Gen 2 - intern stik 2 x USB 3.2 Gen 1 - intern stik 2 x USB 2.0 - intern stik 1 x seriel - intern stik 1 x audio - intern stik 1 x Thunderbolt 4 - intern stik
Strømkontakter
24-pin hovedstrøm-konnektor, 2 x 8-pins ATX12V stikforbindelser
Egenskaber
BIOS-type (Basic Input/Output System)
AMI
BIOS-egenskaber
UEFI BIOS, ASUS EZ Flash, ASUS UEFI BIOS EZ Mode
Sov/ Vågn
Aktivering af LAN (wake on LAN = WOL), vågn på PME
Hardware egenskaber
Preboot eXecution Environment (PXE), ASUS TUF Protection, ASUS DIGI+ VRM, TUF LANGuard, overspændingsbeskyttelse, ASUS SafeSlot Core, ASUS Stainless Steel Back I/O, ASUS Q-Design, M.2 Q-Latch, PCIe Slot Q-Release, Q-Antenna, Q-Dashboard, Q-DIMM, Q-LED Core, Q-Slot, M.2 kølelegeme, VRM kølelegemedesign, ASUS EZ DIY, ASUS ProCool, SafeDIMM, 12+1+2+1 fase strømdesign, 80 A Power Stage, Dr.MOS MOSFET, ASUS Enhanced Memory Profile (AEMP) III, 6 Layer PCB
Diverse
Udstyr inkluderet
ASUS Wi-Fi Q-antenna, 2 x M.2 gummipakke, M.2 skruepakke, TUF GAMING-mærkat
Medfølgende ledninger
2 x Seriel ATA kabel
Med software
Armoury Crate, ASUS Fan Xpert 4, Adobe Creative Cloud (gratis prøve), ASUS DriverHub, ASUS GlideX, ASUS TUF GAMING CPU-Z, DTS Audio Processing, Norton 360 for Gamers (60 dages prøvetid), WinRAR (40 days trial)
Bredde
30.5 cm
Dybde
24.4 cm
Pakkedetaljer
Boks
GPSR
ASUS Computer GmbH Harkortstrasse 21-23 40880 Ratingen DE [email protected]
