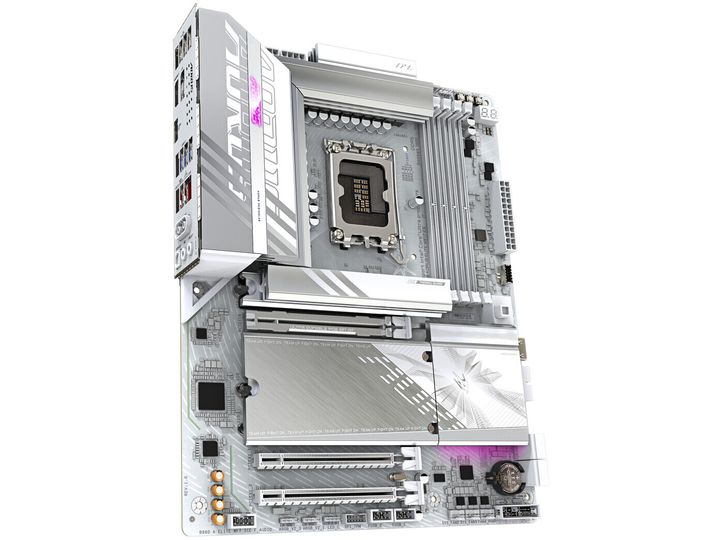

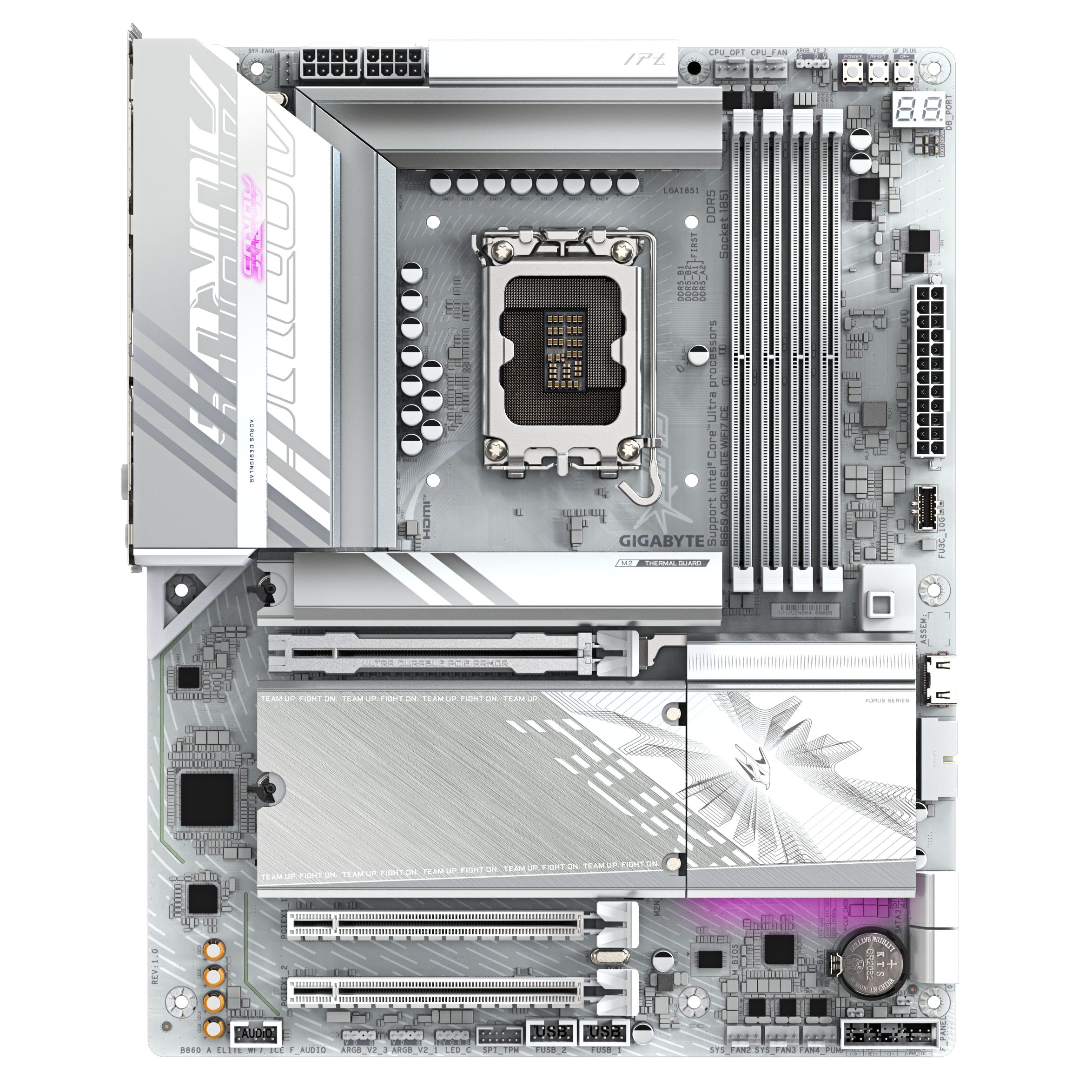

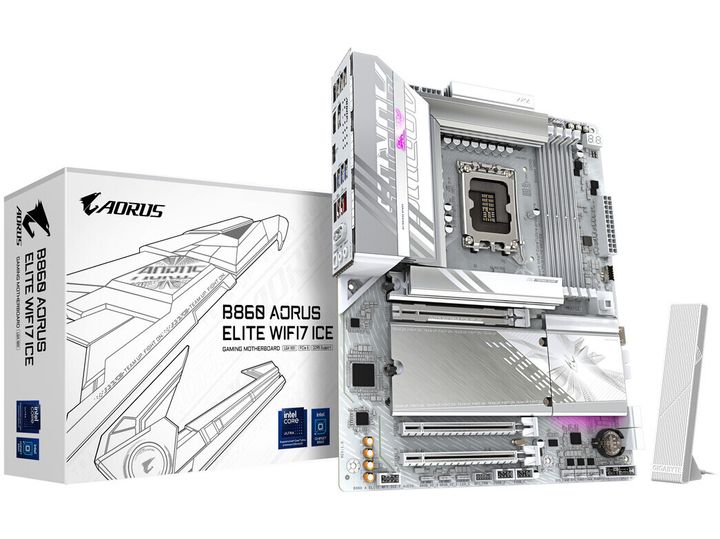

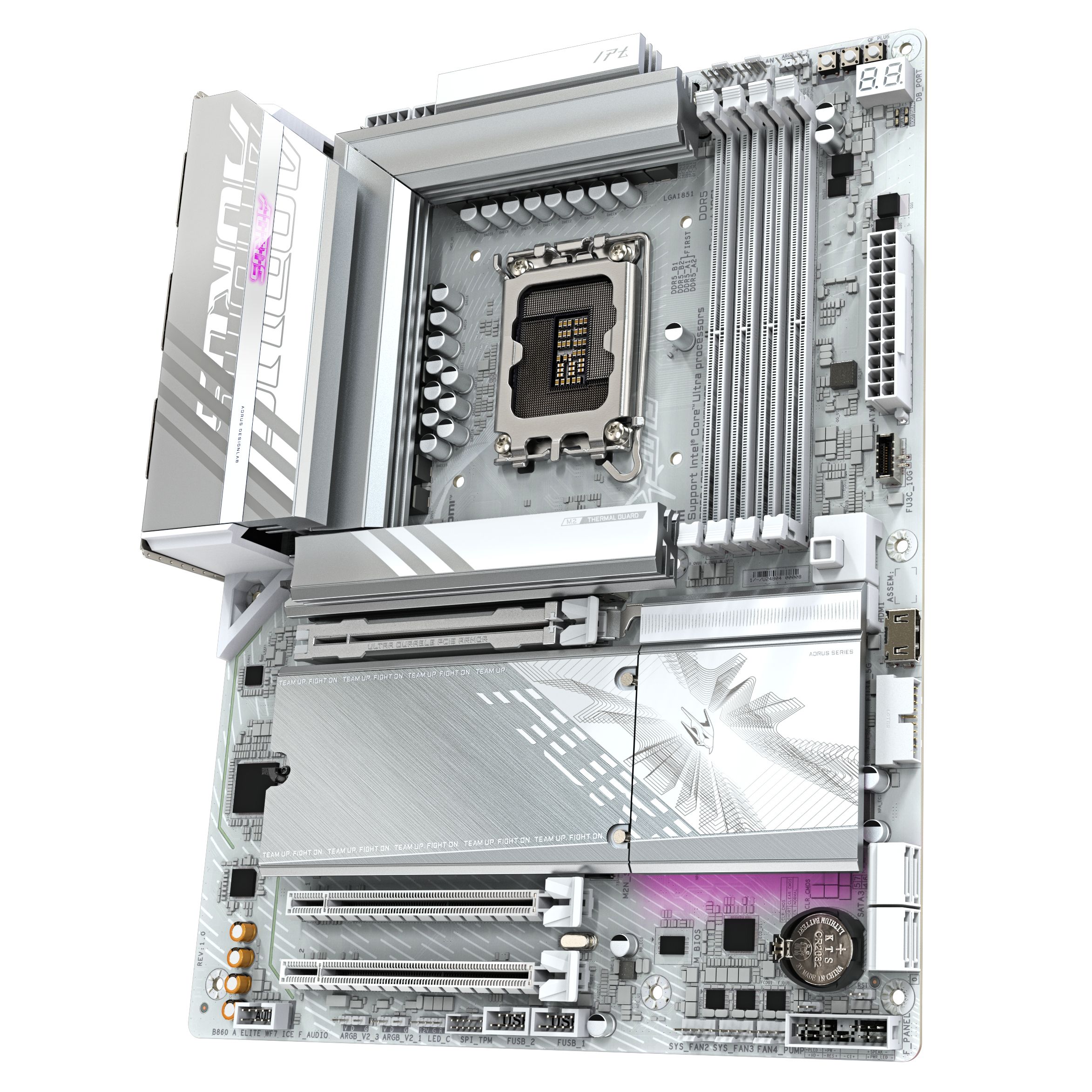

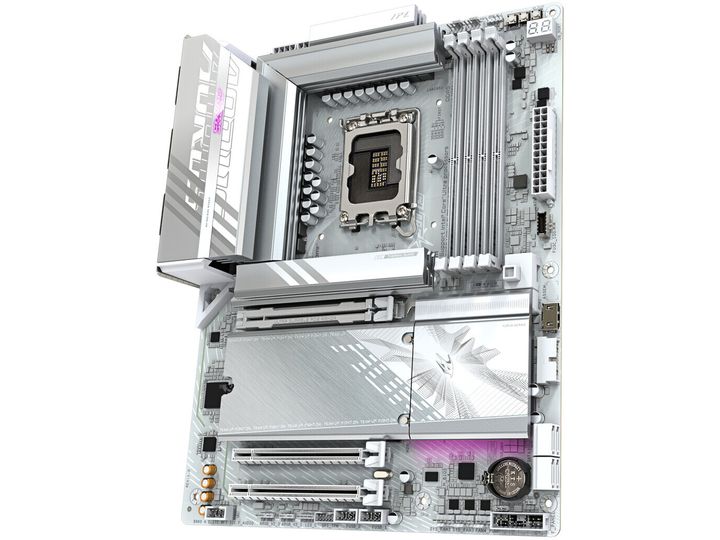

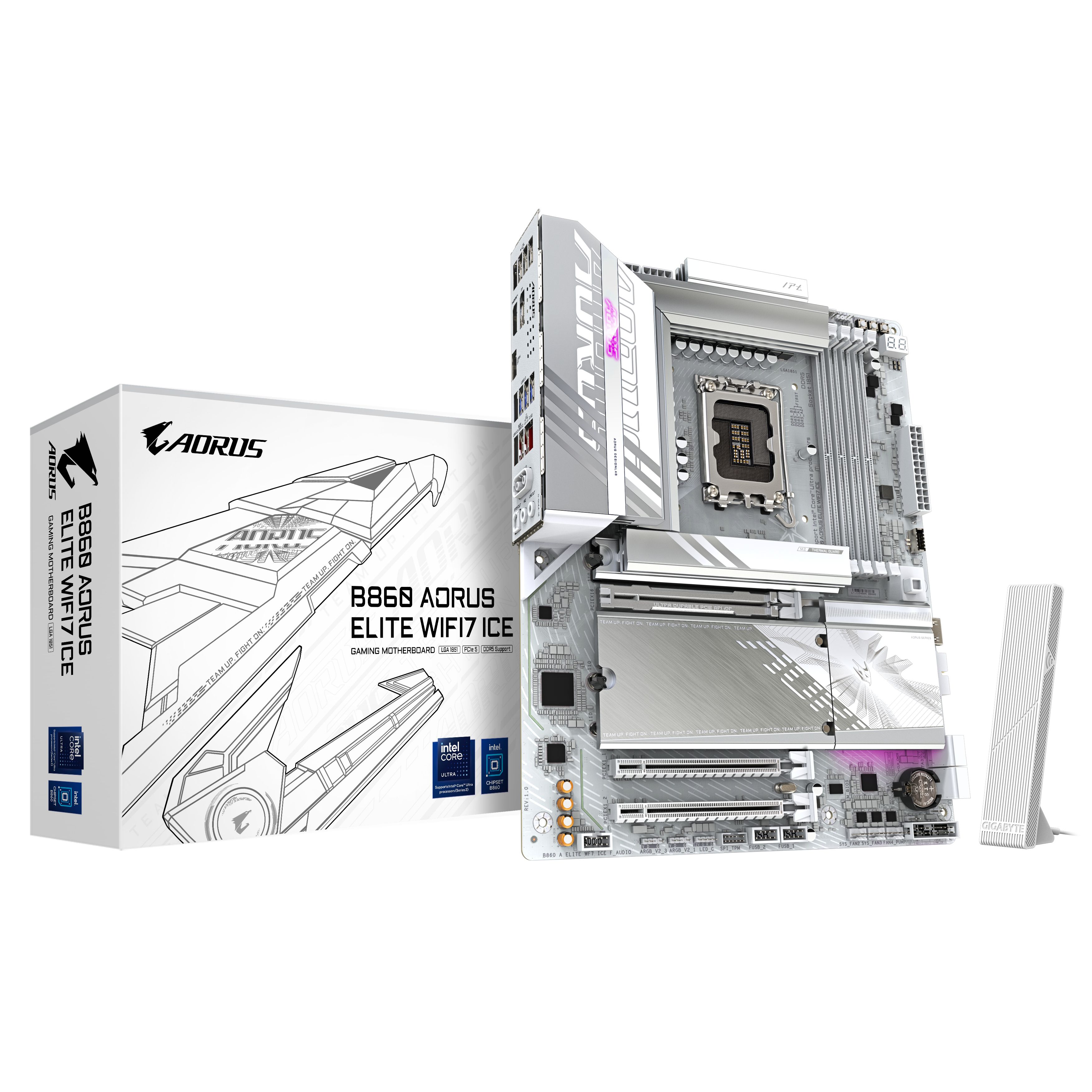

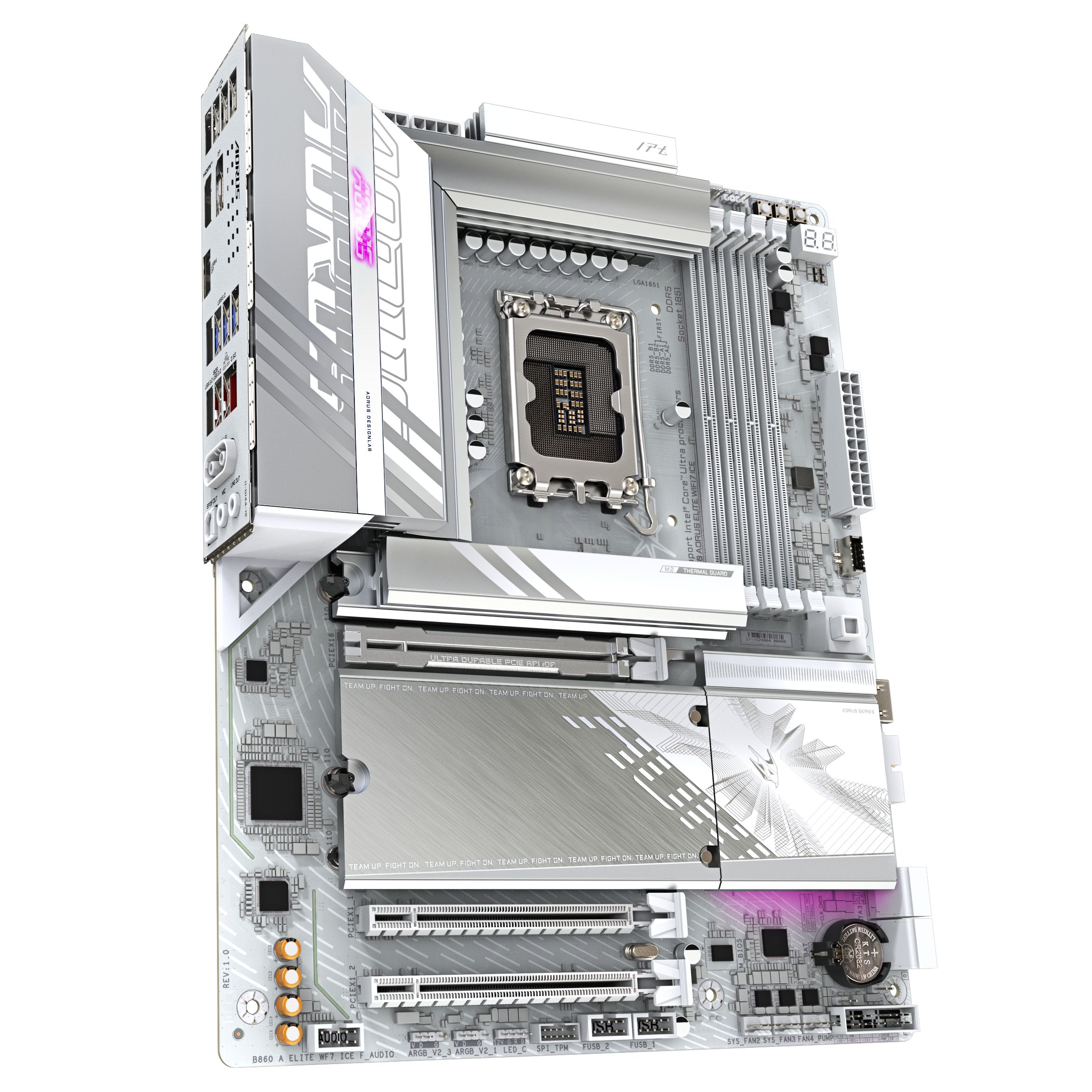

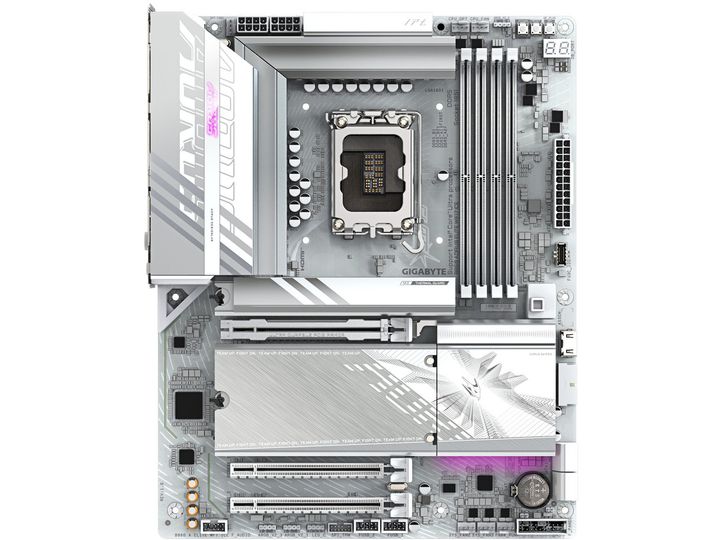

GIGABYTE B860 AORUS ELITE WIFI7 ICE Motherboard, Intel, LGA 1851 (Socket V1), Intel® Core™ Ultra (Series 1), Intel Core Ultra (Series 2), LGA 1851, DDR5-SDRAM, 256 GB

Item no.: [21881796] | Manufacturer: Gigabyte Technology | Model no.: B860 A ELITE WF7 ICE | EAN: 4719331866846

Remote stock (5-7 days)

The item is in a remote warehouse, delivery time is 5-7 business days. More info

Shipping @price - GLS

12,00

EUR 193,59

Incl. VAT 241,99

Total incl. delivery 256,99

Read further specifications and description

Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge

Produktbeskrivelse	AORUS B860 ELITE WIFI7 ICE - bundkort - ATX - LGA1851 sokkel - B860
Produkttype	Bundkort - ATX
Chipsættype	Intel B860
Processor-socket	1 x LGA1851 sokkel
Kompatible processorer	(understøtter Intel Core Ultra-processorer (Serie 2))
Max RAM-størrelse	256 GB
RAM understøttet	4 DIMM åbninger - DDR5, ikke-ECC, ECC (drift i ikke-ECC tilstand), ikke bufferet
Lagringsporte	4 x SATA-600 (RAID), 3 x M.2
USB / FireWire porte	1 x USB4 + 2 x USB 3.2 Gen 2 + 3 x USB 3.2 Gen 1 + 4 x USB 2.0 + (1 x USB-C 3.2 Gen 2 + 2 x USB 3.2 Gen 1 + 2 x USB 2.0 via samlekasser)
Audio	HD Audio
LAN	Bluetooth 5.4, 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax/be (Wi-Fi 7)

Generelt
Produkttype	Bundkort - ATX
Chipsættype	Intel B860
Processor-socket	LGA1851 sokkel
Max antal processorer	1
Kompatible processorer	(understøtter Intel Core Ultra-processorer (Serie 2))
Understøttet RAM
Maks. størrelse	256 GB
Teknologi	DDR5
Bus Clock	4600 MHz (O.C.), 4400 MHz (O.C.), 4300 MHz (O.C.), 4200 MHz (O.C.), 4133 MHz (O.C.), 4100 Mhz (O.C), 4000 MHz (O.C.), 3975 MHz (O.C.), 3950 MHz (O.C.), 3900 MHz (O.C.), 3800 MHz (O.C.), 3700 MHz (O.C.), 3600 MHz (O.C.), 3500 MHz (O.C.), 3400 MHz (O.C.), 3300 MHz (O.C.), 3200 MHz, 2800 MHz
Understøttet RAM-integritetskon	Ikke-ECC, ECC (drift i ikke-ECC tilstand)
Registreret eller buffer	Ikke bufferet
Egenskaber	Intel Extreme Memory Profiles (XMP), dobbelt kanal hukommelses arkitektur
Audio
Type	HD Audio
Overensstemmelsesstandarder	High Definition Audio
LAN
Netværk controller	Realtek RTL8922AE
Netværks interfaces	Bluetooth 5.4, 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax/be (Wi-Fi 7)
Ekspansion / Konnektivitet
Ekspansionsåbninger	1 x CPU 2 x DIMM 288-pins 1 x PCIe 5.0 x16 2 x M.2 socket (2280/25.110 M.2 Key M-åbning) 2 x PCIe 4.0 x16 1 x M.2 socket (2280/2580/22110/25110 M.2 Key M åbning)
Grænseflade (lagring)	SATA-600 -stikforbindelser: 4 x 7pin Seriel ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 PCIe 5.0 -stikforbindelser: 1 x M.2 - RAID 0 / RAID 1 PCIe 4.0 -stikforbindelser: 2 x M.2 - RAID 0 / RAID 1

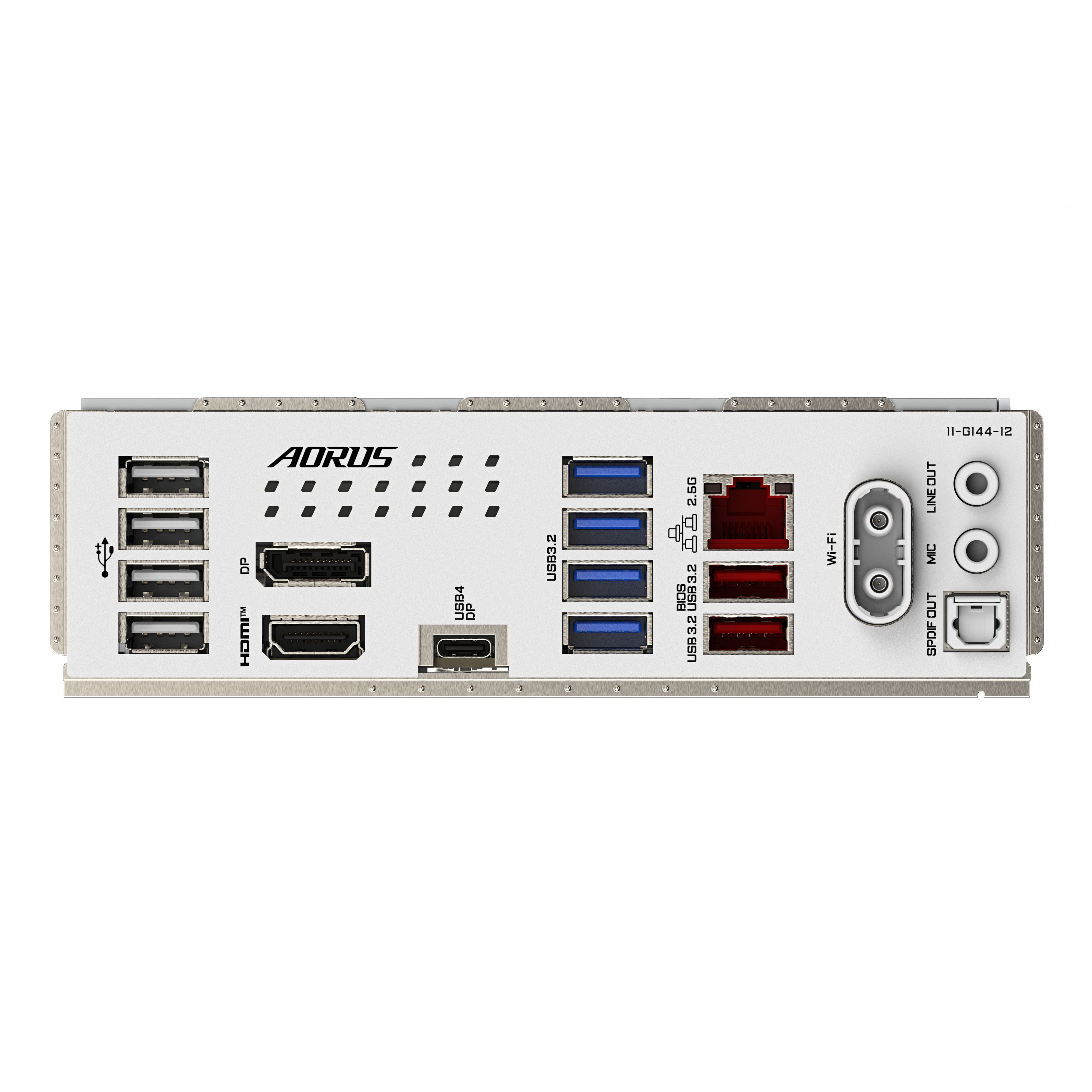

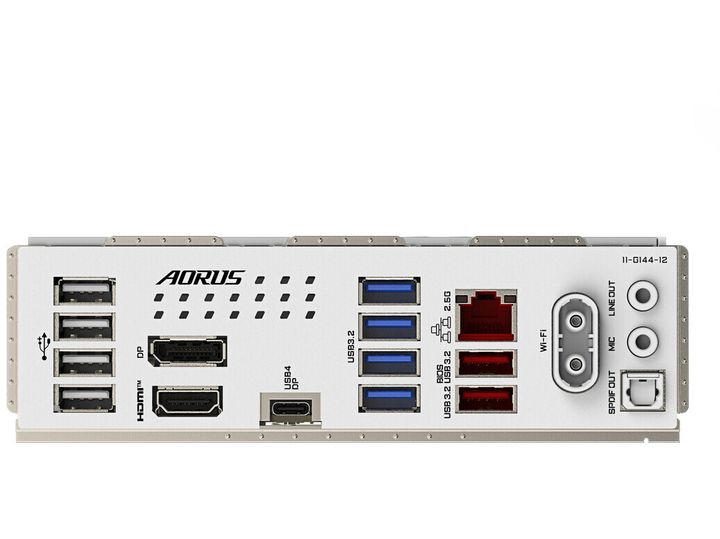

Interface	1 x USB4 2 x USB 3.2 Gen 2 4 x USB 2.0 1 x DisplayPort 1 x HDMI 2 x antenne 1 x LAN (2.5Gigabit Ethernet) 1 x audio linje-ind - mini-jack 1 x audio linje-ud - mini-jack 1 x SPDIF-ud 4 x USB 3.2 Gen 1
Interne interfaces	1 x USB-C 3.2 Gen 2 - intern stik 2 x USB 3.2 Gen 1 - intern stik 2 x USB 2.0 - intern stik 1 x højttaler - intern stik 1 x audio - intern stik 1 x SPI - intern stik
Strømkontakter	24-pin hovedstrøm-konnektor, 2 x 8-pins ATX12V stikforbindelser
Egenskaber
BIOS-type (Basic Input/Output System)	AMI
BIOS-egenskaber	UEFI BIOS, WfM 2.0 understøttet, SMBIOS 2.7 support, DMI 2.7 support, ACPI 5.0 support, PnP 1.0a support
Hardwareovervågning	Vandkølings-flowrate, temperaturdetektion, blæserhastighedsdetektion, blæserfejlvarsel, systemspænding, blæserkontrol
Hardware egenskaber	14+1+2 Phase Power Design, DIY Friendly Design, 6 Layer PCB, 2x Copper PCB, GIGABYTE Smart Fan 6, M.2 EZ Latch, EZ Debug LED, M.2 EZ Latch plus, M.2 EZ Latch klik, RGB FUSION
Diverse
Udstyr inkluderet	Wi-Fi-antenne, 2 x blæserforlænger strømkabler, termisk pude til M.2 SSD, 1 x M.2 skrue, computerkabinetsskruer
Medfølgende ledninger	2 x Seriel ATA kabel
Med software	Norton Internet Security (OEM Version), LAN manager, GIGABYTE Control Center
Bredde	30.5 cm
Dybde	24.4 cm
