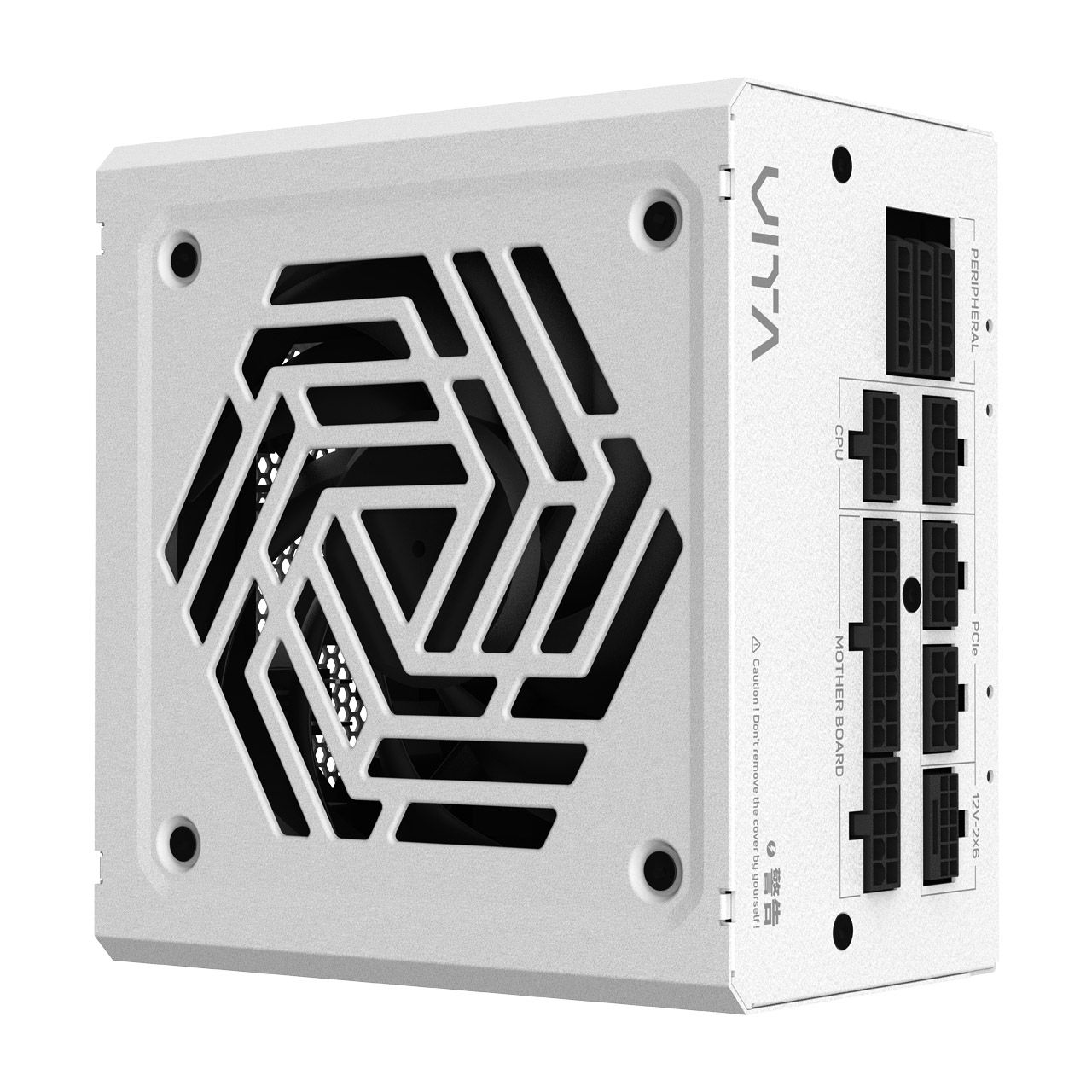

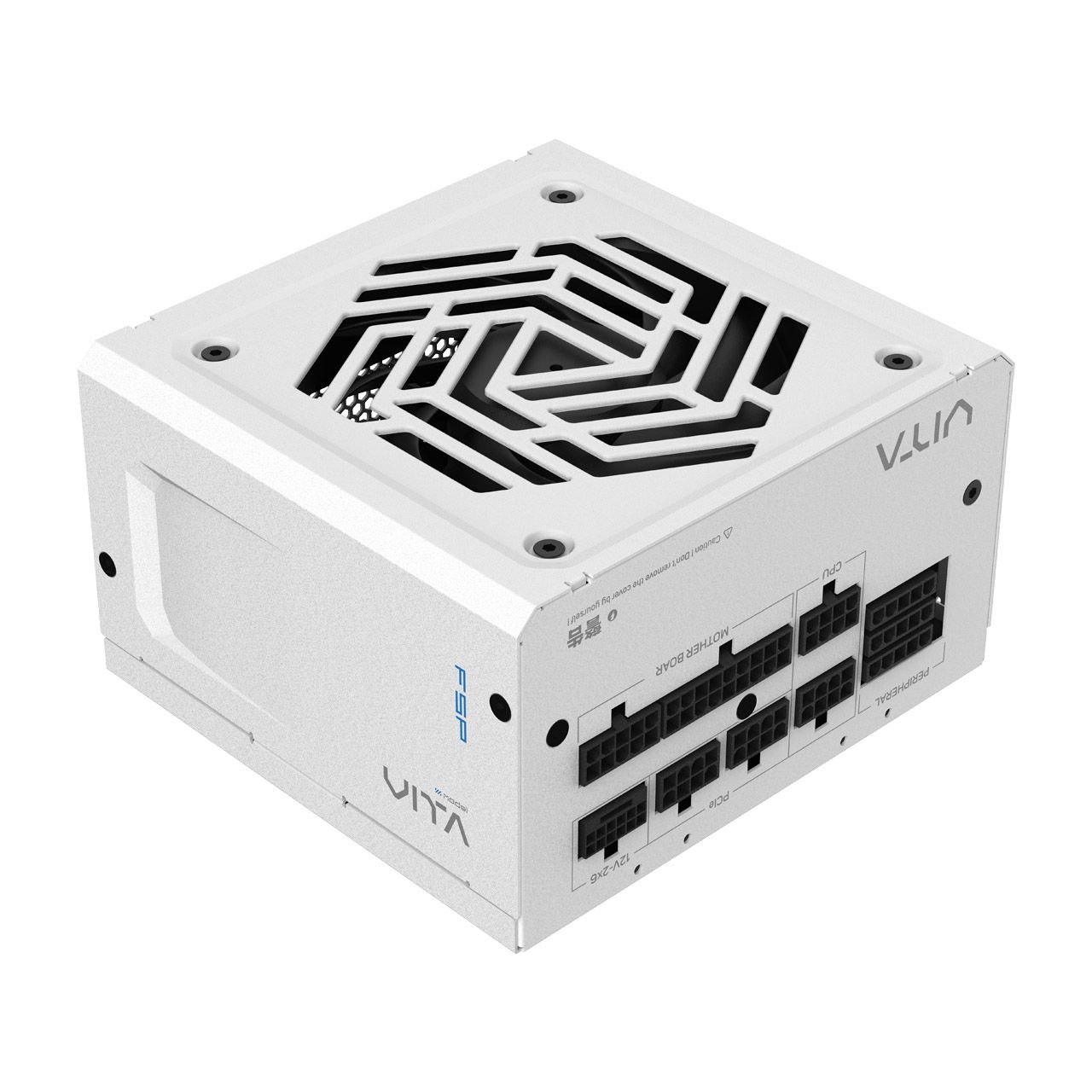

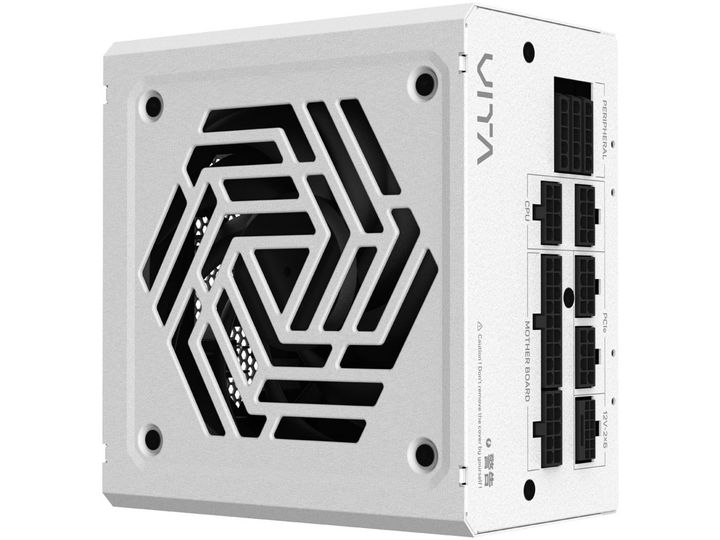

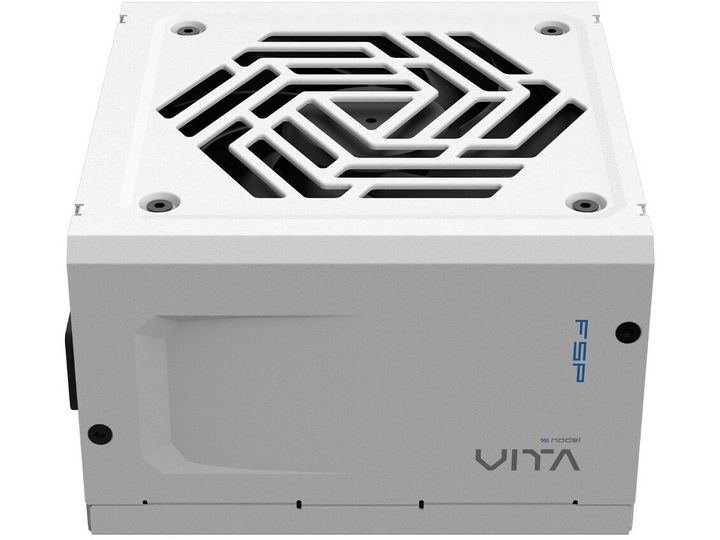

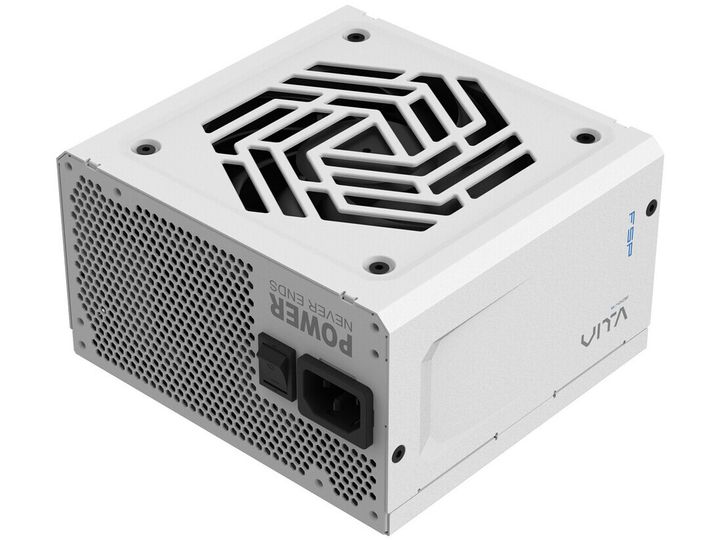

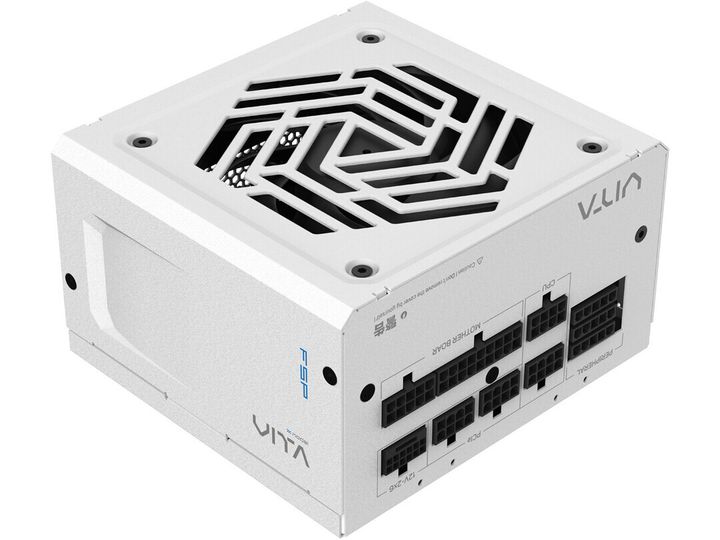

FSP VITA GM 850W White Power supply unit ATX ATX3.1 White, 850 W, 100 - 240 V, 50/60 Hz, 11-5.5 A, Active, 100 W
Item no.: [21883622] | Manufacturer: FSP Group | Model no.: PPA8504214 | EAN: 4713224529801
Remote stock (2-3 days)
The item is in a remote warehouse, delivery time is 2-3 business days. More info
Delivery options - Select at checkout
Shipping @price - GLS
12,00
EUR
106,96
Incl. VAT 133,70
Total incl. delivery
148,70
The function requires that you are logged in. Create a user and use our smart list system to keep track of future purchases, regular purchases or wish lists. Create user Login
Complies with Intel ® Power Design Guide ATX 3.1 Built for the demanding power requirements of tomorrow, these PSUs offer maximum total power excursion support as per ATX 3.1 and PCIe Gen 5.1 specifications, ensuring peak performance with future hardware upgrades.
High Efficiency in Gold-certified Certified by world-class organizations 80 PLUS® gold certifications and reach platinum efficiency at typical load for lower power loss, less heat, and quieter operation.
LLC Resonant-converter Topology with Synchronous Rectifier Reducing switching losses, boosting efficiency, and keeping the output voltage regulated under load conditions.
+5V & 3.3V DC to DC Circuit Design Increase the efficiency and stabilize the output voltage to ensure system stability.
105°C Japanese Bulk Capacitor Equip your PC with the best-in-class capacitors to offer maximize reliability, performance, and lasting power.

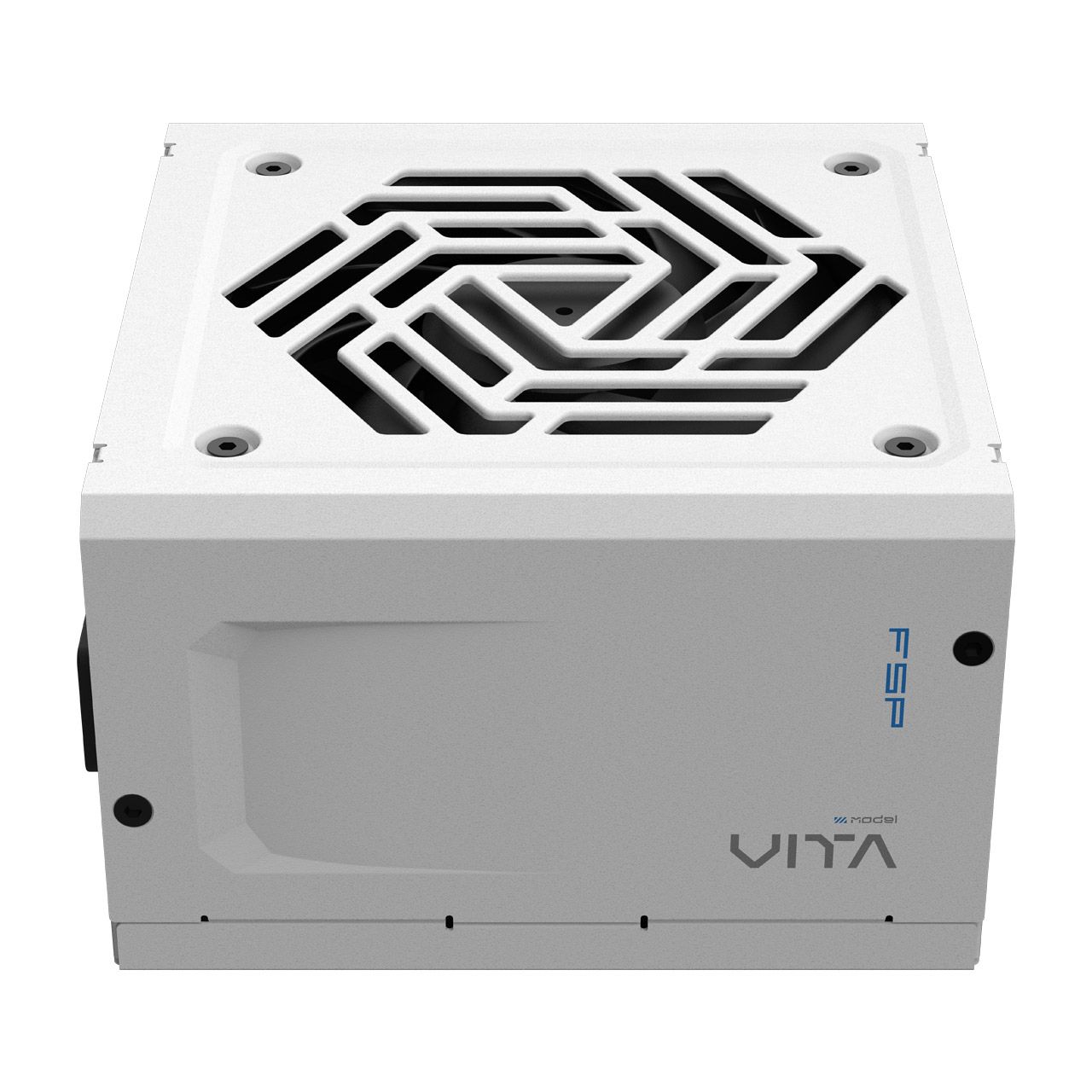

120 mm hydraulic bearing (HYB) fan Quality bearing keeps fan noise to a minimum while providing maximum cooling performance.
Powerhouse Single +12V Rail This high-amperage +12V rail delivers high load capabilities, it’s ideal for intensive workloads of high-performance CPUs and graphics cards.
The Force Comes with You Individual CPU 4+4 pin cables provide CPU direct output power to ensure stable operation even under the most demanding workloads.
The Force Comes with You Dual PCIe 6+2Pin cables and a versatile 12V-2x6 cable offer flexible configuration for even the most power-hungry NVIDIA or AMD graphics cards.Dual PCIe 6+2Pin cables and a versatile 12V-2x6 cable offer flexible configuration for even the most power-hungry NVIDIA or AMD graphics cards.

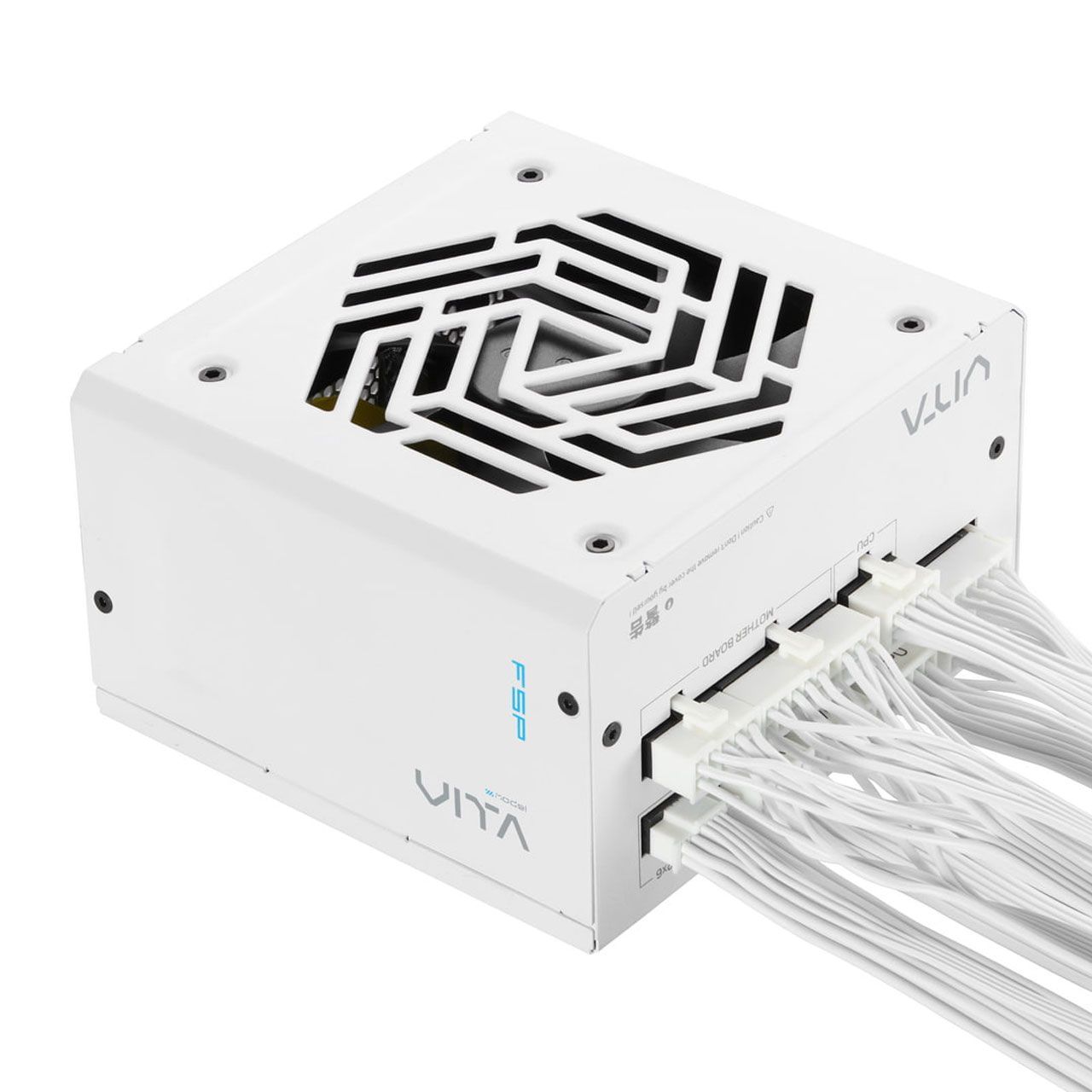

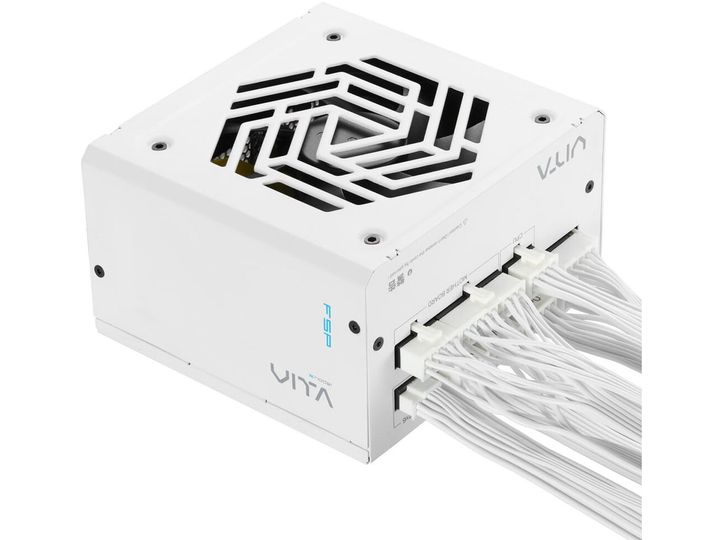

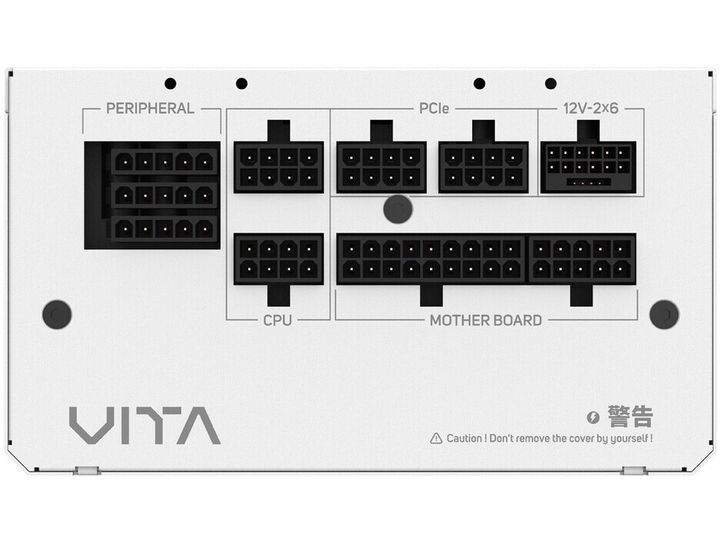

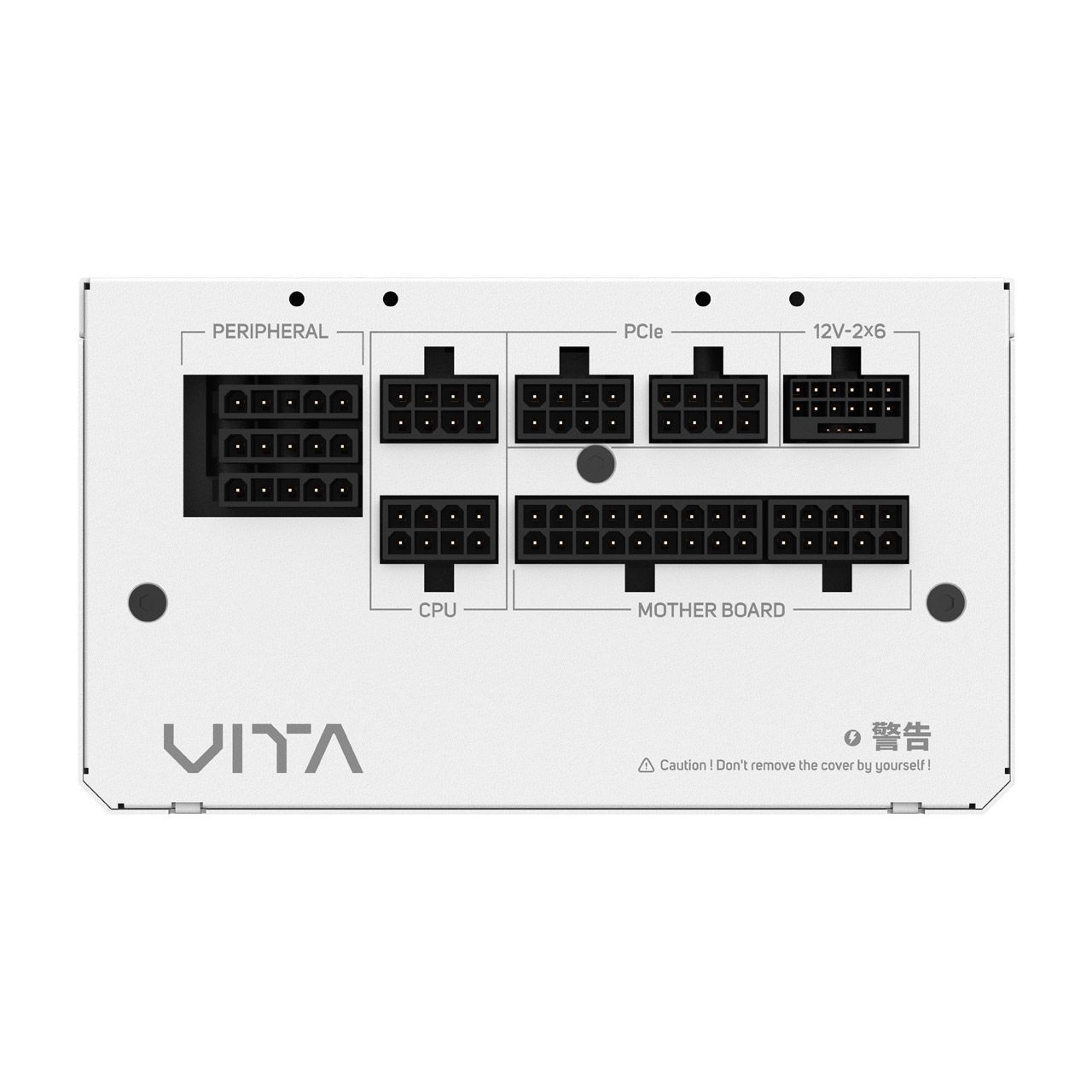

Modular Design with All-White Cables The VITA GM white version features completely white modular cables and cable connectors, creating an ultra-cool, all-white aesthetic. Its fully modular cabling design makes power supply installation easy, allowing users to use only the needed cables, which improves airflow and reduces system clutter.
Compact PSU Size:140 x 150 x 86mm 140mm in length which is relatively shorter than industry standard, it’s ideal for compact PC or space-constraint environment without compromising on performance.
Fortress-level Protection Our comprehensive circuit shields your valuable components from harm.
Produktbeskrivelse
FSP Vita GM - strømforsyning - 850 Watt
Enhedstype
Strømforsyning - aktiv Power Factor Correction (PFC) - intern
Specifikationsoverensstemmelse
ATX12V 3.1/ EPS12V 2.92
80 PLUS certificering
80 PLUS Gold
Indgangspænding
AC 100-240 V
Udgangspænding
+3.3, +5, ±12 V, +5Vsb V
Strømkapacitet
850 Watt
Output Current
+3.3V - 20 A +5V - 20 A +12V - 70.83 A -12V - 0.3 A +5VSB - 3 A
Output-stikforbindelser
1 x strøm 24 pin ATX med aftagelig 4 pin sektion 2 x strøm 8 pin EPS12 V med aftagelig 4 pin ATX12V sektion 1 x 16-pin PCI Express-strøm 4 x 2 x 8 pin PCI Express-strøm med aftagelig 2 pin sektion 2 x 4-PIN intern strøm 6 x 15 pin Serial ATA strøm
Modulær Kabel Administration
Ja
Kølesystem
120 mm ventilator
Farve
Hvid
Dimensioner (B x D x H)
15 cm x 14 cm x 8.6 cm
Producentgaranti
10-års garanti
Generelt
Enhedstype
Strømforsyning - aktiv Power Factor Correction (PFC) - intern
Specifikationsoverensstemmelse
ATX12V 3.1/ EPS12V 2.92
PSU formfaktor
ATX
Farve
Hvid
Strømenhed
Indgangspænding
AC 100-240 V
Nødvendig frekvens
50 - 60 Hz
Detaljer om strømudgangskonnektorer
1 x strøm 24 pin ATX med aftagelig 4 pin sektion 2 x strøm 8 pin EPS12 V med aftagelig 4 pin ATX12V sektion 1 x 16-pin PCI Express-strøm 4 x 2 x 8 pin PCI Express-strøm med aftagelig 2 pin sektion 2 x 4-PIN intern strøm 6 x 15 pin Serial ATA strøm
Udgangspænding
+3.3, +5, ±12 V, +5Vsb V
Strømkapacitet
850 Watt
Output Current
+3.3V - 20 A +5V - 20 A +12V - 70.83 A -12V - 0.3 A +5VSB - 3 A
Effektivitet
90%
Modulær Kabel Administration
Ja
80 PLUS certificering
80 PLUS Gold
Diverse
Medfølgende ledninger
AC-strømkabel Strøm 24-pin ATX med aftagelig 4-pin sektion kabel 60 cm 2 x strøm 8 pin +12 V med aftageligt 4 pin sektion modulært kabel 70 cm 2 x 2x 8 pin PCI Express strøm med aftagelig 2 pin sektion modulært kabel 80 cm 16-pin 12VHPWR strøm modulær kabel 70 cm Strøm 15-pin SATA kabel / 4-pin intern strøm kabel modulært kabel 96.5 cm 15 pin Serial ATA strøm modulært kabel 96.5 cm
Kølesystem
120 mm ventilator
Egenskaber
Hydraulisk lejekøleblæser, ingen lastdriftbeskyttelse, beskyttelse mod overstrøm, beskyttelse mod overophedning, overbelastningsbeskyttelse, overspændingsbeskyttelse, kortslutnings beskyttelse, spændings- og tilstrømningsbeskyttelse, beskyttelse mod underspænding, fuld modulær, LLC resonant konverteringsteknologi, DC-DC teknologi, Cybenetics A
