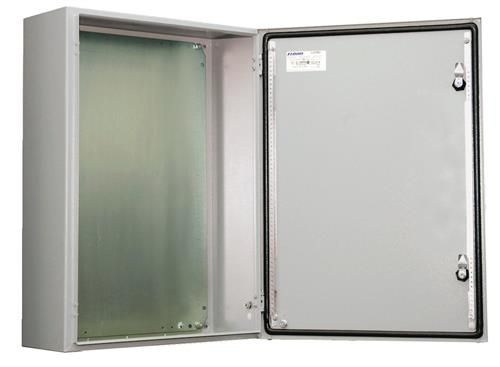

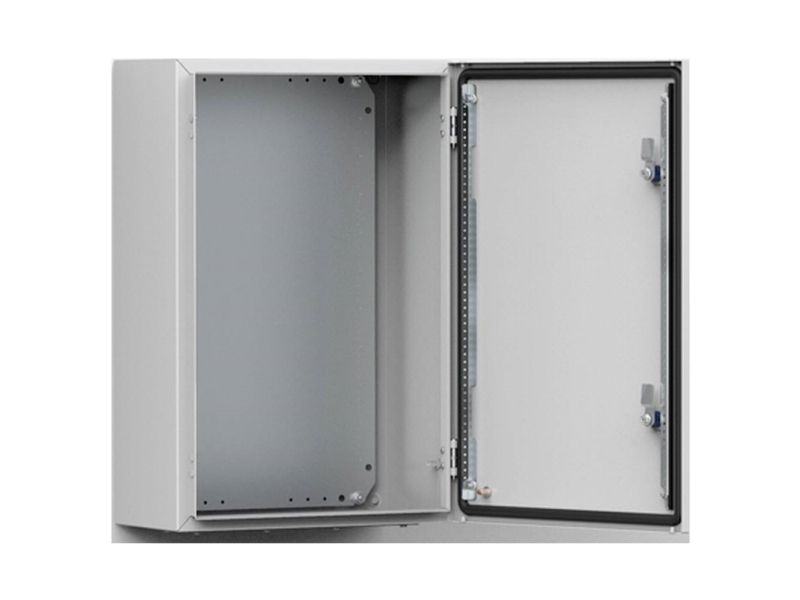

Hoffman MAS0302515R5, 250 mm, 155 mm, 300 mm, 4.54 kg, 1 pc(s)
Item no.: [21895847] | Manufacturer: nvent hoffman | Model no.: ELD-2990521 | EAN: 8713574129030 | EL-nr.: 7812251338
Remote stock (1-2 days)
The item is in a remote warehouse, delivery time is 1-2 business days. More info
Delivery options - Select at checkout
Shipping @price - GLS
12,00
EUR
57,03
Incl. VAT 71,29
Total incl. delivery
86,29
The function requires that you are logged in. Create a user and use our smart list system to keep track of future purchases, regular purchases or wish lists.
Create user
Login
Create user
Login
Send på mail
For outdoor installation, the use of a rain hood ARF and 100% polyester paint coating is recommended
Body: Folded and seam welded. Four 8.5 mm diameter holes for wall fixing, pressed out in 20.4 mm diameter × 2 mm depressions, to allow air circulation around the rear part of the enclosure
Door: Surface mounted with 130-degree opening; concealed removable hinges with captive pin
Door: Hinges can be mounted to allow left or right hand opening
Door: inner M6 welded studs to mount door profiles MMDP
Door: Sealing is ensured by an injected one piece polyurethane gasket
Lock: Customized lock with double-bit for easy opening of the door
Gland plate: Situated at the far rear of the enclosure, to make cabling onto the mounting plate easier
Mounting plate: The mounting plate is marked vertically at 10 mm intervals, for easy horizontal positioning of equipment
Mounting plate: On the top and bottom there are holes to facilitate cable fixing
Mounting plate: All sides, from 800 mm and above, are strengthened by folded edges
Delivery: Enclosure with door and mounting plate; for height 600 mm and above, two door mounting profiles; gland plate(s) with gasket(s), plastic double-bit 3 mm key, mounting accessories, metallic key, for height 1000 mm and above
Body: Folded and seam welded. Four 8.5 mm diameter holes for wall fixing, pressed out in 20.4 mm diameter × 2 mm depressions, to allow air circulation around the rear part of the enclosure
Door: Surface mounted with 130-degree opening; concealed removable hinges with captive pin
Door: Hinges can be mounted to allow left or right hand opening
Door: inner M6 welded studs to mount door profiles MMDP
Door: Sealing is ensured by an injected one piece polyurethane gasket
Lock: Customized lock with double-bit for easy opening of the door
Gland plate: Situated at the far rear of the enclosure, to make cabling onto the mounting plate easier
Mounting plate: The mounting plate is marked vertically at 10 mm intervals, for easy horizontal positioning of equipment
Mounting plate: On the top and bottom there are holes to facilitate cable fixing
Mounting plate: All sides, from 800 mm and above, are strengthened by folded edges
Delivery: Enclosure with door and mounting plate; for height 600 mm and above, two door mounting profiles; gland plate(s) with gasket(s), plastic double-bit 3 mm key, mounting accessories, metallic key, for height 1000 mm and above
