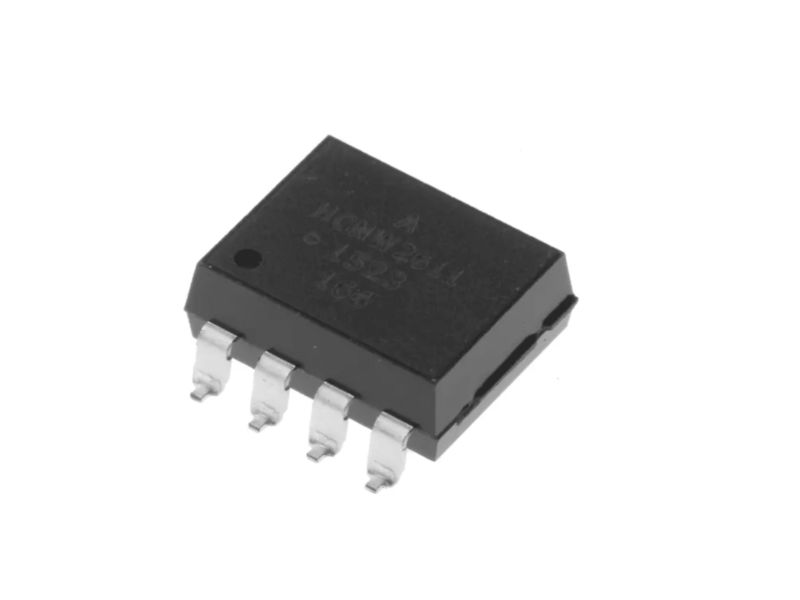

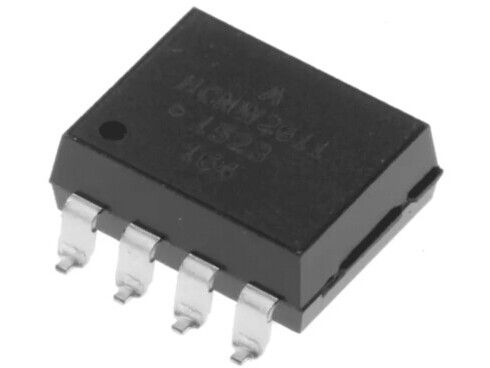

Broadcom Transistor Output Optocoupler, Surface Mount, 8-Pin DIP
Item no.: [24003514] | Manufacturer: Broadcom | Model no.: HCNW2611-500E | EAN: 2050011798807
Remote stock (5-7 days)
The item is in a remote warehouse, delivery time is 5-7 business days. More info
Delivery options - Select at checkout
Shipping @price - GLS
12,00
EUR
4,32
Incl. VAT 5,40
Total incl. delivery
20,40
The function requires that you are logged in. Create a user and use our smart list system to keep track of future purchases, regular purchases or wish lists.
Create user
Login
Create user
Login
Send på mail
The Broadcom HCNW2611 optocoupler is an optically coupled digital gate that combines a GaAsP light emitting diode and an integrated high gain photo detector. An enable input allows the detector to be strobed. The output of the detector IC is an open collector Schottky-clamped transistor. The internal shield provides a guaranteed common mode transient immunity specification of 10,000 V/ms.
10 kV/ms Minimum Common Mode Rejection (CMR) at VCM = 1000 V
High Speed: 10 MBd Typical
LSTTL/TTL Compatible
Low Input Current Capability: 5mA
Guaranteed ac and dc Performance over Temperature: -40 degrees C to 85 degrees C
Available in 8-Pin DIP, Wide body Packages
10 kV/ms Minimum Common Mode Rejection (CMR) at VCM = 1000 V
High Speed: 10 MBd Typical
LSTTL/TTL Compatible
Low Input Current Capability: 5mA
Guaranteed ac and dc Performance over Temperature: -40 degrees C to 85 degrees C
Available in 8-Pin DIP, Wide body Packages
