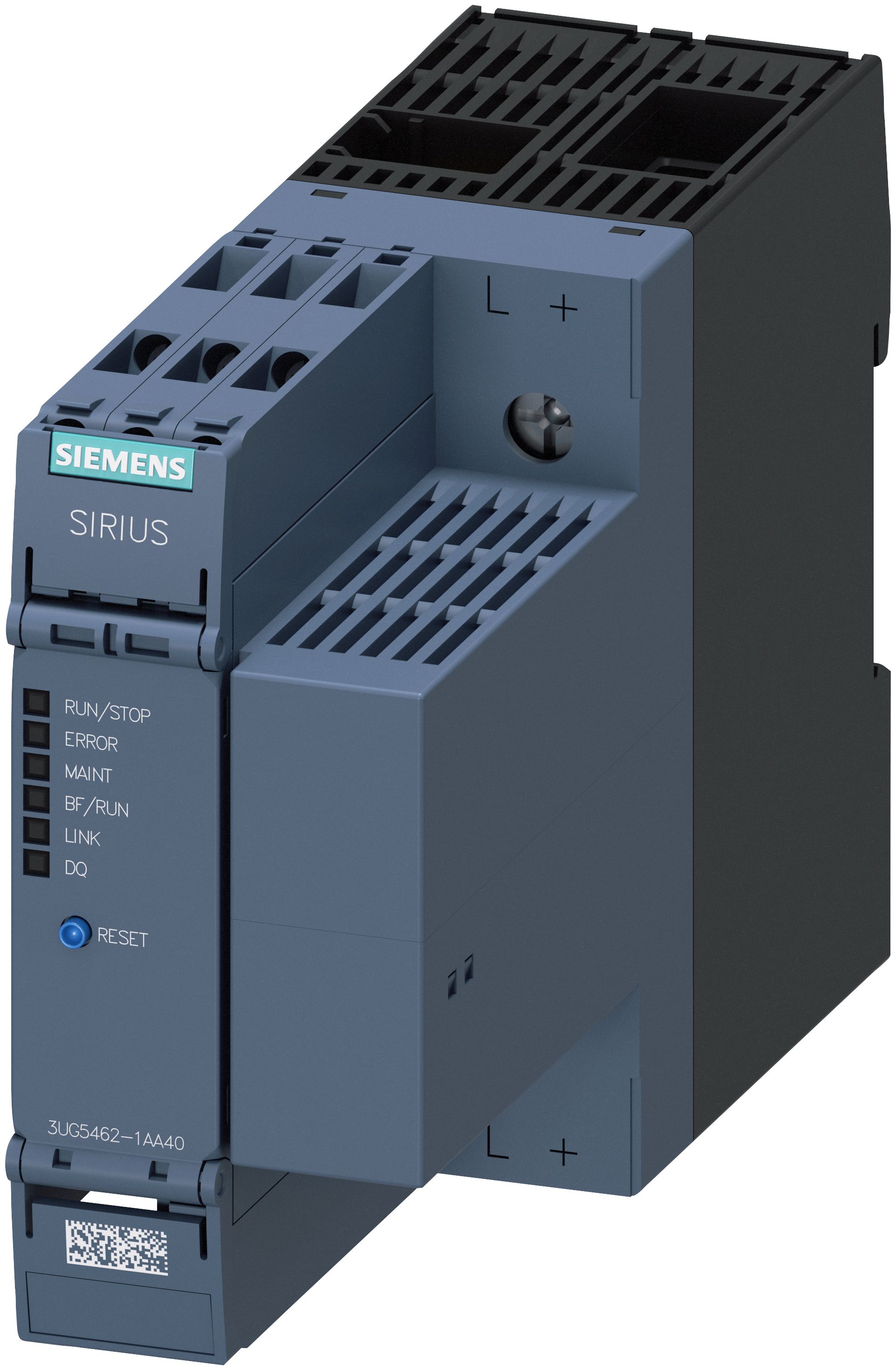

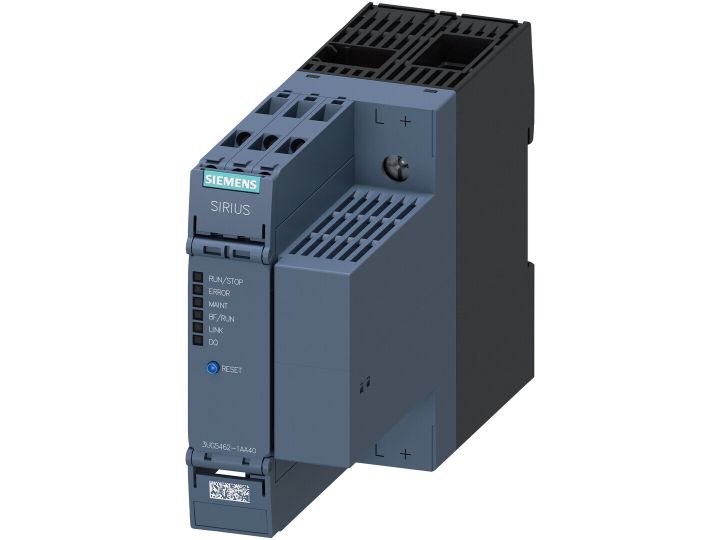

Siemens DC LOAD MONITORING RELAY 0...63A, 100 mm, 110 mm, 175 mm, 70 mm, 385 g

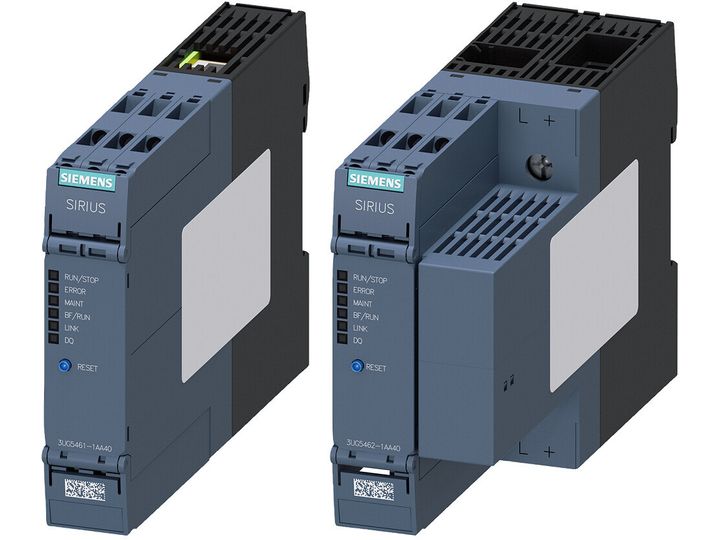

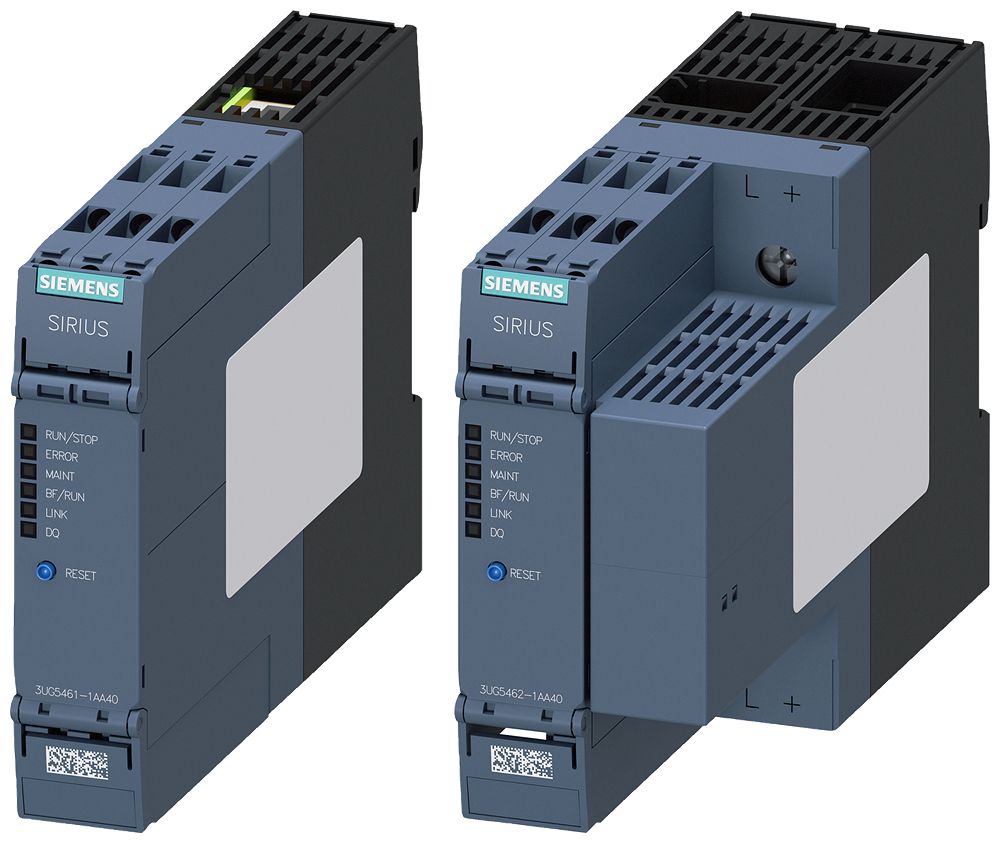

DC load monitoring relay for PROFINET, max. 1x63 A DC, max. 800 V Width: 45.0 mm Monitoring for violation of upper and lower limit of current, voltage and power; Energy consumption counter, energy recovery counter, switching cycle counter, operating hours counter, warning and alarm thresholds, automatic or manual reset, ON delay 0-999.0 sec, OFF delay 0-999.0 sec, automatic reclosing delay 0-999.0 sec Supply voltage: 24 V DC 1 changeover contact, screw terminal DC load monitoring relay SIRIUS 3UG5 For monitoring of direct current, voltage and power, e.g. for battery charging, deep discharge protection or DC point heaters. The relay can be variably set to overshoot, undershoot or window monitoring. Delay times and reset behavior can be freely parameterized. Can be used up to 800 V and utilization of the energy flow direction. Communication of all measured data via PROFINET. Less space required in the control cabinet thanks to narrow width. All versions with removable connection terminals. The DC load monitoring relays are available in two sizes for different current and voltage ranges. Unit labeling plates and push-in lugs are available as accessories. SIRIUS relays - one range for every application.
