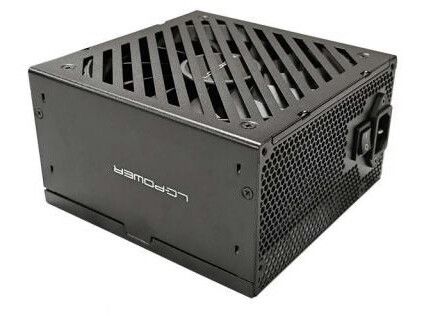

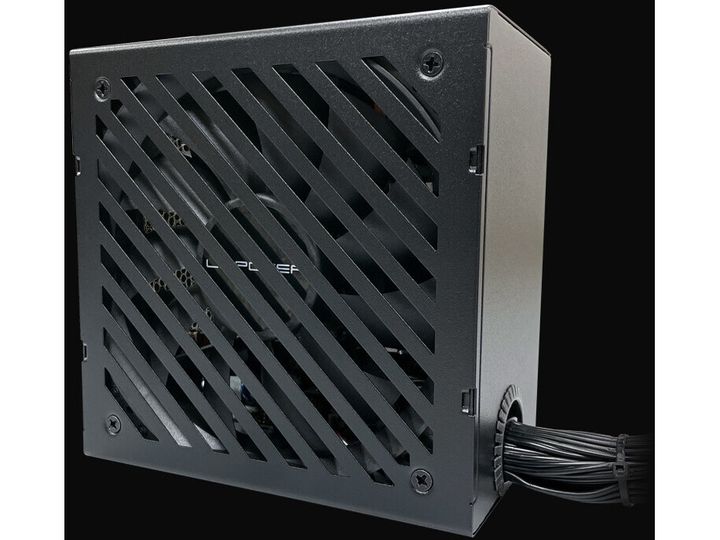

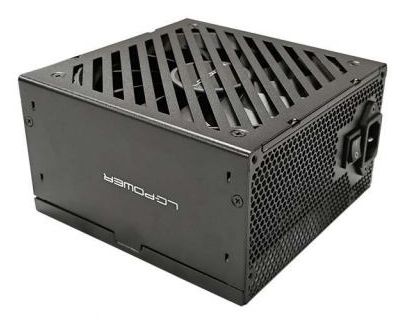

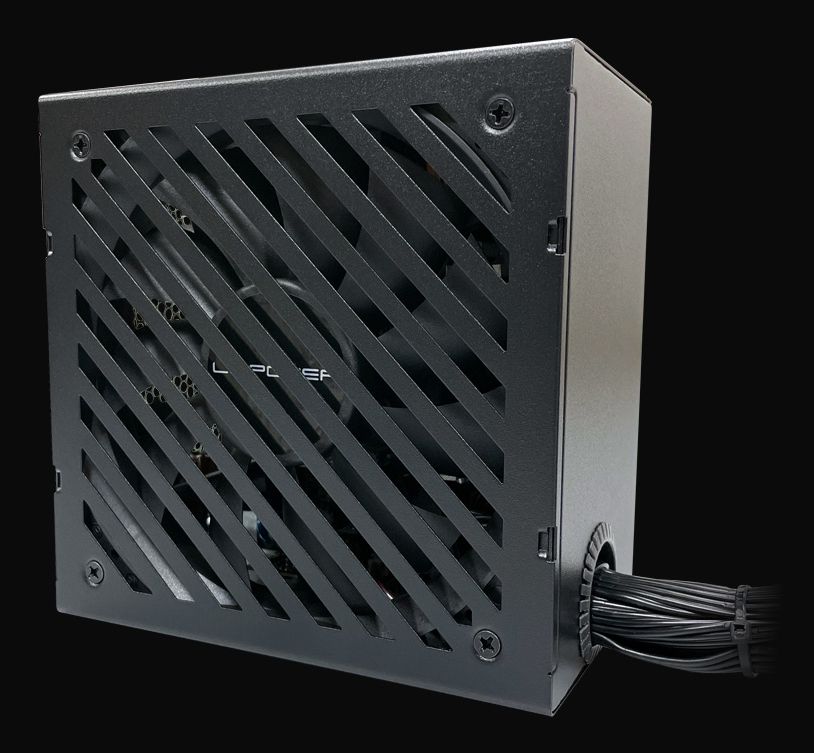

The LC Power Integrator Pro Series LC6550B-SI V3.1 is a reliable power supply designed to meet the needs of various computing systems. With a maximum output power of 550 watts, it ensures stable performance while operating within a voltage range of AC 100-240 V and a frequency of 50 - 60 Hz. This power supply features an 80 PLUS Bronze certification, promoting energy efficiency with an efficiency rating of 85%. Equipped with a 135 mm cooling fan, it maintains optimal temperatures during operation. Safety and performance are prioritized with numerous protective features including overheat, overcurrent, overvoltage, overpower, and short-circuit protection. The inclusion of active Power Factor Correction (PFC) enhances its performance while reducing power wastage. Compliant with ATX12V 3.1 standards, the LC6550B-SI V3.1 provides surge protection and adheres to ErP 2013 standards, ensuring sustainable energy use across all connected devices.
Produktbeskrivelse
LC Power Integrator Pro Series LC6550B-SI V3.1 - strømforsyning - 550 Watt
Enhedstype
Strømforsyning - aktiv Power Factor Correction (PFC) - intern
Specifikationsoverensstemmelse
ATX12V 3.1
80 PLUS certificering
80 PLUS Bronze
Vægt
1.74 kg
Indgangspænding
AC 100-240 V
Udgangspænding
+3.3, +5, ±12 V
Strømkapacitet
550 Watt
Output Current
+3.3V - 20 A +5V - 20 A +12V - 45.8 A -12V - 0.4 A +5VSB - 2.5 A
Output-stikforbindelser
2 x 8 pin PCI Express-strøm med aftagelig 2 pin sektion 1 x strøm 24 pin ATX med aftagelig 4 pin sektion 1 x strøm 8 pin EPS12 V med aftagelig 4 pin ATX12V sektion 4 x 15 pin Serial ATA strøm 1 x 16 pin PCI Express strøm med aftagelig 4 pin
Kølesystem
135 mm ventilator
Farve
Sort
Dimensioner (B x D x H)
15 cm x 15 cm x 8.6 cm
Generelt
Enhedstype
Strømforsyning - aktiv Power Factor Correction (PFC) - intern
Specifikationsoverensstemmelse
ATX12V 3.1
PSU formfaktor
ATX
Farve
Sort
Strømenhed
Indgangspænding
AC 100-240 V
Nødvendig frekvens
50 - 60 Hz
Detaljer om strømudgangskonnektorer
2 x 8 pin PCI Express-strøm med aftagelig 2 pin sektion 1 x strøm 24 pin ATX med aftagelig 4 pin sektion 1 x strøm 8 pin EPS12 V med aftagelig 4 pin ATX12V sektion 4 x 15 pin Serial ATA strøm 1 x 16 pin PCI Express strøm med aftagelig 4 pin
Udgangspænding
+3.3, +5, ±12 V
Strømkapacitet
550 Watt
Output Current
+3.3V - 20 A +5V - 20 A +12V - 45.8 A -12V - 0.4 A +5VSB - 2.5 A
Effektivitet
85%
80 PLUS certificering
80 PLUS Bronze
Diverse
Kølesystem
135 mm ventilator
Egenskaber
Overspændingssikring, beskyttelse mod overstrøm, overspændingsbeskyttelse, overbelastningsbeskyttelse, kortslutnings beskyttelse, beskyttelse mod overophedning
Overensstemmelsesstandarder
TUV, ErP 2013
Mål og vægt
Bredde
15 cm
Dybde
15 cm
Højde
8.6 cm
Vægt
1.74 kg
Mål & vægt (forsendelse)
Bredde ved forsendelse
24.5 cm
Dybde ved forsendelse
20 cm
Højde ved forsendelse
11.3 cm
Vægt ved forsendelse
1.98 kg
