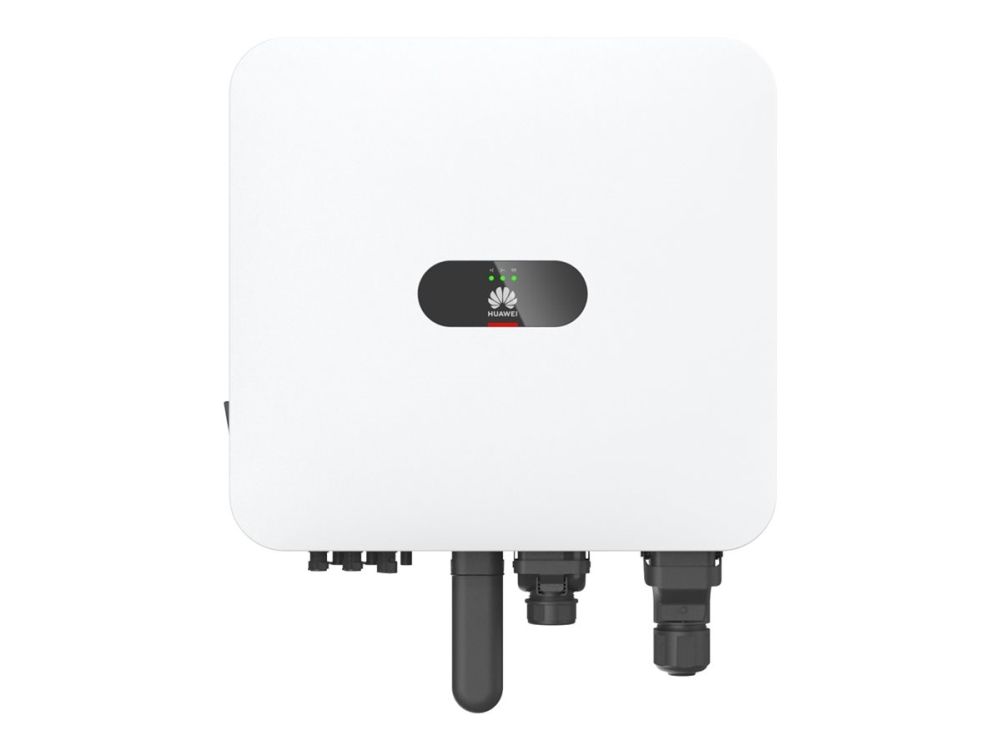

Huawei FusionSolar Inverter // 3-phase, 2-MPPT, built-in communication (RS485, WLAN), DC switch, 10kW/11kVA, SPD AC and DC type II, battery charging interface, asymmetric AC output, 3-phase backup with Smart Guard (optional)

Item no.: [24215537] | Manufacturer: Huawei | Model no.: 9432 | EAN: 5904905321343

Remote stock (5-7 days)

The item is in a remote warehouse, delivery time is 5-7 business days. More info

159,20

EUR 1.696,42

Incl. VAT 2.120,53

Total incl. delivery 2.319,53

Read further specifications and description

Huawei FusionSolar inverter, 3-phase, 2-MPPT, built-in communication (RS485, WLAN), DC disconnect, 10kW/11kVA, AC and DC SPD type II, battery charging interface, asymmetric AC output, 3-phase backup with Smart Guard (option)

Produktbeskrivelse	Huawei FusionSolar Smart Energy Controller SUN2000-10K-MAP0 - DC til AC inverter - 10000 Watt
Enhedstype	DC til AC inverter - ekstern
EU Data Act	Https://consumer.huawei.com/en/support/data-act/
Vægt	21 kg
Indgangskabler	Tre faser
Indgangspænding	DC 600 V
Udgangspænding	AC 220/230/240/380/400/415 V
Strømkapacitet	10000 Watt
Netværk	RS-485, Wi-Fi
Dimensioner (B x D x H)	49 cm x 13 cm x 46 cm

Generelt
Enhedstype	DC til AC inverter - ekstern
EU Data Act	Https://consumer.huawei.com/en/support/data-act/
Strømenhed
Indgangspænding	DC 600 V
Indgangspændingsområde	DC 160 - 1000 V
Med frekvens	50/60 Hz
Indgangskabler	Tre faser
Udgangspænding	AC 220/230/240/380/400/415 V 50/60 Hz
Max. elektrisk strøm	16.7 A
Strømkapacitet	10000 Watt
Effektivitet	98.6%
Total harmonisk forvrængning (THD)	3 %
Netværk
Grænseflade til fjernstyring	RS-485, Wi-Fi
Ekspansion / Konnektivitet
Interface	RS-485
Diverse
Egenskaber	1100 V maks. inputspænding, 160 V min. opstartsspænding, MPP-sporing, tre-faset asymmetrisk belastning, input-side afbrydelsesenhed, anti-islanding-beskyttelse, omvendt polaritetsbeskyttelse, isolationsdetektino, reststrømsovervågning, beskyttelse mod overstrøm, kortslutnings beskyttelse, overspændingsbeskyttelse, AFCI (Arc Fault Circuit Interrupter), connector temperatur detektion, krusemodtagerkontrol, batteri omvendt opladning, konvektionskøling, LED-indikatorer
Overensstemmelsesstandarder	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, EN 61643-11, IEC 61643-11, IP66, EN/IEC 62109-1, EN/IEC 62109-2, IEC 61727, IEC 62116, MEA, PEA, G99, IRR-DCC-MV, IRR-TIC, NRS 097-2-1, EN 50549-1, VDE 4105, UTE 15-712-1, VFR 2019, UNE 217002, NTS 631, RD 244, PPDS, ROGA, TOR Erzeuger, CEI 0-21:2020-12 V1, CEI-016, C10/C11
Miljømæssige parametre
Min. driftstemperatur	-25 °C
Maks. driftstemperatur	60 °C
Fugtighedsgrad ved brug	0 - 100% RH
Lydudbredelse	29 dB
Mål og vægt
Bredde	49 cm
Dybde	13 cm
Højde	46 cm
Vægt	21 kg
