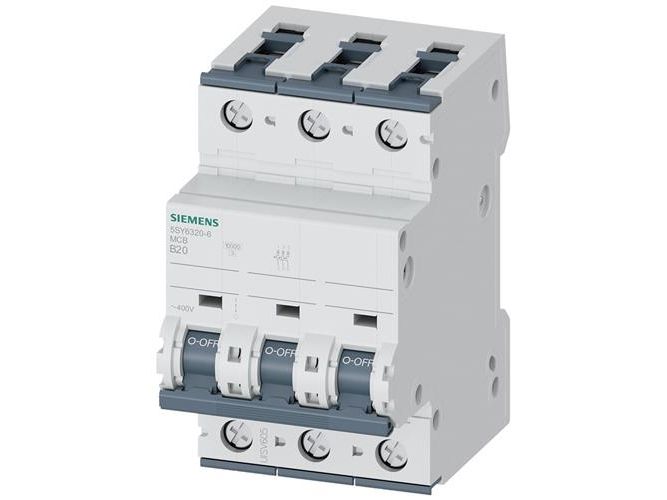

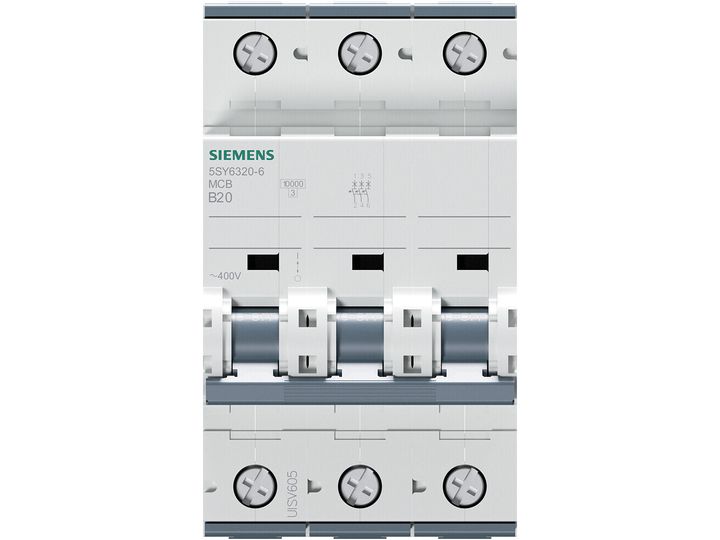

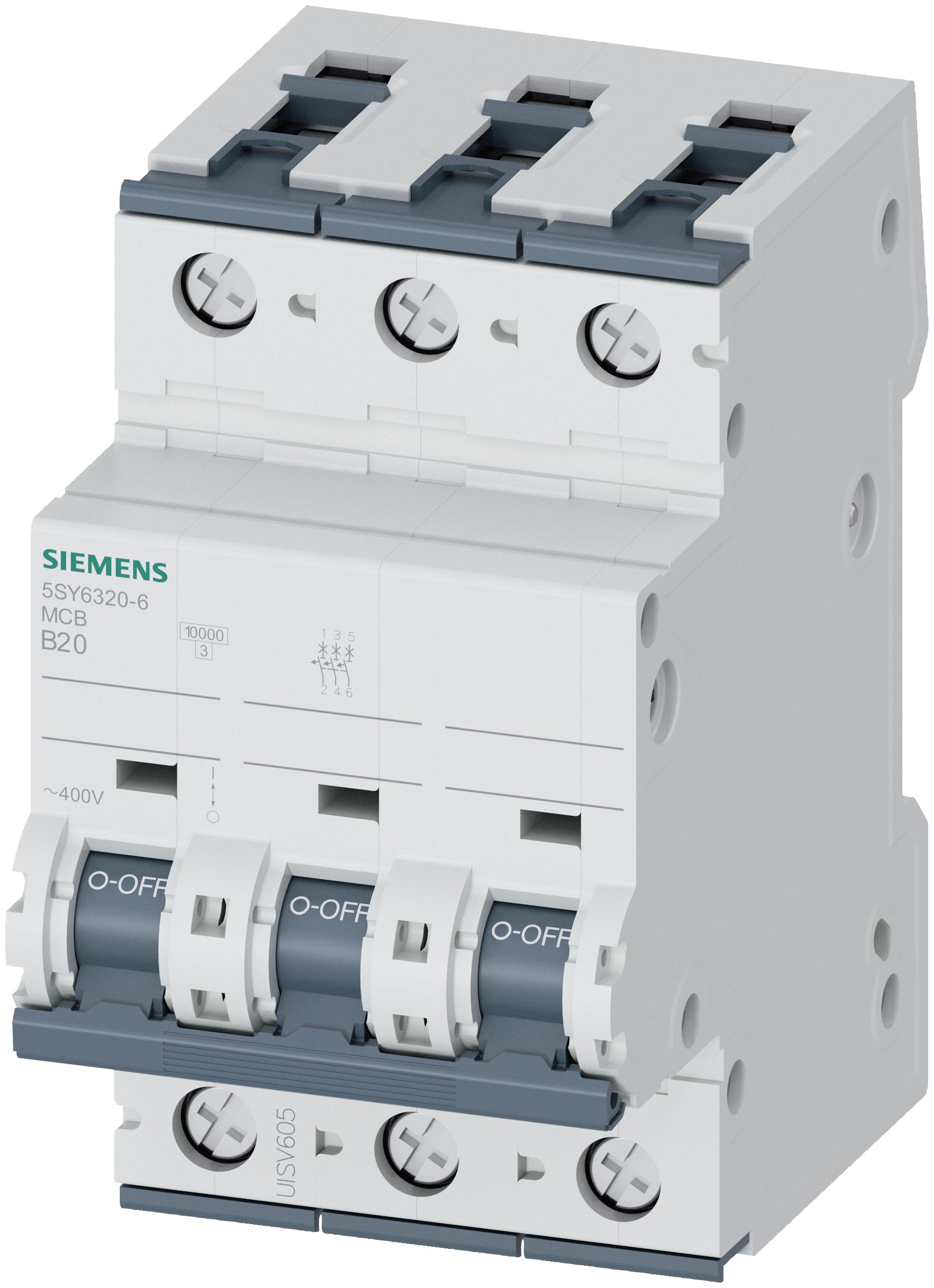

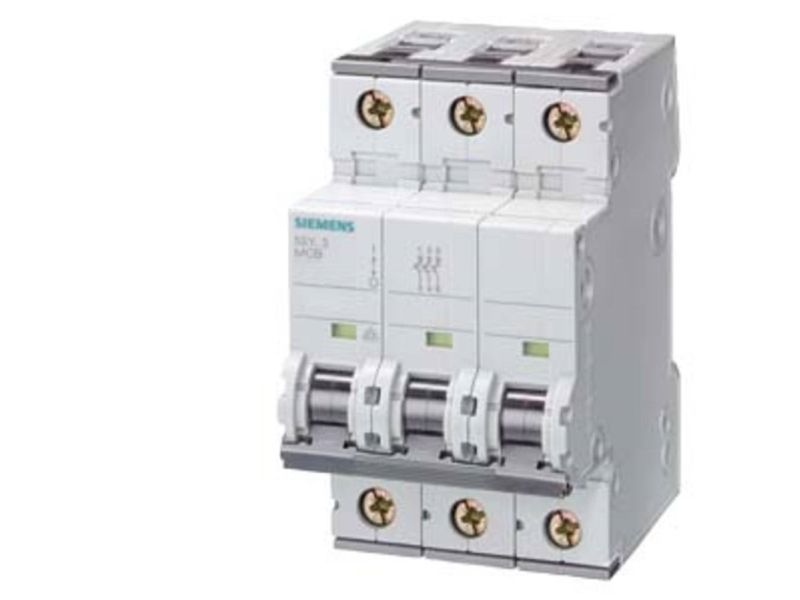

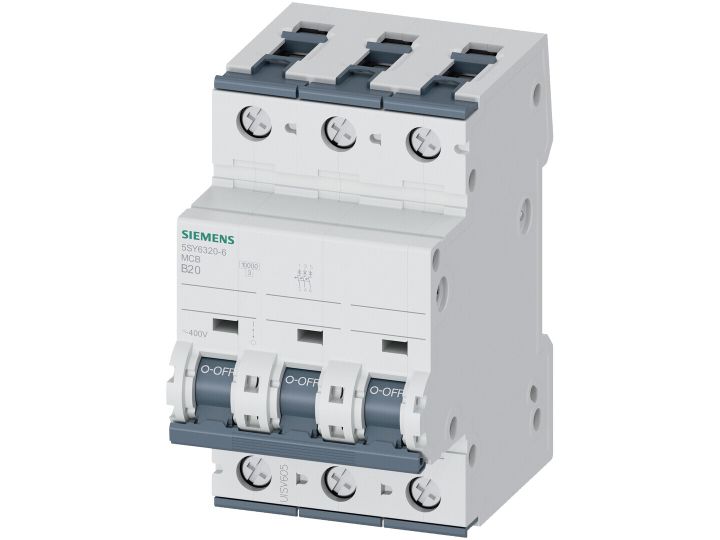

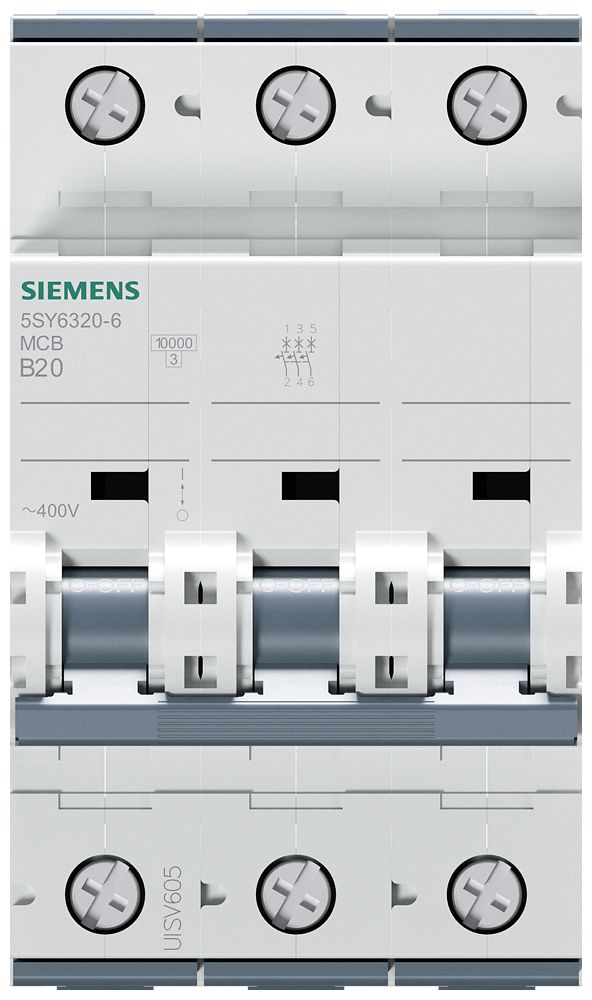

Leitungsschutzschalter 400V 6kA, 3-polig, B, 20A, T=70mm Leitungsschutzschalter SENTRON 5SY6 für den sicheren Kurzschluss- und Überlastschutz für Wohngebäude, Zweckbau und besondere Industrieanwendungen. Werkzeuglose Montage und Demontage des Geräts mit Hilfe eines Zweifachschiebers. Beliebige Kombination von Leitern und Sammelschiene durch Doppelkammerklemme. Einfache Verdrahtung der Einspeisung durch die hinten liegende Sammelschiene. Die Leitungsschutzschalter 5SY sind erhältlich in 1-, 2-, 3-, 4- sowie in 1+N- und 3+N-poliger Ausführung. Das komplette Zubehör ist einheitlich für alle Leitungsschutzschalter 5SY verwendbar. Einfach sicher mit den Schutzgeräten von SENTRON.
Rated current
20 A
Input frequency
50 Hz
Rated voltage
400 V
Total power loss
6.6 W
Circuit breaker type
Miniature circuit breaker
Type
Type B
Breaking capacity
6000 A
Number of poles
3
International Protection (IP) code
IP20
Pollution degree
3
Product colour
Grey
Operating temperature (T-T)
40 - 75 °C
Width
54 mm
Depth
76 mm
Height
90 mm
Weight
464 g
Package width
58 mm
Package depth
94 mm
Package height
84 mm
Package weight
459 g
Doesn't contain
Halogen, Silicone
Compliance certificates
CE, RoHS
Number of modular spacings
3
Voltage type
AC
Mounting depth
7 cm
Ambient temperature range
25 - 55 °C
Release characteristic
B
Connectable solid conductor cross-section
0.75 - 35 mm²
Connectable stranded conductor cross-section
0.75 - 35 mm²
Switching neutral conductor
No
Overvoltage category
CAT III
Rated insulation voltage (Ui)
440 V
Rated short-circuit breaking capacity (Icn, EN 60898, 230V)
6 kA
Rated short-circuit breaking capacity (Icn, EN 60898, 400V)
