ASRock Mainboard EC266D4ID-2T/X550 mini-ITX Sockel 1700 DDR5-only Single

Item no.: [24224530] | Manufacturer: ASRock | Model no.: EC266D4ID-2T/X550 | EAN: 4711430521916

Remote stock (5-7 days)

The item is in a remote warehouse, delivery time is 5-7 business days. More info

Shipping @price - GLS

12,00

EUR 498,79

Incl. VAT 623,49

Total incl. delivery 638,49

Read further specifications and description

ASRock EC266D4ID-2T/X550 motherboard Intel C266 LGA 1700 mini ITX (EC266D4ID-2T/X550)

Produktbeskrivelse	ASRock Rack EC266D4ID-2T/X550 - bundkort - dyb mini-ITX - LGA1700 sokkel - C266
Produkttype	Bundkort - dyb mini-ITX
Chipsættype	Intel C266
Processor-socket	1 x LGA1700 sokkel
Kompatible processorer	Xeon, Pentium Gold
Max RAM-størrelse	128 GB
RAM understøttet	4 DIMM åbninger - DDR5, ECC, ikke bufferet
Lagringsporte	8 x SATA-600 (RAID), 2 x OCuLink, 2 x M.2
USB / FireWire porte	2 x USB 3.2 Gen 1 + (2 x USB 3.2 Gen 1 via samlekasser)
Grafik	ASPEED AST2600
LAN	2 x 10 Gigabit Ethernet

Generelt
Produkttype	Bundkort - dyb mini-ITX
Chipsættype	Intel C266
Processor-socket	LGA1700 sokkel
Max antal processorer	1
Kompatible processorer	Xeon, Pentium Gold
Understøttet RAM
Maks. størrelse	128 GB
Teknologi	DDR5
Bus Clock	3600 MHz, 4000 MHz, 4400 MHz
Understøttet RAM-integritetskon	ECC
Registreret eller buffer	Ikke bufferet
Egenskaber	Dobbelt kanal hukommelses arkitektur
Grafik
Grafik controller	ASPEED AST2600
LAN
Netværk controller	Intel X550
Netværks interfaces	2 x 10 Gigabit Ethernet
Ekspansion / Konnektivitet
Ekspansionsåbninger	1 x CPU 4 x DIMM 288-pins 2 x M.2 socket (2280 M.2 Key M-åbning) 1 x PCIe 5.0 x16
Grænseflade (lagring)	SATA-600 -stikforbindelser: 8 x 7-pin Seriel ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 SATA-600 / PCIe 4.0 -stikforbindelser: 1 x OCuLink SATA-600 / PCIe 3.0 -stikforbindelser: 1 x OCuLink PCIe 4.0 -stikforbindelser: 2 x M.2 PCIe 4.0 -stikforbindelser: 1 x OCuLink

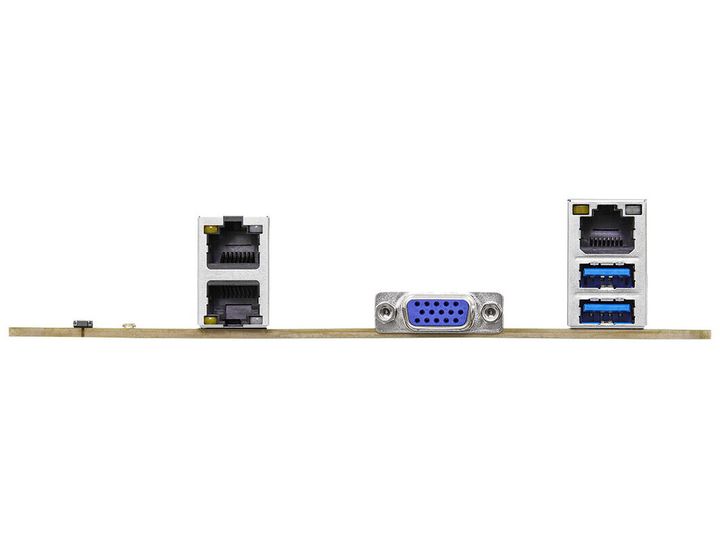

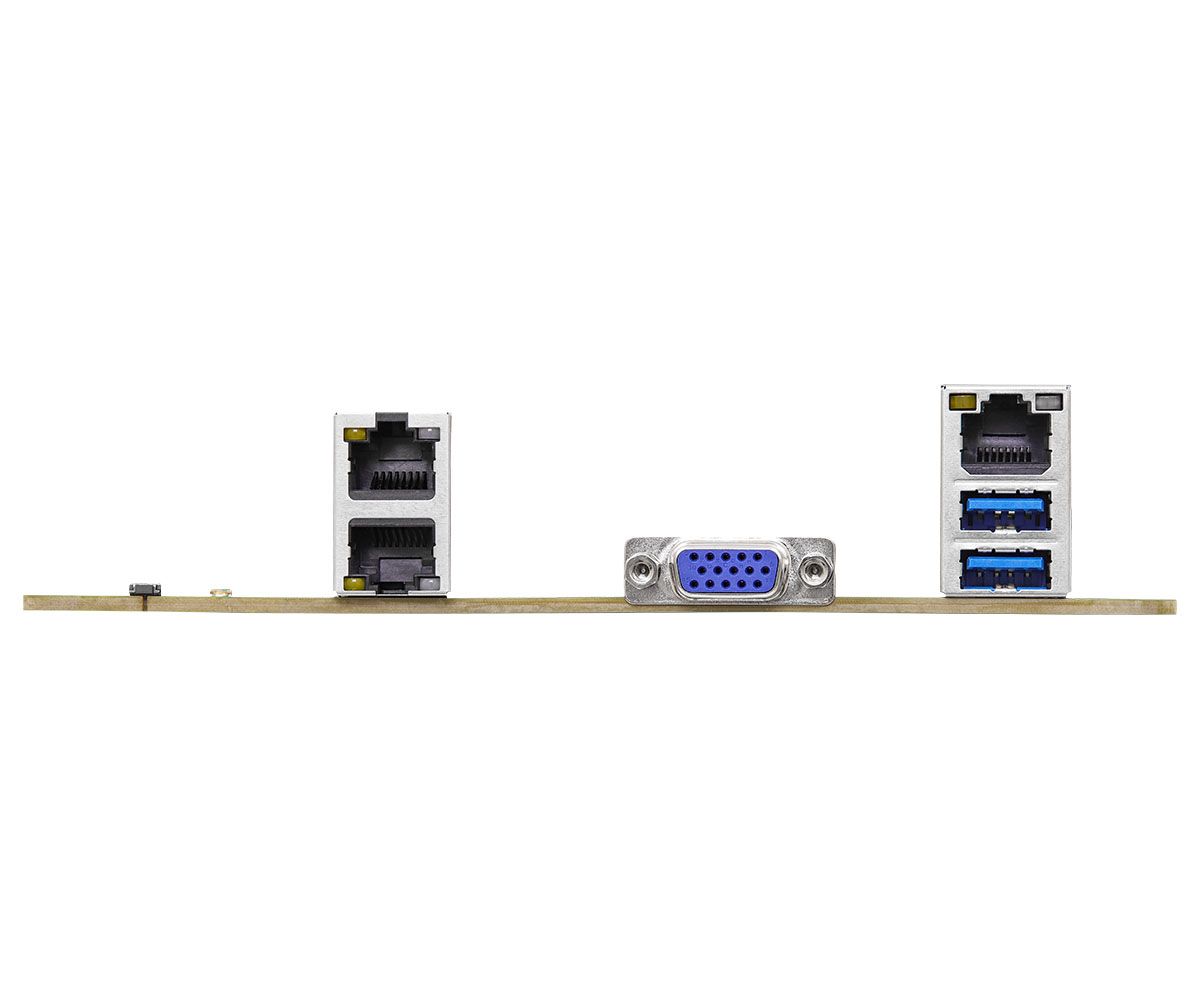

Interface	1 x VGA 2 x USB 3.2 Gen 1 2 x LAN (10Gigabit Ethernet) 1 x IPMI
Interne interfaces	1 x seriel - intern stik 1 x SPI - intern stik 1 x SGPIO - intern stik 2 x USB 3.2 Gen 1 - intern stik
Strømkontakter	24-pin hovedstrøm-konnektor, 4-pin ATX12V konnektor, 2 x 8-pins ATX12V stikforbindelser
Egenskaber
BIOS-type (Basic Input/Output System)	AMI
BIOS-egenskaber	ACPI 6,4 support, SMBIOS 2,8 support
Hardwareovervågning	CPU kernetemperatur, takometer til CPU-blæser, blæserkontrol, systemspænding, detektion af åben etui
Hardware egenskaber	ASRock Rack Instant Flash
Diverse
Overensstemmelsesstandarder	Plug and Play
Bredde	17.018 cm
Dybde	20.828 cm

The item is known under the following item numbers in our system

EAN:	4711430521916
SKU:	EC266D4ID-2T/X550

Why do I find that the same product is available on different item numbers?

Manufacturers often release the same product with different item numbers, typically just different versions of the packaging. For example, the packaging may be targeted at different countries. We try our best to unify the products, but it can happen that the same product appears on different item numbers in our system.
