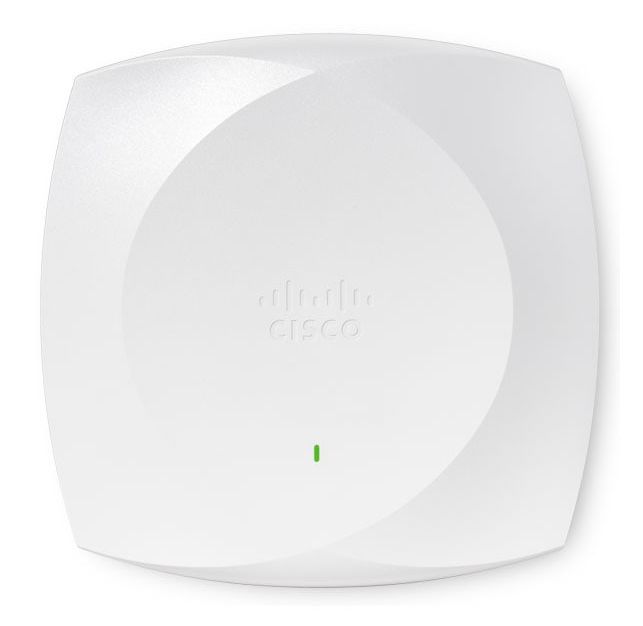

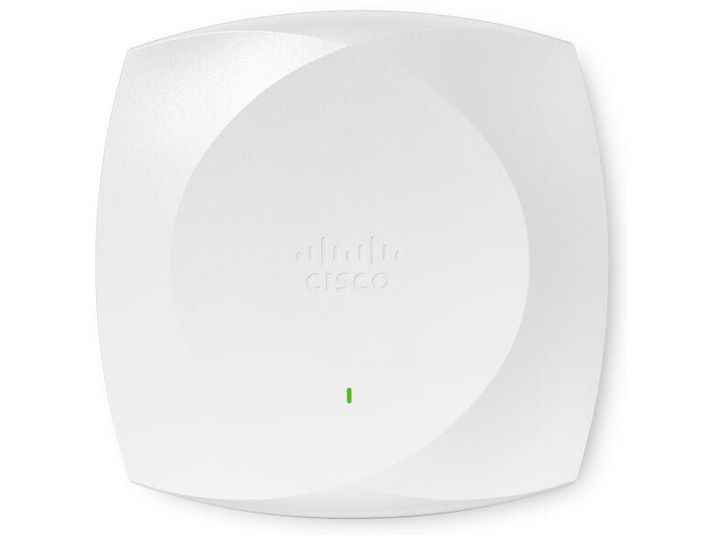

The Cisco Wireless 9172 Series Wi-Fi 7 access points are high-performance wireless solutions designed for environments like boutique hotels, healthcare clinics, retail stores, student housing, and distributed business locations such as regional branches and logistics hubs. With tri-radio functionality across 2.4-GHz, 5-GHz, and 6-GHz bands, the 9172 Series provides reliable, high-speed connectivity (frame rate up to 9000 Mbps) for spaces with low to moderate device density. Flexible deployment options—cloud, on-premises, or hybrid—allow seamless integration into existing networks.
These access points are designed to enhance wireless performance and enable smarter spaces. The 9172H model is tailored for hospitality and multi-dwelling environments, offering additional LAN ports for wired devices and Bluetooth Low Energy (BLE) IoT capabilities for smart room automation. The 9172I model supports flexible configurations, including a high-density 4x4 radio option for 5 GHz when the 6-GHz band is disabled, making it ideal for retail, healthcare, and branch office use. Both models feature plug-and-play setup with mount compatibility for quick and efficient deployment.
For customers, the 9172 Series delivers reliable Wi-Fi 7 performance, enabling advanced applications like IoT integration, telehealth, and seamless customer experiences. The primary business benefit is future-ready connectivity with energy efficiency, reducing power consumption while supporting evolving network demands. This makes the 9172 Series a cornerstone for modernizing and optimizing network infrastructure.
Produktbeskrivelse
Cisco Wireless 9172H - trådløs forbindelse - Wi-Fi 7, Bluetooth
Enhedstype
Trådløs forbindelse
Formfaktor
Væg/loftsmonterbar - indendørs
Lokalisering
Global
RAM
4096 MB
Flashhukommelse
16 GB
Dataforbindelsesprotokol
IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11be (Wi-Fi 7), Ethernet, Fast Ethernet, Gigabit Ethernet, 2.5 Gigabit Ethernet, Bluetooth LE
Frekvensbånd
2.4 GHz, 5 GHz, 6 GHz
Kapacitet
Rumlige strømme: 6
OS nødvendig
Cisco IOS XE 17.17.1 eller senere
Power Over Ethernet (PoE) understøttet
UPOE
Pristype
Konfigureret
Dimensioner (B x D x H)
13 cm x 18 cm x 2.6 cm
Vægt
572 g
Producentgaranti
Begrænset livtidsgaranti
Generelt
Enhedstype
Trådløs forbindelse
Robust design til udendørsbrug
Indendørs
Bredde
13 cm
Dybde
18 cm
Højde
2.6 cm
Vægt
572 g
Lokalisering
Global
Processor / Hukommelse / Lagring
RAM
4096 MB
Flashhukommelse
16 GB
Netværk
Model
Væg/loftsmonterbar
Forbindelsesteknologi
Trådløs
Dataoverførselshastighed
9 Gbps
Liniekodningsformat
4096 QAM, OFDMA
Dataforbindelsesprotokol
IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11be (Wi-Fi 7), Ethernet, Fast Ethernet, Gigabit Ethernet, 2.5 Gigabit Ethernet, Bluetooth LE
Spread-spectrum metode
OFDMA
Frekvensbånd
2.4 GHz, 5 GHz, 6 GHz
Kapacitet
Rumlige strømme: 6
Statusindikatorer
Status
Egenskaber
Multi-Link Operation (MLO), preamble puncturing, Target Wake Time (TWT), BSS Coloring, Maximum Ratio Combining (MRC), pakkesammenlægning A-MPDU, pakkesammenlægning A-MSDU, Dynamic Frequency Selection (DFS), cyklisk skiftdiversitet (CSD), stråleformeteknologi, 802.1x autentificering, uplink/downlink MU-MIMO, billedunderskrivning, sikkerhedsstøvle, Cisco Trust Anchor-modul, Maximal Ratio Combining
1 x 10M/100M/1G/2.5 Gigabit Ethernet - RJ-45 1 x administration - RJ-45 3 x 10/100/1000Base-T 1 x gennemløb
Diverse
Overensstemmelsesstandarder
IEC 60950-1, IEC 62368-1 Third Edition, EN 60950-1, EN 62368-1 Third Edition, UL 60950-1, UL 62368-1 Third Edition, CAN/CSA-C22.2 No. 60950-1, CAN/CSA-C22.2 No. 62368-1 Third Edition, AS/NZS 60950-1, AS/NZS 62368-1 Third Edition, UL 2043, Class 3, CISPR 32:2015+AMD1:2019, EN 55032:2015/A11:2020, EN IEC 61000-3-2:2019/A1:2021, EN 61000-3-3:2013+A1:2019, AS/NZS CISPR32:2015+AMD1:2020, FCC 47 CFR part 15 B class B, ICES-003 issue 7 Class B, VCCI-CISPR 32:2016, CNS 13438 (2006), KS C 9832:2019, QCVN 118:2018/BTTTT, EN 55035:2017+A11:2020, KS C 9835:2019, EN 301 489-1 V2.2.3 (2019-11), EN 301 489-17 V3.2.4 (2020-09), QCVN 18:2014, QCVN 112:2017/BTTTT, KS X 3124:2020, KS X 3126:2020, EN 61000-6-1:2019, EN 60601-1-2:2015 + A1:2021, EN 300 328, EN 301 893, EN 303 687, AS/NZS 4268, FCC CFR 47 Part 15C, RSP-100, RSS-GEN, RSS-247, LP0002, Japan Std. 66, Japan Std. 71, EN 50385:2017, AS/NZS 2772:2016, 47 CFR Part 2.1091, RSS-102, WEEE
Begrænset garanti - ombytning - livstid - responstid: 5 dage
Miljømæssige parametre
Min. driftstemperatur
0 °C
Maks. driftstemperatur
40 °C
Fugtighedsgrad ved brug
0 - 95% (ikke-kondenserende)
