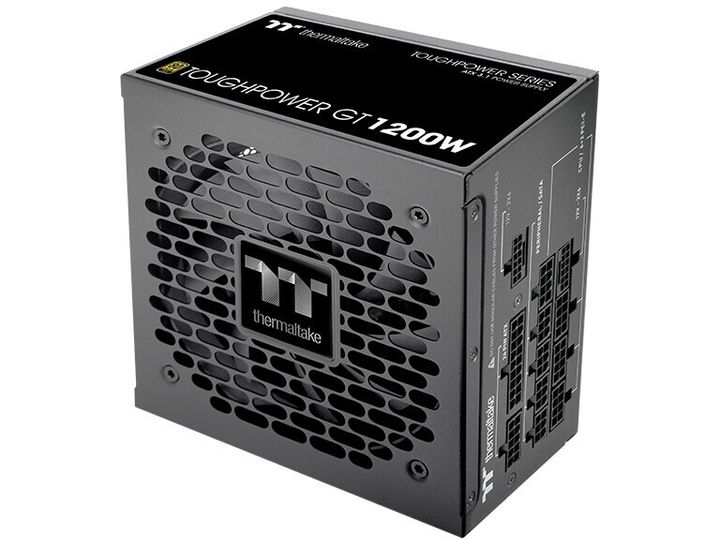

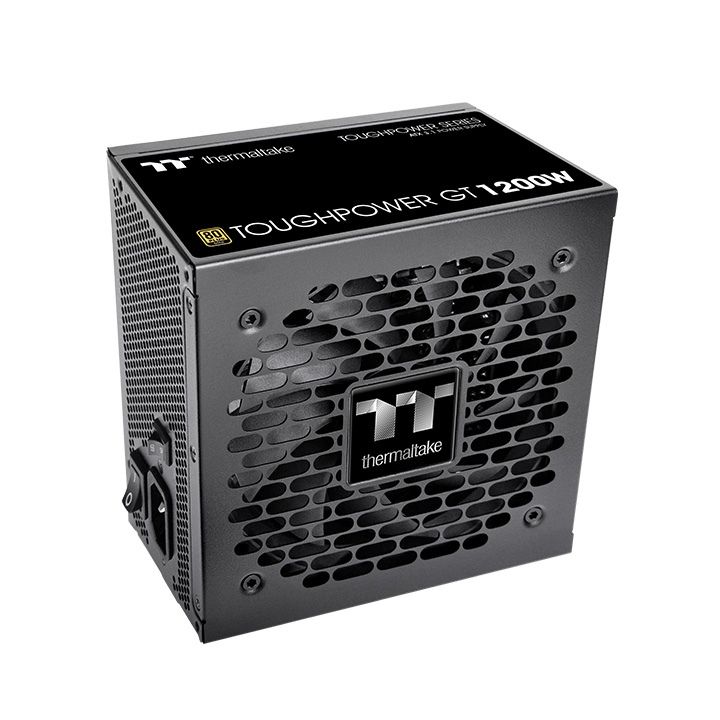

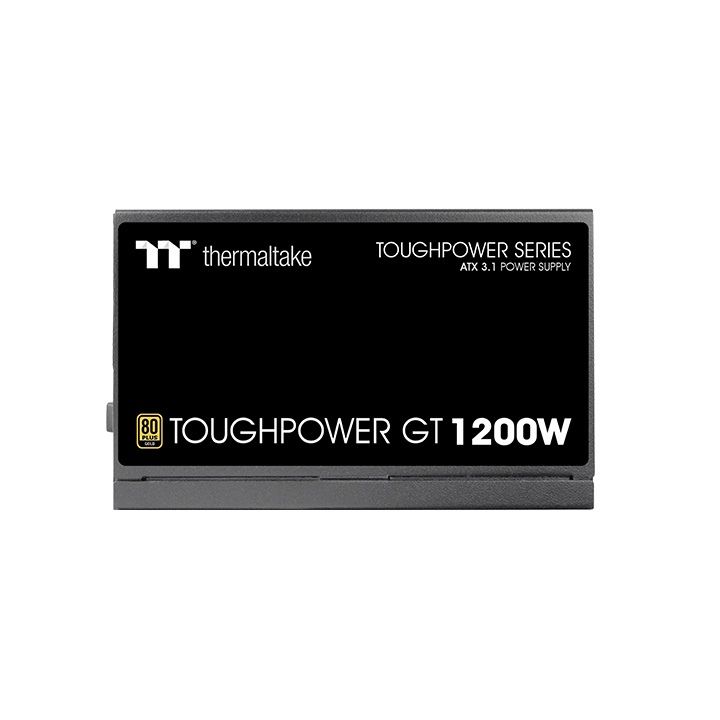

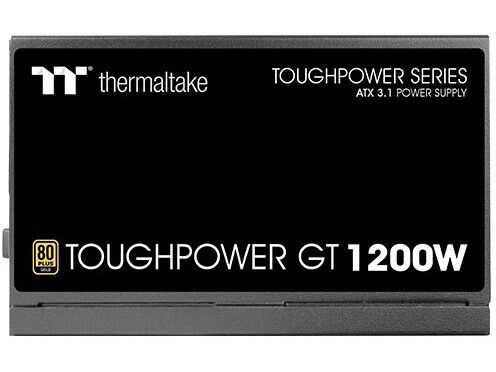

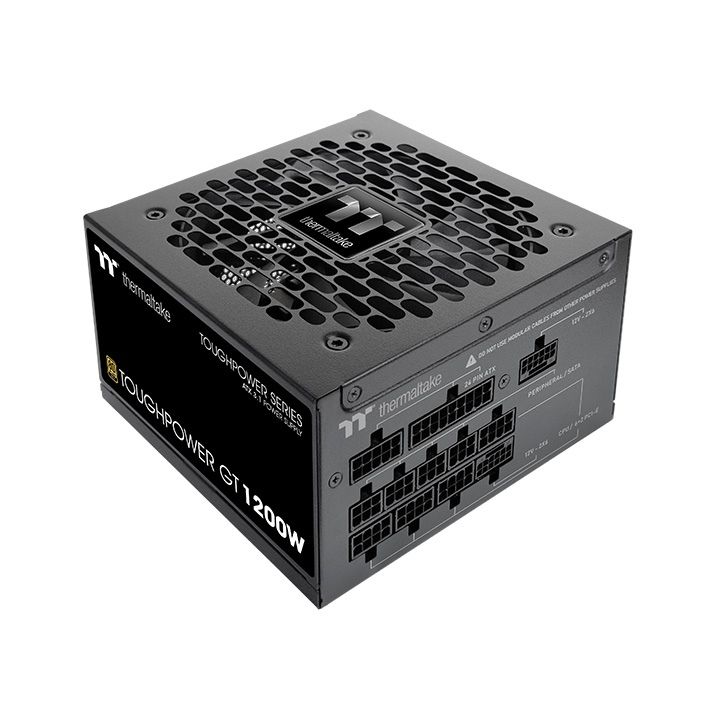

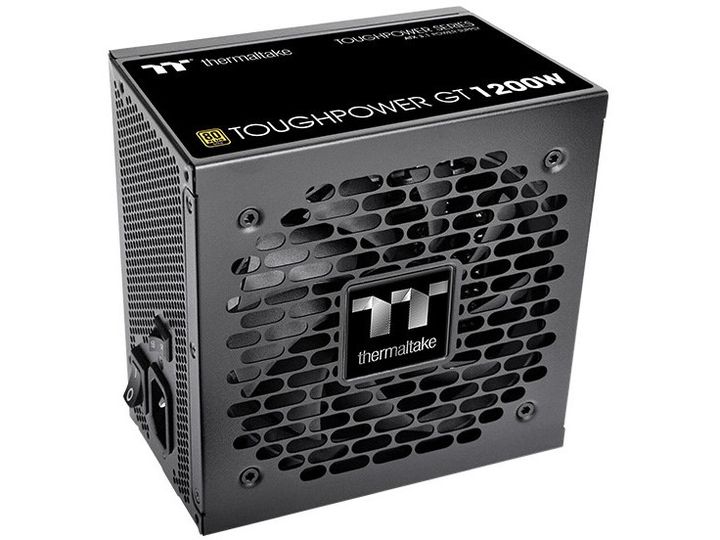

Toughpower GT Series The fully modular Toughpower GT series is designed to deliver 80 PLUS Gold efficiency and is compatible with ATX 3.1 standards. Its native PCIe 12V-2x6 (12+4 pin) modular interface efficiently powers PCIe 12+4 pin graphics cards. Backed by an extensive 5-year warranty, the Toughpower GT series meets the needs of value-oriented users seeking a new power supply with reliable performance.
ATX 3.1 Ready Toughpower GT series is fully compatible with ATX 3.1 specifications which supports up to 200% power excursion, reaches 60% efficiency at low load and complies with required power supply timing standards.
PCIe Gen 5.1 Ready Toughpower GT series comes with a PCIe 12V-2x6 connector to offer powerful and stable performance allowing the PSU to natively run next-generation GPUs.
The wattage marked on the PCIe 12+4-pin cable connector represents the recommended wattage (Ref. Intel design guideline). The bundled PCIe Gen 5.1 (12+4pin) cable connector of the Toughpower GT 1000W can deliver up to 600W for PCIe 12+4pin graphics cards.

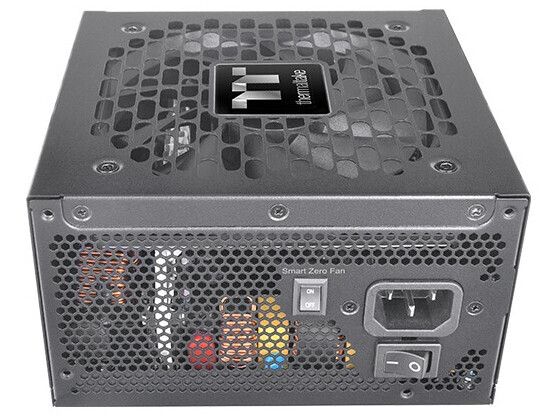

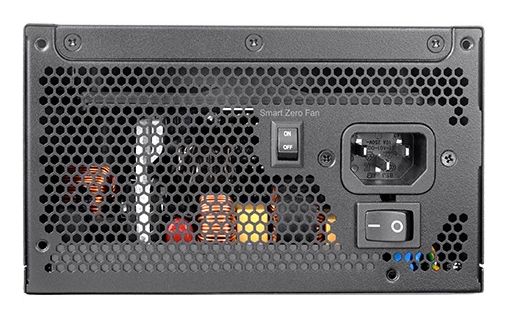

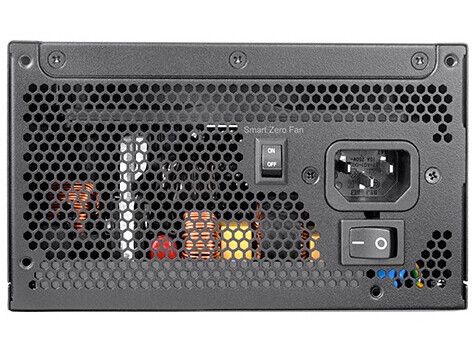

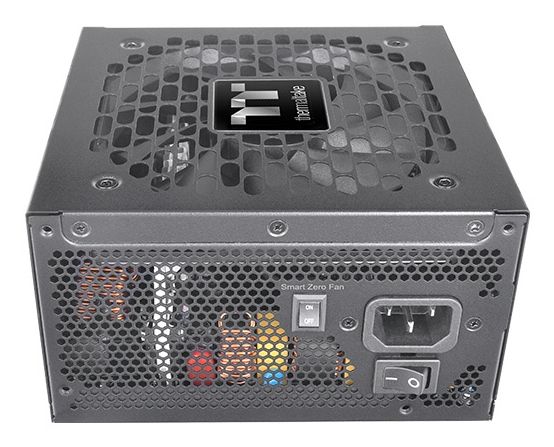

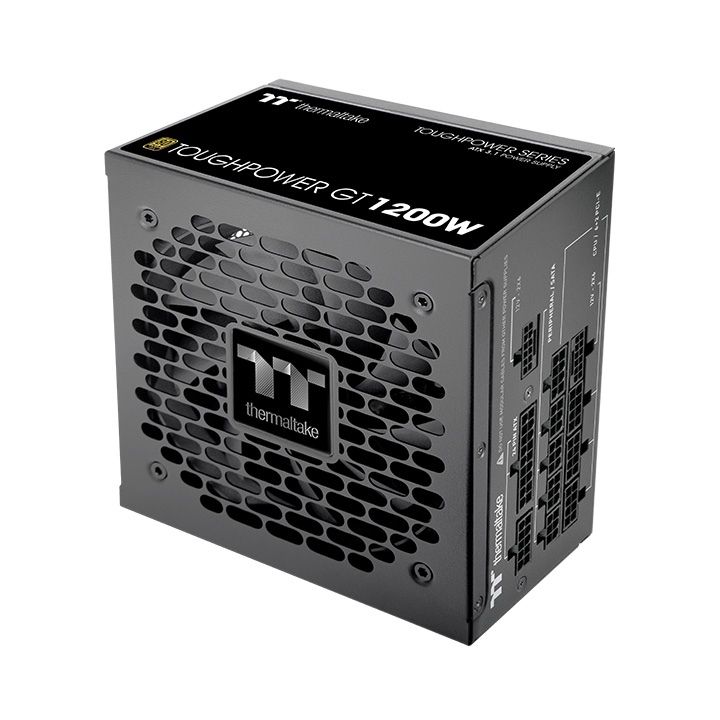

Ultra Quiet 120mm Hydraulic Bearing Fan with Smart Zero Fan Featuring an 120mm Hydraulic Bearing Fan to keep friction at really low level. Designed with our Smart Zero Fan to adjust the fan speed and minimizes undesired noise.
High Amperage Single +12V Rail & High-Class Technologies Powerful single +12V rail can properly deliver the power you need for the best compatibility. The use of LLC and DC to DC circuit design provides very stable operation and enhanced voltage regulation.

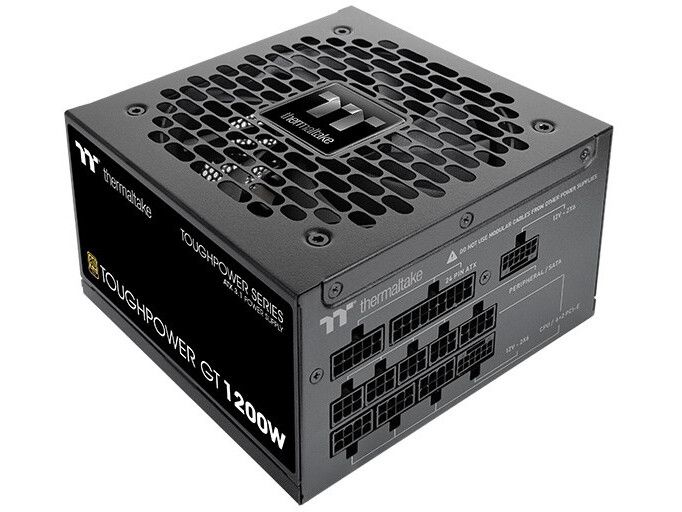

Fully Modular Low-Profile Cables Offers cable selection for users while powering the system at an advantageous voltage. Low-profile flat black cables make cable management easier, reduces clutter and increases airflow inside the chassis.
Built-in Industrial Grade Protection To protect the hardware, Toughpower GT series is built with industrial grade protections: OCP(Over Current Protection), OVP (Over Voltage Protection), UVP(Under Voltage Protection), OPP(Over Power Protection), SCP(Short Circuit Protection), OTP(Over Temperature Protection).
80 PLUS Gold Certified Toughpower GT Snow series saves energy through its high energy efficiency up to 90% and is certified to 80 PLUS® Gold.
Total power
1200 W
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
Input current
15 - 10 A
Power Factor Correction (PFC) type
Active
Combined power (+3.3V)
100 W
Combined power (+12V)
1200 W
Combined power (+5V)
100 W
Combined power (-12V)
3.6 W
Combined power (+5Vsb)
15 W
Max output current (+3.3V)
20 A
Max output current (+12V)
100 A
Max output current (+5V)
20 A
Max output current (-12V)
0.3 A
Max output current (+5Vsb)
3 A
Hold time
17 ms
Power protection features
Over current, Over power, Under voltage, Over voltage, Short circuit
Motherboard power connector
24-pin ATX
Peripheral (Molex) power connectors (4-pin)
4
Motherboard power cable length
55 cm
Number of SATA power connectors
6
SATA power cable length
150,450 mm
Peripheral (Molex) power cable length
150,400 mm
EPS power connector (4+4 pin)
Yes
PCI Express power connectors (6+2 pin)
5
PCI Express power connectors (12+4 pin)
2
PCI Express power connectors (12+4 pin) cable length
600 mm
Cabling type
Fully-Modular
Purpose
PC
Power supply unit (PSU) form factor
ATX
80 PLUS certification
80 PLUS Gold
ATX version
3.1
Bearing technology
Hydraulic
Mean time between failures (MTBF)
100000 h
Product colour
Black
Cooling type
Active
Fan diameter
12 cm
Number of fans
1 fan(s)
On/off switch
Yes
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
40 - 70 °C
Operating relative humidity (H-H)
5 - 85%
Compliance certificates
BIS, BSMI, CB, CCC, CE, EAC, Federal Communications Commission (FCC), ICES, Low Voltage Directive (LVD), RCM, UKCA, cTUVus
Width
150 mm
Depth
140 mm
Height
86 mm
