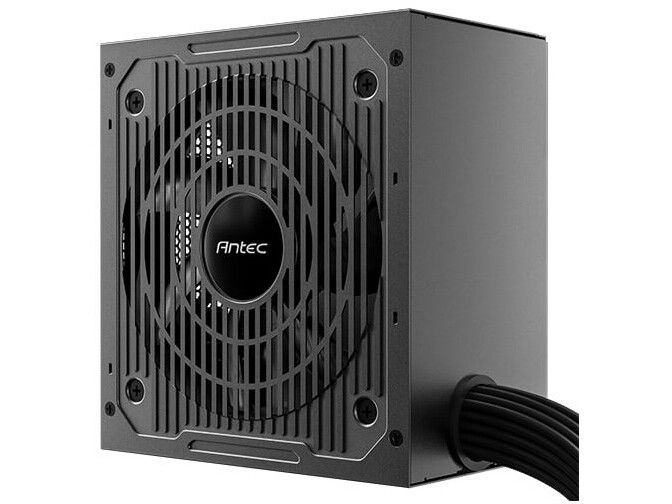

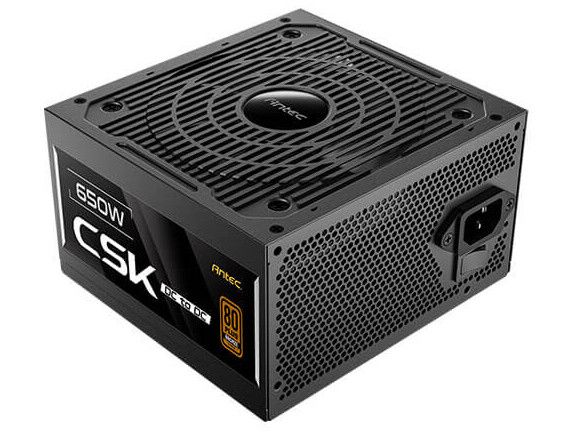

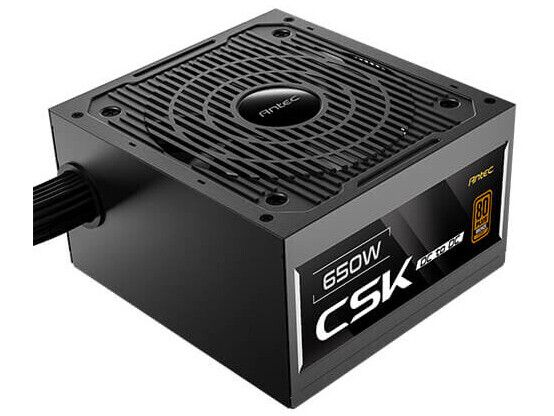

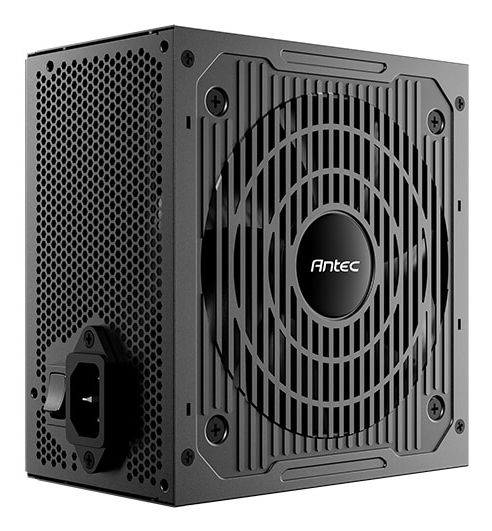

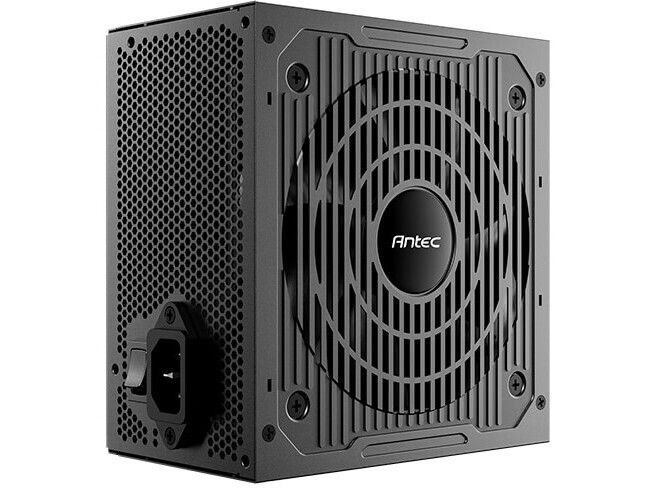

The Antec CSK650DC power supply offers reliable performance and safety features for a variety of computing needs. With a power output of 650 W and compliance with ATX12V 2.52 specifications, this internal power supply is designed to support a wide range of systems, ensuring stable operation even under demanding conditions. The unit operates efficiently within a temperature range of 0°C to 40°C, making it suitable for various environments. Equipped with multiple output options including +3.3V, +5V, and +12V, the power supply delivers safe power with overcurrent, overvoltage, and short-circuit protection. Its active Power Factor Correction ensures energy efficiency while minimizing unnecessary power draw. A 120 mm fan provides effective cooling to maintain optimal performance during prolonged use. The Antec CSK650DC also meets various compliance standards such as TUV, FCC, and UKCA, assuring users of its quality and safety.
Produktbeskrivelse

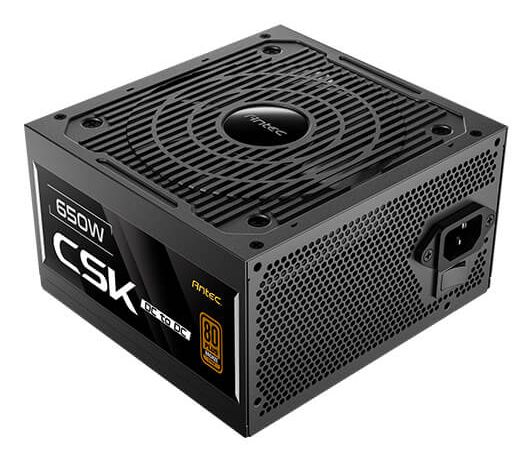

Antec CSK650DC - strømforsyning - 650 Watt
Enhedstype
Strømforsyning - aktiv Power Factor Correction (PFC) - intern
Specifikationsoverensstemmelse
ATX12V 2.52
80 PLUS certificering
80 PLUS Bronze
Vægt
1.7 kg
Lokalisering
Europa
Indgangspænding
AC 100-240 V
Udgangspænding
+3.3, +5, ±12 V
Strømkapacitet
650 Watt
Output Current

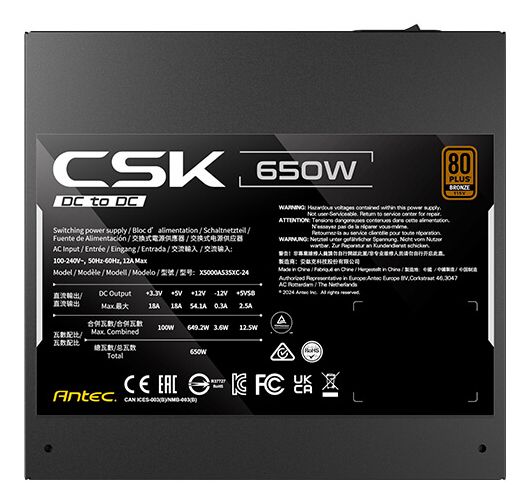

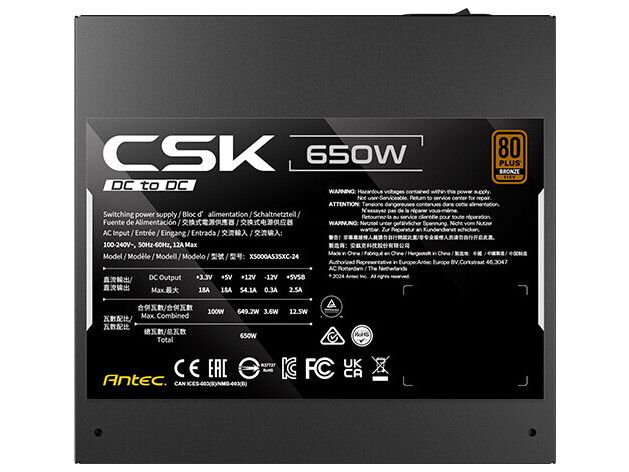

+3.3V - 18 A +5V - 18 A +12V - 54.1 A -12V - 0.3 A +5VSB - 2.5 A
Output-stikforbindelser
1 x strøm 24 pin ATX med aftagelig 4 pin sektion 2 x strøm 8-pin med aftagelig 4-pin sektion 2 x 8 pin PCI Express-strøm med aftagelig 2 pin sektion 6 x SATA-stik 3 x Molex
Kølesystem

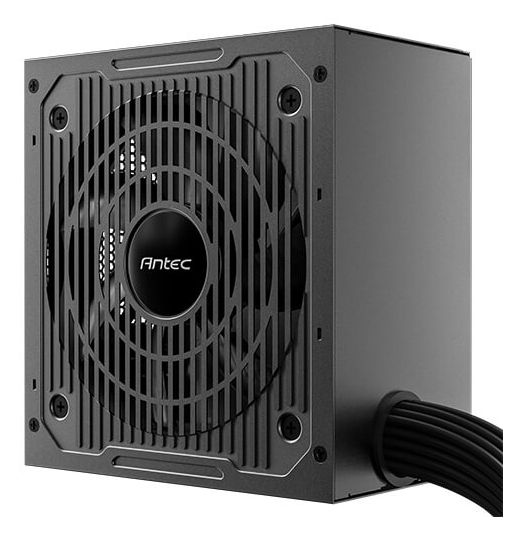

120 mm ventilator
Dimensioner (B x D x H)
15 cm x 14 cm x 8.6 cm
Producentgaranti
5 års garanti
Generelt
Enhedstype
Strømforsyning - aktiv Power Factor Correction (PFC) - intern
Specifikationsoverensstemmelse
ATX12V 2.52
PSU formfaktor
ATX
Lokalisering
Europa
Strømenhed
Indgangspænding
AC 100-240 V
Nødvendig frekvens
50 - 60 Hz
Detaljer om strømudgangskonnektorer
1 x strøm 24 pin ATX med aftagelig 4 pin sektion 2 x strøm 8-pin med aftagelig 4-pin sektion 2 x 8 pin PCI Express-strøm med aftagelig 2 pin sektion 6 x SATA-stik 3 x Molex
Udgangspænding
+3.3, +5, ±12 V
Strømkapacitet
650 Watt
Output Current
+3.3V - 18 A +5V - 18 A +12V - 54.1 A -12V - 0.3 A +5VSB - 2.5 A
80 PLUS certificering
80 PLUS Bronze
Diverse
Kølesystem
120 mm ventilator
Egenskaber
Beskyttelse mod overstrøm, overspændingsbeskyttelse, beskyttelse mod underspænding, kortslutnings beskyttelse, overbelastningsbeskyttelse, høj temperaturbeskyttelse, spændings- og tilstrømningsbeskyttelse, ingen lastdriftbeskyttelse
Overensstemmelsesstandarder
cTUVus, TUV, CB, RCM, FCC, BSMI, KC, UKCA, ICES
Producentgaranti
Service & Support
Begrænset garanti - 5 år
Miljømæssige parametre
Min. driftstemperatur
0 °C
Maks. driftstemperatur
40 °C
Mål og vægt
Bredde
15 cm
Dybde
14 cm
Højde
8.6 cm
Vægt
1.7 kg
Mål & vægt (forsendelse)
Bredde ved forsendelse
19.5 cm
Dybde ved forsendelse
25.5 cm
Højde ved forsendelse
10 cm
Vægt ved forsendelse
1.9 kg
