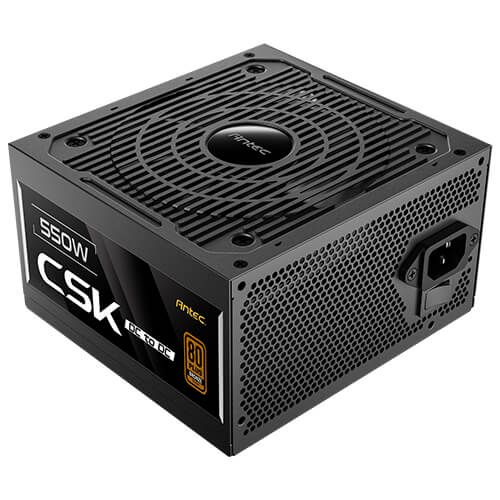

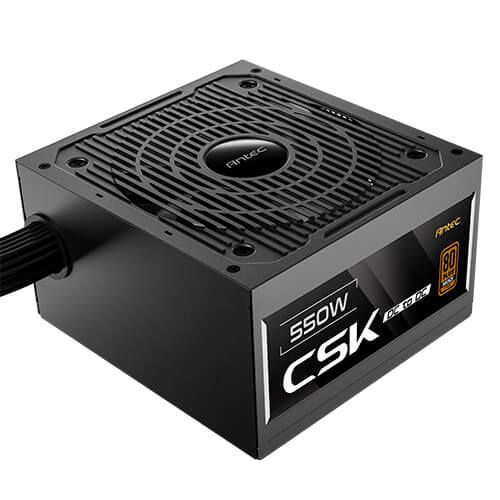

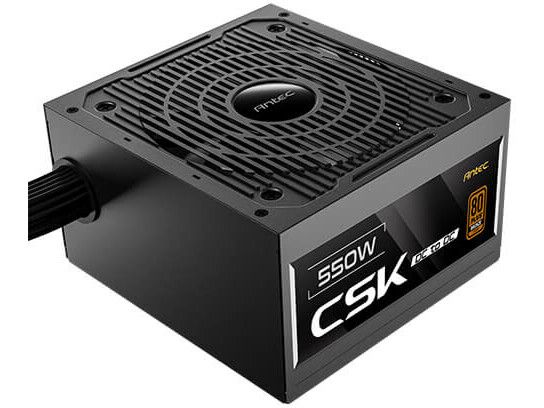

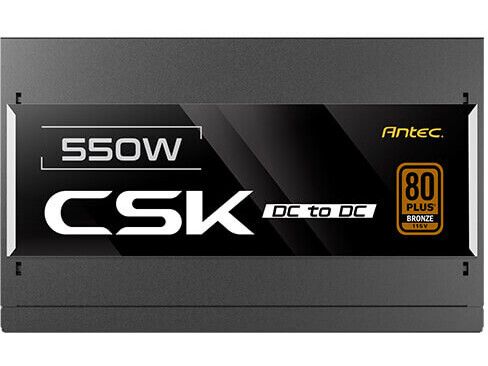

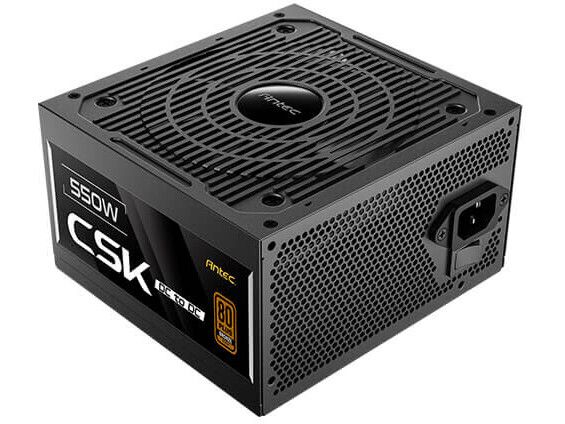

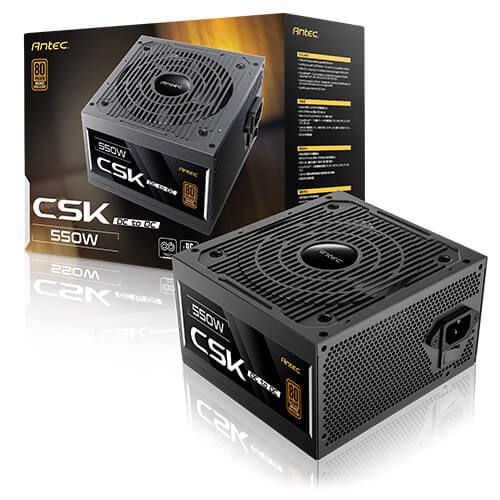

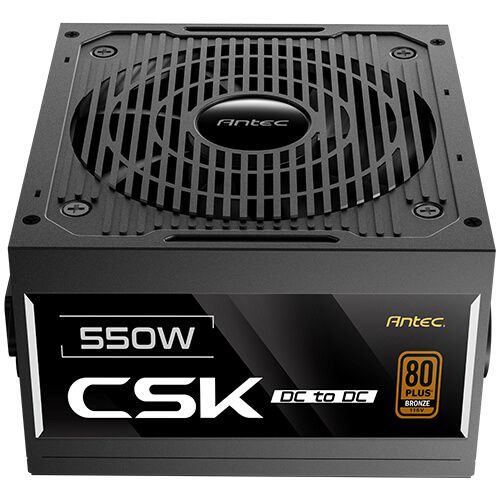

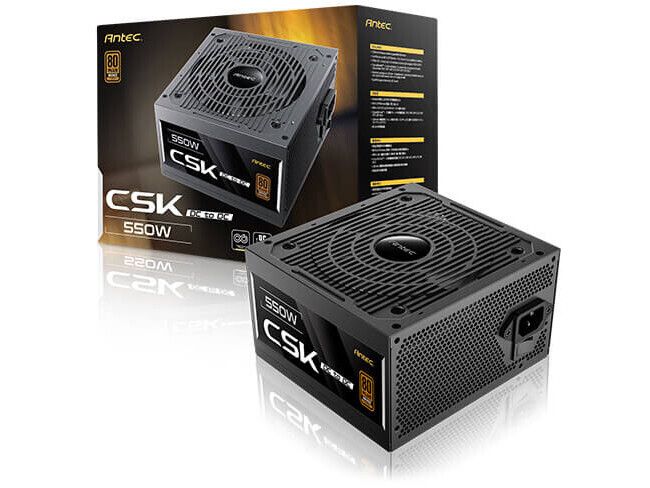

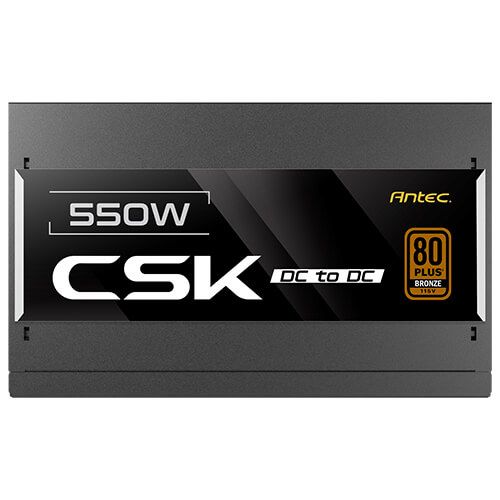

The Antec CSK550DC power supply delivers reliable performance with its robust design and various protection features. With an output power of 550 watts, this internal power supply is capable of supporting a range of components while ensuring stable voltage across multiple channels, including +3.3V, +5V, and +12V. Designed with ATX12V 2.52 compliance, it meets stringent standards for safety and compatibility in various computing environments.
This power supply is equipped with essential safety mechanisms such as overcurrent, overvoltage, and short-circuit protection, providing peace of mind during operation. Cooling is efficiently managed through a 120 mm fan, ensuring optimal temperature even under load. With 80 PLUS Bronze certification, the CSK550DC promotes energy efficiency, making it an ideal choice for users seeking performance and sustainability.
Produktbeskrivelse
Antec CSK550DC - strømforsyning - 550 Watt
Enhedstype
Strømforsyning - aktiv Power Factor Correction (PFC) - intern
Specifikationsoverensstemmelse
ATX12V 2.52/ EPS12V
80 PLUS certificering
80 PLUS Bronze
Vægt
1.6 kg
Lokalisering
Europa
Indgangspænding
AC 100-240 V
Udgangspænding
+3.3, +5, ±12 V, +5Vsb V
Strømkapacitet
550 Watt
Output Current

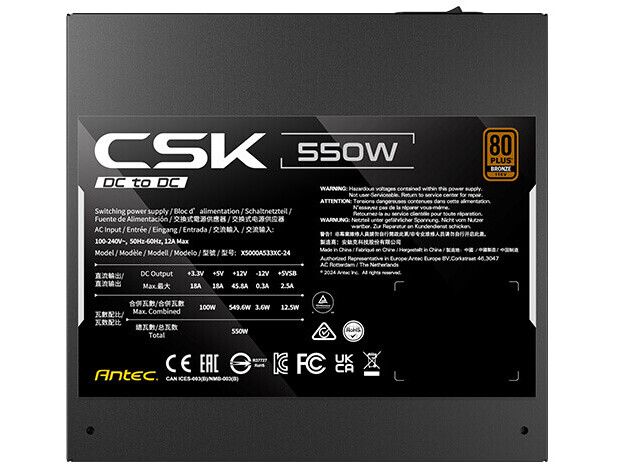

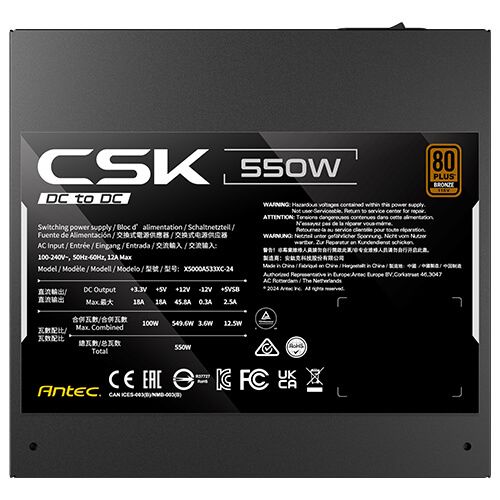

+3.3V - 18 A +5V - 18 A +12V - 45.8 A -12V - 0.3 A +5VSB - 2.5 A
Output-stikforbindelser
1 x strøm 24 pin ATX 2 x 2 x 8 pin PCI Express-strøm med aftagelig 2 pin sektion 6 x 15 pin Serial ATA strøm 3 x 4-PIN intern strøm 2 x strøm 8 pin EPS12 V med aftagelig 4 pin ATX12V sektion
Kølesystem

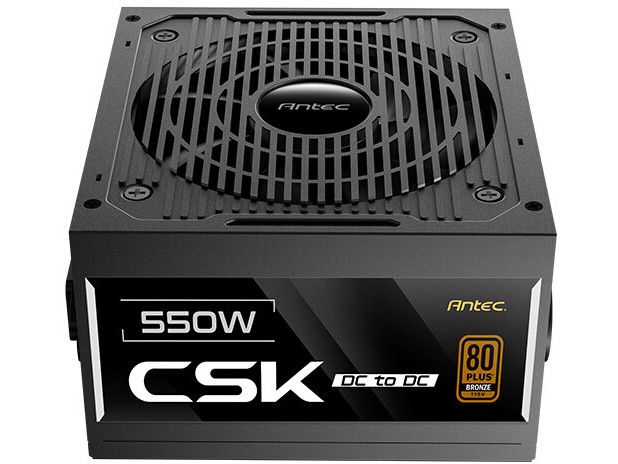

120 mm ventilator
Dimensioner (B x D x H)
15 cm x 14 cm x 8.6 cm
Producentgaranti
5 års garanti
Generelt
Enhedstype
Strømforsyning - aktiv Power Factor Correction (PFC) - intern
Specifikationsoverensstemmelse
ATX12V 2.52/ EPS12V
PSU formfaktor
ATX
Lokalisering
Europa
Strømenhed
Indgangspænding
AC 100-240 V
Nødvendig frekvens
50 - 60 Hz
Detaljer om strømudgangskonnektorer
1 x strøm 24 pin ATX 2 x 2 x 8 pin PCI Express-strøm med aftagelig 2 pin sektion 6 x 15 pin Serial ATA strøm 3 x 4-PIN intern strøm 2 x strøm 8 pin EPS12 V med aftagelig 4 pin ATX12V sektion
Udgangspænding
+3.3, +5, ±12 V, +5Vsb V
Strømkapacitet
550 Watt
Output Current
+3.3V - 18 A +5V - 18 A +12V - 45.8 A -12V - 0.3 A +5VSB - 2.5 A
80 PLUS certificering
80 PLUS Bronze
Diverse
Medfølgende ledninger
AC-strømkabel Strøm 24-pin ATX med aftagelig 4-pin sektion kabel 60 cm Strøm 8 pin EPS12V med aftagelig 4 pin ATX12V sektion 80 cm 2x 8 pin PCI Express strøm med aftagelig 2 pin sektion kabel 70 cm 4 pin internt strømkabel 80 cm Strøm 15 pin SATA-kabel 80 cm
Kølesystem
120 mm ventilator
Egenskaber
DC-DC teknologi, beskyttelse mod overstrøm, overspændingsbeskyttelse, beskyttelse mod underspænding, kortslutnings beskyttelse, overbelastningsbeskyttelse, beskyttelse mod overophedning, spændings- og tilstrømningsbeskyttelse, ingen lastdriftbeskyttelse
Overensstemmelsesstandarder
cTUVus, TUV, CB, RCM, FCC, BSMI, KC, UKCA, ICES, BIS
Producentgaranti
Service & Support
Begrænset garanti - 5 år
Miljømæssige parametre
Min. driftstemperatur
0 °C
Maks. driftstemperatur
40 °C
Mål og vægt
Bredde
15 cm
Dybde
14 cm
Højde
8.6 cm
Vægt
1.6 kg
Mål & vægt (forsendelse)
Bredde ved forsendelse
42.5 cm
Dybde ved forsendelse
54.5 cm
Højde ved forsendelse
23 cm
Vægt ved forsendelse
1.9 kg
