Lian Li SP V2 Gold, 750 W, 100 - 240 V, 50/60 Hz, 5 - 10 A, Active, 100 W
Item no.: [24566577] | Manufacturer: Lian Li Industrial Company | Model no.: G9P.SP0750G.B000.EU | EAN: 4718466018328
Remote stock (4-5 days)
The item is in a remote warehouse, delivery time is 3-4 business days. More info
Delivery options - Select at checkout
Shipping @price - GLS
12,00
EUR
124,57
Incl. VAT 155,71
Total incl. delivery
170,71
The function requires that you are logged in. Create a user and use our smart list system to keep track of future purchases, regular purchases or wish lists. Create user Login

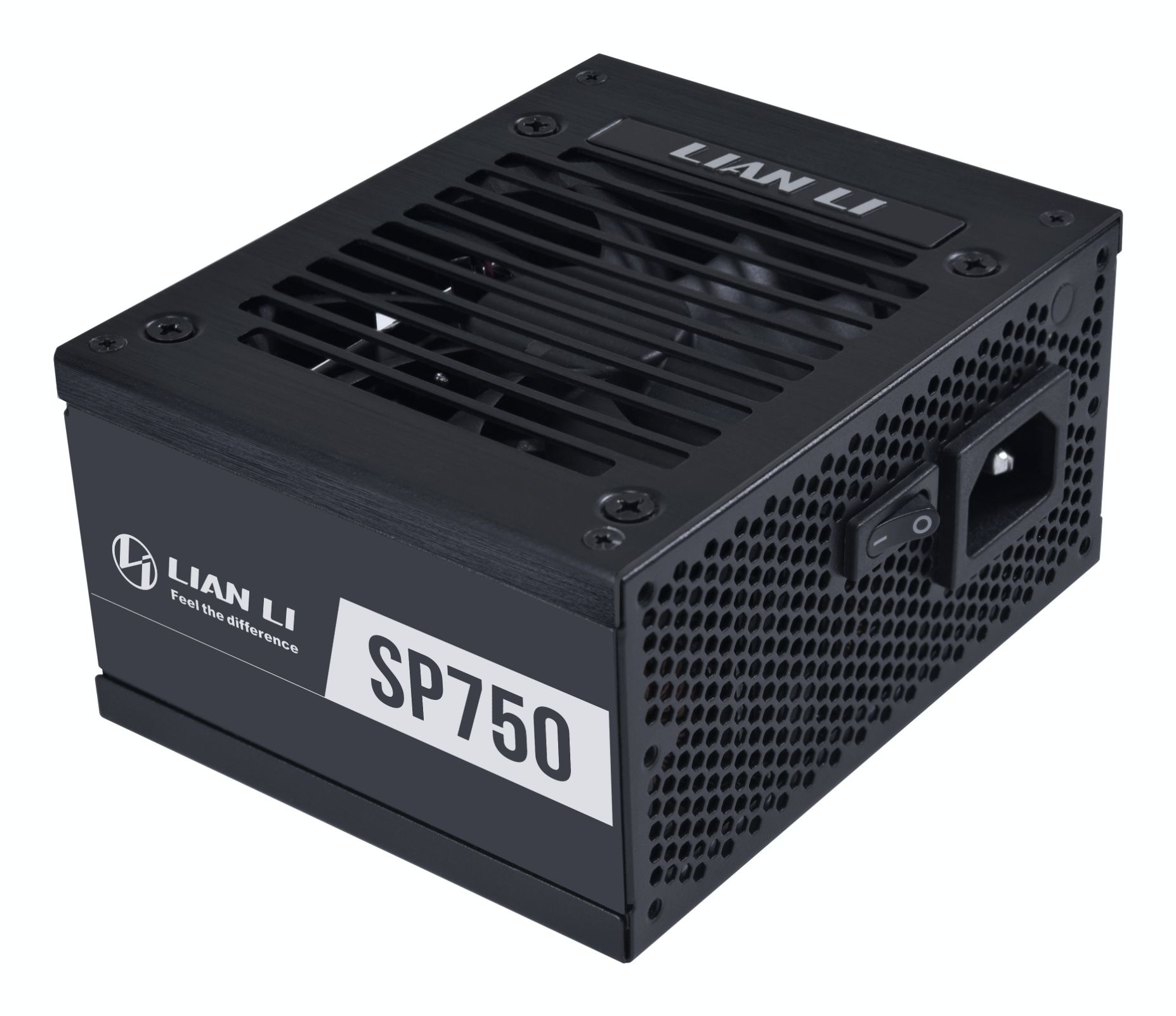

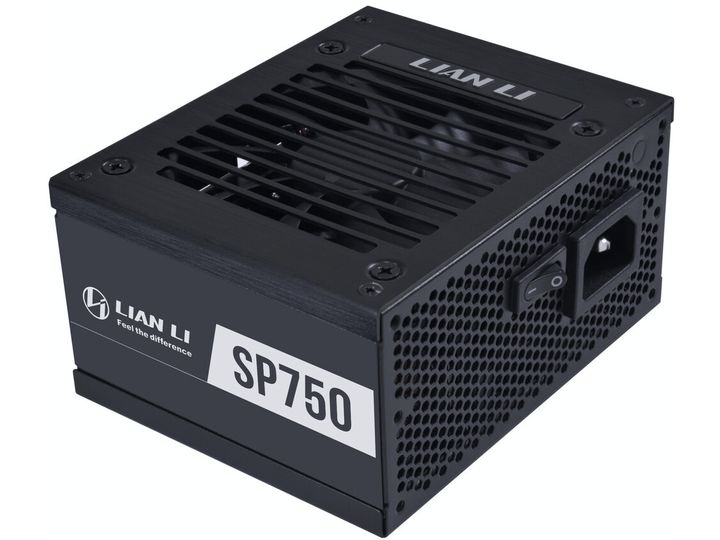

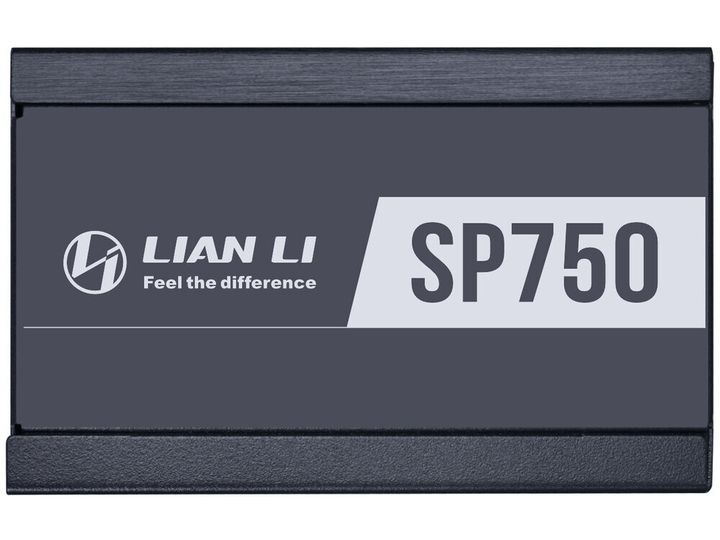

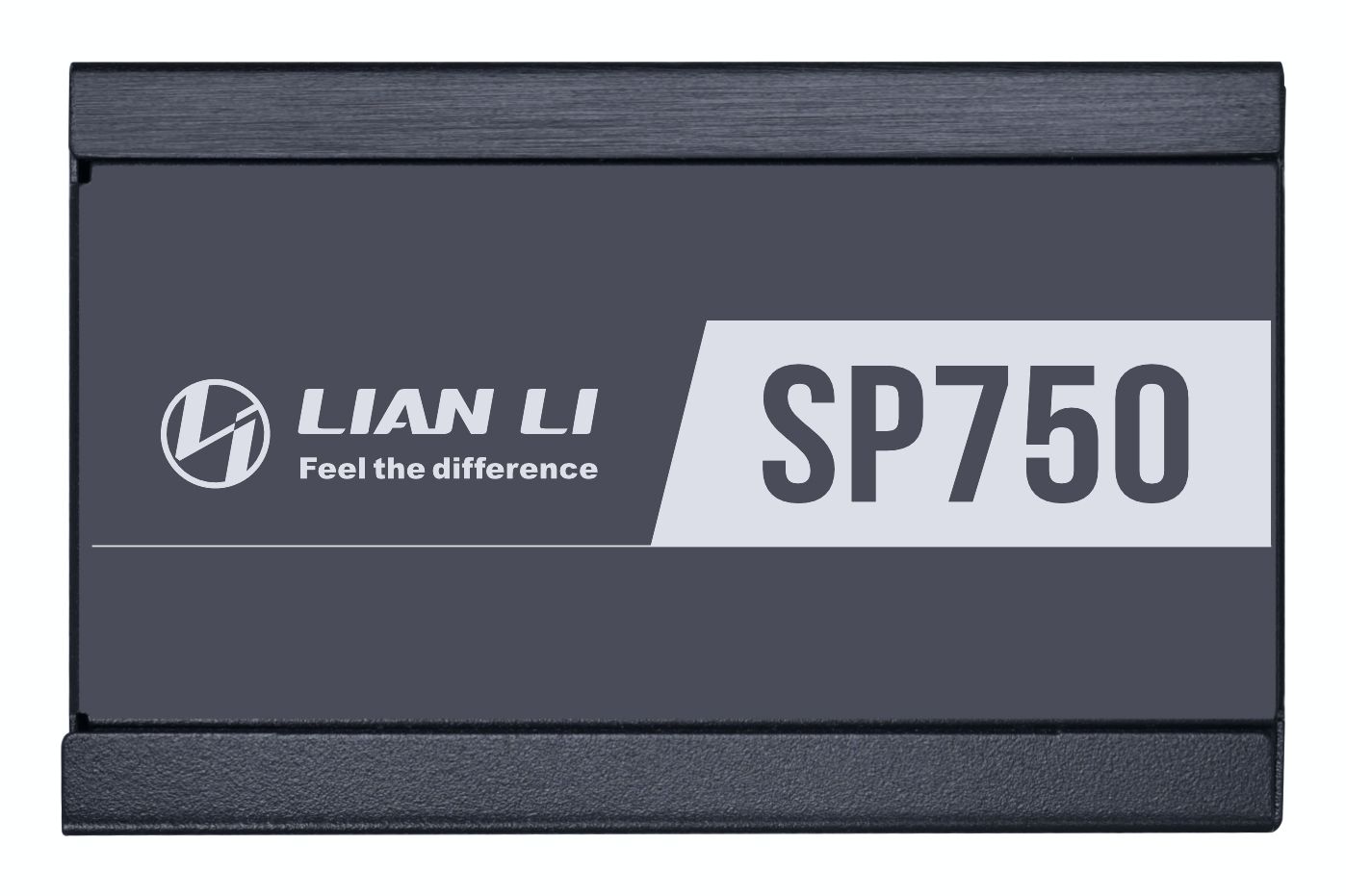

PERFORMANCE SFX FORM FACTOR POWER SUPPLY The SP V2 Gold is a stylish high-performance PSU that perfectly fits small-form-factor PCs while supporting power-hungry components.
AVAILABLE IN TWO COLORS & TWO WATTAGES Choose the fully modular SFX PSU in black or white, with 850W or 750W options to perfectly match your build.
COMPACT SIZE, BIG PERFORMANCE Measuring 125 × 100 × 63.5 mm, this compact PSU saves valuable space inside the builds without compromising on power delivery.
80 PLUS GOLD CERTIFICATE With 80 PLUS Gold certification, the SP V2 Gold delivers over 90% efficiency at 50% system load under 115V AC input conditions, ensuring high energy efficiency with stable power delivery and minimal energy loss.
ATX 3.1 READY WITH 12V-2×6 CONNECTOR The SP V2 Gold features a next-gen 12V-2×6 power connector compliant with the latest ATX 3.1 specification, providing direct support for PCIe 5.0 graphics cards and addressing the growing power demands of modern systems.
LIAN LI CUSTOM 12V-2×6 POWER CABLE LIAN LI’s in-house developed 12V-2×6 power cable features a custom-molded design combined with alloy copper soldered terminals to deliver superior stability and efficient power delivery. Built to meet the demanding needs of high-end graphics cards, this cable ensures safer, more durable connections for your cutting-edge system.
Each cable is engineered for ease of use, with dual-color connector housings for intuitive installation, reinforced soldering for improved reliability, and a 20.5mm connector width optimized to prevent interference during GPU mounting.
FDB FAN FOR QUIET COOLING The SP V2 Gold utilizes a 92mm FDB fan to deliver efficient cooling with low noise. Even under sustained high workloads, it maintains stable performance while ensuring silent operation.
JAPANESE ELECTROLYTIC CAPACITORS Premium Japanese electrolytic capacitors provide great durability and long-term reliability, as well as offer the highest stability.

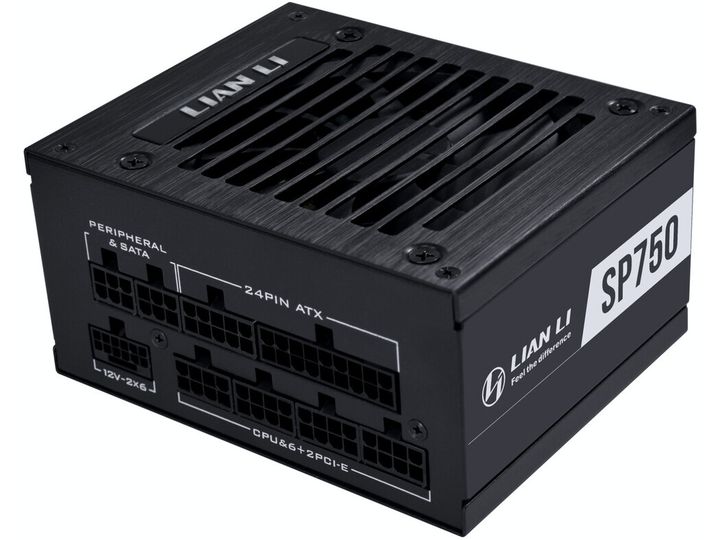

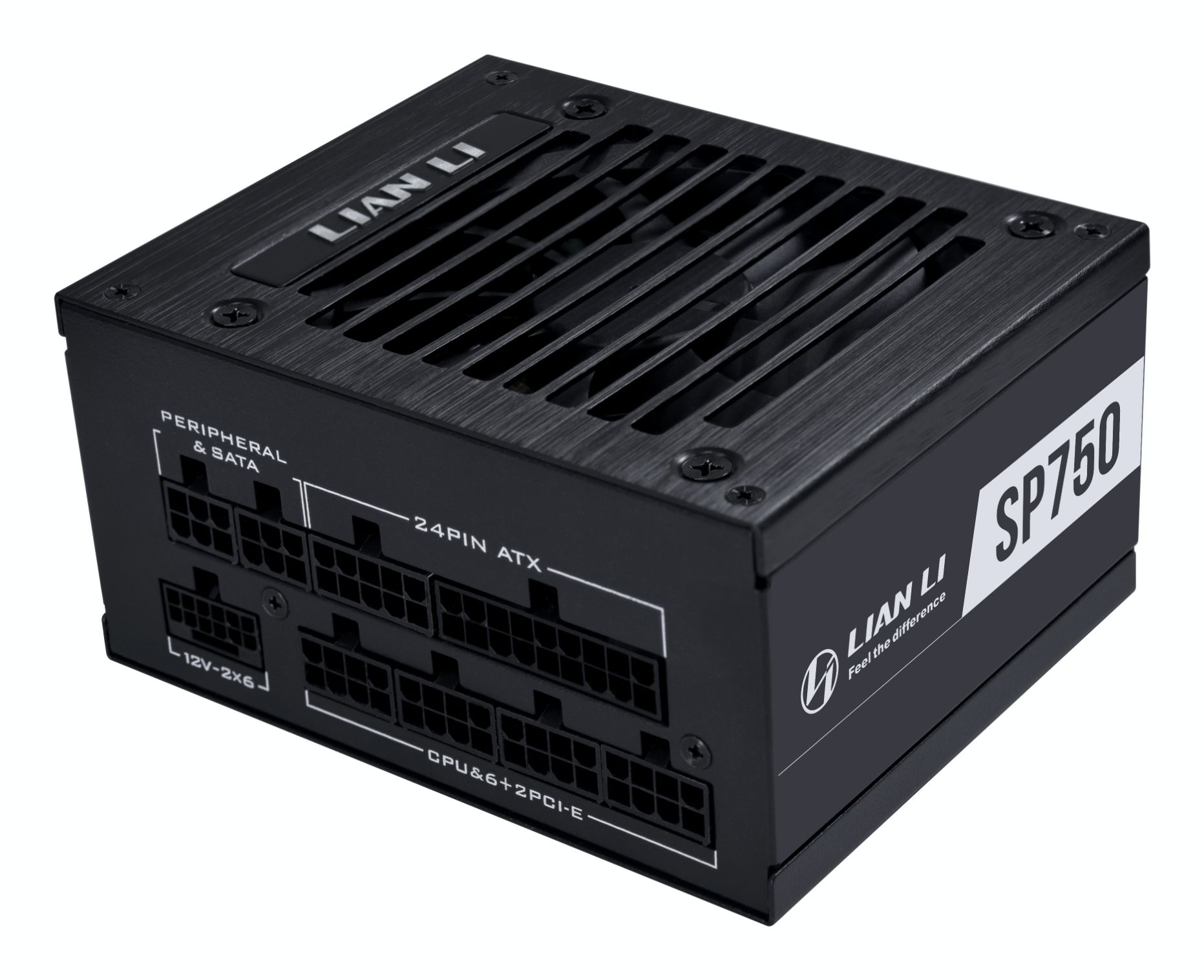

REFINED DESIGN WITH FULLY MODULAR CABLES The SP V2 Gold features a fully modular cable system with all necessary braided cables included out of the box, reducing clutter and enhancing visual appeal.
ENHANCED DURABILITY WITH EMBOSSED CABLE DESIGN The embossed cable design enhances both durability and flexibility, ensuring long-lasting performance even under frequent use. Its unique textured surface helps reduce tangling and knotting, delivering a smoother installation experience and cleaner cable management.
SUFFICIENT PROTECTION Features OCP (Over Current Protection), OVP (Over Voltage Protection), SCP (Short Circuit Protection), OPP (Over Power Protection), UVP (Under Voltage Protection), OTP (Over Temperature Protection) and inrush current limiter that make the PSU operating in stable condition.
Total power
750 W
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
Input current
5 - 10 A
Power Factor Correction (PFC) type
Active
Combined power (+3.3V)
100 W
Combined power (+12V)
744 W
Combined power (+5V)
100 W
Combined power (-12V)
3.6 W
Combined power (+5Vsb)
15 W
Max output current (+3.3V)
20 A
Max output current (+12V)
62 A
Max output current (+5V)
20 A
Max output current (-12V)
0.3 A
Max output current (+5Vsb)
3 A
Efficiency
90%
Power protection features
No load operation, Over current, Over power, Over voltage, Short circuit, Surge & inrush protection (SIP), Under temperature, Under voltage
Motherboard power connector
20+4 pin ATX
Peripheral (Molex) power connectors (4-pin)
1
Motherboard power cable length
35 cm
Number of SATA power connectors
7
SATA power cable length
350 mm
Peripheral (Molex) power cable length
350 mm
EPS power connector (8-pin)
Yes
PCI Express power connectors (6+2 pin)
2
PCI Express power connectors (8-pin)
1
PCI Express power cable length
40 cm
CPU power cable length
60 cm
Cabling type
Fully-Modular
Purpose
PC
Power supply unit (PSU) form factor
SFX
80 PLUS certification
80 PLUS Gold
ATX version
3.1
Noise level
32.5 dB
Bearing technology
FDB
Product colour
Black
Fan diameter
9.2 cm
Number of fans
1 fan(s)
Fan speed
0 - 3000 RPM
Operating temperature (T-T)
0 - 40 °C
Width
125 mm
Depth
100 mm
Height
63.5 mm
