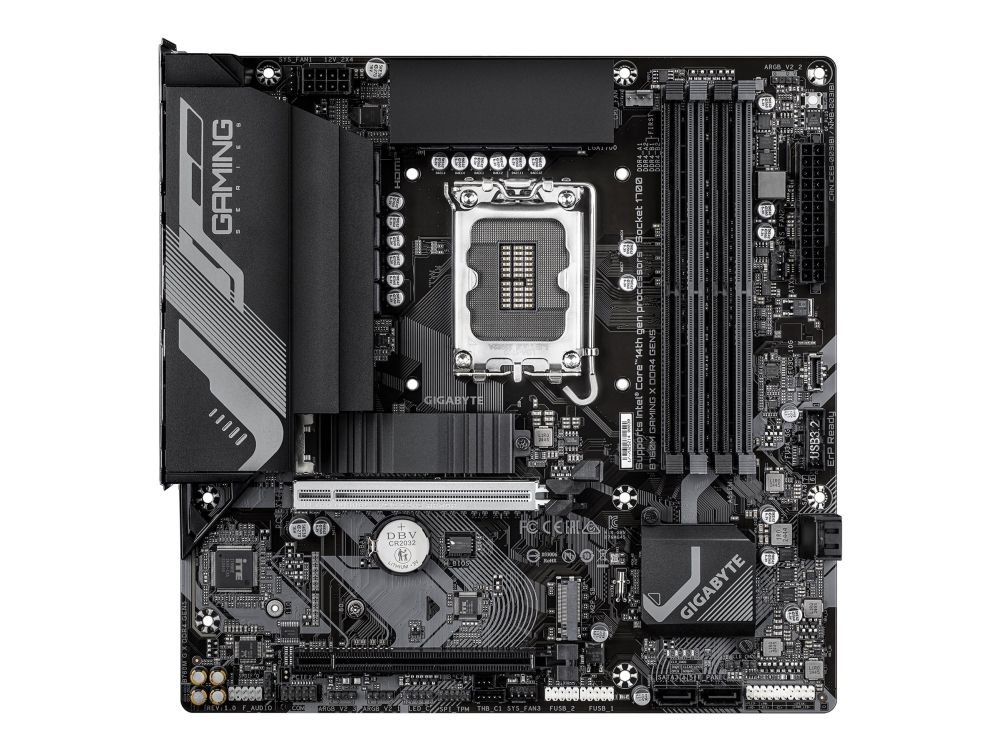

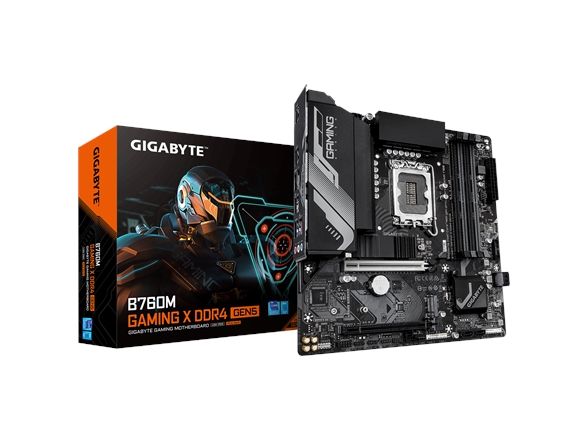

GIGABYTE B760M GAMING X DDR4 GEN5 Motherboard - Supports 14th Gen. Intel Core CPUs, 8+1+1 phases VRM, up to 3200MHz DDR4, 2xPCIe 4.0 M.2, 2.5 GbE LAN, USB 3.2 Gen 1, Intel, LGA 1700, Intel® Celeron®, Intel Core i3 12th Gen, Intel Core i3 13th Gen, Intel Core i3 14th Gen, Intel..., LGA 1700, DDR4-SDRAM, 128 GB

Item no.: [24581621] | Manufacturer: Gigabyte Technology | Model no.: B760M G X DDR4 GEN5 | EAN: 4719331874087

Remote stock (4-5 days)

The item is in a remote warehouse, delivery time is 3-4 business days. More info

Shipping @price - GLS

12,00

EUR 107,61

Incl. VAT 134,51

Total incl. delivery 149,51

Read further specifications and description

Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge technology.

Produktbeskrivelse	Gigabyte B760M Gaming X DDR4 GEN5 - bundkort - micro ATX - LGA1700 sokkel - B760
Produkttype	Bundkort - micro ATX
Chipsættype	Intel B760
Processor-socket	1 x LGA1700 sokkel
Kompatible processorer	(understøtter 12./13. og 14. Generation Intel Core / Pentium Gold / Celeron)
Max RAM-størrelse	128 GB
RAM understøttet	4 DIMM åbninger - DDR4, ECC (drift i ikke-ECC tilstand), ikke-ECC, ikke bufferet
Lagringsporte	4 x SATA-600 (RAID), 2 x M.2
USB / FireWire porte	3 x USB 3.2 Gen 1 + 5 x USB 2.0 + (1 x USB-C 3.2 Gen 2 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0 via samlekasser)
Audio	HD Audio (8-kanaler)
LAN	2.5 Gigabit Ethernet

Generelt
Produkttype	Bundkort - micro ATX
Chipsættype	Intel B760
Processor-socket	LGA1700 sokkel
Max antal processorer	1
Kompatible processorer	(understøtter 12./13. og 14. Generation Intel Core / Pentium Gold / Celeron)
Understøttet RAM
Maks. størrelse	128 GB
Teknologi	DDR4
Bus Clock	2133 MT/s, 2400 MT/s, 2666 MT/s, 2933 MT/s, 3000 MT/s, 3200 MT/s, 3300 MT/s (O.C.), 3333 MT/s (O.C.), 3400 MT/s (O.C.), 3466 MT/s (O.C.), 3600 MT/s (O.C.), 3666 MT/s (O.C.), 3733 MT/s (O.C.), 3800 MT/s (O.C.), 3866 MT/s (O.C.), 4000 MT/s (O.C.), 4133 MT/s (O.C.), 4266 MT/s (O.C.), 4300 MT/s (O.C.), 4400 MT/s (O.C.), 4500 MT/s (O.C.), 4600 MT/s (O.C.), 4700 MT/s (O.C.), 4800 MT/s (O.C.), 4933 MT/s (O.C.), 5000 MT/s (O.C.), 5133 MT/s (O.C.), 5333 MT/s (O.C.)
Understøttet RAM-integritetskon	ECC (drift i ikke-ECC tilstand), ikke-ECC
Registreret eller buffer	Ikke bufferet
Egenskaber	Dobbelt kanal hukommelses arkitektur, Intel Extreme Memory Profiles (XMP), understøttede ECC-moduler fungerer i ikke-ECC-tilstand
Audio
Type	HD Audio (8-kanaler)
Overensstemmelsesstandarder	High Definition Audio
LAN
Netværks interfaces	2.5 Gigabit Ethernet
Ekspansion / Konnektivitet
Ekspansionsåbninger	1 x CPU 4 x DIMM 288-pins 1 x PCIe 5.0 x16 1 x PCIe 3.0 x4 1 x M.2 socket (2280 M.2 Key M-åbning) 1 x M.2 socket (2280/22.110 M.2 Key M-åbning)
Grænseflade (lagring)	SATA-600 -stikforbindelser: 4 x 7pin Seriel ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 PCIe 4.0 -stikforbindelser: 2 x M.2
Interface	1 x DisplayPort 1 x HDMI 1 x LAN (2.5Gigabit Ethernet) 3 x USB 3.2 Gen 1 5 x USB 2.0 1 x mikrofon - mini-jack 1 x audio linje-ind - mini-jack 1 x audio linje-ud - mini-jack
Interne interfaces	4 x USB 2.0 - intern stik 2 x USB 3.2 Gen 1 - intern stik 1 x USB-C 3.2 Gen 2 - intern stik 1 x audio - intern stik 1 x SPDIF ud - intern stik 2 x Thunderbolt - intern stik 1 x SPI - intern stik 1 x seriel - intern stik
Strømkontakter	24-pin hovedstrøm-konnektor, 8-pin ATX12V-kontakt
Egenskaber
BIOS-type (Basic Input/Output System)	AMI
BIOS-egenskaber	PnP 1.0a support, DMI 2.7 support, WfM 2.0 understøttet, SMBIOS 2.7 support, ACPI 5.0 support, UEFI BIOS
Hardwareovervågning	Blæserfejlvarsel, blæserkontrol, chassis temperatur, systemspænding, vandkølings-flowrate
Hardware egenskaber	8+1+1 Phase Power Design, M.2 Thermal Guard, GIGABYTE Smart Fan 6, Q-Flash Plus, GIGABYTE PerfDrive, Dr.MOS MOSFET, MultiKey, DIY Friendly Design, præmonteret I/O-skjold, 60 A Power Stage, Solid Pin Power Connectors
Diverse
Med software	Norton Internet Security (OEM Version), GIGABYTE Control Center
Bredde	24.4 cm
Dybde	24.4 cm
