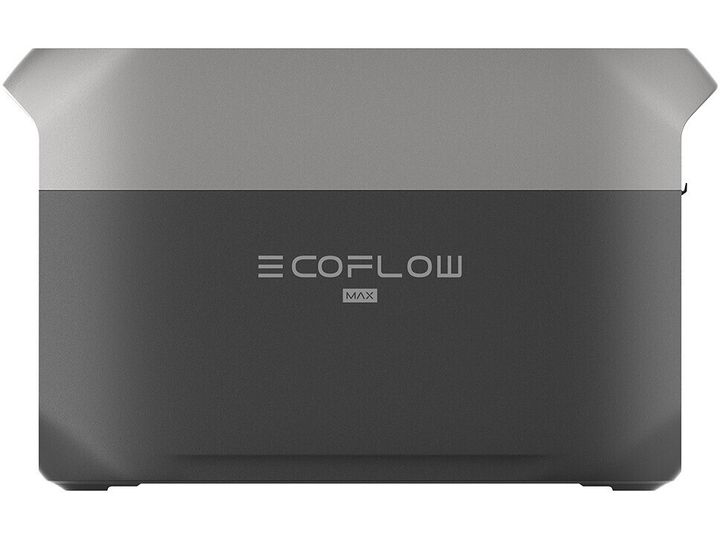

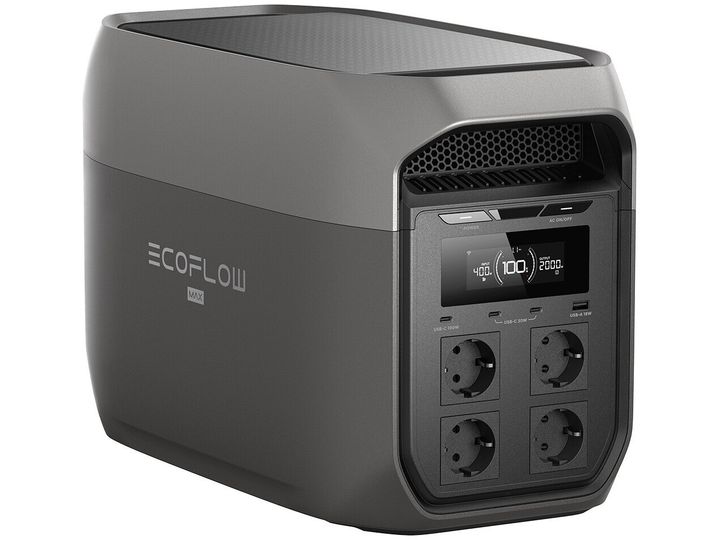

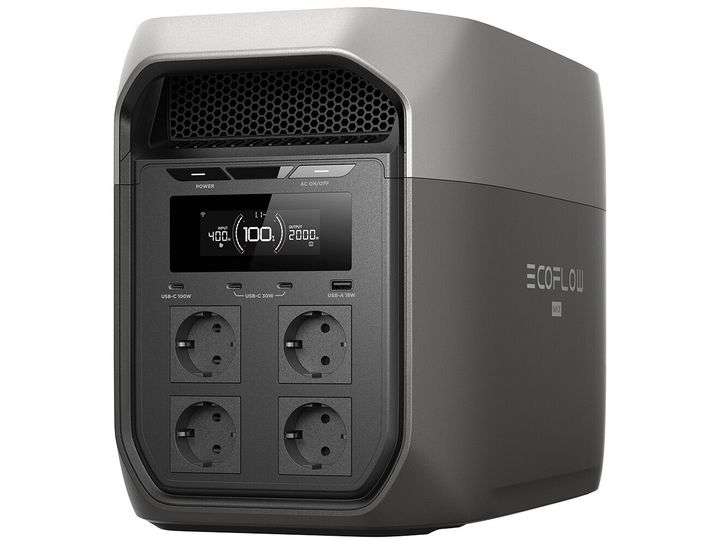

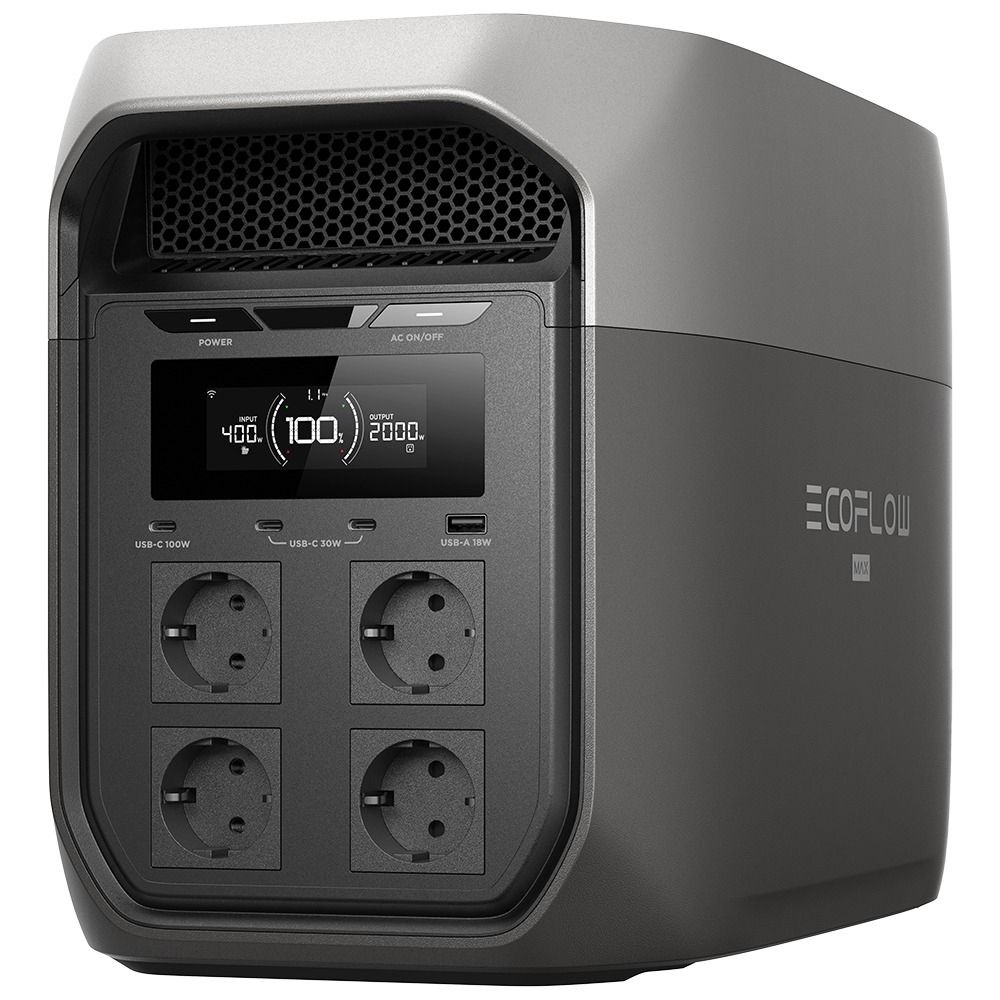

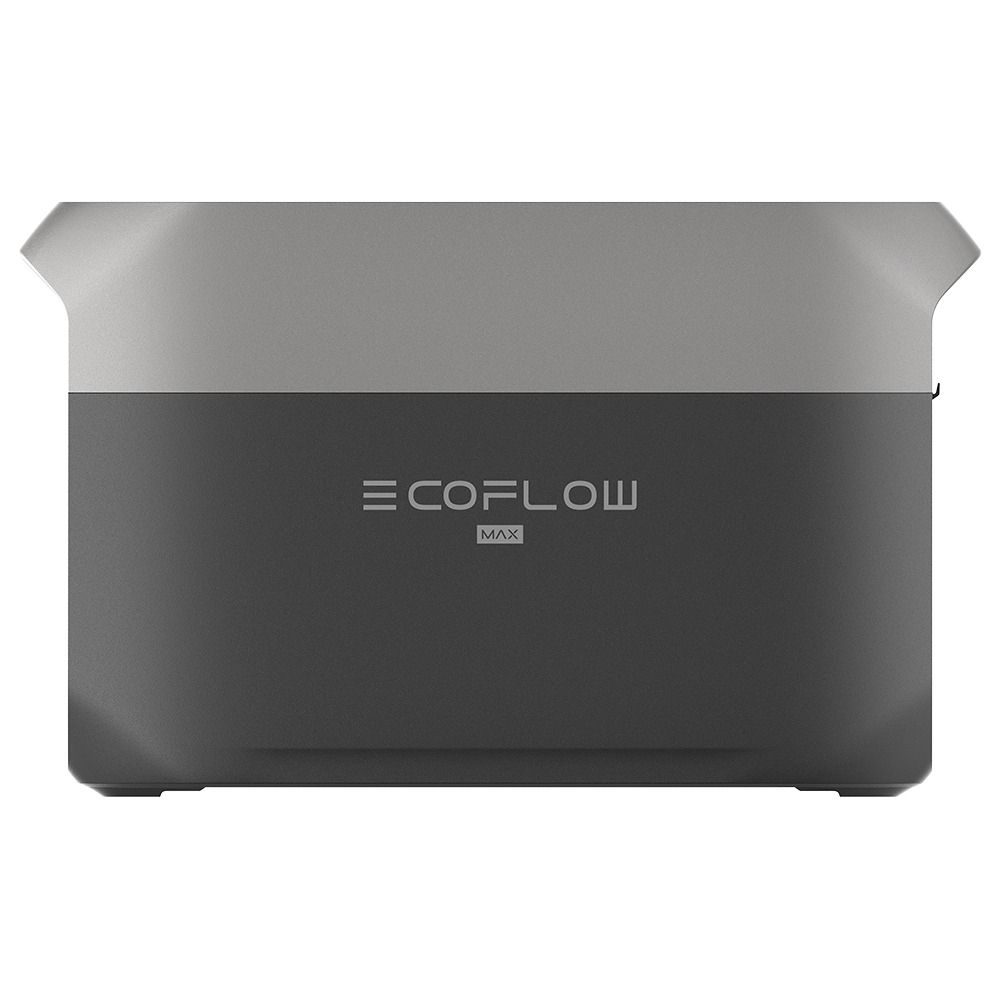

EcoFlow DELTA 3 Max power station 2048 Wh 2400 W LiFePO4

The EcoFlow DELTA 3 Max portable battery station offers a nominal power of 2,400 W and, using the original X-Boost function, is also ready to power some types of appliances with an input power of up to 3,200 W. Its 2,048 Wh battery capacity allows it to supply power to the vast majority of common household appliances and is also suitable as a backup power supply (UPS) in case of mains power outages, with a switchover speed of 10 ms.

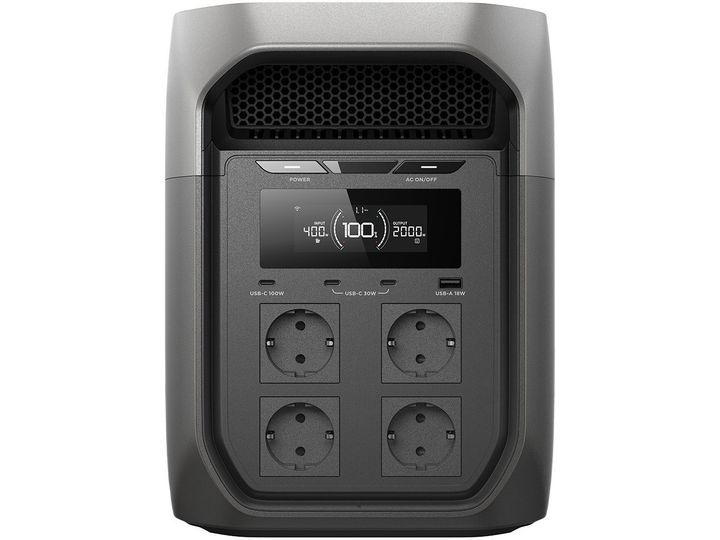

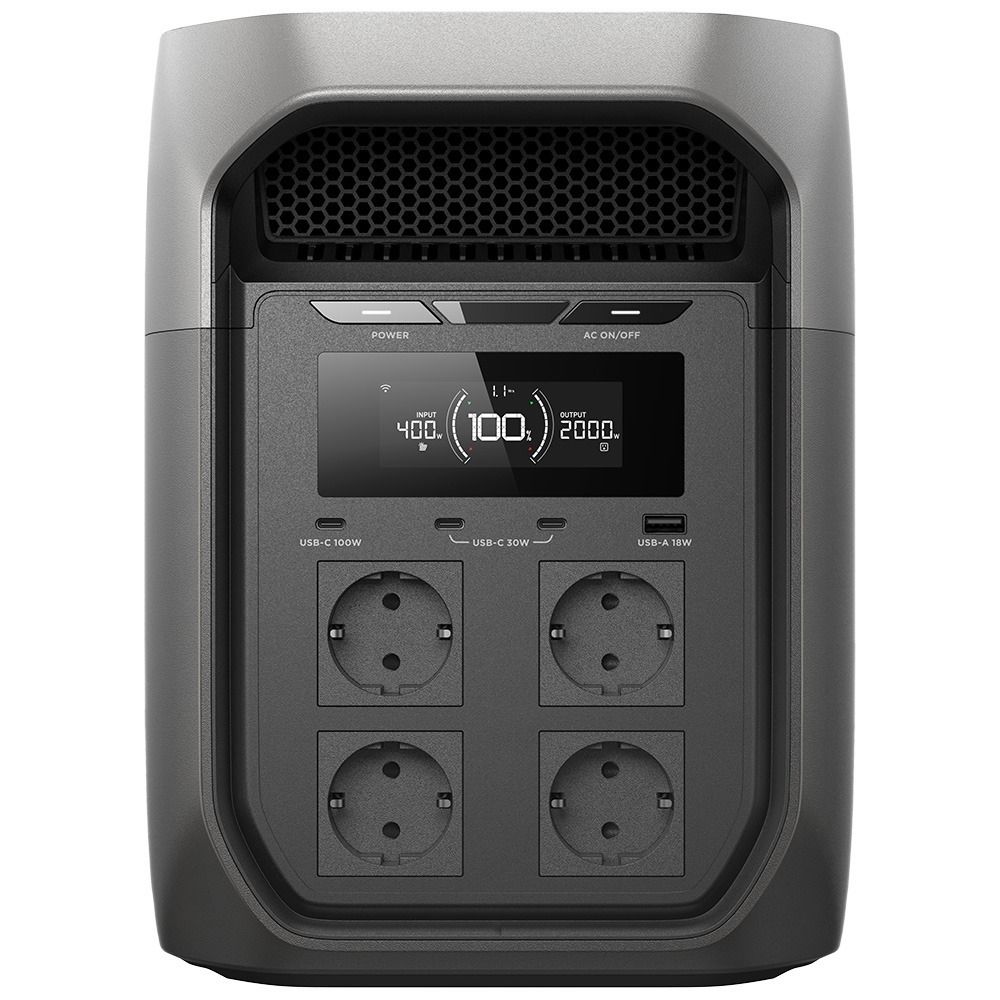

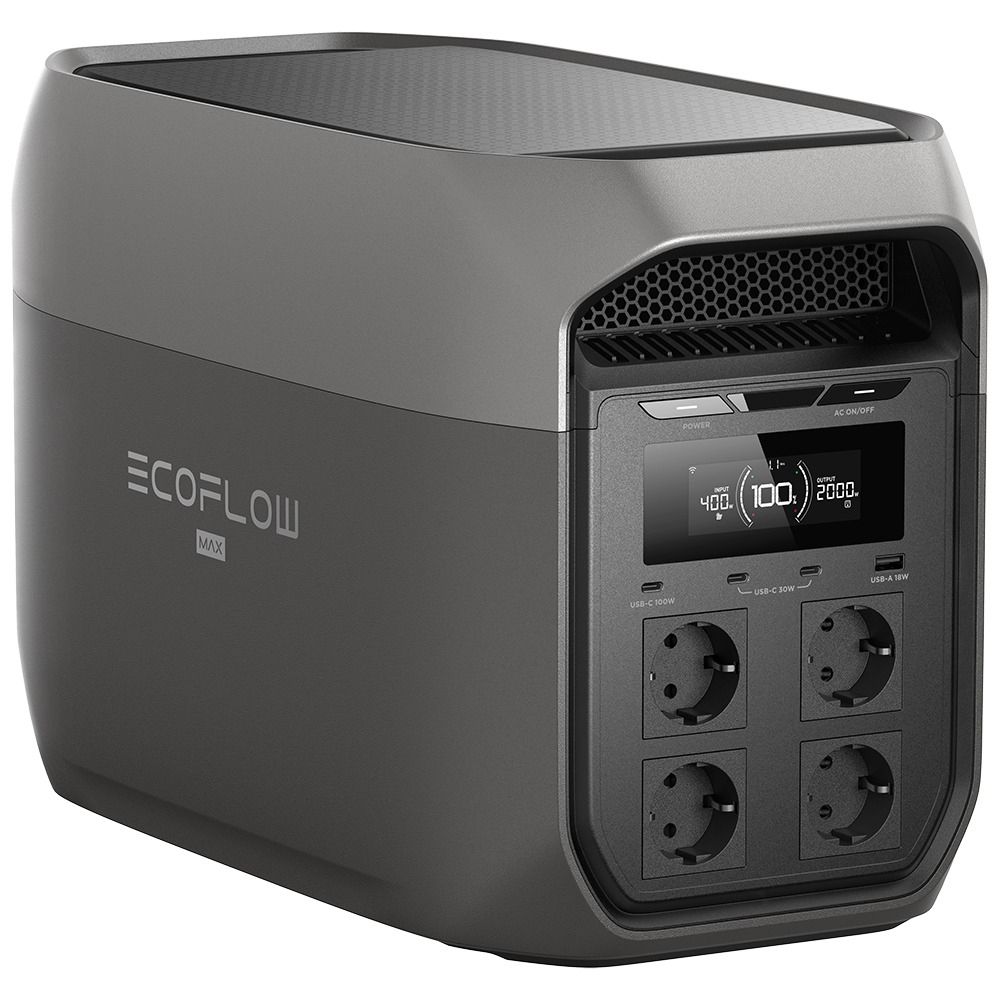

The EcoFlow DELTA 3 Max is a battery station with a LiFePO4 battery and a capacity of 2,048 Wh. It has several outputs, including AC outlets or USB-A and USB-C ports, which can power the vast majority of common appliances and devices. Different charging options allow you to use each method according to your current needs. The station is therefore not only a very reliable but also a very flexible power source. It also has a very spacious display that clearly shows information about the current parameters of its operation.

Many charging methods

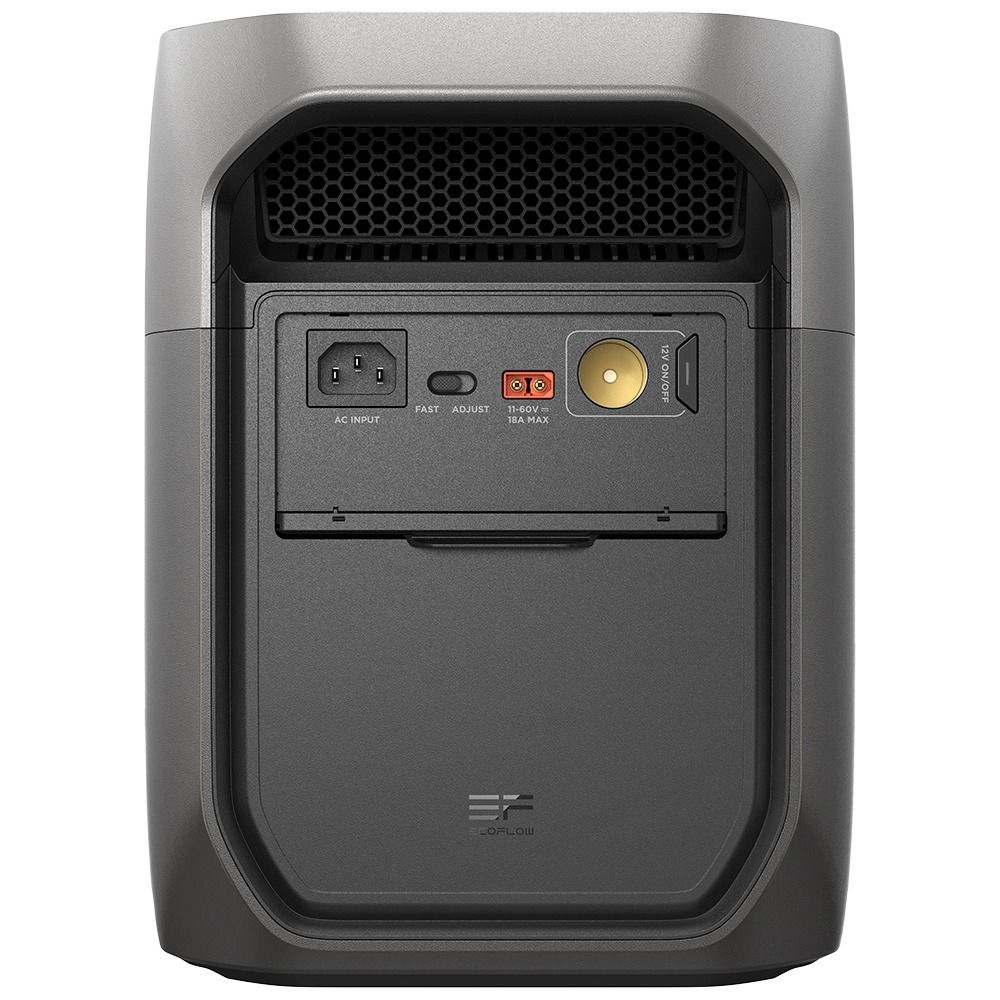

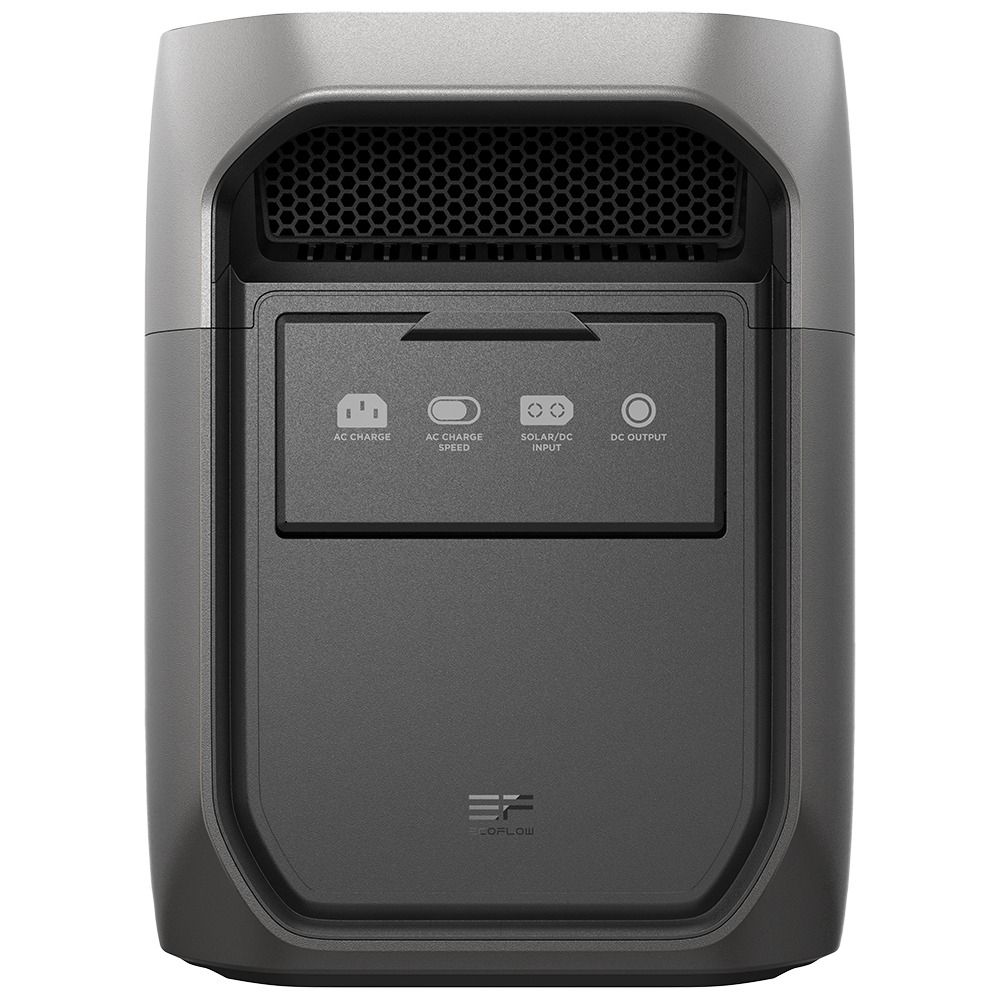

The station is charged via a mains socket, solar panels, car socket or generator. It can also be connected to a PowerStream system with a more comprehensive use of solar energy, which brings, among other things, a reduction in overall costs.

Wide range of power options for appliances
DELTA 3 Max can power the vast majority of common household appliances, including refrigerators, TVs and computers. It is also well suited for use in the countryside or other remote locations, where it can easily power recreational equipment and power work tools.

X-Boost: powering higher wattage appliances
X-Boost is an innovative technology that is exclusive to EcoFlow battery stations and allows this station to power certain appliances with an input power of up to 3,200 watts.

Uninterruptible Power Supply (UPS)
The DELTA 3 Max can also serve as a backup power supply to continuously power important appliances during power outages, with a switching speed of 10 ms.

Remote control with a smart app
Through the EcoFlow smart mobile app, the operation of the station can be monitored and controlled from any location with internet access.


Technical specifications
General
Model: EF-DL-H02-3M
Net weight: approx. 20.3 kg
Dimensions: approx. 494 × 239 × 305 mm
Wi-Fi (2.4G): supported
Bluetooth: supported
Operating altitude: < 3000 m above sea level
Overvoltage category: II
Pollution level: 2
Degree of protection: IP20
UPS: 10 ms

Output
AC output (discharge only)
EU: 230 V ~ 50 Hz, total 2400 W, max 10 A (4x) per port
AC output (Bypass mode)
EU: 220-240 V ~ 50/60 Hz, total 8 A, max. 8 A (4x) per port

USB output ports
USB-A (1x): 5 V ? 3 A / 9 V ? 2 A / 12 V ? 1.5 A, max. 18 W
USB-C (1x): 5 V ? 3 A / 9 V ? 3 A / 12 V ? 3 A / 15 V ? 3 A / 20 V ? 5 A, max. 100 W
USB-C (2x): 5 V ? 3 A / 9 V ? 3 A / 15 V ? 2 A, max. 30 W per port, total 30 W

12V DC output port
12.6 V ? 10 A, total 126 W

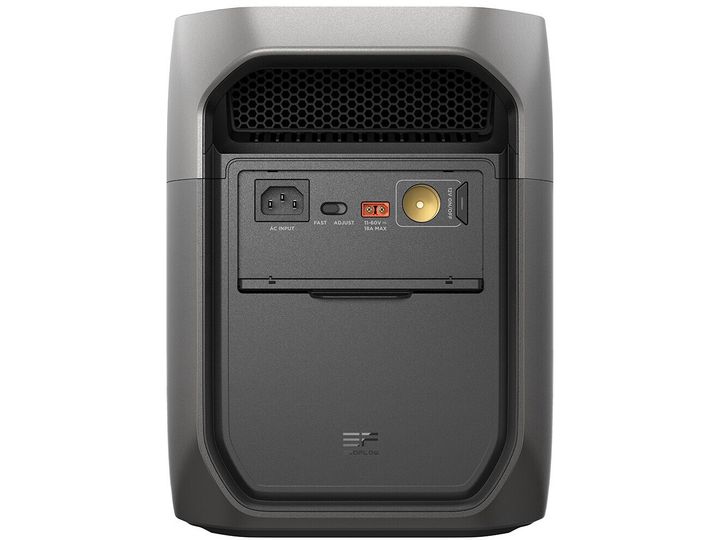

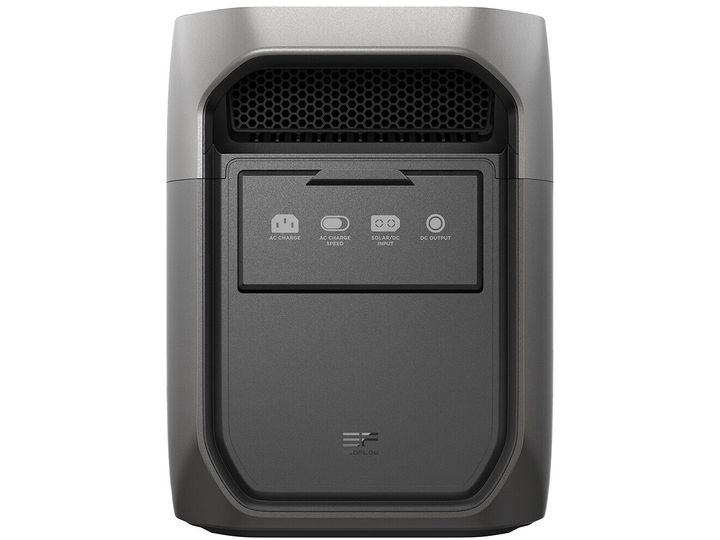

Input
AC input (charging only)
EU: 220-240 V ~ 10 A, 50/60 Hz
AC input (Bypass mode)
EU: 220-240 V ~ 10 A, 50/60 Hz
DC/Solar input
Solar: 11-60 V ? 13 A, max 500 W
DC: 12 V ? max. 8 A, 24 V ? max. 8 A, 48 V ? max. 10.4 A

Battery
Rated capacity: 2048 Wh (51.2 V ? 40 Ah)
Cell type: LFP (LiFePO4)
Protection type: overvoltage protection, overload protection, overheat protection, short circuit protection, low temperature protection, low voltage protection, overcurrent protection.

Ambient temperature
Optimum operating temperature: 20 °C to 30 °C
Charging temperature: 0 °C to 45 °C
Discharge temperature: -10 °C to 45 °C
Storage temperature: -10 °C to 45 °C (optimum 20 °C to 30 °C)

Package contents
1. EcoFlow DELTA 3 Max Portable Battery Station (1 piece)
2. AC charging cable (1 pc)
3. Instructions and warranty card
