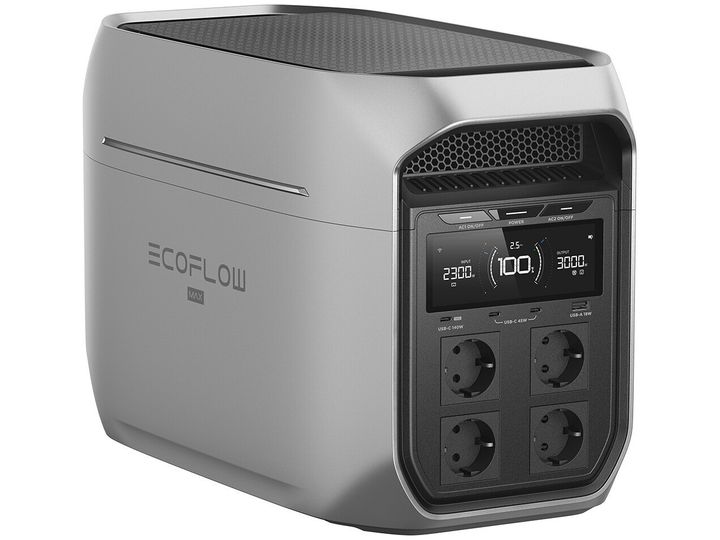

EcoFlow DELTA 3 Max Plus - 2048Wh

EcoFlow DELTA 3 Max Plus leverer kraft i topklasse med en kapacitet på 2048 Wh og en kontinuerlig AC-effekt på 3000 W, hvilket gør den ideel til hjemmet, arbejdspladsen eller længere udendørs eventyr. Den ultrahurtige UPS-funktion på under 10 ms holder kritiske enheder kørende uden afbrydelser, mens AC-hurtigopladning fylder batteriet til 80 % på omkring 47 minutter.

Enheden tilbyder alsidige tilslutningsmuligheder med fire AC-udtag, flere USB-C- og USB-A-porte samt 12 V-udgange til camping- og køretøjsudstyr. DELTA 3 Max Plus er bygget på et robust LFP-batteri (LiFePO4) med lang levetid og kan oplades via vekselstrøm, solpaneler eller køretøj. Systemet kan udvides op til 10 kWh med kompatible ekstra batterier. Via EcoFlow-appen får du fuld kontrol over energiforbrug, planlægning og smarte driftsfunktioner.

Trods den høje ydeevne er DELTA 3 Max Plus stadig transportabel med en vægt på cirka 22,1 kg og kompakte mål på 494 × 242 × 305 mm.

Specifikationer

Generelt

Kapacitet: 2048 Wh (51,2 V / 40 Ah)

Batterikemi: LFP (LiFePO4)

Vægt: 22,1 ± 0,4 kg

Mål (H × B × D): 494 × 242 × 305 mm

Garanti og kommunikation

Garanti: 5 år (3 års standardgaranti + 2 års udvidet garanti ved registrering i EcoFlow-appen)

Kommunikation: Wi-Fi og Bluetooth

UPS-omskiftningstid: <10 ms

EMC-klassificering: Klasse B

Temperaturer

Optimal driftstemperatur: 20 °C til 30 °C

Opladningstemperatur: 0 °C til 45 °C

Afladningstemperatur: -10 °C til 45 °C

Opbevaringstemperatur: -10 °C til 45 °C

Indgang

AC-indgang (kun opladning): 1800 W

Maksimal solcelleindgang (PV): 1000 W

USB-A udgang

USB-A (1 stk.): 5V/3A, 9V/2A, 12V/1,5A

Maksimal effekt: 18 W

USB-C udgange

USB-C (1 stk.): 5V/9V/12V/15V-3A, 20V/28V-5A

Maksimal effekt: 140 W (HID)



USB-C (2 stk.): 5V/9V/12V/15V-3A, 20V-2,25A

Maksimal effekt: 45 W pr. port, samlet 45 W (delt kredsløb)

12 V DC-udgange

Anderson-port: 12,6V-30A, maks. 378 W samlet

Maks. 30 A (deler effekt med cigarettænderudgangen)



Cigarettænderudgang: 12,6V-10A, maks. 126 W samlet

Maks. 10 A (deler effekt med Anderson-porten)

AC-udgange

120V~60Hz

Kontinuerlig effekt: 3000 W samlet

Spidseffekt: 6000 W

4 AC-udtag

Maks. 20 A pr. udtag

X-Boost

Maksimal X-Boost-effekt: 3800 W

The EcoFlow DELTA 3 Max Plus portable battery station offers a nominal power of 3,000 W and a peak power of up to 6,000 W. Using the original X-Boost function, it is also ready to power certain types of appliances with an input power of up to 3,900 W. Its capacity of 2,048 Wh can be expanded with additional batteries up to 12 kWh. It can therefore supply energy to household appliances and more energy-intensive work tools over the long term. It is also suitable as a back-up power supply (UPS) in case of power outages, with a switching speed of 10 ms.
The EcoFlow DELTA 3 Max Plus is a battery station with a LiFePO4 battery, with a base capacity of 2,048 Wh, which is expandable with additional batteries up to 12 kWh. It has several outputs, including AC outlets or USB-A and USB-C ports, making it ready to power home appliances and more energy-intensive work tools. Different charging options allow you to use each method according to your current needs. The station is therefore not only a very reliable but also a very flexible power source. It also has a very spacious display that clearly shows information on the current parameters of its operation.

Many charging methods
The station is charged via a mains socket, solar panels, car socket or generator. It can also be connected to a PowerStream system with a more comprehensive use of solar energy, which brings, among other things, a reduction in overall costs.

Wide range of power options for appliances
DELTA 3 Max Plus can power common household appliances, including refrigerators, TVs and computers. But at the same time, in the countryside or other remote locations, it can easily power recreational equipment and more energy-intensive work tools.

X-Boost: powering higher-power devices
X-Boost is an innovative technology that is exclusive to EcoFlow battery stations and allows this station to power certain appliances with an input power of up to 3,900 watts.

Uninterruptible Power Supply (UPS)
The DELTA 3 Max Plus can also serve as a backup power supply to continuously power important appliances during power outages, with a switchover time of 10 ms.

Expandable capacity
The station is ready to increase its capacity up to 12 kWh by connecting the DELTA 3 Max Extra Battery, DELTA 3 Extra Battery, DELTA Pro 3 Extra Battery or DELTA 2 Extra Battery.

Remote control via smart app
Through the EcoFlow smart mobile app, the operation of the station can be monitored and controlled from any location with internet access.

Technical specifications
General
Model: EF-DL3-MP
Net weight: approx. 22.1 kg
Dimensions (W x D x H): approx. 494 × 242 × 305 mm
Wi-Fi (2.4G): supported
Bluetooth: supported
Operating altitude: < 3,000 m above sea level
Overvoltage category: II
Pollution level: 2
IP protection: IP20
UPS: 10 ms

Output
AC output (discharge only): 230 V ~ 50 Hz, 3,000 W total (surge 6,000 W), 13 A max (4x) per port
AC output (Bypass mode): 220-240 V ~ 50/60 Hz, 3,000 W total, 13 A (4x) max per port
USB-A (1x): 5 V ? 3 A / 9 V ? 2 A / 12 V ? 1.5 A, max. 18 W
USB-C (1x): 5 V ? 3 A / 9 V ? 3 A / 12 V ? 3 A / 15 V ? 3 A / 20 V ? 5 A / 28 V ? 5 A, max. 140 W
USB-C (2x): 5 V ? 3 A / 9 V ? 3 A / 12 V ? 3 A / 15 V ? 3 A / 20 V ? 2.25 A, max. 45 W per port, total 45 W.
12V DC port: 12.6 V ? 30 A, total 378 W (Anderson port max. 30 A, cigarette lighter max. 10 A)

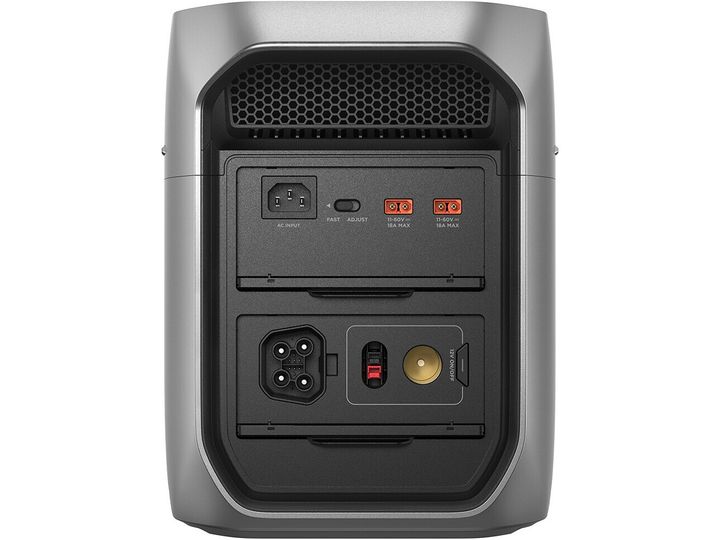

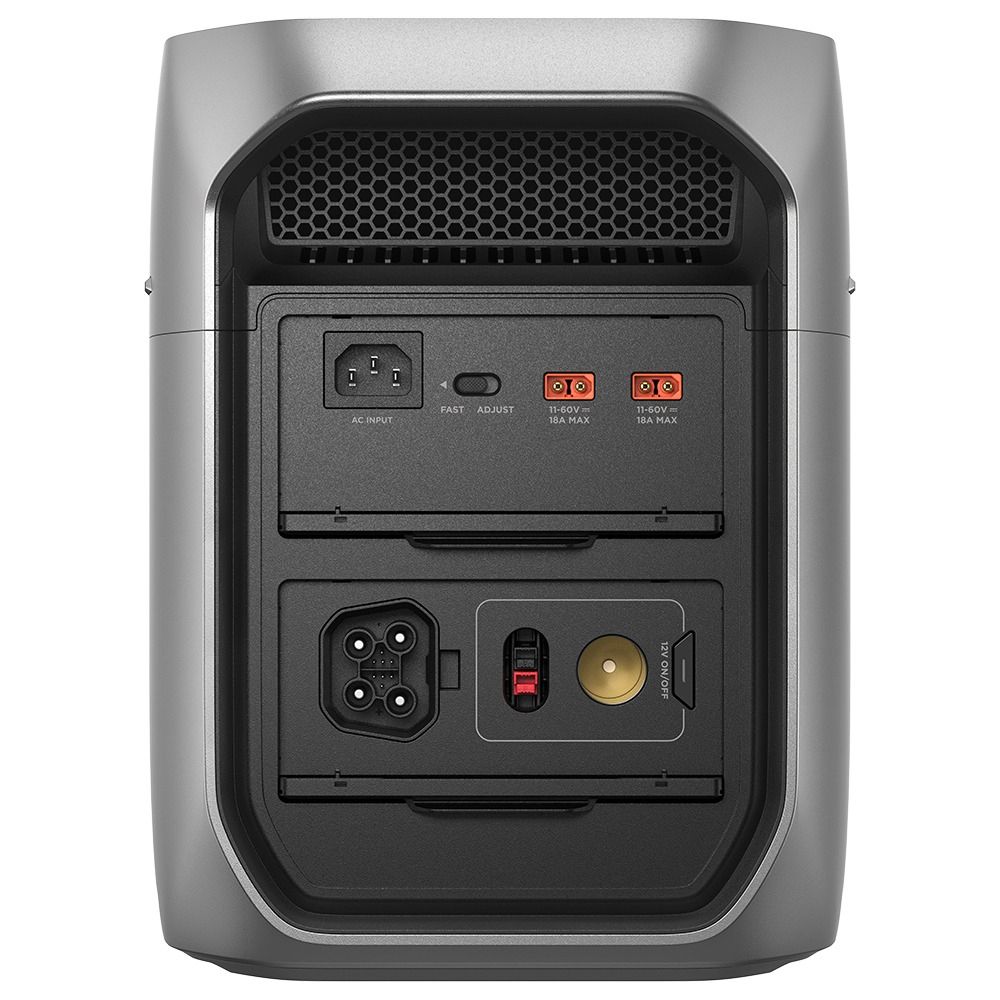

Input
AC input (charging only): 220-240 V ~ 10 A, 50/60 Hz
AC input (Bypass mode): 220-240 V ~ 10 A, 50/60 Hz
DC input: 12 V ? max. 8 A, 24 V ? max. 8 A, 48 V ? max. 10.4 A
Solar input: 11-60 V ? max. 18 A

Battery
Rated capacity: 2048 Wh (51.2 V ? 40 Ah)
Cell type: LFP (LiFePO4)
Protection type: overvoltage protection, overload protection, overheat protection, short circuit protection, low temperature protection, low voltage protection, overcurrent protection.
Additional battery port (input): 43.2-57.6 V ? max 93 A
Additional battery port (output): 43.2-57.6 V ? max 46 A

Ambient temperature
Optimum operating temperature: 20 °C to 30 °C
Charging temperature: 0 °C to 45 °C
Discharge temperature: -10 °C to 45 °C
Storage temperature: -10 °C to 45 °C (optimum 20 °C to 30 °C)

Package contents
1. EcoFlow DELTA 3 Max Plus Portable Battery Station - 1 piece
2. AC charging cable - 1 pc
3. Instructions and warranty card
