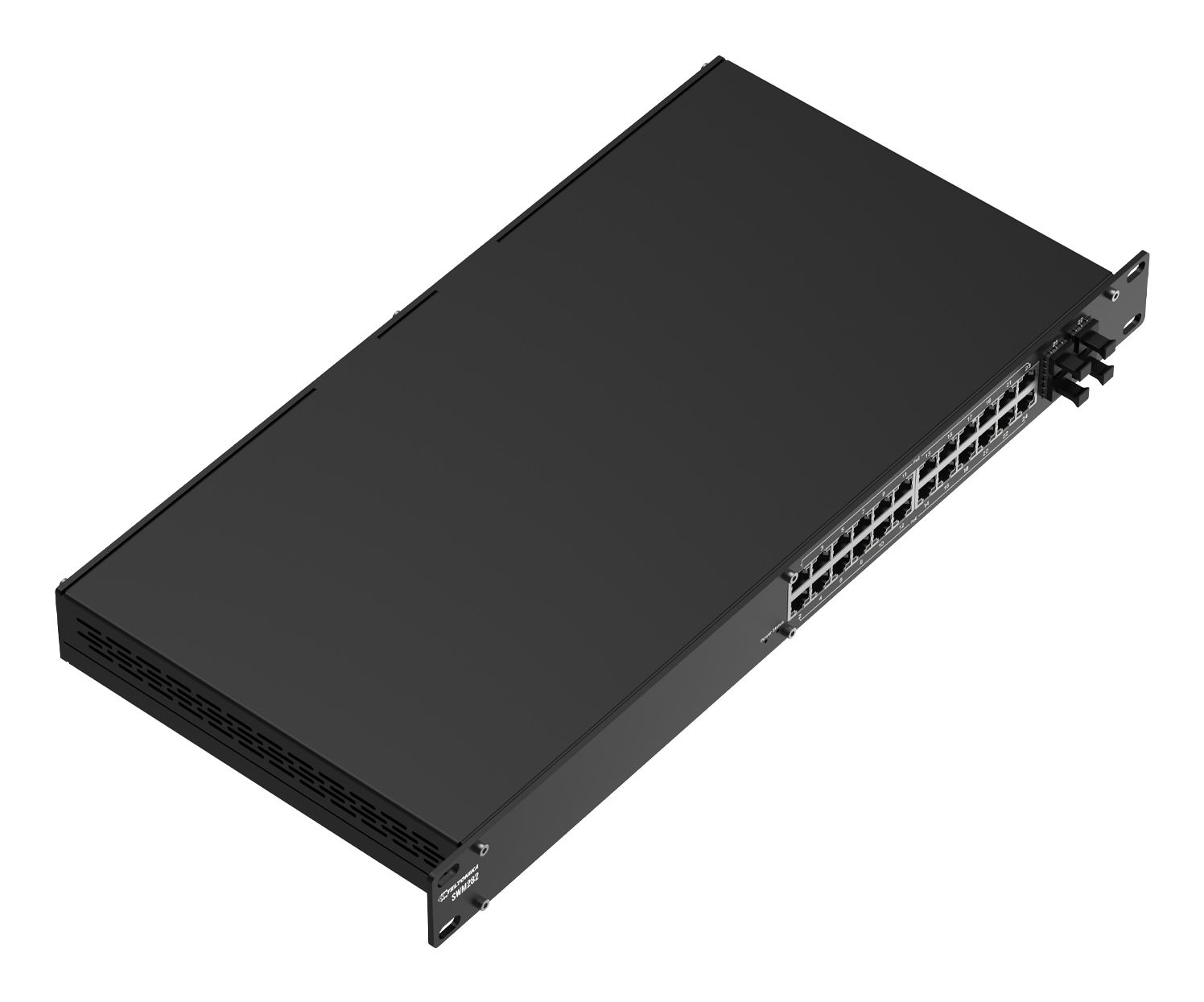

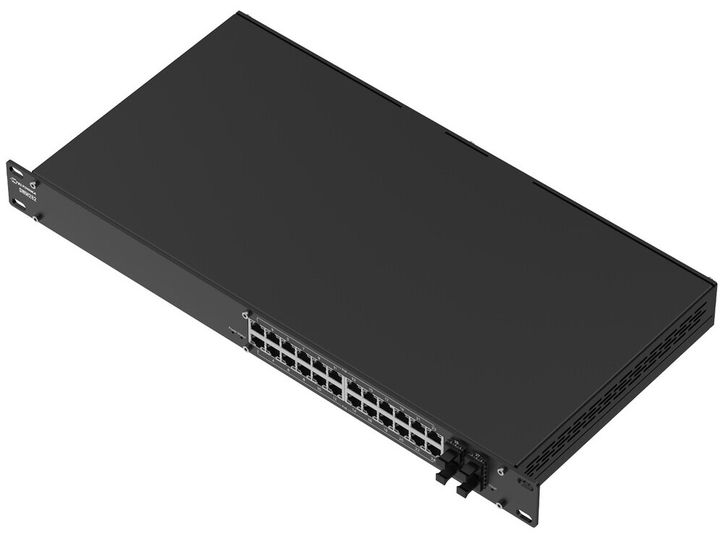

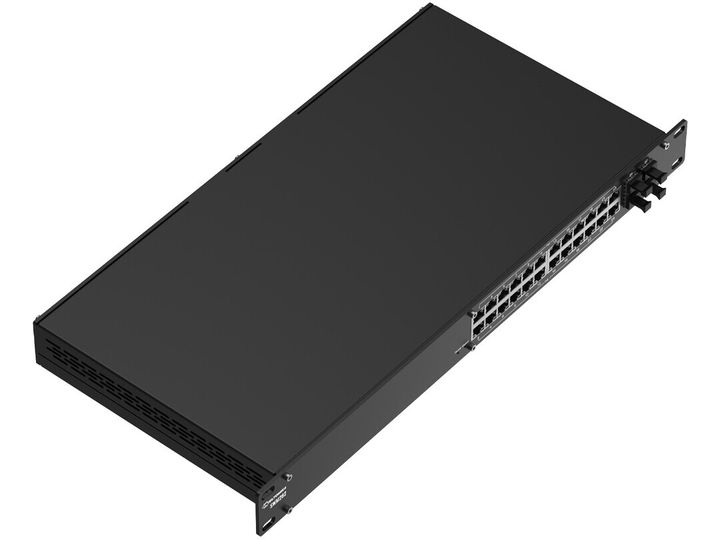

Teltonika SWM282, Managed, L2+, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), Rack mounting

Item no.: [24816808] | Manufacturer: Teltonika | Model no.: SWM282000000 | EAN: 4779051846276

In stock

In stock, order before 5 PM and we ship today (weekdays) More info

There are 5 in stock

The current price is valid as long as the local stock lasts

EUR 297,11

ex. VAT 237,69

Total incl. delivery 312,11

Read further specifications and description

SWM282 PoE+ managed switch
The SWM282 is a high-capacity L2 managed switch with enhanced L3 capabilities, built to simplify network control while delivering power and connectivity at scale. It features 24 PoE+ ports, supplying up to 30 W per port with a total power budget of 300 W, and 4 SFP ports. With support for PROFINET and other industrial protocols, this 24-port switch is an ideal choice for enterprise networks and IIoT solutions.Teltonika SWM282. Switch type: Managed, Switch layer: L2+. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24. MAC address table: 8 entries, Switching capacity: 56 Gbit/s. Networking standards: IEEE 802.3ab, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x. Power over Ethernet (PoE). Rack mounting

Produktbeskrivelse	Teltonika SWM282 - switch - 24 porte - Administreret - monterbar på stativ - med 2 års RMS Management
Enhedstype	Switch - 24 porte - L2+ - Administreret - med 2 års RMS Management
Pakningstype	Monterbar på stativ
Undertype	Gigabit Ethernet

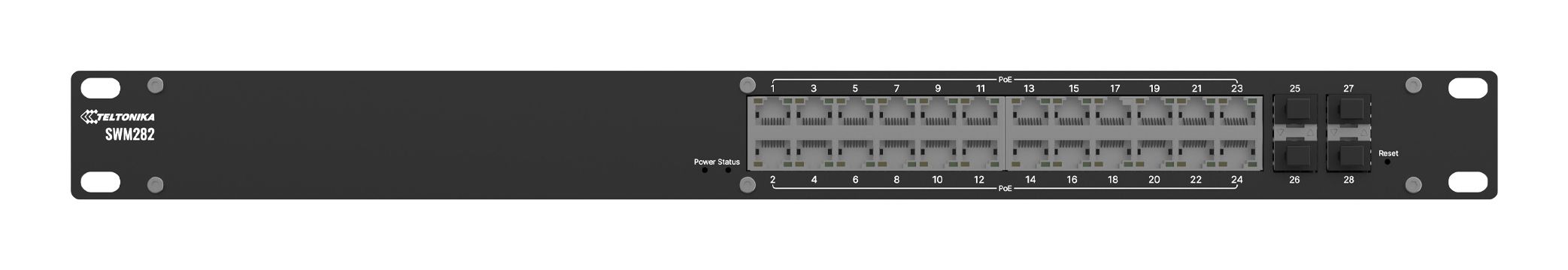

Porte	24 x 10/100/1000 (PoE+) + 4 x Gigabit SFP
Power Over Ethernet (PoE)	PoE+
PoE-budget	300 W
Præstation	Ikke-blokerende båndbredde: 56 Gbps Videresendelseshastighed: 83,33 Mpps
Kapacitet	Pakkebufferstørrelse: 512 KB
MAC adresse table størrelse	8K indtastningshukommelse
Jumborammesupport	10.000 byte
Routingprotokol	BGP, OSPFv2, RIP-1, RIP-2, EIGRP, statisk IPv4 routing, statisk IPv6 routing
Protokol til fjernadministration	IPv4, IPv6, SNMP 2, SNMP 3
Egenskaber	VLAN-segmentering, Teltonika RMS, Auto-MDI/MDIX support, løkkebeskyttelse, VLAN-understøttet, RSTP support, STP support, DHCP server, DHCP klient, portisolering, PoE-administration, portspejling, DHCPv6 klient, 802.1x autentificering, MAC-adresse-filtrering, FOTA, nulstillingsknap, anodiseret aluminiumskabinet, EtherNet/IP-aktiveret, LLDP Neighbor Discovery, EEE, portprioritet, DSCP-prioritering, ToS, SP, WFQ, WRR, tempogrænse, Storm Control, traffic-shaping, Cable Diagnostics Function, traceroute, dynamisk routing, PAM, CoS, MRP, Auto MDIX, SP
Overensstemmelsesstandarder	IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3az, IEEE 802.3af, IEEE 802.3at, IEEE 802.1p, IEEE 802.1x, IEEE 802.1Q
Effekt	AC 100-240 V (50/60 Hz) - strømforsyning ikke installeret
Dimensioner (B x D x H)	48.3 cm x 23.4 cm x 4.4 cm
Vægt	2.291 kg
Producentgaranti	2 års garanti

Generelt
Enhedstype	Switch - 24 porte - L2+ - Administreret - med 2 års RMS Management
Pakningstype	Monterbar på stativ
Undertype	Gigabit Ethernet
Porte	24 x 10/100/1000 (PoE+) + 4 x Gigabit SFP
Power Over Ethernet (PoE)	PoE+
PoE-budget	300 W
Præstation	Ikke-blokerende båndbredde: 56 Gbps Videresendelseshastighed: 83,33 Mpps
Kapacitet	Pakkebufferstørrelse: 512 KB
MAC adresse table størrelse	8K indtastningshukommelse
Jumborammesupport	10.000 byte
Routingprotokol	BGP, OSPFv2, RIP-1, RIP-2, EIGRP, statisk IPv4 routing, statisk IPv6 routing
Protokol til fjernadministration	IPv4, IPv6, SNMP 2, SNMP 3
Autentificeringsmetode	RADIUS, TACACS
Egenskaber	VLAN-segmentering, Teltonika RMS, Auto-MDI/MDIX support, løkkebeskyttelse, VLAN-understøttet, RSTP support, STP support, DHCP server, DHCP klient, portisolering, PoE-administration, portspejling, DHCPv6 klient, 802.1x autentificering, MAC-adresse-filtrering, FOTA, nulstillingsknap, anodiseret aluminiumskabinet, EtherNet/IP-aktiveret, LLDP Neighbor Discovery, EEE, portprioritet, DSCP-prioritering, ToS, SP, WFQ, WRR, tempogrænse, Storm Control, traffic-shaping, Cable Diagnostics Function, traceroute, dynamisk routing, PAM, CoS, MRP, Auto MDIX, SP
Overensstemmelsesstandarder	IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3az, IEEE 802.3af, IEEE 802.3at, IEEE 802.1p, IEEE 802.1x, IEEE 802.1Q
Processor	1 x Realtek Semiconductor MIPS 4Kec: 500 MHz
RAM	128 MB DDR3 SDRAM
Flashhukommelse	16 MB
Statusindikatorer	Strøm, SFP, netværk, status
Ekspansion / Konnektivitet
Interface	24 x 10/100/1000 Base-T RJ-45 PoE+ - 30 W 4 x 1000Base-X SFP
Effekt
Strømenhed	Intern strømforsyning (ikke installeret)
Nødvendig spænding	AC 100-240 V (50/60 Hz)
Strømforbrugs-stand by	9 Watt
Diverse
Rackmonteringspakke	Valgfri
Overensstemmelsesstandarder	IP30, UKCA, CB, RCM, FCC, IC, RoHS, REACH
Programmer / Systemkrav
Med software	SwmOS
Mål og vægt
Bredde	48.3 cm
Dybde	23.4 cm
Højde	4.4 cm
Vægt	2.291 kg
Mål & vægt (forsendelse)
Bredde ved forsendelse	51 cm
Dybde ved forsendelse	31.8 cm
Højde ved forsendelse	7.3 cm
Producentgaranti
Service & Support	Begrænset garanti - 2 år
Miljømæssige parametre
Min. driftstemperatur	0 °C
Maks. driftstemperatur	50 °C
Fugtighedsgrad ved brug	10 - 90 % (ikke-kondenserende)

The item is known under the following item numbers in our system

EAN:	4779051846276
EAN:	4779051844050
SKU:	SWM282

Why do I find that the same product is available on different item numbers?

Manufacturers often release the same product with different item numbers, typically just different versions of the packaging. For example, the packaging may be targeted at different countries. We try our best to unify the products, but it can happen that the same product appears on different item numbers in our system.
