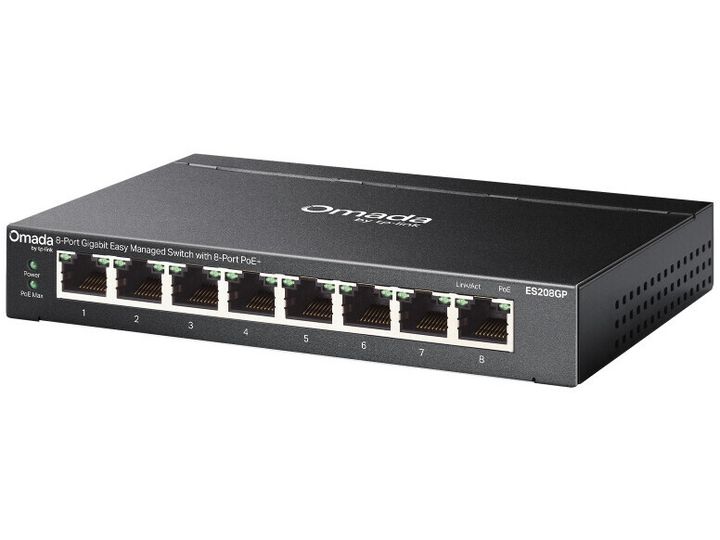

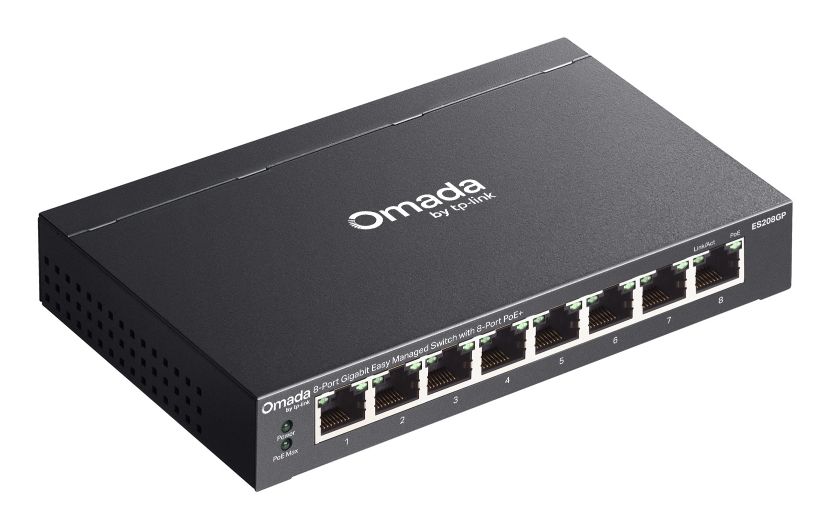

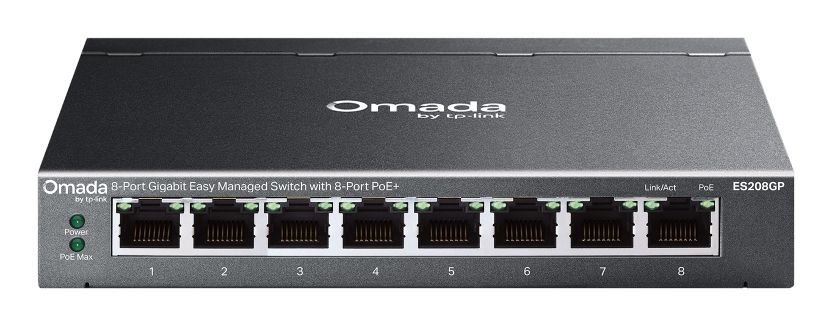

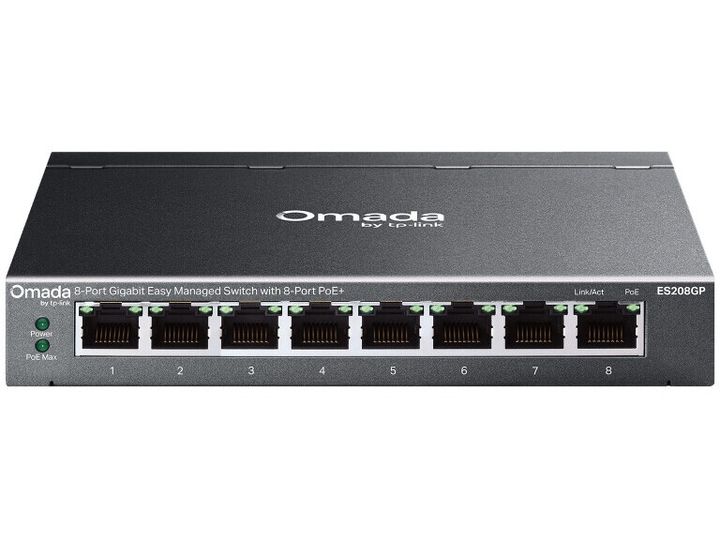

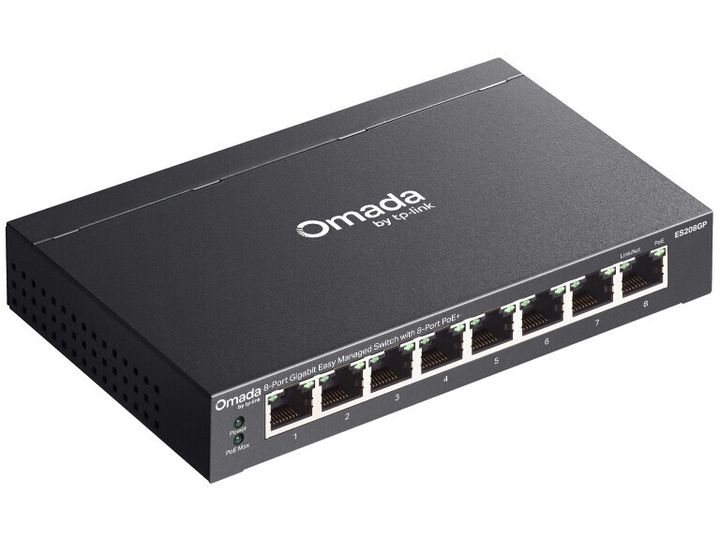

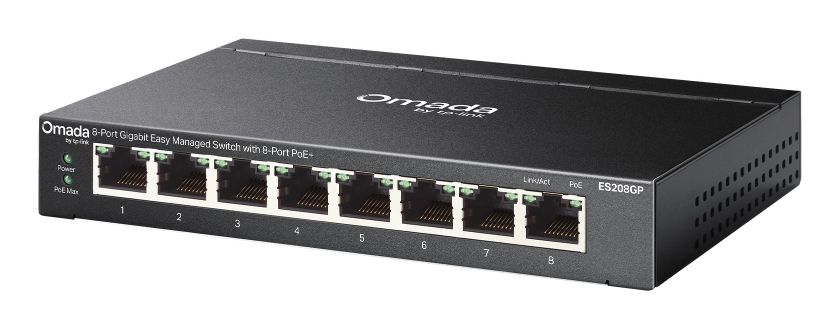

The powerful and flexible PoE+ switch for modern networks offers 8 gigabit RJ45 ports with PoE+ support, allowing you to power devices directly over an Ethernet cable without the need for a separate power supply. With a total power budget of up to 64W and up to 30W per port, it is ideal for IP cameras, access points or IP phones. With the ability to transmit power up to 240 meters, the switch can also power remote devices.
Easy management and reliable operation Centralized management via the cloud via a web interface or the Omada app enables easy configuration and monitoring of the entire network. Features such as QoS, VLANs, IGMP snooping and port isolation ensure stability, security and prioritization of network traffic. The remote reboot function of IP cameras is also practical, allowing easy management of security systems.

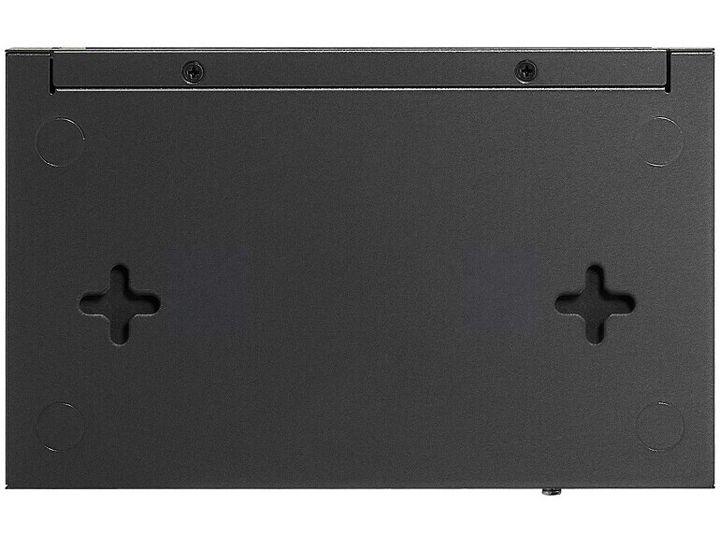

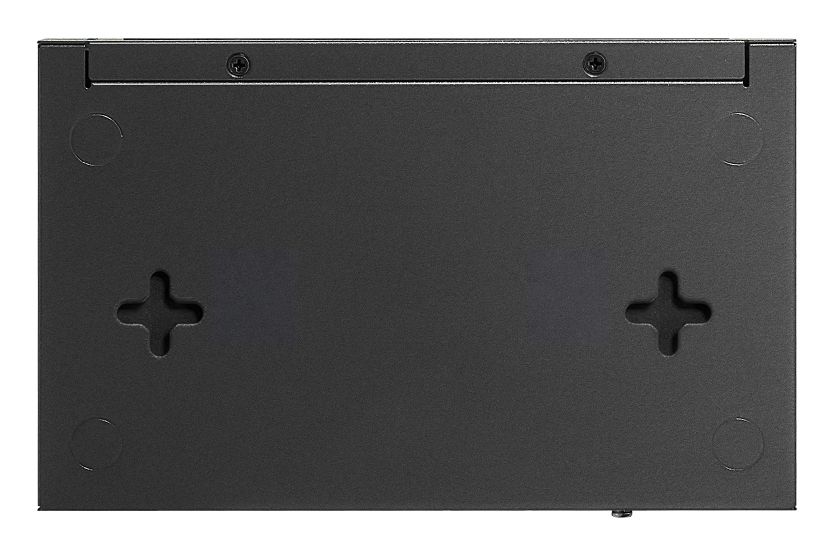

Resilience and silent operation for office environments The rugged metal housing and the option of desk or wall mounting bring flexibility to installation. Thanks to the fanless design, operation is completely silent, which is especially appreciated in offices or homes. The reliable switch supports both PoE power for devices and standard wired connections for computers, printers or other network components.
Key Features
8 gigabit RJ45 ports with PoE+ support Total power budget 64 W, up to 30 W per port PoE transmission up to 240 meters Centralized management via the cloud (Omada web/app) Remote reboot of IP cameras Metal housing and desk or wall mounting
Switch type
Managed
Switch layer
L2
Quality of Service (QoS) support
Yes
Web-based management
Yes
Cloud-managed
Yes
Basic switching RJ-45 Ethernet ports quantity
8
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Networking standards
IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
10G support
No
Port mirroring
Yes
Flow control support
Yes
Link aggregation
Yes
Broadcast storm control
Yes
Auto MDI/MDI-X
Yes
Ethernet LAN data rates
10,100,1000 Mbit/s
Auto-negotiation
Yes
VLAN support
Yes
Virtual LAN features
MTU VLAN, Port-based VLAN, Tagged VLAN
Number of VLANs
4000
Transmission distance (max)
0.25 km
MAC address table
8000 entries
Switching capacity
16 Gbit/s
Forwarding rate
11.904 Mpps
Store-and-forward
Yes
Jumbo frames support
Yes
Jumbo frames
15000
Packet buffer memory
0.5 MB
DHCP features
DHCP client
IGMP snooping
Yes
Loop protection
Yes
Multicast support
Yes
Rack mounting
Yes
Form factor
DIN rail
Product colour
Black
LED indicators
Yes
Power source
DC
DC input voltage
53 V
Input current
1.31 A
Power over Ethernet (PoE)
Yes
Power over Ethernet (PoE) type supported
PoE+
Power over Ethernet plus (PoE+) ports quantity
8
Total Power over Ethernet (PoE) budget
64 W
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
40 - 70 °C
Operating relative humidity (H-H)
10 - 90%
Storage relative humidity (H-H)
5 - 90%
Width
158 mm
Depth
100.7 mm
Height
25.4 mm
Cables included
Power
Quick start guide
Yes
Compliance certificates
CE, Federal Communications Commission (FCC), RoHS
