InLine 35396B, USB 3.2 Gen 1 (3.1 Gen 1) Type-B, USB 3.2 Gen 1 (3.1 Gen 1) Type-A, 5000 Mbit/s, Black, Aluminium, DC

Robust aluminium housing for industrial use:The durable housing provides reliable protection in harsh environments and enables long-term use in professional settings.

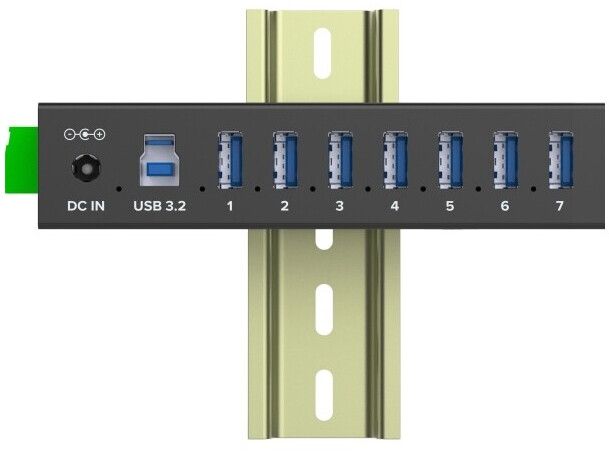

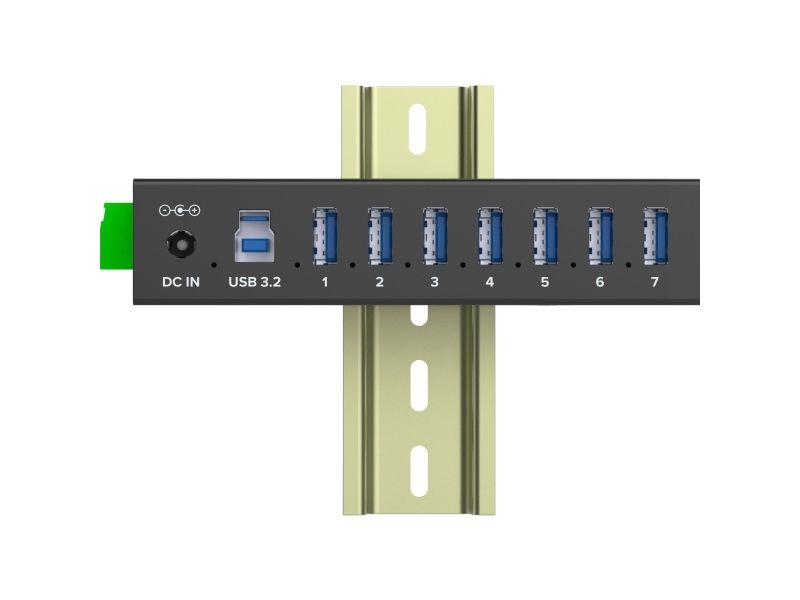

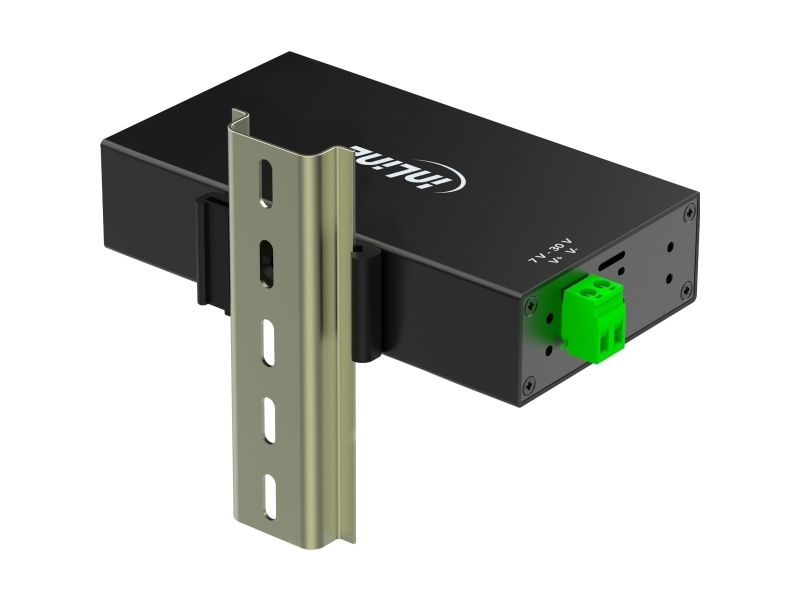

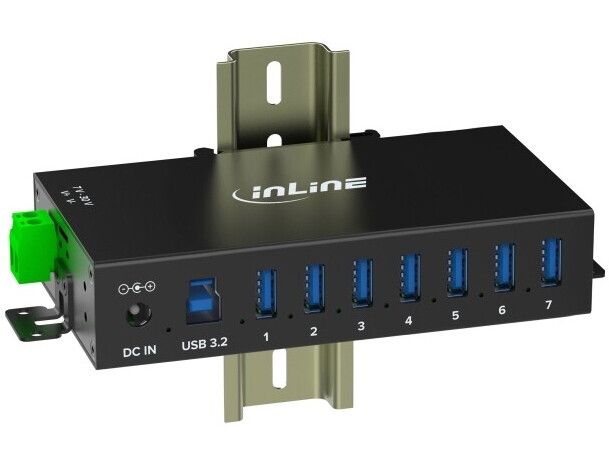

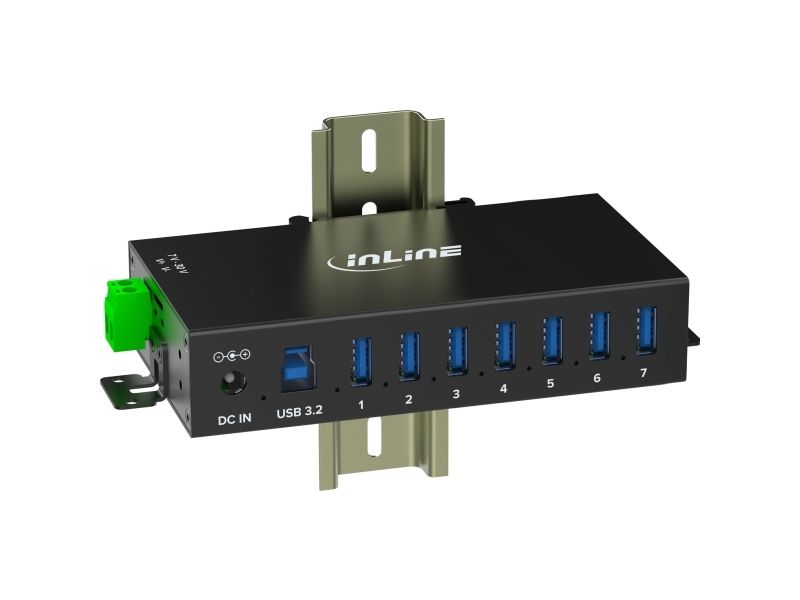

DIN rail and wall mounting:Flexible mounting options ensure secure and space-saving integration in control cabinets and technical rooms.
Powerful USB 3.2 Gen.1 ports:Seven USB-A ports provide reliable data transfer at up to 5 Gb/s – ideal for industrial applications.
Extended protection for maximum operational reliability:Integrated short-circuit, overvoltage and ESD protection ensures safe continuous operation.
Flexible power supply:Optional power supply via power adapter or terminal block – adapts perfectly to the conditions on site.

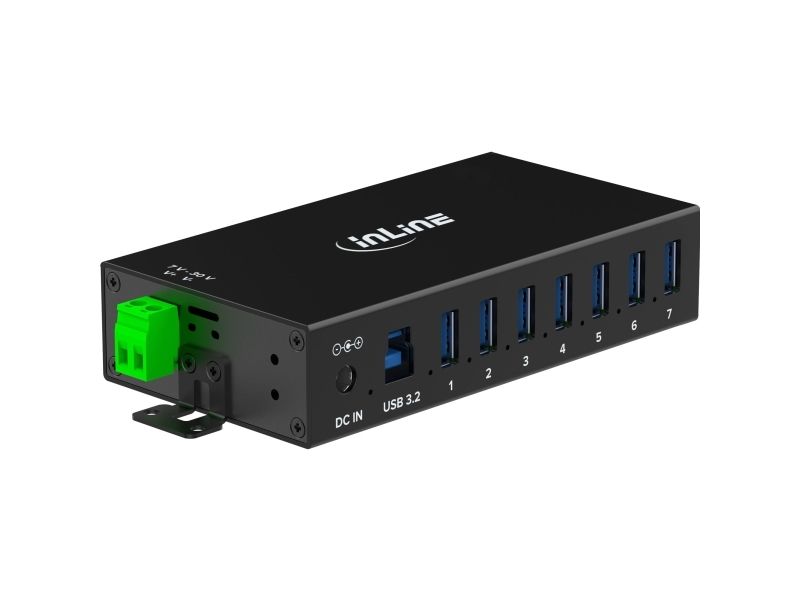

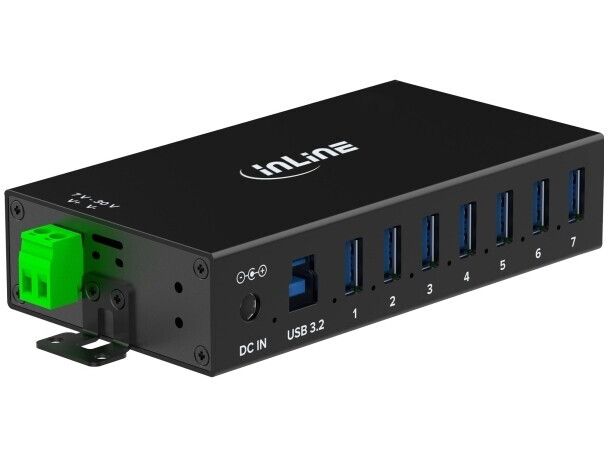

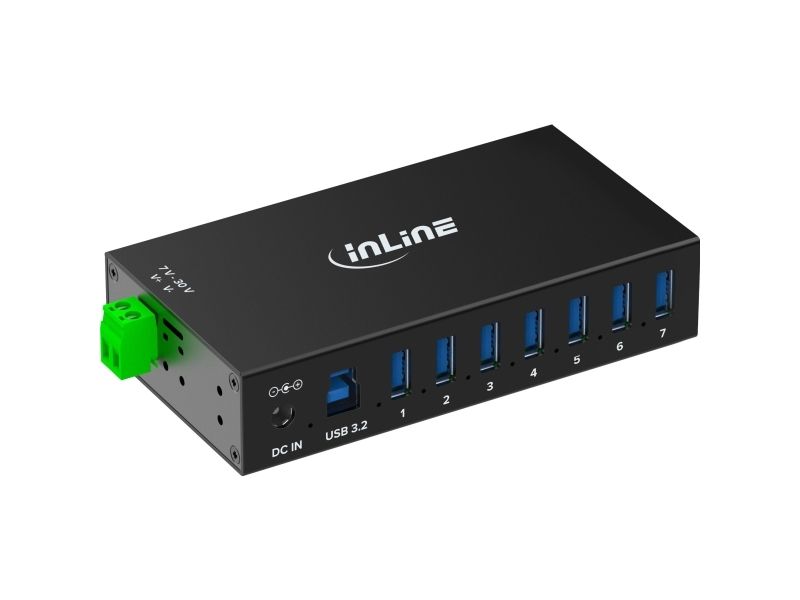

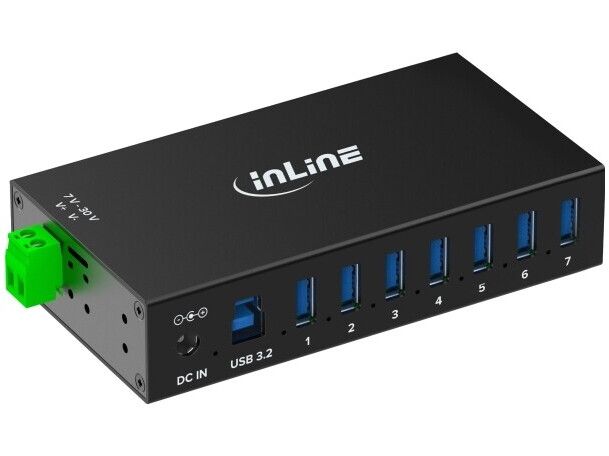

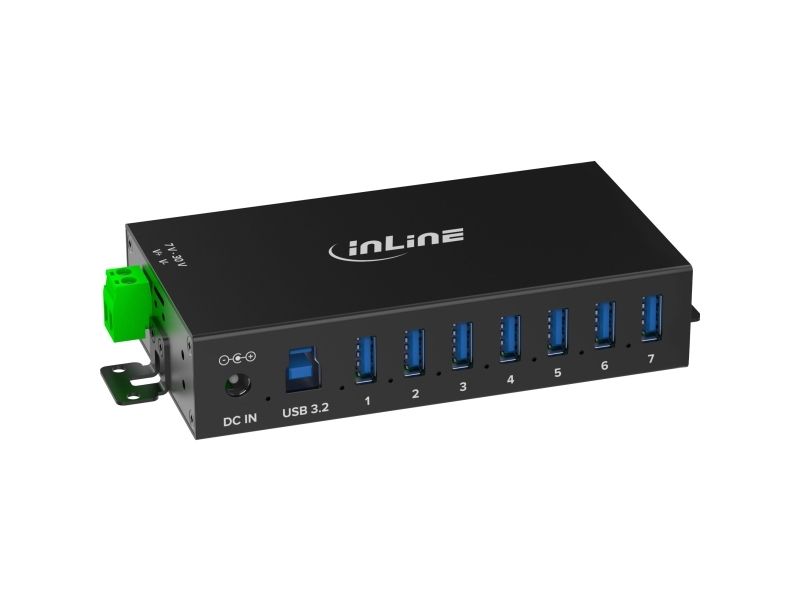

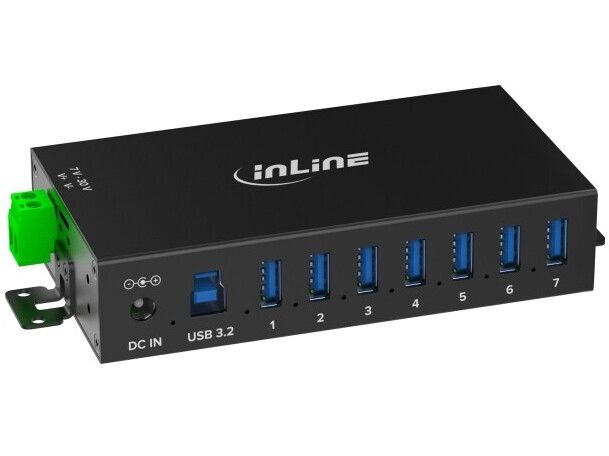

The InLine® USB 3.2 Gen.1 Industrial Hub is specially designed for professional use in demanding conditions. With seven powerful USB-A 3.2 Gen.1 ports and a maximum transfer rate of 5 Gb/s, it is a reliable connection solution for industrial IT and control systems. The high-quality aluminium housing protects against mechanical stress and enables safe operation even in extreme ambient temperatures from -40 °C to +85 °C. Thanks to flexible mounting options – DIN rail or wall mount – the hub can be easily integrated into existing infrastructures.
Integrated protection against short circuits, overvoltage and electrostatic discharge ensures additional safety during operation. Power is supplied either via a supplied external power supply unit or alternatively via a 2-pin terminal connection. This makes the hub particularly flexible in use – from control cabinets and machine controls to technical rooms in IT infrastructure.
Compatibility with Windows, MacOS and Linux, as well as easy plug & play commissioning, make the industrial hub a versatile interface solution for professional applications.

Chipset: VL817*2
Inputs:
– 1x USB-B port for connection to host computer
– 1x DC IN (5.5 x 2.5 mm)

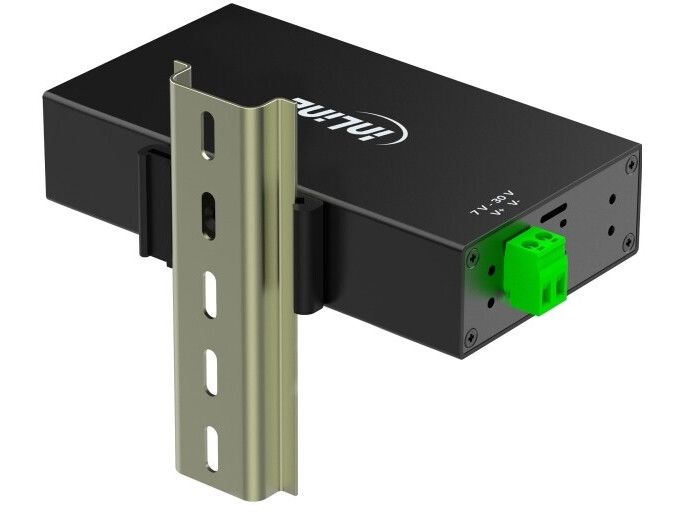

– 1x alternative 2-pin terminal connection
Outputs:
– 7x USB-A 3.2 Gen.1 ports (5 Gb/s)
– BC1.2 charging specification: Yes (max. 5 V / 2 A per port)
Protection mechanisms:
– Short circuit, overcurrent, overvoltage
– ESD/antistatic protection: 350 W
Housing: Aluminium, black
Mounting: DIN rail or wall mount
LED indicator: Yes
Plug & Play: No drivers required
Standby power consumption: 0.07 W
Operating temperature: -40 °C to +85 °C Storage temperature: -40 °C to +125 °C Humidity: 10–85% (non-condensing) Operating systems: Windows, MacOS, Linux
Dimensions: 127.8 x 68 x 28 mm
Weight: 180 g

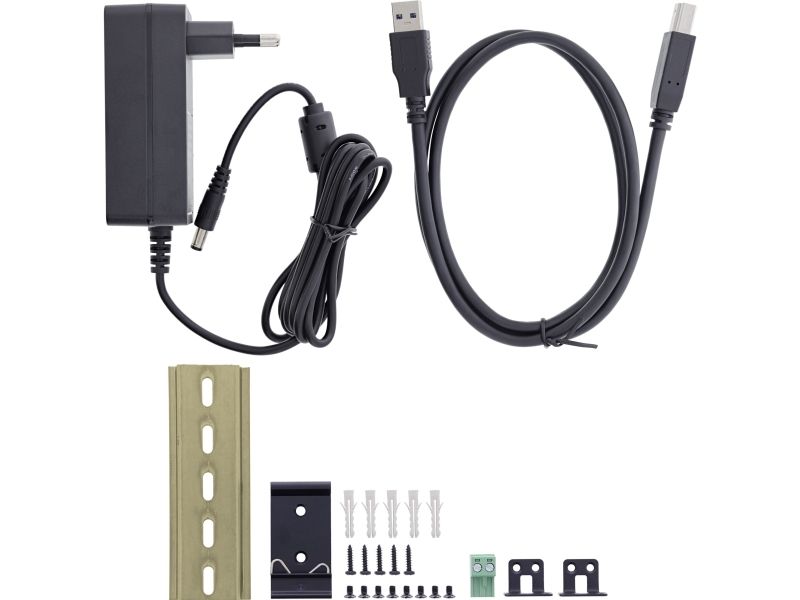

Scope of delivery:
– 1x InLine® USB 3.2 Gen.1 industrial hub, 7 ports, aluminium housing, with power supply
– 1x USB-A to USB-B cable, 1 m
– 1x mounting kit
– 1x DIN rail 10 cm & clip
– 1x terminal block
– 1x external power supply unit 12 V / 4 A
– 1x user manual in German/English
External power supply (power supply unit):
– Type: external plug-in power supply
– Input voltage: 100–240 V AC, 50/60 Hz
– Output voltage: 12.0 V DC
– Output current: max. 4.0 A
– Output power: 48.0 W
– Average operating efficiency: 88.59%
– Efficiency at low load (10%): 87.92%
– Power consumption at zero load: 0.07 W
