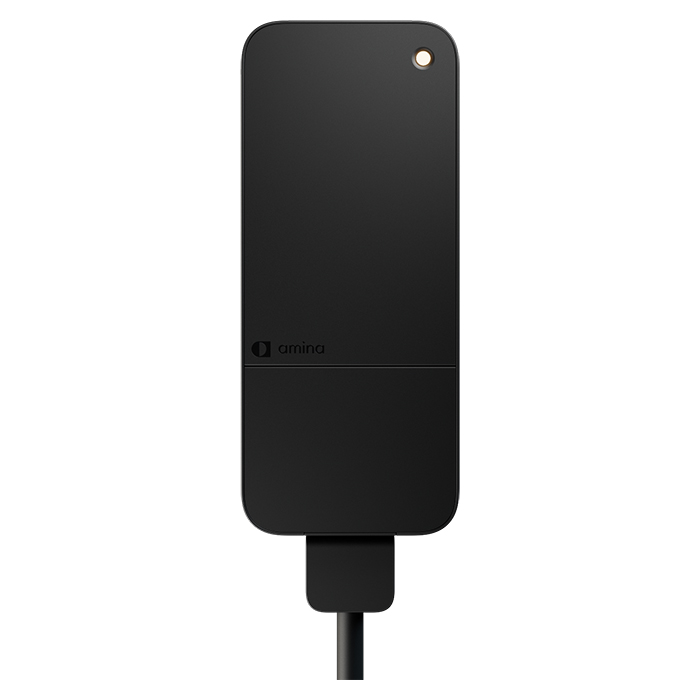

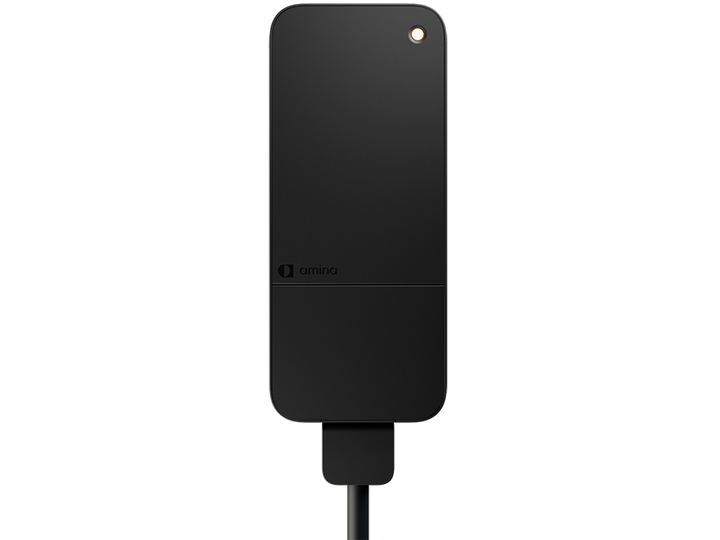

Amina S Charging box with charging cable - 11 kW

Amina S 11 kW Charging Station – Compact Charging for Electric Cars and Plug-in Hybrids

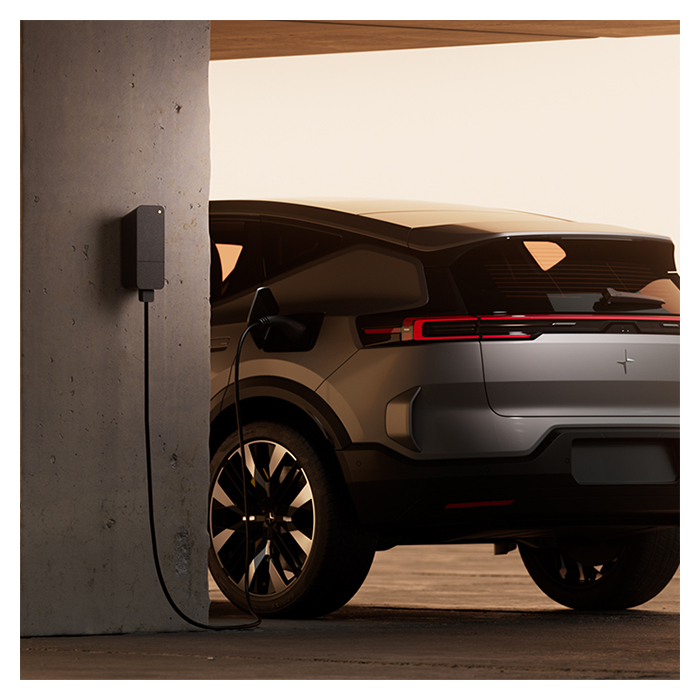

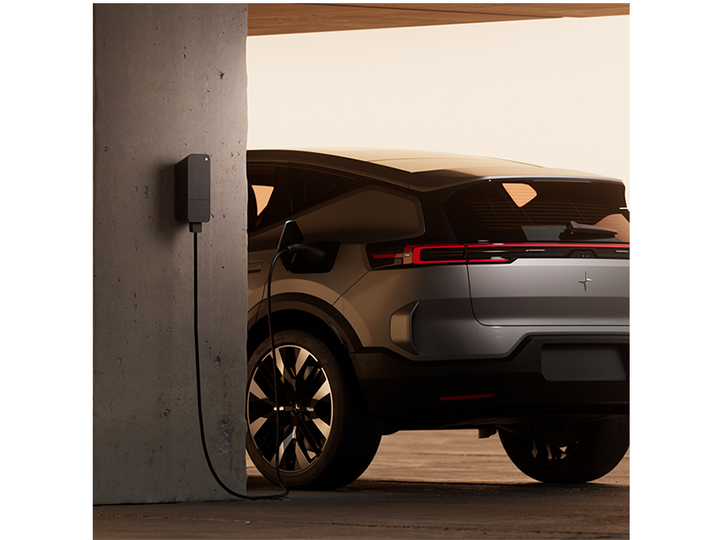

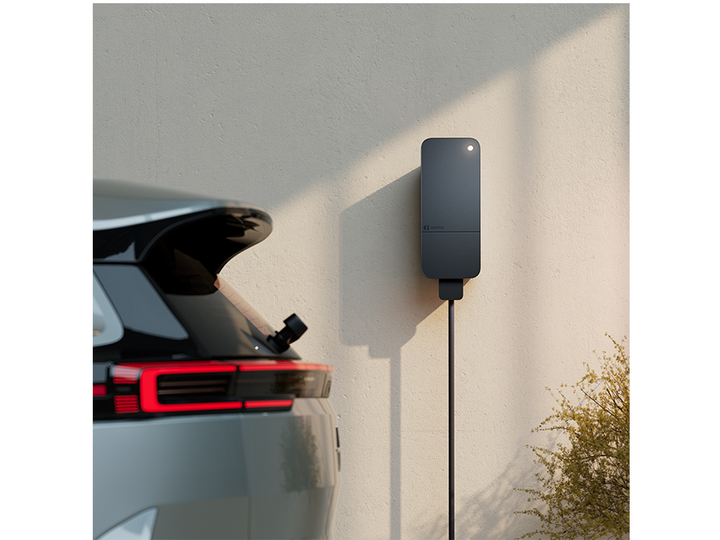

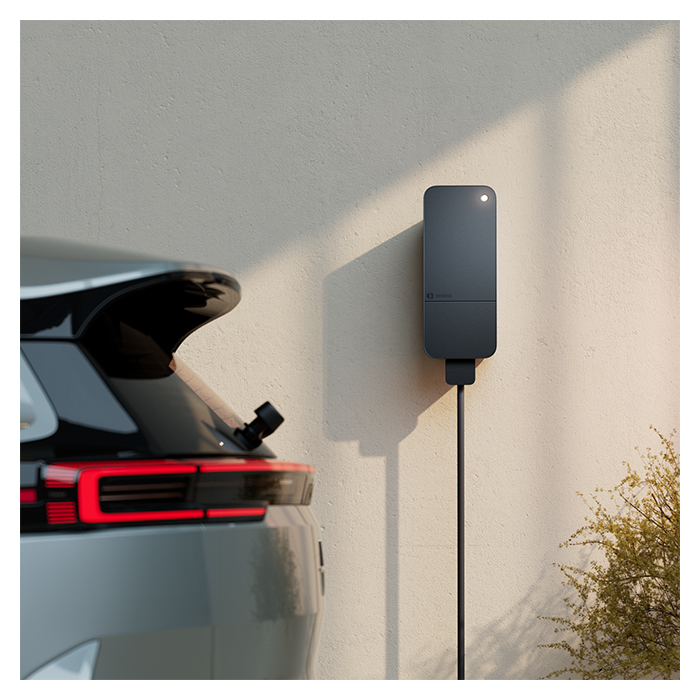

The Amina S 11 kW charging station is a compact and user-friendly solution for charging electric cars or plug-in hybrids at home. The charging station is developed and manufactured in Norway with a focus on Nordic conditions and combines 3-phase charging with a discreet Scandinavian design that takes up minimal space on the exterior wall of your home, in the carport, or in the garage.

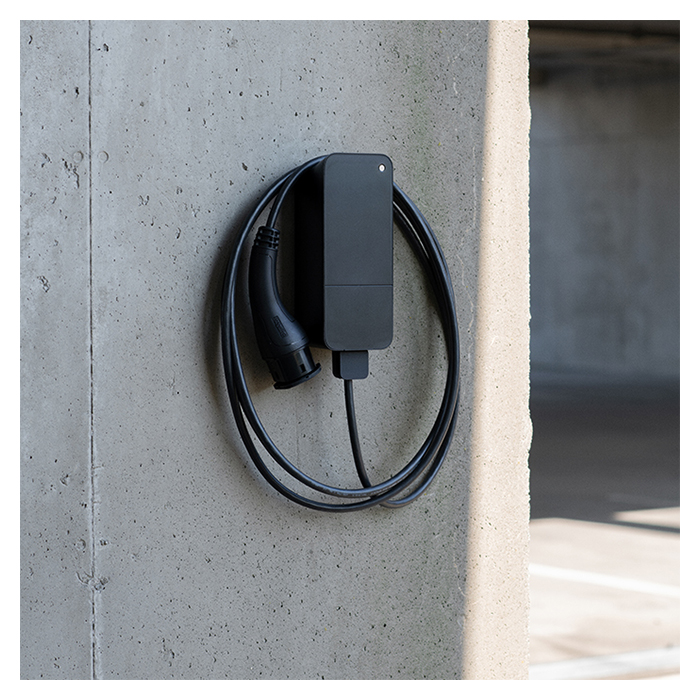

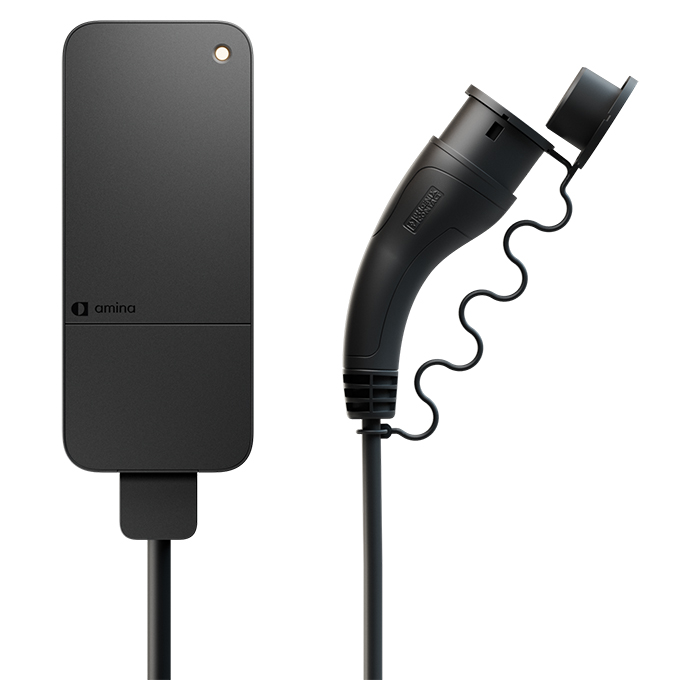

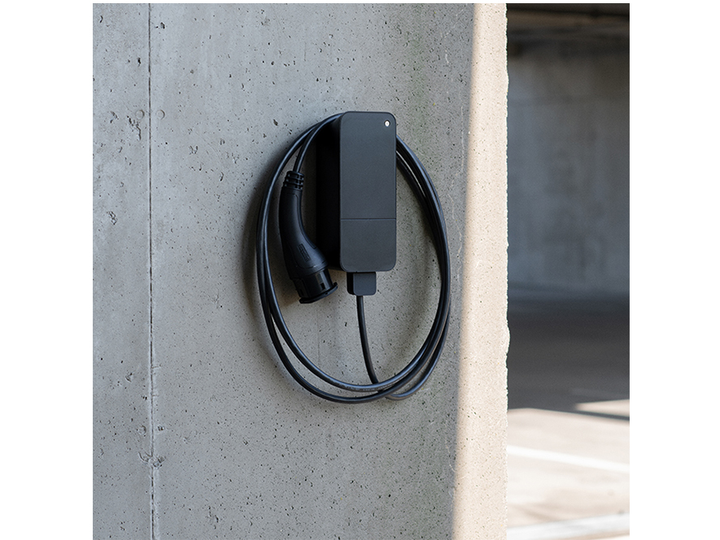

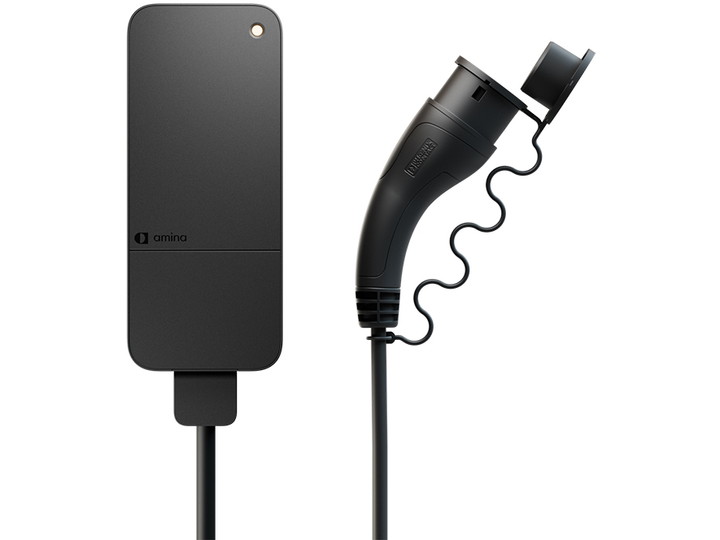

The permanently mounted 6-meter Type 2 charging cable makes daily charging simple. You don’t have to dig out a separate cable when it’s time to charge the car—just plug the cable into the car. With a charging power of up to 11 kW, the Amina S is well-suited for efficient home charging of the vast majority of modern electric cars.

The Amina S supports both Zigbee and Bluetooth LE, enabling integration with compatible smart home and energy management solutions. This makes the charging station an attractive option for those who want to combine electric vehicle charging with smart energy management at home. The charging station also features built-in energy metering, allowing for precise tracking of power consumption.

The compact enclosure is only 89 mm deep and is rated IP54 and IK08, so the Amina S can be used both indoors and outdoors. It is also designed for temperatures ranging from -30 °C to +40 °C, making it well-suited for changing Nordic weather conditions.

With its long Type 2 cable, compact design, and smart home integration capabilities, the Amina S is a practical charging station for those seeking a simple and discreet solution for daily electric vehicle charging.

Specifications

Charging power: Up to 11 kW
Current: 20 A
Number of phases: 3-phase
Charging cable: 6 m Type 2
Dimensions: 264 x 112 x 89 mm
Weight: 1 kg without cable / 2.4 kg with 20 A cable
Operating temperature: -30 °C to +40 °C
Protection rating: IP54
Impact resistance: IK08

Important:

The Amina S charging box must be installed and connected by a licensed electrical contractor. Do not attempt to perform the permanent electrical installation yourself.
