Ion 3 Gold delivers efficient, stable power for next-generation gaming systems. With ATX12V 3.1 compatibility, native PCIe Gen 5 support, and 80 PLUS Gold efficiency, it’s built for reliable, long-term performance.
Future-ready Connect next-generation components with ATX12V 3.1 compatibility and enjoy stable performance with graphics card power excursion support.
Native Gen 5 support Power modern graphics cards with 16-pin PCIe Gen 5 12V-2×6 support featuring shortened sense pins for a reliable, secure connection.

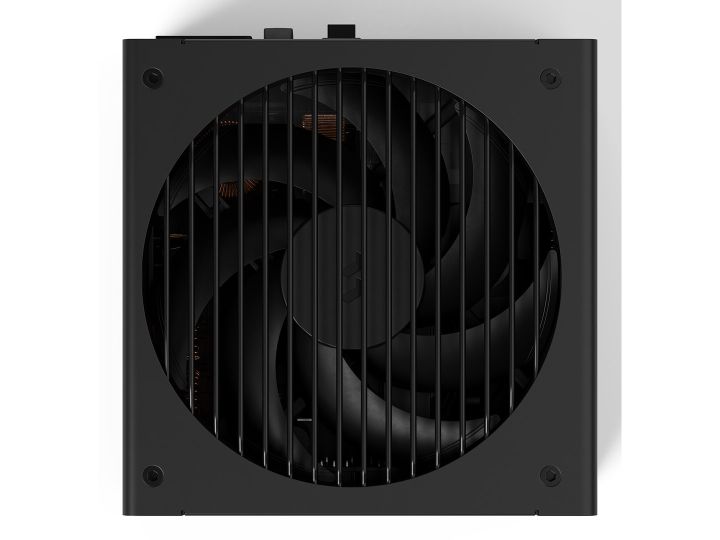

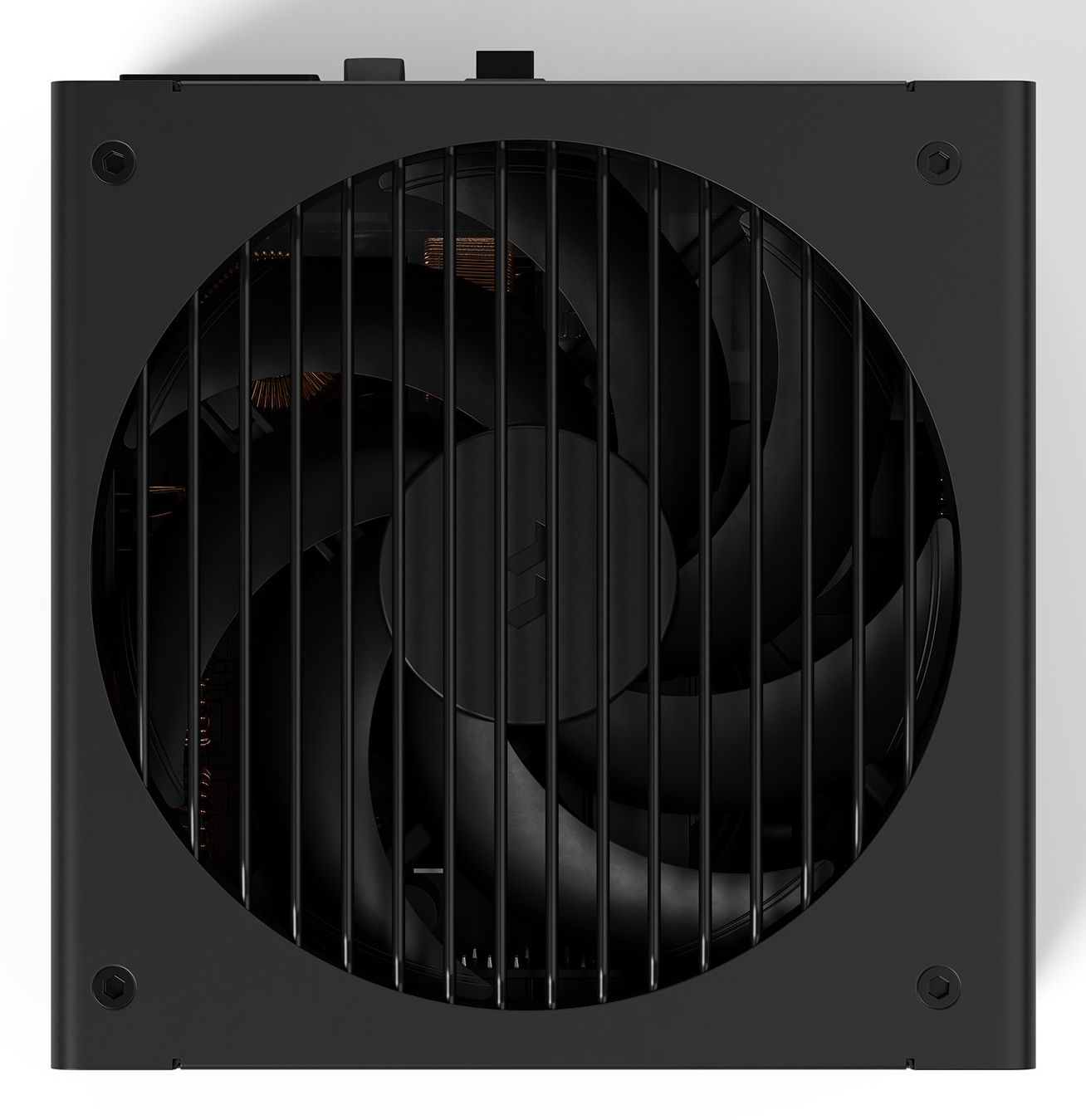

Momentum cooling Featuring a powerful Momentum 14 fan with a fluid dynamic bearing and LCP blades to ensure lower noise, cooler operation, and a longer lifespan.
Certified efficiency 80 PLUS Gold–certified for efficient performance with reduced energy use and heat output through optimized power delivery.

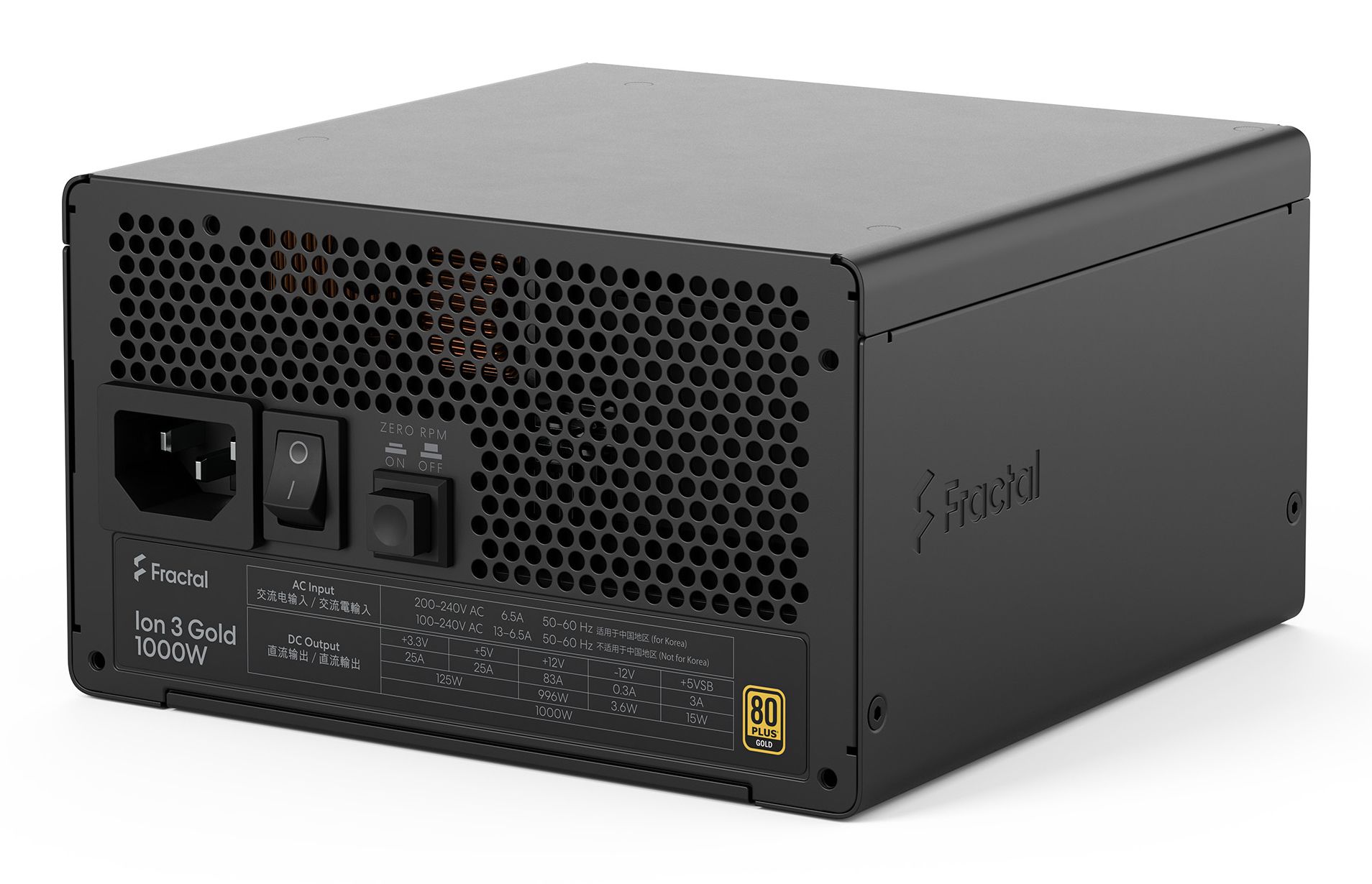

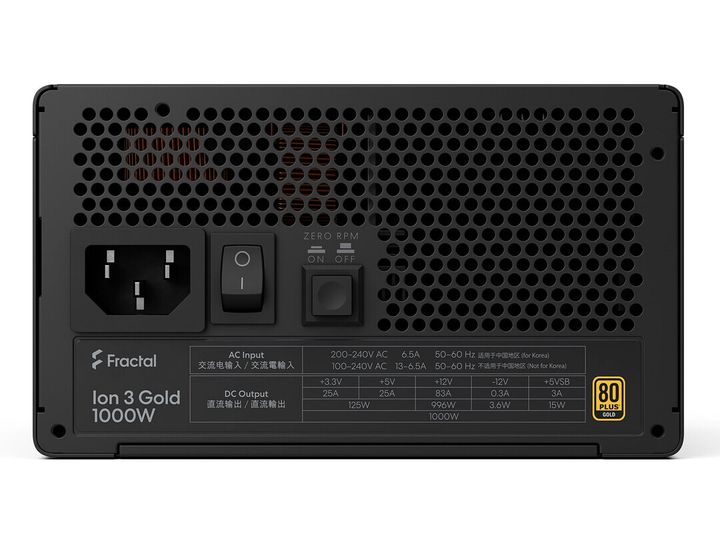

Quiet operation Featuring variable fan speeds for adaptive cooling and the option to activate Zero RPM Mode for near-silent operation under lighter loads.

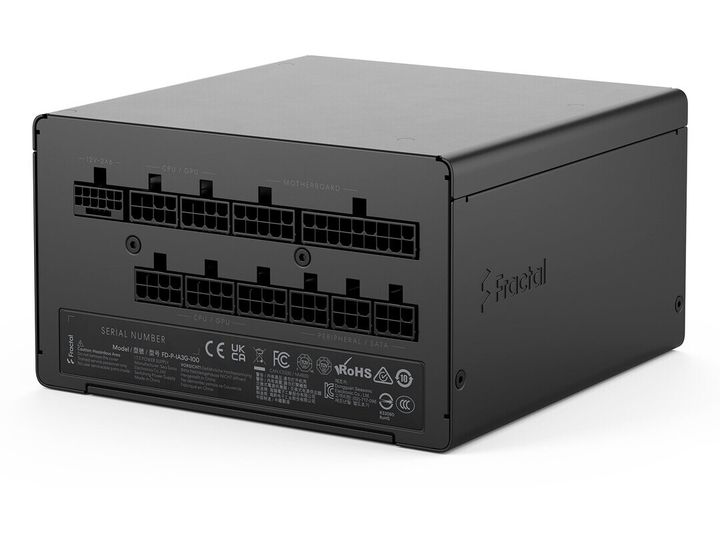

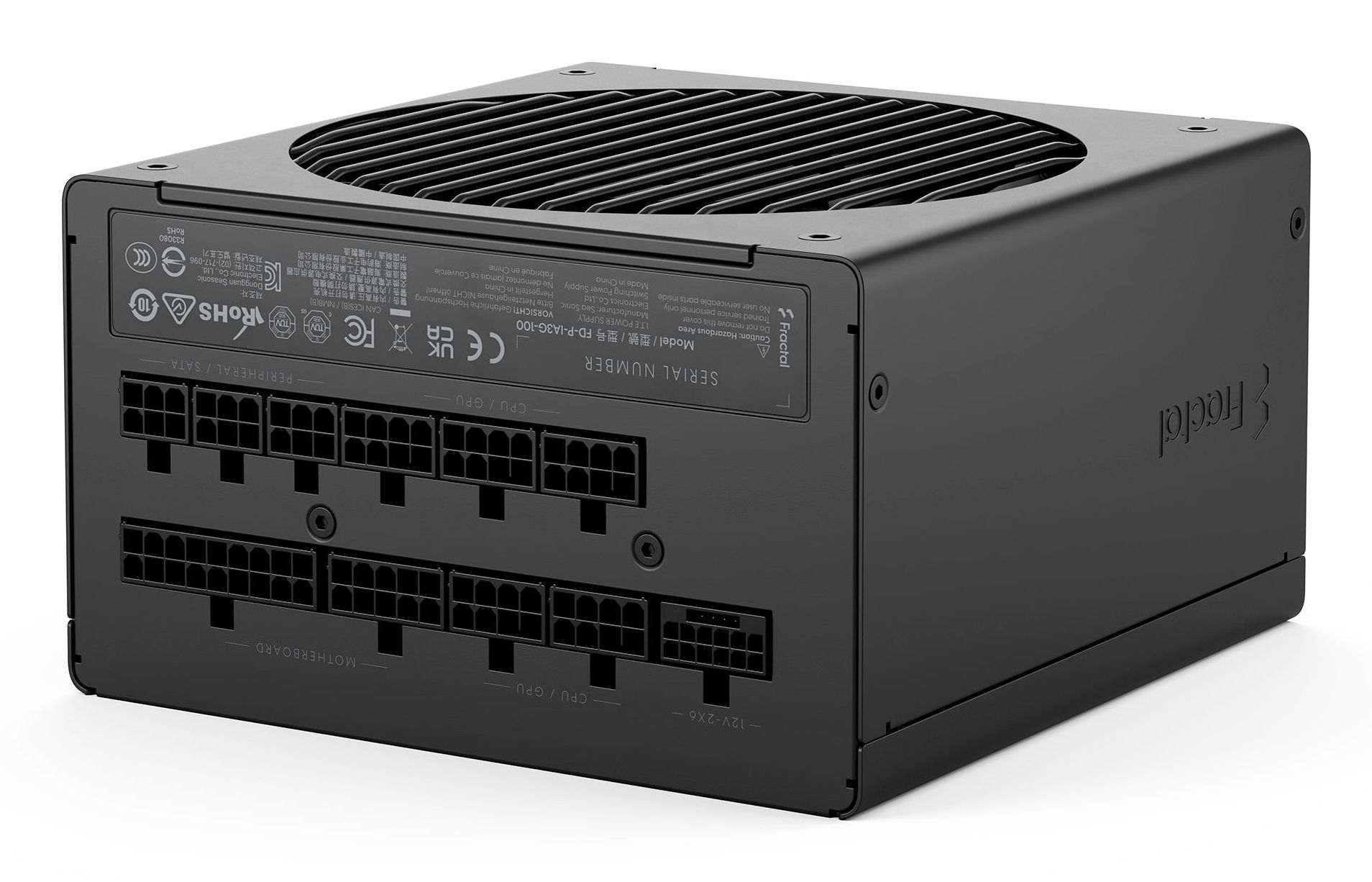

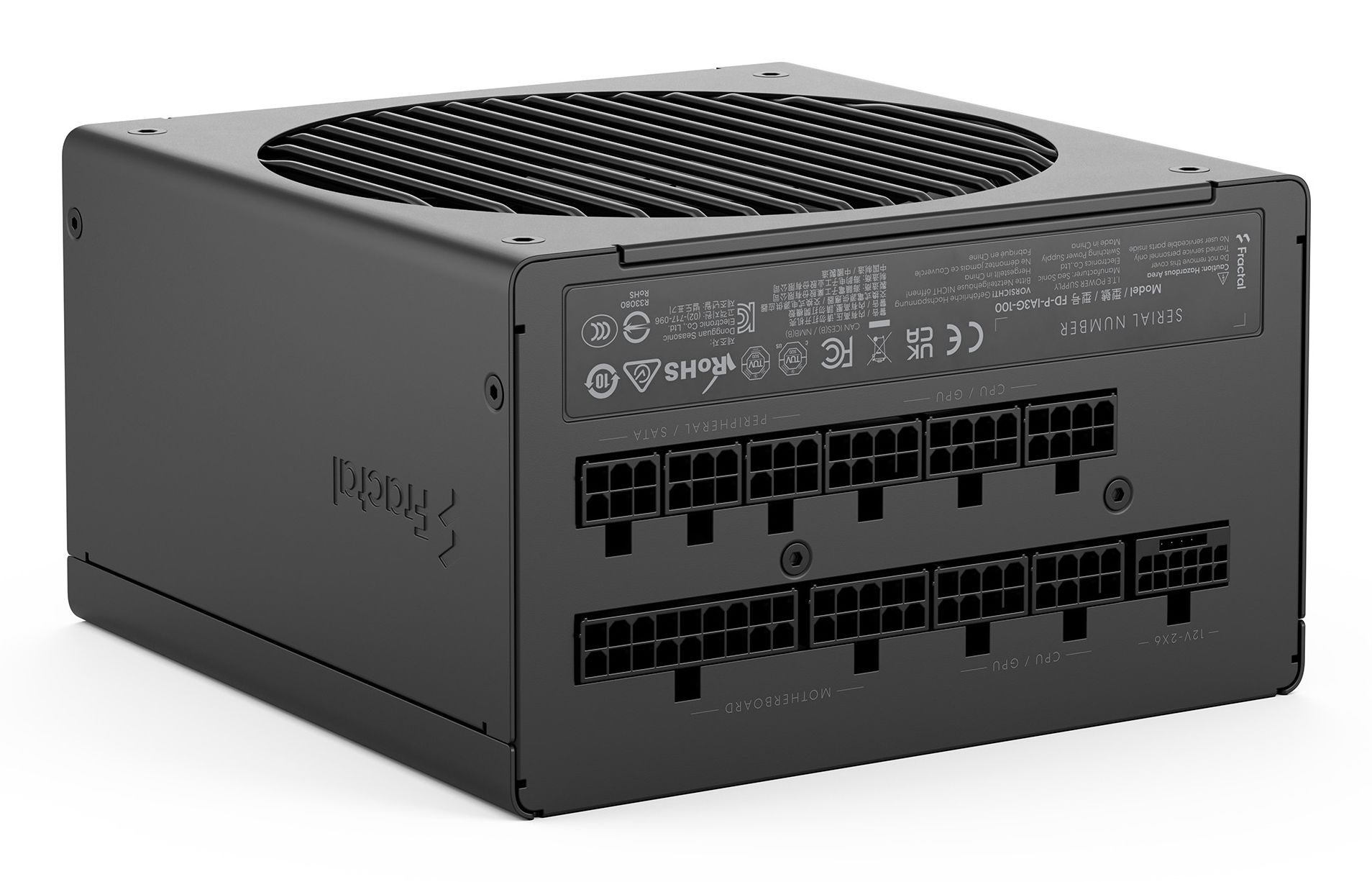

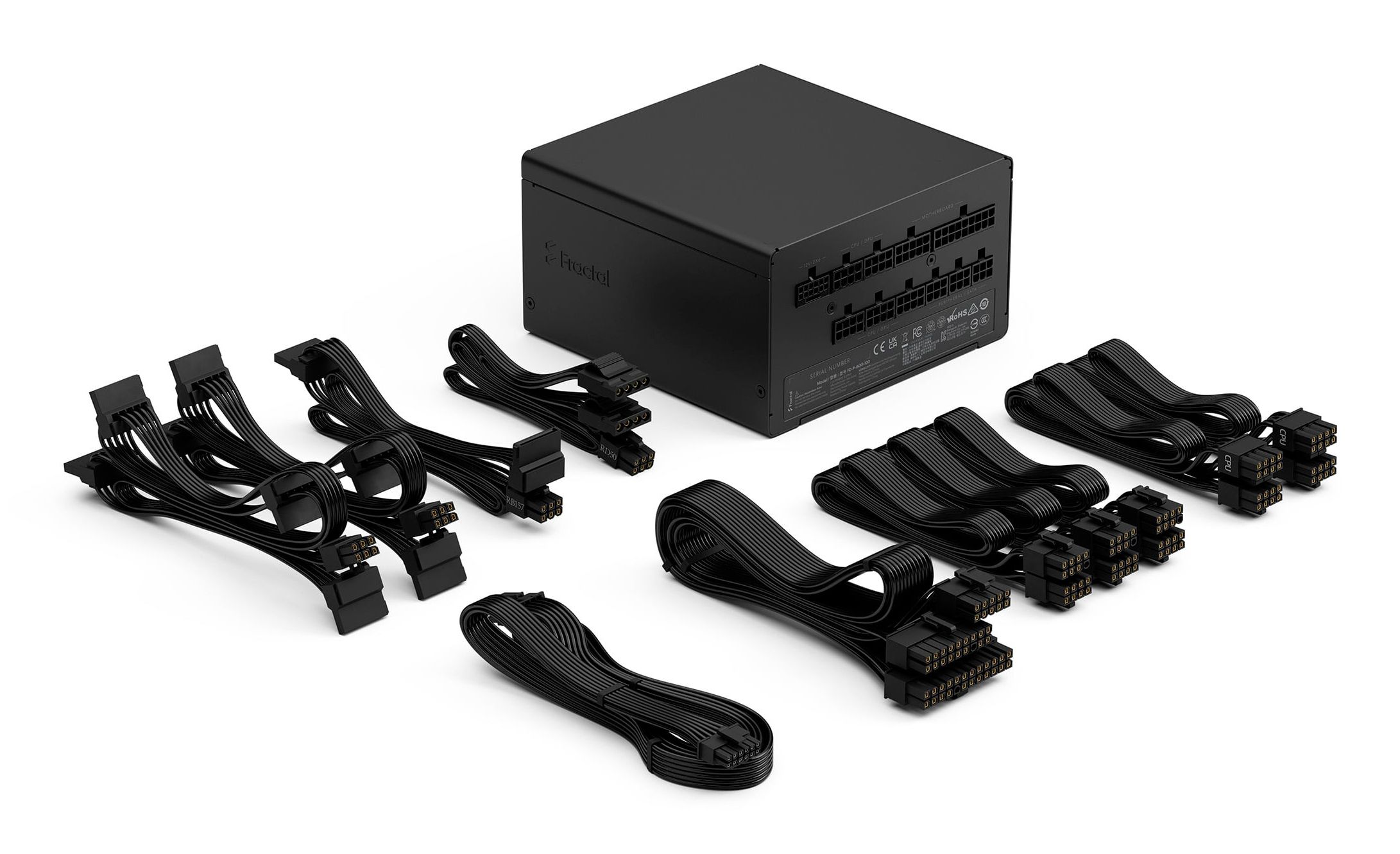

Fully modular Achieve a clean, uncluttered build with a fully modular design and UltraFlex cables for smoother cable routing.
Designed to last Built with high-quality, reliable components including Japanese 105°C capacitors and an extensive 10-year warranty.
Produktbeskrivelse

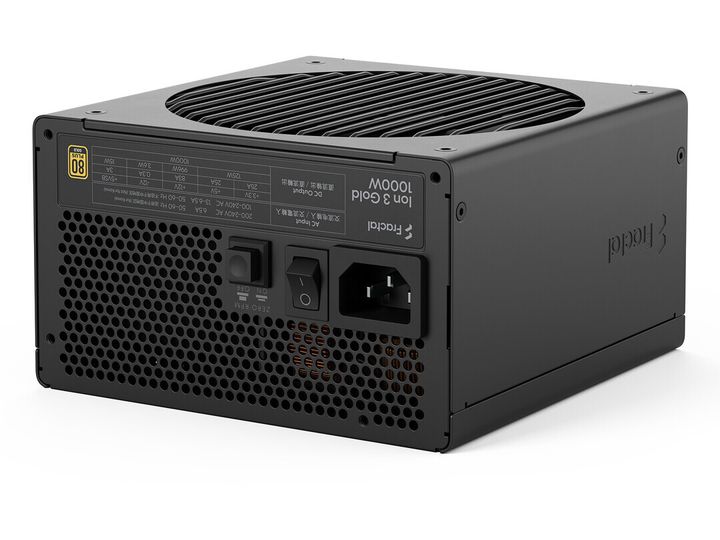

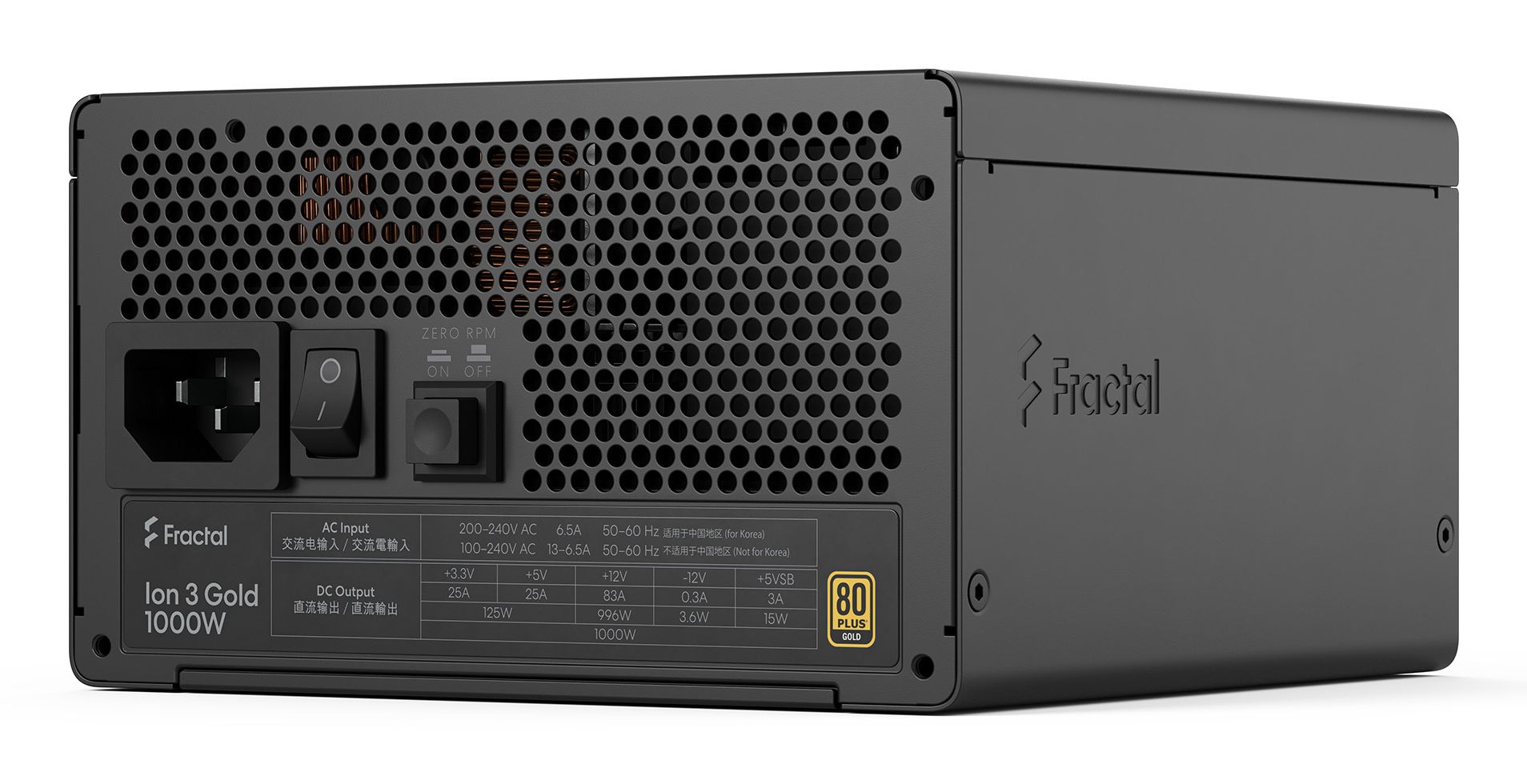

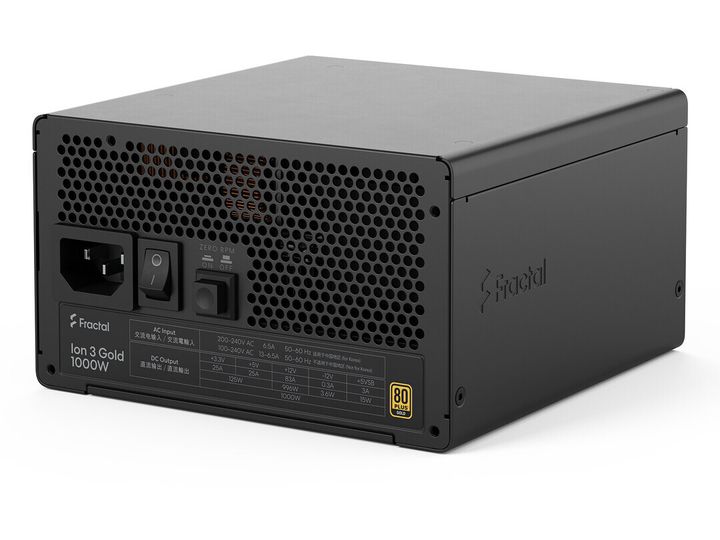

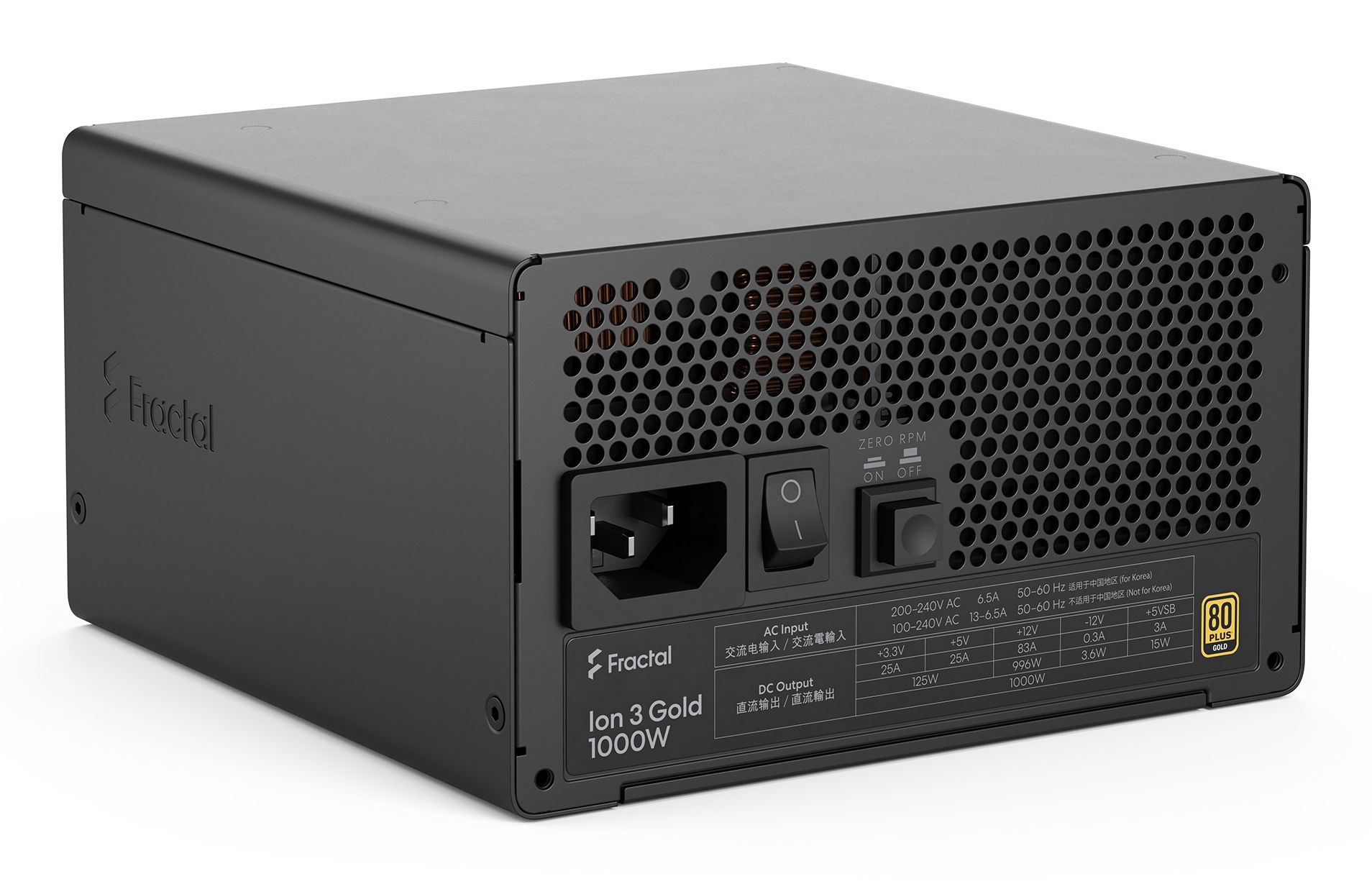

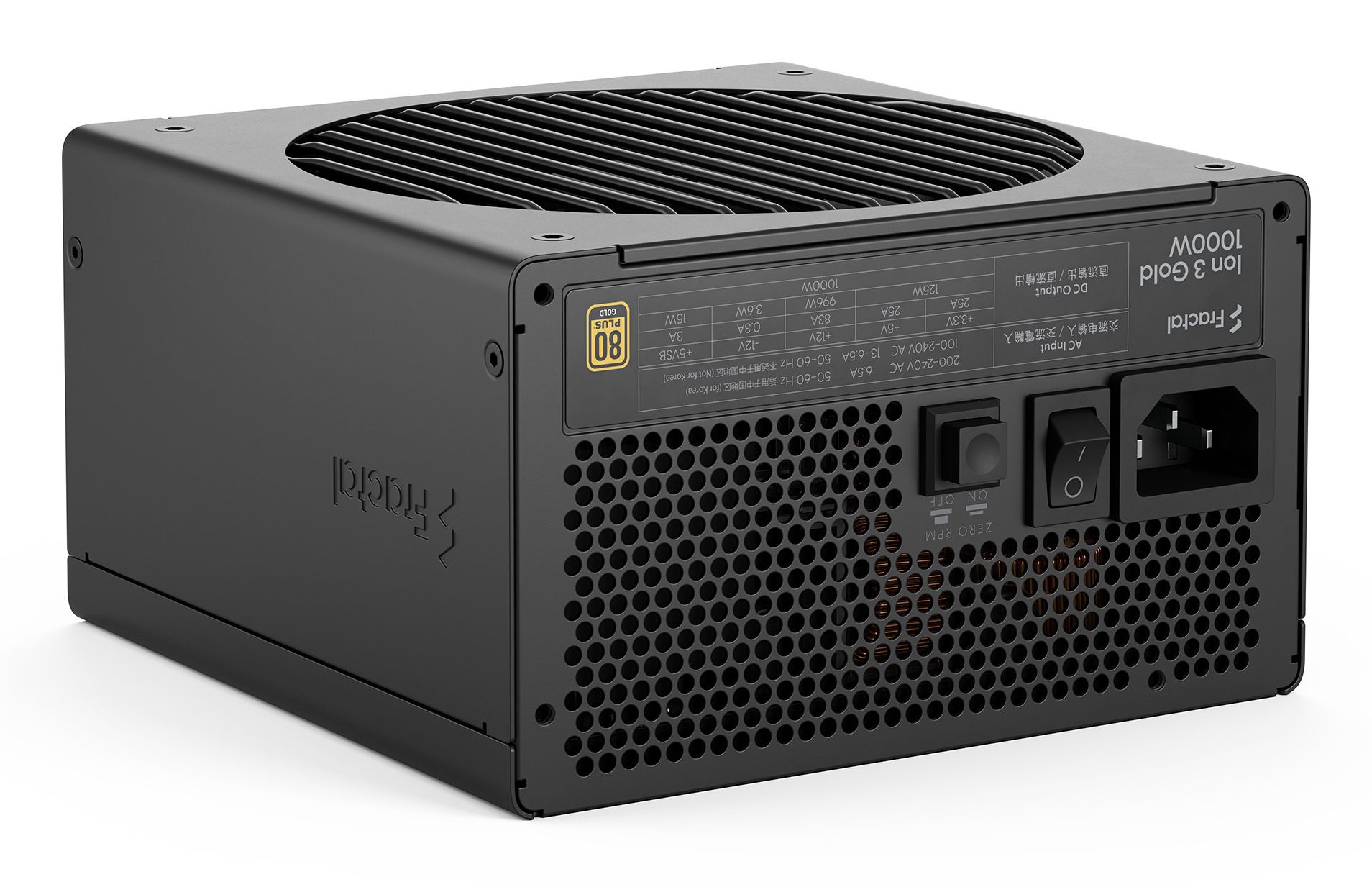

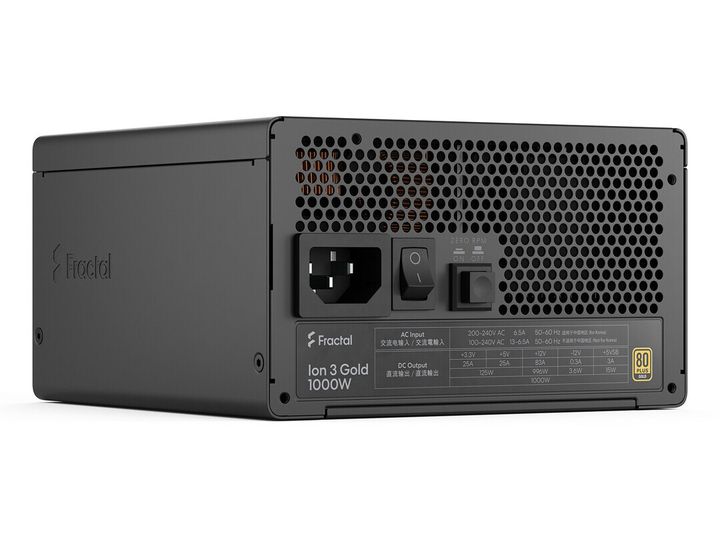

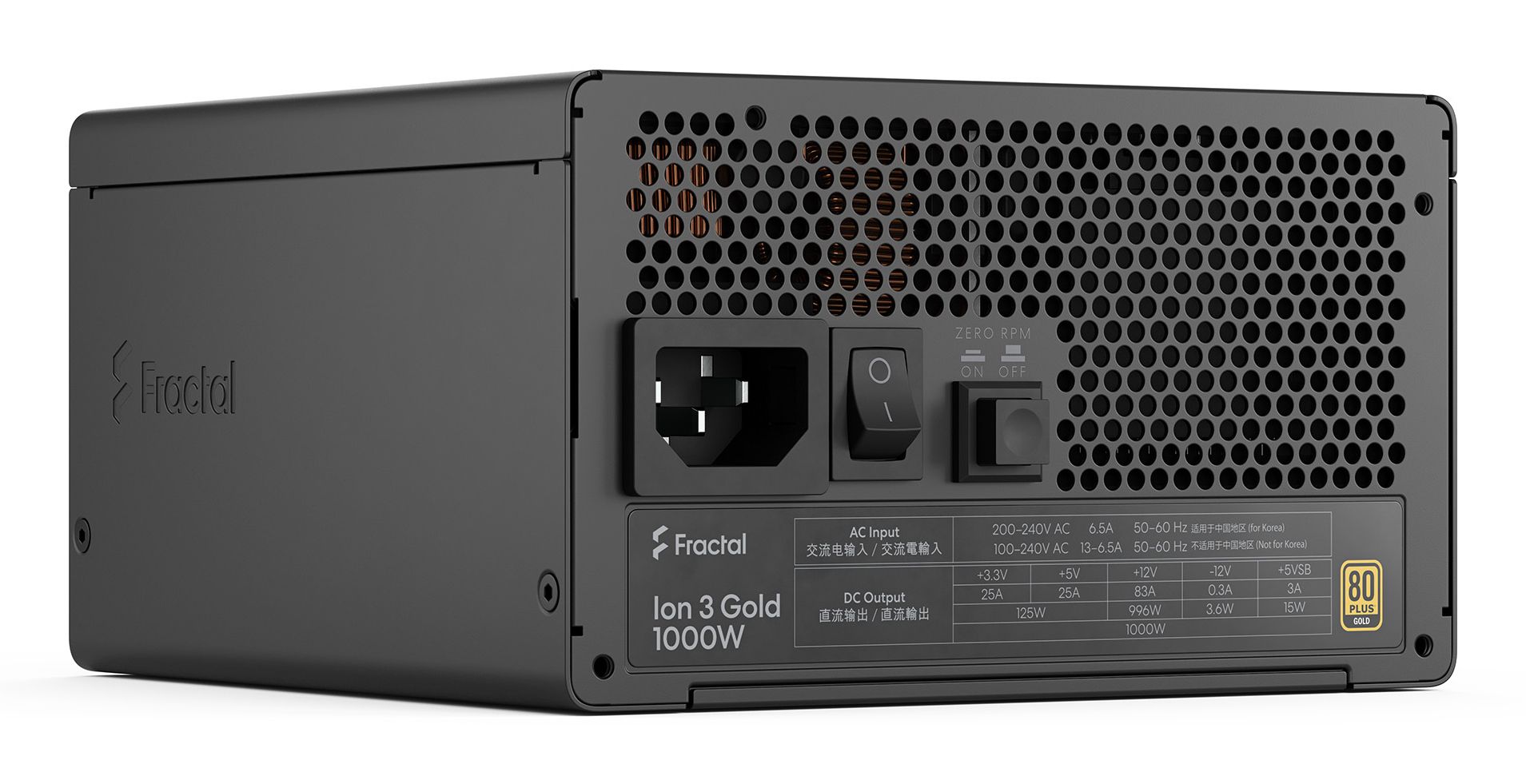

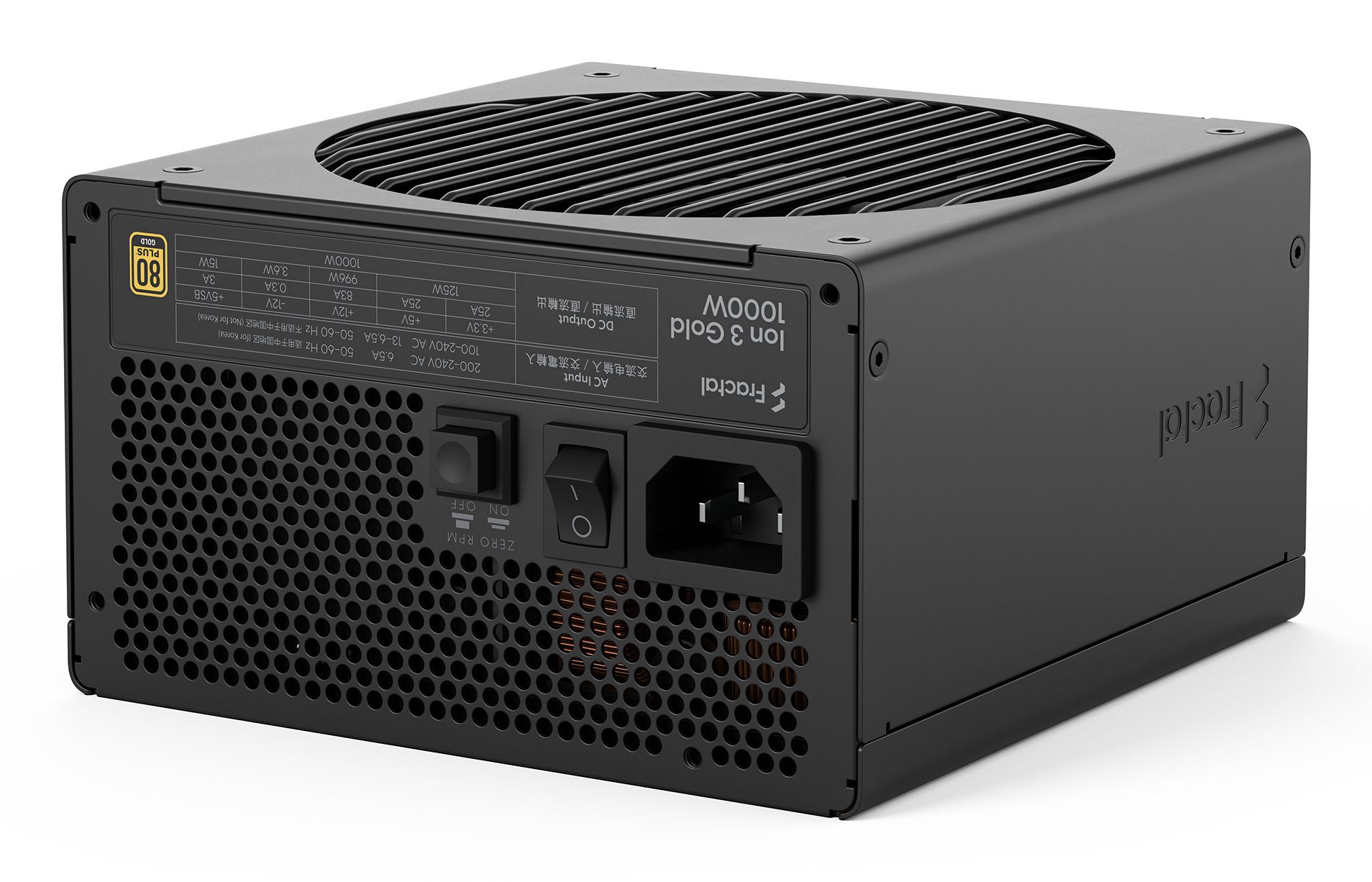

Fractal Design Ion 3 Gold - strømforsyning - 1000 watt
Enhedstype
Strømforsyning - aktiv Power Factor Correction (PFC) - intern
Specifikationsoverensstemmelse
ATX12V 3.1
80 PLUS certificering
80 PLUS Gold
Vægt
1.8 kg

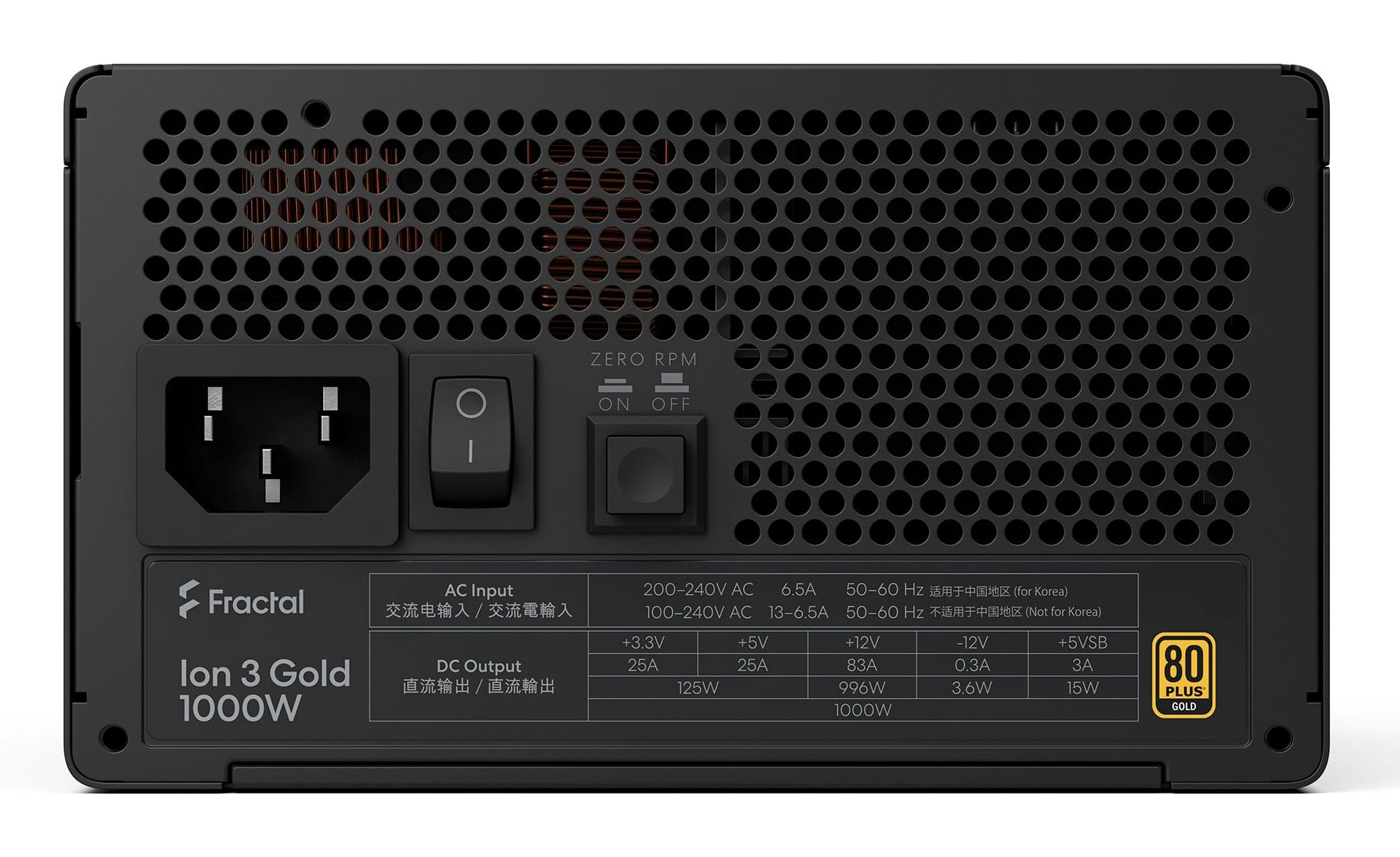

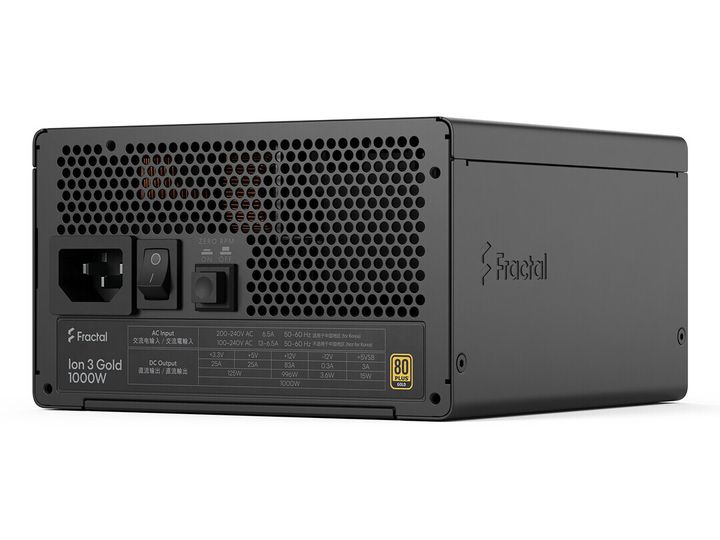

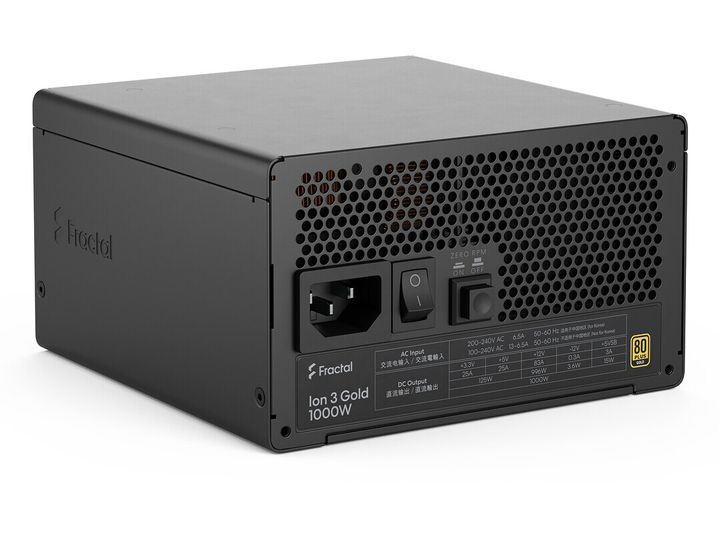

Indgangspænding
AC 100-240 V
Udgangspænding
+3.3, +5, ±12 V, -12V, +5Vsb V
Strømkapacitet
1000 watt
Output Current
+3.3V - 25 A +5V - 25 A +12V - 83 A -12V - 0.3 A +5VSB - 3 A

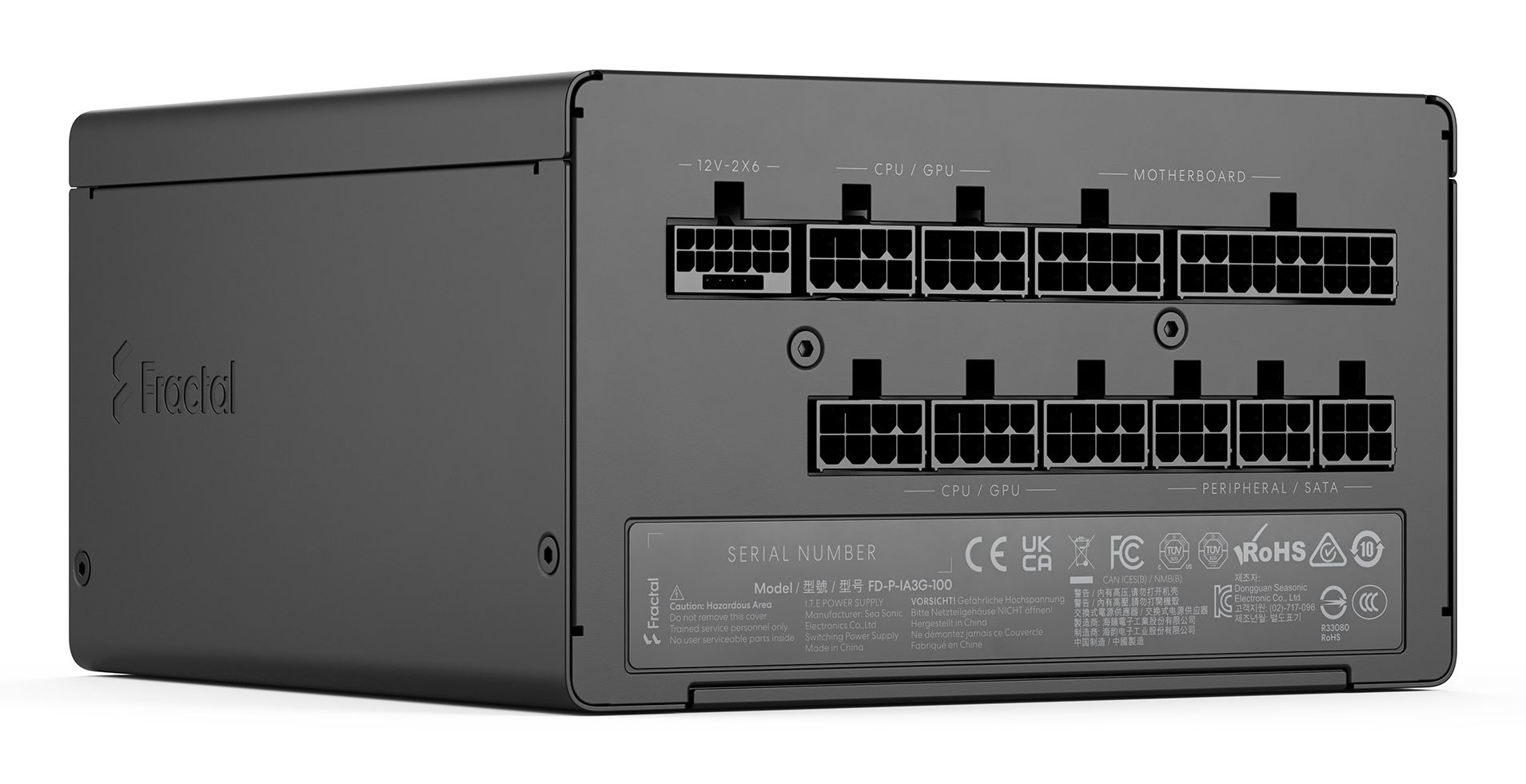

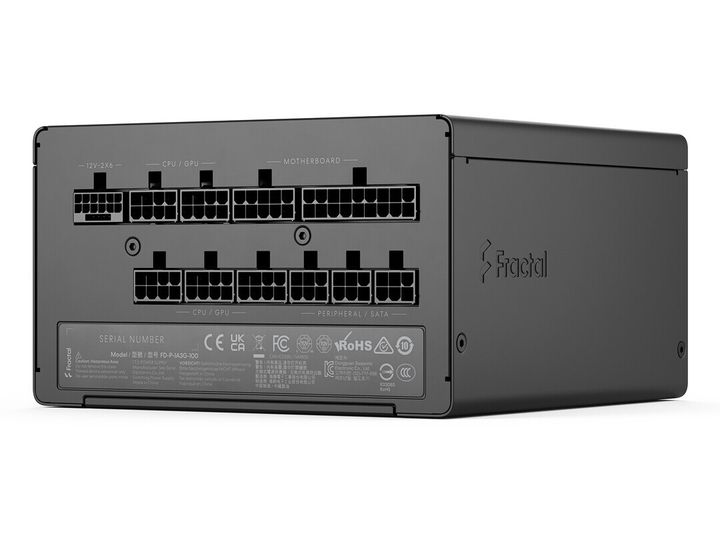

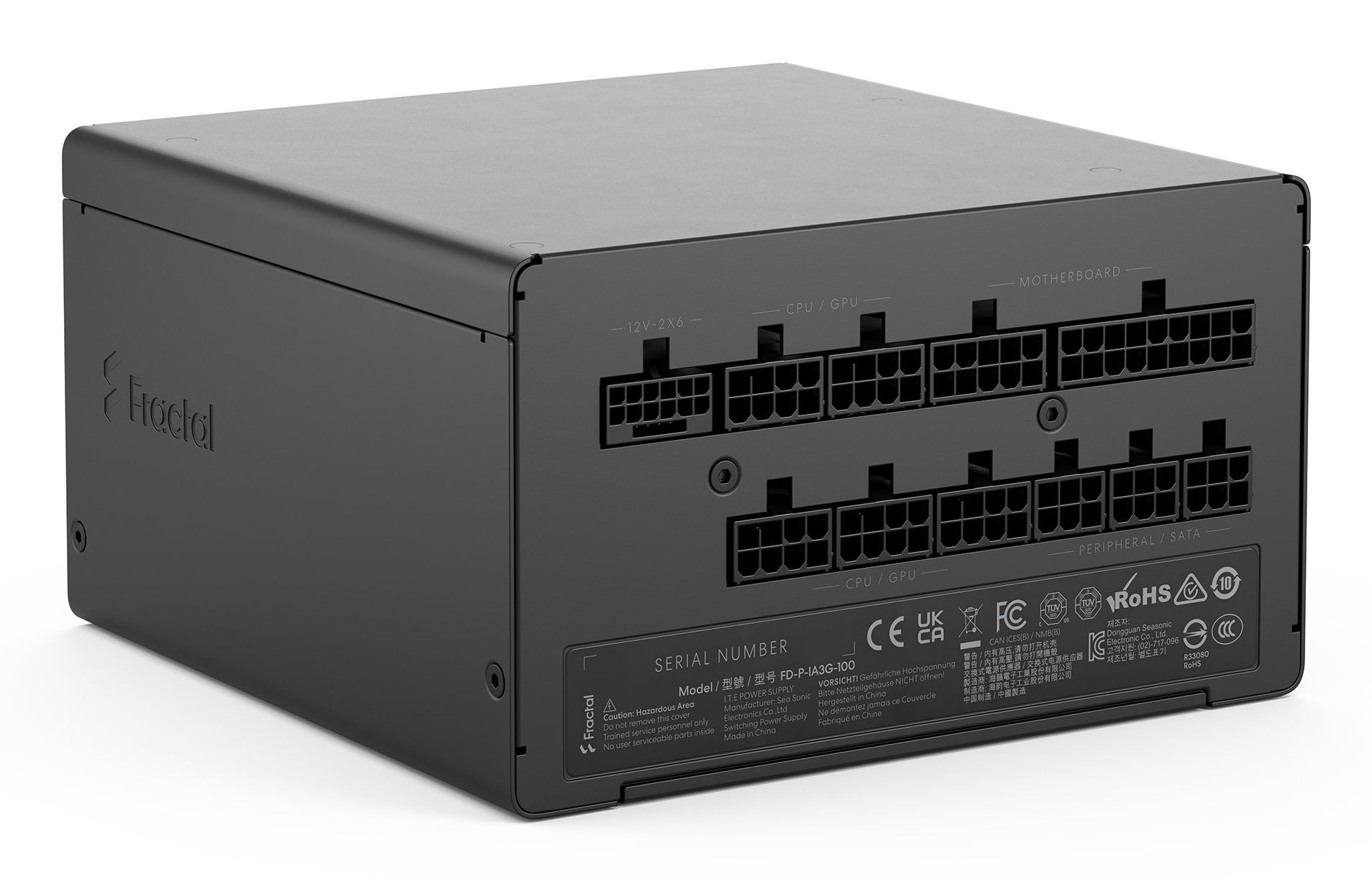

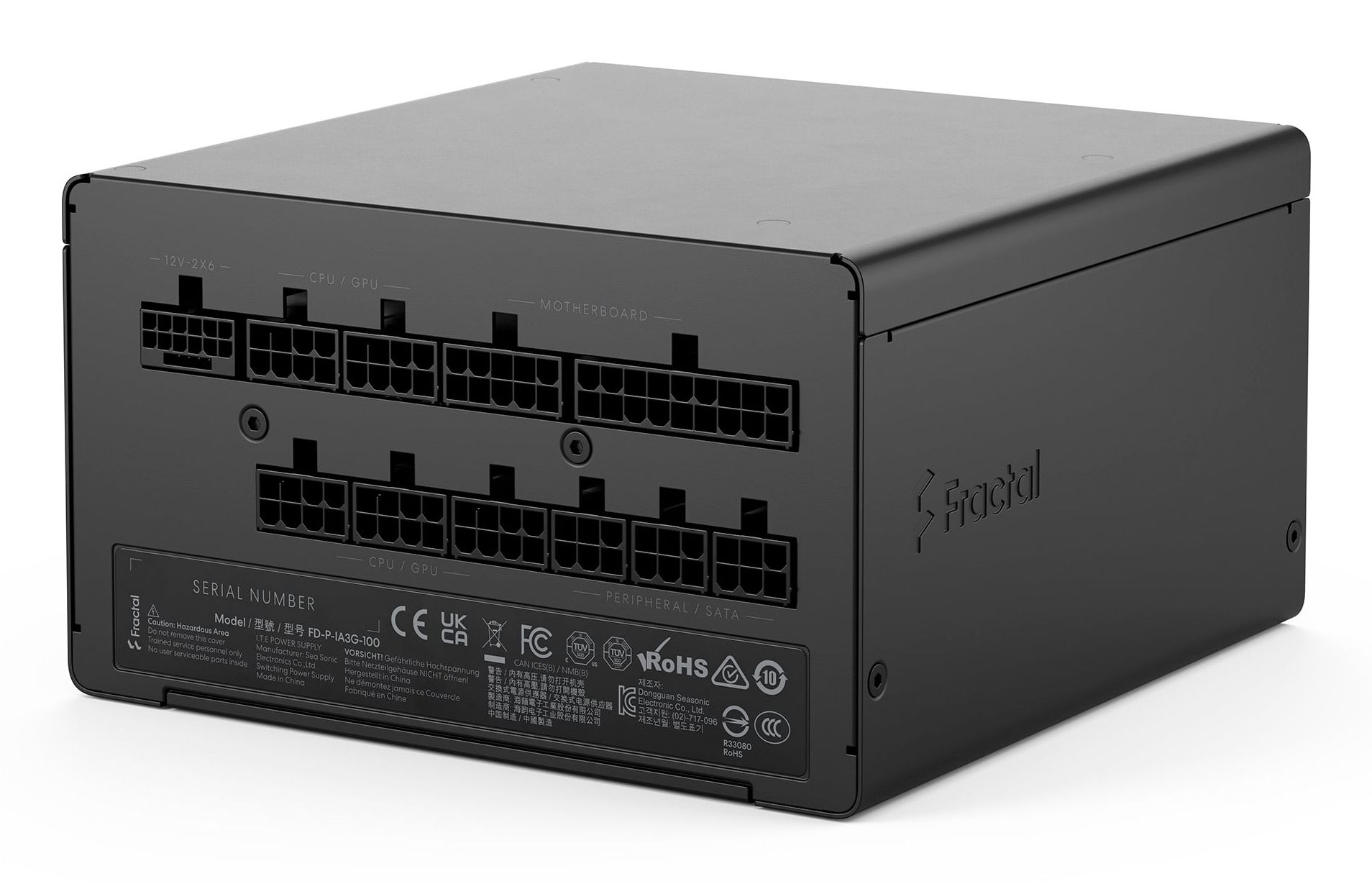

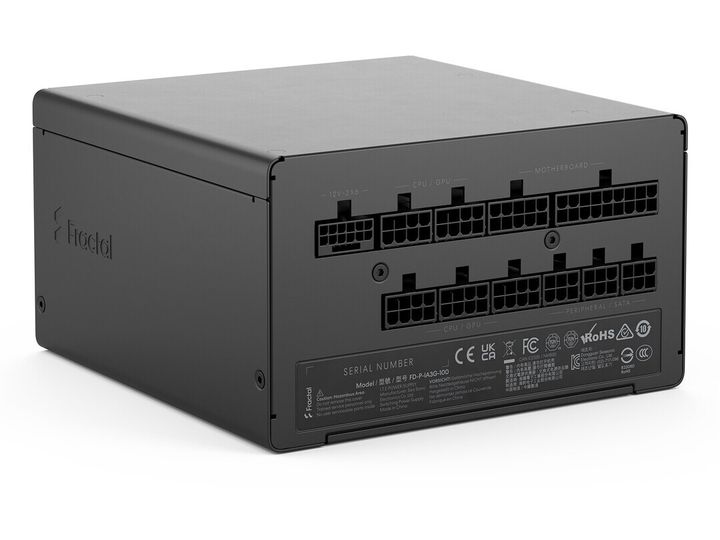

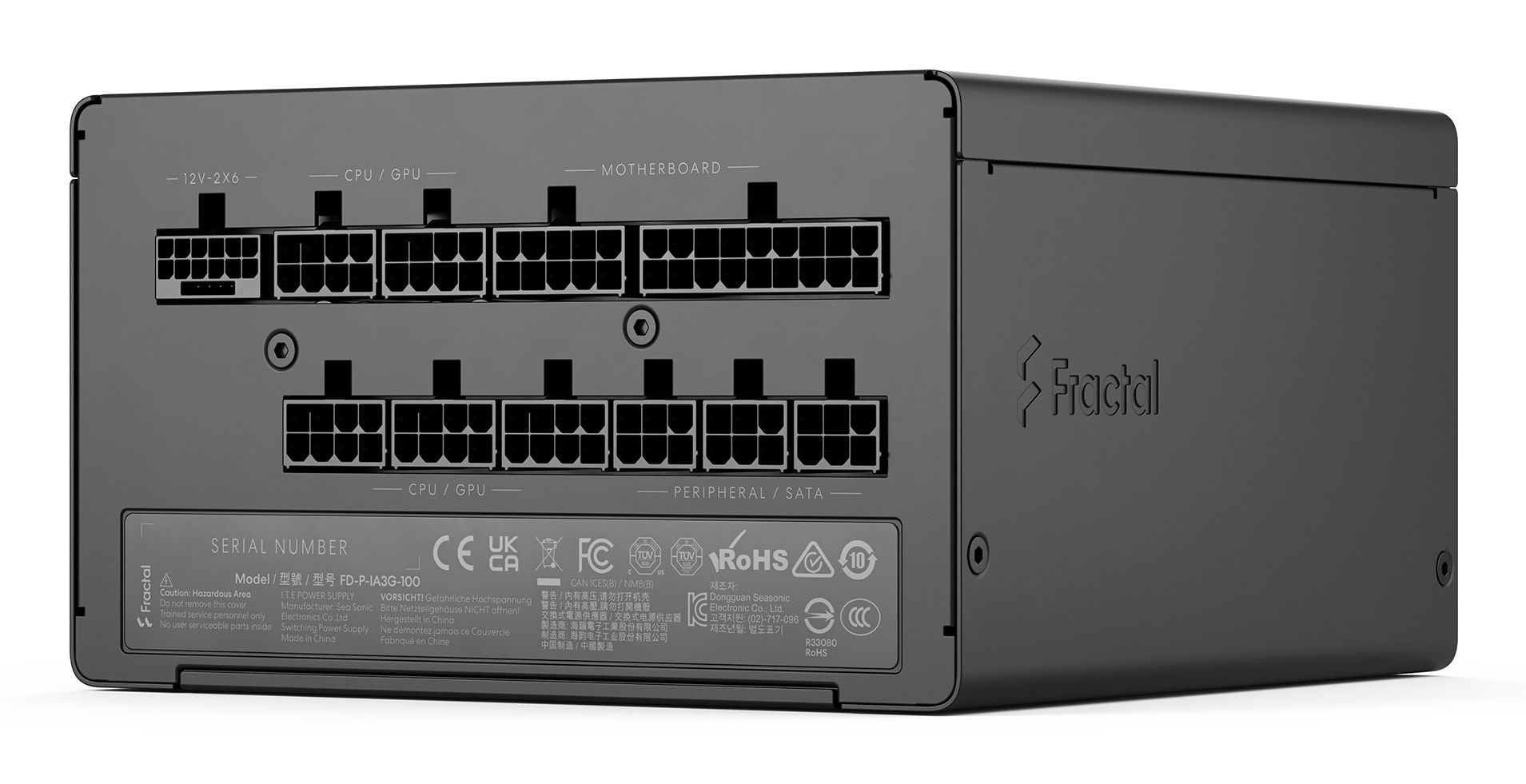

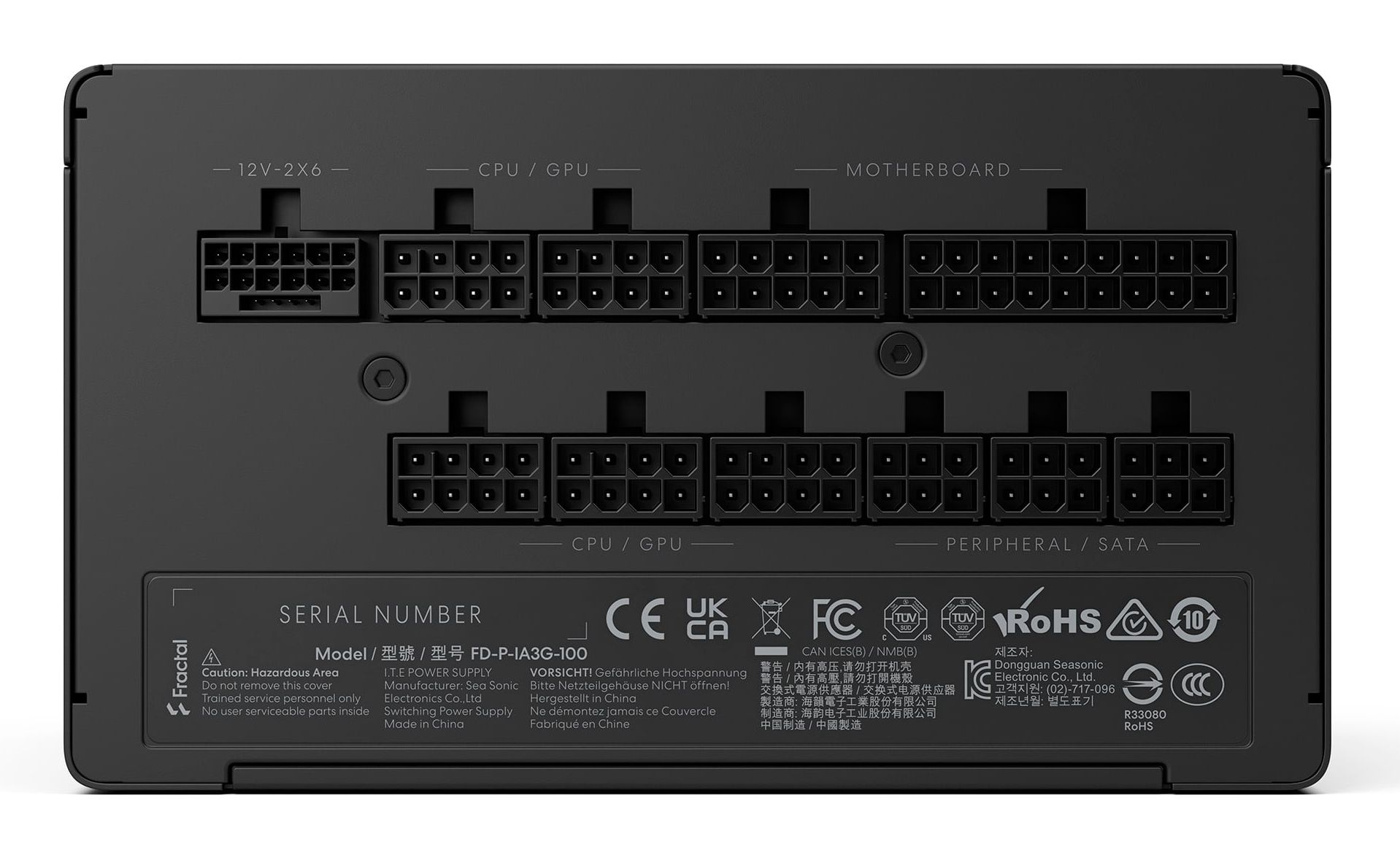

Output-stikforbindelser

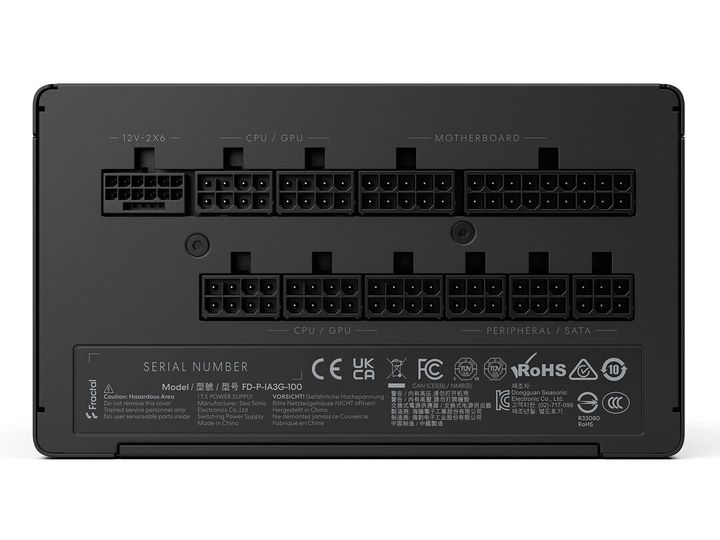

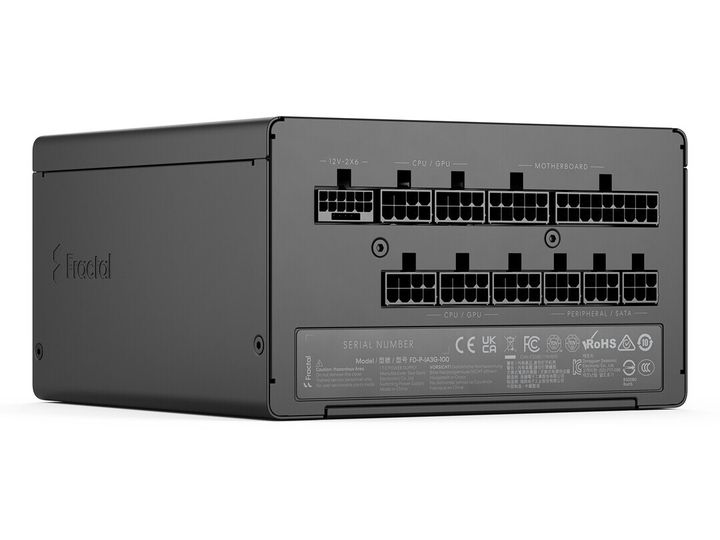

1 x strøm 18 pin med 10 pin 5 x 8 pin PCI Express-strøm med aftagelig 2 pin sektion 3 x 15 pin Serial ATA strøm 1 x 12V 2x6 PCIE 5.1
Modulær Kabel Administration
Ja
Kølesystem
140 mm ventilator
Udstyr inkluderet
Plastikbindesæk, skruepakke, PSU tester
Farve
Sort
Dimensioner (B x D x H)
15 cm x 15 cm x 8.6 cm
Producentgaranti
10-års garanti
Generelt
Enhedstype
Strømforsyning - aktiv Power Factor Correction (PFC) - intern
Specifikationsoverensstemmelse
ATX12V 3.1
PSU formfaktor
ATX
Farve
Sort
Strømenhed
Indgangspænding
AC 100-240 V
Nødvendig frekvens
50 - 60 Hz
Detaljer om strømudgangskonnektorer
1 x strøm 18 pin med 10 pin 5 x 8 pin PCI Express-strøm med aftagelig 2 pin sektion 3 x 15 pin Serial ATA strøm 1 x 12V 2x6 PCIE 5.1
Udgangspænding
+3.3, +5, ±12 V, -12V, +5Vsb V
Strømkapacitet
1000 watt
Output Current
+3.3V - 25 A +5V - 25 A +12V - 83 A -12V - 0.3 A +5VSB - 3 A
Modulær Kabel Administration
Ja
80 PLUS certificering
80 PLUS Gold
Diverse
Udstyr inkluderet
Plastikbindesæk, skruepakke, PSU tester

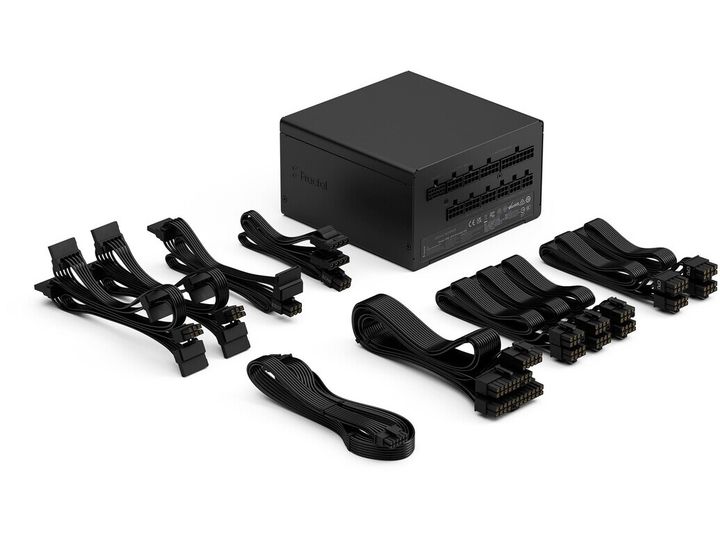

Medfølgende ledninger
AC-strømkabel - ekstern Strøm 24 pin ATX med aftageligt 4 pin sektion modulært kabel 60 cm 2 x strøm 8 pin +12 V med aftageligt 4 pin sektion modulært kabel 70 cm 3 x 8 pin PCI Express strøm med udtrækkelig 2 pin sektion modulærtkabel 65 cm 16-pin 12VHPWR strøm modulær kabel 70 cm 2 x strøm 15 pin SATA-kabel 85 cm Strøm 15 pin SATA-kabel 80 cm 4-pin intern strøm modulær kabel 80 cm
MTBF (forventet tid mellem fejl)
100,000 timer
Kølesystem
140 mm ventilator
Egenskaber
Flade kabler, fuld modulær, køleblæser til flydende dynamisk leje, Zero RPM-blæsermodus, overbelastningsbeskyttelse, overspændingsbeskyttelse, beskyttelse mod underspænding, kortslutnings beskyttelse, beskyttelse mod overstrøm, beskyttelse mod overophedning, enkelt 12V skinne, Intel C6/C7 Sleep State kompatibel
