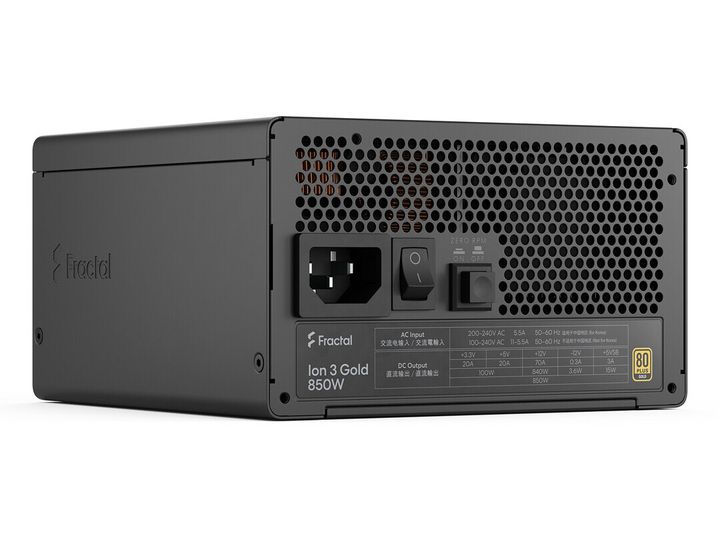

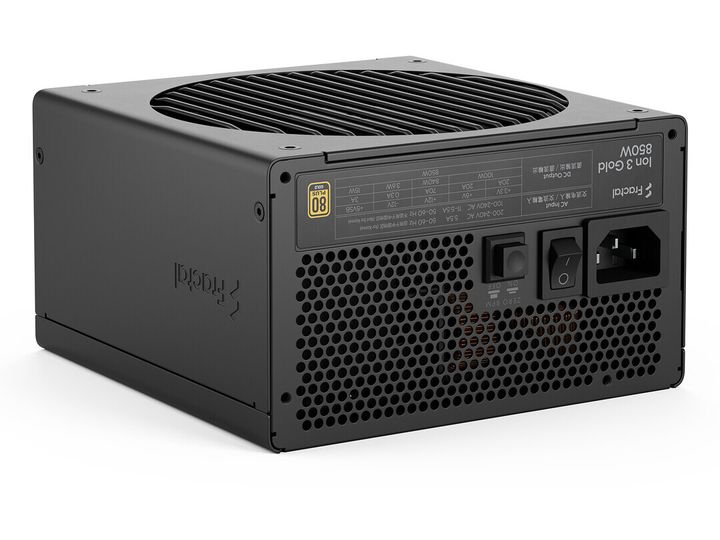

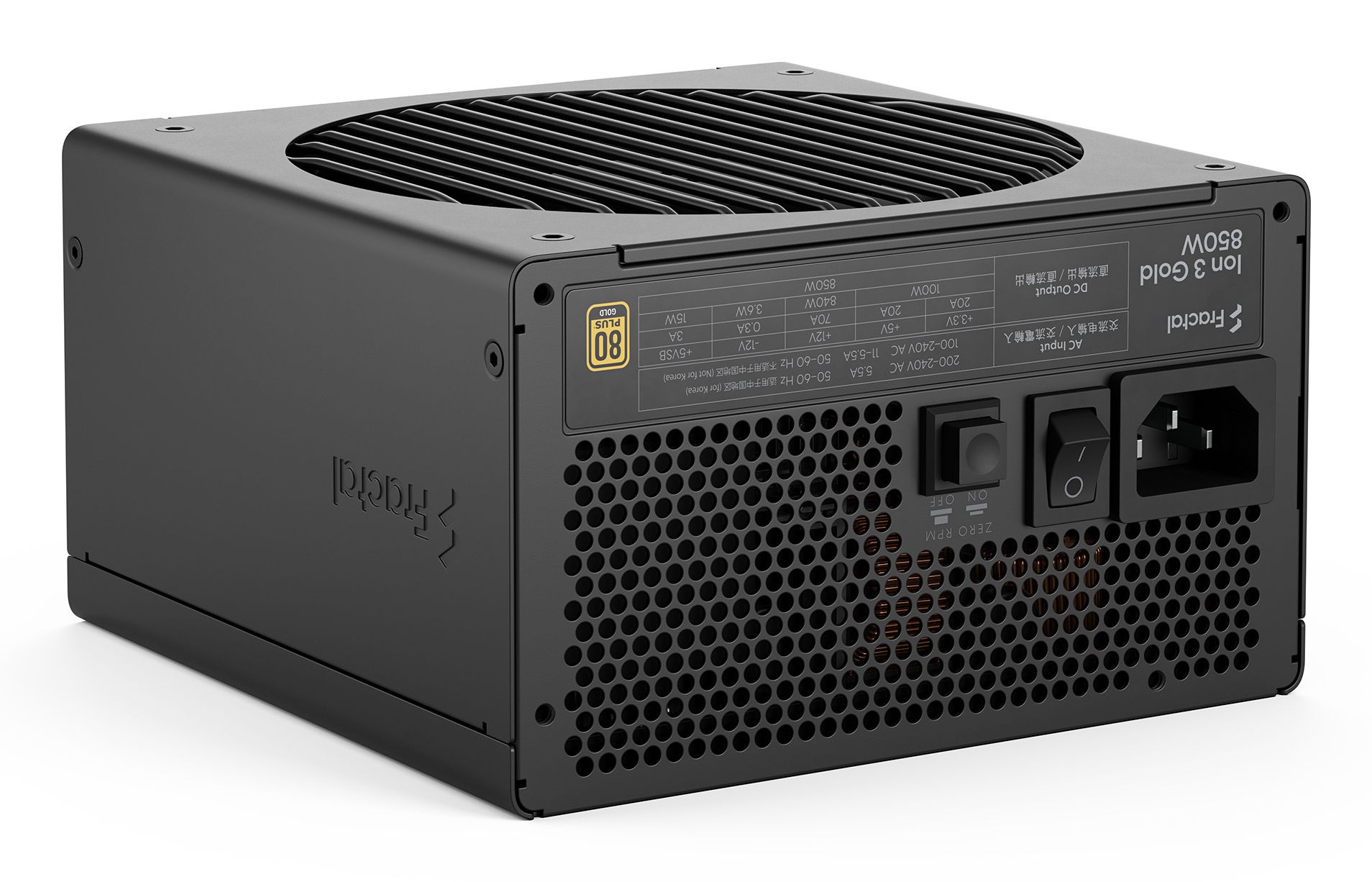

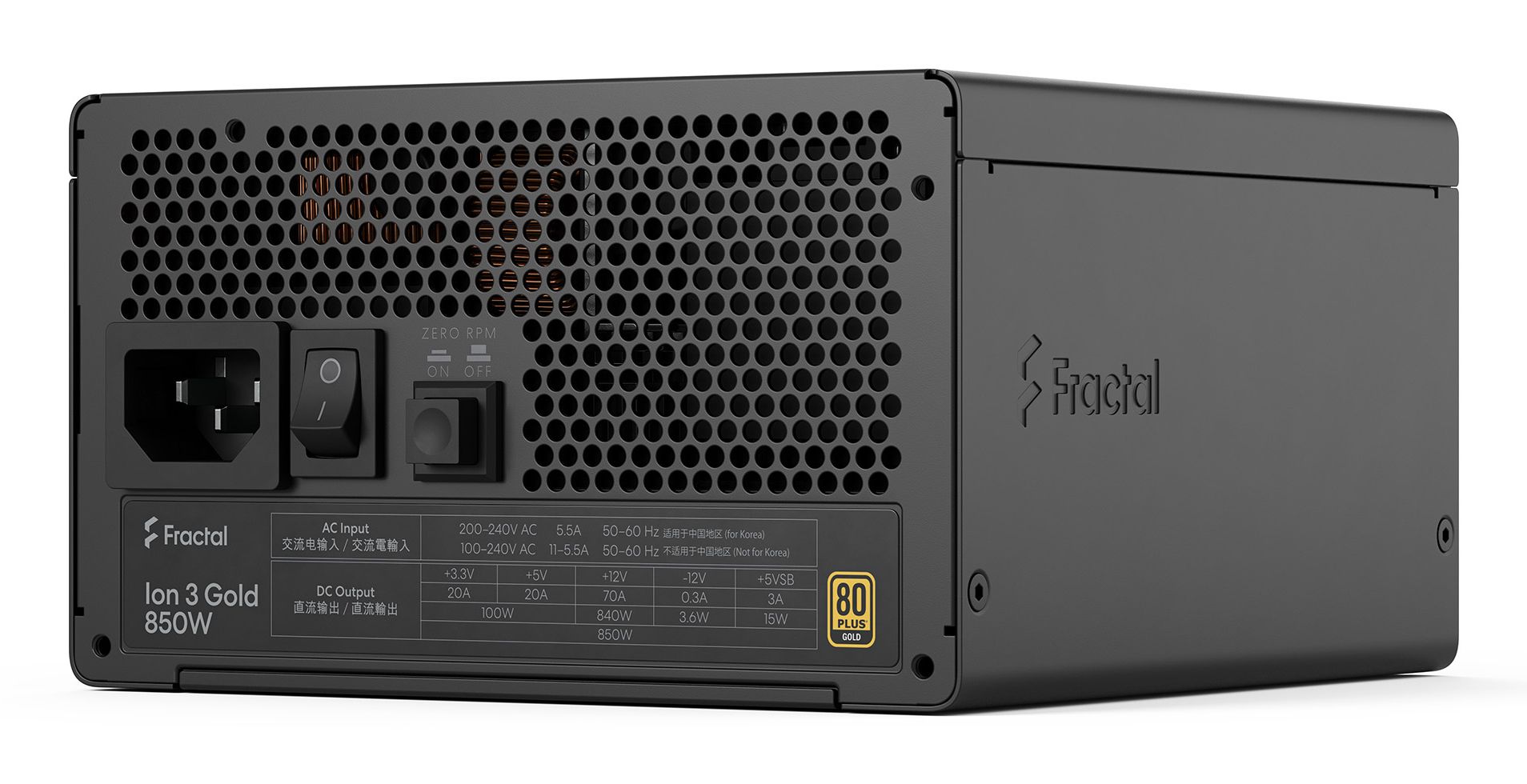

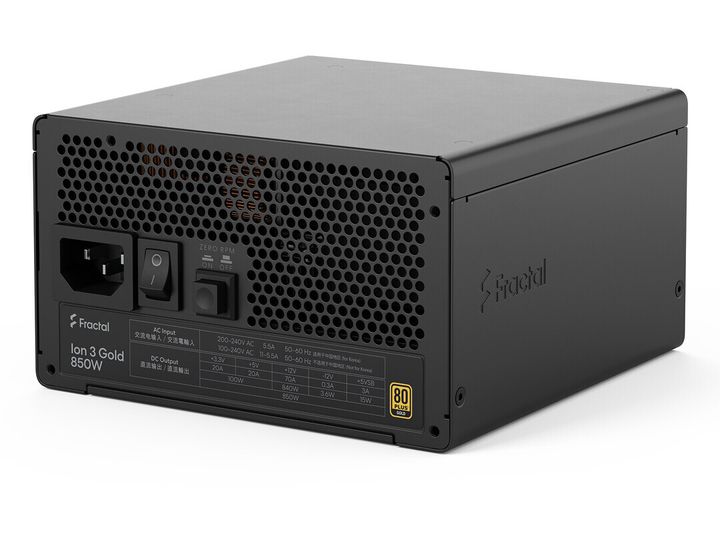

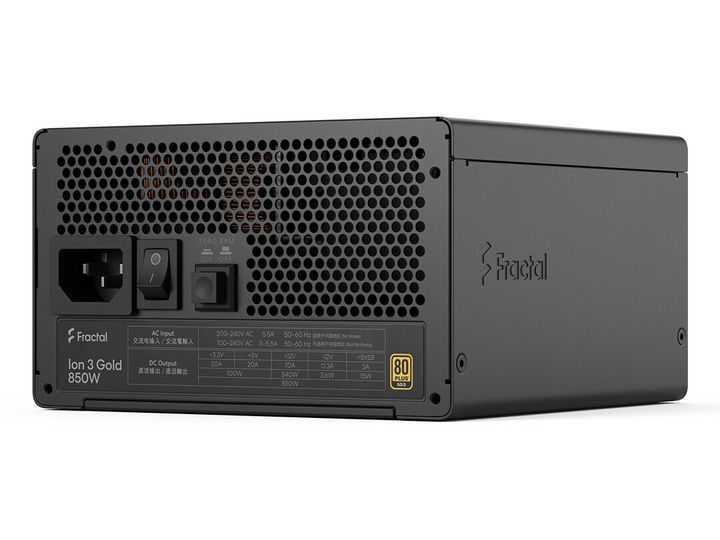

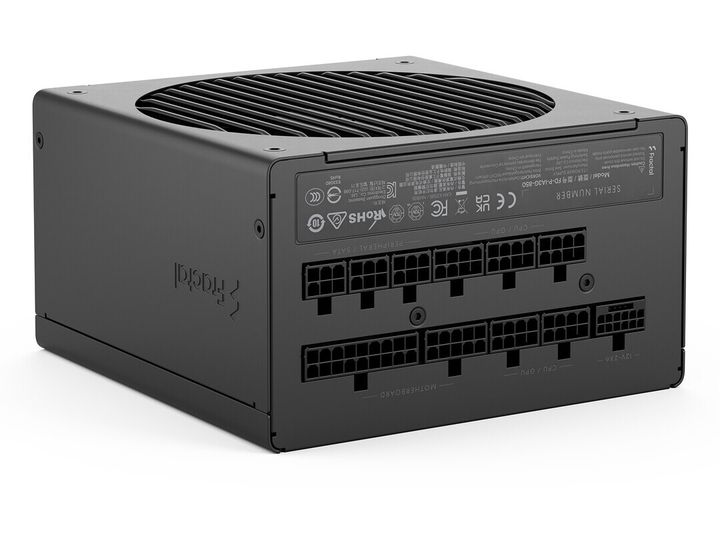

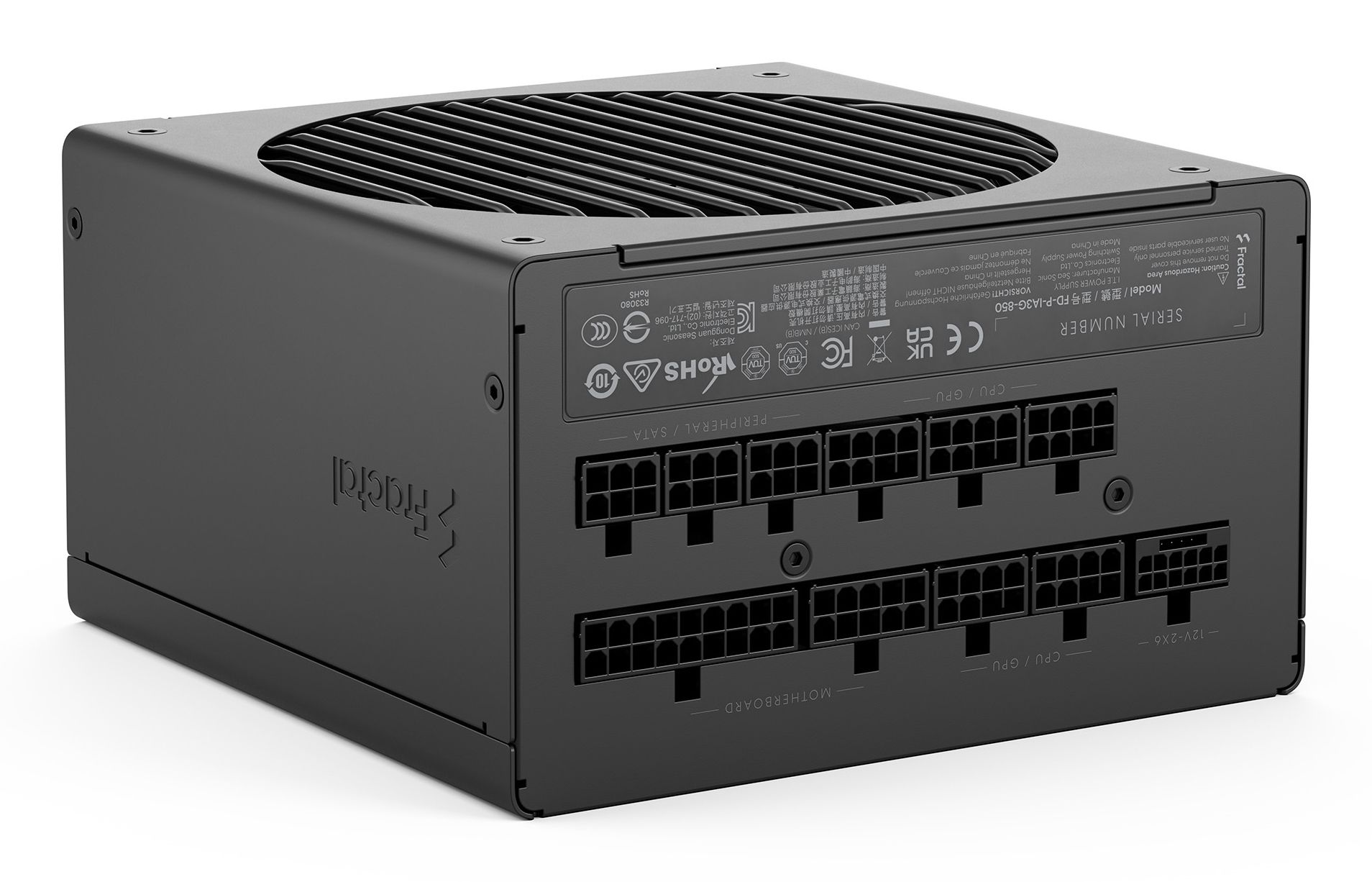

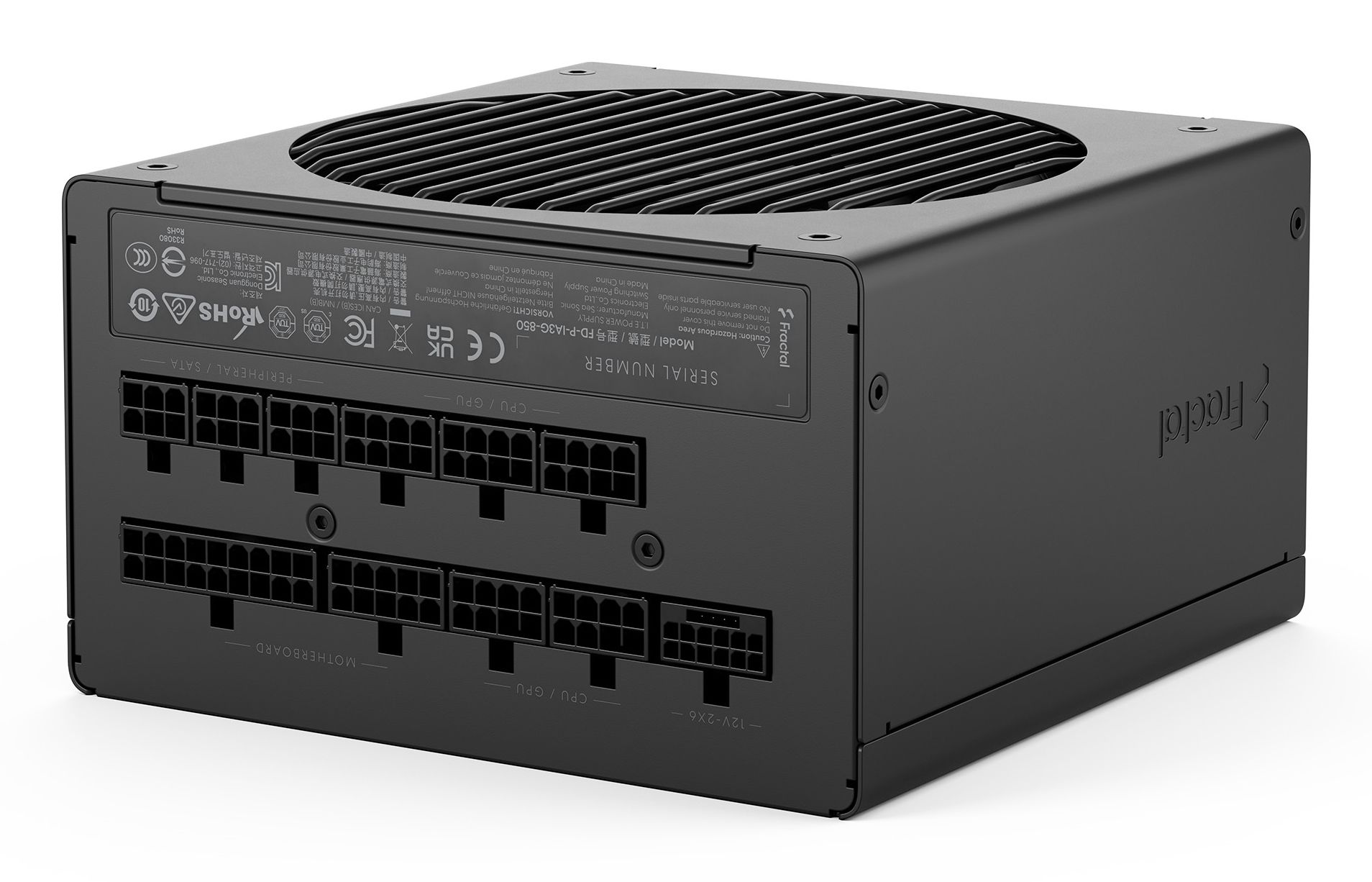

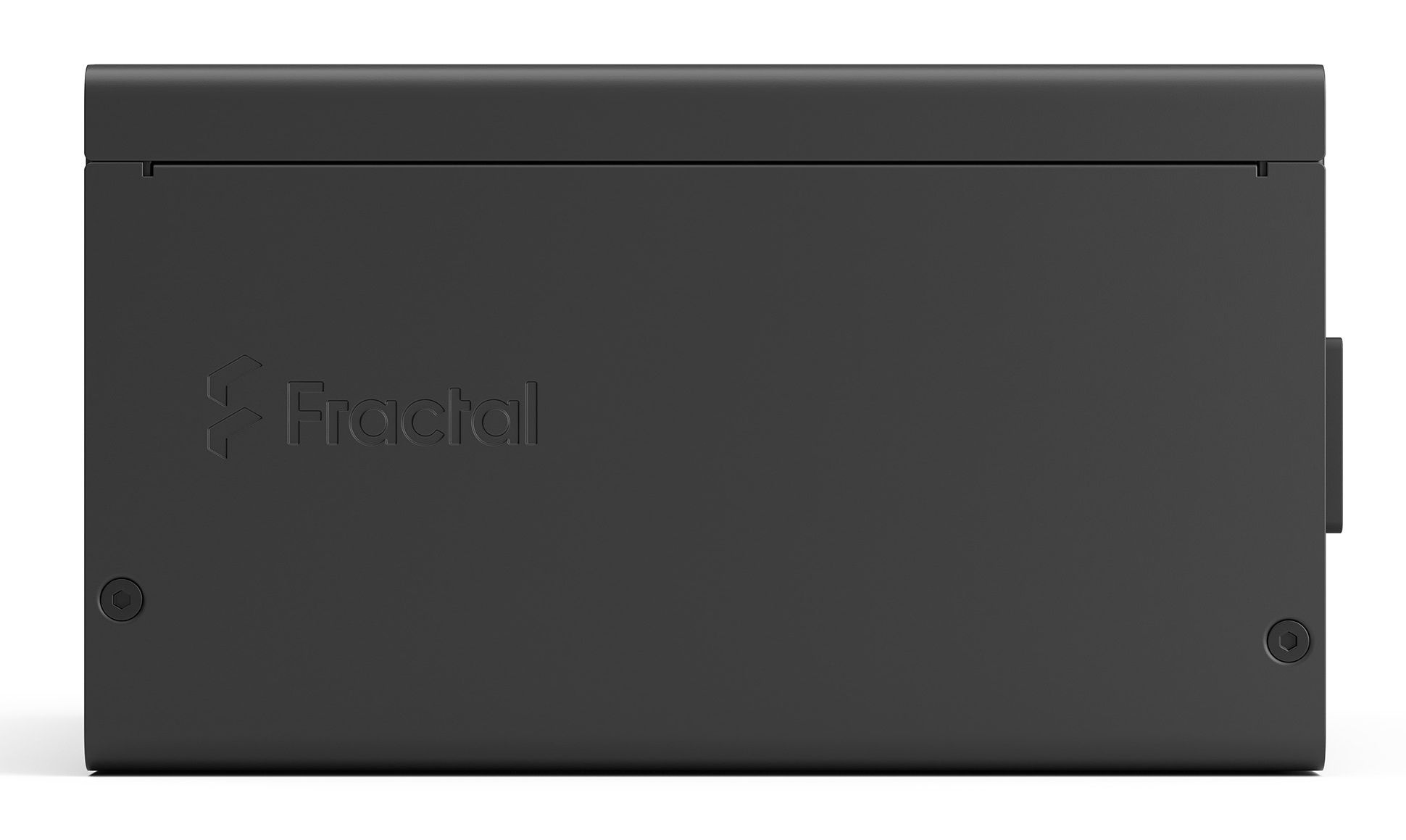

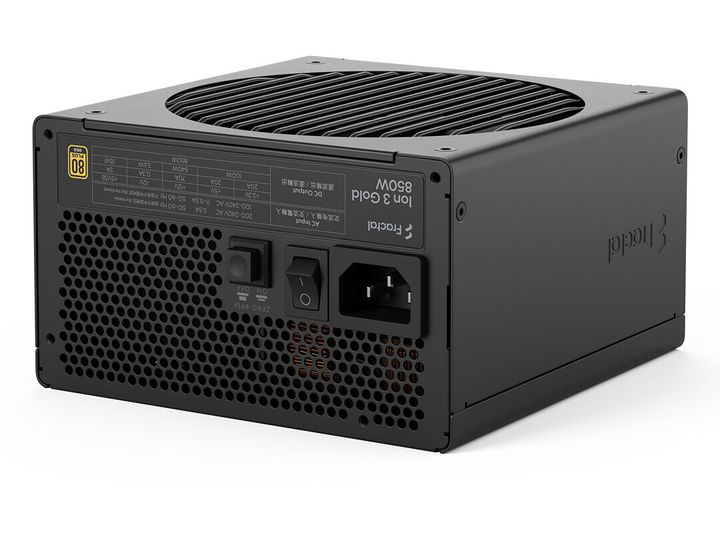

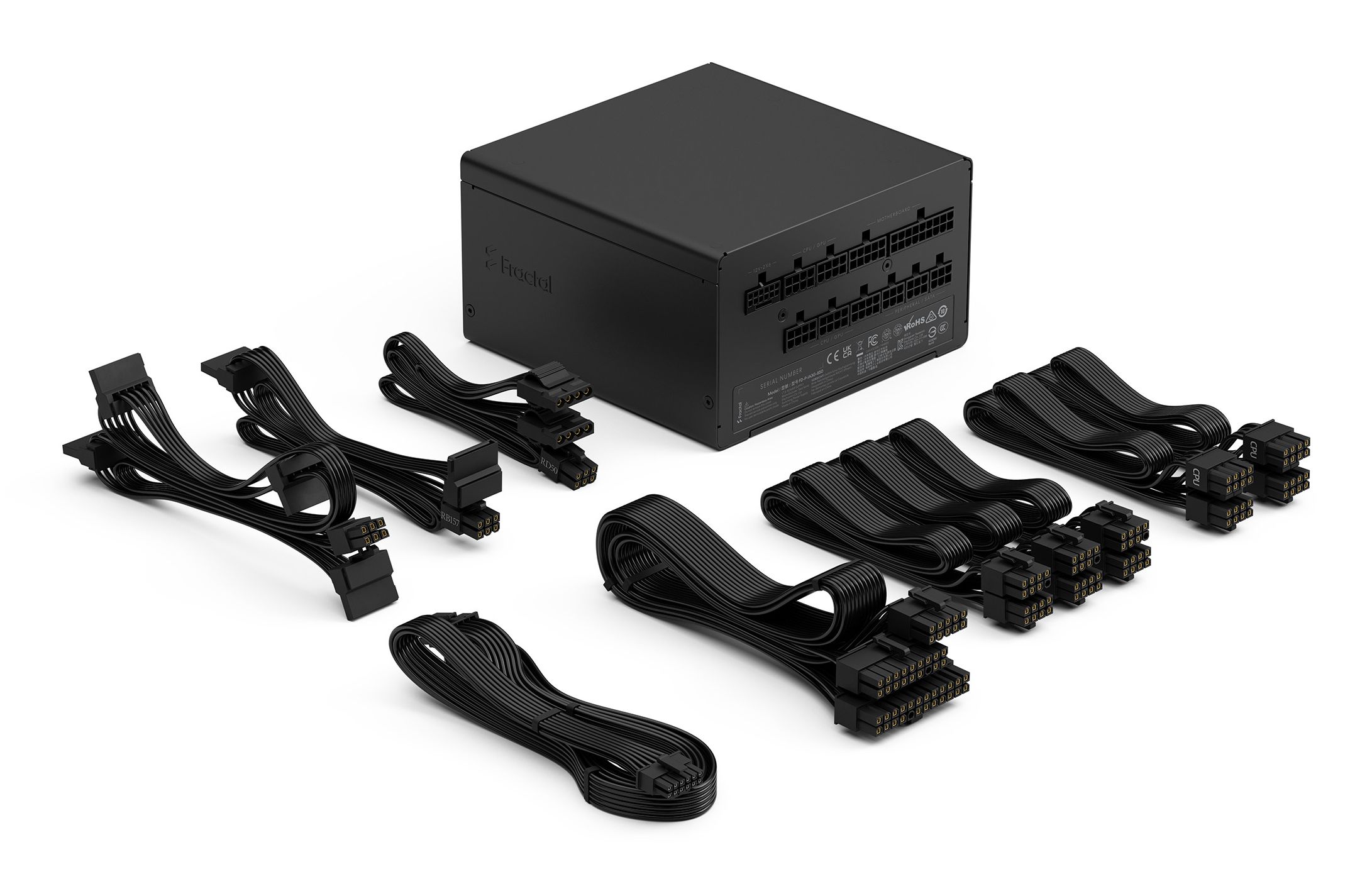

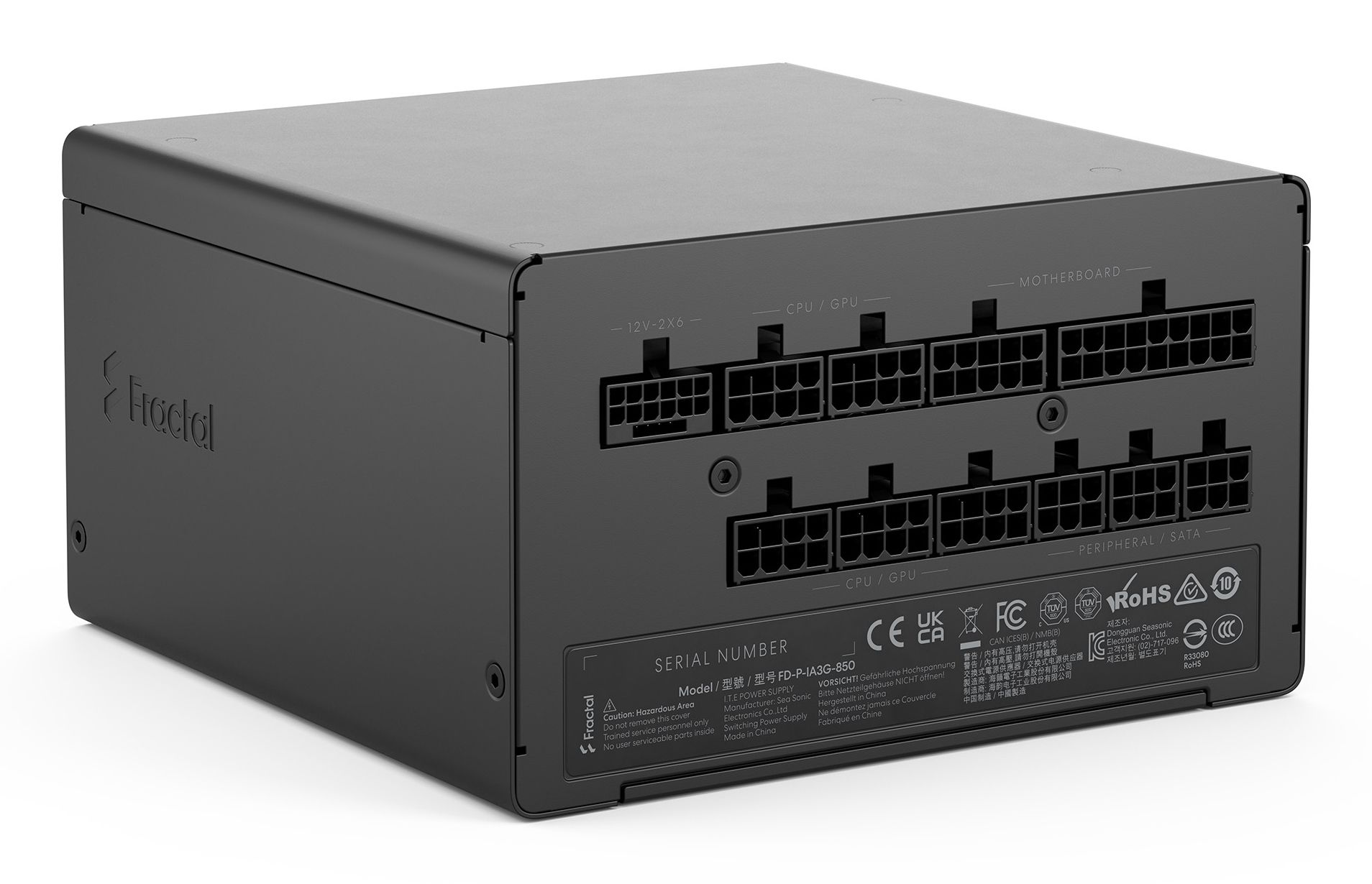

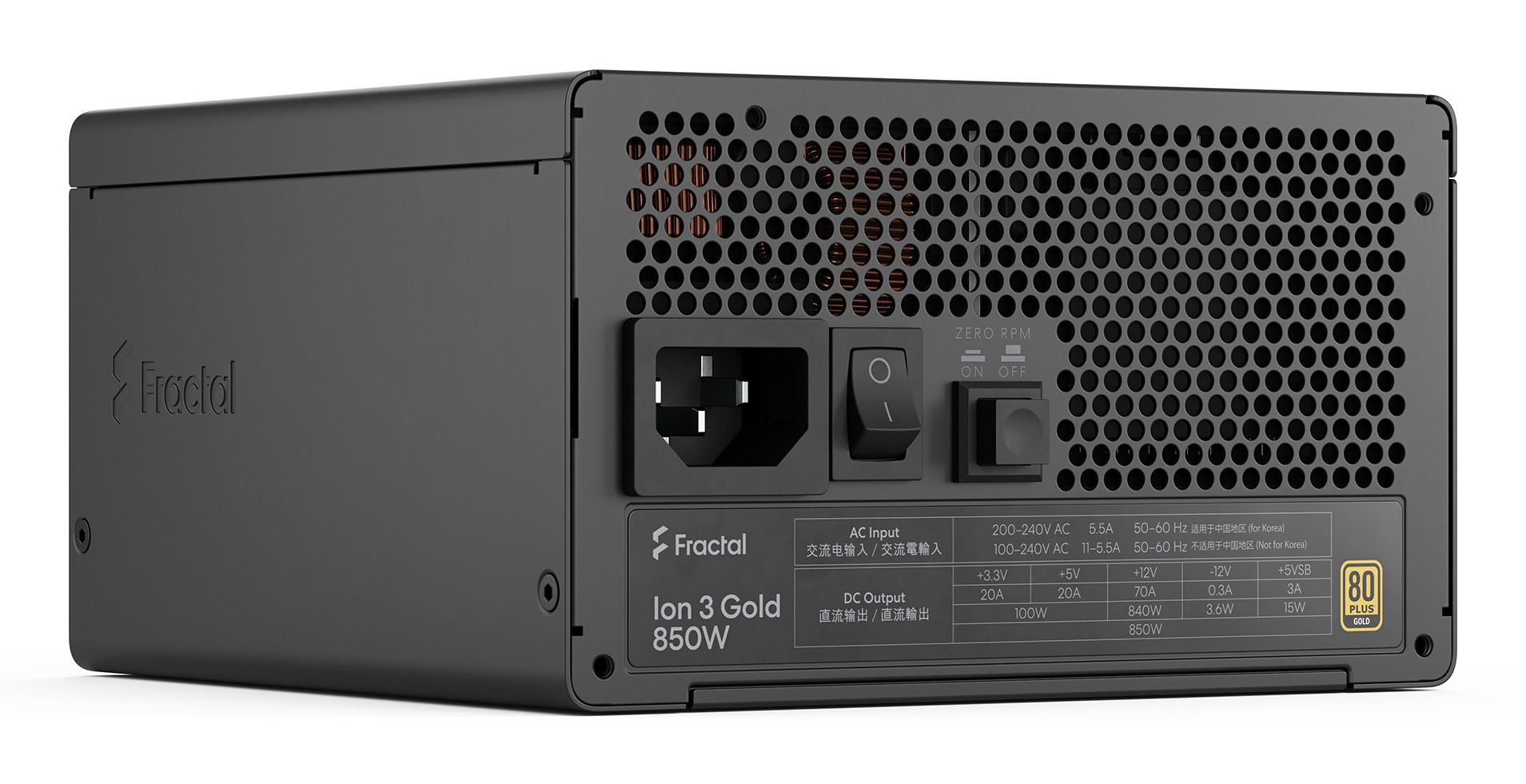

The Fractal Design Ion 3 Gold Power Supply combines efficiency and reliability for high-performance builds. With a power output of 850 W and an 80 PLUS Gold certification, this power supply ensures energy efficiency while providing ample power for all your components. The fully modular design allows for easy cable management, helping to maintain a clutter-free environment and improve airflow within the case.

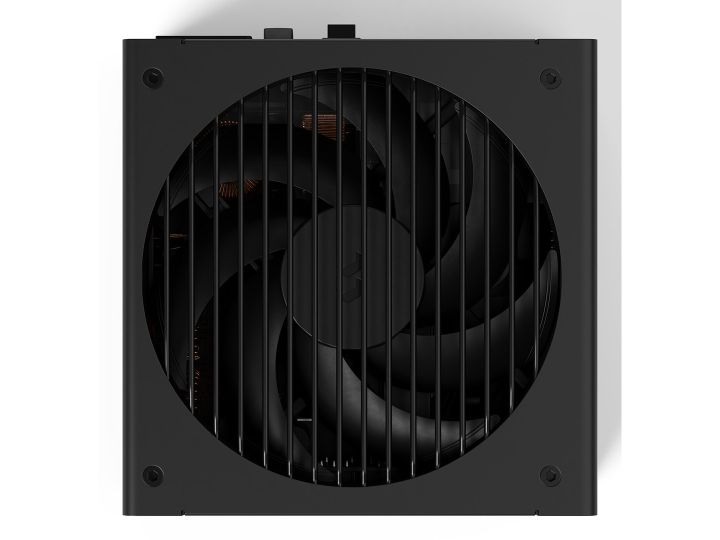

Designed with safety in mind, the Fractal Design Ion 3 Gold features multiple protection mechanisms including overheat, overcurrent, and short-circuit protection. The 140 mm fluid dynamic bearing cooling fan operates quietly with a Zero RPM fan mode, ensuring a silent computing experience. Compatibility with Intel C6/C7 Sleep State is an added benefit for energy-saving in idle mode.
Produktbeskrivelse
Fractal Design Ion 3 Gold - strømforsyning - 850 Watt
Enhedstype
Strømforsyning - aktiv Power Factor Correction (PFC) - intern
Specifikationsoverensstemmelse
ATX12V 3.1
80 PLUS certificering
80 PLUS Gold
Vægt
1.8 kg
Indgangspænding
AC 100-240 V
Udgangspænding
+3.3, +5, ±12 V, -12V, +5Vsb V
Strømkapacitet
850 Watt
Output Current

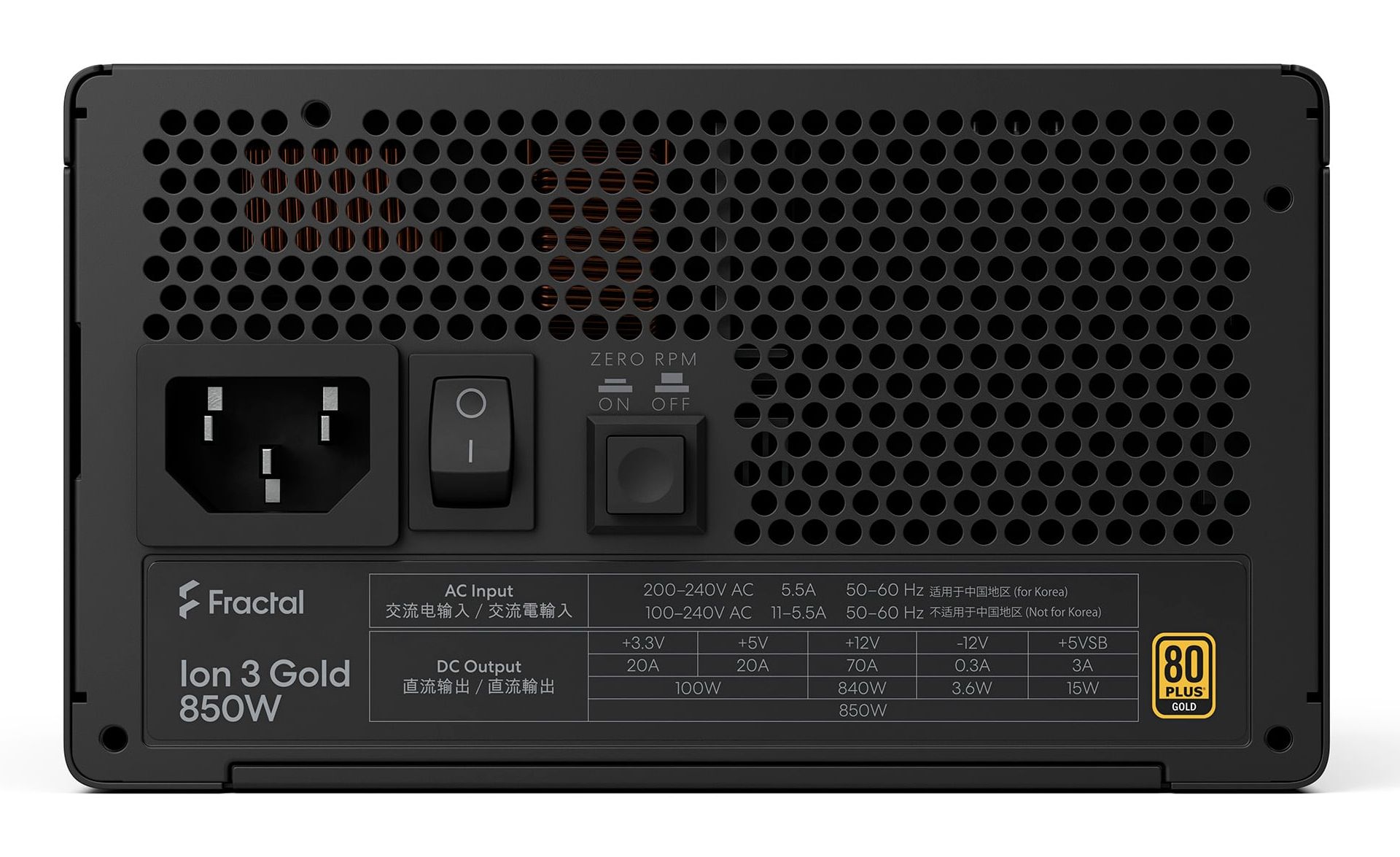

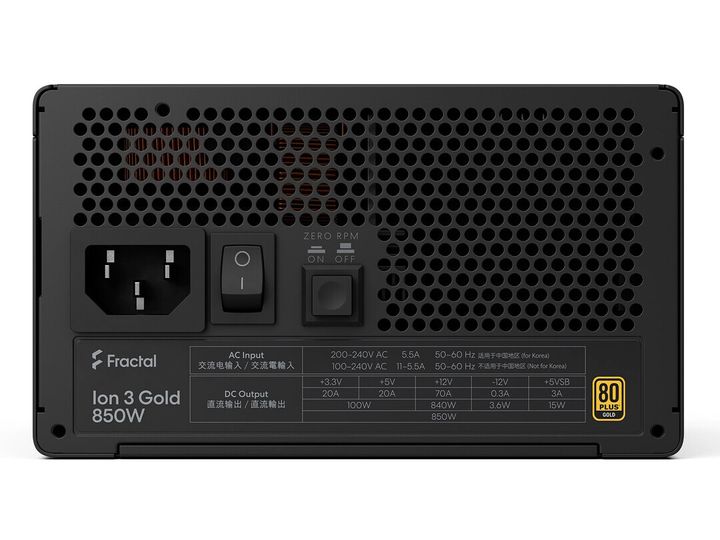

+3.3V - 20 A +5V - 20 A +12V - 70 A -12V - 0.3 A +5VSB - 3 A

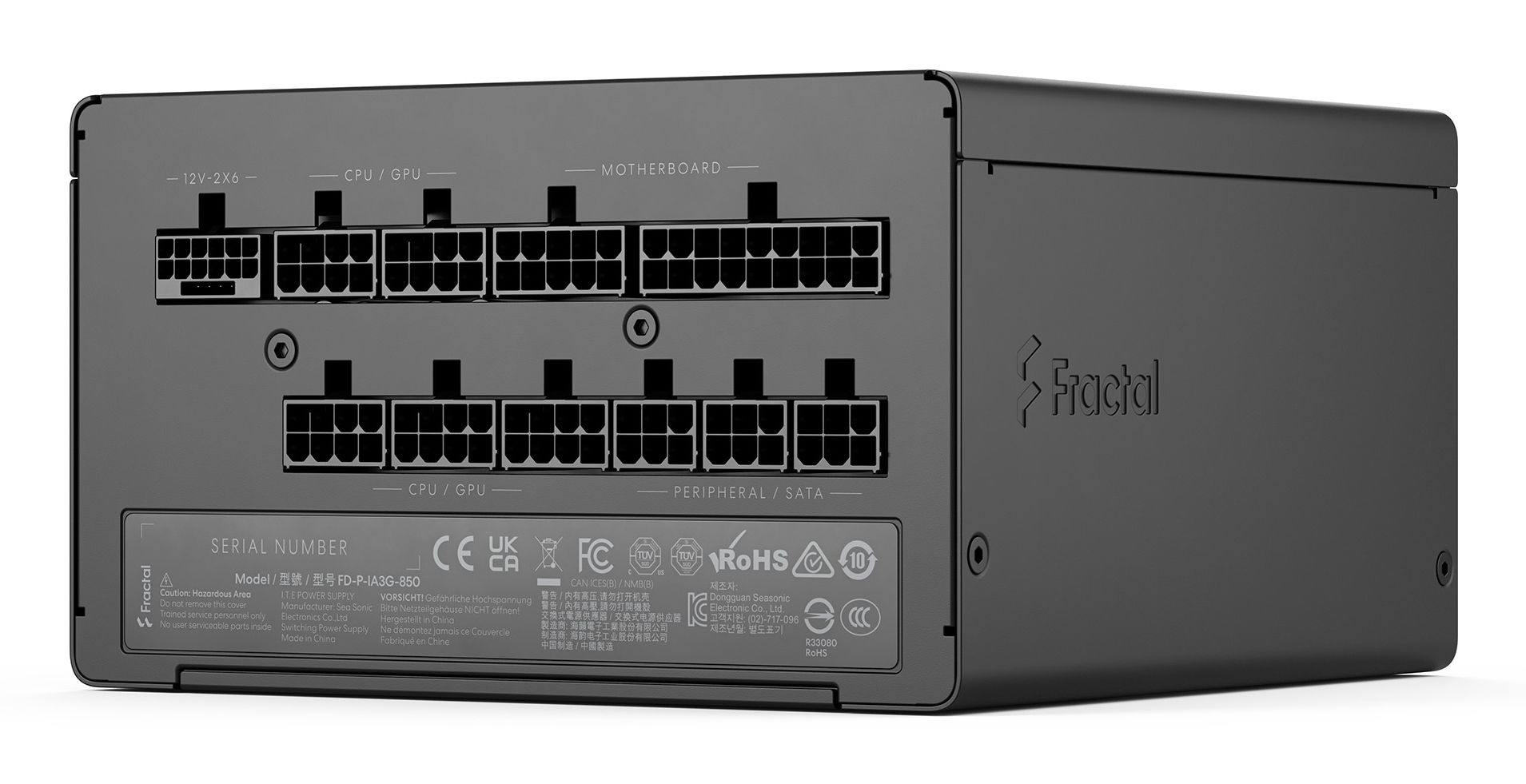

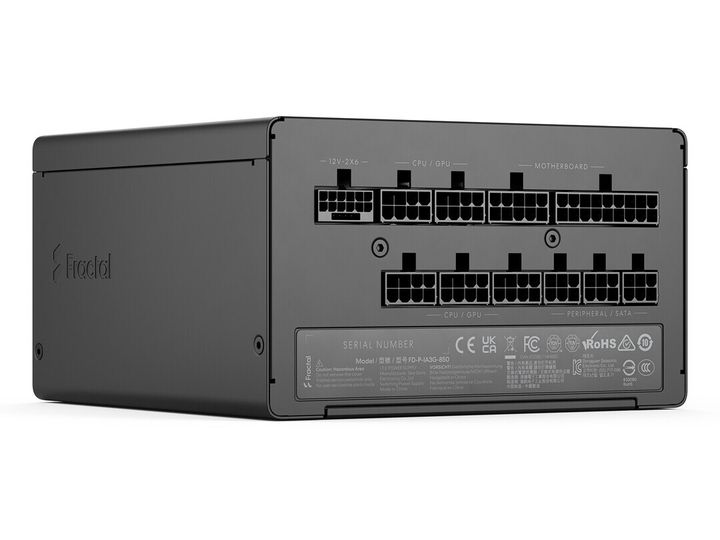

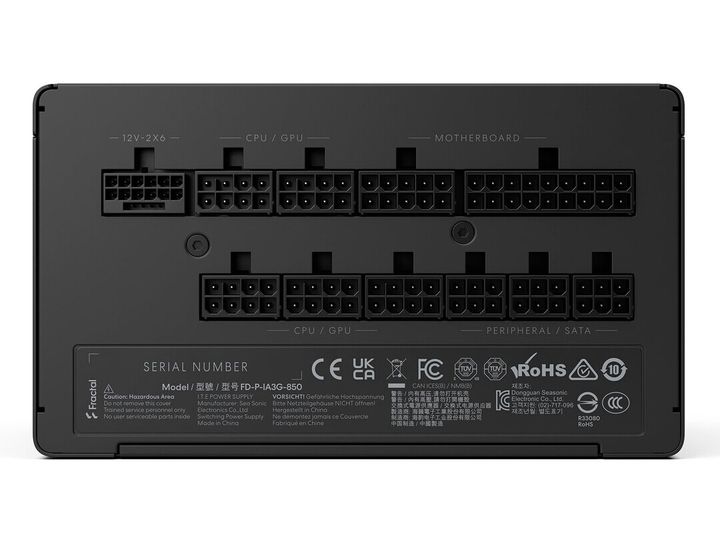

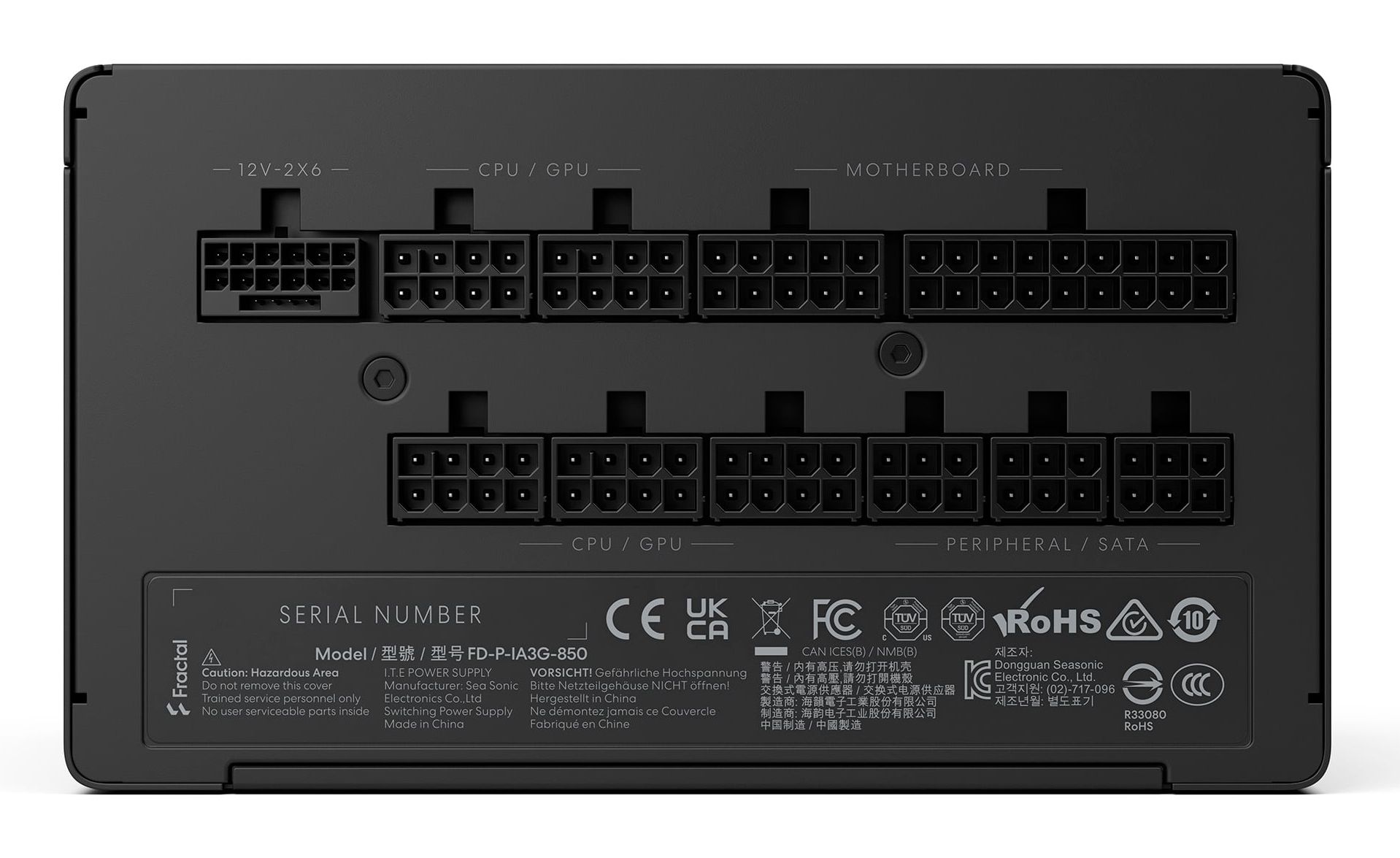

Output-stikforbindelser

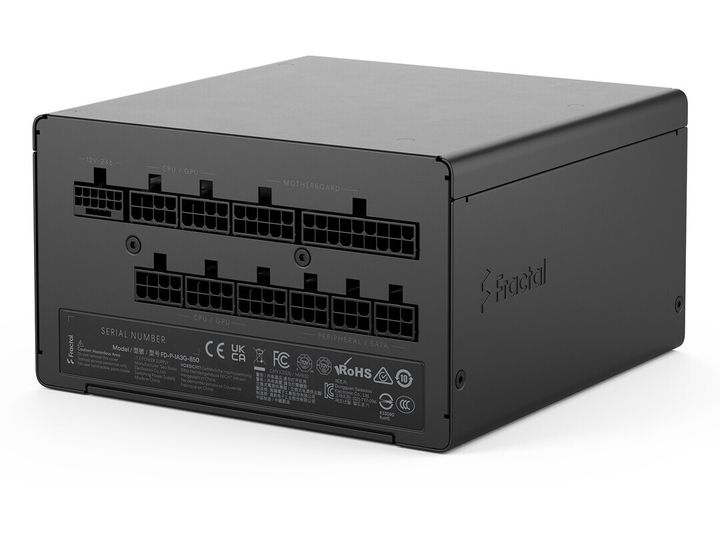

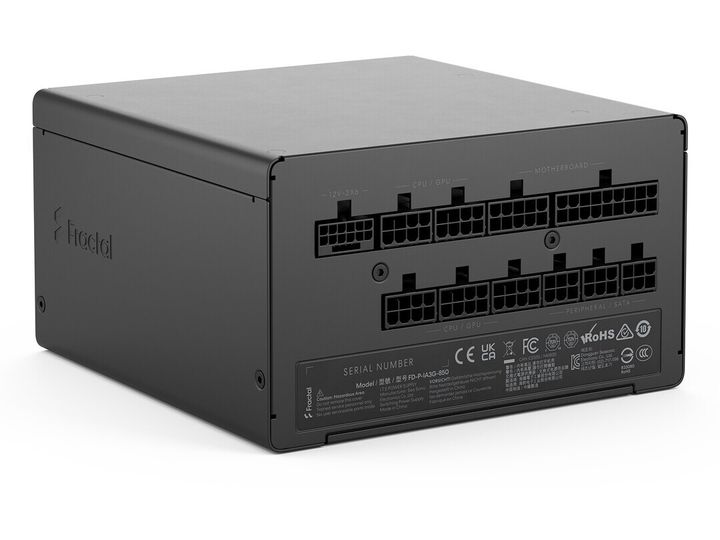

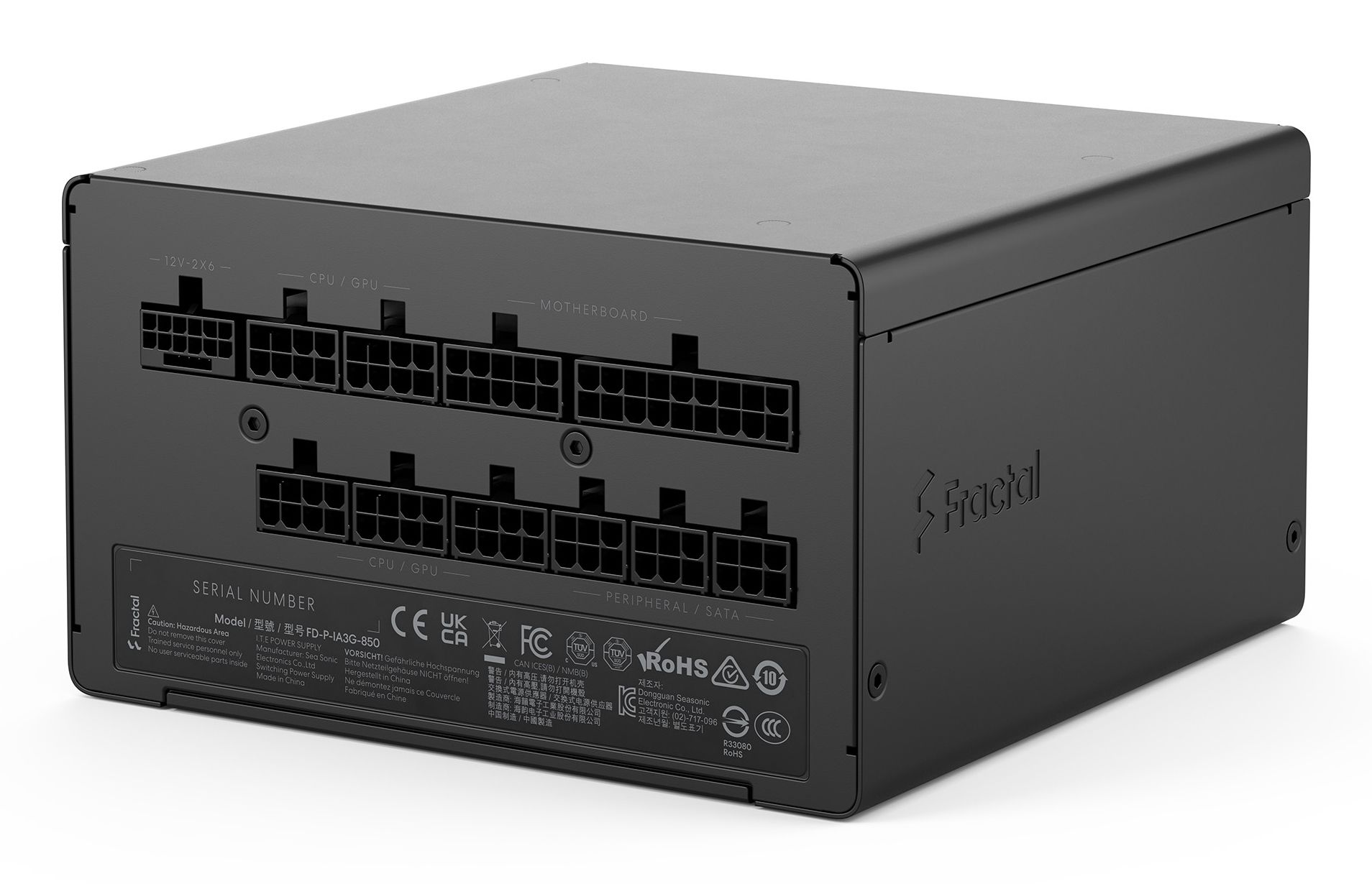

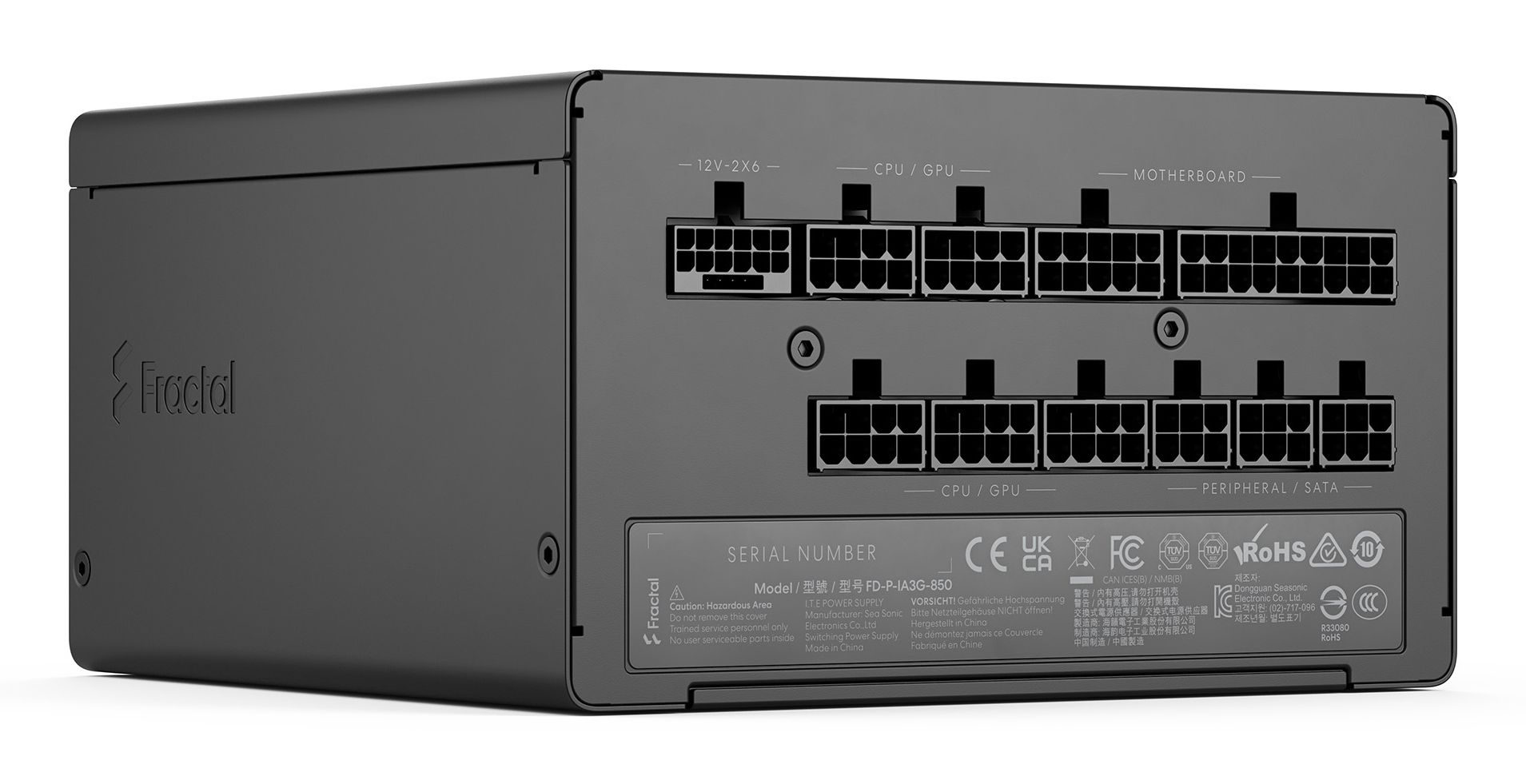

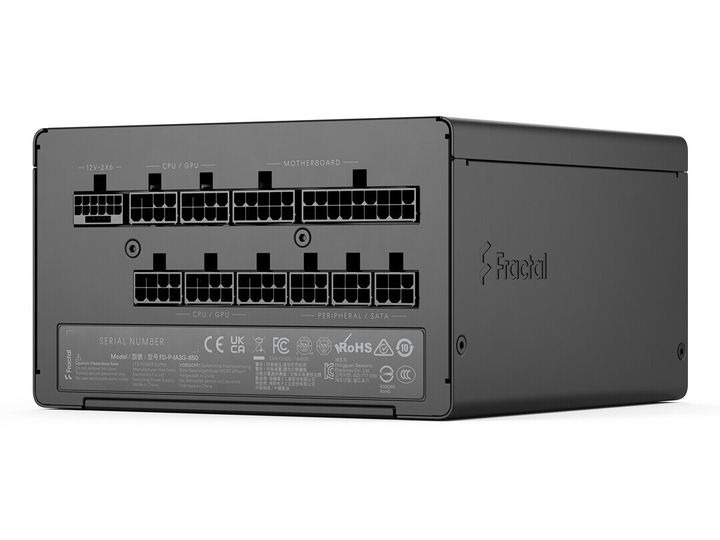

1 x strøm 18 pin med 10 pin 5 x 8 pin PCI Express-strøm med aftagelig 2 pin sektion 3 x 15 pin Serial ATA strøm 1 x 12V 2x6 PCIE 5.1
Modulær Kabel Administration
Ja
Kølesystem

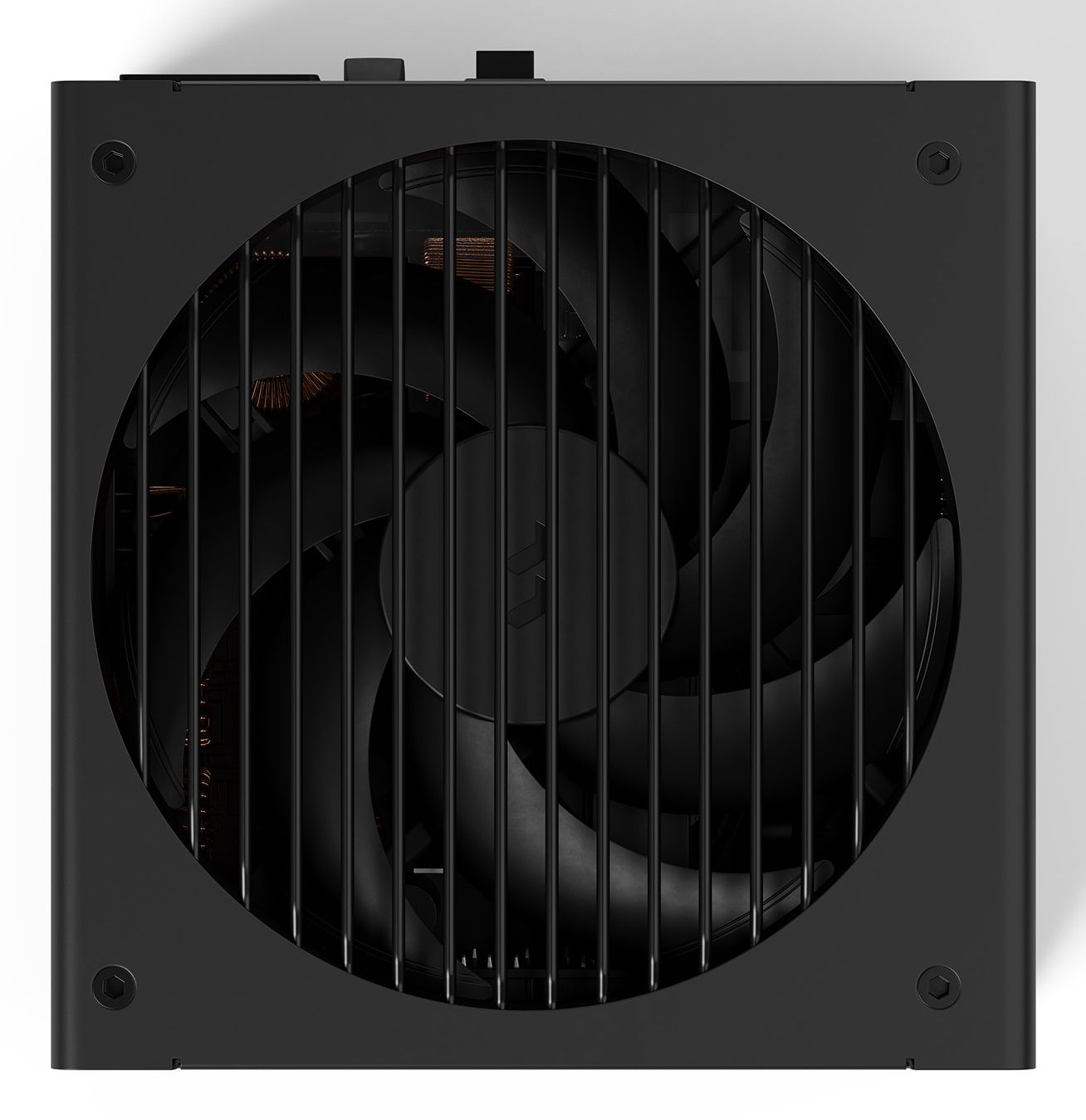

140 mm ventilator
Udstyr inkluderet
Plastikbindesæk, skruepakke, PSU tester
Farve
Sort
Dimensioner (B x D x H)
15 cm x 15 cm x 8.6 cm
Producentgaranti
10-års garanti
Generelt
Enhedstype
Strømforsyning - aktiv Power Factor Correction (PFC) - intern
Specifikationsoverensstemmelse
ATX12V 3.1
PSU formfaktor
ATX
Farve
Sort
Strømenhed
Indgangspænding
AC 100-240 V
Nødvendig frekvens
50 - 60 Hz
Detaljer om strømudgangskonnektorer
1 x strøm 18 pin med 10 pin 5 x 8 pin PCI Express-strøm med aftagelig 2 pin sektion 3 x 15 pin Serial ATA strøm 1 x 12V 2x6 PCIE 5.1
Udgangspænding
+3.3, +5, ±12 V, -12V, +5Vsb V
Strømkapacitet
850 Watt
Output Current
+3.3V - 20 A +5V - 20 A +12V - 70 A -12V - 0.3 A +5VSB - 3 A
Modulær Kabel Administration
Ja
80 PLUS certificering
80 PLUS Gold
Diverse
Udstyr inkluderet
Plastikbindesæk, skruepakke, PSU tester
Medfølgende ledninger

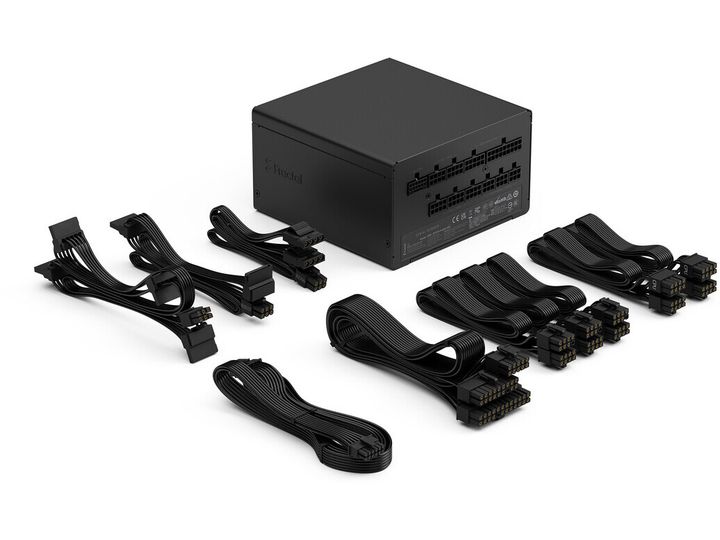

AC-strømkabel - ekstern Strøm 24 pin ATX med aftageligt 4 pin sektion modulært kabel 60 cm 2 x strøm 8 pin +12 V med aftageligt 4 pin sektion modulært kabel 70 cm 3 x 8 pin PCI Express strøm med udtrækkelig 2 pin sektion modulærtkabel 65 cm 16-pin 12VHPWR strøm modulær kabel 70 cm 2 x strøm 15 pin SATA-kabel 85 cm Strøm 15 pin SATA-kabel 80 cm 4-pin intern strøm modulær kabel 80 cm
MTBF (forventet tid mellem fejl)
100,000 timer
Kølesystem
140 mm ventilator
Egenskaber
Flade kabler, fuld modulær, køleblæser til flydende dynamisk leje, Zero RPM-blæsermodus, overbelastningsbeskyttelse, overspændingsbeskyttelse, beskyttelse mod underspænding, kortslutnings beskyttelse, beskyttelse mod overstrøm, beskyttelse mod overophedning, enkelt 12V skinne, Intel C6/C7 Sleep State kompatibel
