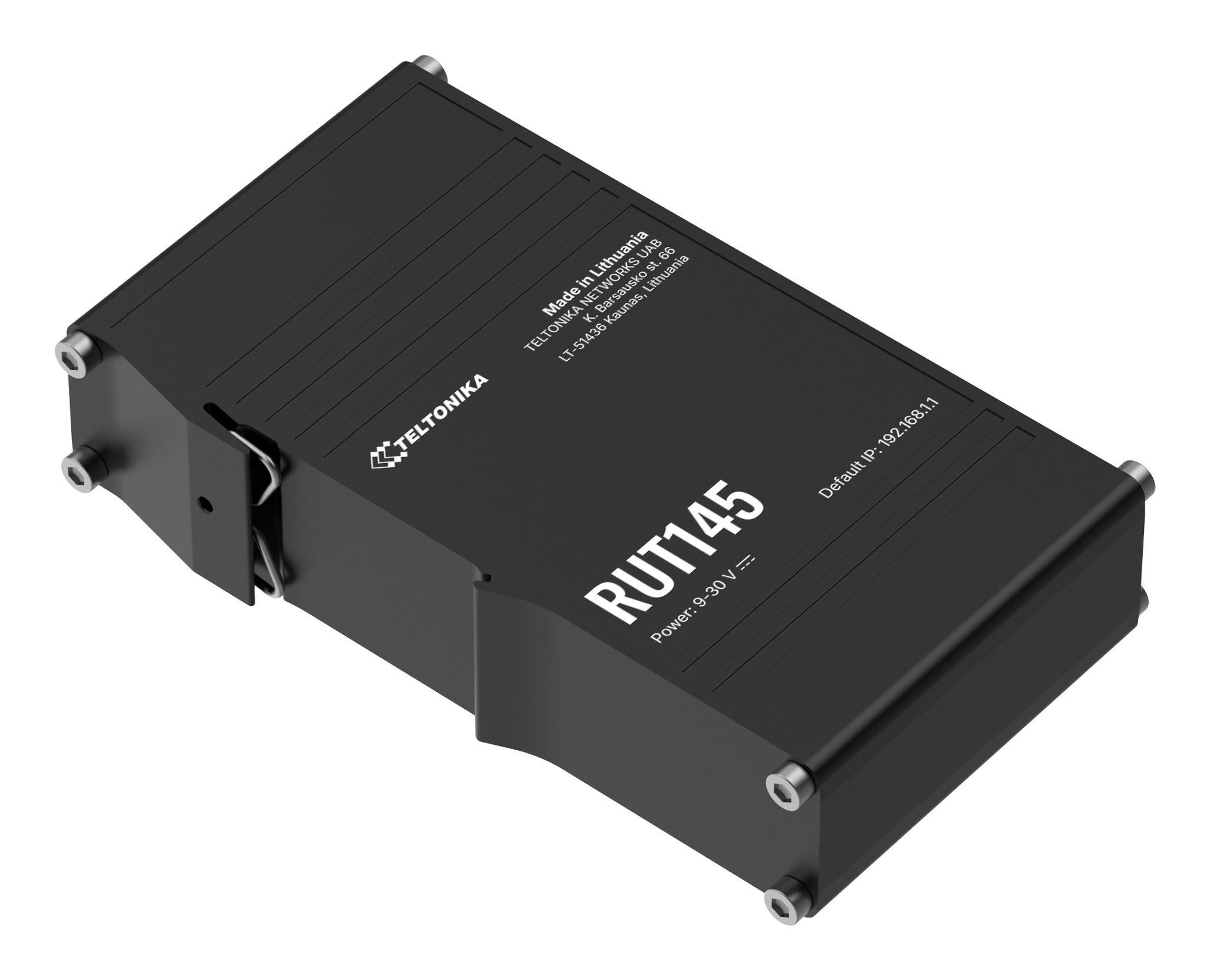

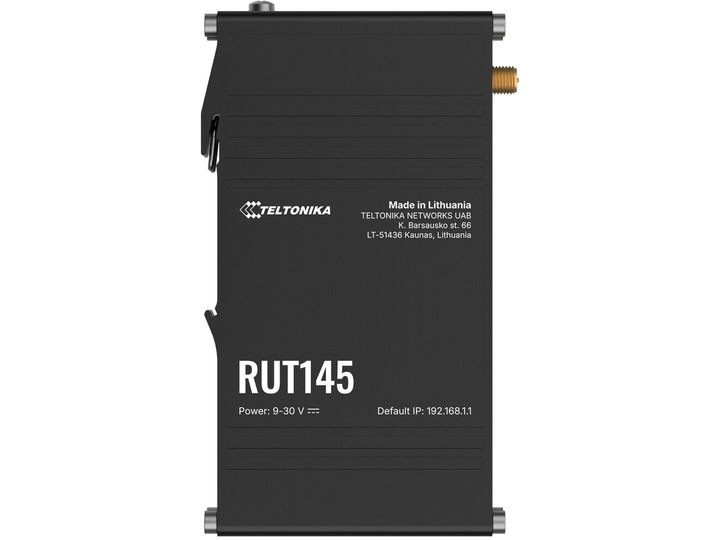

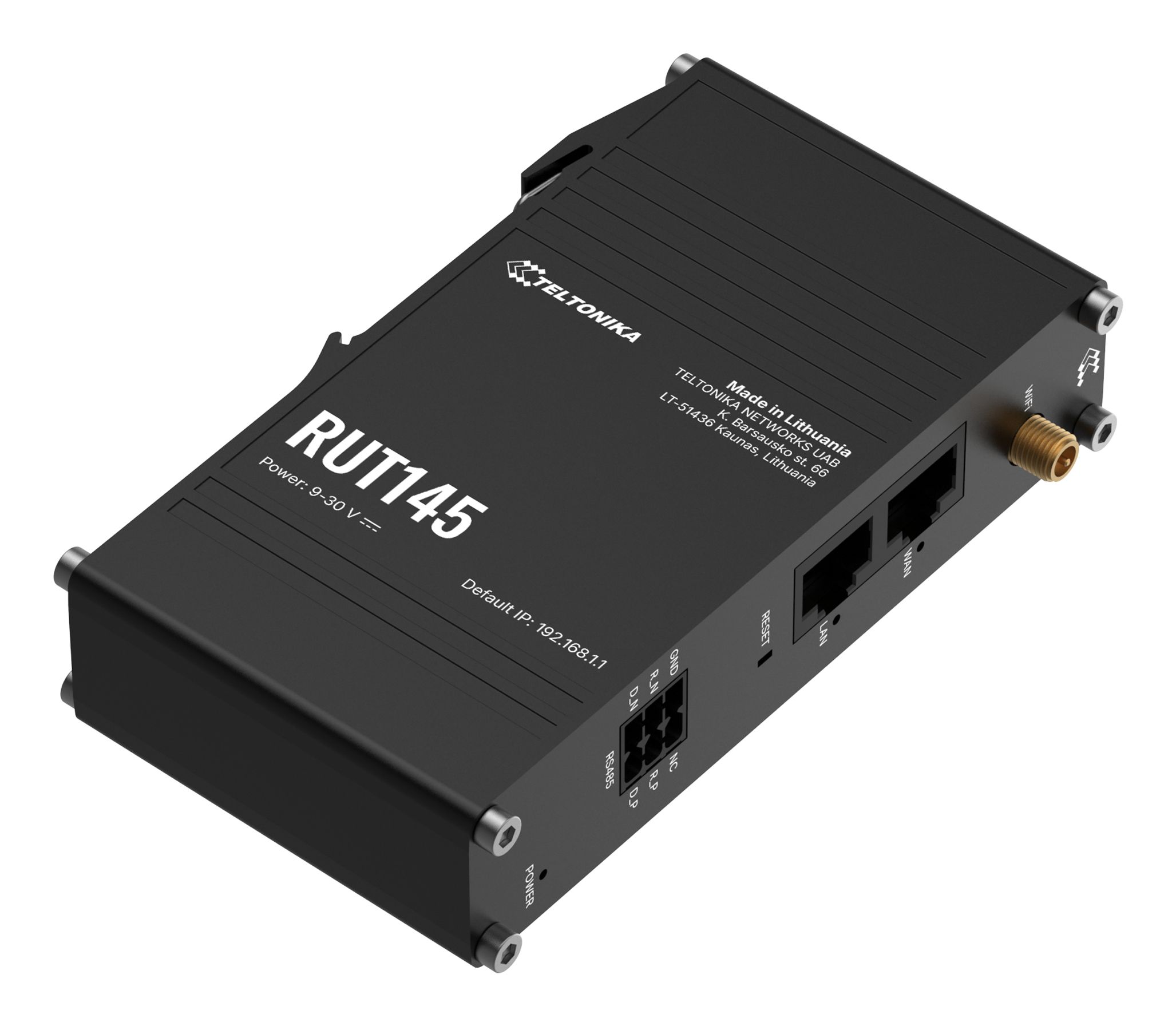

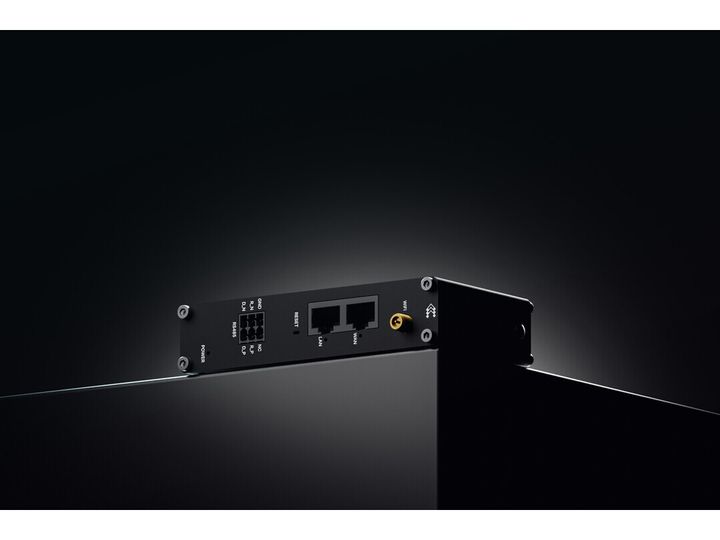

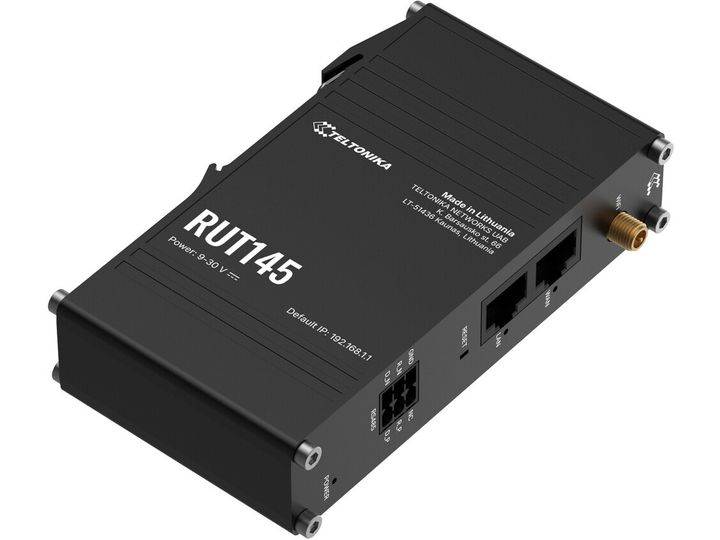

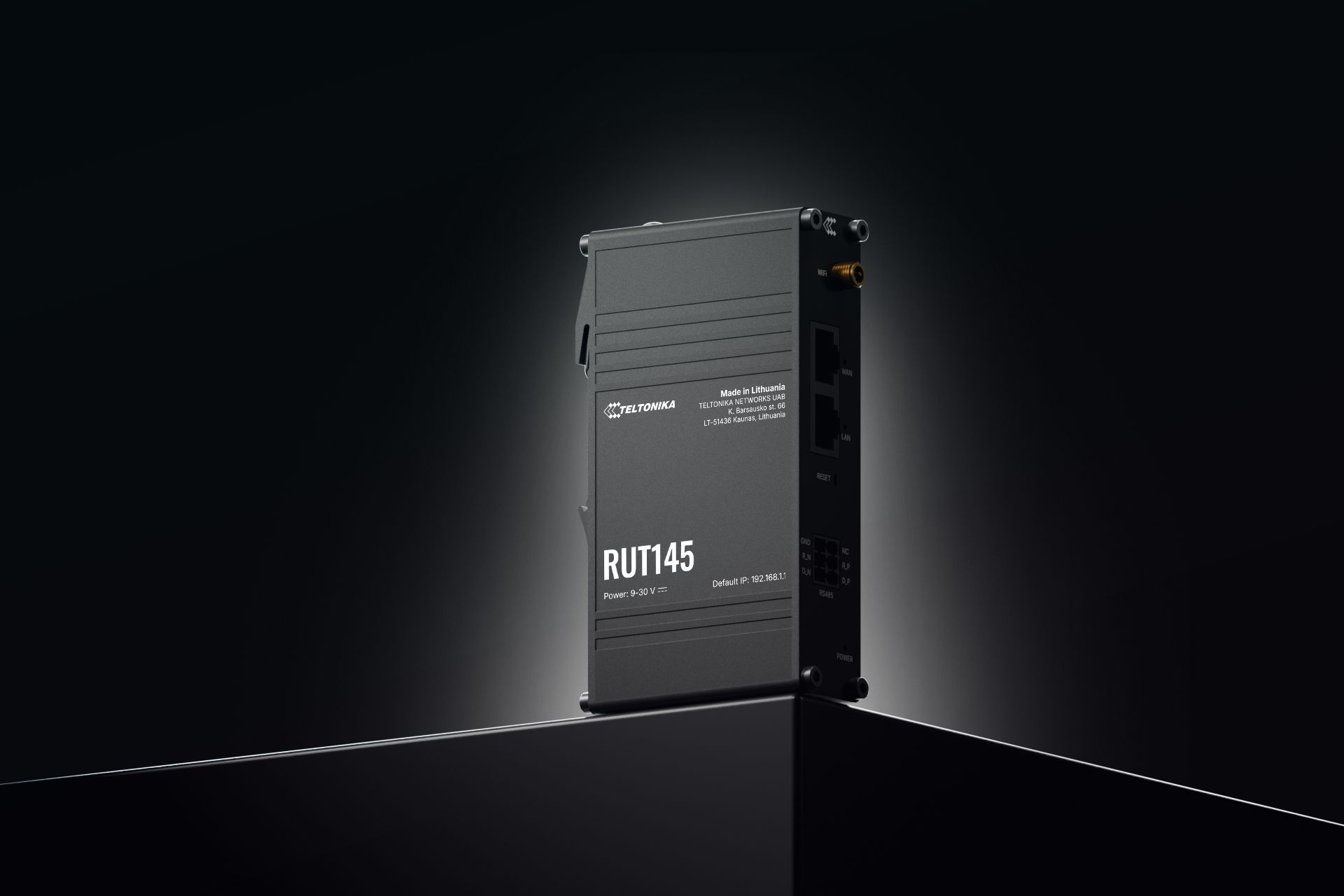

Teltonika RUT145, Wi-Fi 4 (802.11n), Single-band (2.4 GHz), Ethernet LAN, Black, Industrial router

Item no.: [24957822] | Manufacturer: Teltonika | Model no.: RUT145000000 | EAN: 4779051846771

In stock

In stock, order before 3 PM and we ship today (weekdays) More info

There are 2 in stock

The current price is valid as long as the local stock lasts

Shipping @price - GLS

12,00

EUR 52,92

Incl. VAT 66,15

Total incl. delivery 81,15

Read further specifications and description

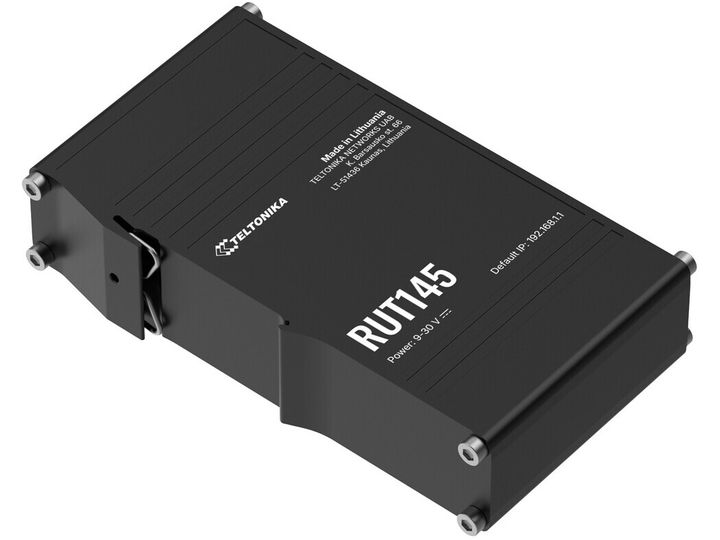

The RUT145 is an industrial router with RS485 communication for manufacturing and automation, specifically designed to bridge the communication gap between RS485 field devices and IP networks. It provides seamless Ethernet/Wi-Fi connectivity combined with a native RS485 multi-drop interface. The device, running on RutOS, offers powerful network security and industrial data collection tools. Its narrow, DIN-rail-mountable design and integration with the RMS platform ensure secure remote and cost-efficient remote management at scale.

Produktbeskrivelse	Teltonika RUT145 - trådløs router - Wi-Fi - DIN monterbar på skinne
Enhedstype	Trådløs router
Pakningstype	DIN monterbar på skinne
Antal WAN porte	1
Dataforbindelsesprotokol	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, Ethernet, Fast Ethernet
Kapacitet	Samtidige tilslutninger: 50
Netværks/overføselsprotokol	TCP/IP, UDP/IP, IPv4, IPv6, ICMP/IP, NTP, DNS, HTTP, HTTPs, SFTP, FTP, SMTP, ARP, PPPoE, OpenVPN, PPTP, L2TP, L2TPv3, WireGuard
Routingprotokol	BGP, OSPFv2, RIP-1, RIP-2, NHRP, EIGRP, police-baseret routing (PBR), statisk IP routing, VRRP, PPPoE
Platform	ThingWorx, Clouds of Things, Azure IoT Hub, AWS IoT Core, Cumulocity
Protokol til fjernadministration	HTTP, HTTPS, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, CLI, RADIUS, TACACS+, Modbus, SSH-2, TR-069, JSON-RPC, SNMP 1, SNMP 2, SNMP 3
VoIP-protokoller	H.323, SIP
Egenskaber	Tilgangspunkt, drift, stationsdriftstilstand, ESSID stealth tilstand, tillad/bloker-liste, QR-kode forbindelse, TravelMate, auto-uplink (auto MDI/MDI-X), PPP, WOL, DHCP videresendelse, DHCP server, QoS, SQM, aktivitet, DNS over HTTPS, SSHFS support, IGMP proxy, PSK, digitale certifikater, DMZ-support, NAT-understøtning, IPSec NAT-T, NAT64 understøttelse, DDos attack beskyttelse, SYN Flooding, SSH angrebsforebyggelse, HTTP/HTTPS angrebsforebyggelse, port scan prevention, VLAN-understøttet, Web Filtering, SCEP, 802.1x autentificering, L2TP over IPSec, DMVPN, SSTP-klient instanssupport, ZeroTier VPN-klient support, Tinc-kryptering, EtherIP, BACnet/IP support, DNP3 outstation, DNP3 station, DLMS support, FOTA, e-mail meddelelse, SNMP fælde, Brute Force Protection, Teltonika RMS, nulstillingsknap, jordpunkter, anodiseret aluminiumskabinet
Overensstemmelsesstandarder	IEEE 802.11s, IEEE 802.11r, IEEE 802.11v, IEEE 802.11k, IEEE 802.3, IEEE 802.3u, IEEE 802.3az, UPnP
Dimensioner (B x D x H)	11.31 cm x 6.86 cm x 2.5 cm
Vægt	140 g
Producentgaranti	2 års garanti

Generelt
Enhedstype	Trådløs router
Pakningstype	DIN monterbar på skinne
Forbindelsesteknologi	Kablet, trådløs
Dataforbindelsesprotokol	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, Ethernet, Fast Ethernet
Kapacitet	Samtidige tilslutninger: 50
Netværks/overføselsprotokol	TCP/IP, UDP/IP, IPv4, IPv6, ICMP/IP, NTP, DNS, HTTP, HTTPs, SFTP, FTP, SMTP, ARP, PPPoE, OpenVPN, PPTP, L2TP, L2TPv3, WireGuard
Routingprotokol	BGP, OSPFv2, RIP-1, RIP-2, NHRP, EIGRP, police-baseret routing (PBR), statisk IP routing, VRRP, PPPoE
Protokol til fjernadministration	HTTP, HTTPS, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, CLI, RADIUS, TACACS+, Modbus, SSH-2, TR-069, JSON-RPC, SNMP 1, SNMP 2, SNMP 3
Krypterings algoritme	SSL, TLS, DES, RC2, DESX, CAST5, 128-bit AES, 192-bit AES, 256-bit AES, IKEv1, IKEv2, 3DES
Autentificeringsmetode	X.509 certifikater, RADIUS, TACACS+, Secure Shell (SSH), Secure Shell v.2 (SSH2)
Egenskaber	Tilgangspunkt, drift, stationsdriftstilstand, ESSID stealth tilstand, tillad/bloker-liste, QR-kode forbindelse, TravelMate, auto-uplink (auto MDI/MDI-X), PPP, WOL, DHCP videresendelse, DHCP server, QoS, SQM, aktivitet, DNS over HTTPS, SSHFS support, IGMP proxy, PSK, digitale certifikater, DMZ-support, NAT-understøtning, IPSec NAT-T, NAT64 understøttelse, DDos attack beskyttelse, SYN Flooding, SSH angrebsforebyggelse, HTTP/HTTPS angrebsforebyggelse, port scan prevention, VLAN-understøttet, Web Filtering, SCEP, 802.1x autentificering, L2TP over IPSec, DMVPN, SSTP-klient instanssupport, ZeroTier VPN-klient support, Tinc-kryptering, EtherIP, BACnet/IP support, DNP3 outstation, DNP3 station, DLMS support, FOTA, e-mail meddelelse, SNMP fælde, Brute Force Protection, Teltonika RMS, nulstillingsknap, jordpunkter, anodiseret aluminiumskabinet
Overensstemmelsesstandarder	IEEE 802.11s, IEEE 802.11r, IEEE 802.11v, IEEE 802.11k, IEEE 802.3, IEEE 802.3u, IEEE 802.3az, UPnP, IEEE 802.3af, IEEE 802.3bt, IP30, RED, UKCA, RCM, CB, IC, EAC, UCRF, WEEE
Processor	1 x MediaTek MIPS 24Kec 580 MHz
RAM	128 MB DDR2 SDRAM
Flashhukommelse	16 MB
Statusindikatorer	WAN, LAN, strøm
IP-telefoni
VoIP-protokoller	H.323, SIP
Internet of Things (IoT)
Internet of Things (IoT) kompatibel	Ja
Platform	ThingWorx, Clouds of Things, Azure IoT Hub, AWS IoT Core, Cumulocity
Ekspansion / Konnektivitet

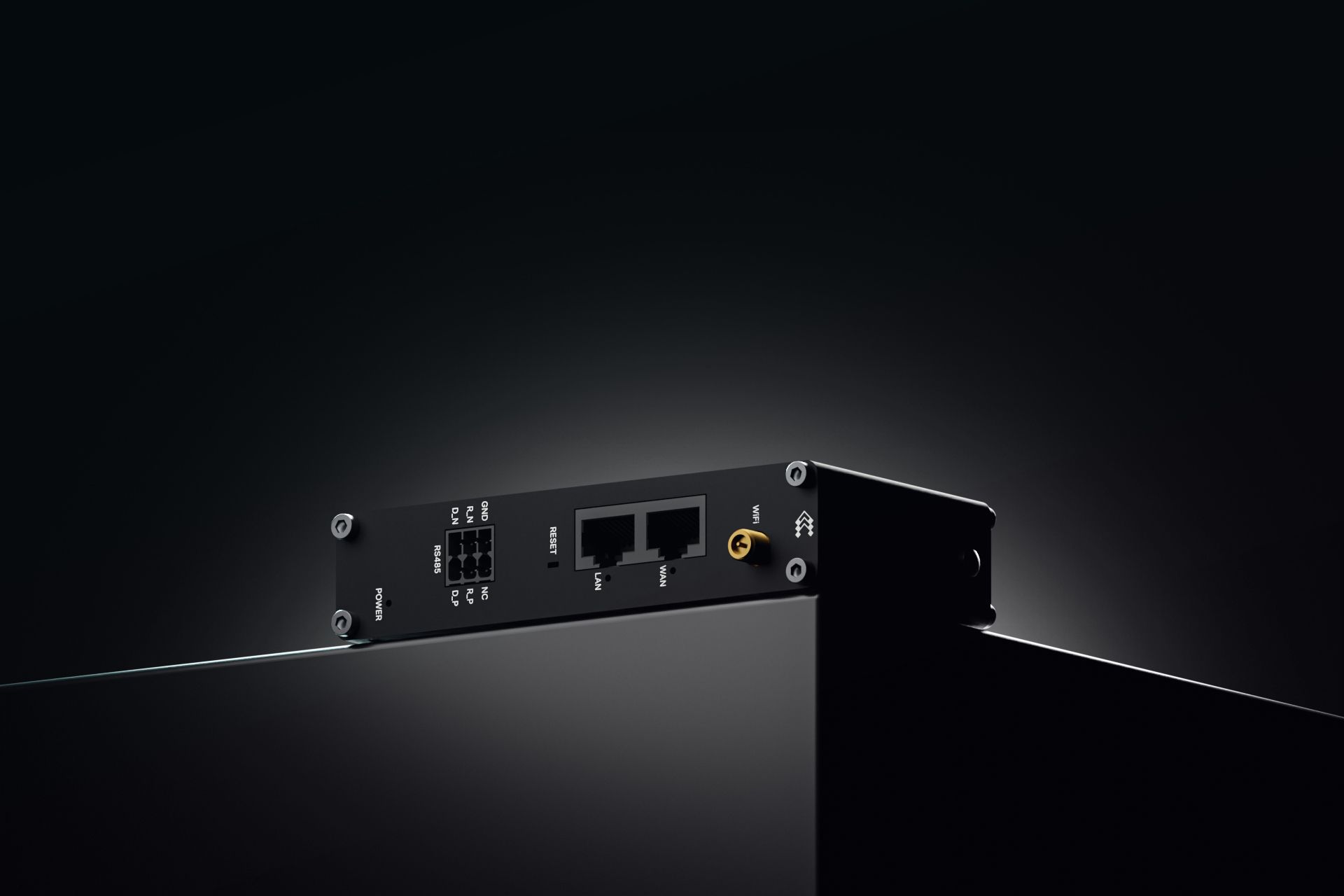

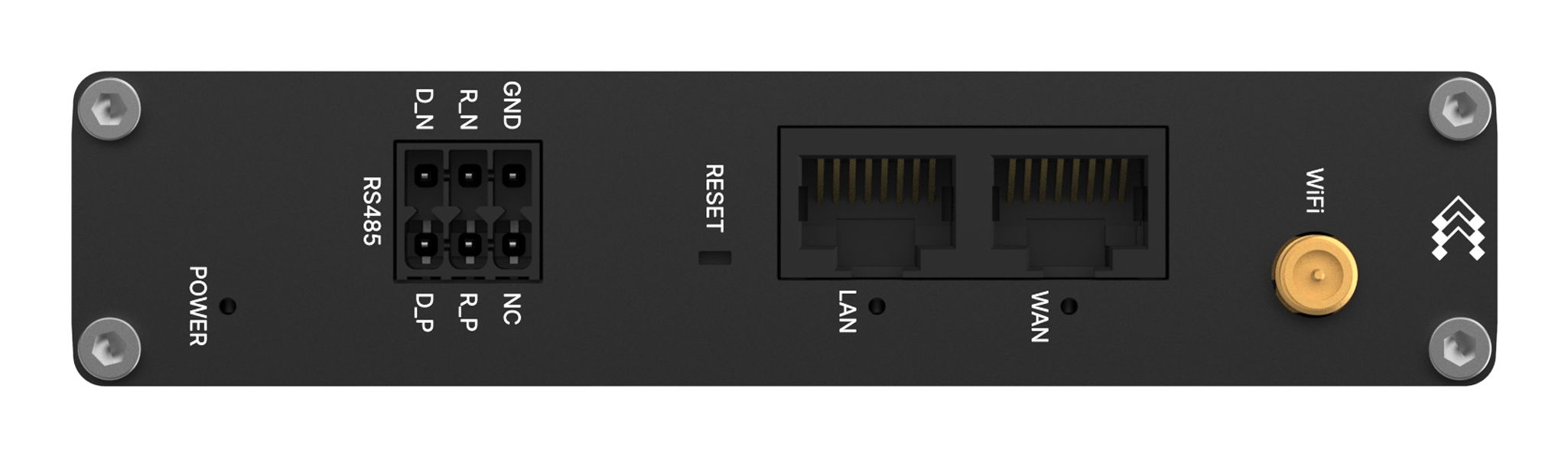

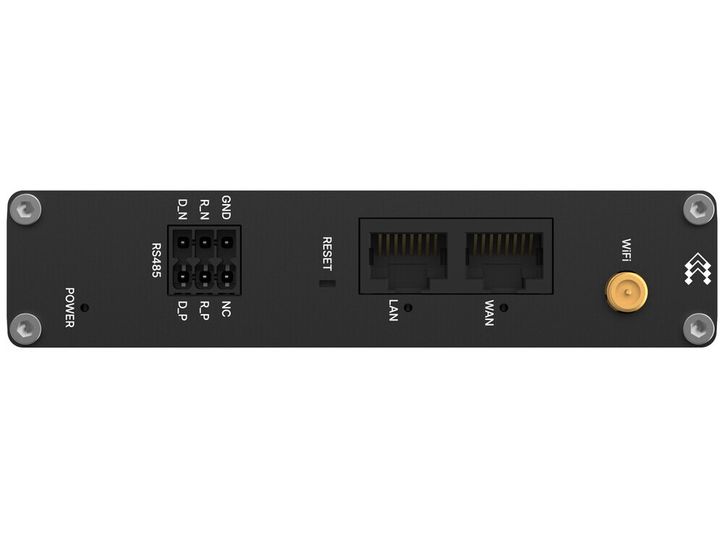

Interface	WAN: 1 x 10Base-T/100Base-TX - RJ-45 LAN: 1 x 10Base-T/100Base-TX (PoE) - RJ-45 Seriel: 1 x RS-485 - 6-pins terminalblok Antenne: 1 x RP-SMA - Wi-Fi
Antenne
Antenne	Aftagelig eksternt
Antal antenner	1
Effekt
Strømenhed	Ekstern strømadapter/strøminjektor (ikke inkluderet)
Diverse

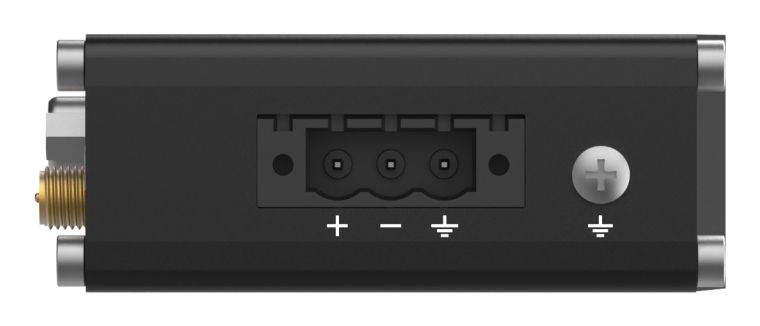

Udstyr inkluderet	3-pin strømstik, 2 x 3-pin I/O-stik
Programmer / Systemkrav
Med OS	RutOS
Mål og vægt
Bredde	11.31 cm
Dybde	6.86 cm
Højde	2.5 cm
Vægt	140 g
Producentgaranti
Service & Support	Begrænset garanti - 2 år
Miljømæssige parametre
Min. driftstemperatur	-40 °C
Maks. driftstemperatur	75 °C
Fugtighedsgrad ved brug	10 - 90 % (ikke-kondenserende)

The item is known under the following item numbers in our system

EAN:	4779051846771
EAN:	4779051848287
SKU:	RUT145000000

Why do I find that the same product is available on different item numbers?

Manufacturers often release the same product with different item numbers, typically just different versions of the packaging. For example, the packaging may be targeted at different countries. We try our best to unify the products, but it can happen that the same product appears on different item numbers in our system.
