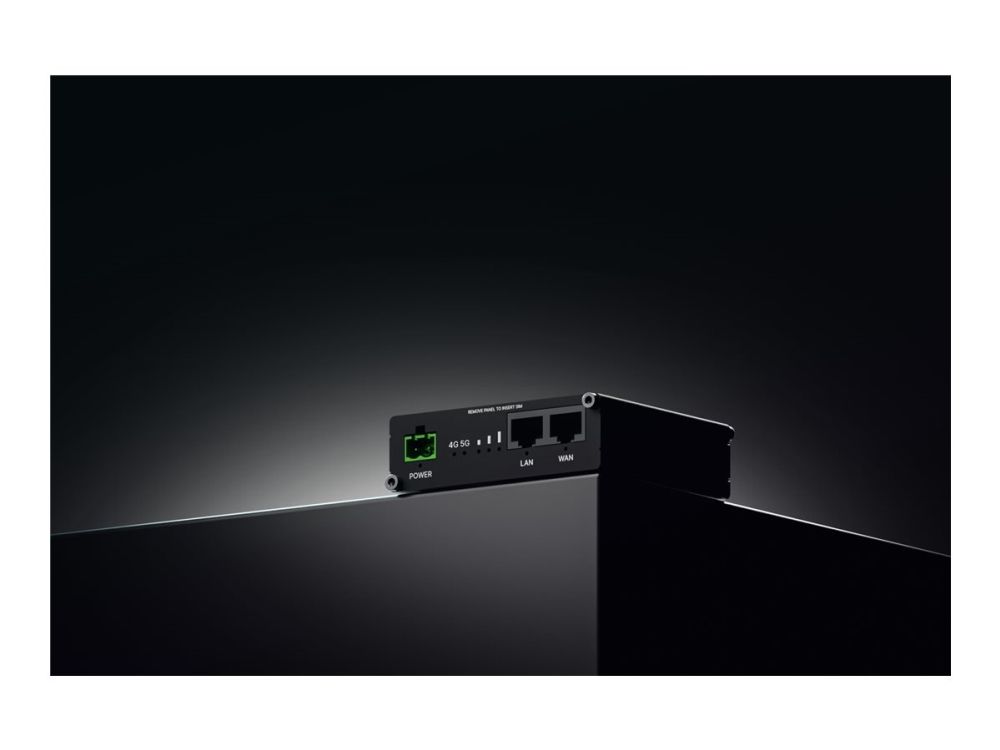

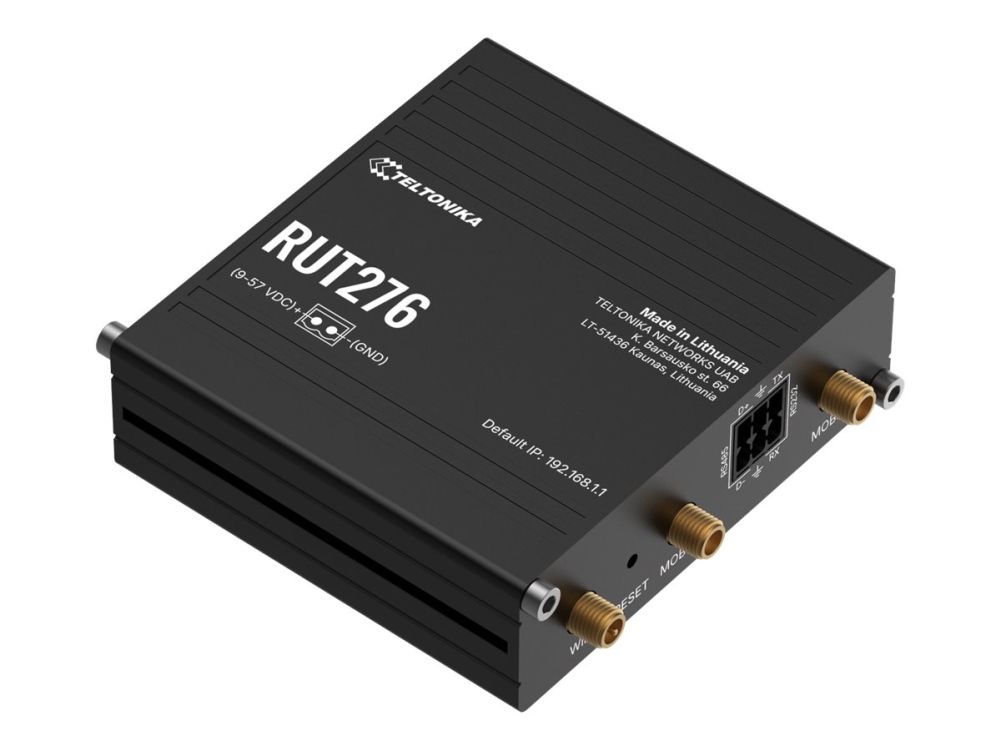

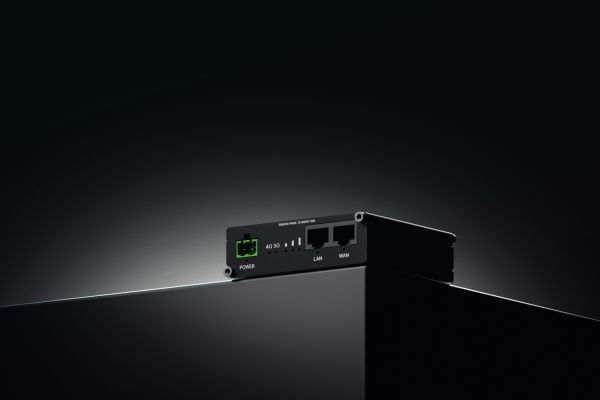

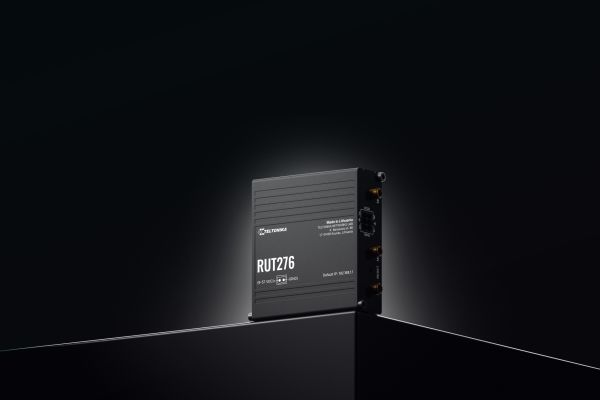

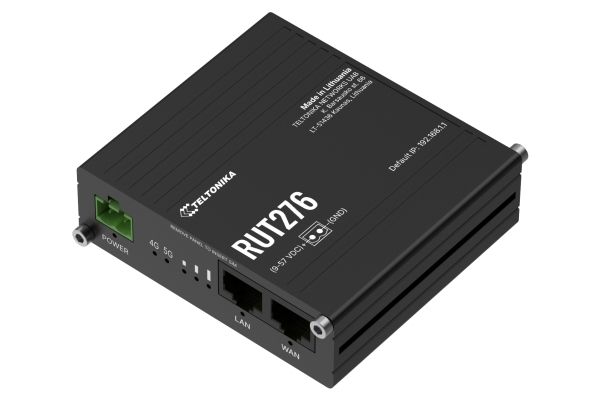

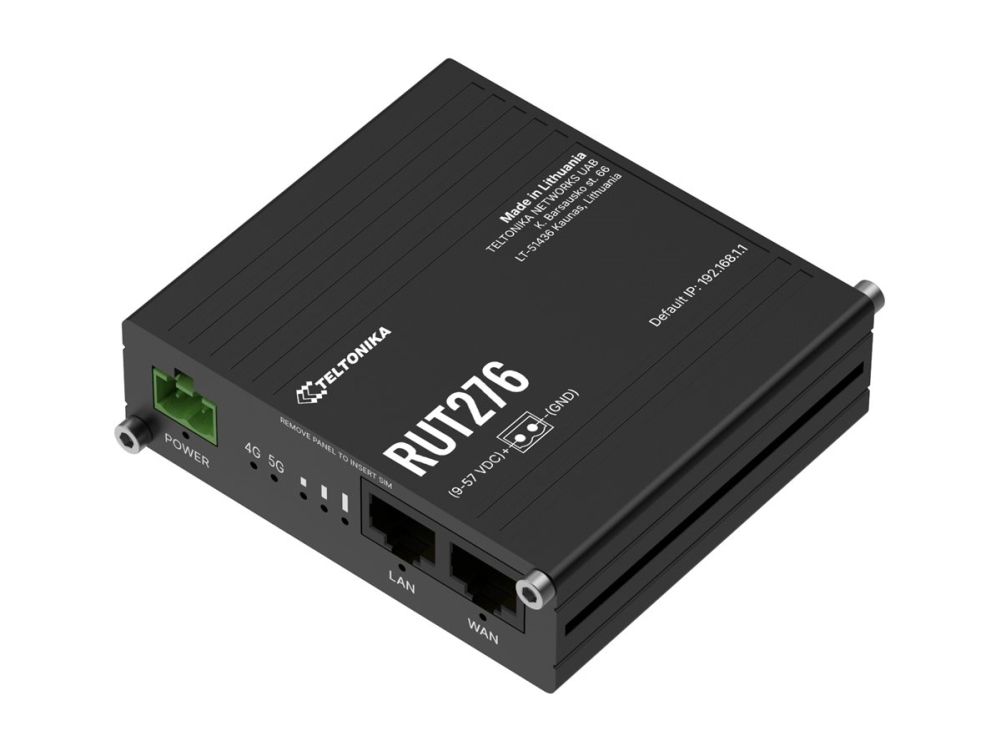

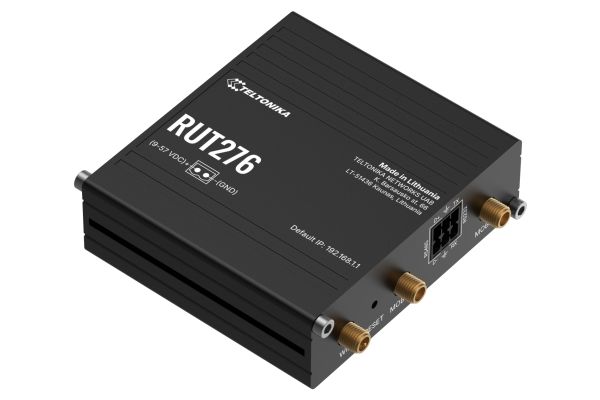

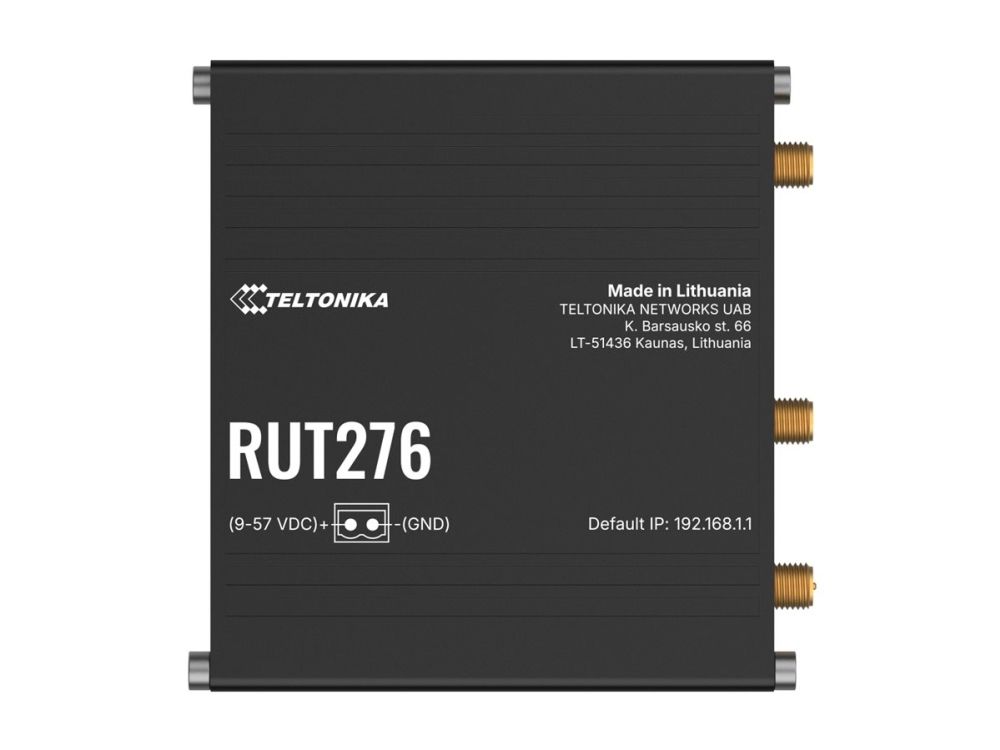

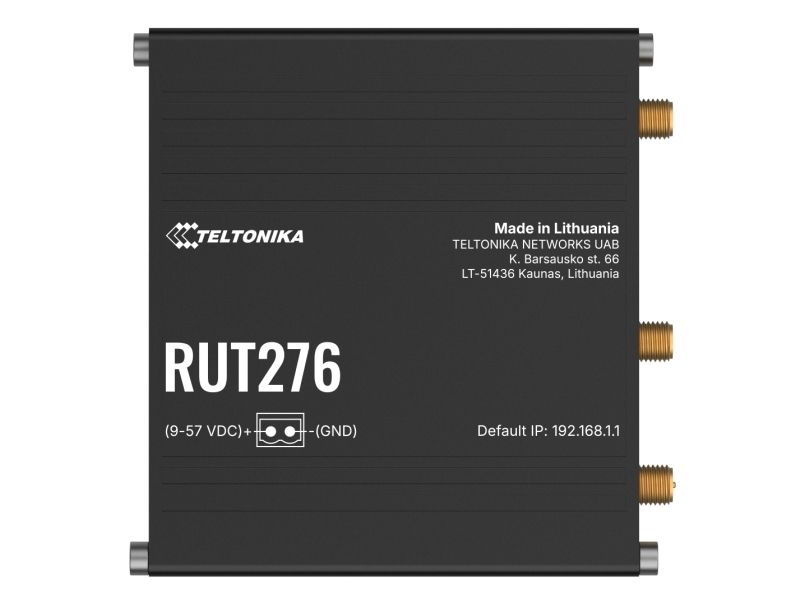

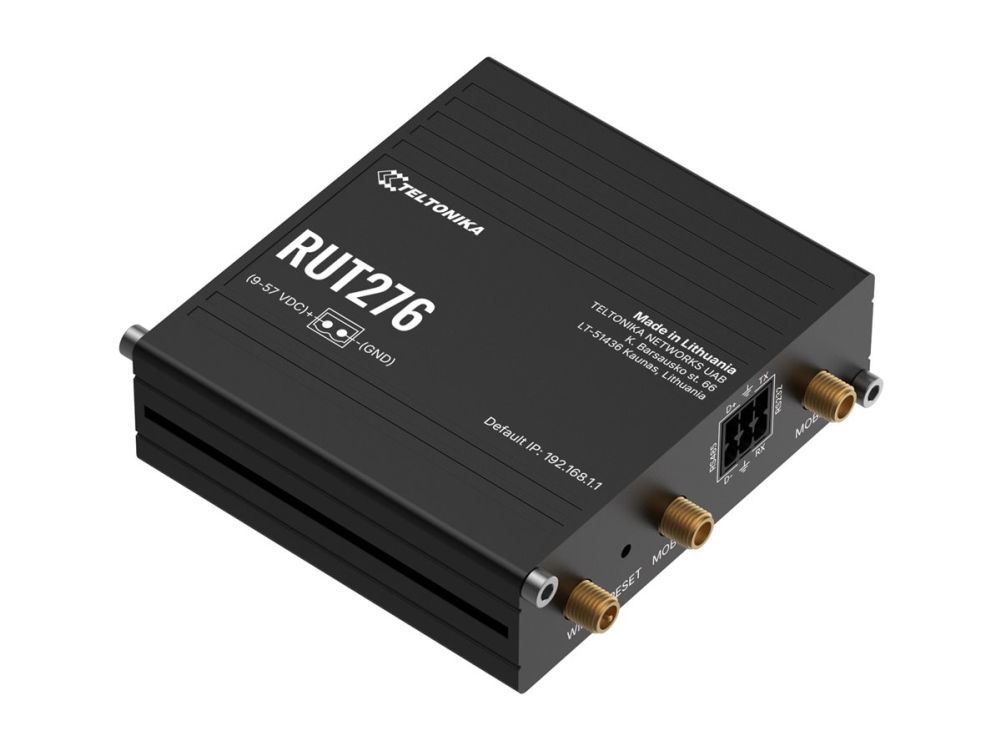

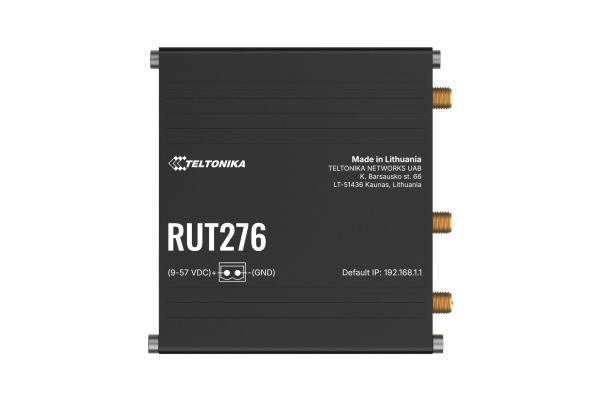

Teltonika RUT276, Cellular network router, Black, Aluminium, DIN-rail/Wall mounting, Industrial, Fast Ethernet

Item no.: [24957823] | Manufacturer: Teltonika | Model no.: RUT276000000 | EAN: 4779051845705

In stock

In stock, order before 5 PM and we ship today (weekdays) More info

There are 5 in stock

The current price is valid as long as the local stock lasts

EUR 299,08

ex. VAT 239,26

Total incl. delivery 314,08

Read further specifications and description

Teltonika router RUT276 Redcap 5G (RUT276000000)

Produktbeskrivelse	Teltonika RUT276 - trådløs router - WWAN - LTE, Wi-Fi - 5G, 4G - DIN monterbar på skinne, væg-monterbar, overflademonterbar
Enhedstype	Trådløs router - trådløs mobilmodem
Pakningstype	DIN monterbar på skinne, væg-monterbar, overflademonterbar
Mobilprotokol	5G NR, FDD LTE, TDD LTE, 5G Sub-6 Ghz
Generation	5G, 4G
Mobilbånd	5G n1, 5G n12, 5G n13, 5G n14, 5G n18, 5G n2, 5G n20, 5G n25, 5G n26, 5G n28, 5G n3, 5G n30, 5G n38, 5G n40, 5G n41, 5G n48, 5G n5, 5G n66, 5G n7, 5g n70, 5G n71, 5G n77, 5G n78, 5G n79, 5G n8, LTE B1, LTE B12, LTE B13, LTE B14, LTE B17, LTE B18, LTE B19, LTE B2, LTE B20, LTE B25, LTE B26, LTE B28, LTE B3, LTE B30, LTE B34, LTE B38, LTE B39, LTE B4, LTE B40, LTE B41, LTE B42, LTE B43, LTE B48, LTE B5, LTE B66, LTE B7, LTE B70, LTE B71, LTE B8
Antal WAN porte	1
Dataforbindelsesprotokol	LTE, 5G, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, Ethernet, Fast Ethernet
Dataoverførselshastighed	223 Mbps
Præstation	5G NSA downstream: 223 Mbps 5G NSA upstream: 123 Mbps LTE downlinkbåndbredde: 195 Mbps LTE uplinkbåndbredde: 105 Mbps
Kapacitet	Samvirkende tilslutninger: 50
Netværks/overføselsprotokol	IPv4, IPv6, ARP, IPSec, TCP/IP, UDP/IP, ICMP/IP, DHCP, DNS, DDNS, PPTP, L2TP, WireGuard
Routingprotokol	BGP, OSPFv2, RIP-1, RIP-2, NHRP, EIGRP, police-baseret routing (PBR), statisk IP routing, GRE, VRRP, VRF
Platform	ThingWorx, Clouds of Things, Azure IoT Hub, AWS IoT Core, Cumulocity
Protokol til fjernadministration	CLI, RADIUS, TACACS+, Telnet, SSH, Modbus, MQTT, HTTP, HTTPS, SSH-2, TR-069, JSON-RPC, SNMP 1, SNMP 2, SNMP 3
Egenskaber	3GPP Release 17, nulstillingsknap, USSD support, SMS-fjernstyring, tillad/bloker-liste, fler-PDN, båndadministration, auto APN, brotilstand, rammet routing, Tilgangspunkt, drift, stationsdriftstilstand, Mesh networking, ESSID stealth tilstand, WMM support, MAC-adresse-filtrering, QR-kode forbindelse, TravelMate, auto-uplink (auto MDI/MDI-X), PPP, NAT-understøtning, firewallbeskyttelse, QoS, SQM, DNS over HTTPS, aktivitet, HotSpot 2.0, SSHFS support, PSK, digitale certifikater, IPSec NAT-T, NAT64 understøttelse, DDos attack beskyttelse, SYN Flooding, SSH angrebsforebyggelse, port scan prevention, HTTP/HTTPS angrebsforebyggelse, VLAN-understøttet, mobil kvotekontrol, Web Filtering, SCEP, 802.1x autentificering, DMVPN, SSTP-klient instanssupport, ZeroTier VPN-klient support, Tinc-kryptering, EtherIP, BACnet/IP support, DNP3 outstation, DNP3 station, DLMS support, FOTA, e-mail meddelelse, SNMP fælde, Brute Force Protection, Teltonika RMS, aluminiumskabinet
Overensstemmelsesstandarder	IEEE 802.11w, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11s, IEEE 802.11k, IEEE 802.11r, IEEE 802.11v, IEEE 802.3, IEEE 802.3u, IEEE 802.3az, IEEE 802.11e
Dimensioner (B x D x H)	8.3 cm x 8.3 cm x 2.5 cm
Vægt	132 g
Lokalisering	Global (excluding Belarus, Iran, Russia)
Producentgaranti	2 års garanti

Generelt
Enhedstype	Trådløs router
Pakningstype	DIN monterbar på skinne, væg-monterbar, overflademonterbar
Forbindelsesteknologi	Kablet, trådløs
Dataforbindelsesprotokol	LTE, 5G, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, Ethernet, Fast Ethernet
Dataoverførselshastighed	223 Mbps
Præstation	5G NSA downstream: 223 Mbps 5G NSA upstream: 123 Mbps LTE downlinkbåndbredde: 195 Mbps LTE uplinkbåndbredde: 105 Mbps
Kapacitet	Samvirkende tilslutninger: 50
Netværks/overføselsprotokol	IPv4, IPv6, ARP, IPSec, TCP/IP, UDP/IP, ICMP/IP, DHCP, DNS, DDNS, PPTP, L2TP, WireGuard
Routingprotokol	BGP, OSPFv2, RIP-1, RIP-2, NHRP, EIGRP, police-baseret routing (PBR), statisk IP routing, GRE, VRRP, VRF
Protokol til fjernadministration	CLI, RADIUS, TACACS+, Telnet, SSH, Modbus, MQTT, HTTP, HTTPS, SSH-2, TR-069, JSON-RPC, SNMP 1, SNMP 2, SNMP 3
Krypterings algoritme	WPA2-Enterprise, PEAP, WPA2-PSK, WPA-EAP, WPA-PSK, WPA3-SAE, WPA3-EAP, OWE, AES-CCMP, TKIP, EAP-TLS, PKCS#12, ESP, DES, DESX, RC2, CAST5, 128-bit AES, 192-bit AES, 256-bit AES, IKEv1, IKEv2, TLS
Autentificeringsmetode	X.509 certifikater, RADIUS, Radio Service Set ID (SSID), TACACS+, Secure Shell (SSH), Secure Shell v.2 (SSH2)
Egenskaber	3GPP Release 17, nulstillingsknap, USSD support, SMS-fjernstyring, tillad/bloker-liste, fler-PDN, båndadministration, auto APN, brotilstand, rammet routing, Tilgangspunkt, drift, stationsdriftstilstand, Mesh networking, ESSID stealth tilstand, WMM support, MAC-adresse-filtrering, QR-kode forbindelse, TravelMate, auto-uplink (auto MDI/MDI-X), PPP, NAT-understøtning, firewallbeskyttelse, QoS, SQM, DNS over HTTPS, aktivitet, HotSpot 2.0, SSHFS support, PSK, digitale certifikater, IPSec NAT-T, NAT64 understøttelse, DDos attack beskyttelse, SYN Flooding, SSH angrebsforebyggelse, port scan prevention, HTTP/HTTPS angrebsforebyggelse, VLAN-understøttet, mobil kvotekontrol, Web Filtering, SCEP, 802.1x autentificering, DMVPN, SSTP-klient instanssupport, ZeroTier VPN-klient support, Tinc-kryptering, EtherIP, BACnet/IP support, DNP3 outstation, DNP3 station, DLMS support, FOTA, e-mail meddelelse, SNMP fælde, Brute Force Protection, Teltonika RMS, aluminiumskabinet
Overensstemmelsesstandarder	IEEE 802.11w, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11s, IEEE 802.11k, IEEE 802.11r, IEEE 802.11v, IEEE 802.3, IEEE 802.3u, IEEE 802.3az, IEEE 802.11e, IEEE 802.3af Class 0, UKCA, EAC, UCRF, RCM, CB, EN 55032:2015+A11:2020+A1:2020, EN 55035: 2017+A11:2020, EN 61000-3-3:2013+A1:2019+A2:2021, EN IEC 61000-3-2:2019+A1:2021+A2:2024, EN 301 489-1 V2.2.3, ETSI EN 301 489-17 V3.3.1 (2024-09), EN 301 489-19 V2.2.1, EN 301 489-52 V1.2.1, AS/NZS CISPR 32:2015+A1:2020, EN 61000-4-2:2009, EN 61000-4-3:2020, EN 61000-4-4:2012, EN 61000-4-5:2014+A1:2017, EN 61000-4-6:2014, EN 61000-4-11:2020, EN 301 908-25 V15.1.1, EN 300 328 V2.2.2, EN 301 908-1 V15.2.1, EN 301 908-13 V13.2.1, AS/NZS 4268:2017+A1:2021, AS/NZS 2772.2:2016+A1:2018, ARPANSA, EN IEC 62311:2020, AS/NZS 62368.1:2022, EN IEC 62368-1:2020+A11:2020
Processor	1 x MediaTek MIPS 24Kec 580 MHz
RAM	128 MB DDR2 SDRAM
Flashhukommelse	32 MB

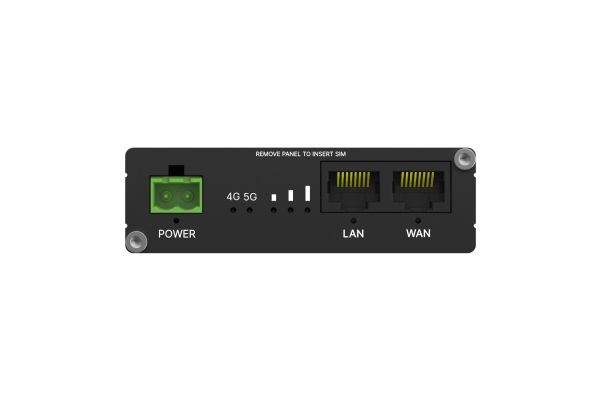

Statusindikatorer	Strøm, 4G, 5G, signalstyrke, WAN, LAN
Kommunikationer
Type	Trådløs mobilmodem
Mobilprotokol	5G NR, FDD LTE, TDD LTE, 5G Sub-6 Ghz
Generation	5G, 4G
Mobilbånd	5G n1, 5G n12, 5G n13, 5G n14, 5G n18, 5G n2, 5G n20, 5G n25, 5G n26, 5G n28, 5G n3, 5G n30, 5G n38, 5G n40, 5G n41, 5G n48, 5G n5, 5G n66, 5G n7, 5g n70, 5G n71, 5G n77, 5G n78, 5G n79, 5G n8, LTE B1, LTE B12, LTE B13, LTE B14, LTE B17, LTE B18, LTE B19, LTE B2, LTE B20, LTE B25, LTE B26, LTE B28, LTE B3, LTE B30, LTE B34, LTE B38, LTE B39, LTE B4, LTE B40, LTE B41, LTE B42, LTE B43, LTE B48, LTE B5, LTE B66, LTE B7, LTE B70, LTE B71, LTE B8
Maks. overførselshastighed	223 Mbps
Internet of Things (IoT)
Internet of Things (IoT) kompatibel	Ja
Platform	ThingWorx, Clouds of Things, Azure IoT Hub, AWS IoT Core, Cumulocity
Ekspansion / Konnektivitet

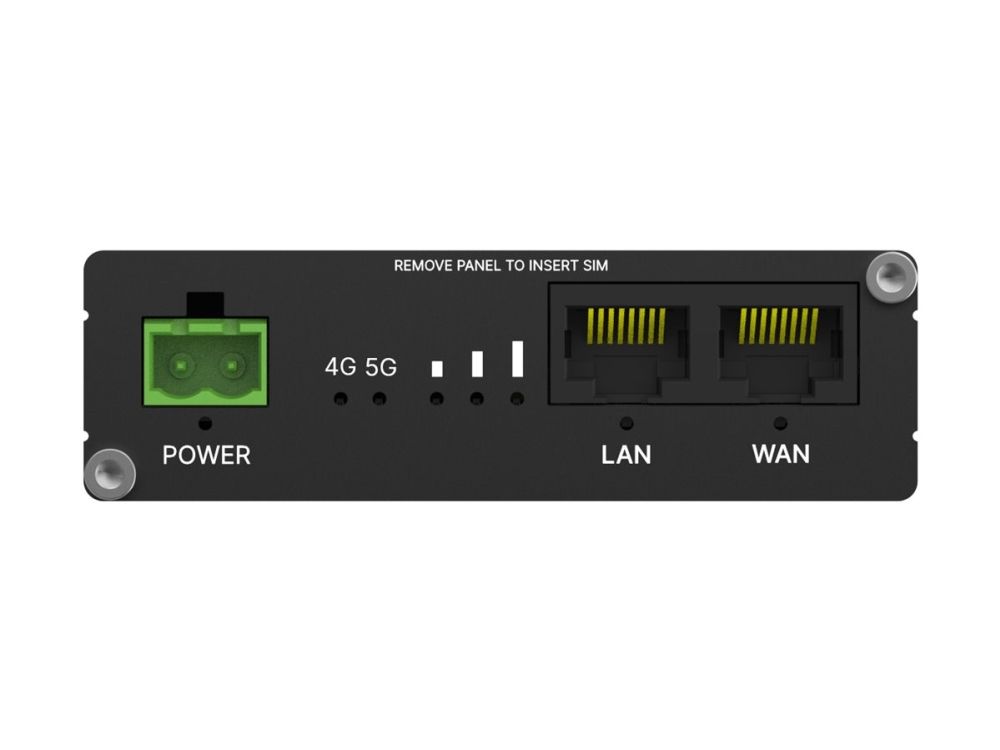

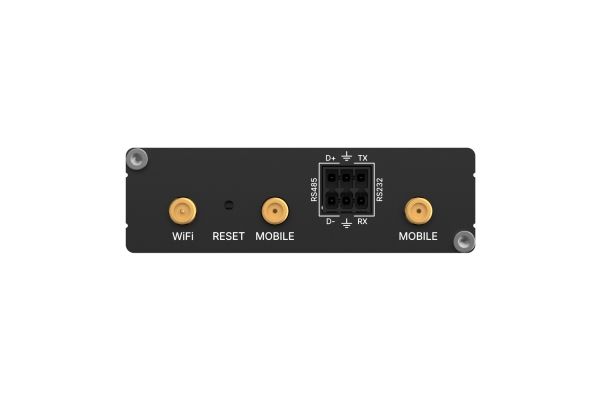

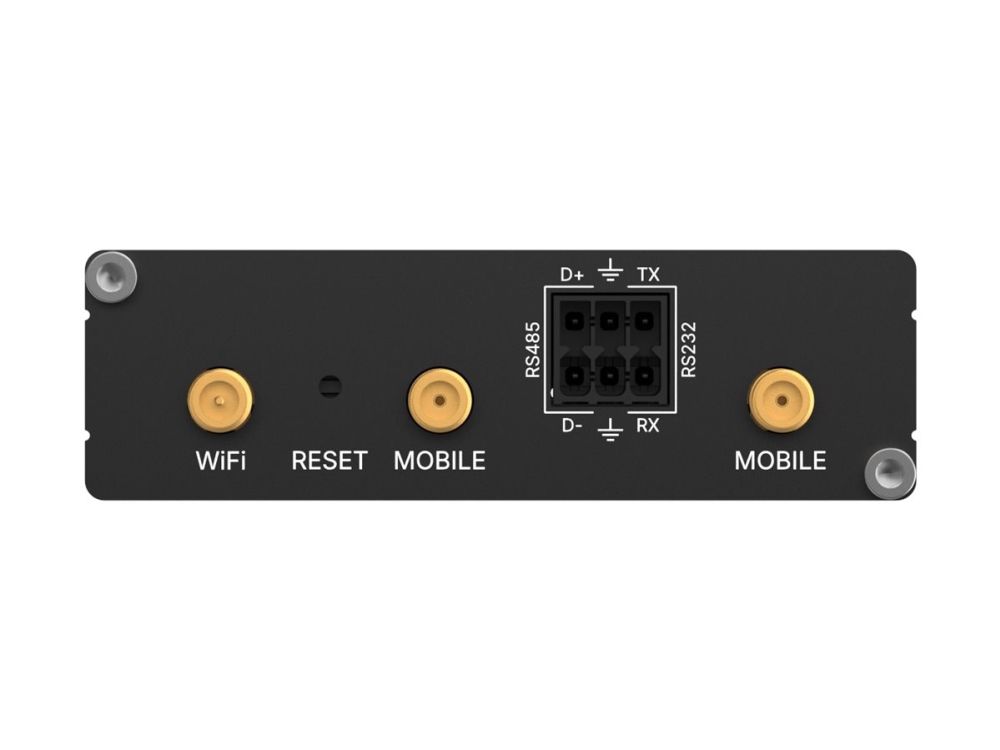

Interface	WAN: 1 x 10Base-T/100Base-TX - RJ-45 LAN: 3 x 10Base-T/100Base-TX (PoE) - RJ-45 Seriel: 1 x RS-232/485 - 6-pins terminalblok Antenne: 2 x SMA - mobil Antenne: 1 x RP-SMA - Wi-Fi
Ekspansionsåbninger	1 (total) / 1 (fri) x microSD 2 (total) / 2 (fri) x Mini-SIM
Antenne
Antenne	Aftagelig eksternt
Antal antenner	3
Effekt
Strømenhed	Strøminjektor (ikke inkluderet)
Diverse
Udstyr inkluderet	2-pin terminalblok, 2 x 3-pin I/O-stik, hex-nøgle
Lokalisering	Global (excluding Belarus, Iran, Russia)
Programmer / Systemkrav
Med OS	RutOS
Mål og vægt
Bredde	8.3 cm
Dybde	8.3 cm
Højde	2.5 cm
Vægt	132 g
Producentgaranti
Service & Support	Begrænset garanti - 2 år

The item is known under the following item numbers in our system

EAN:	4779051845705
SKU:	RUT276 000000

Why do I find that the same product is available on different item numbers?

Manufacturers often release the same product with different item numbers, typically just different versions of the packaging. For example, the packaging may be targeted at different countries. We try our best to unify the products, but it can happen that the same product appears on different item numbers in our system.
