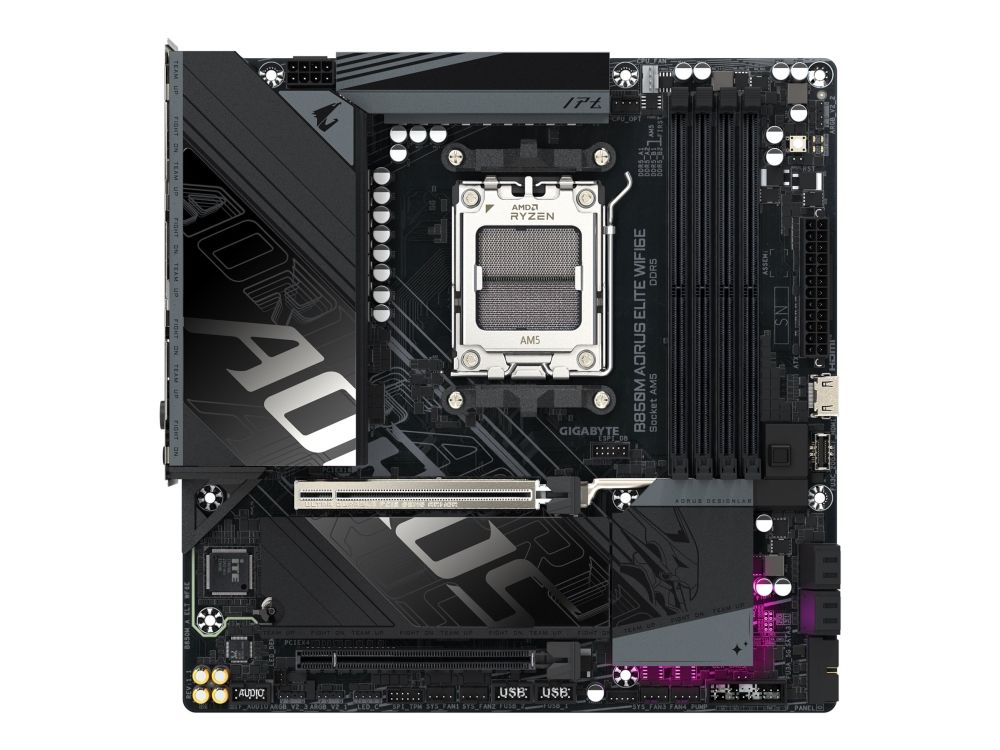

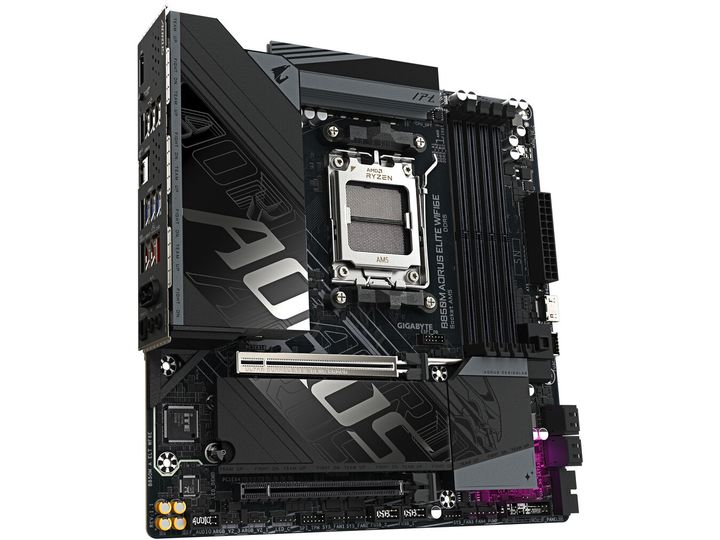

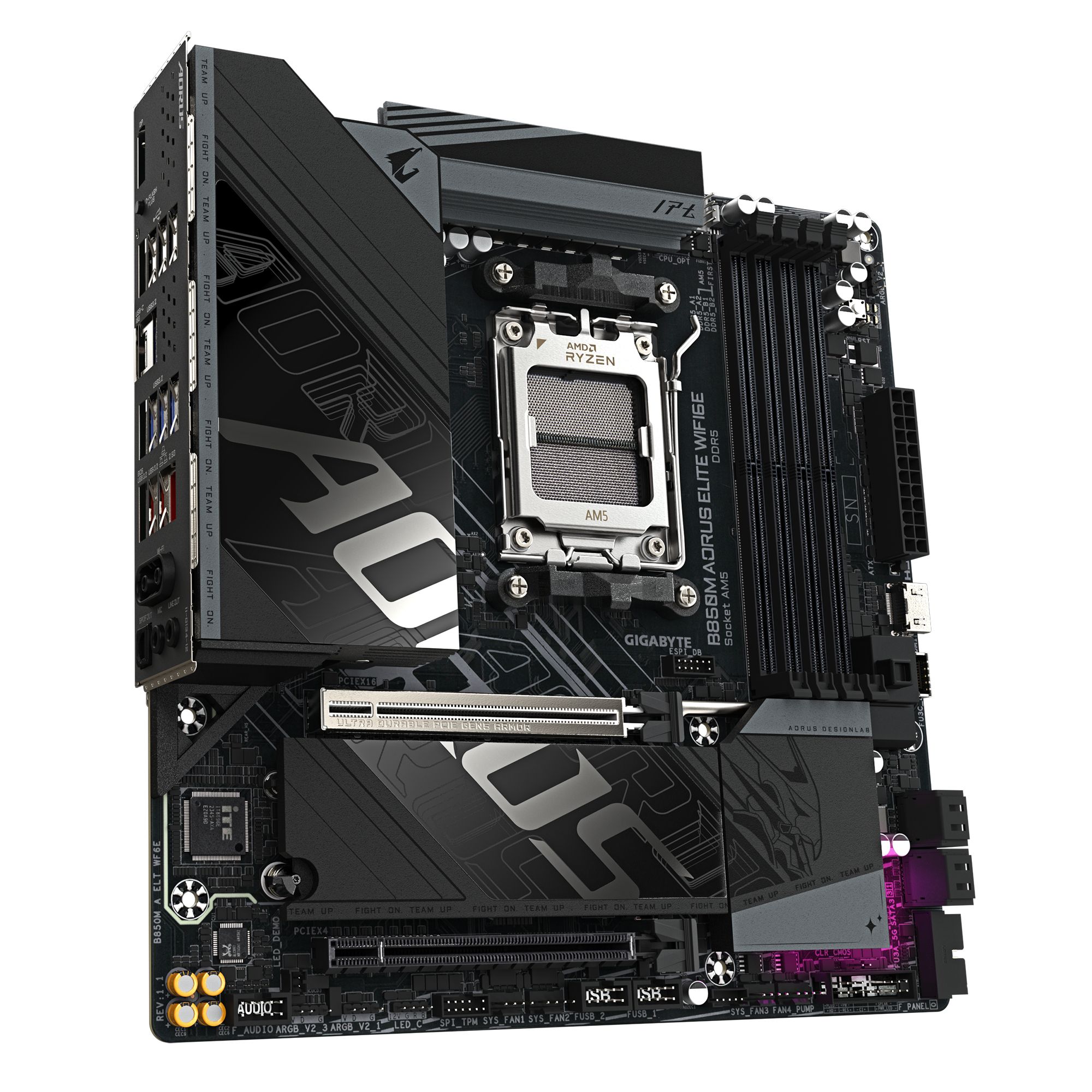

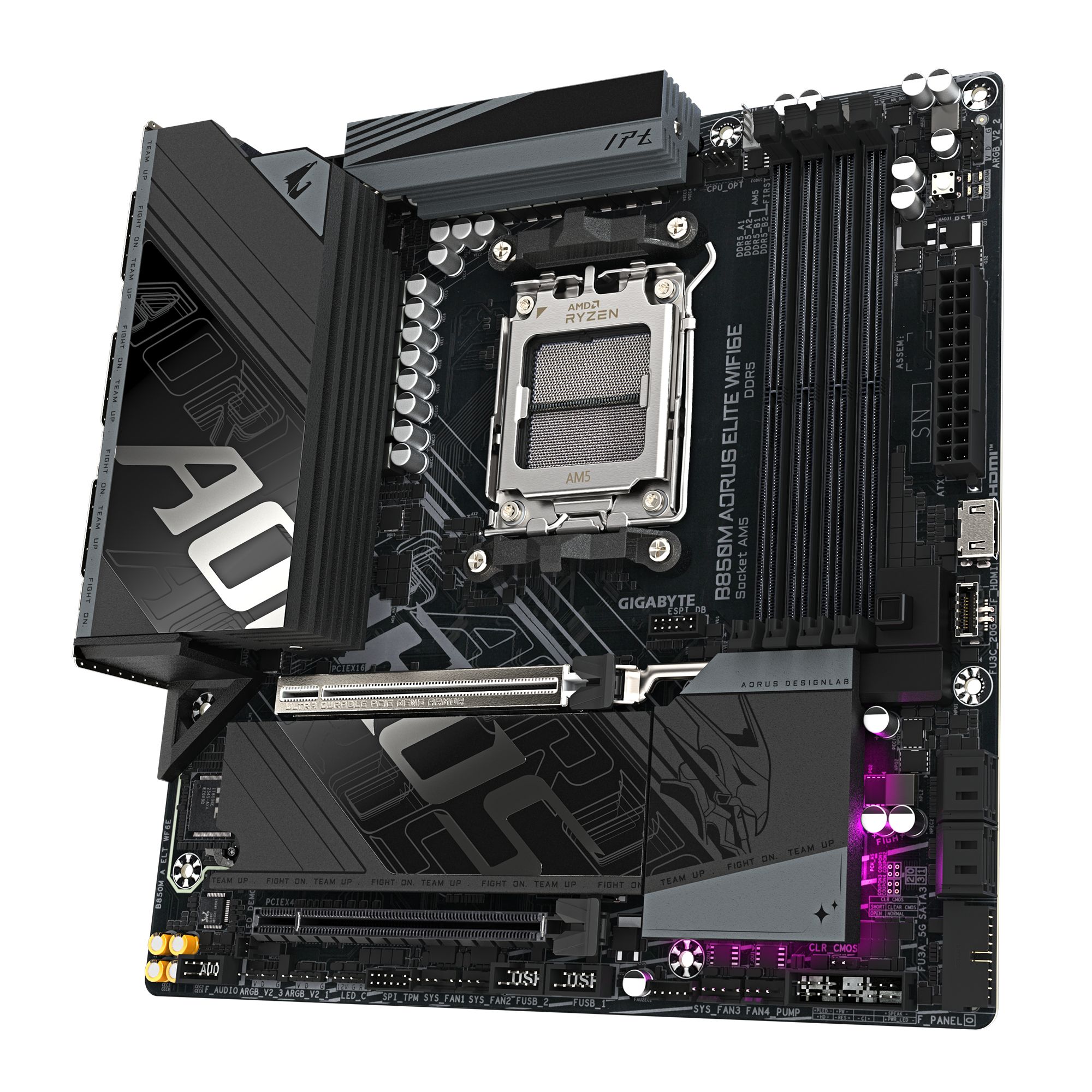

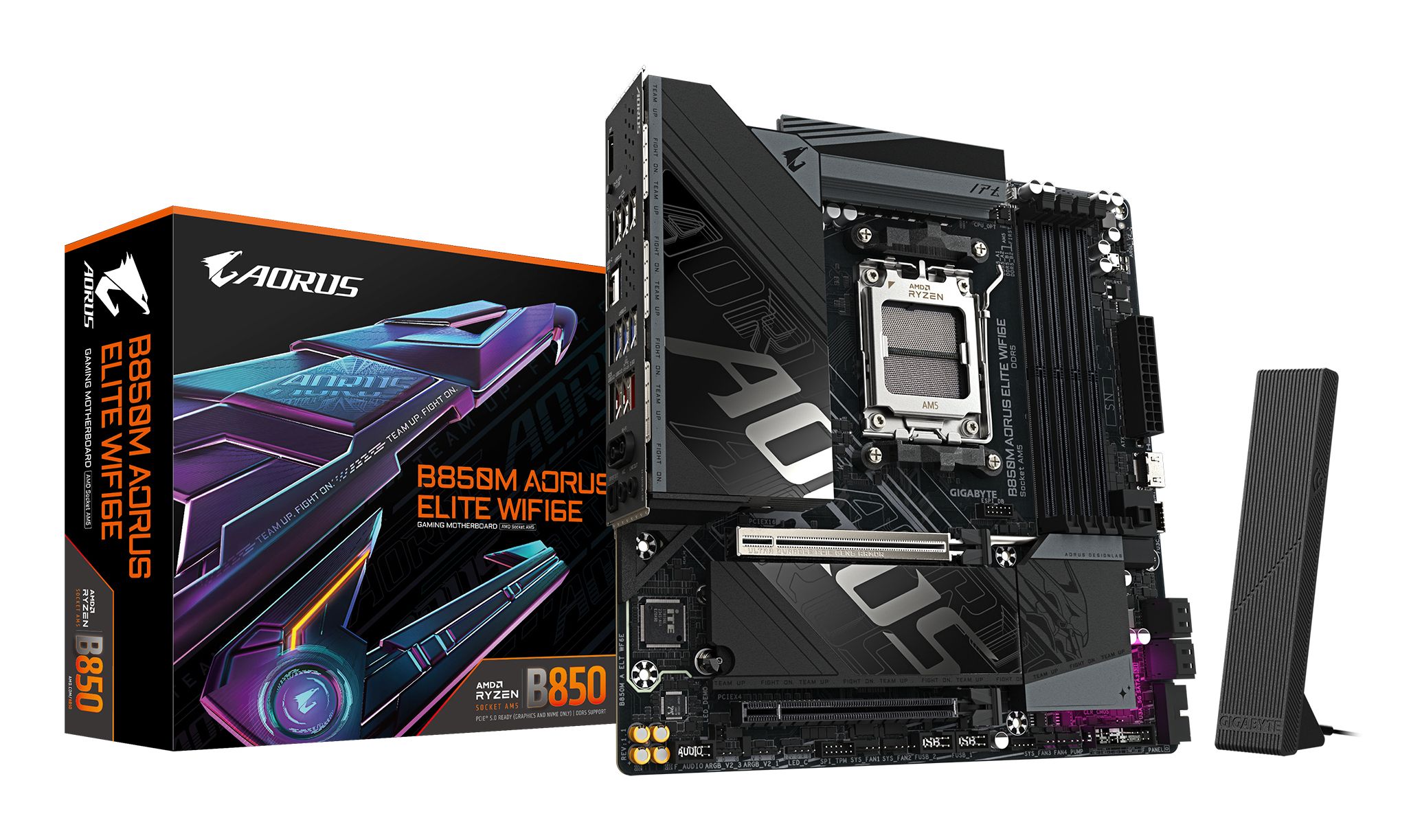

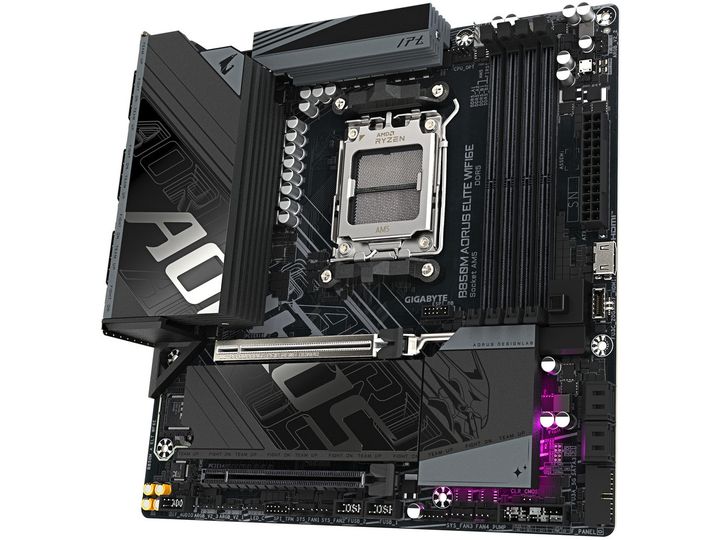

GIGABYTE B850M AORUS ELITE WIFI6E Motherboard - AMD Ryzen 9000 Series CPUs, 12+2+2 Phases Digital VRM, up to 8200MHz DDR5 (OC), 1xPCIe 5.0 + 1xPCIe 4.0 M.2, WIFI 6E, 2.5GbE LAN, USB 3.2 Gen 2, AMD, Socket AM5, AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series, Socket AM5, DDR5-SDRAM, 256 GB

Item no.: [25021598] | Manufacturer: Gigabyte Technology | Model no.: GGB850M_A_ELT_WF6E_1.1 | EAN: 4719331871123

In stock

In stock, order before 5 PM and we ship today (weekdays) More info

There are 1 in stock

The current price is valid as long as the local stock lasts

EUR 216,25

ex. VAT 173,00

Total incl. delivery 231,25

Produktbeskrivelse	AORUS B850M ELITE WIFI6E - bundkort - micro ATX - Socket AM5 - AMD B850
Produkttype	Bundkort - micro ATX
Chipsættype	AMD B850
Processor-socket	1 x Socket AM5
Kompatible processorer	Ryzen (understøtter Ryzen 7000/8000/9000 Serien)
Max RAM-størrelse	256 GB
RAM understøttet	4 DIMM åbninger - DDR5, ikke-ECC, ikke bufferet
Lagringsporte	4 x SATA-600 (RAID), 2 x M.2
USB / FireWire porte	1 x USB-C 3.2 Gen 2 + 2 x USB 3.2 Gen 2 + 5 x USB 3.2 Gen 1 + 4 x USB 2.0 + (1 x USB-C 3.2 Gen 2x2 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0 via samlekasser)
Audio	HD Audio (8-kanaler)
LAN	Bluetooth 5.3, 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax (Wi-Fi 6E)

Generelt
Produkttype	Bundkort - micro ATX
Chipsættype	AMD B850
Processor-socket	Socket AM5
Max antal processorer	1
Kompatible processorer	Ryzen (understøtter Ryzen 7000/8000/9000 Serien)
Understøttet RAM
Maks. størrelse	256 GB
Teknologi	DDR5
Bus Clock	4100 Mhz (O.C), 4000 MHz (O.C.), 3975 MHz (O.C.), 3950 MHz (O.C.), 3900 MHz (O.C.), 3800 MHz (O.C.), 3700 MHz (O.C.), 3600 MHz (O.C.), 3500 MHz (O.C.), 3400 MHz (O.C.), 3300 MHz (O.C.), 3200 MHz (O.C.), 3100 MHz (O.C.), 3000 MHz (O.C.), 2900 MHz (O.C.), 2800 MHz (O.C.), 2600 MHz, 2400 MHz, 2200 MHz
Understøttet RAM-integritetskon	Ikke-ECC
Registreret eller buffer	Ikke bufferet
Egenskaber	Intel Extreme Memory Profiles (XMP), dobbelt kanal hukommelses arkitektur, AMD EXPO-teknologi
Audio
Type	HD Audio (8-kanaler)
Overensstemmelsesstandarder	High Definition Audio
LAN
Netværk controller	Realtek RTL8852CE
Netværks interfaces	Bluetooth 5.3, 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax (Wi-Fi 6E)
Ekspansion / Konnektivitet
Ekspansionsåbninger	1 x CPU 4 x DIMM 288-pins 1 x PCIe 5.0 x16 1 x PCIe 3.0 x16 (x4-modus) 1 x M.2 socket (2280/2580/22110/25110 M.2 Key M åbning) 1 x M.2 socket (2280/22.110 M.2 Key M-åbning)
Grænseflade (lagring)	SATA-600 -stikforbindelser: 4 x 7pin Seriel ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 PCIe 4.0 -stikforbindelser: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 PCIe 5.0 -stikforbindelser: 1 x M.2 - RAID 0 / RAID 1 / RAID 10

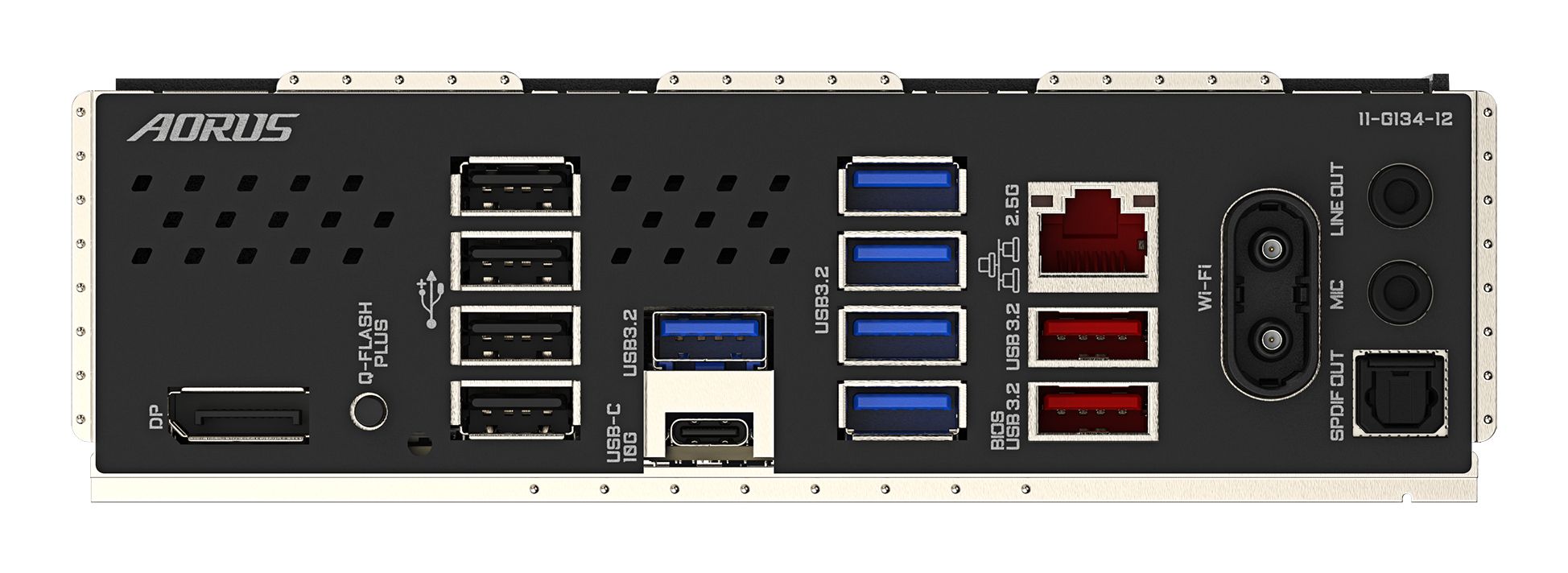

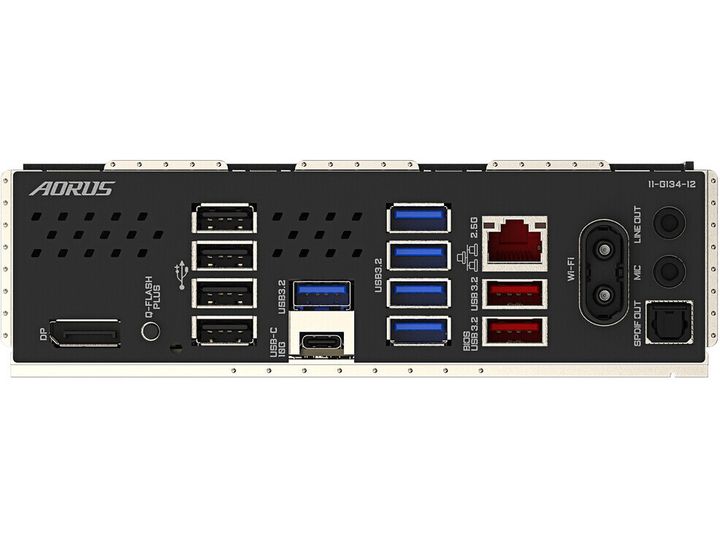

Interface	1 x USB-C 3.2 Gen 2 2 x USB 3.2 Gen 2 5 x USB 3.2 Gen 1 4 x USB 2.0 1 x DisplayPort 2 x antenne 1 x LAN (2.5Gigabit Ethernet) 1 x audio linje-ind - mini-jack 1 x audio linje-ud - mini-jack 1 x SPDIF-ud
Interne interfaces	1 x USB-C 3.2 Gen 2x2 - intern stik 2 x USB 3.2 Gen 1 - intern stik 4 x USB 2.0 - intern stik 1 x audio - intern stik 1 x SPI - intern stik HDMI - intern stik
Strømkontakter	24-pin hovedstrøm-konnektor, 8-pin ATX12V-kontakt
Egenskaber
BIOS-type (Basic Input/Output System)	AMI
BIOS-egenskaber	UEFI BIOS, WfM 2.0 understøttet, SMBIOS 2.7 support, DMI 2.7 support, ACPI 5.0 support, PnP 1.0a support
Hardwareovervågning	Vandkølings-flowrate, temperaturdetektion, blæserhastighedsdetektion, blæserfejlvarsel, systemspænding, blæserkontrol
Hardware egenskaber	12+2+2 Phase Power Design, 2x Copper PCB, 6 Layer PCB, Premium Power Choke, VRM Thermal Armor Advanced, præmonteret I/O-skjold, GIGABYTE Smart Fan 6, M.2 Thermal Guard Ext., High-end Audio Capacitors, RGB FUSION, DIY Friendly Design, WIFI EZ-Plug, EZ Debug LED, MultiKey, M.2 EZ Latch plus, M.2 EZ Latch klik, PCIe EZ Latch Plus, Ultra Durable
Diverse

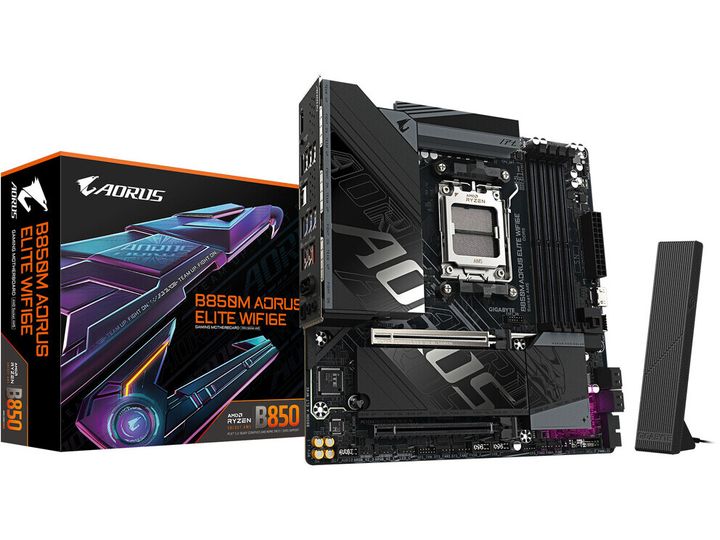

Udstyr inkluderet	2 x M.2 gummipakke, G-Connector, Wi-Fi-antenne
Medfølgende ledninger	2 x Seriel ATA kabel
Med software	Norton Internet Security (OEM Version), Realtek Gaming LAN Bandwidth Control, GIGABYTE Control Center
Bredde	24.4 cm
Dybde	24.4 cm
