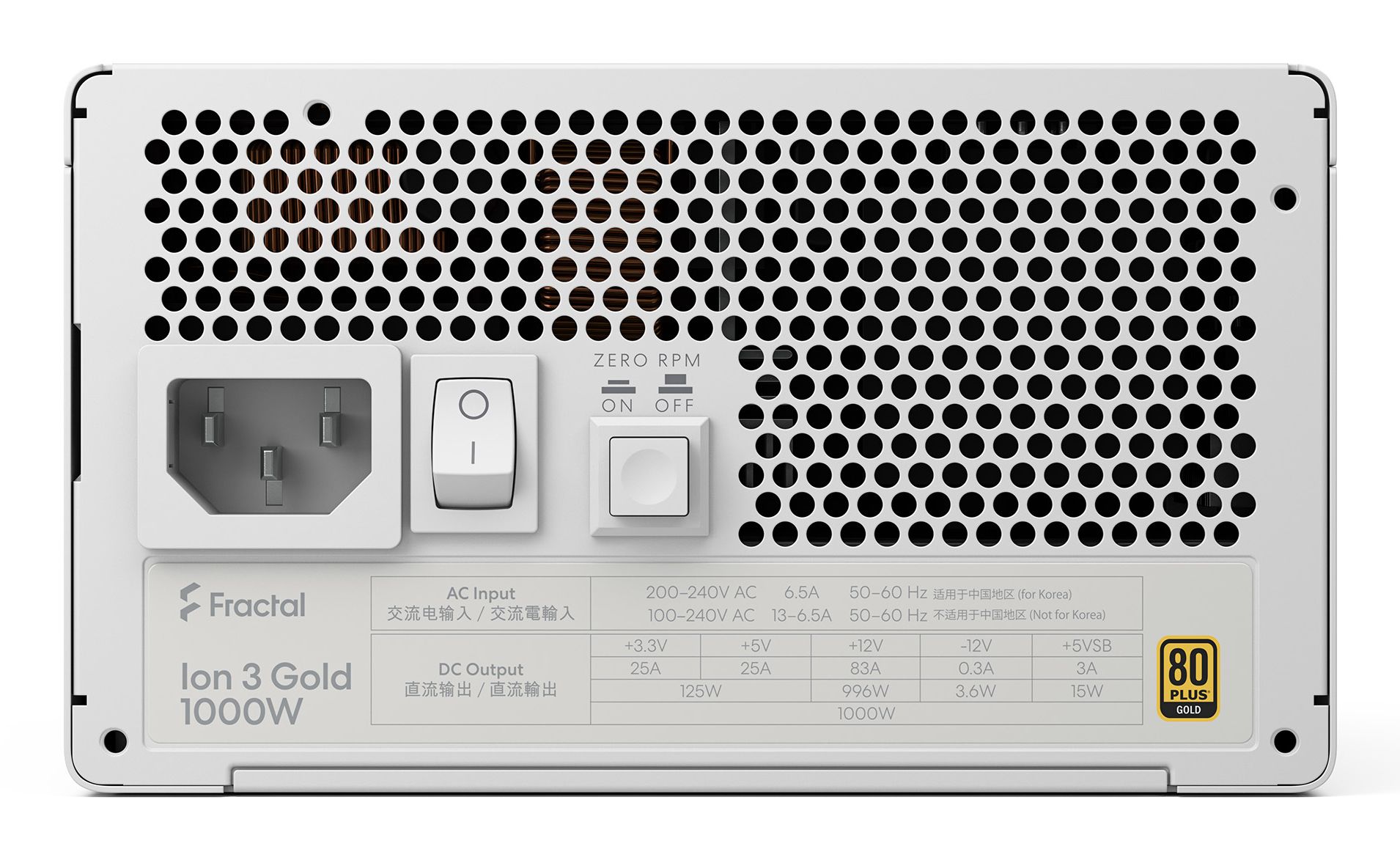

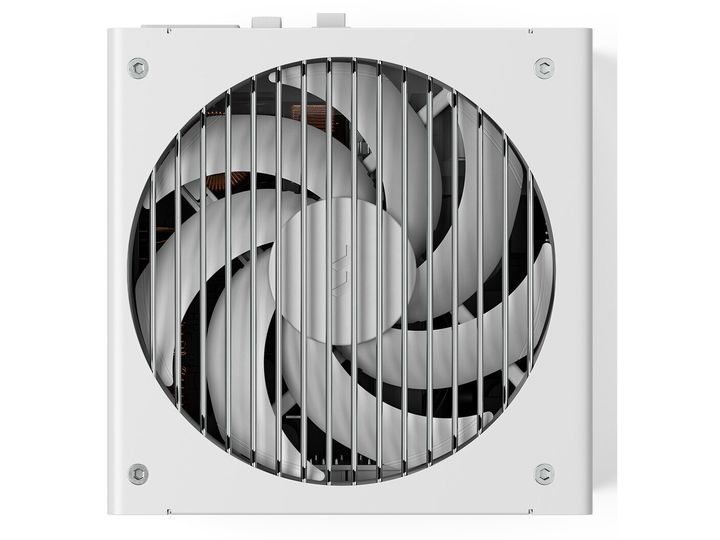

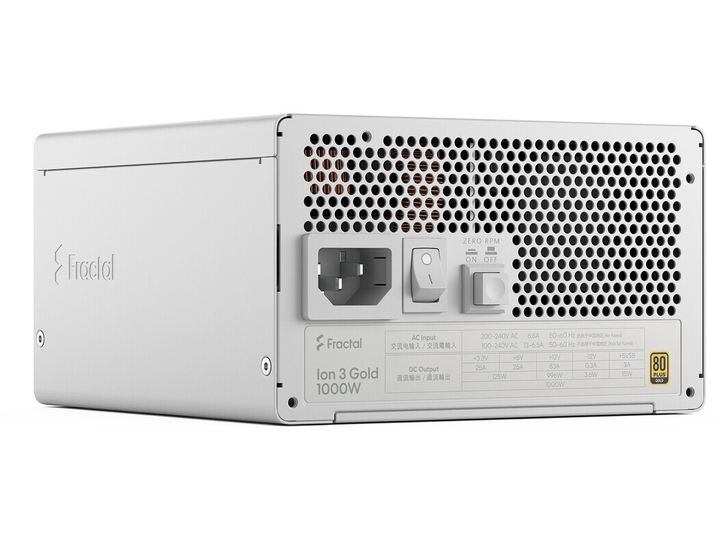

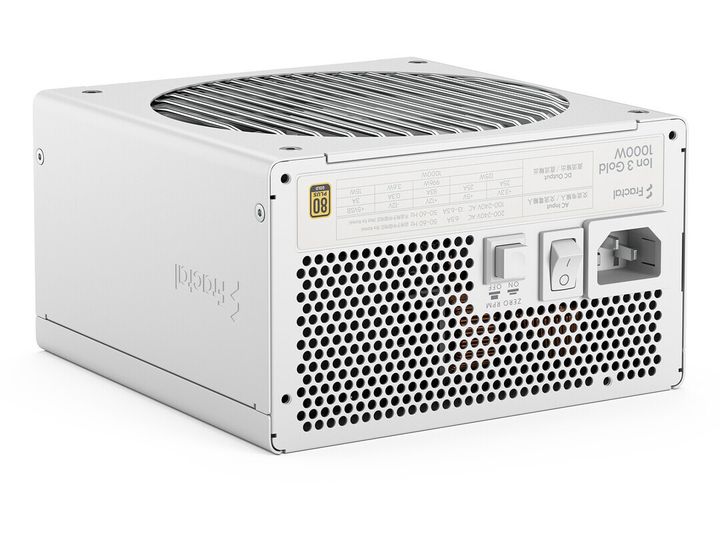

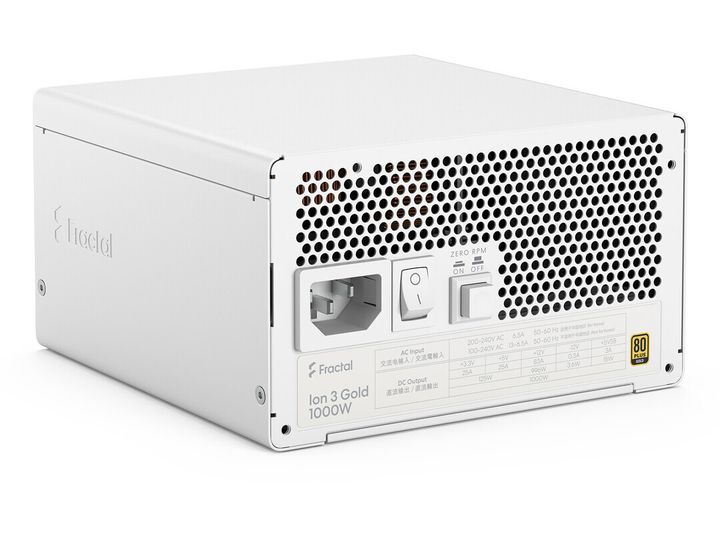

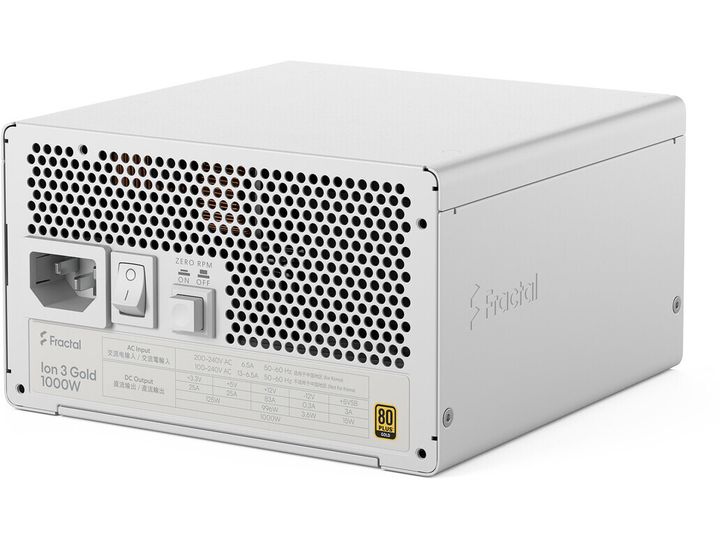

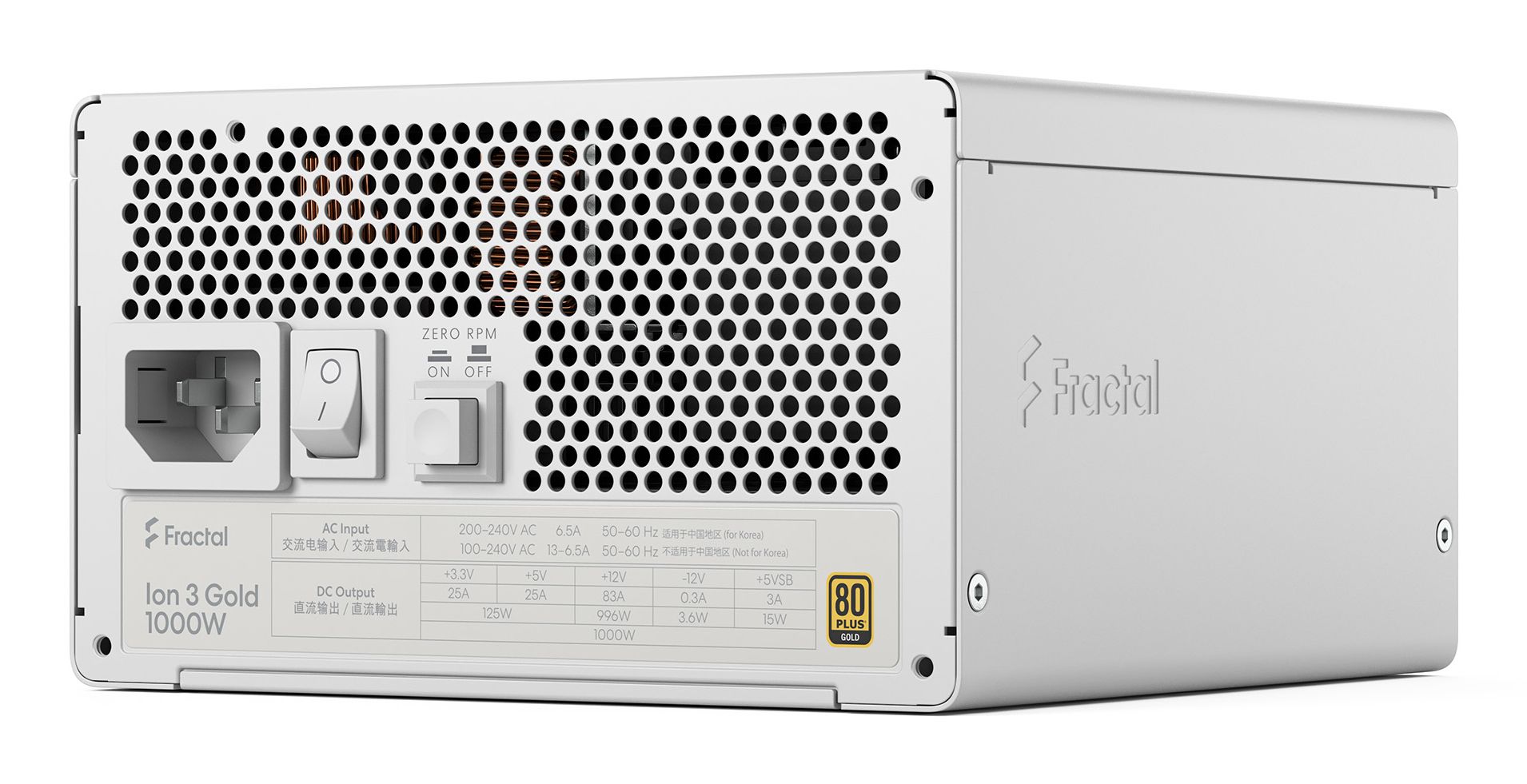

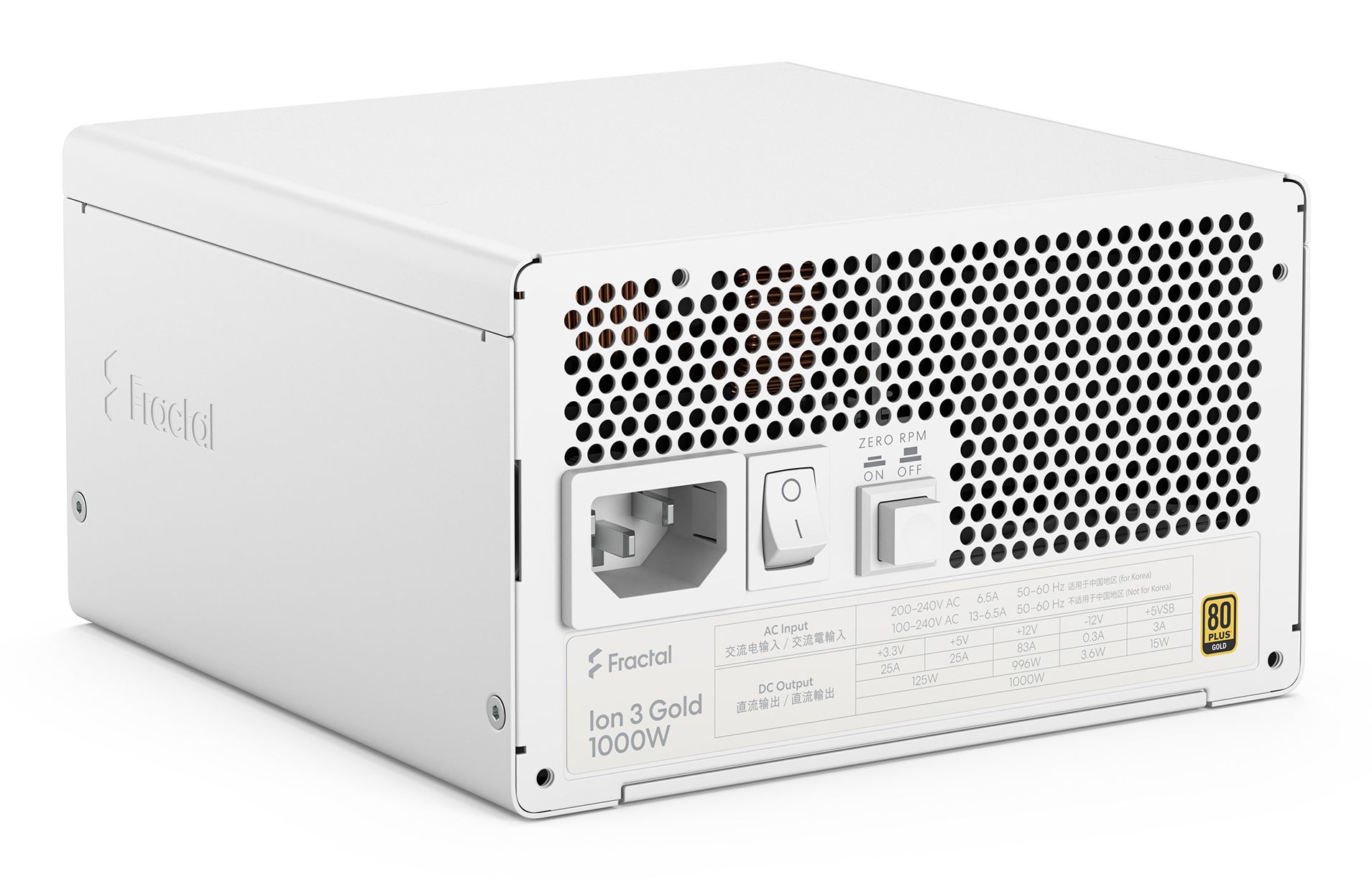

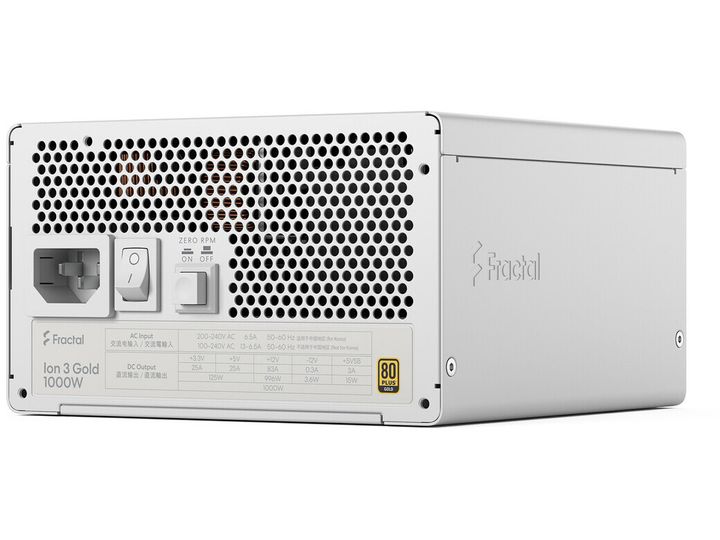

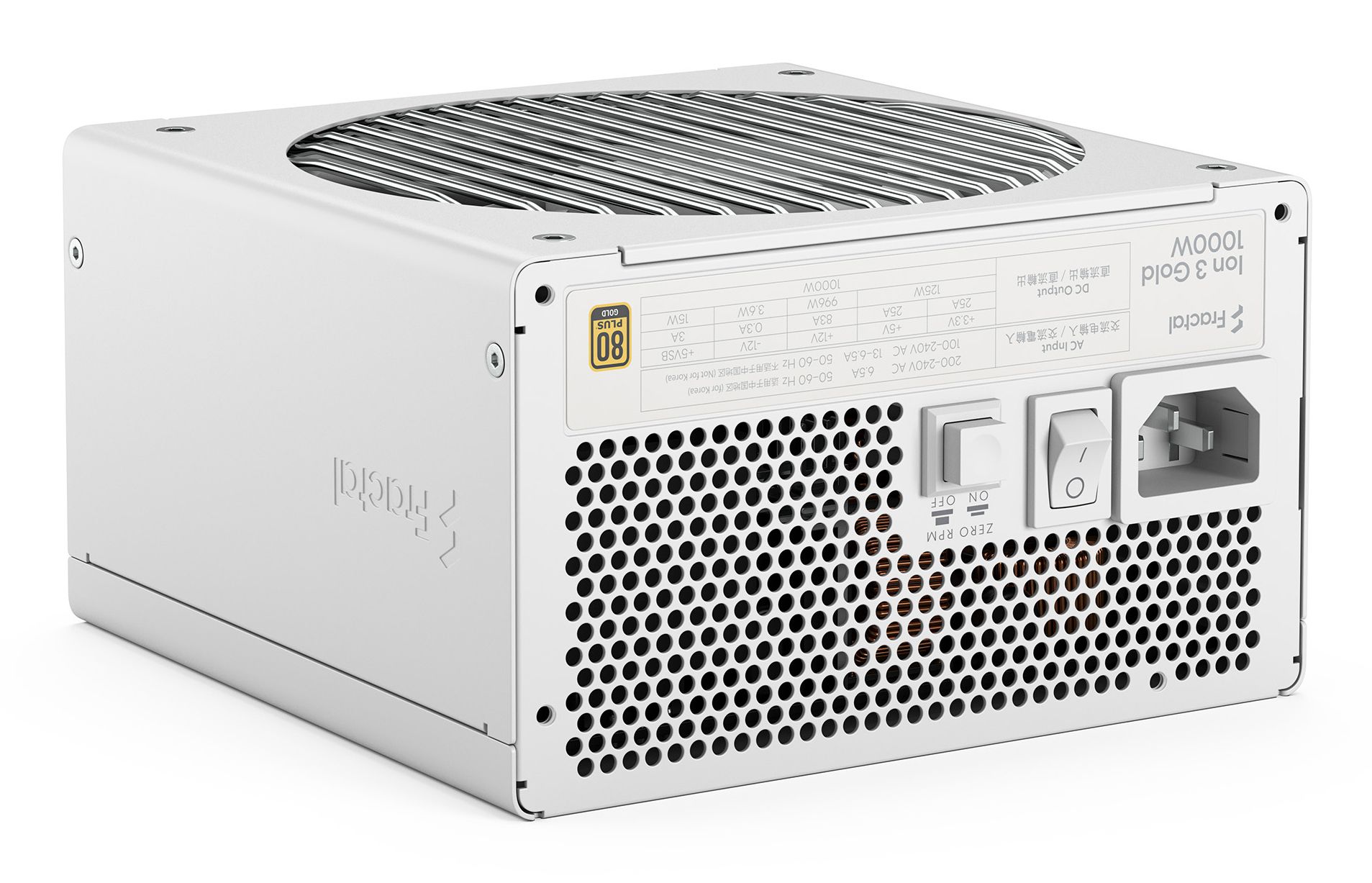

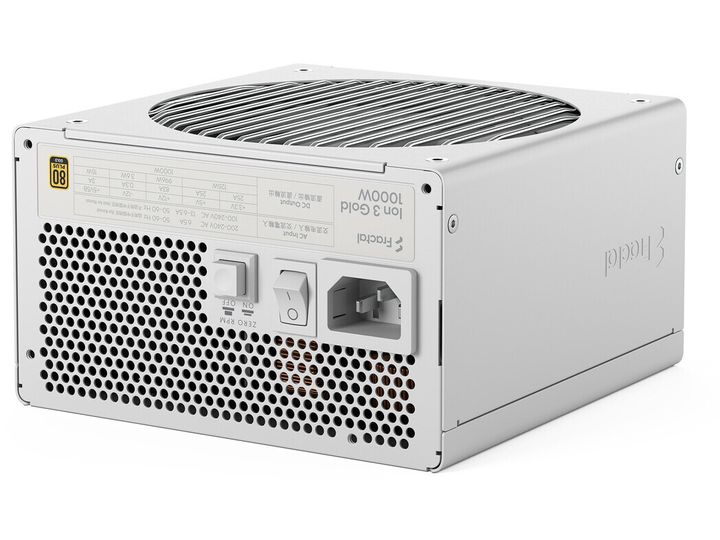

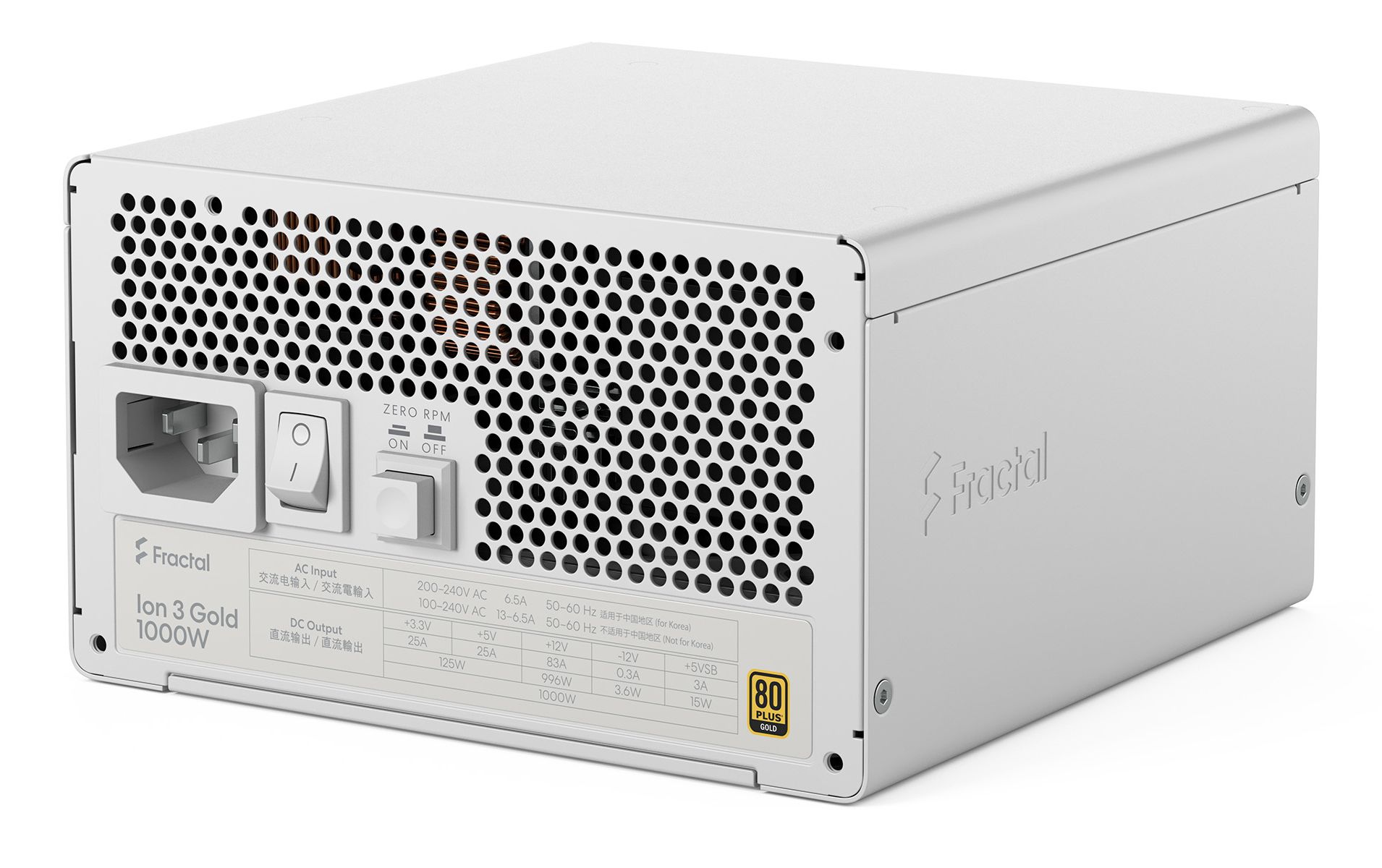

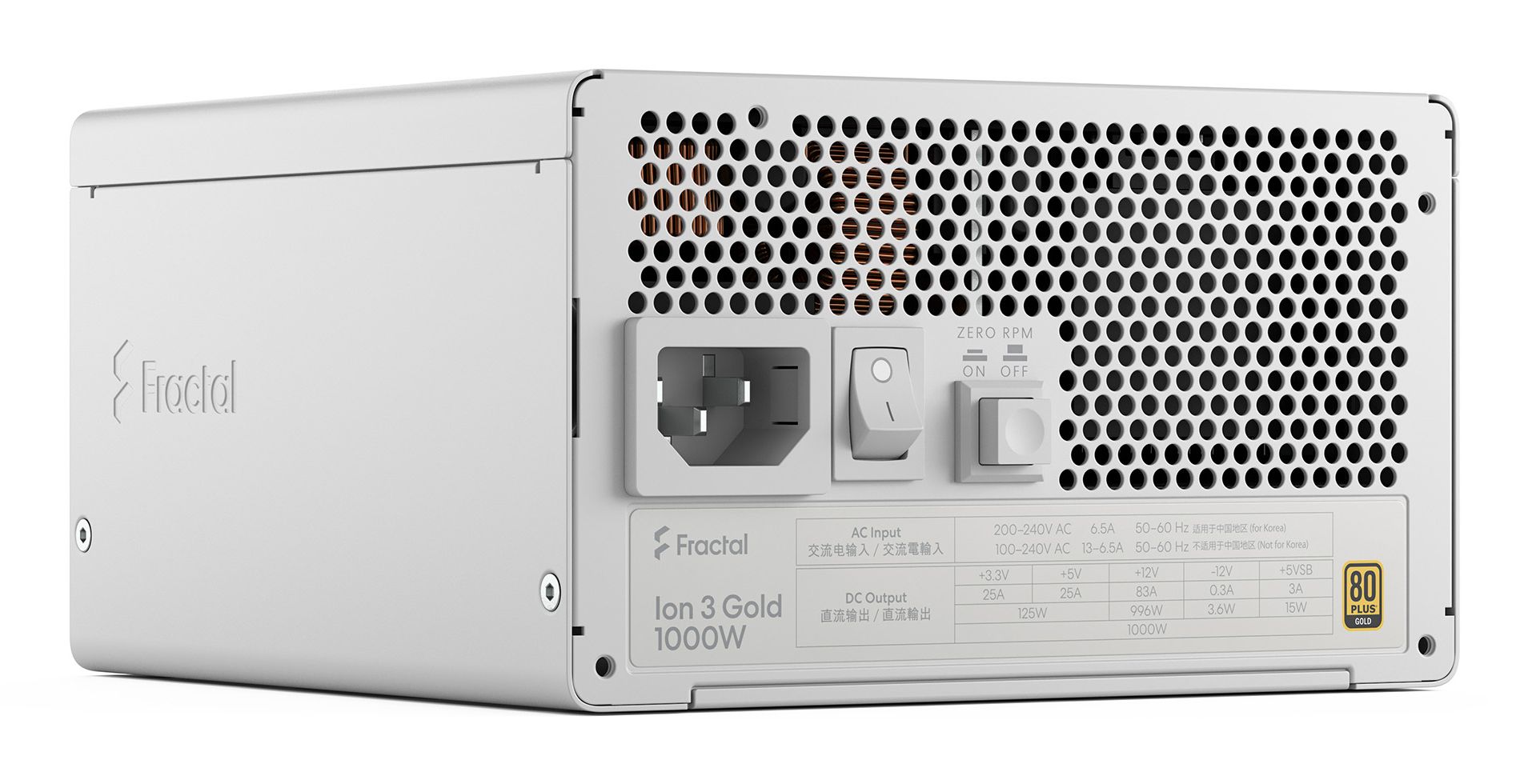

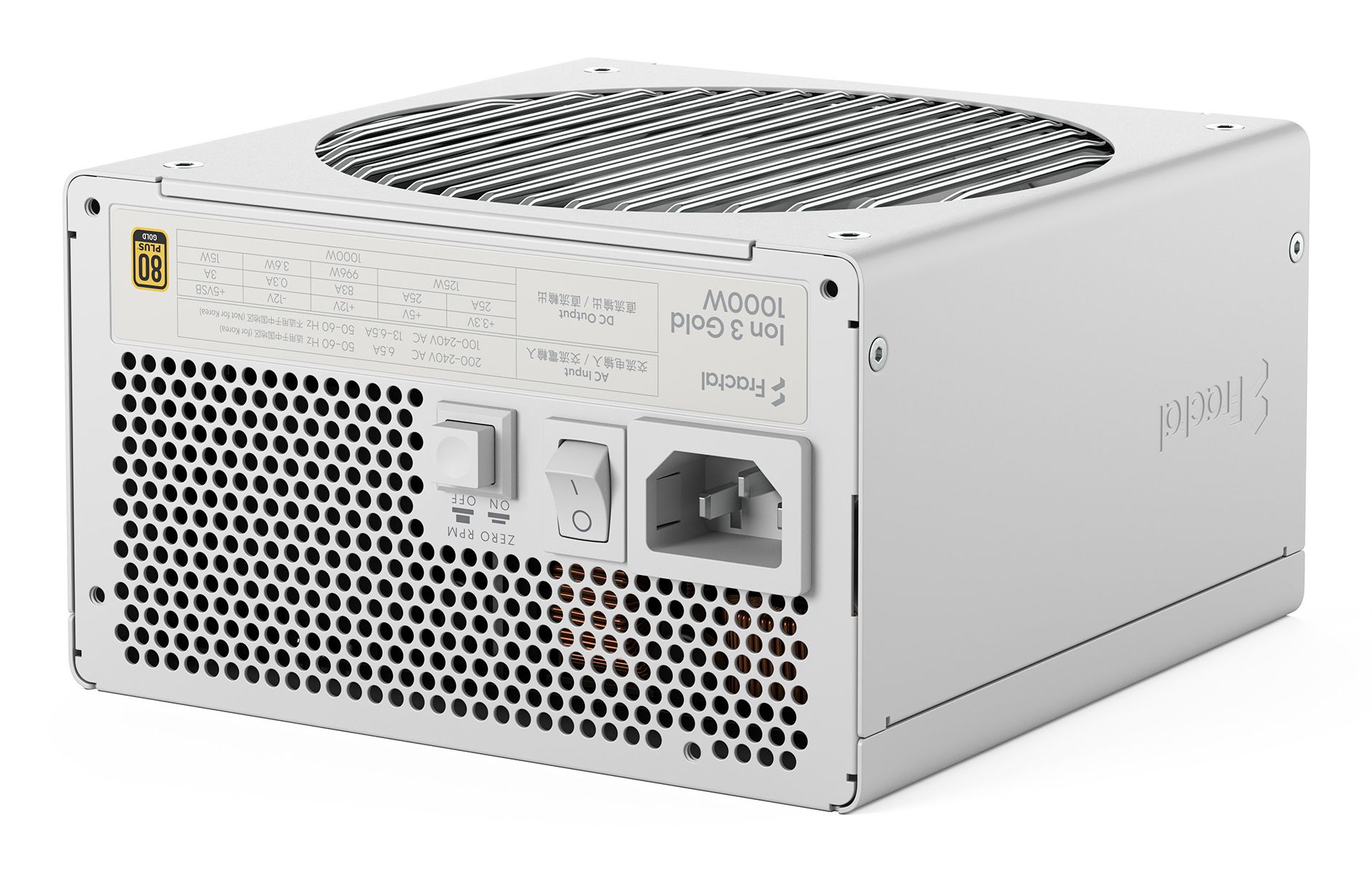

The Fractal Design Ion 3 Gold is a reliable power supply designed to meet the demands of various systems, providing stable power with a robust output of 1000 watts. Featuring a fully modular design, it allows for efficient cable management and helps reduce clutter inside your PC case. With a noise-dampening 140 mm cooling fan operating in Zero RPM mode during low loads, the power supply ensures quiet operation without compromising performance. The device offers extensive protections including overcurrent, overheat, overpower, overvoltage, short-circuit, and undervoltage protection, making it a safe choice for powering critical components.
Compliant with various international standards such as UKCA, FCC, and RoHS, this power supply prioritizes safety and environmental sustainability. With a mean time between failures (MTBF) rating of 100,000 hours, users can rely on the longevity of the Fractal Design Ion 3 Gold. Its compatibility with ATX12V 3.1 and EPS12V standards makes it versatile for use in both PCs and servers, ensuring you have the strength you need to support high-performance systems.
Produktbeskrivelse
Fractal Design Ion 3 Gold - strømforsyning - 1000 Watt
Enhedstype
Strømforsyning - aktiv Power Factor Correction (PFC) - intern
Specifikationsoverensstemmelse
ATX12V 3.1/ EPS12V
80 PLUS certificering
80 PLUS Gold
Vægt
1.8 kg
Lokalisering
Europa
Indgangspænding

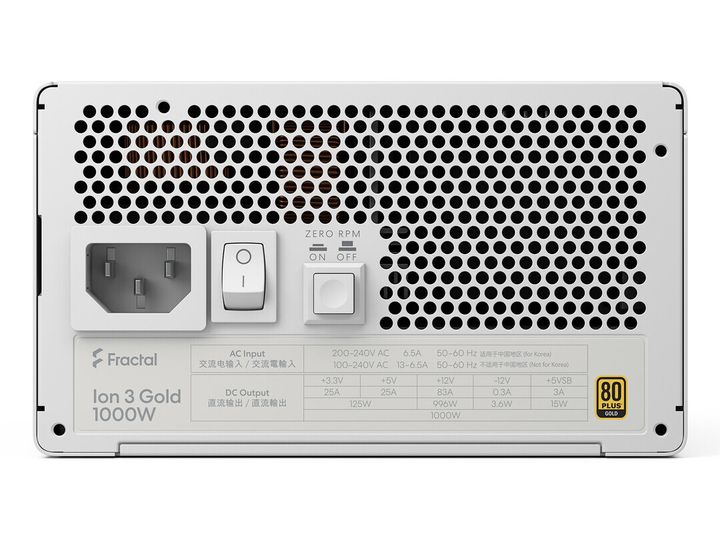

AC 100-240 V
Udgangspænding
+3.3, +5, ±12 V, +5Vsb V
Strømkapacitet
1000 Watt
Output Current
+3.3V - 25 A +5V - 25 A +12V - 83 A -12V - 0.3 A +5VSB - 3 A

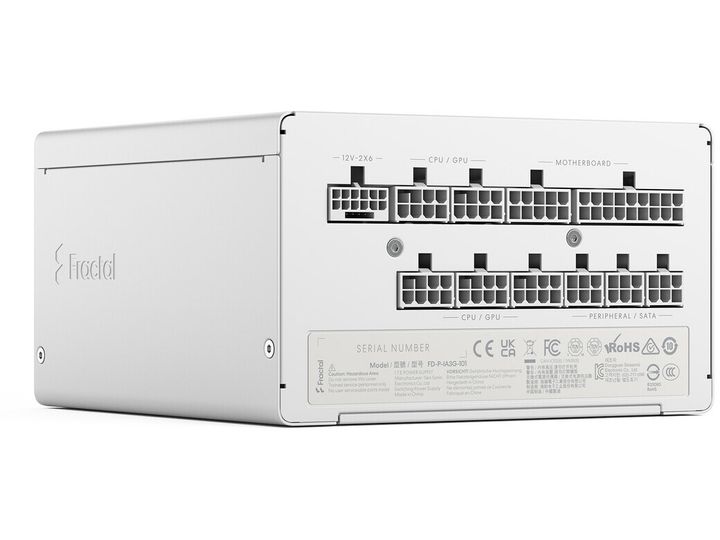

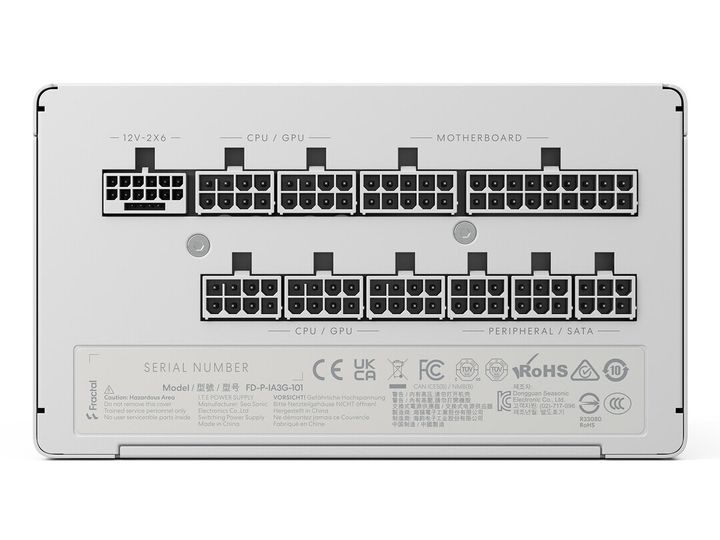

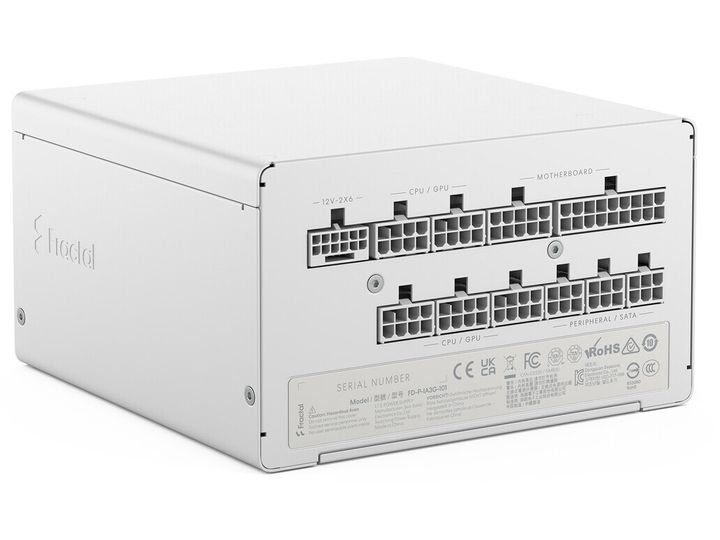

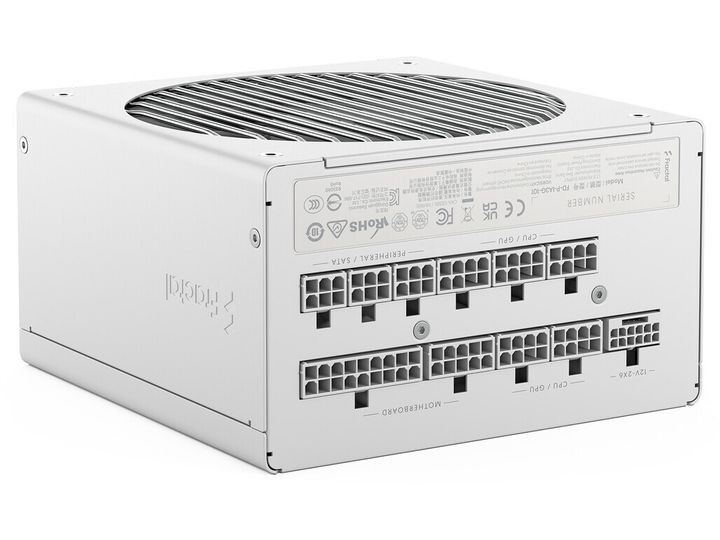

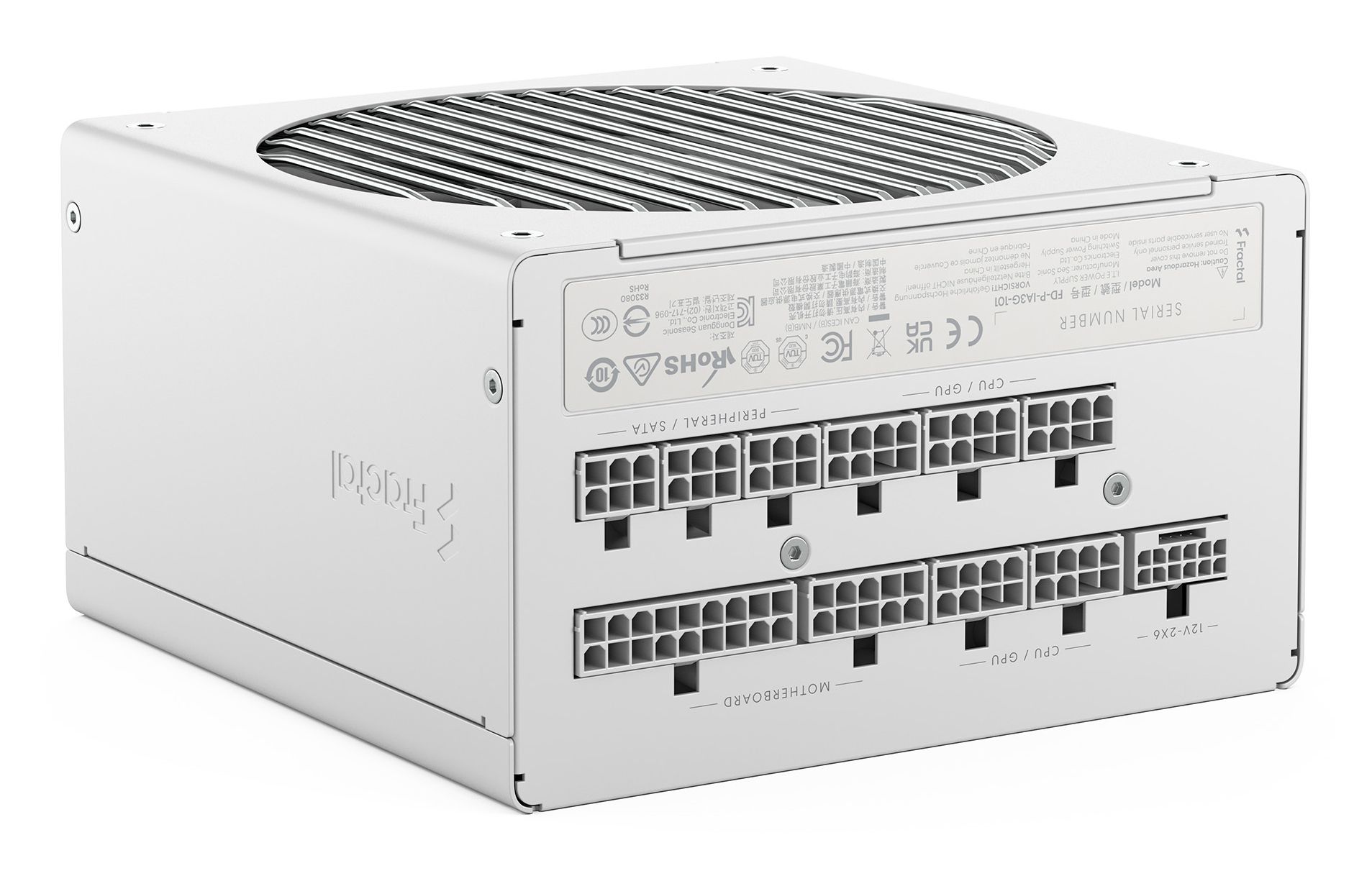

Output-stikforbindelser

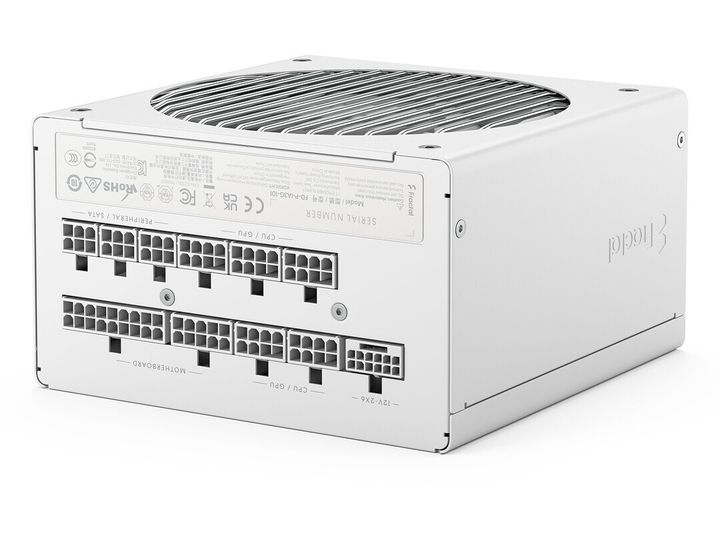

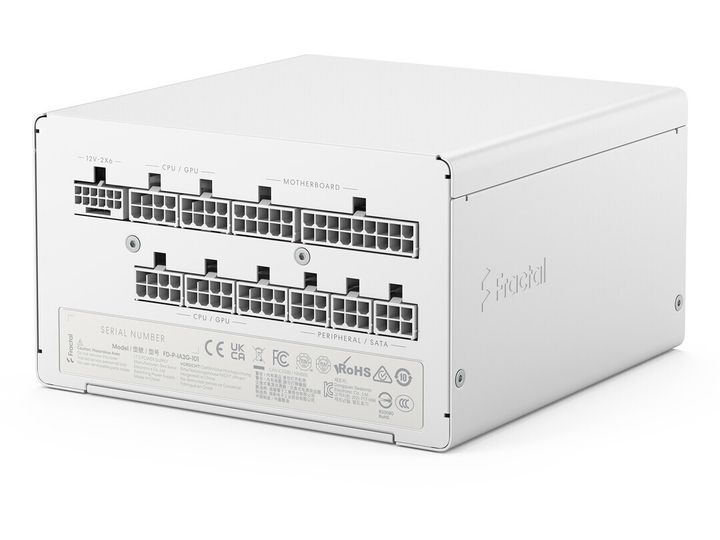

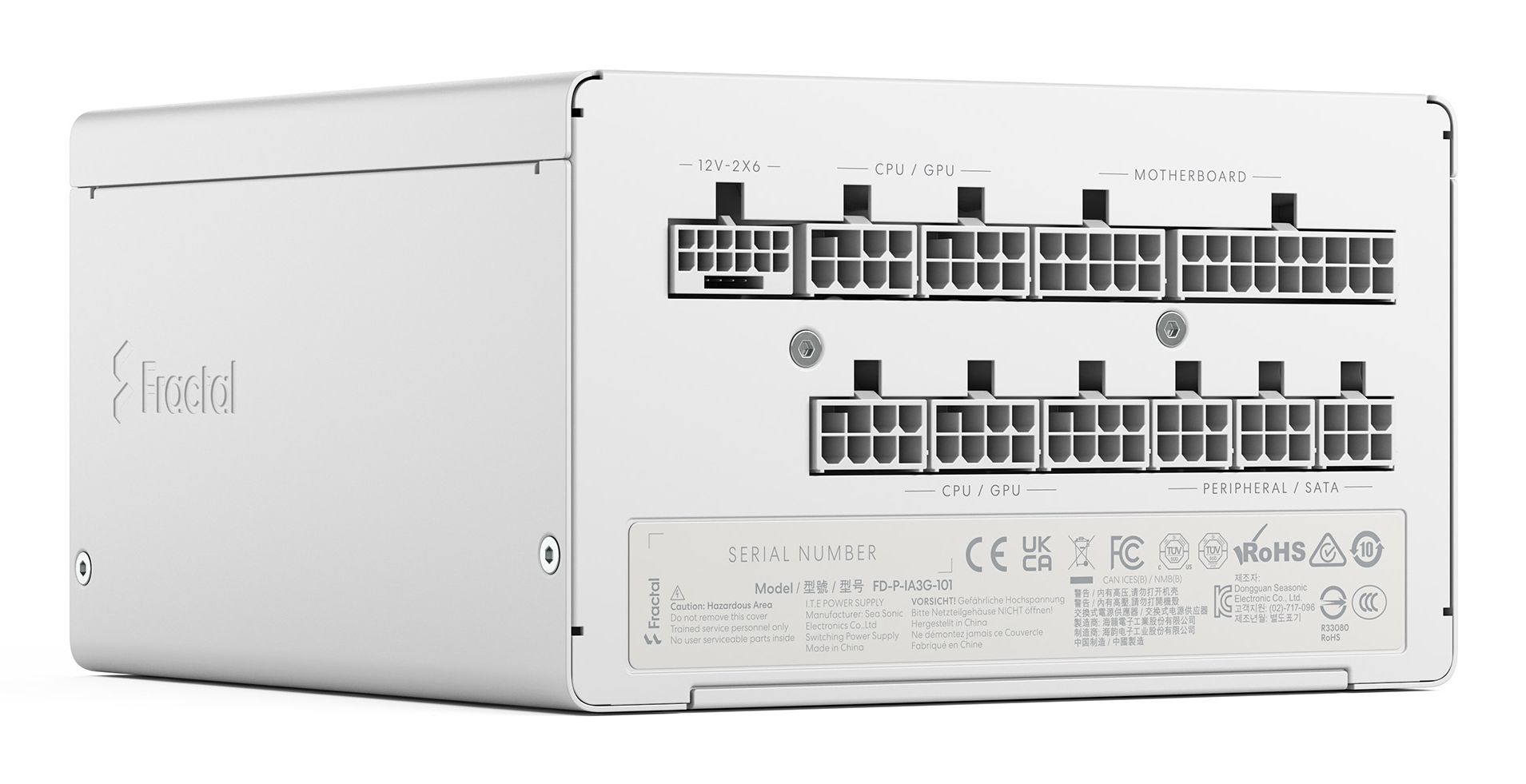

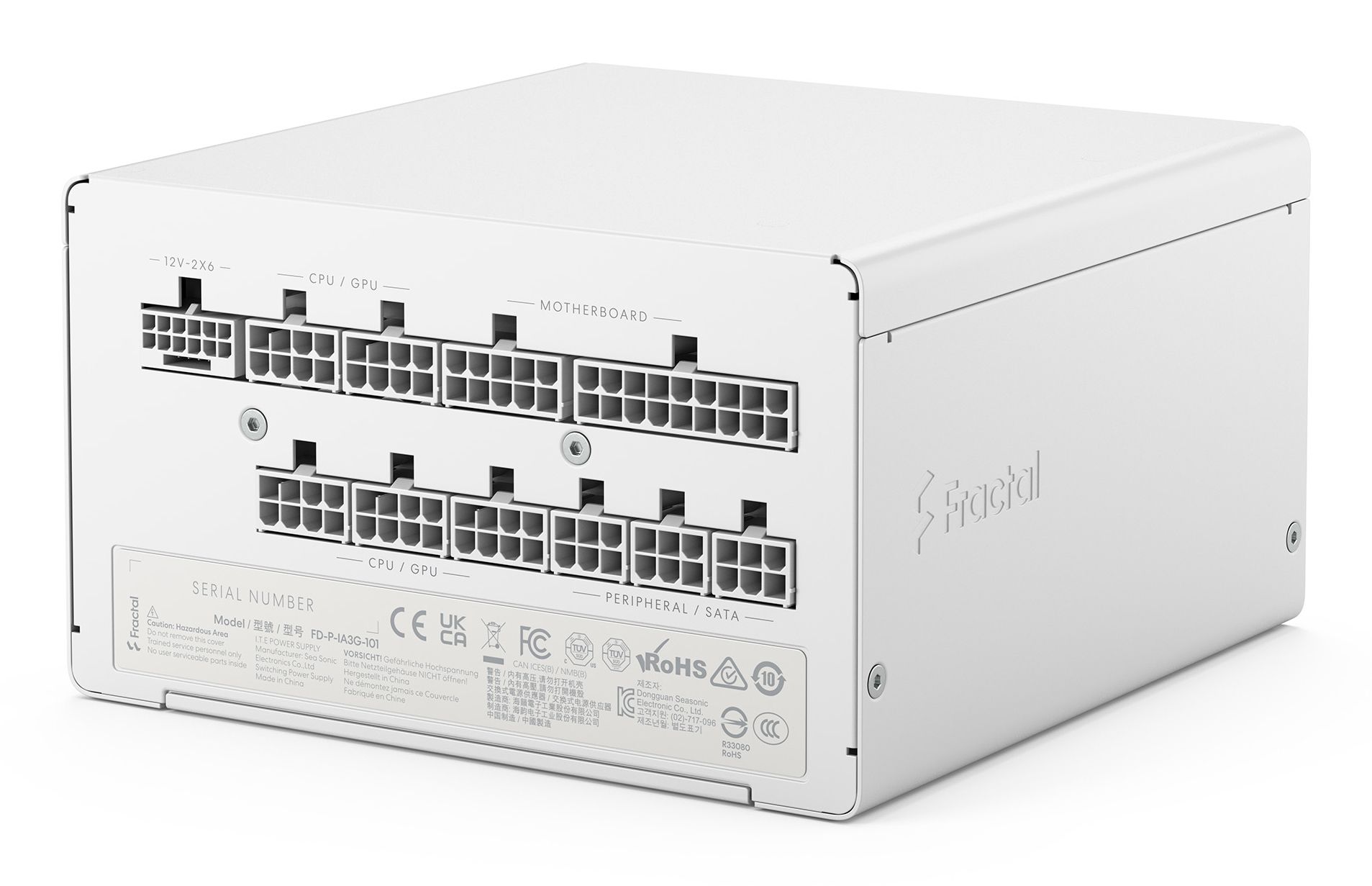

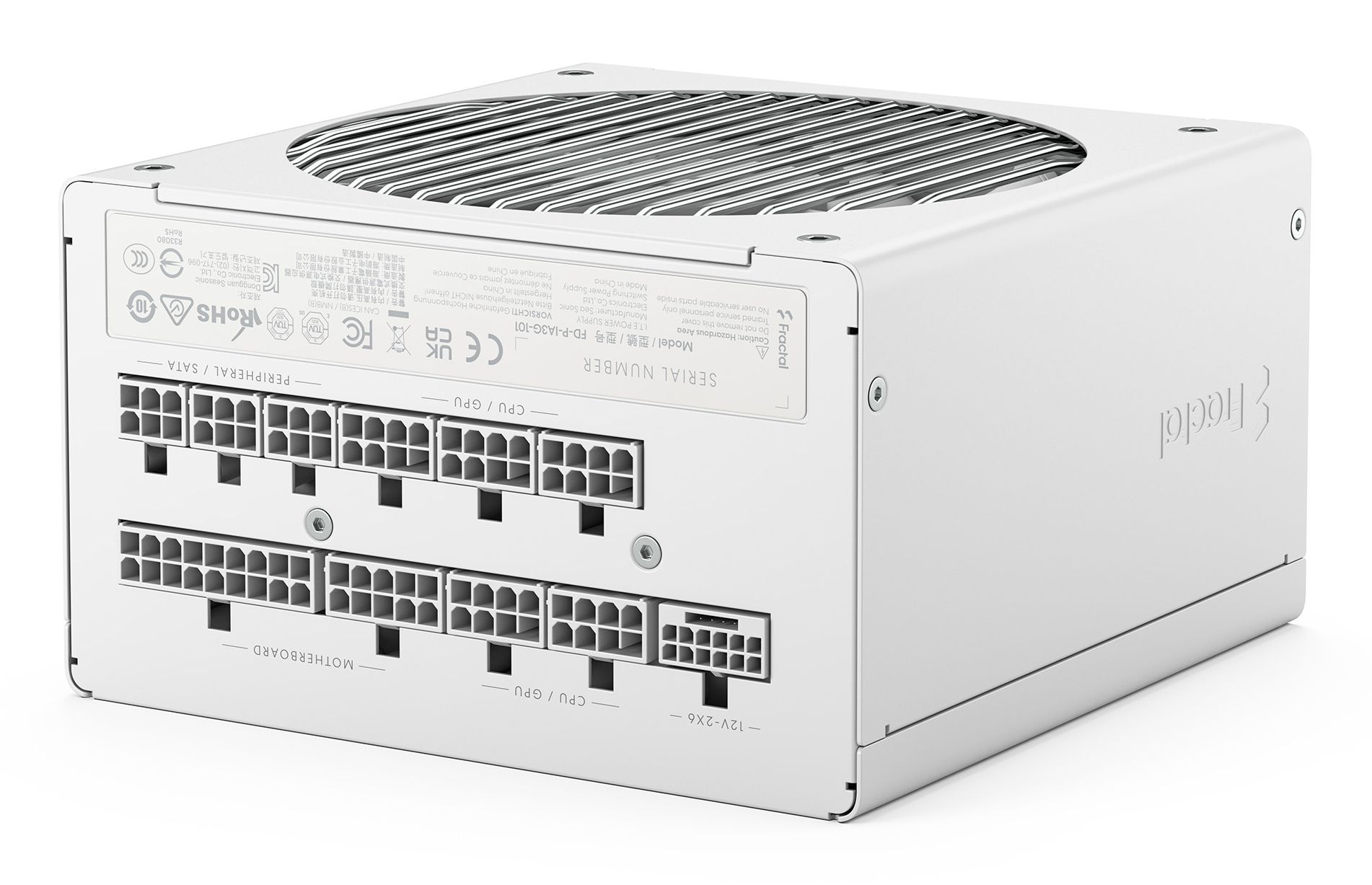

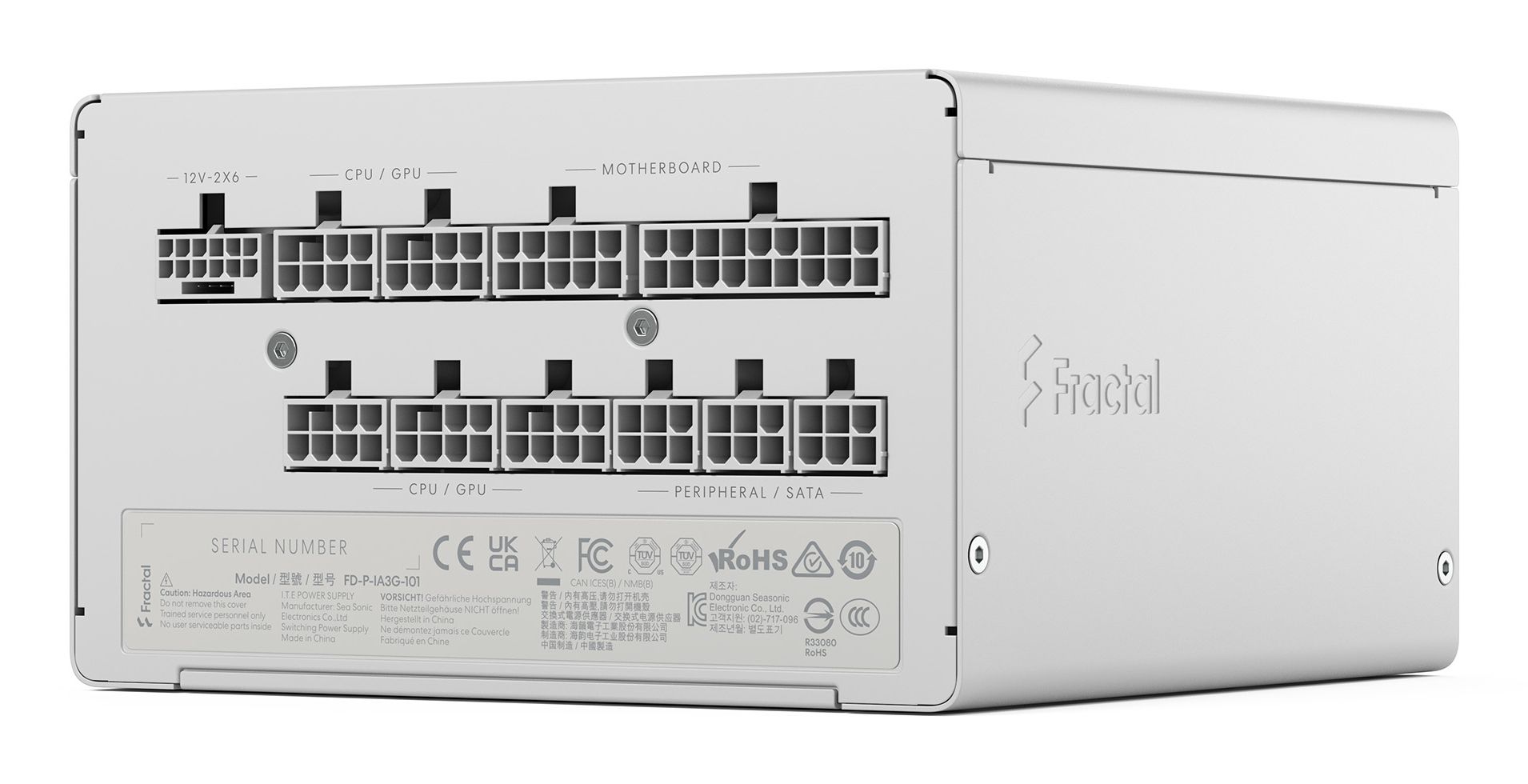

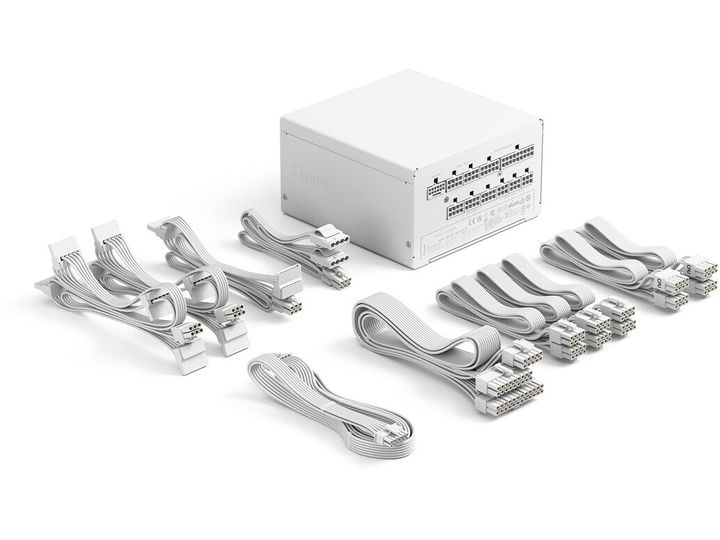

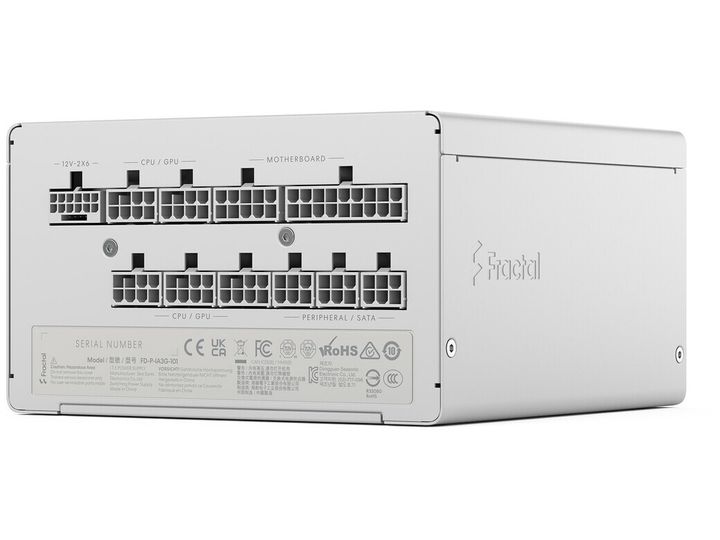

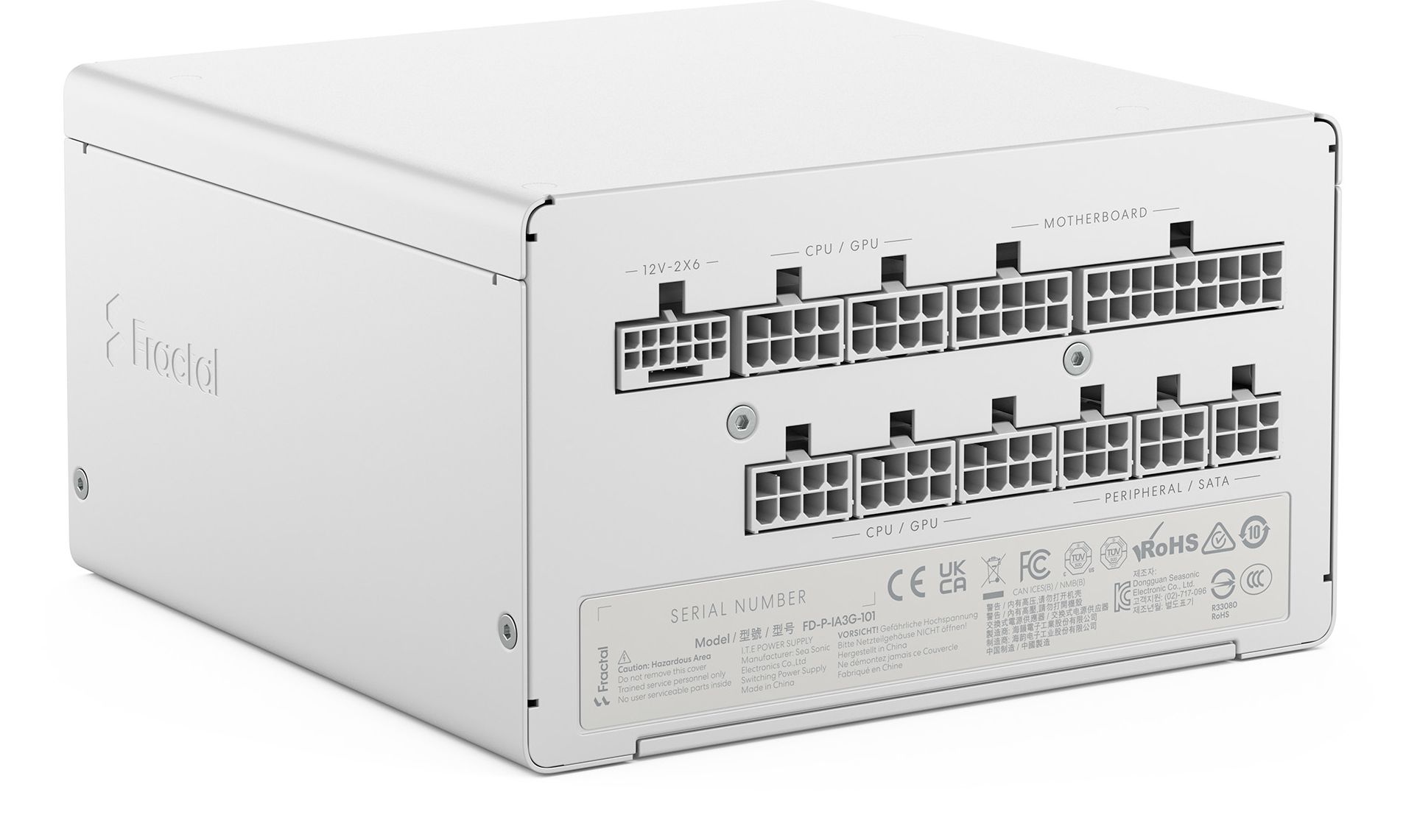

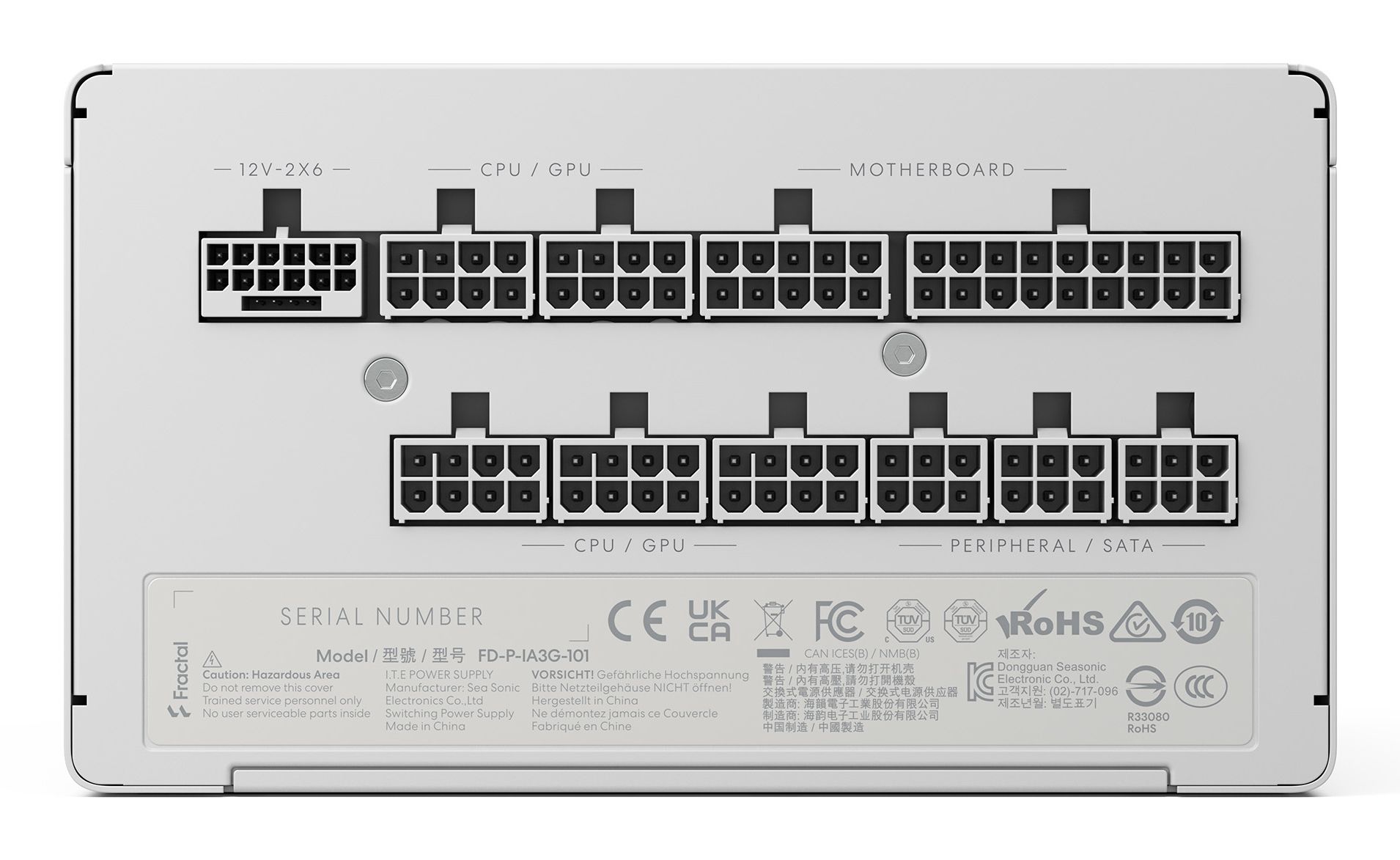

1 x strøm 24 pin ATX med aftagelig 4 pin sektion 2 x strøm 8 pin EPS12 V med aftagelig 4 pin ATX12V sektion 1 x 16-pin PCI Express-strøm 3 x 8 pin PCI Express-strøm med aftagelig 2 pin sektion 2 x 2 x 8 pin PCI Express-strøm med aftagelig 2 pin sektion 2 x 4-PIN intern strøm 10 x 15 pin Serial ATA strøm
Modulær Kabel Administration
Ja
Kølesystem

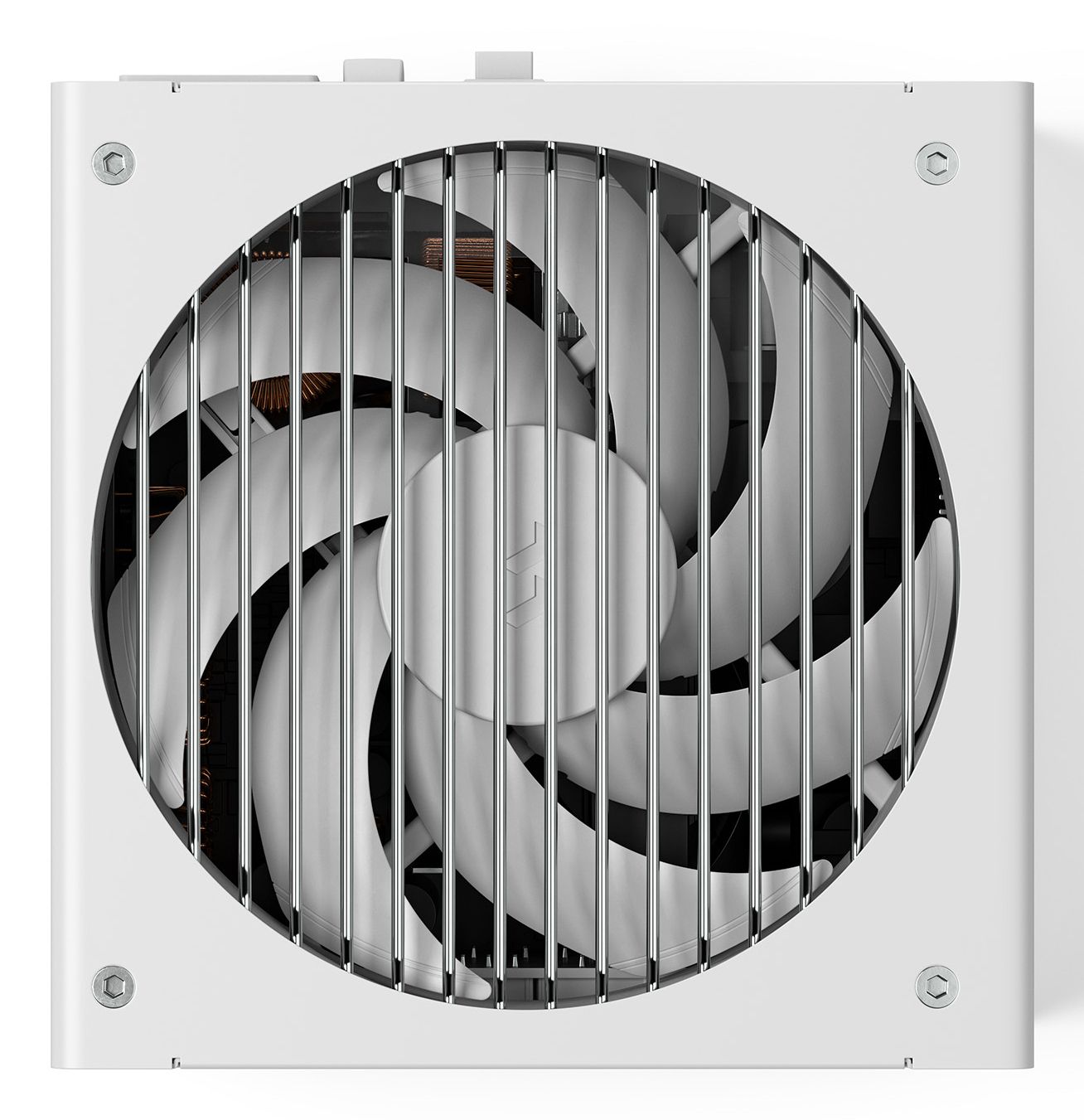

140 mm ventilator
Farve
Hvid
Dimensioner (B x D x H)
15 cm x 15 cm x 8.6 cm
Producentgaranti
10-års garanti
Generelt
Enhedstype
Strømforsyning - aktiv Power Factor Correction (PFC) - intern
Specifikationsoverensstemmelse
ATX12V 3.1/ EPS12V
PSU formfaktor
ATX
Farve
Hvid
Lokalisering
Europa
Strømenhed
Indgangspænding
AC 100-240 V
Nødvendig frekvens
50 - 60 Hz
Detaljer om strømudgangskonnektorer
1 x strøm 24 pin ATX med aftagelig 4 pin sektion 2 x strøm 8 pin EPS12 V med aftagelig 4 pin ATX12V sektion 1 x 16-pin PCI Express-strøm 3 x 8 pin PCI Express-strøm med aftagelig 2 pin sektion 2 x 2 x 8 pin PCI Express-strøm med aftagelig 2 pin sektion 2 x 4-PIN intern strøm 10 x 15 pin Serial ATA strøm
Udgangspænding
+3.3, +5, ±12 V, +5Vsb V
Strømkapacitet
1000 Watt
Output Current
+3.3V - 25 A +5V - 25 A +12V - 83 A -12V - 0.3 A +5VSB - 3 A
Modulær Kabel Administration
Ja
80 PLUS certificering
80 PLUS Gold
Diverse
Medfølgende ledninger

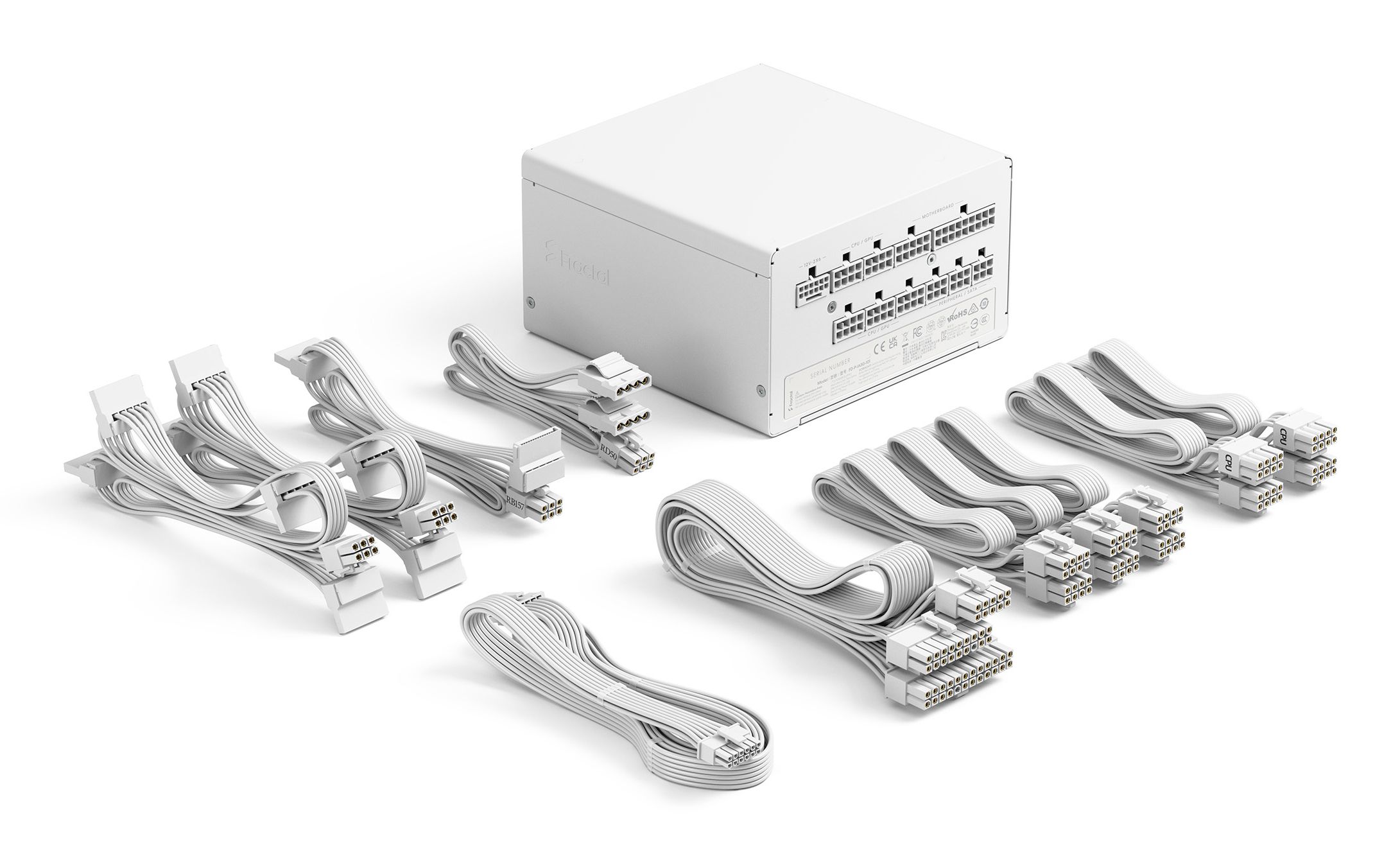

AC-strømkabel Strøm 24 pin ATX med aftageligt 4 pin sektion modulært kabel 60 cm 2 x strøm 8 pin +12 V med aftageligt 4 pin sektion modulært kabel 70 cm 16-pin 12VHPWR strøm modulær kabel 70 cm 3 x 8 pin PCI Express strøm med udtrækkelig 2 pin sektion modulærtkabel 65 cm 2x 8 pin PCI Express strøm med aftagelig 2 pin sektion modulært kabel 80 cm 2 x 15 pin Serial ATA strøm modulært kabel 85 m 15 pin Serial ATA strøm modulært kabel 80 cm 4 pin strøm modulært kabel 80 cm
MTBF (forventet tid mellem fejl)
100,000 timer
Kølesystem
140 mm ventilator
Egenskaber
Fuld modulær, beskyttelse mod overstrøm, beskyttelse mod overophedning, overbelastningsbeskyttelse, overspændingsbeskyttelse, kortslutnings beskyttelse, beskyttelse mod underspænding, køleblæser til flydende dynamisk leje, Zero RPM-blæsermodus, Smart Zero Fan Switch
