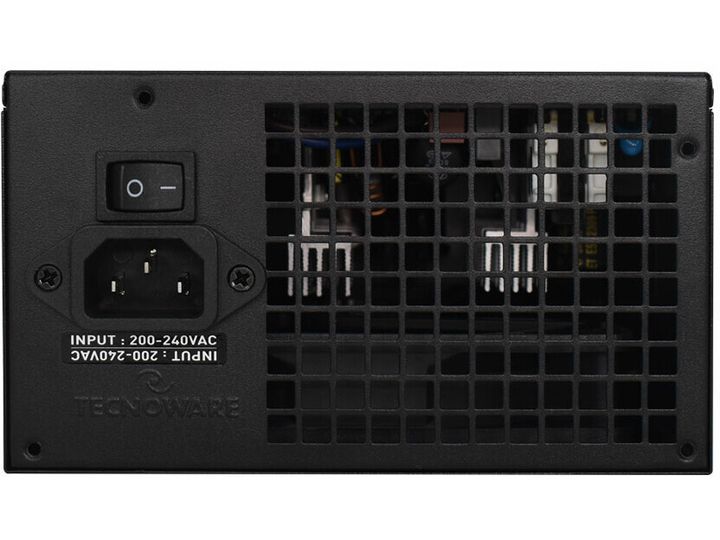

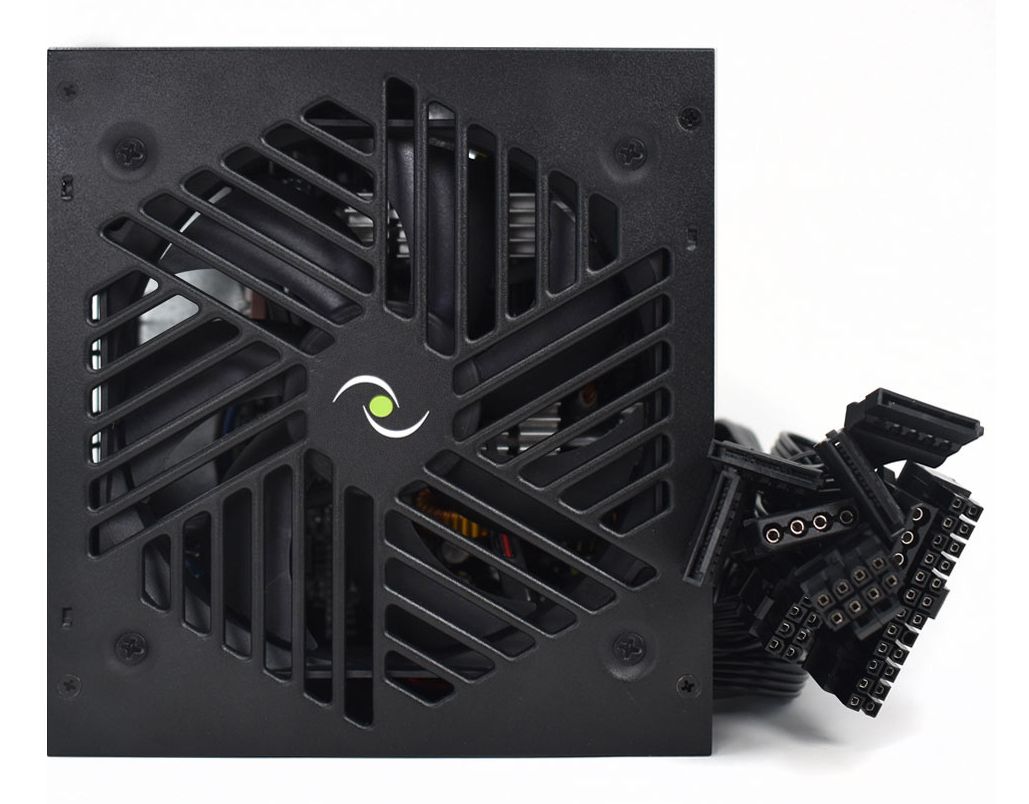

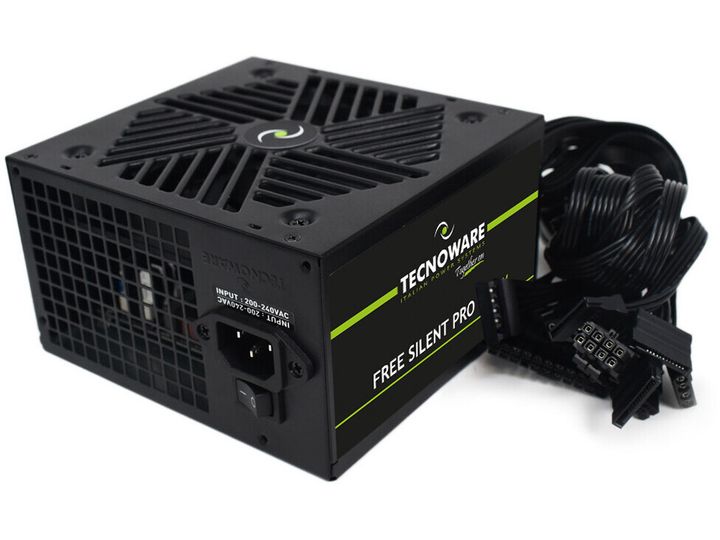

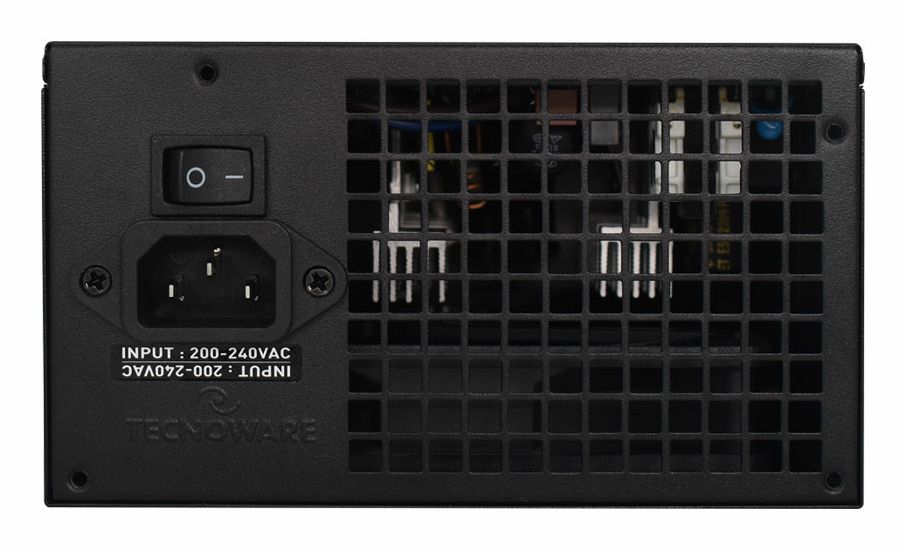

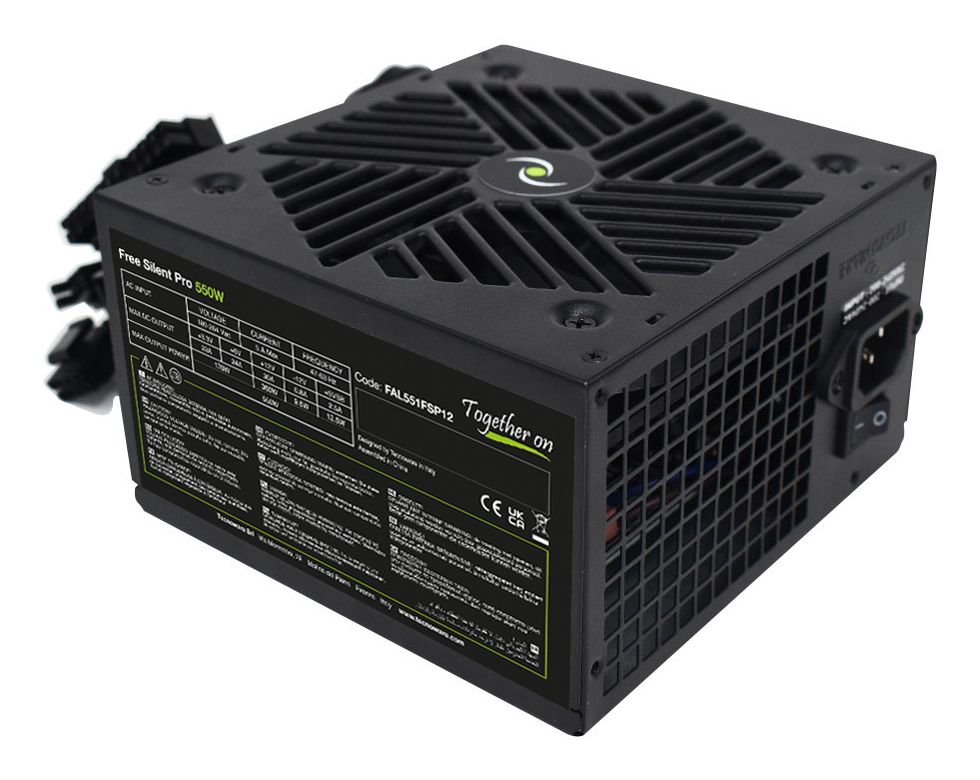

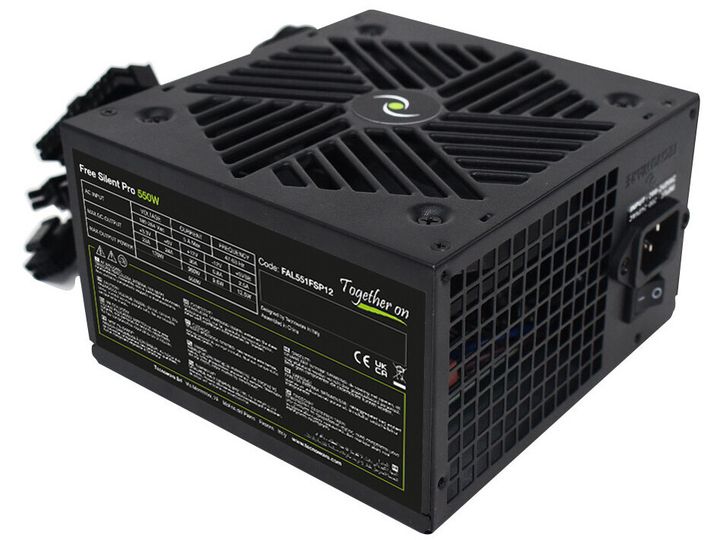

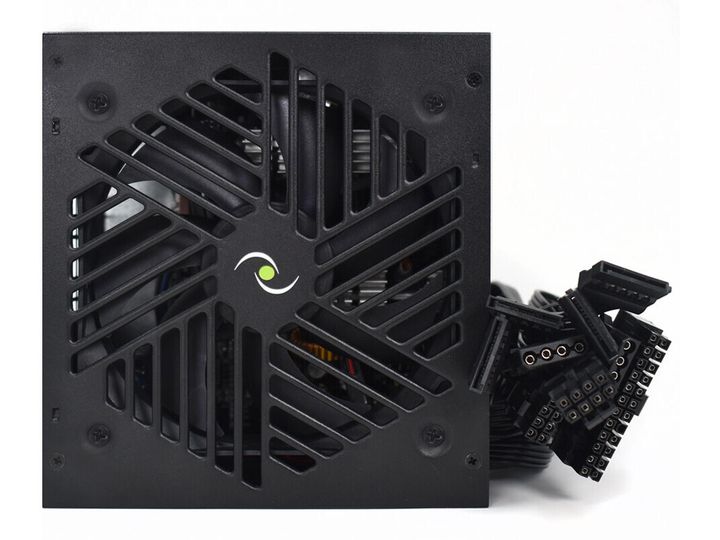

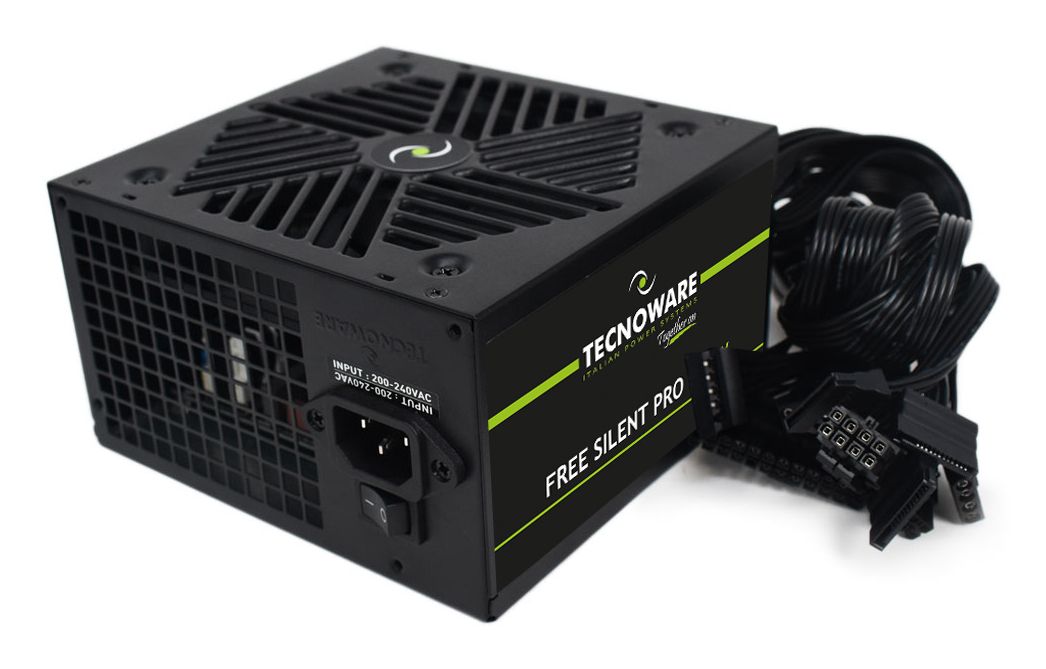

Internal power supply for personal computer, 550W power, input voltage 230 Vac, 50/60 Hz, conforms to ATX 12V v.2.31 specifications, main switch, surge protection, overload protection, short circuit protection, high MTBF, high reliability, quiet operation, 12 cm silent fan, temperature control of the fan speed, Flat type connection cables from 500mm to 800mm, 1 x 20+4-pin connector, 1 x 12V 4+4-pin connector, 1 x 6+2 PCI-E connector, 2 x Molex connectors, 4 x Sata connector, dimensions 150x140x86 mm, weight 1.0 Kg, black color, CE certification, RoHS.
Total power
550 W
AC input voltage
180 - 264 V
AC input frequency
47 - 63 Hz
Input current
5 A
Power factor
0.9
Power Factor Correction (PFC) type
Active
Combined power (+3.3V)
170 W
Combined power (+12V)
360 W
Combined power (+5V)
170 W
Combined power (-12V)
9.6 W
Combined power (+5Vsb)
12.5 W
Max output current (+3.3V)
23 A
Max output current (+12V)
30 A
Max output current (+5V)
24 A
Max output current (-12V)
0.8 A
Max output current (+5Vsb)
2.5 A
Efficiency
85%
Power protection features
Overload, Short circuit, Surge protection
Motherboard power connector
20+4 pin ATX
Peripheral (Molex) power connectors (4-pin)
2
Motherboard power cable length
50 cm
Number of SATA power connectors
4
PCI Express power connectors (6+2 pin)
1
PCI Express power cable length
50 cm
CPU power connector (4+4 pin)
Yes
CPU power cable length
55 cm
ATX power connector (20+4 pin)
Yes
Cabling type
Non-Modular
Purpose
PC
Power supply unit (PSU) form factor
ATX
80 PLUS certification
No
ATX version
2.31
Product colour
Black
Fan diameter
12 cm
Number of fans
1 fan(s)
On/off switch
Yes
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
15 - 40 °C
Compliance certificates
CE, RoHS
Width
140 mm
Depth
150 mm
Height
86 mm
Weight
1 kg
Package type
Box
