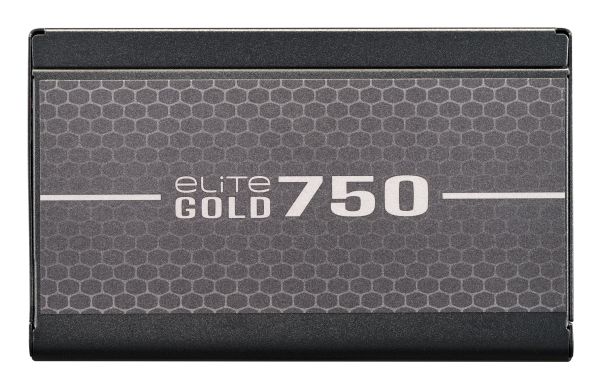

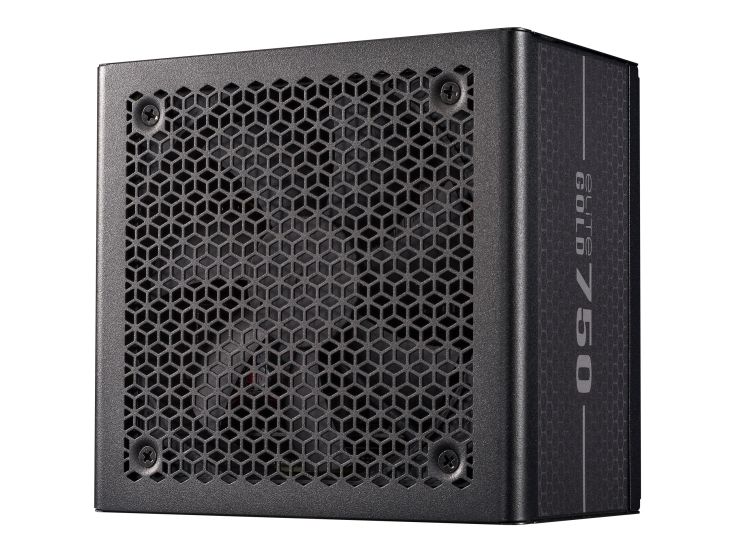

The Cooler Master Elite Series Gold 750 power supply delivers reliable performance and efficient power management for PC and server applications. With a power capacity of 750 W and an efficiency rating of 80 PLUS Gold, this power supply ensures optimal electricity use and temperature control, contributing to a stable system performance. Equipped with a 120 mm rifle bearing cooling fan, the unit operates quietly while maintaining effective cooling across components.
This fully modular power supply features a variety of cable lengths and types, including a 24-pin ATX, 8-pin EPS12V, and multiple PCI Express connectors, allowing for customizable configurations tailored to individual needs. With a Mean Time Between Failures (MTBF) of 100,000 hours and compliance with various international standards including cTUVus, FCC, and RoHS 2.0, the Cooler Master Elite Series Gold 750 is designed for durability and reliability in demanding environments.
Strømforsyning - aktiv Power Factor Correction (PFC) - intern
Specifikationsoverensstemmelse
ATX12V 3.1/ EPS12V
80 PLUS certificering
80 PLUS Gold
Vægt
1.9 kg
Lokalisering
Europa
Indgangspænding
AC 100-240 V
Udgangspænding
+3.3, +5, ±12 V, +5Vsb V
Strømkapacitet
750 watt

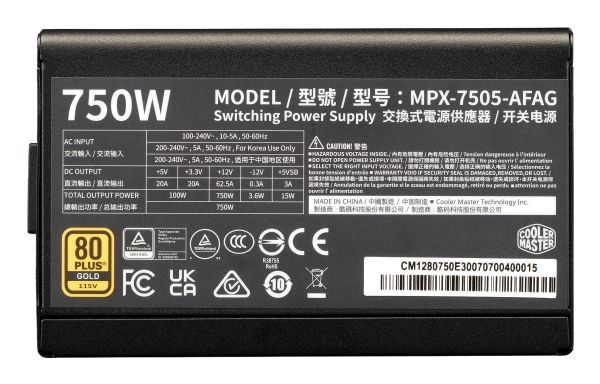

Output Current
+3.3V - 20 A +5V - 20 A +12V - 62.5 A -12V - 0.3 A +5VSB - 3 A

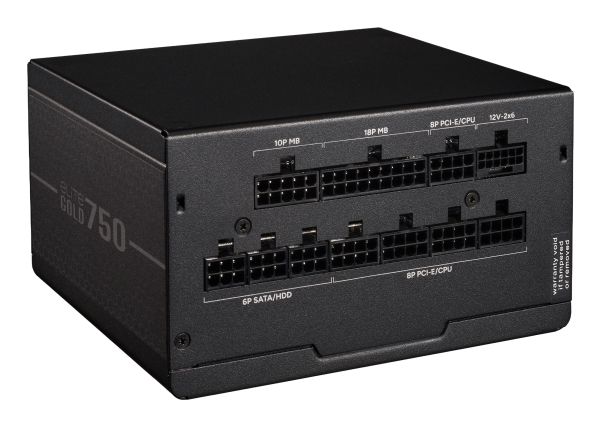

Output-stikforbindelser
1 x strøm 24 pin ATX med aftagelig 4 pin sektion 2 x strøm 8 pin EPS12 V med aftagelig 4 pin ATX12V sektion 1 x 16-pin PCI Express-strøm 2 x 8 pin PCI Express-strøm med aftagelig 2 pin sektion 2 x 4-PIN intern strøm 4 x 15 pin Serial ATA strøm
Modulær Kabel Administration
Ja
Kølesystem
120 mm ventilator
Dimensioner (B x D x H)
15 cm x 14 cm x 8.6 cm
Producentgaranti
10-års garanti
Generelt
Enhedstype
Strømforsyning - aktiv Power Factor Correction (PFC) - intern
Specifikationsoverensstemmelse
ATX12V 3.1/ EPS12V
PSU formfaktor
ATX
Lokalisering
Europa
Strømenhed
Indgangspænding
AC 100-240 V
Nødvendig frekvens
50 - 60 Hz
Detaljer om strømudgangskonnektorer
1 x strøm 24 pin ATX med aftagelig 4 pin sektion 2 x strøm 8 pin EPS12 V med aftagelig 4 pin ATX12V sektion 1 x 16-pin PCI Express-strøm 2 x 8 pin PCI Express-strøm med aftagelig 2 pin sektion 2 x 4-PIN intern strøm 4 x 15 pin Serial ATA strøm
Udgangspænding
+3.3, +5, ±12 V, +5Vsb V
Strømkapacitet
750 watt
Output Current
+3.3V - 20 A +5V - 20 A +12V - 62.5 A -12V - 0.3 A +5VSB - 3 A
Effektivitet
90%
Modulær Kabel Administration
Ja
80 PLUS certificering
80 PLUS Gold
Diverse
Medfølgende ledninger
AC-strømkabel Strøm 24 pin ATX med aftageligt 4 pin sektion modulært kabel 55 cm Strøm 8 pin EPS12V modulært kabel 72 cm 2 x strøm 15-pin SATA kabel / 4-pin intern strøm kabel modulært kabel 64 cm 8 pin PCI Express strøm med udtrækkelig 2 pin sektion modulærtkabel 62 cm 16-pin 12VHPWR strøm modulær kabel 65 cm
MTBF (forventet tid mellem fejl)
100,000 timer
Kølesystem
120 mm ventilator
Egenskaber
Riffelleje-køleblæser, fuld modulær, beskyttelse mod underspænding, overspændingsbeskyttelse, overbelastningsbeskyttelse, beskyttelse mod overophedning, kortslutnings beskyttelse
