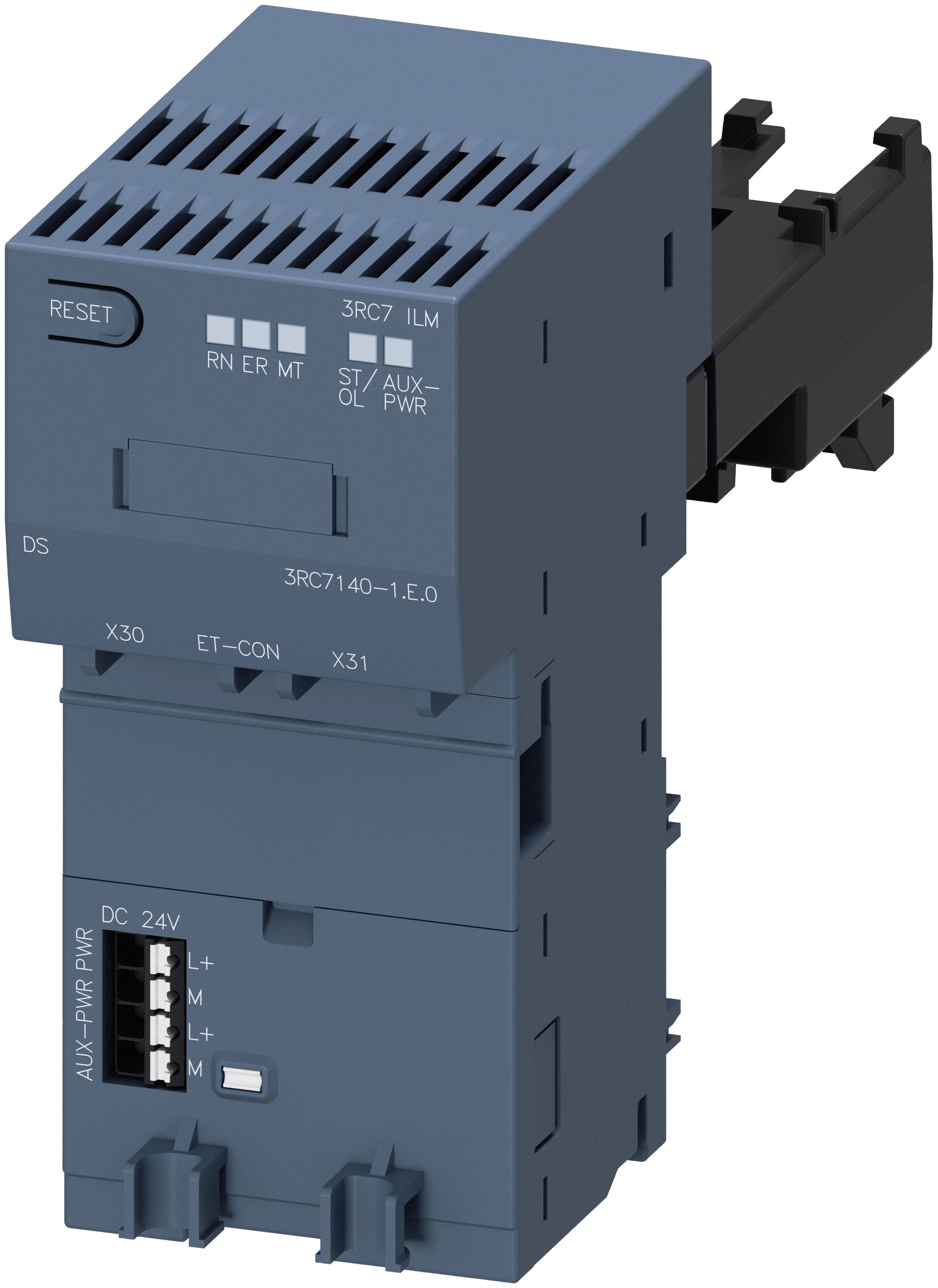

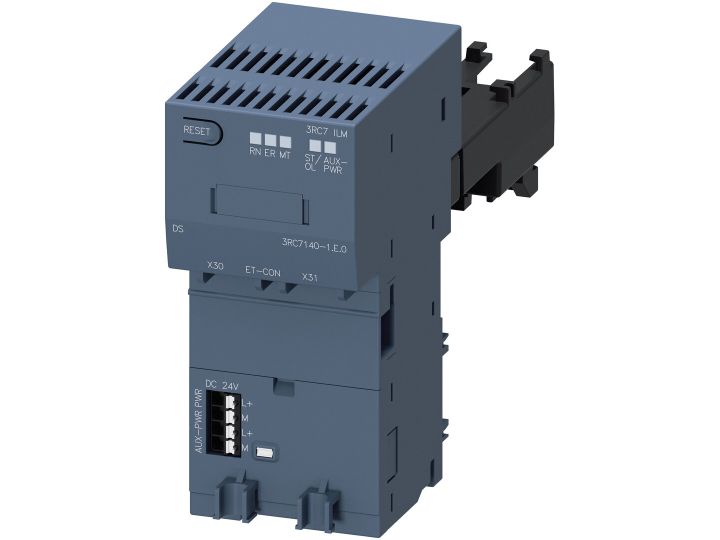

Siemens ILM module direct start Standard 1.2-12 A for 690 V AC size S00 3RC7140-1KE00
Current
12 A
Height
103 mm
Package width
50 mm
Package depth
110 mm
Package height
95 mm
Package weight
235 g
Compliance certificates
CE, RoHS, REACH
Reset button
Yes
Main circuit connection type
Spring clamp connection
Number of auxiliary NC contacts
0
Number of auxiliary NO contacts
0
Number of auxiliary change-over contacts
0
Actuating voltage type
AC
Operating voltage AC (50Hz)
690 V
Operating coltage AC (60Hz)
600 V
Rated control supply voltage (DC)
690 V
Rated control supply voltage (AC 50Hz)
690 V
Rated control supply voltage (AC 60Hz)
690 V
Reset input
Yes
Adjustable current range
1.2 - 12 A
Automatic reset
Yes
Mounting method
Other
Operating voltage type
DC
Minimum order quantity
1 pc(s)
Battery included
No
Operating voltage, DC
24 V
External power supply required
No
Maximum order quantity
1 pc(s)
