InLine 92502H, Terminal block / D-Sub 25, Green, Male/Female, 26/18, 300 V, 10 mO
Item no.: [25151473] | Manufacturer: Inline | Model no.: 92502H | EAN: 4043718346073
Remote stock (5-7 days)
The item is in a remote warehouse, delivery time is 5-7 business days. More info
Delivery options - Select at checkout
Shipping @price - GLS
12,00
EUR
20,77
Incl. VAT 25,96
Total incl. delivery
40,96
Add to list
The function requires that you are logged in. Create a user and use our smart list system to keep track of future purchases, regular purchases or wish lists.
Send på mail
Time savings during installation:Quick wiring via screw terminals for 18–26 AWG – tool-assisted with flat-head screwdriver ≤ 2.5 mm.
Stable connection thanks to screw lock:The 2-row D-Sub-25 female connector is equipped with a mounting thread (UNC #4-40) and enables secure mechanical fastening with matching plugs.
Versatile use in industry: Ideal for structured wiring in control cabinets, control and automation systems, or signal distribution.
DIN rail mounting for standard-compliant installation: The integrated DIN rail housing enables direct mounting on mounting rails – quickly, securely, and in a space-saving manner.
High signal quality:An insulation resistance of ≥ 10 MΩ at 300 V DC and a rated current of 0.7 A per pin ensure reliable signal transmission – even under continuous load.

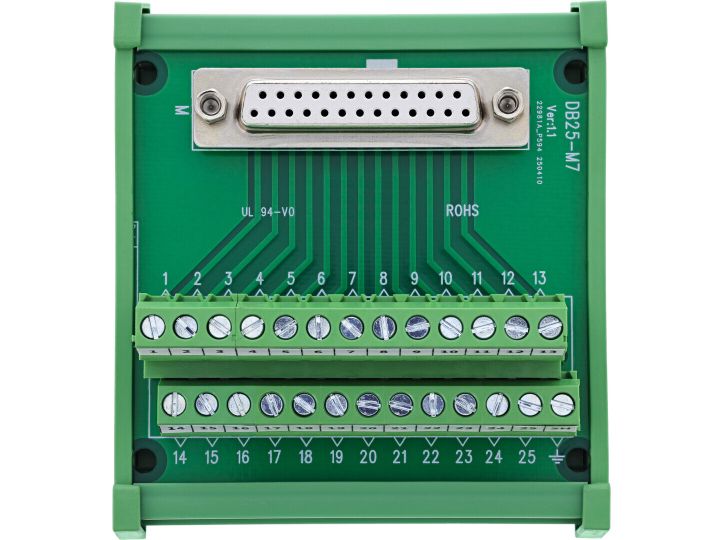

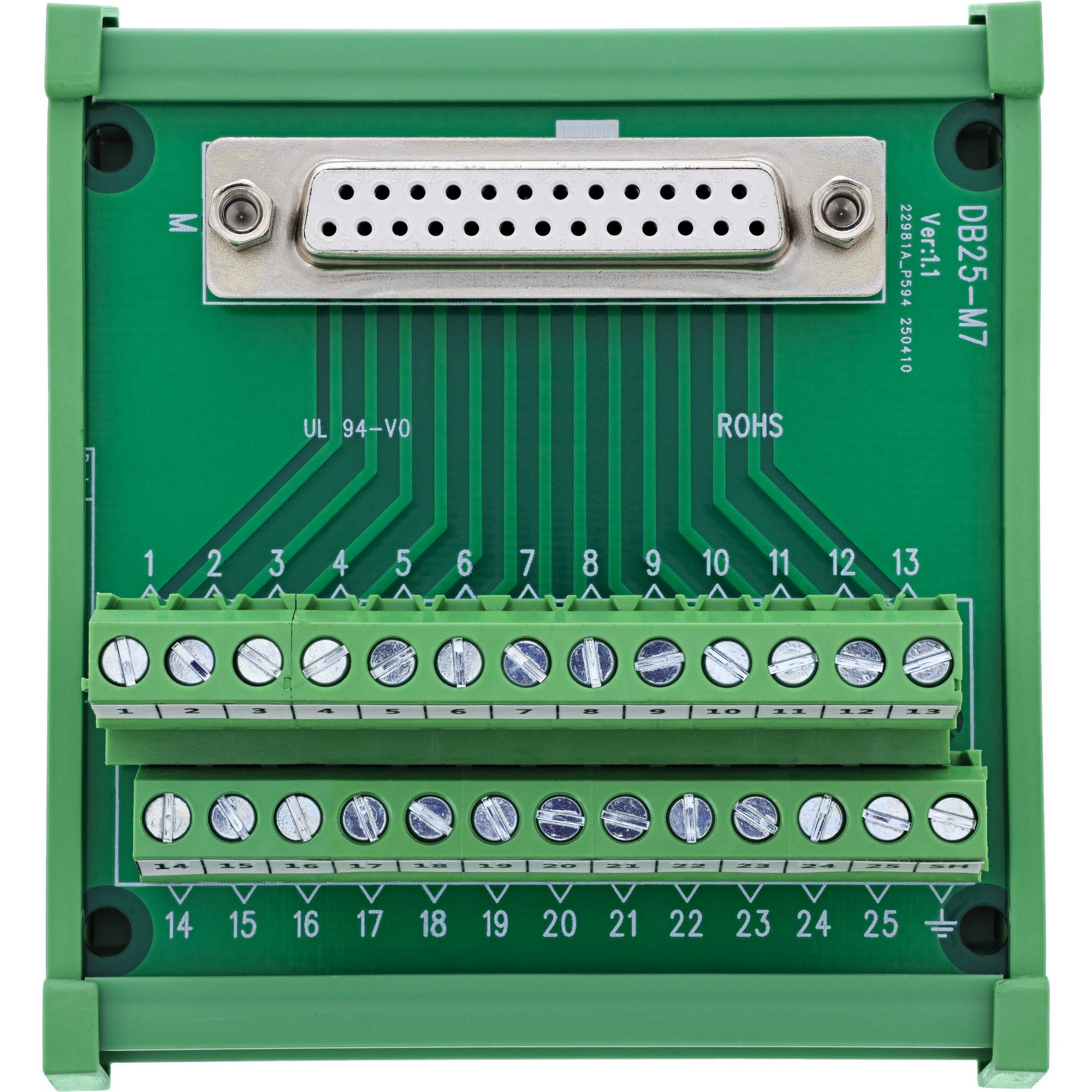

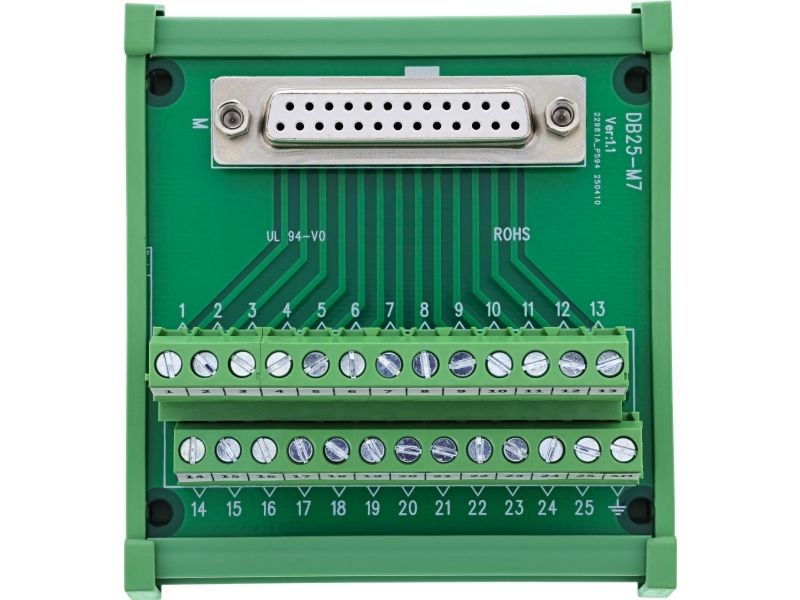

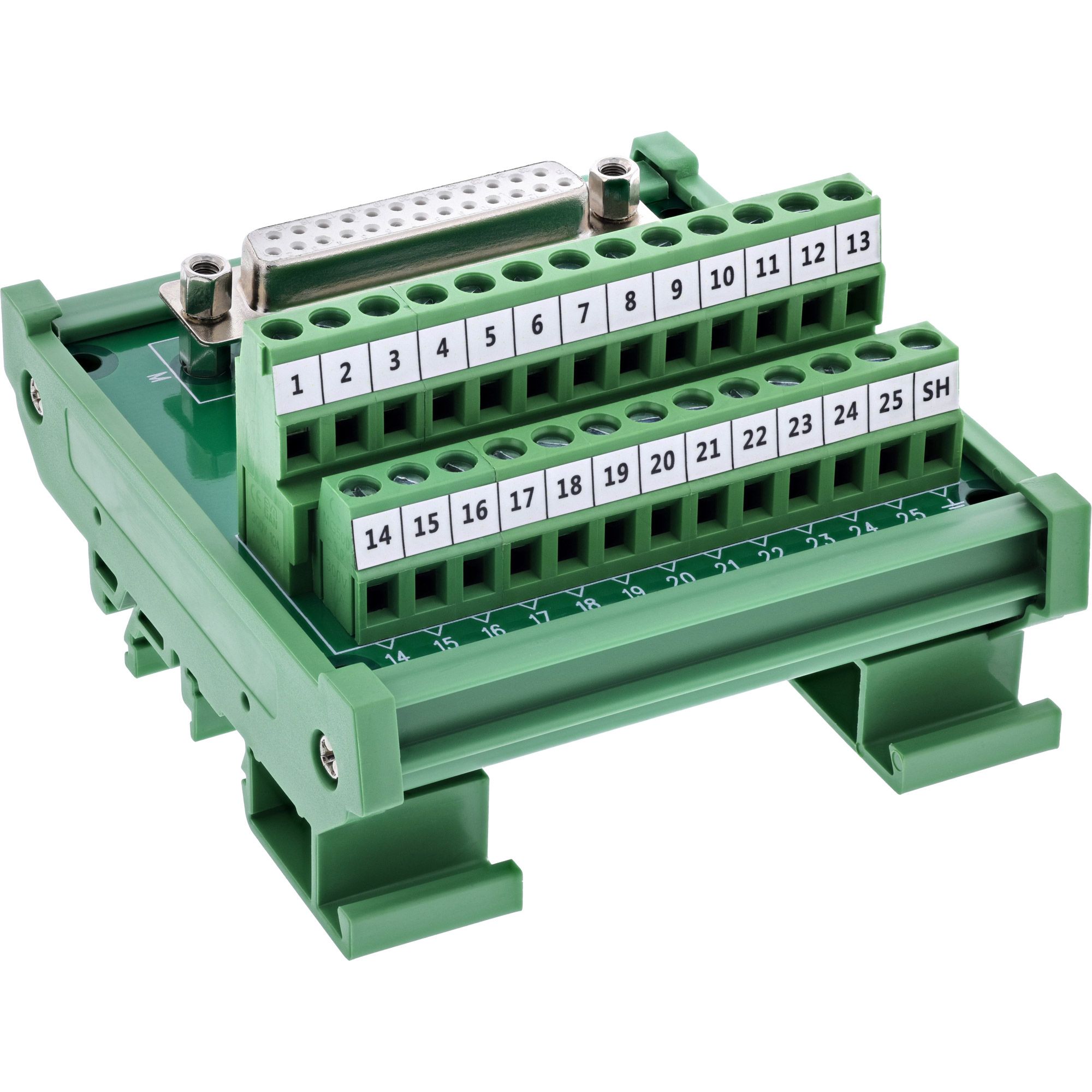

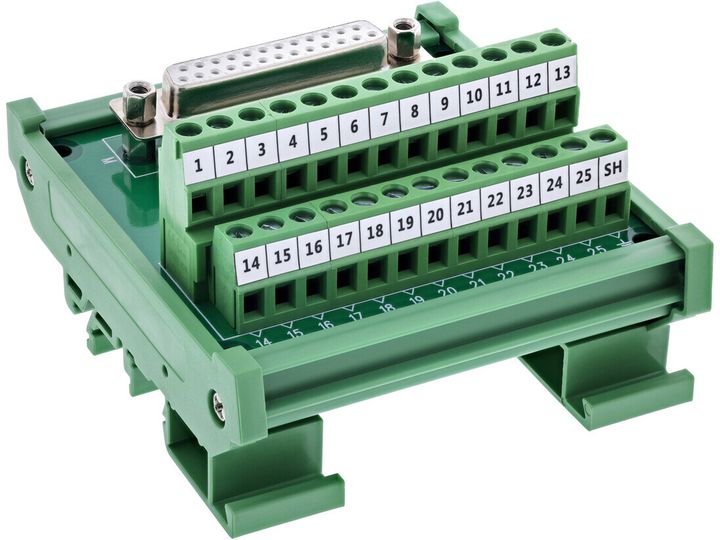

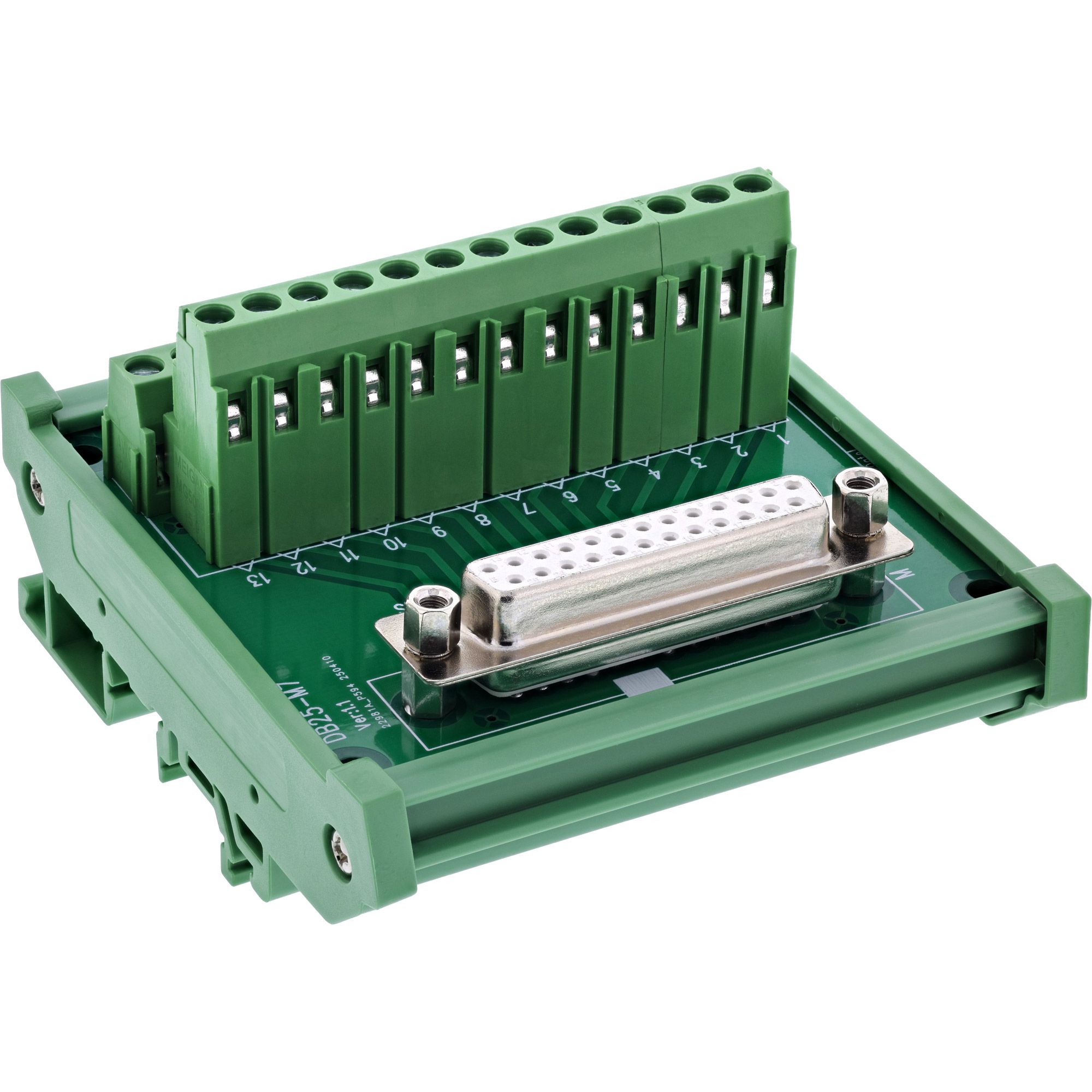

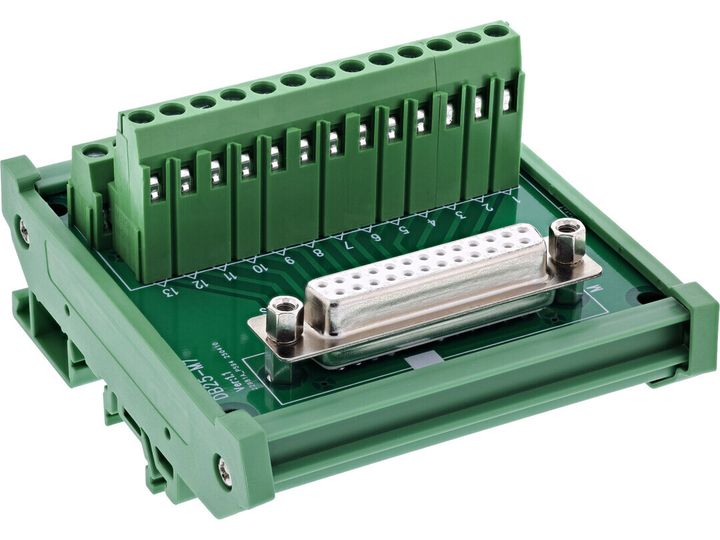

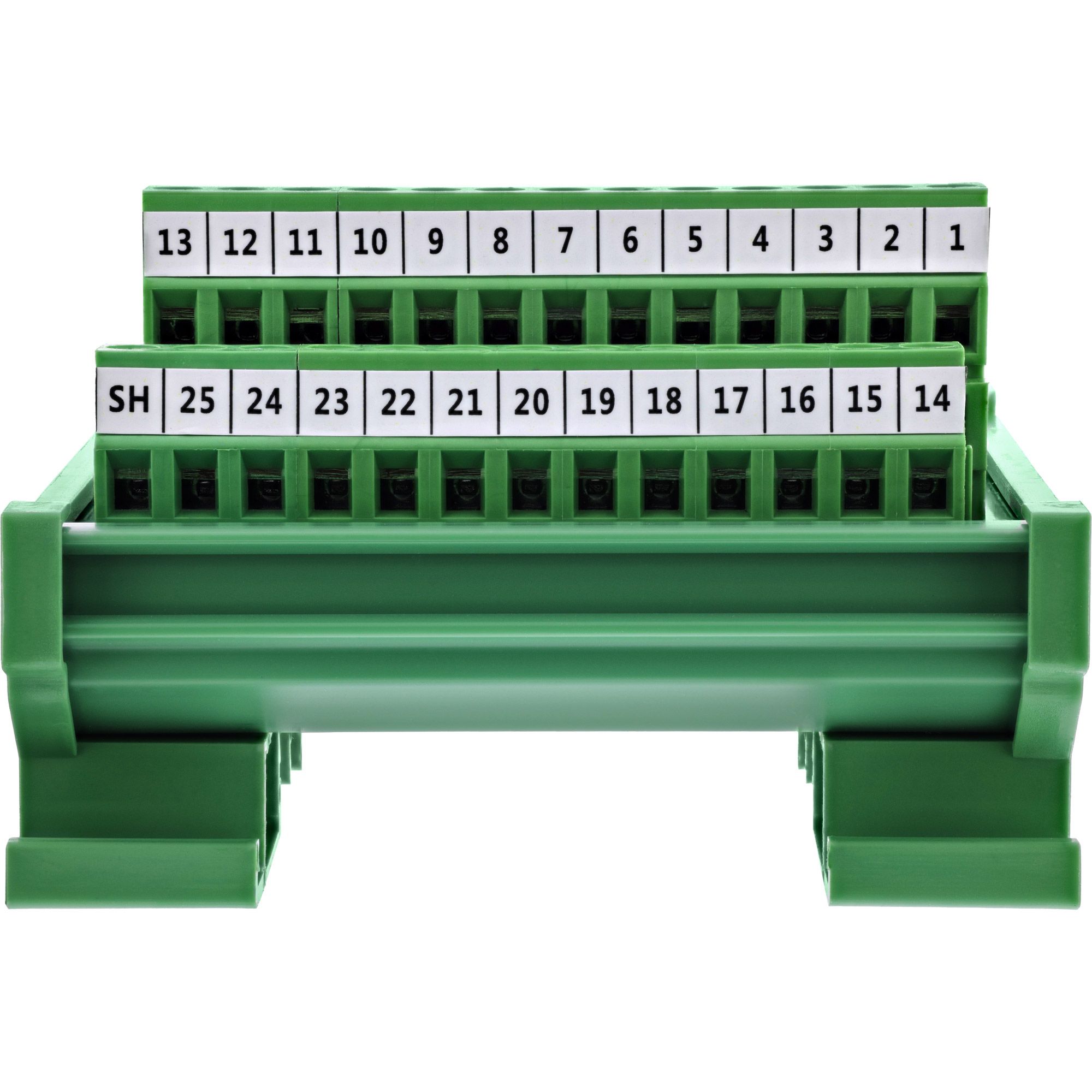

The InLine® D-Sub 25 terminal block with female connector in a 2-row design was specially developed for structured installations on DIN rails. The screw terminals with pressure plate enable tool-assisted connection of single wires in the 18–26 AWG range – quickly and securely with a flat-head screwdriver ≤ 2.5 mm.
The socket has an integrated screw lock (UNC #4-40) for secure connection with matching D-Sub plugs. The pre-assembled DIN rail housing facilitates installation in control cabinets and on mounting rails. The compact design and robust construction make the connection block the ideal choice for industrial applications with high signal density.
D-Sub 25 female connector:2-row, with mounting thread for plug locking (UNC #4-40)

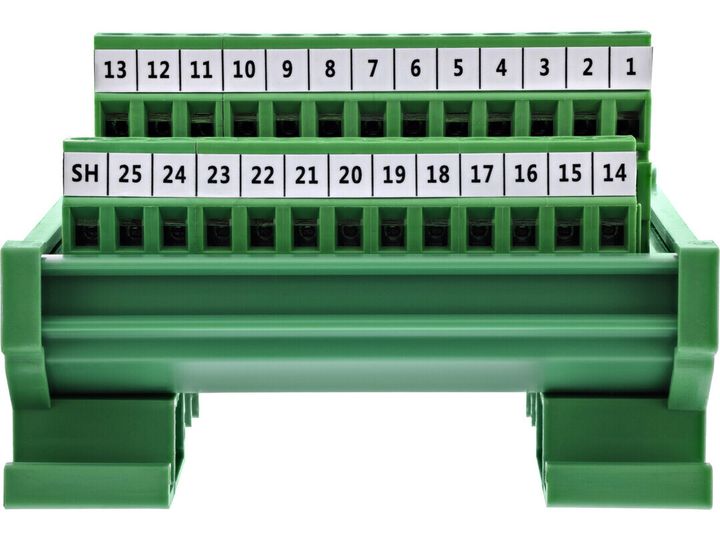

Connection technology:Screw terminal with pressure plate
Connection range:18–26 AWG
Actuation:With flat-blade screwdriver ≤ 2.5 mm
Rated current:0.7 A per pin
Max. operating voltage:100 V between two signals
Insulation resistance:≥ 10 MΩ @ 300 V DC
Operating temperature:–20 °C to +105 °C

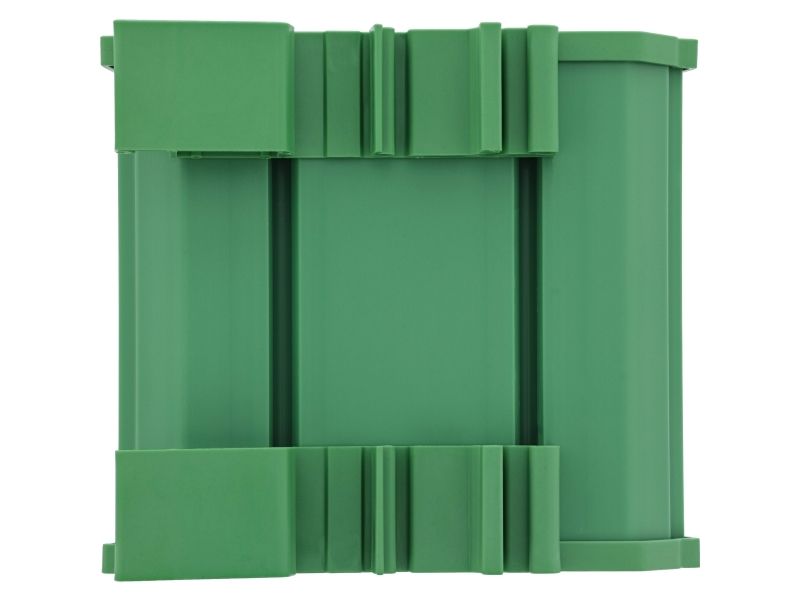

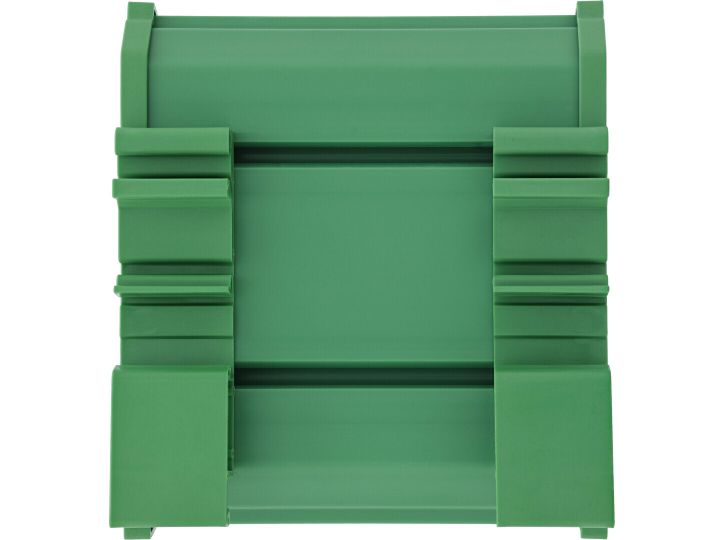

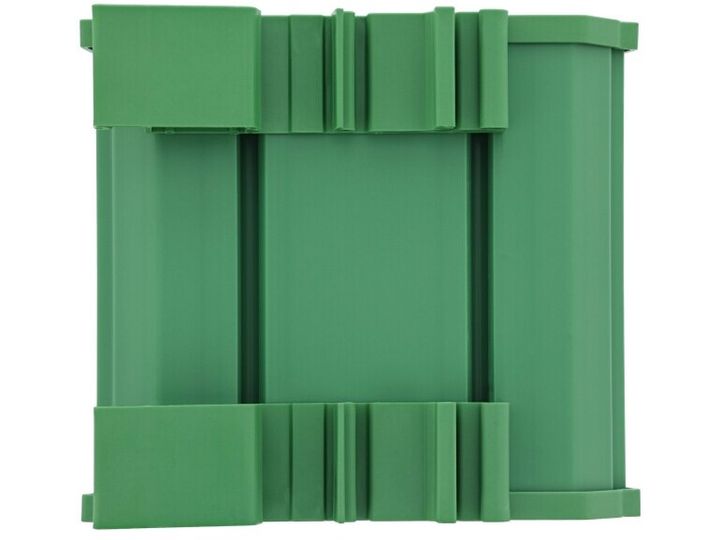

Insulation layer:EVA insulation on underside

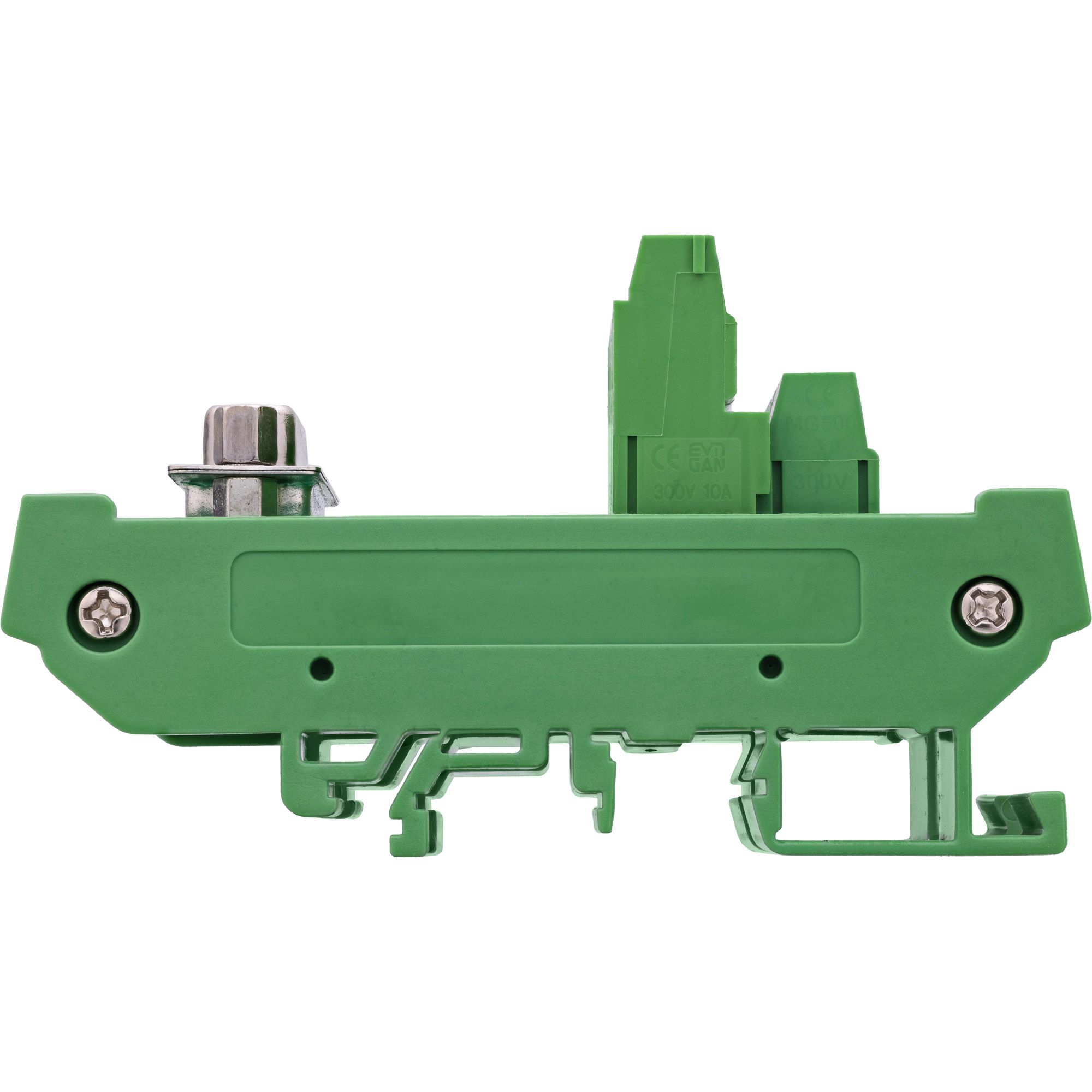

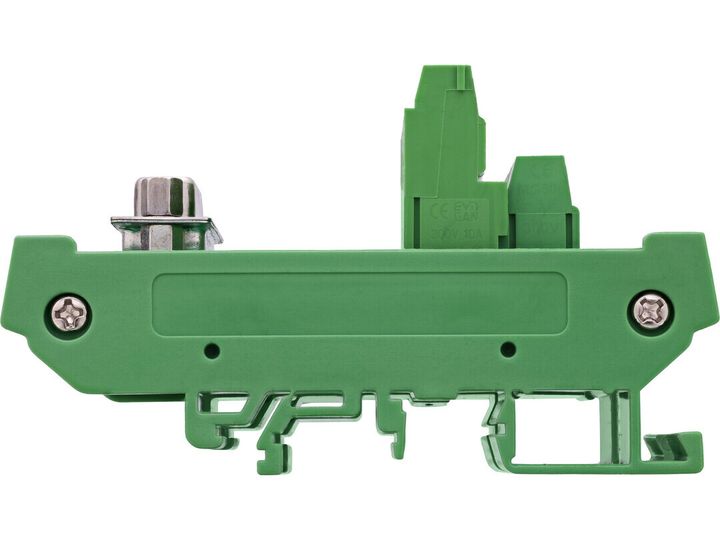

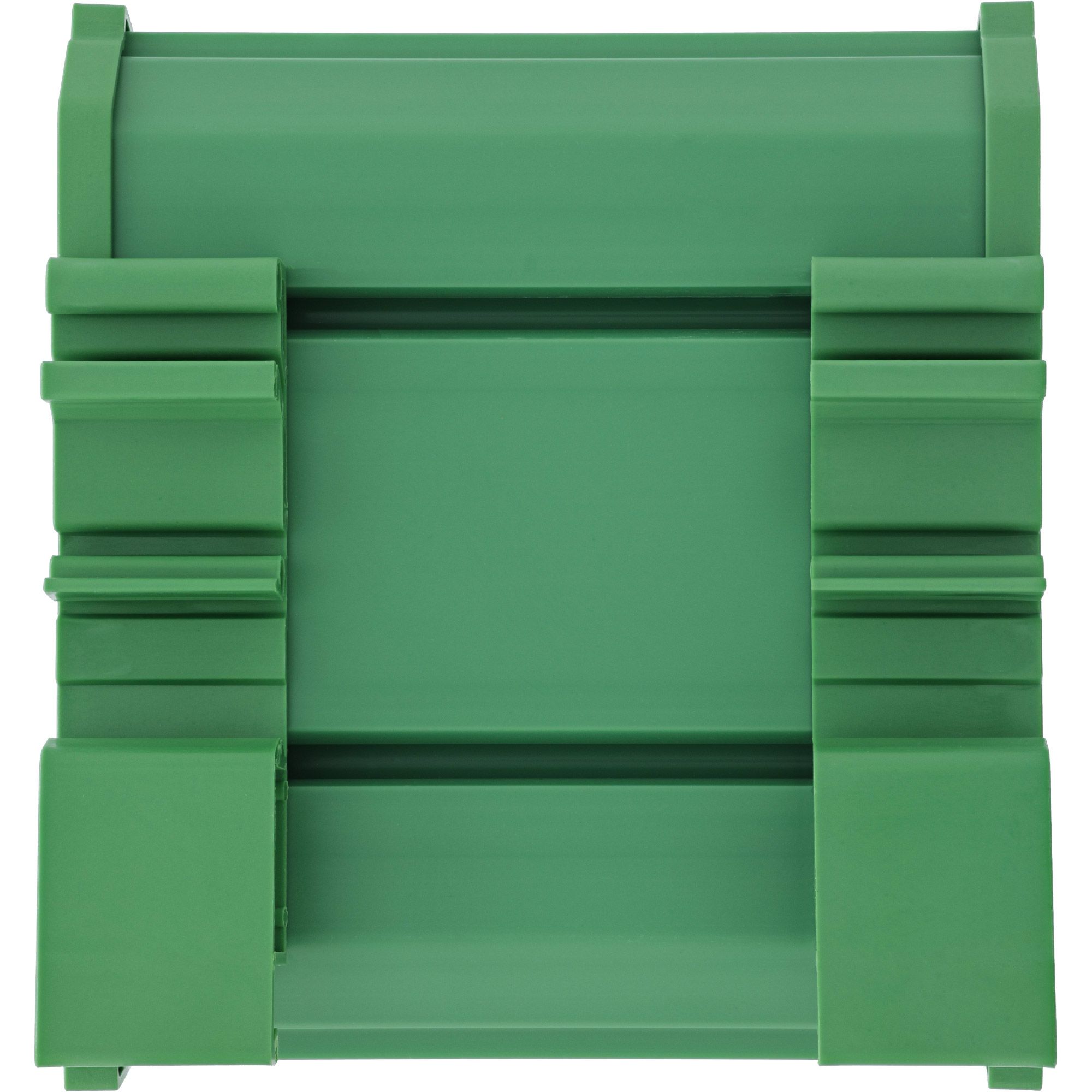

Mounting:Housing for direct mounting on DIN rail
Dimensions:approx. 87 × 79 × 51 mm (H × W × D)
