InLine 92502J, Terminal block / D-Sub 37, Black, Green, Male/Female, 26/18, 300 V, 10 mO
Item no.: [25151475] | Manufacturer: Inline | Model no.: 92502J | EAN: 4043718346097
Remote stock (5-7 days)
The item is in a remote warehouse, delivery time is 5-7 business days. More info
Delivery options - Select at checkout
Shipping @price - GLS
12,00
EUR
17,28
Incl. VAT 21,60
Total incl. delivery
36,60
Add to list
The function requires that you are logged in. Create a user and use our smart list system to keep track of future purchases, regular purchases or wish lists.
Send på mail
Time savings during installation:Quick wiring via 37 side-mounted screw terminals for 18–26 AWG – tool-assisted with flat-blade screwdriver ≤ 2.5 mm.
Stable connection thanks to screw lock:The D-Sub 37 connector is equipped with a mounting thread (UNC #4-40) and enables secure mechanical fastening with matching sockets – vibration-proof and durable.
Versatile use in industry:Ideal for signal distribution, test stations, control units, or temporary measurement systems with high connection density.
Side-mounted terminal strip: The connections are positioned next to each other – ideal for limited depth and many signal wires on one level.
High signal quality:An insulation resistance ≥ 10 MΩ at 300 V DC and a rated current of 0.8 A per pin ensure reliable signal transmission – even under continuous load.

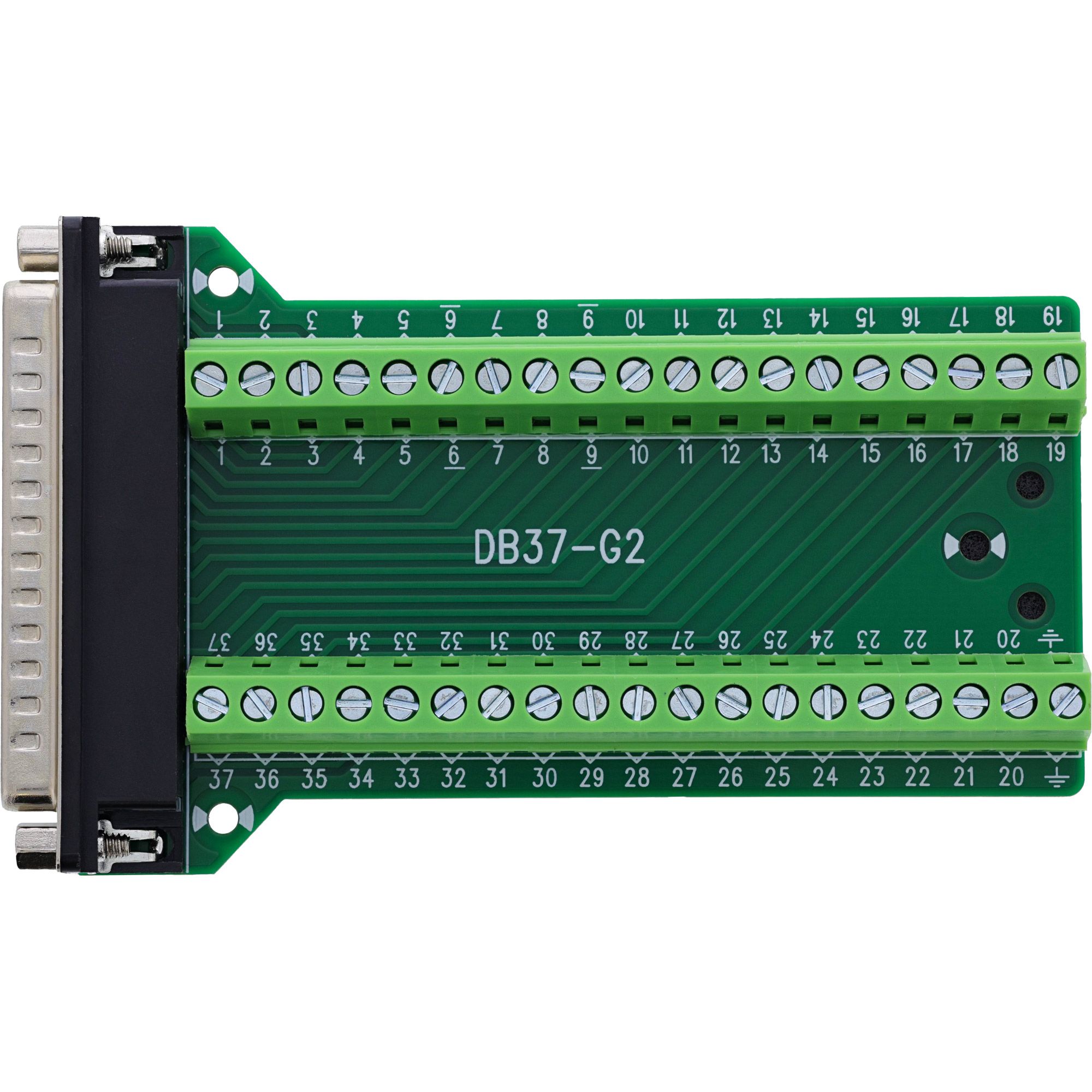

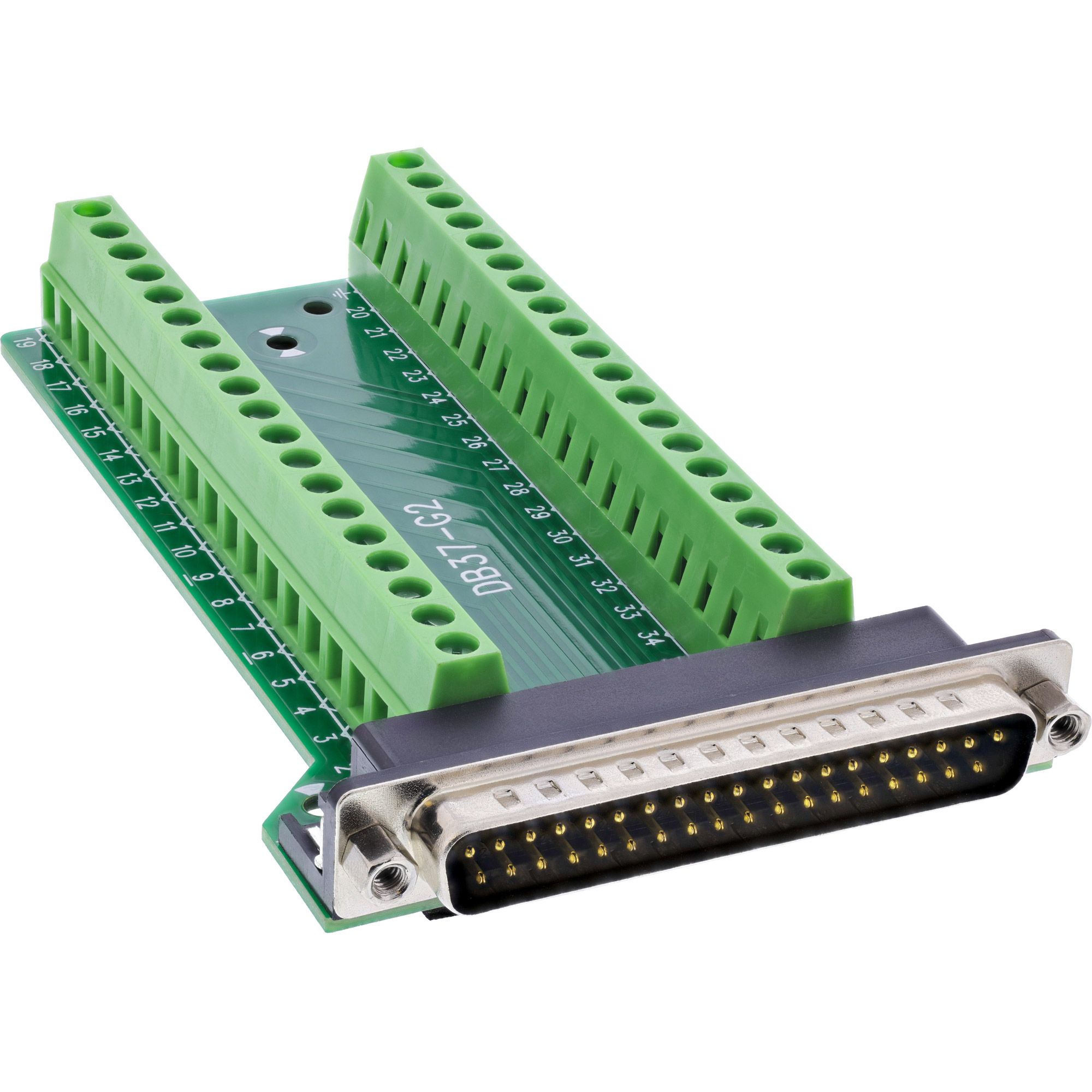

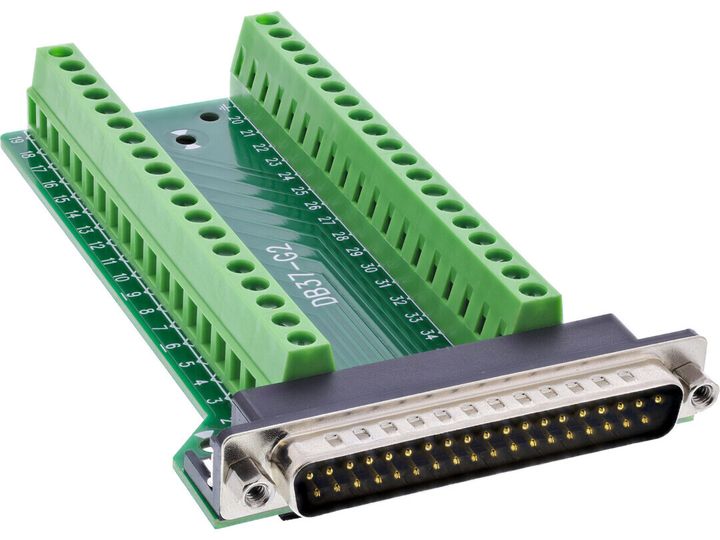

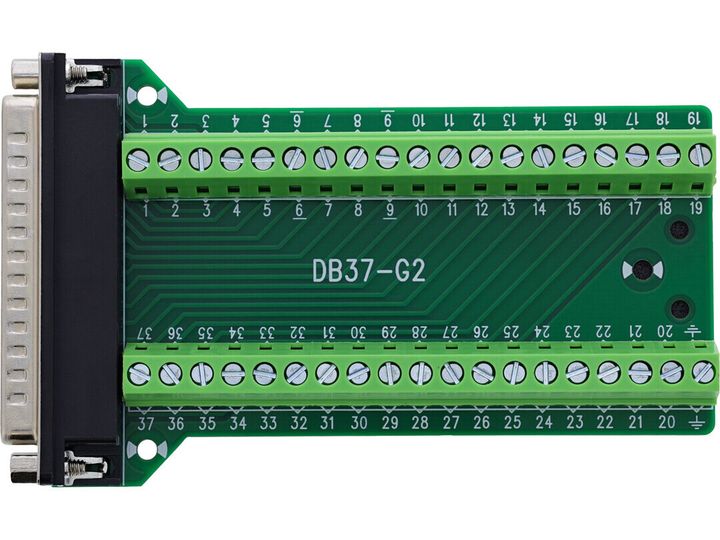

The InLine® D-Sub 37 terminal block with connector is designed for professional signal wiring in laboratory, service, or machine environments. The side-mounted screw terminals with pressure plate enable quick connection of single wires in the 18–26 AWG range without soldering. Operation is performed with a flat-blade screwdriver ≤ 2.5 mm.
The robust screw lock (UNC #4-40) ensures a secure connection to the opposite end. The wide 2-row layout is ideal for applications with many individual signals in a confined space – e.g., signal distributors, adapters, or measuring devices in control cabinets or test areas.
D-Sub 37 connector:2-row, with mounting thread for connector locking (UNC #4-40)
Connection technology:Screw terminal with pressure plate (side-mounted)
Connection range:18–26 AWG
Actuation:With flat-blade screwdriver ≤ 2.5 mm
Rated current: 0.8 A per pin
Max. operating voltage: 70 V between two signals
Insulation resistance:≥ 10 MΩ @ 300 V DC
Operating temperature:–20 °C to +70 °C
Insulation layer:EVA insulation on underside
Dimensions:approx. 115 × 70 × 18 mm (L × H × D)
