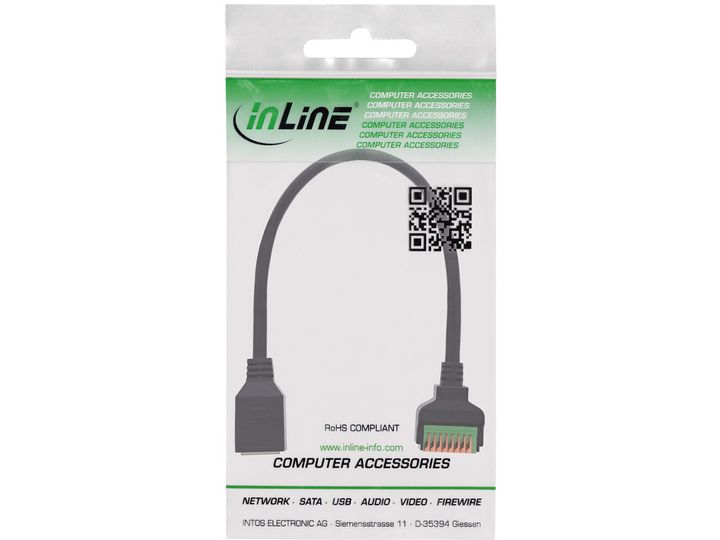

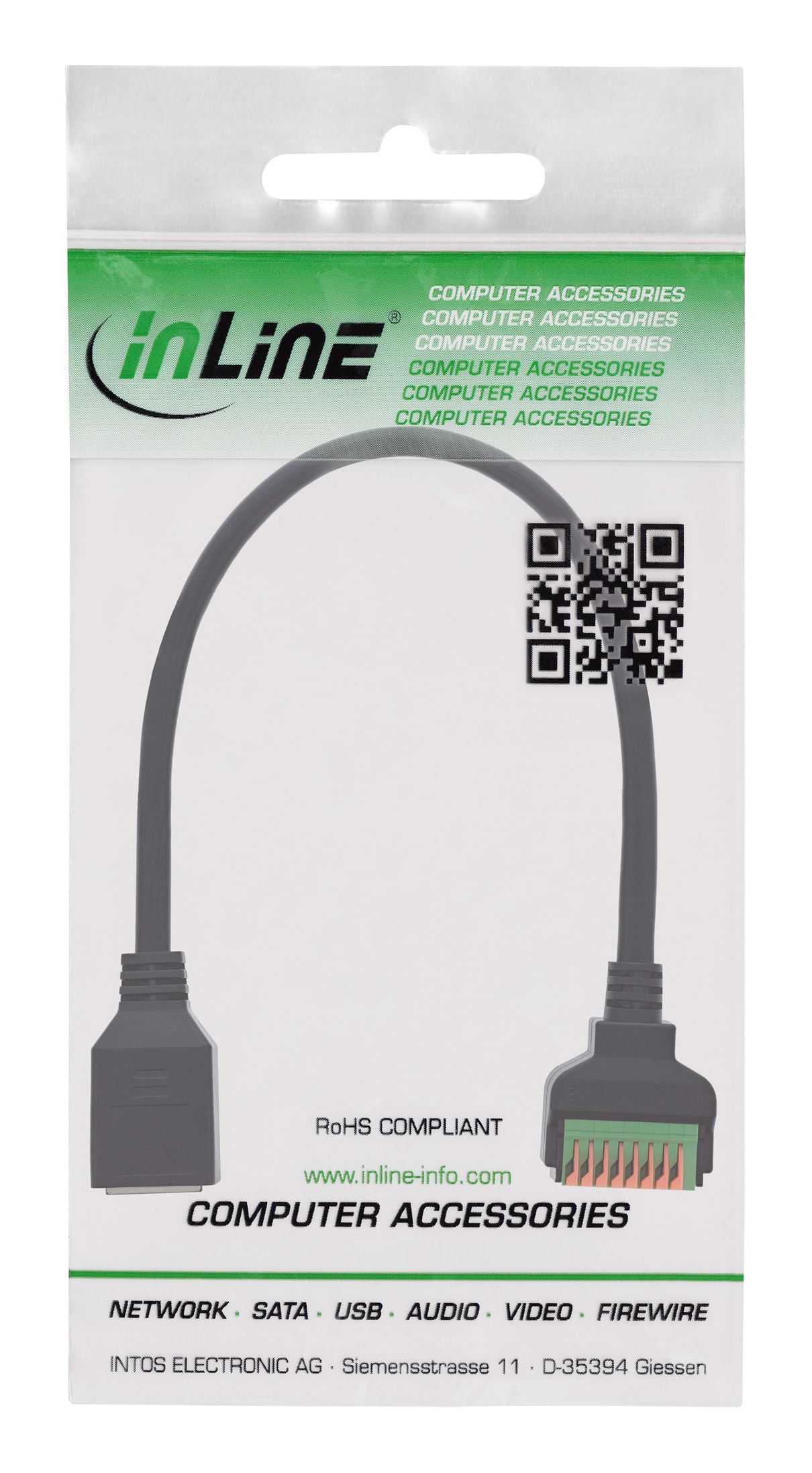

InLine 92505H, RJ45 Cat.5e 8P8C / Terminal block, 8-pin, Black, Female/Female, Straight, 26/16, 300 V
Item no.: [25151500] | Manufacturer: Inline | Model no.: 92505H | EAN: 4043718346325
Remote stock (5-7 days)
The item is in a remote warehouse, delivery time is 5-7 business days. More info
Delivery options - Select at checkout
Shipping @price - GLS
12,00
EUR
16,18
Incl. VAT 20,23
Total incl. delivery
35,23
Add to list
The function requires that you are logged in. Create a user and use our smart list system to keep track of future purchases, regular purchases or wish lists.
Send på mail
Push-in terminal for quick wiring:Single wires (18–26 AWG) can be quickly plugged in – a flat-head screwdriver ≤ 2.5 mm is all you need to remove them.
Cat.5e RJ45 socket with fixed 15 cm connection cable:The shielded 8P8C socket is connected directly to the push-in terminal via a permanently integrated cable (length: 15 cm) – for flexible connections in confined spaces.
Space-saving cable solution for flexible integration:Thanks to its compact design and connected cable, the adapter is ideal for mobile measuring stations, embedded projects, or control cabinet installations.
Versatile use in industry:Perfect for temporary network connections, diagnostic tools, control systems, or prototyping – particularly suitable for changing test scenarios.
High signal quality:An insulation resistance of ≥ 10 MΩ at 300 V DC and a rated current of 1.0 A per pin ensure reliable signal transmission – even in continuous industrial operation.

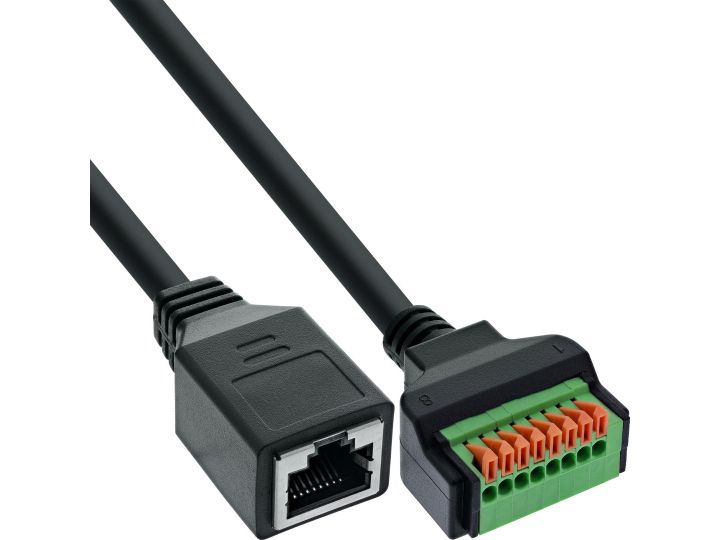

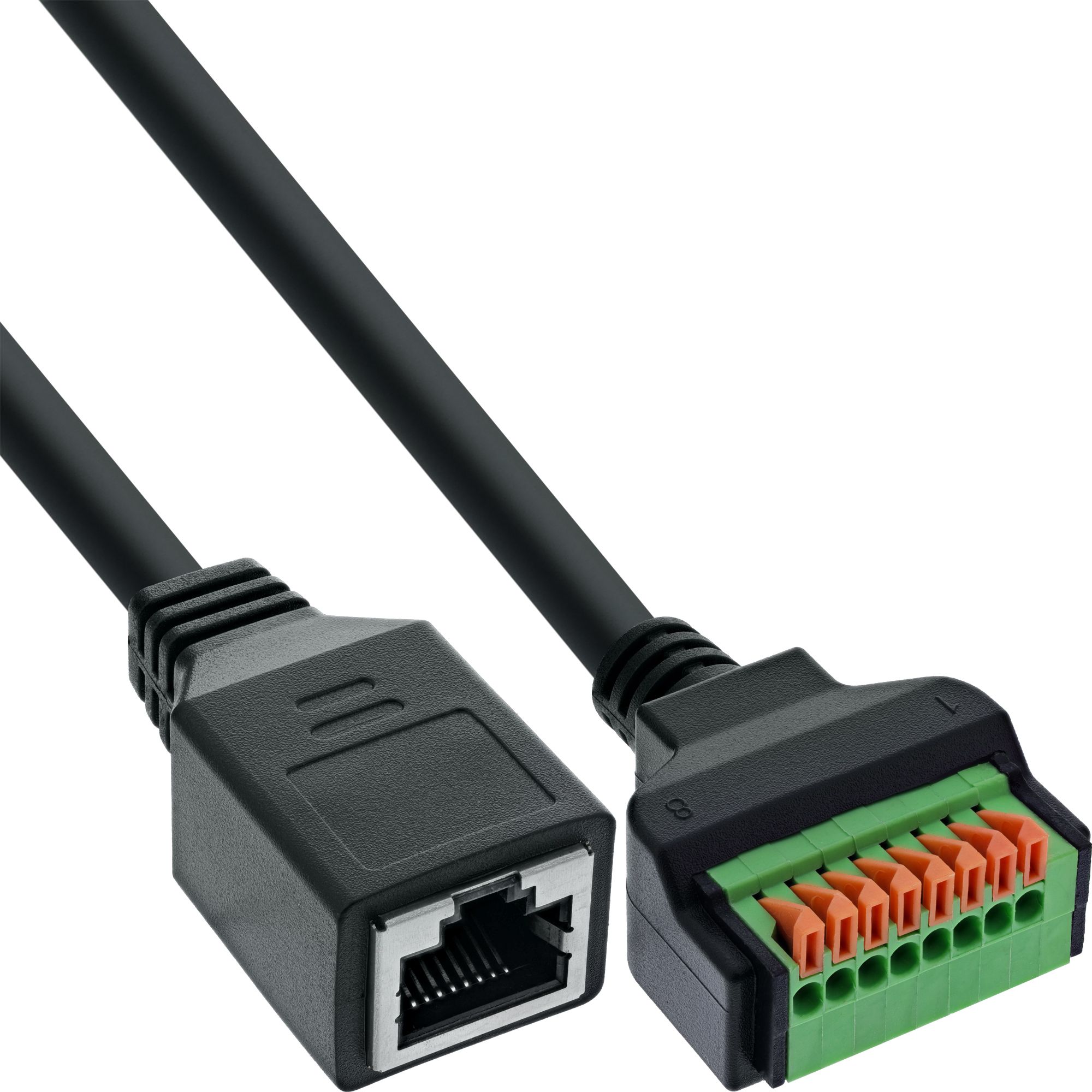

The InLine® RJ45 terminal block adapter with permanently integrated 15 cm cable and 8-pin push-in terminal connects structured Ethernet signals (Cat.5e) with open wire ends – without soldering or screws. The shielded RJ45 socket (8P8C) is connected directly to the push-in terminal via a robust cable.
The push-in technology allows tool-free connection of wires in the 18–26 AWG range. If necessary, the connection can be disconnected using a flat-head screwdriver ≤ 2.5 mm via the color-coded buttons – ideal for frequent rewiring in test or prototype environments.
With a cable length of approx. 15 cm and an outer diameter of approx. 6 mm (shielded round cable), the adapter is also suitable for tight installation situations, e.g., in mobile test equipment or control cabinets. The shielded design and tested quality (short-circuit and wiring test) make it a robust solution for industrial networks and embedded applications.
RJ45 interface:Cat.5e, 8P8C socket (shielded)
Cable length:15 cm (Cat.5e, shielded, 4×2 wires, 24 AWG, flexible)
Terminal system:Push-in terminal (spring-loaded technology)
Number of poles:8 signals (1:1 connected)
Connection range:18–26 AWG (solid or stranded conductor with ferrule)
Actuation:Release with flat-head screwdriver ≤ 2.5 mm
Rated current:1.0 A per pin
Max. operating voltage:100 V between two signals
Insulation resistance:≥ 10 MΩ @ 300 V DC
Operating temperature:–10 °C to +70 °C
Insulation layer:EVA insulation on underside
Dimensions without cable:approx. 43 × 33 × 20 mm (L × W × H)
Cat.5e RJ45 socket with fixed 15 cm connection cable:The shielded 8P8C socket is connected directly to the push-in terminal via a permanently integrated cable (length: 15 cm) – for flexible connections in confined spaces.
Space-saving cable solution for flexible integration:Thanks to its compact design and connected cable, the adapter is ideal for mobile measuring stations, embedded projects, or control cabinet installations.
Versatile use in industry:Perfect for temporary network connections, diagnostic tools, control systems, or prototyping – particularly suitable for changing test scenarios.
High signal quality:An insulation resistance of ≥ 10 MΩ at 300 V DC and a rated current of 1.0 A per pin ensure reliable signal transmission – even in continuous industrial operation.
The InLine® RJ45 terminal block adapter with permanently integrated 15 cm cable and 8-pin push-in terminal connects structured Ethernet signals (Cat.5e) with open wire ends – without soldering or screws. The shielded RJ45 socket (8P8C) is connected directly to the push-in terminal via a robust cable.
The push-in technology allows tool-free connection of wires in the 18–26 AWG range. If necessary, the connection can be disconnected using a flat-head screwdriver ≤ 2.5 mm via the color-coded buttons – ideal for frequent rewiring in test or prototype environments.
With a cable length of approx. 15 cm and an outer diameter of approx. 6 mm (shielded round cable), the adapter is also suitable for tight installation situations, e.g., in mobile test equipment or control cabinets. The shielded design and tested quality (short-circuit and wiring test) make it a robust solution for industrial networks and embedded applications.
RJ45 interface:Cat.5e, 8P8C socket (shielded)
Cable length:15 cm (Cat.5e, shielded, 4×2 wires, 24 AWG, flexible)
Terminal system:Push-in terminal (spring-loaded technology)
Number of poles:8 signals (1:1 connected)
Connection range:18–26 AWG (solid or stranded conductor with ferrule)
Actuation:Release with flat-head screwdriver ≤ 2.5 mm
Rated current:1.0 A per pin
Max. operating voltage:100 V between two signals
Insulation resistance:≥ 10 MΩ @ 300 V DC
Operating temperature:–10 °C to +70 °C
Insulation layer:EVA insulation on underside
Dimensions without cable:approx. 43 × 33 × 20 mm (L × W × H)
