InLine 69927V, Cable coupler, Black, Polyamide, Silicone, Dust proof, Waterproof, Mains coupler, IP68, 3-pin, 4-way, M20, black, TÜV mark, RoHS
Item no.: [25189840] | Manufacturer: Inline | Model no.: 69927V | EAN: 4043718346899
Remote stock (14-21 days)
The item is in a remote warehouse, delivery time is 14-21 business days. More info
Delivery options - Select at checkout
Shipping @price - GLS
12,00
EUR
20,80
Incl. VAT 26,00
Total incl. delivery
41,00
The function requires that you are logged in. Create a user and use our smart list system to keep track of future purchases, regular purchases or wish lists.
Create user
Login
Create user
Login
Send på mail
Cross distributor for power connections:Quadruple connection for 3-core cables – ideal for structured power distribution outdoors or in damp rooms.
Permanently waterproof:IP68-certified, silicone seal and sturdy nylon housing protect against water, dust, and mechanical stress.
Flexible use:Suitable for cable diameters of 4–14 mm and cable cross-sections of 0.5–6 mm² – rated for up to 500 V and 24 A.
Tool-free installation:Quick screw system with secure hold – ensures a tight, mechanically stable connection without tools.
Ideal for complex installations:Perfect for garden systems, pond pumps, LED systems, or power grids with multiple branches.

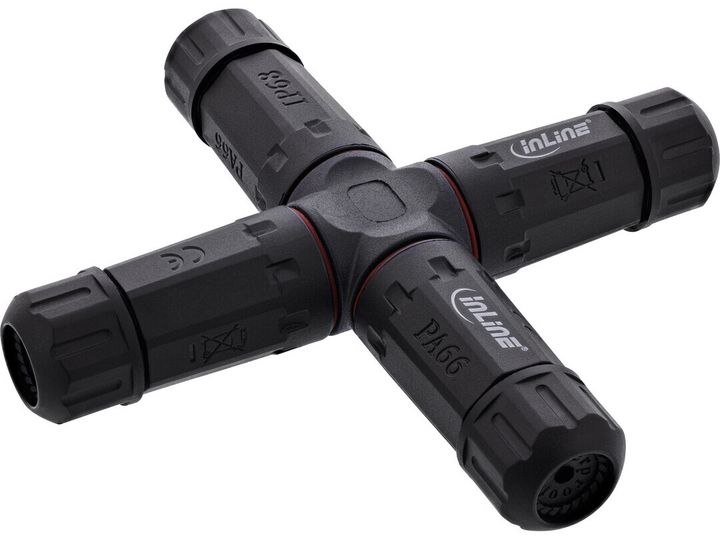

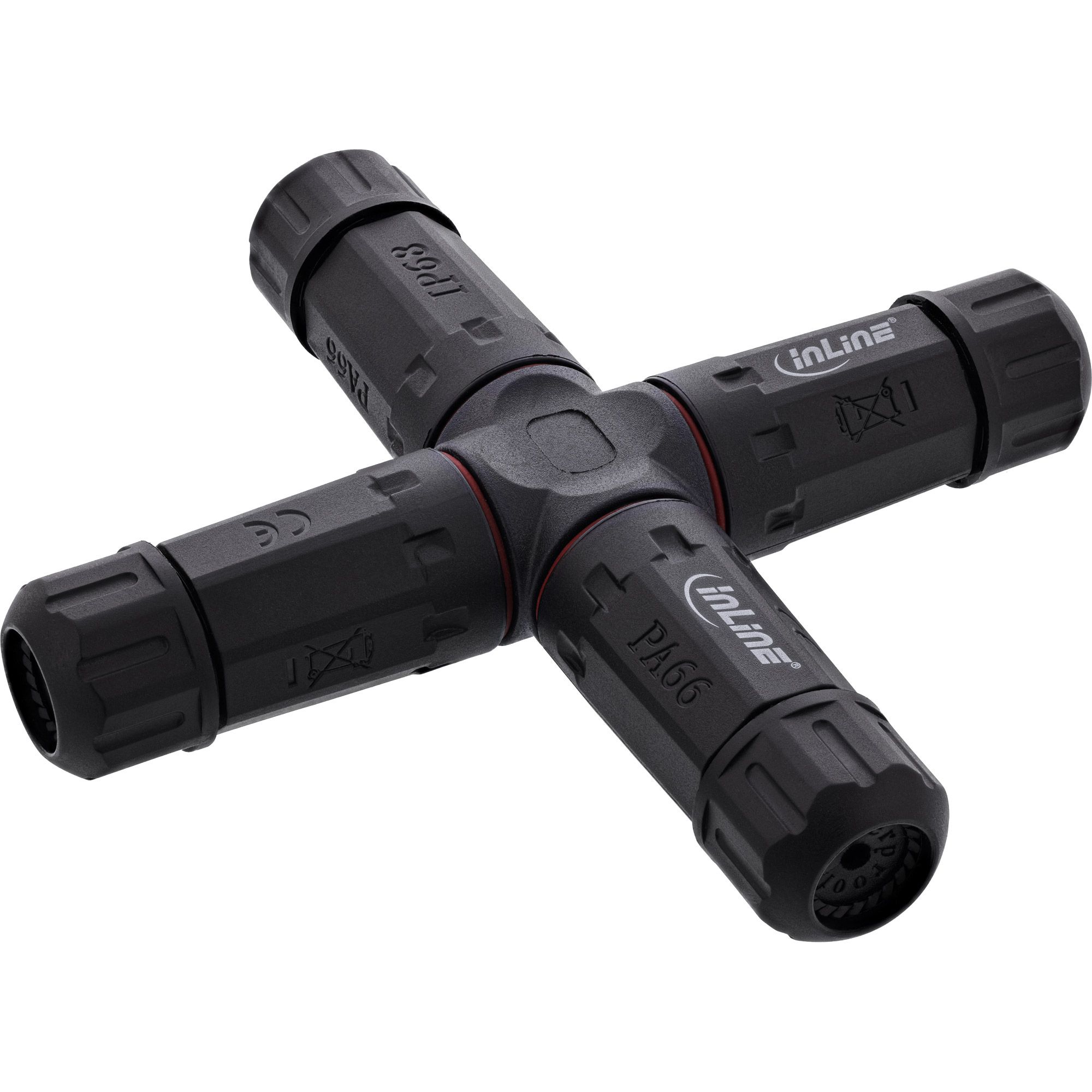

The InLine power cable coupler with 4-way cross distribution is the perfect solution for complex power distribution – whether in private gardens, on construction sites, or in industrial installations. With four separate connection directions for 3-core cables, this coupler is ideal for branched power networks.

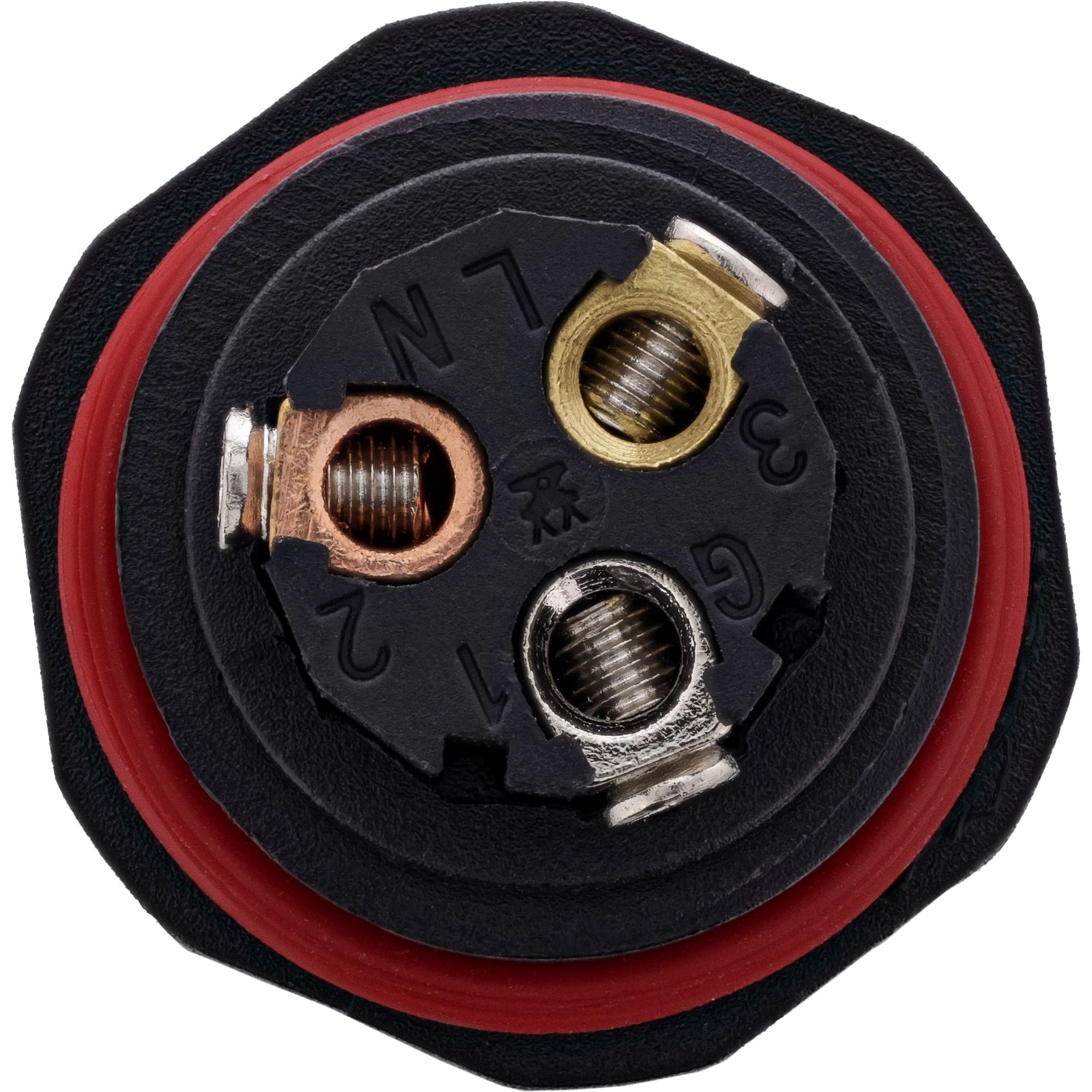

The 3-pole connection supports voltages up to 500 V and currents up to 24 A. Thanks to its robust nylon housing (PA66), high-quality copper contacts, and reliable silicone seal, it offers maximum safety and durability – even in adverse weather conditions. The IP68 protection rating ensures permanently tight and weatherproof connections.

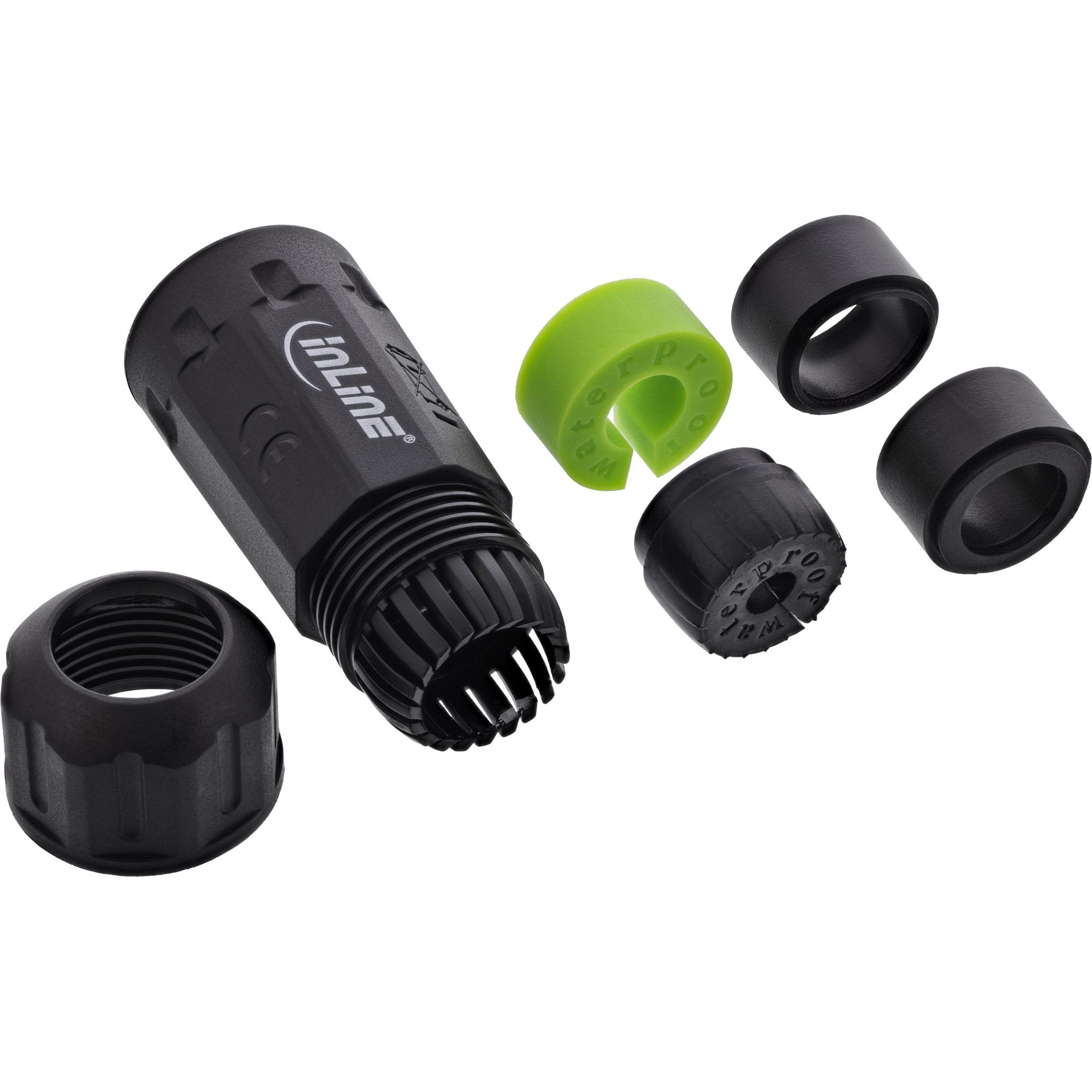

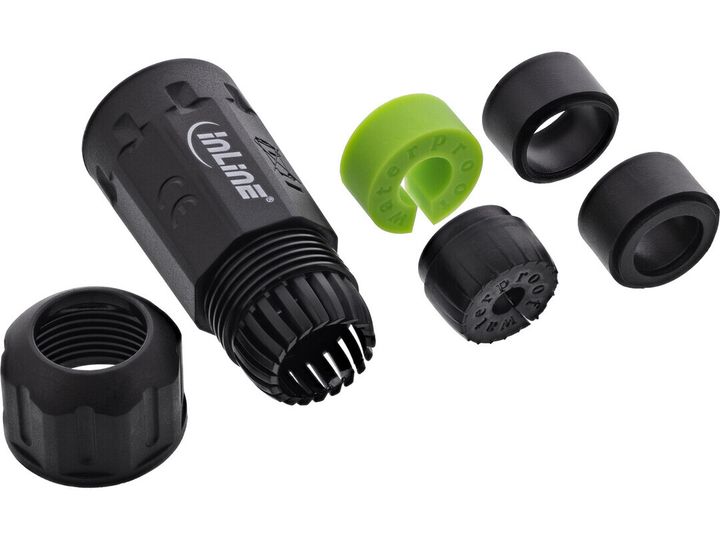

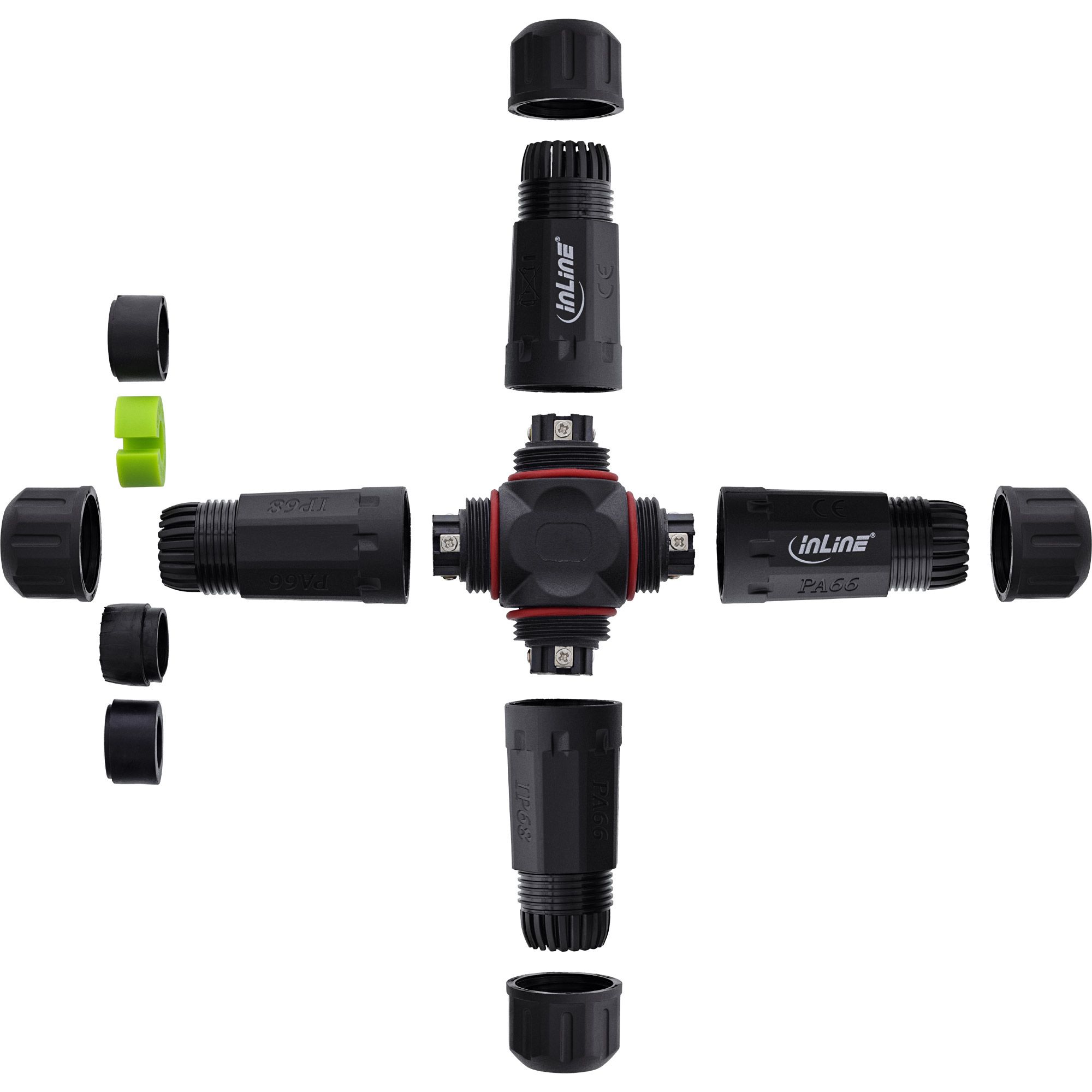

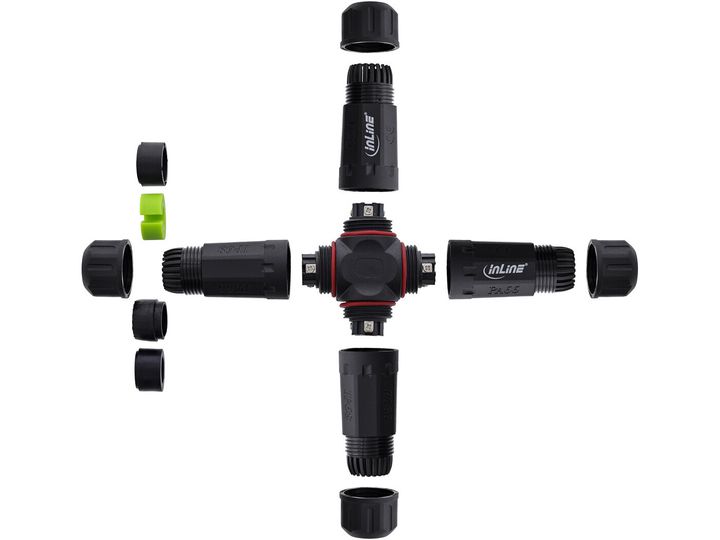

Installation is tool-free thanks to the practical screw cap system. Simply insert the cable, connect it, insert the seal, and tighten the caps – the connection is then mechanically secured and waterproof. The coupling is suitable for cable diameters from 4 to 14 mm and cable cross-sections from 0.5 to 6 mm².

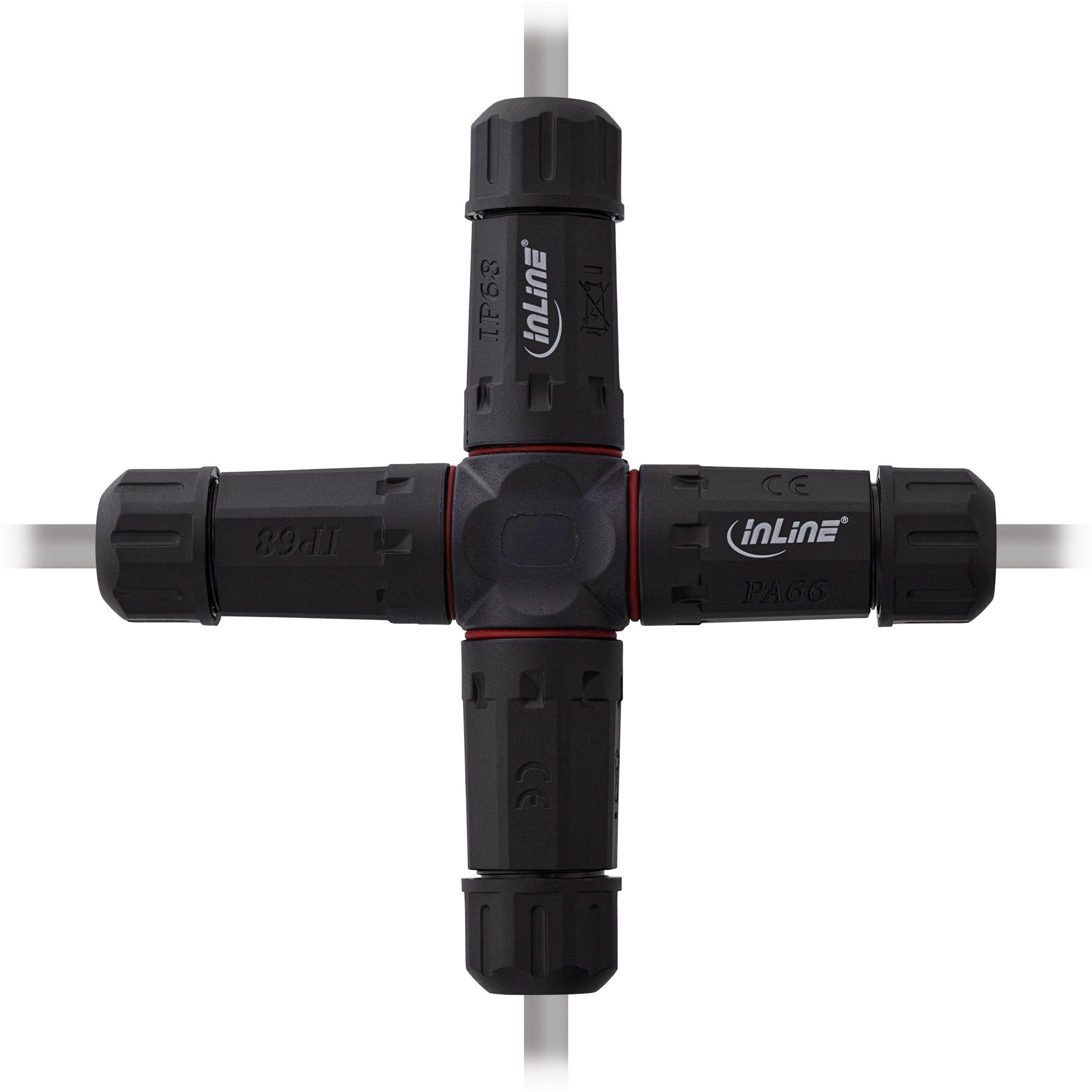

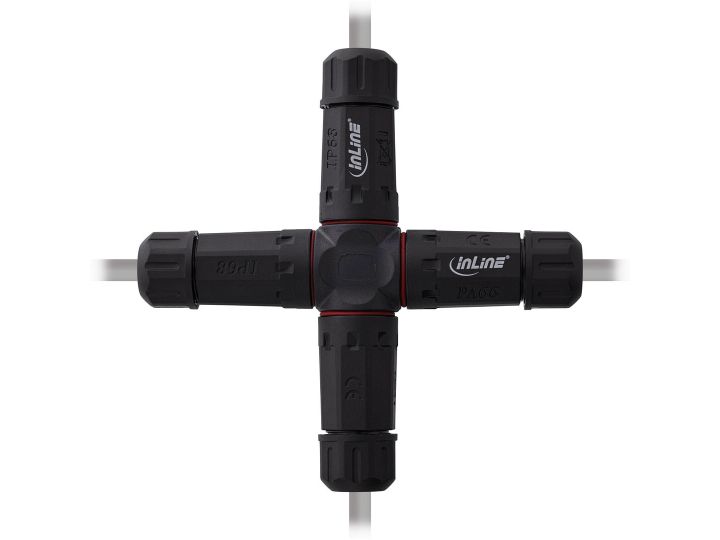

Typical areas of application include garden and outdoor lighting, pond installations, power distribution in workshops, events, or machine parks. The cross shape allows multiple consumers to be supplied with power in a clear and safe manner – ideal for demanding applications.
Material: Nylon (PA66)
Thread size: M20
Contact material: Copper
Seal: Silicone
Temperature range: -40 °C to +105 °C
IP protection rating: IP68
Cable diameter: 4–14 mm
Conductor cross-section: 0.5–6 mm²
Design: 4-way

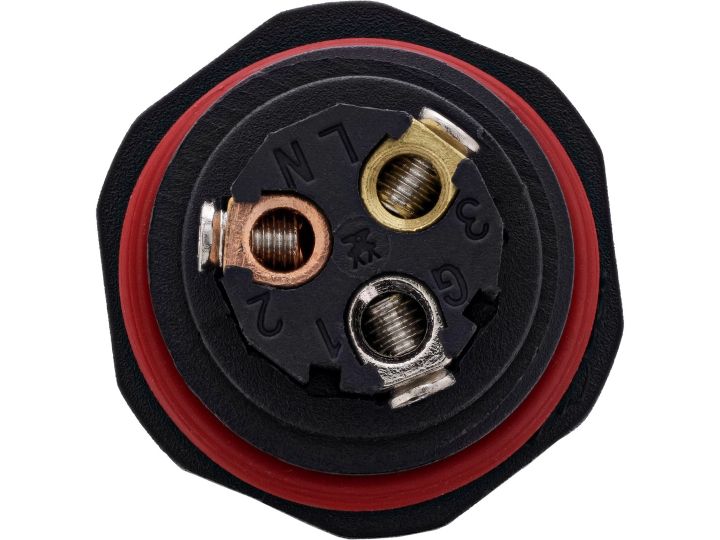

Number of poles: 3-pole
Rated voltage: 500 V
Rated current: 24 A
