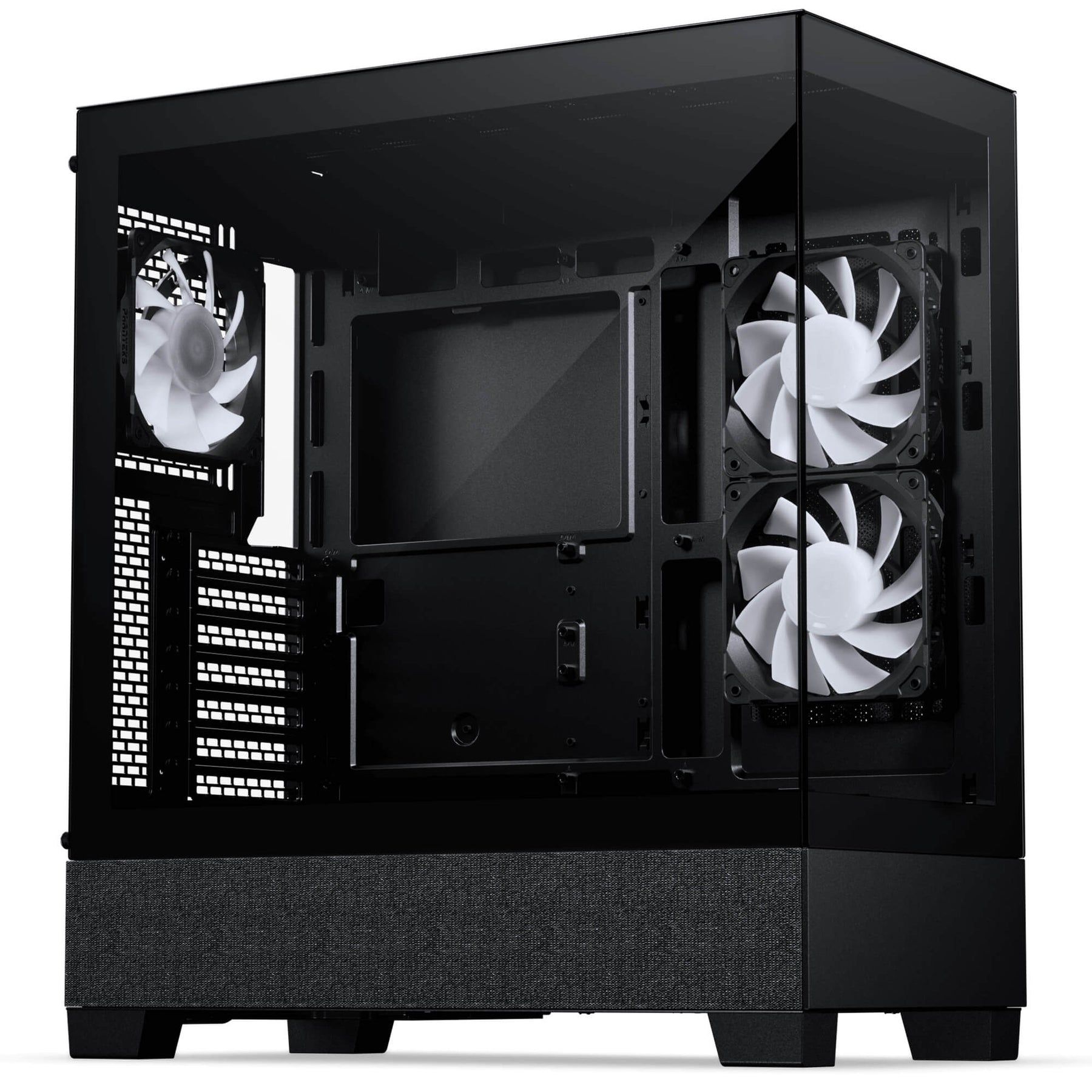

Phanteks XT View ATX Case, LED Matrix, T.G, DRGB, Charcoal Black

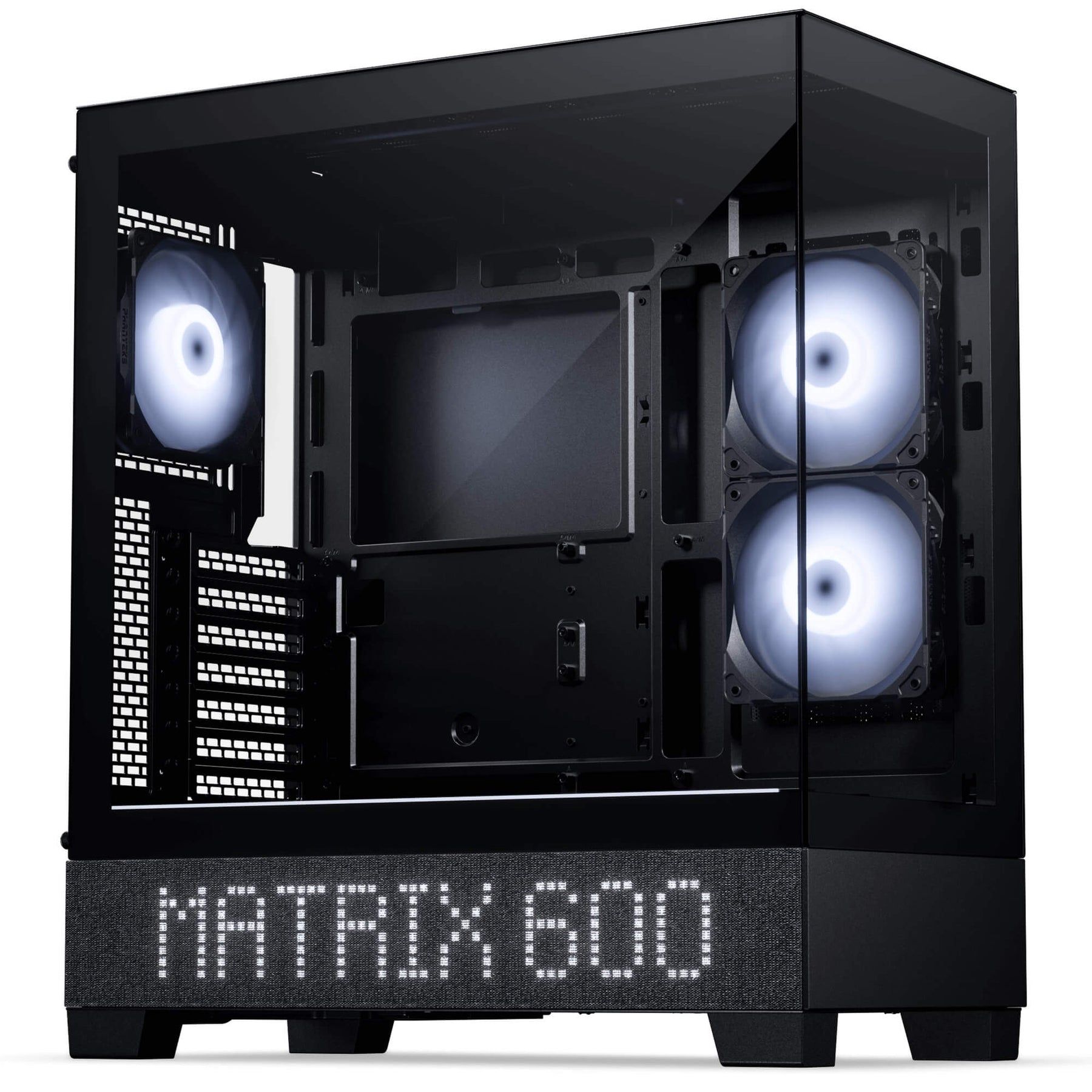

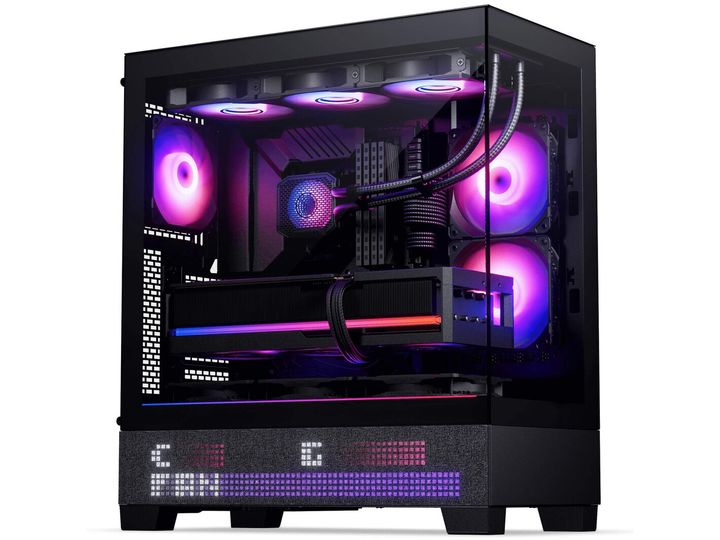

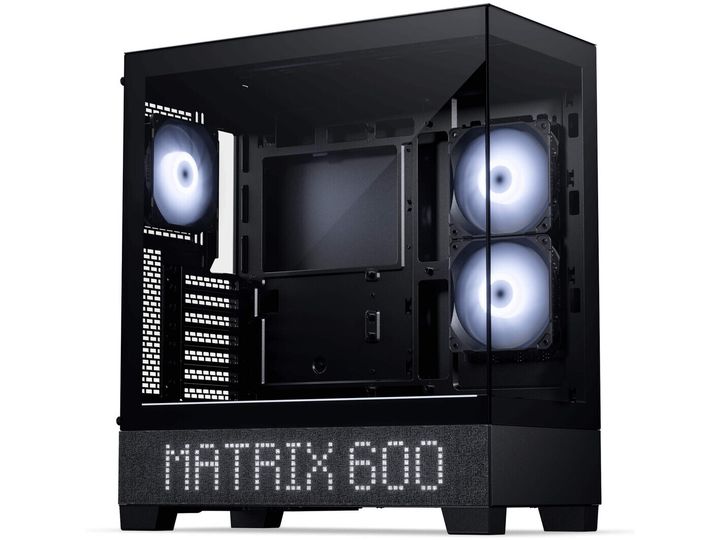

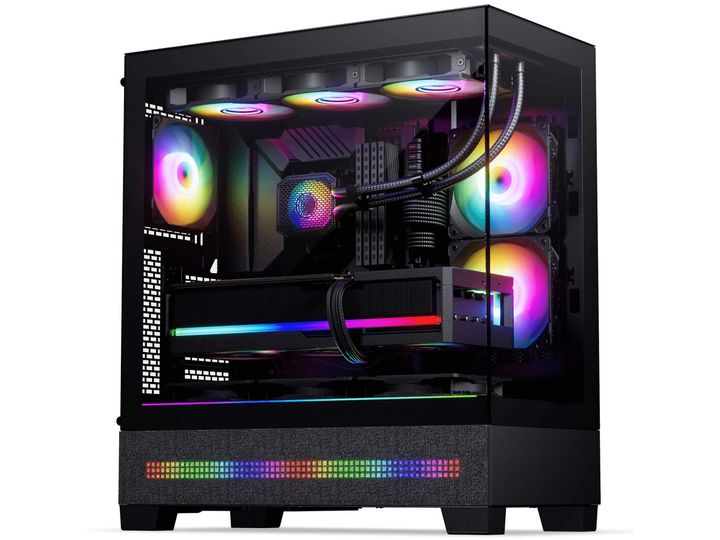

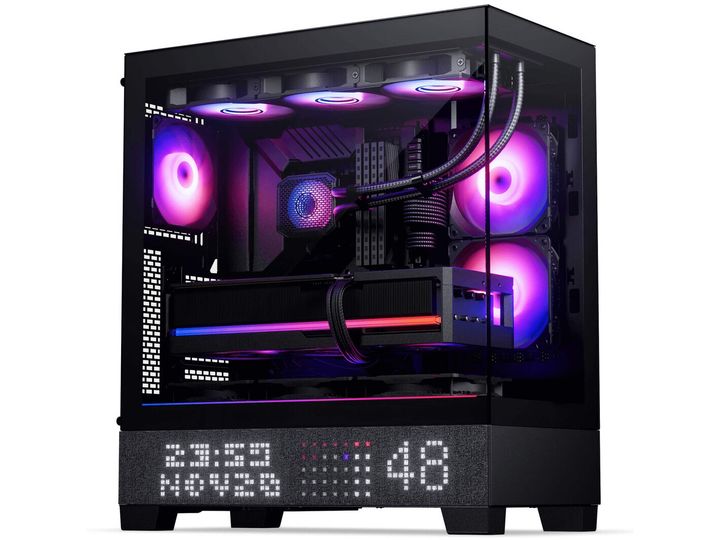

The XT View Matrix combines smart design and modern innovation with a unique 600-LED Matrix Screen elegantly hidden behind the fabric panel, bringing lighting and information to life in a subtle, integrated way.

Built for today’s powerful hardware, the XT View Matrix offers exceptional cooling capacity with support for up to 9 fans and dedicated radiator space at the top. Its spacious layout easily fits the largest GPUs, with room to spare for cable management, and supports the latest rear-connector motherboards to achieve a truly zero-cable setup.

Specifications

Model No.: PH-XT523VM1_DBK01

UPC Code: 886523304081

Case Dimensions: 454 x 228 x 588 mm | 17.87 x 8.98 x 23.15 in

Form Factor: Mid-Tower

Mainboard Support: E-ATX | ATX | Micro-ATX | Mini-ITX (*up to 280 mm wide)

Materials: Steel chassis | Aluminum panels | Tempered glass window | ABS plastic | Mesh fabric

Color: Black

Expansion Slots: 7

Vertical GPU Support: Yes (riser cable & bracket sold separately)

Internal 2.5″ Positions: 2 + 1x 3.5″ HDD

Internal 3.5″ Positions: 2 + 0x 2.5″ SSD

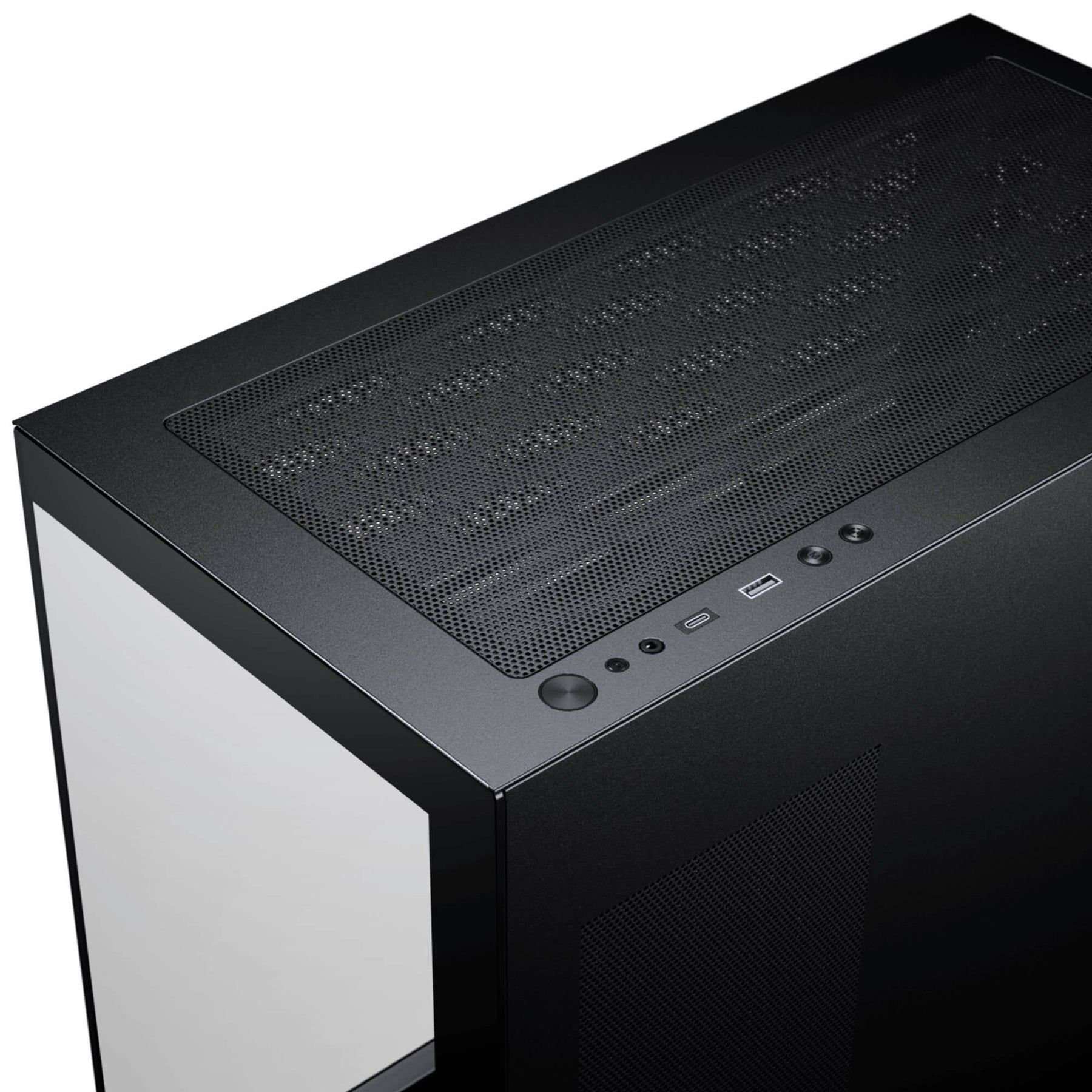

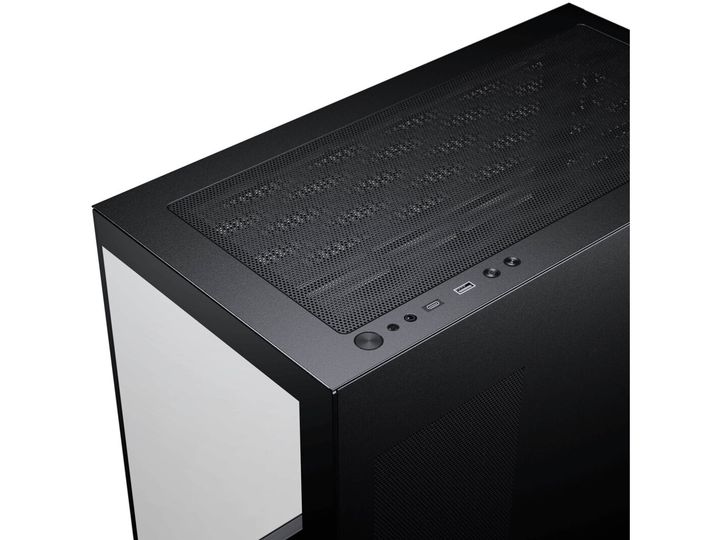

Front I/O: 2x USB 3.0 | 1x USB-C 3.2 Gen2x2 | 1x Microphone/Headphone combo | D-RGB color button | D-RGB mode button | Power button | Reset button

Matrix Display: LED Amount: 600 | Power Input: 5V | 4.3A | Fabric Material: Polyester | Connectors: Mainboard USB 2.0 header 500 mm | SATA 500 mm

Fans 120 | 140: Total: 9 | 3 | Top: 3 | 2 | Front: – | – | Side: 2 | – | Rear: 1 | 1 | Bottom: 3 | –

Radiator 120 | 140: Top: Max. 360 | – | Front: – | – | Side: Max. 240 only with vertical GPU bracket | – | Rear: – | – | Bottom: – | –

Clearance: CPU Cooler Height: 184 mm | 7.24 in | GPU Length: 415 mm | 16.33 in | GPU Width: 184 mm | 7.24 in | Power Supply: 270 mm | 10.62 in | Top 360 Radiator Size: 415 x 138 x 60 mm | 16.34 x 5.43 x 2.36 in | Side 240 Radiator Size: 305 x 120 x 62 mm | 12.00 x 4.72 x 2.44 in (only with vertical GPU bracket)

The Phanteks XT View Matrix is a versatile midi-tower system cabinet designed for both aesthetics and functionality. Featuring a stunning tempered glass windowed side panel, it offers a showcase for internal components and RGB lighting while maintaining durability. With support for a maximum CPU cooler height of 184 mm and graphics cards up to 415 mm in length, this cabinet accommodates various configurations to meet performance needs. Equipped with sufficient expansion bays, including three internal bays and room for up to seven expansion slots, it provides ample space for upgrades and installations.

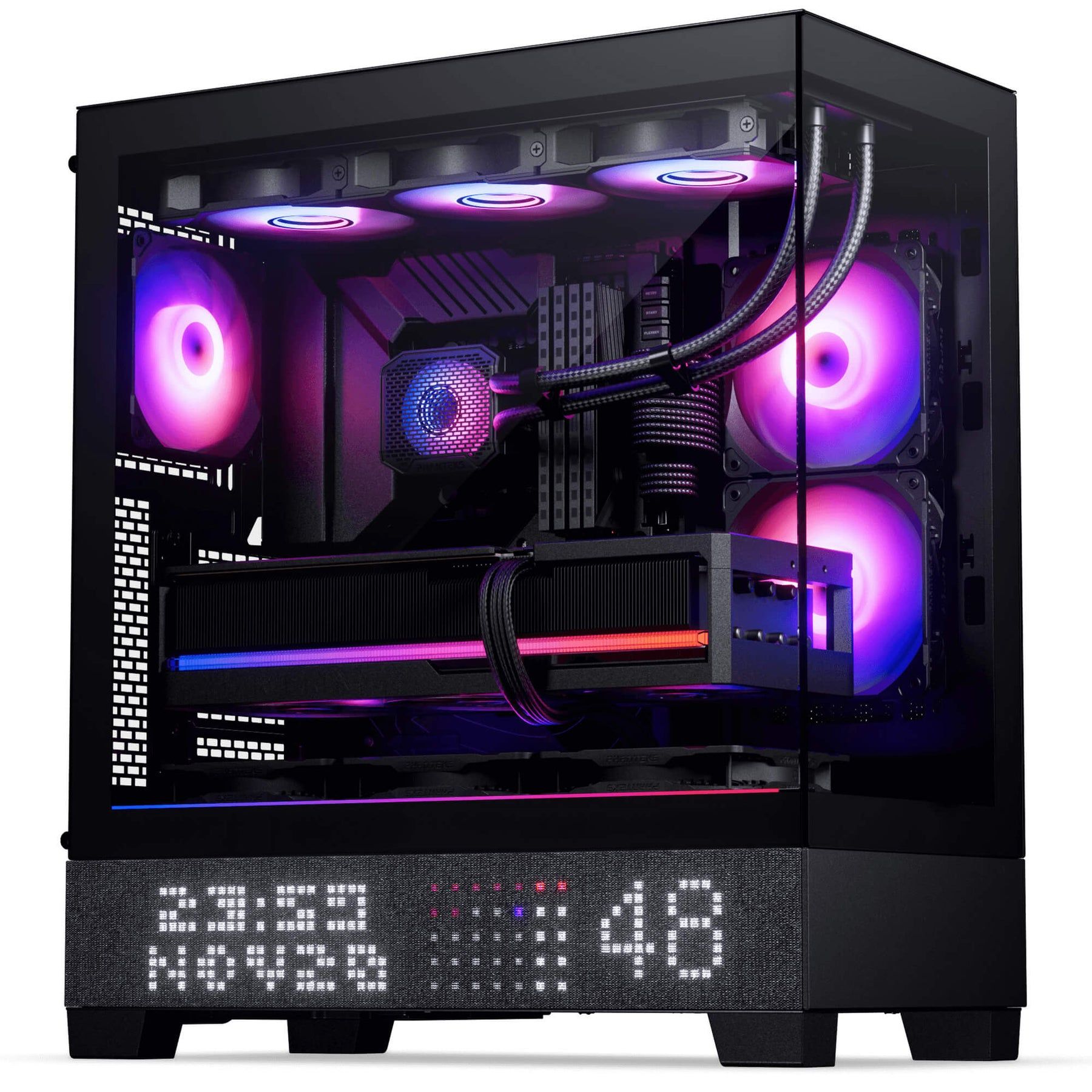

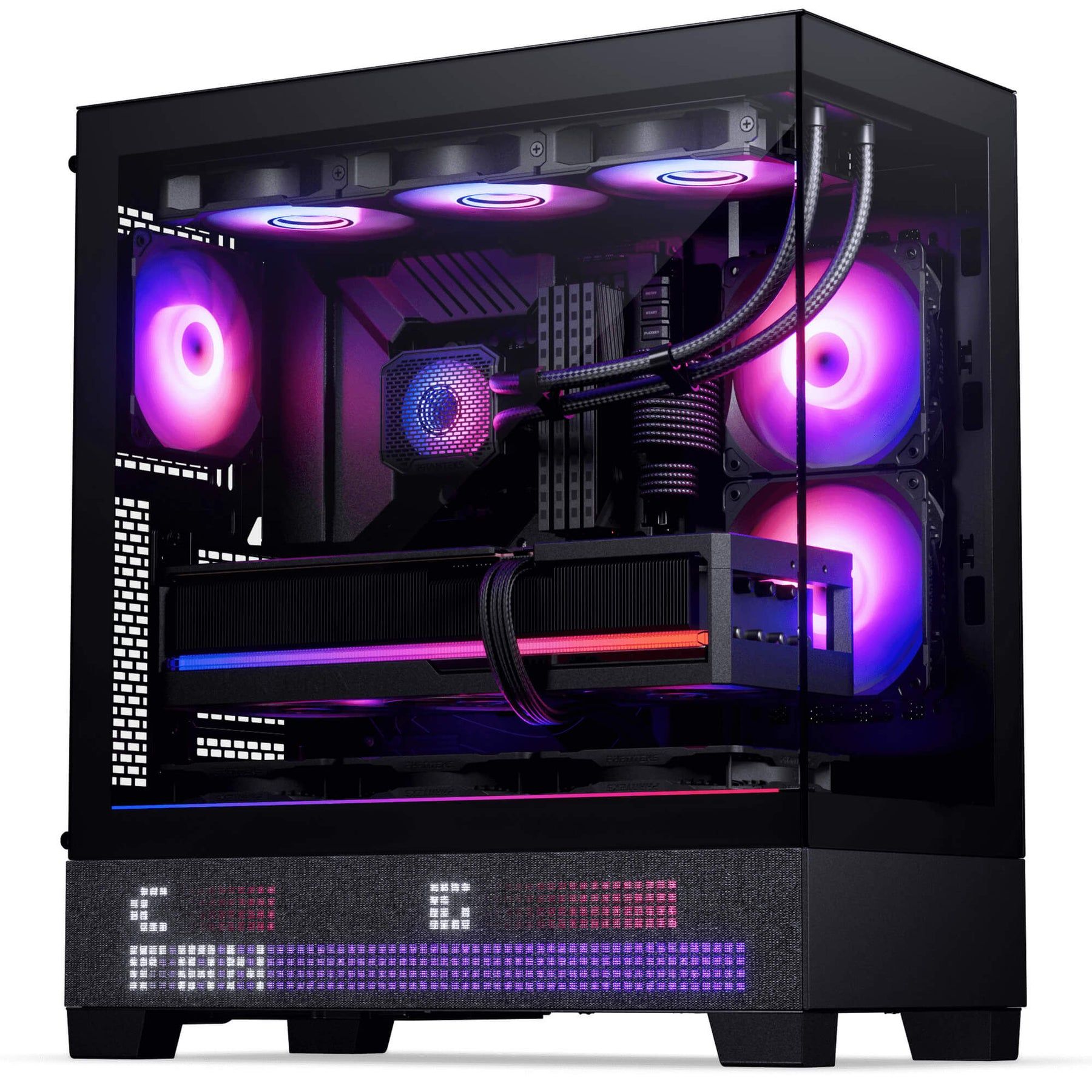

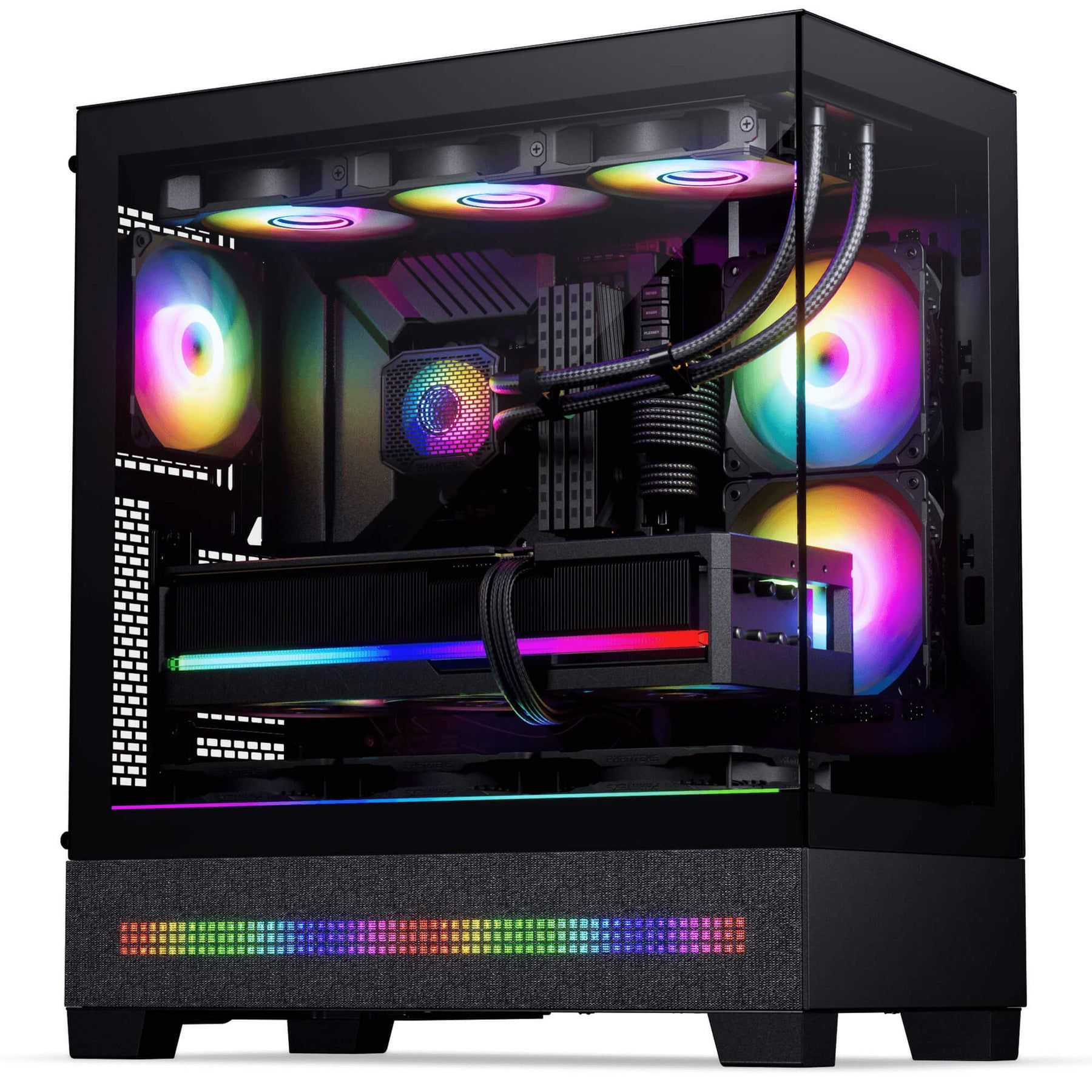

The integrated D-RGB color and mode buttons, along with compatibility with various RGB lighting systems, ensure that users can customize their lighting experience seamlessly. The 600 LED matrix display adds a unique touch, making the setup functional and visually appealing. Designed for efficient cooling, the cabinet supports multiple fan locations and radiator setups, promoting optimal airflow. This system cabinet is a choice for gamers and PC enthusiasts looking to build a visually striking and high-performing rig.
