Fully compliant with Intel ATX 3.1 and PCIe 5.1 standards, featuring a native 600W 12V-2x6 connector for next-gen GPUs.
Efficiency
Achieves up to 92% efficiency at 50% load, and =70% efficiency at 2% low load.
Extreme Power Excursion Support
Handles up to 235% power excursion (0.1ms), ideal for high-performance GPU spikes.
Silent and Durable Cooling

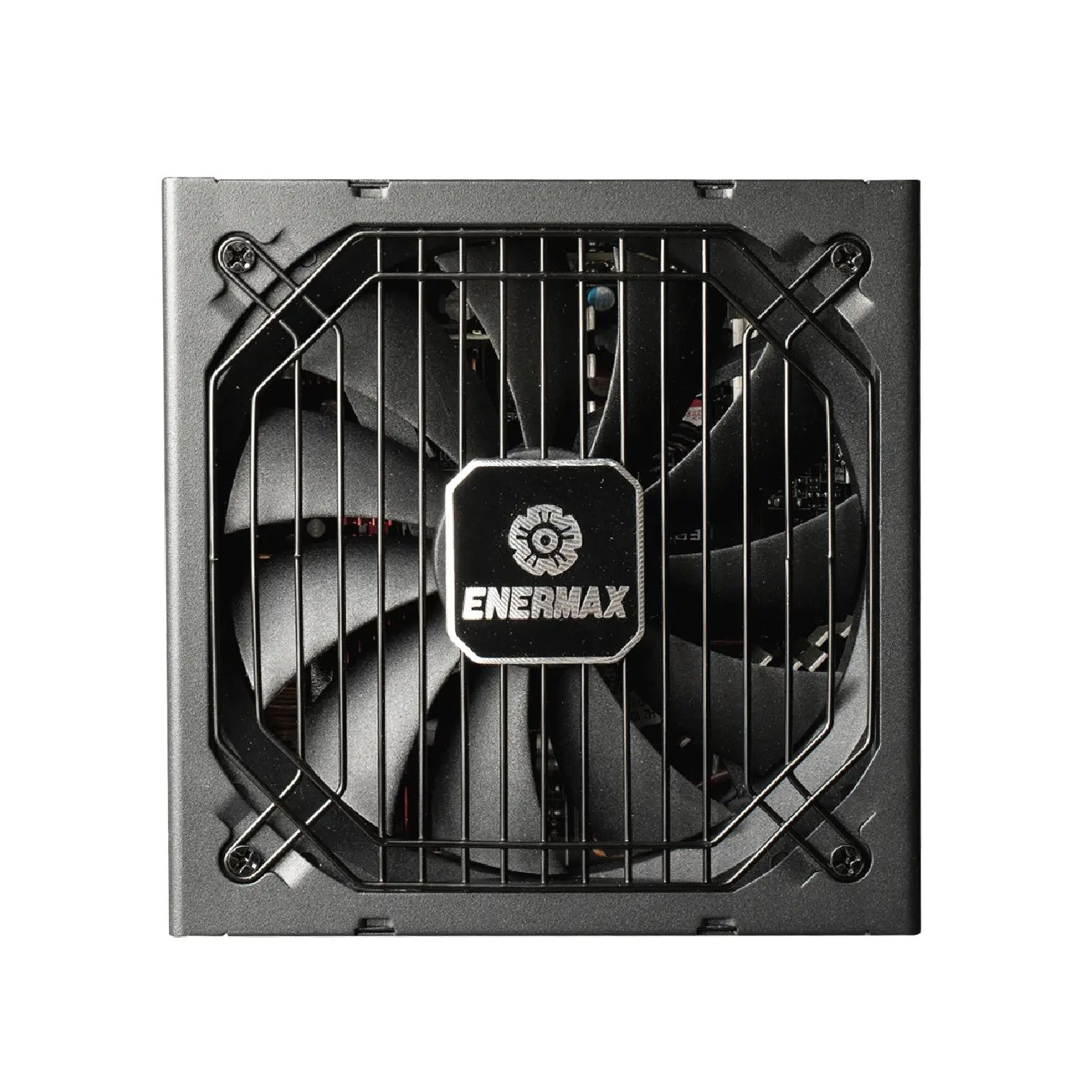

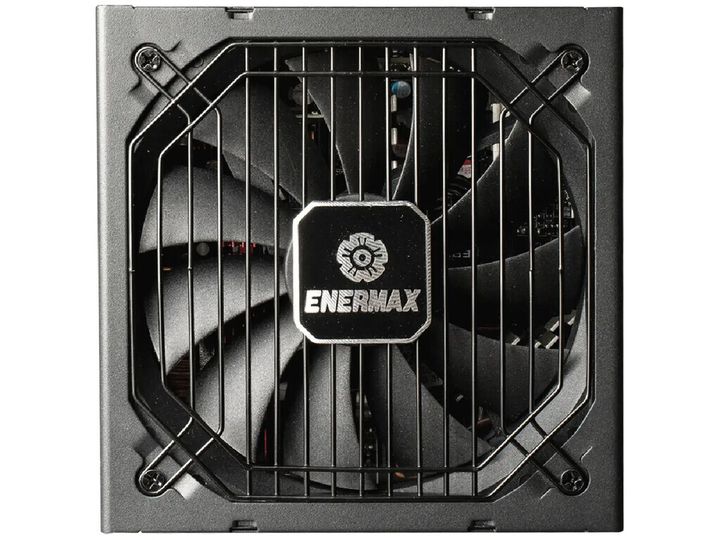

Equipped with a 135mm D.F. fan and 100% Japanese capacitors for over 100,000 hours MTBF at 25°C full load.

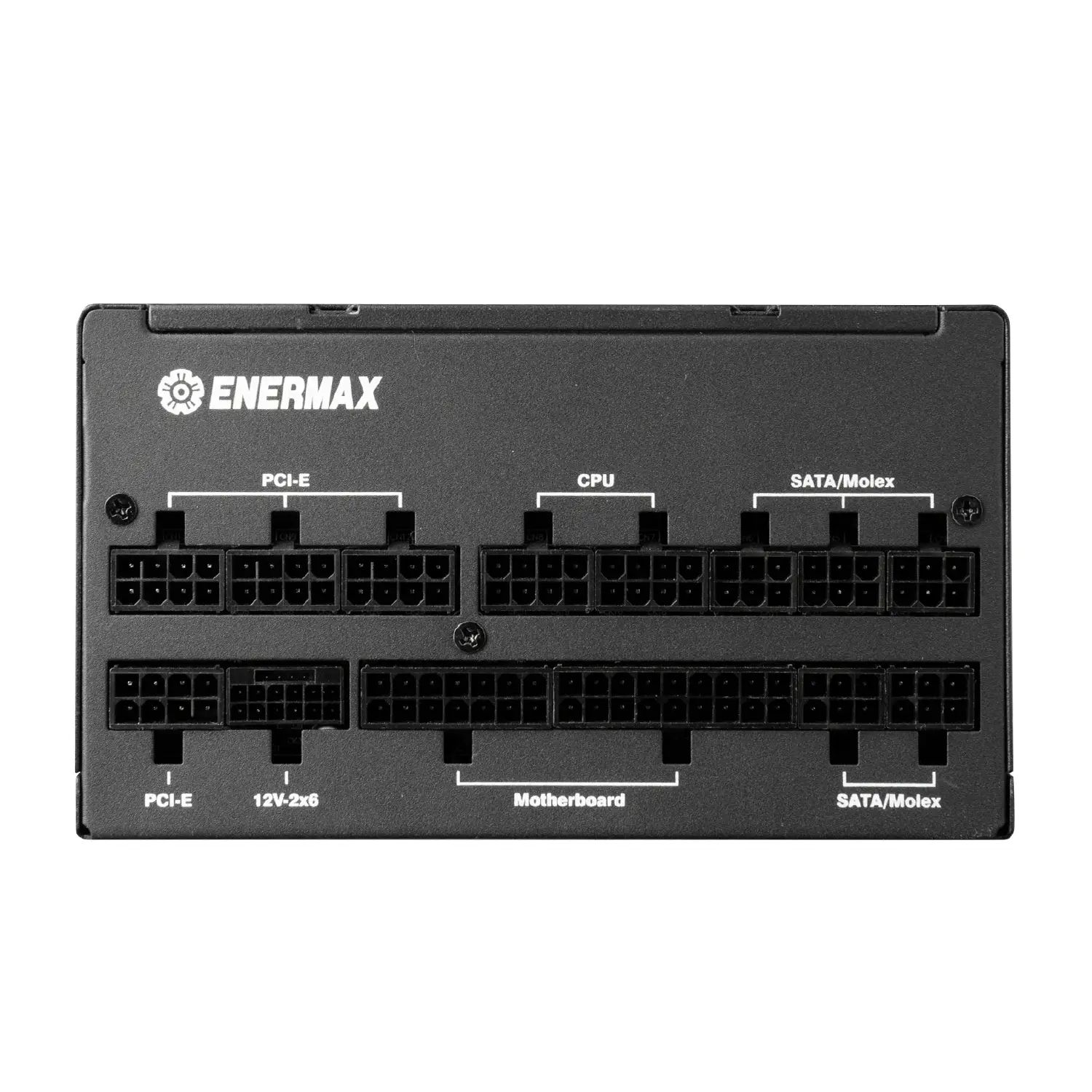

Fully Modular with Comprehensive Protections
Fully modular cable design with built-in protections: OVP, OPP, OCP, SCP, OTP, UVP; certified for operation up to 5000m altitude.
Total power
1200 W
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
Input current
8 - 15 A
Combined power (+3.3V)
100 W
Combined power (+12V)
1200 W
Combined power (+5V)
100 W
Combined power (-12V)
4.8 W
Combined power (+5Vsb)
15 W
Max output current (+3.3V)
20 A
Max output current (+12V)
100 A
Max output current (+5V)
10 A
Max output current (-12V)
0.4 A
Max output current (+5Vsb)
3 A
Efficiency
92%
Power protection features
Over power, Overload, Over current, Short circuit, Overheating, Under voltage

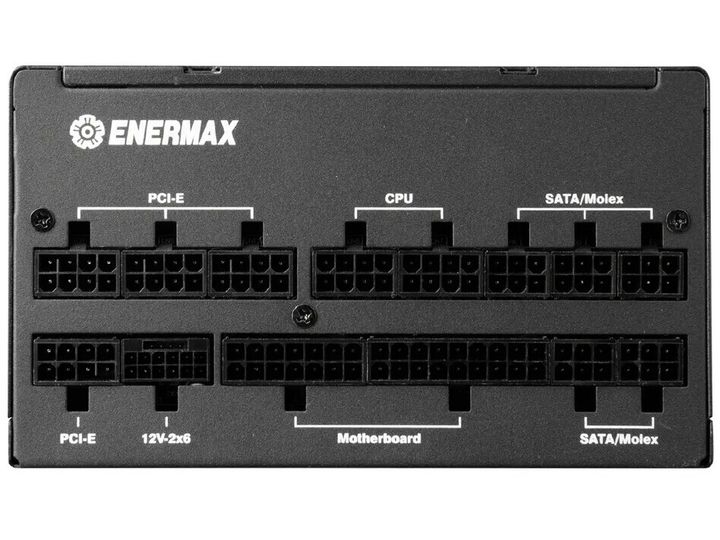

Motherboard power connector
24-pin ATX
Peripheral (Molex) power connectors (4-pin)
4
Motherboard power cable length
60 cm
Number of SATA power connectors
8
SATA power cable length
900 mm
Number of SATA power cables
2
Peripheral (Molex) power cable length
900 mm
PCI Express power connectors (6+2 pin)
3
PCI Express power connectors (12+4 pin)
1
PCI Express power connectors (12+4 pin) cable length
600 mm
PCI Express power cable length
60 cm
CPU power connector (4+4 pin)
Yes
CPU power cable length
70 cm
ATX power connector (12+4 pin)
Yes
Cabling type
Fully-Modular
Purpose
PC
Power supply unit (PSU) form factor
ATX
80 PLUS certification
80 PLUS Gold
Cybenetics certification
Platinum
Mean time between failures (MTBF)
100000 h
Product colour
Black
Fan diameter
13.5 cm

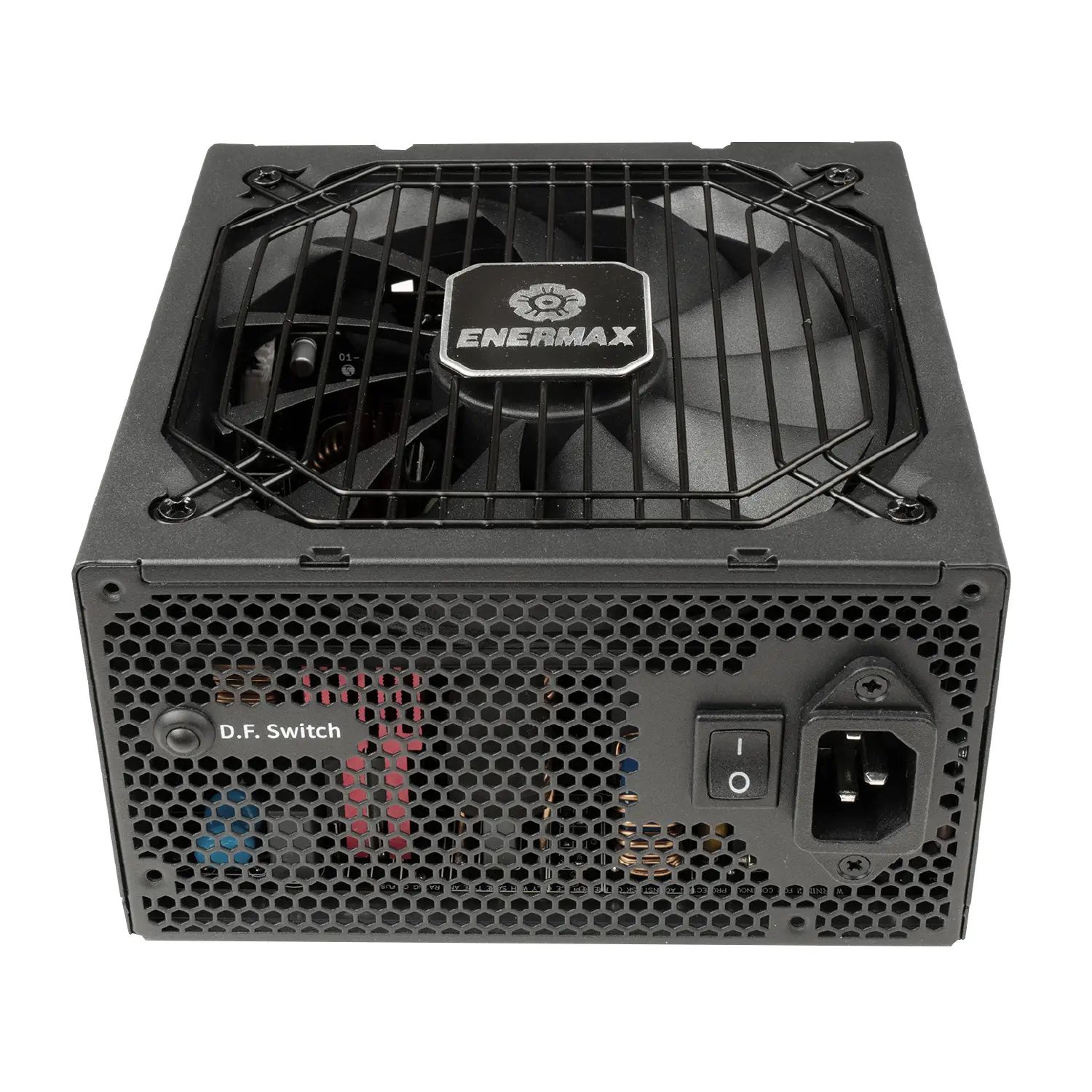

On/off switch
Yes
Compliance certificates
CE, Federal Communications Commission (FCC), EAC
Width
150 mm
Depth
86 mm
Height
150 mm
Package width
330 mm
Package depth
195 mm
Package height
130 mm
Package weight
3.19 kg
Master (outer) case width
605 mm
Master (outer) case length
345 mm
Master (outer) case height
290 mm
Master (outer) case net weight
20.7 kg
