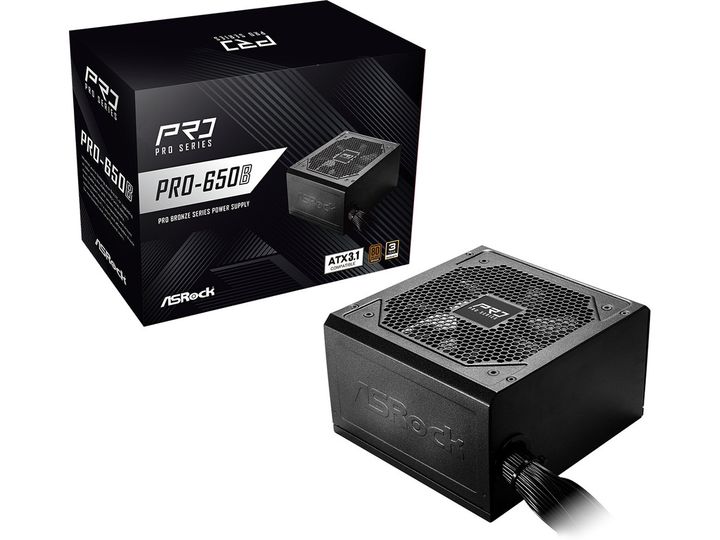

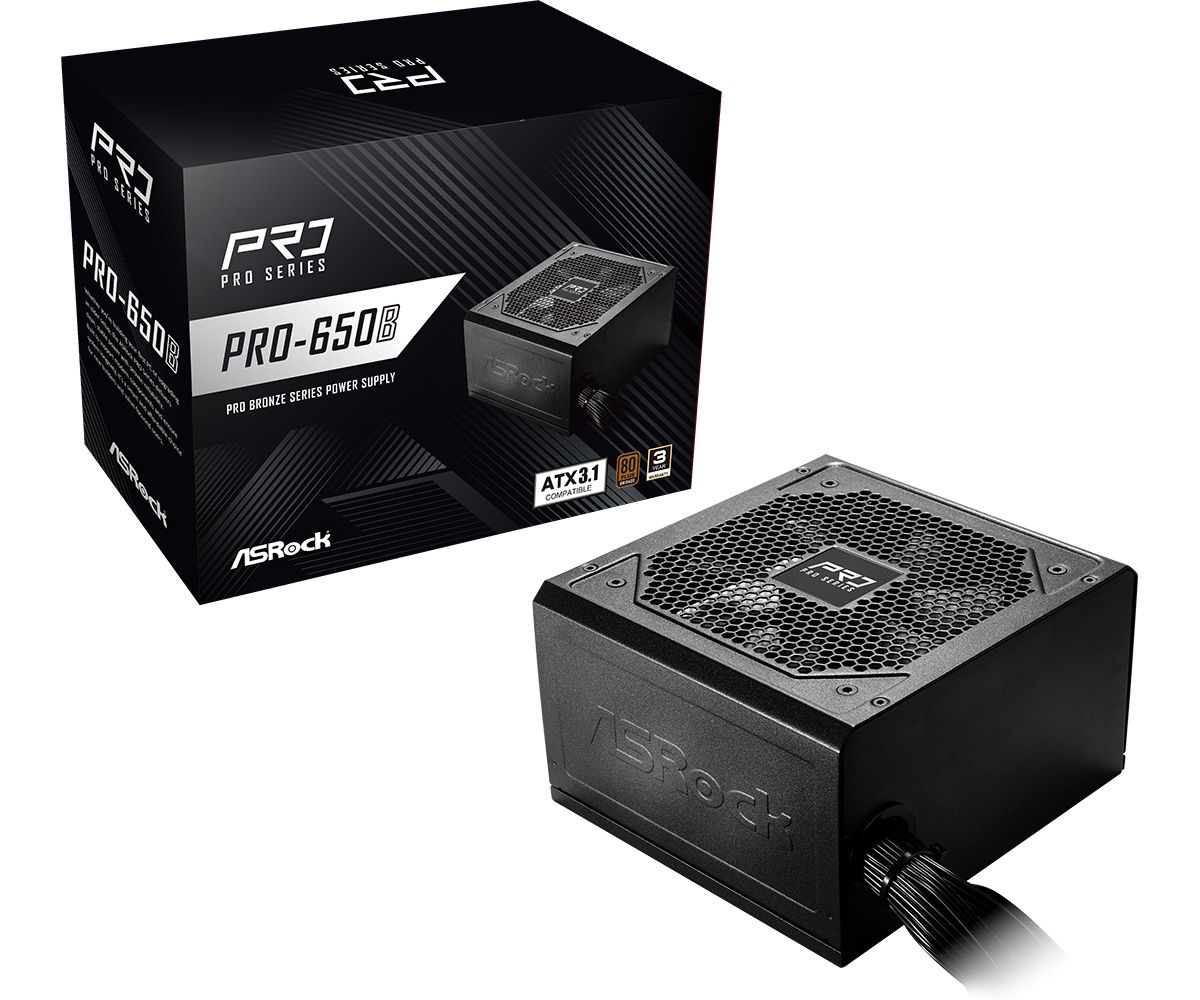

ASRock PRO 650B is an internal ATX power supply designed to deliver stable power for PC and server builds. It supplies up to 650 watt with +12 V rail capacity suited for modern components and supports ATX12V 3.1 and EPS12V standards for broad system compatibility. The unit carries an 80 PLUS Bronze certification to help maintain energy-efficient operation and uses a 120 mm cooling fan to manage thermal performance during typical load conditions.
Built with flat cables and a range of detachable connectors, the power supply simplifies cable routing and system assembly while supporting contemporary motherboard and GPU power needs through PCIe 5.1 compliance. Multiple built-in protections including overcurrent, short-circuit, overvoltage, undervoltage, overheat, and overpower protection are included to help protect components and enhance reliability over long-term use.
Produktbeskrivelse
ASRock PRO 650B - strømforsyning - 650 watt
Enhedstype
Strømforsyning - intern
Specifikationsoverensstemmelse
ATX12V 3.1/ EPS12V
80 PLUS certificering
80 PLUS Bronze
Indgangspænding
AC 100-240 V
Udgangspænding
+3.3, +5, ±12 V, +5Vsb V
Strømkapacitet
650 watt
Output Current
+12V - 54.1 A -12V - 0.3 A +5VSB - 3 A +5V - 18 A +3.3V - 18 A
Output-stikforbindelser

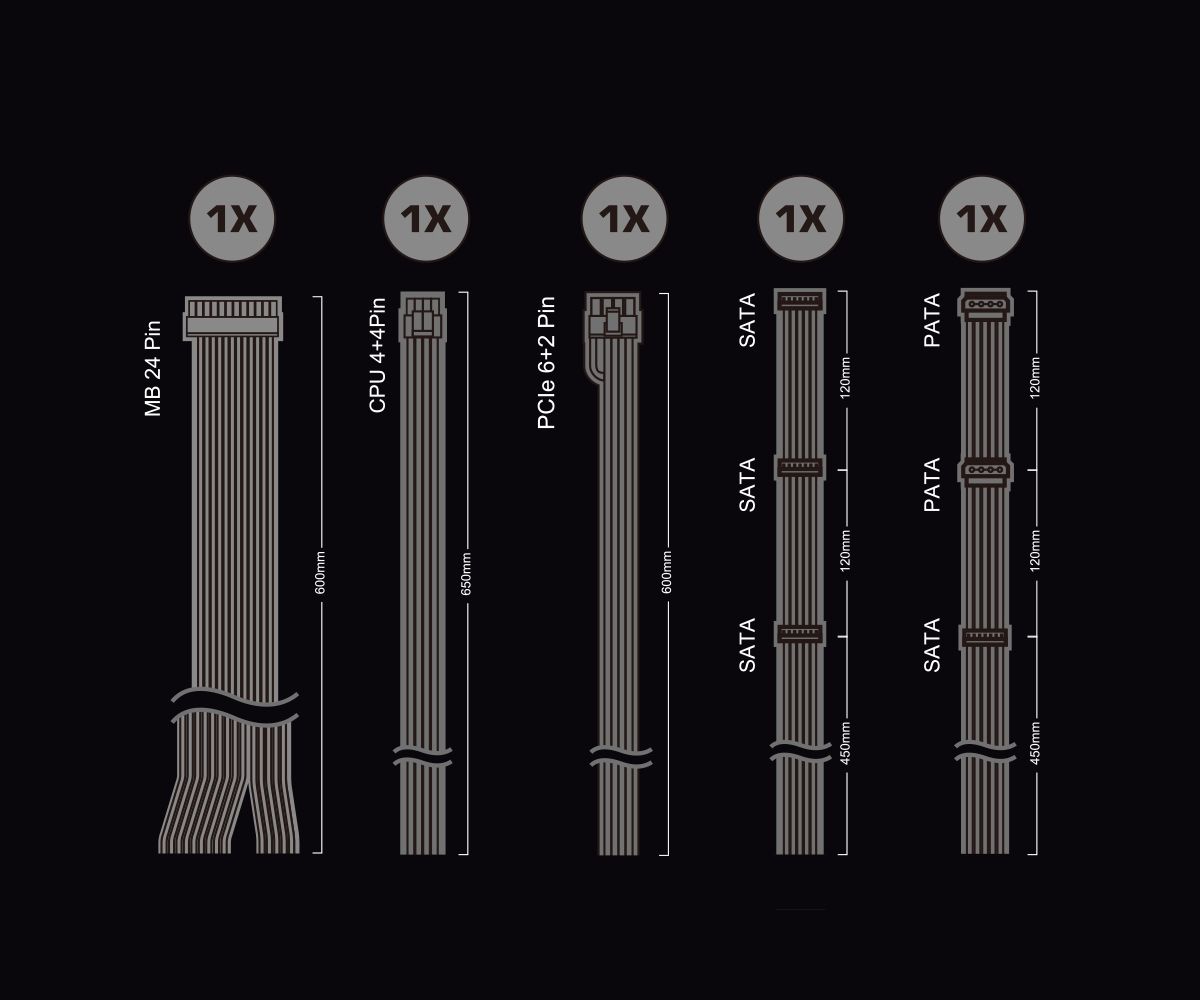

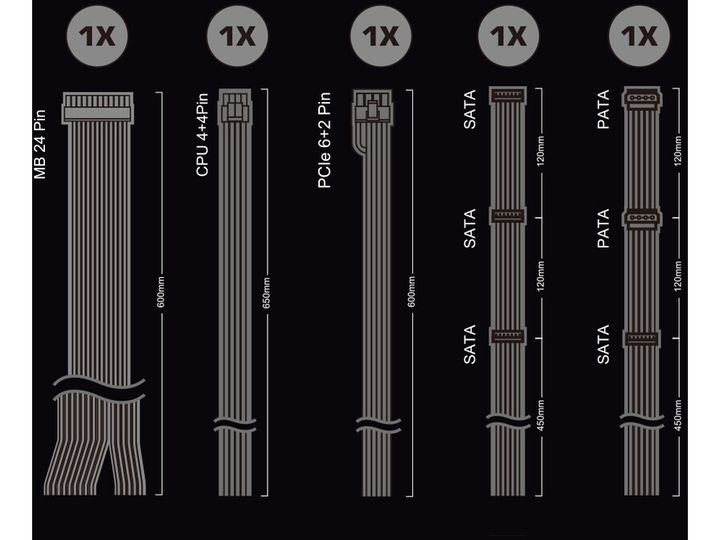

1 x strøm 24 pin ATX med aftagelig 4 pin sektion 1 x strøm 8 pin +12 V med aftagelig 4 pin sektion 1 x 8 pin PCI Express-strøm med aftagelig 2 pin sektion 4 x 15 pin Serial ATA strøm 2 x 4-PIN intern strøm
Kølesystem
120 mm ventilator
Dimensioner (B x D x H)
15 cm x 14 cm x 8.6 cm
Producentgaranti
3 års garanti
Generelt
Enhedstype
Strømforsyning - intern
Specifikationsoverensstemmelse
ATX12V 3.1/ EPS12V
PSU formfaktor
ATX
Strømenhed
Indgangspænding
AC 100-240 V
Nødvendig frekvens
50 - 60 Hz
Detaljer om strømudgangskonnektorer
1 x strøm 24 pin ATX med aftagelig 4 pin sektion 1 x strøm 8 pin +12 V med aftagelig 4 pin sektion 1 x 8 pin PCI Express-strøm med aftagelig 2 pin sektion 4 x 15 pin Serial ATA strøm 2 x 4-PIN intern strøm
Udgangspænding
+3.3, +5, ±12 V, +5Vsb V
Strømkapacitet
650 watt
Output Current
+12V - 54.1 A -12V - 0.3 A +5VSB - 3 A +5V - 18 A +3.3V - 18 A
80 PLUS certificering
80 PLUS Bronze
Diverse
MTBF (forventet tid mellem fejl)
100,000 timer
Kølesystem
120 mm ventilator
Egenskaber
Flade kabler, beskyttelse mod overstrøm, kortslutnings beskyttelse, overspændingsbeskyttelse, beskyttelse mod underspænding, beskyttelse mod overophedning, overbelastningsbeskyttelse
Overensstemmelsesstandarder
PCIe 5.1
Producentgaranti
Service & Support
Begrænset garanti - 3 år
Mål og vægt
Bredde
15 cm
Dybde
14 cm
Højde
8.6 cm
